ASUS Prime B810M-A WiFi motherboard, socket LGA 1851, Intel H810, mATX, DDR5

– Slots: 1x PCIe 4.0 x16 (x16) and 1x PCIe 4.0 x1
– RAM: 2x DIMM slots for up to 96 GB DDR5 RAM up to 6400 MT/s
– Storage: 2x M.2 (2x PCIe 4.0) and 4x SATA
– USB: 2x USB 3.1 and 4x USB 2.0
– Cooling: 3x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 6 and Bluetooth 5.3

ASUS Prime B810M-A WiFi: Micro-ATX motherboard with Intel LGA 1851 socket and H810 chipset
The ASUS Prime B810M-A WiFi is a Micro-ATX motherboard with the entry-level Intel H810 chipset and the Intel LGA 1851 socket. It supports Intel processors. Arrow Lake generation and is suitable for office tasks and casual gaming. Overclocking of the CPU and RAM is not possible.

The ASUS Prime B810M-A WiFi also offers the PCIe 4.0 standard for graphics cards and M.2 SSDs, which is twice as fast as PCIe 3.0.

Technical Details
– Dimensions
– Length / Depth
– 244 mm
– Width
– 222 mm
– Form Factor
– Motherboard Form Factor
– Micro-ATX
 -CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– – Intel H810
– RAM
– Max. RAM
– 96 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 6400 MT/s
– ECC Support
– No
– Memory Slots
– 2x
– Performance Profile
– Intel XMP
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– WLAN / Bluetooth
– Yes
– Bluetooth Standard
– 5.3
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 8-Pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 1
– USB 2.0 (internal) possible ports
– 2
– RGB / LED ports
– 3x Digital RGB (3-pin 5VDG)
– Front panel audio header
– Yes
– SPI TPM header
– Yes

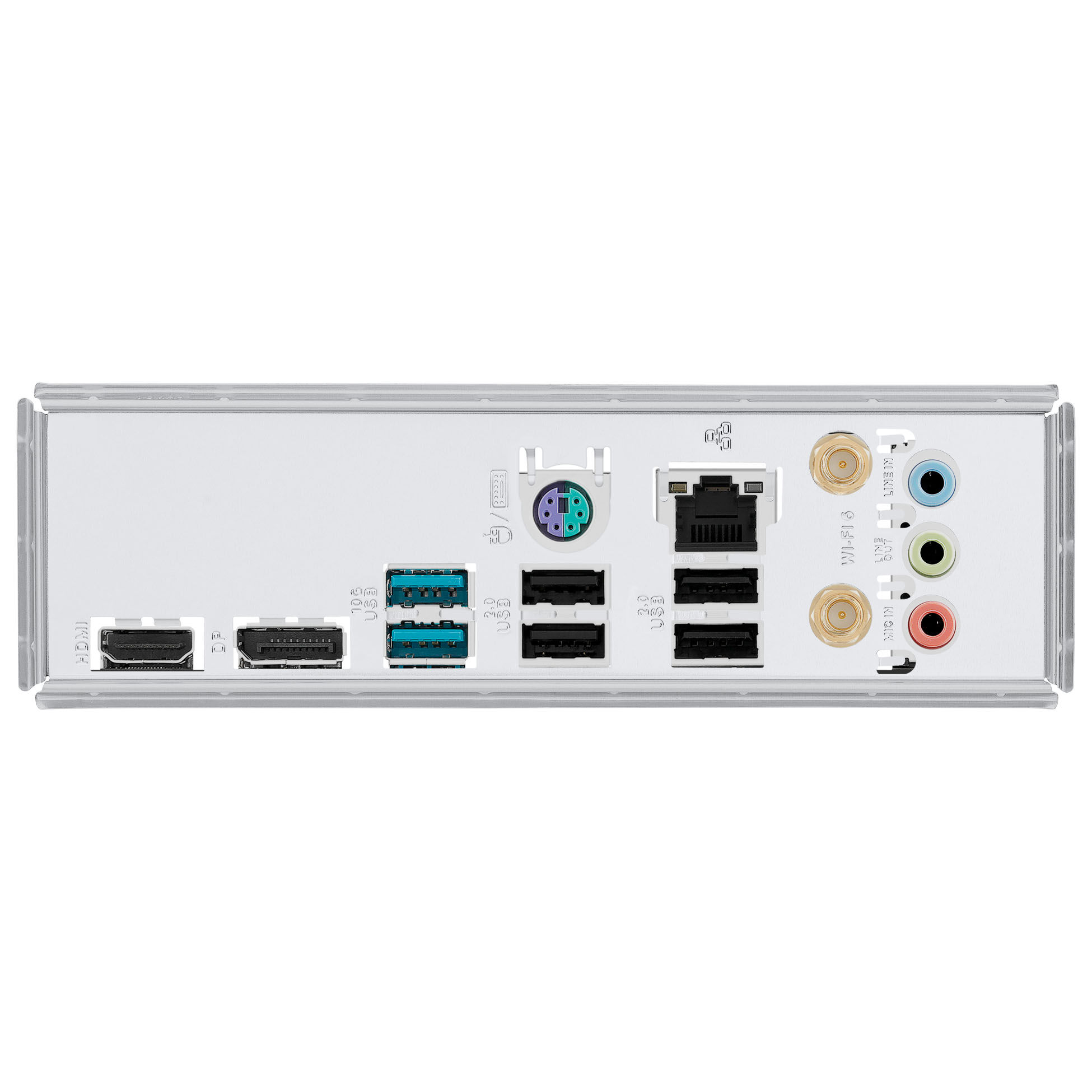

– External ports
– USB 3.1 (external) Type-A
– 2
– USB 2.0 (external) Type-A
– 4
– Display ports
– Display Port (1x), HDMI (1x)
– Storage ports
– M.2 PCIe 4.0 x2
– 1
– M.2 PCIe 4.0 x4
– 1
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
– Expansion Slots
– PCIe x16 Slots (Total)
– 1
– PCIe x1 Slots (Total)
– 1
– PCIe 4.0 x16 (Mechanical)
– 1
– PCIe 4.0 x1 (Mechanical)
– 1
– Fan Headers
– 4-pin Fan Connectors
– 3
– Lighting
– Lighting / RGB
– Yes
– Lighting Color
– RGB
