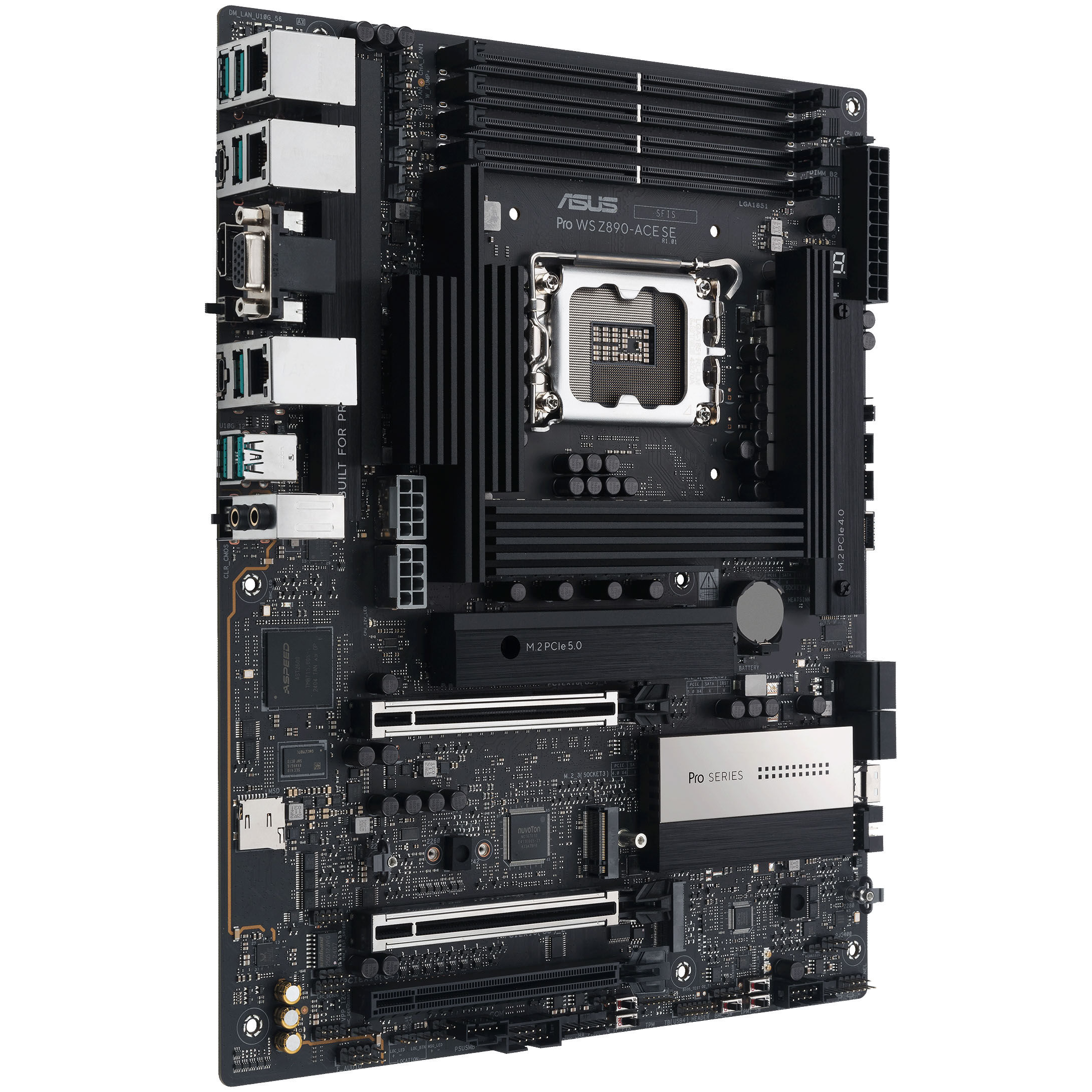

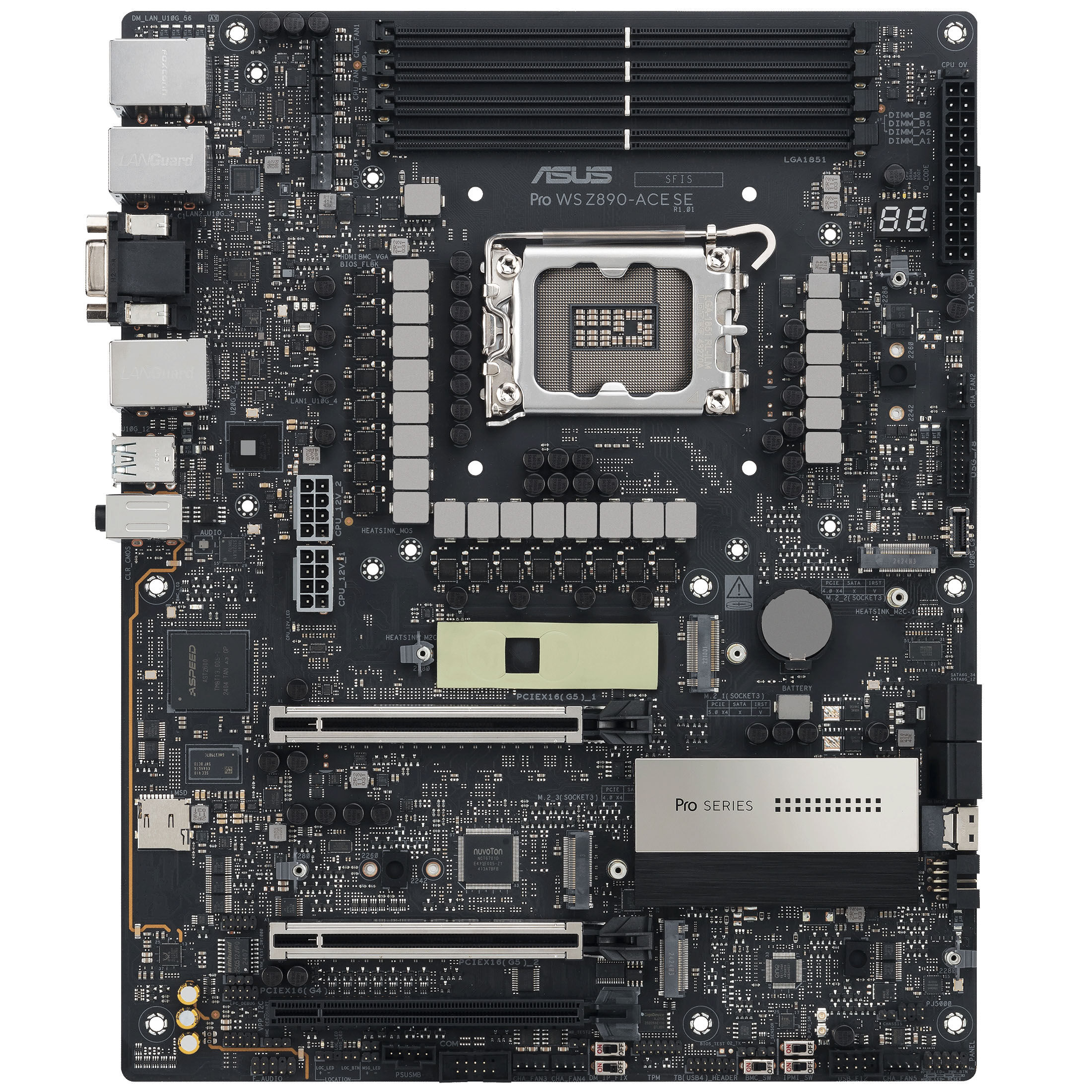

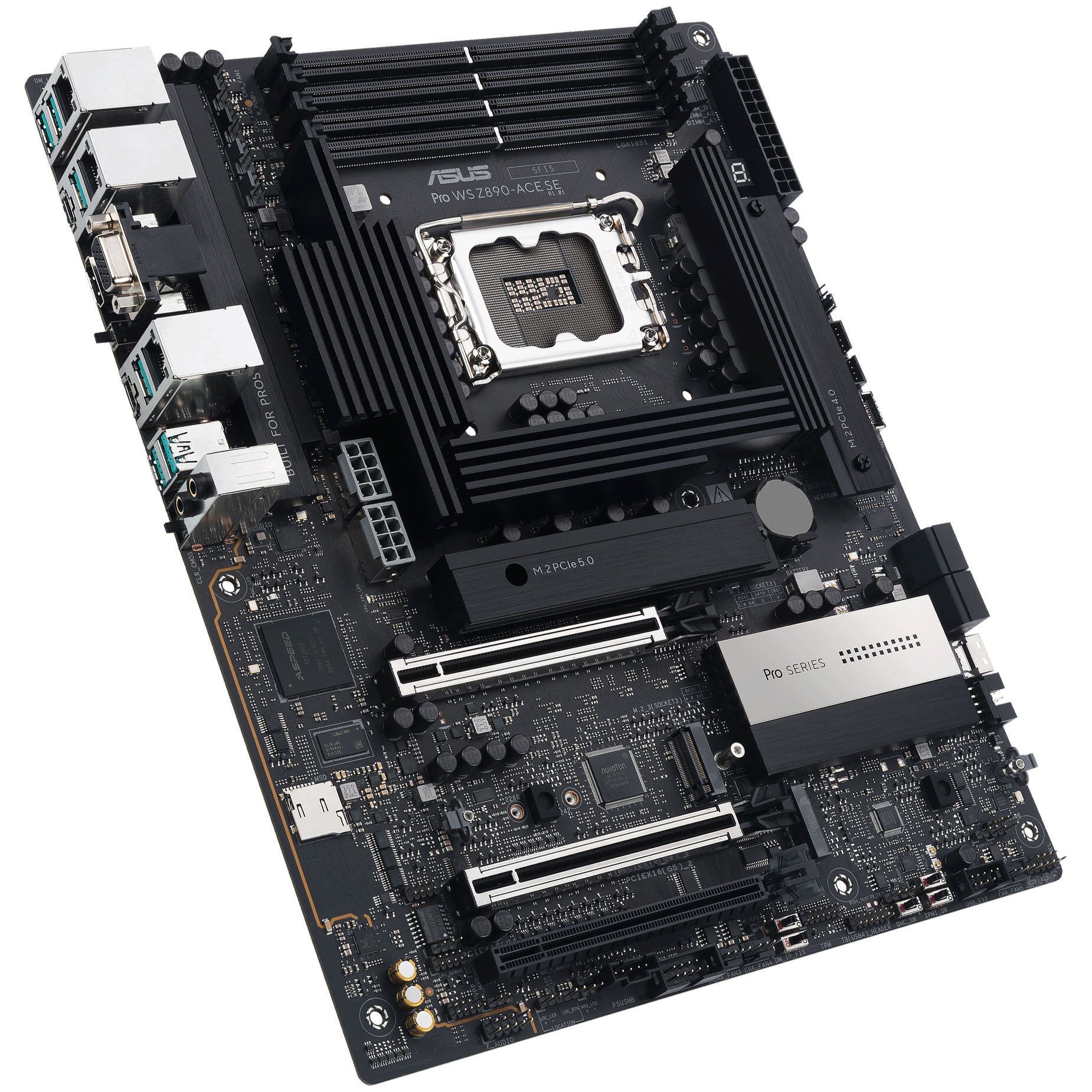

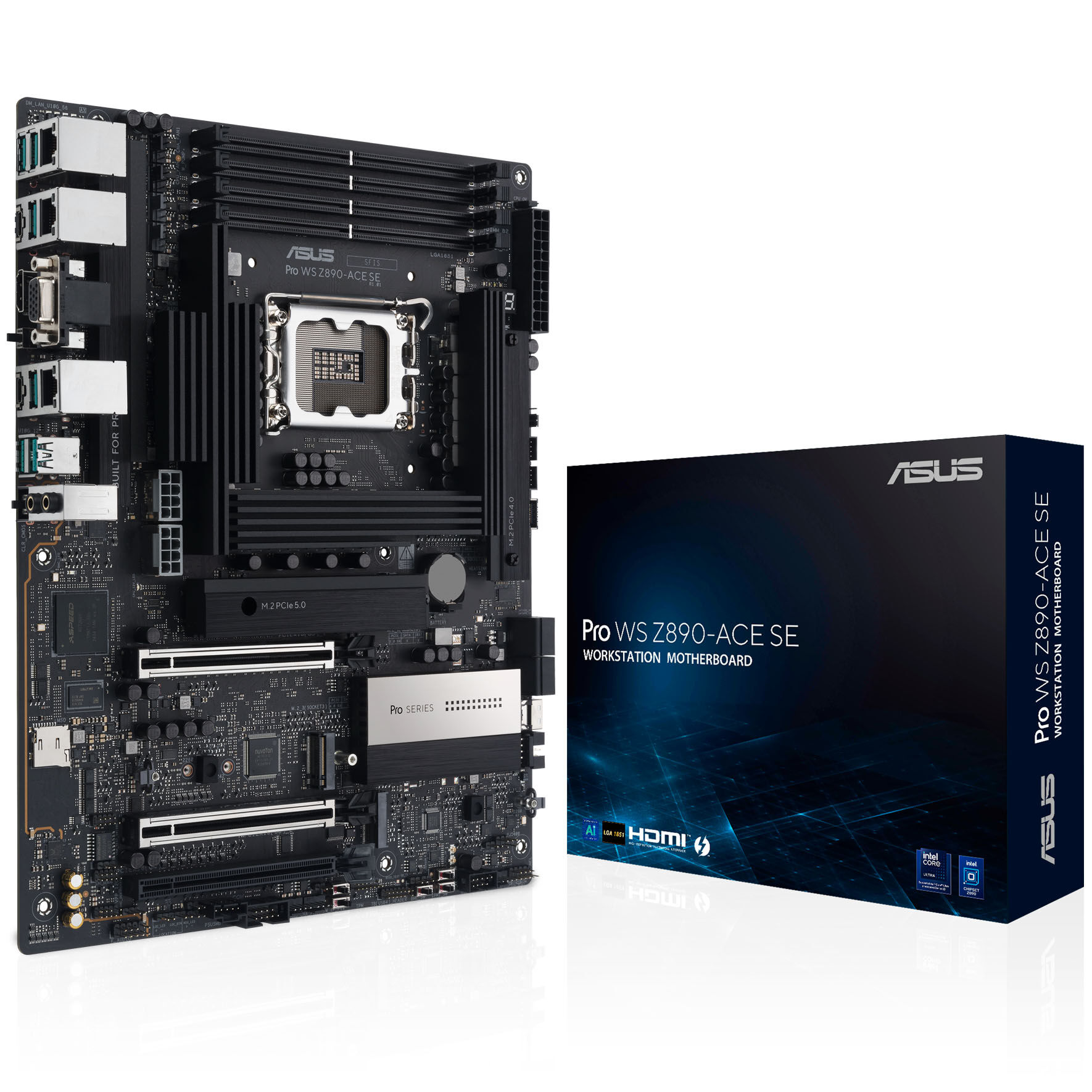

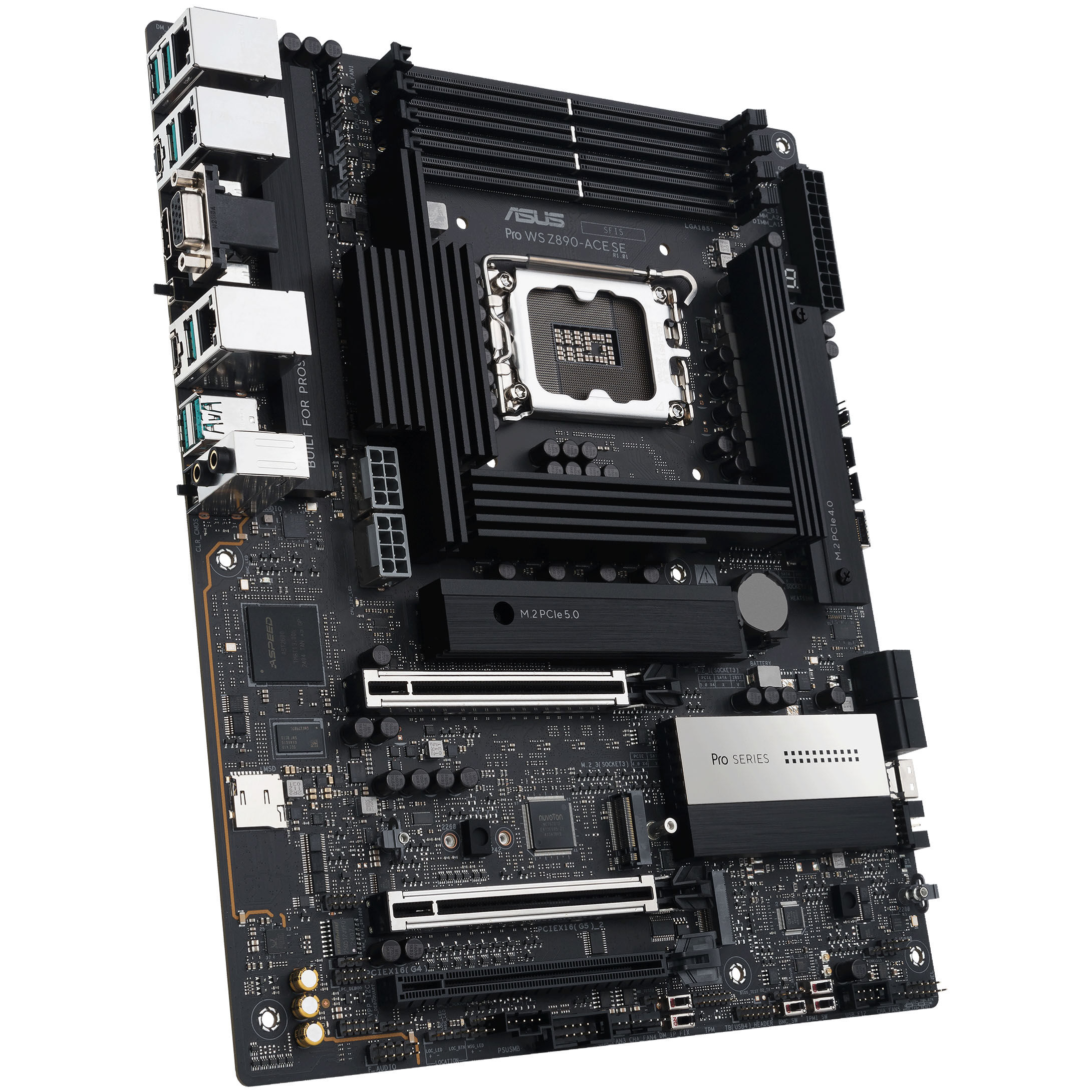

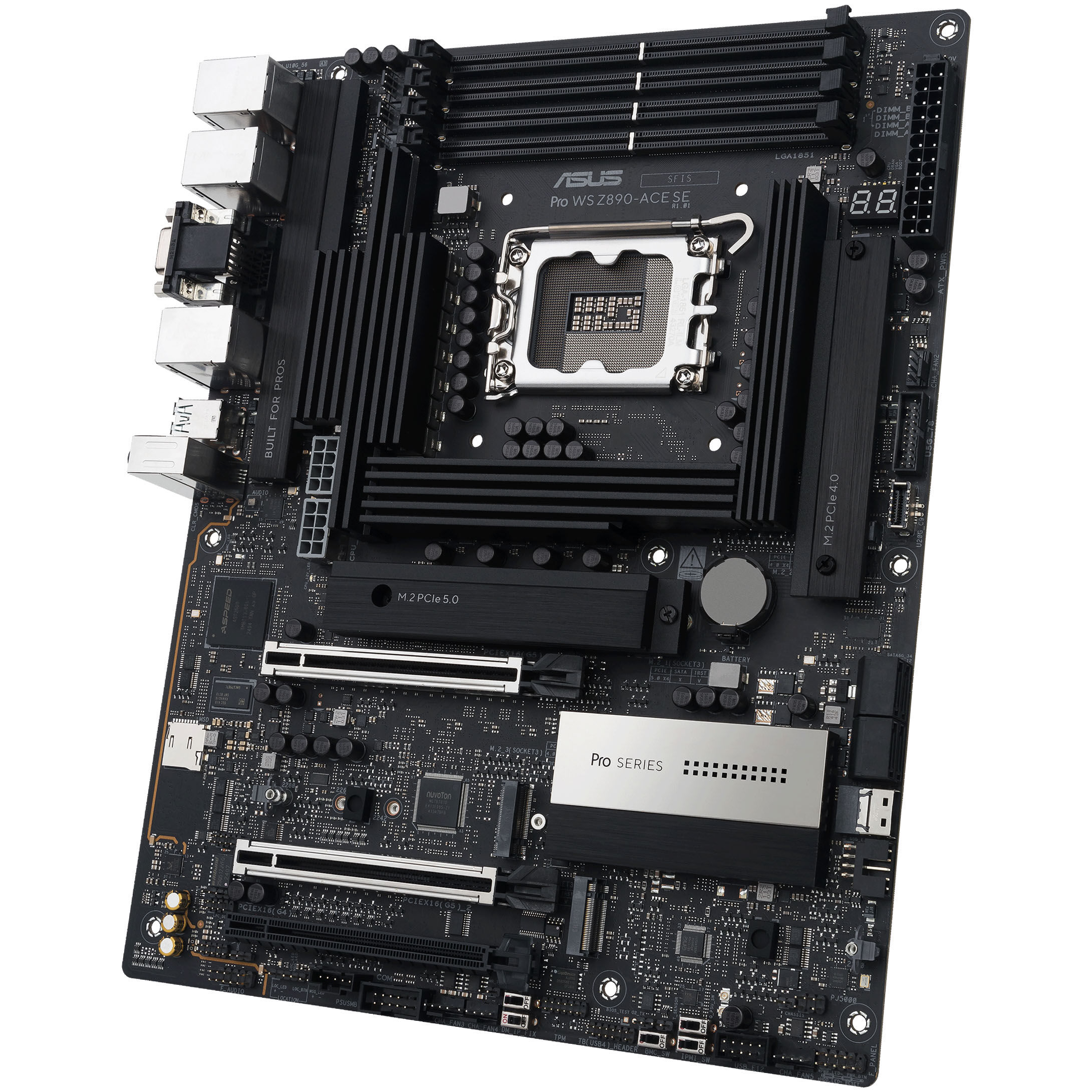

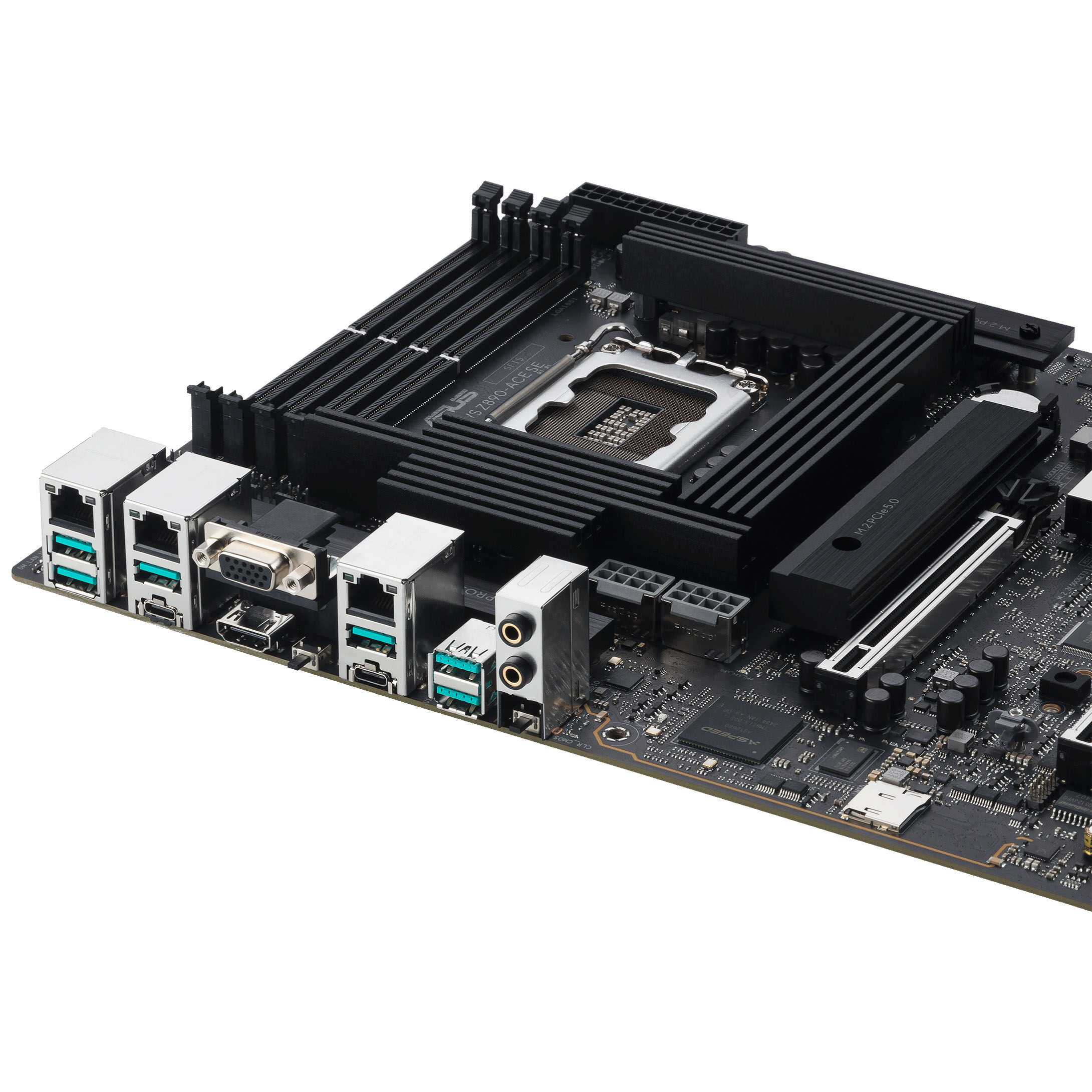

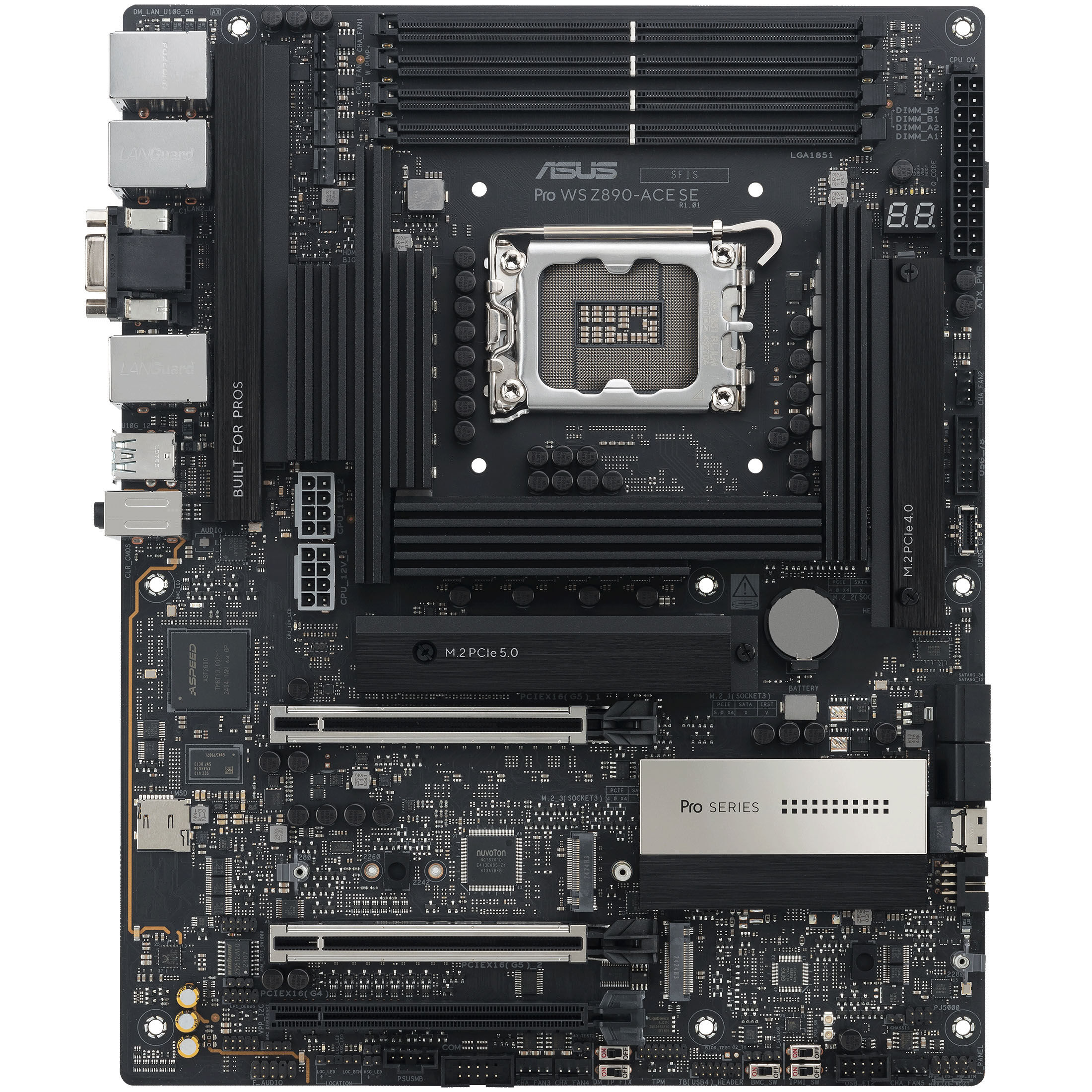

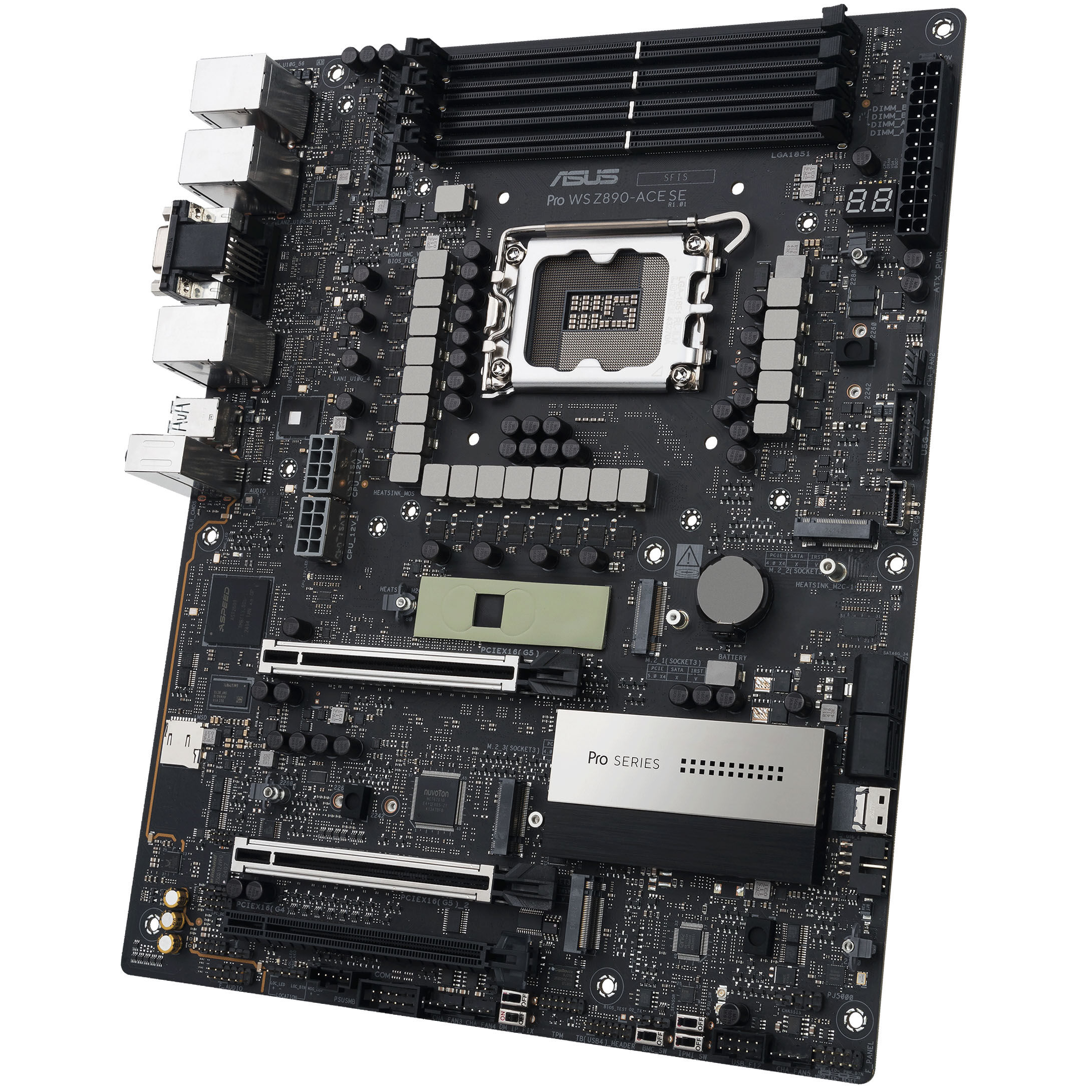

ASUS Pro WS Z890-ACE SE motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end builds and AI applications.

– 2x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9066 MHz (XMP 3.0 & CUDIMM support)
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 8x SATA 6G
– USB on the I/O panel: 1x Thunderbolt, 1x USB 3.2 Type-C, 6x USB 3.1
– OC features: 16+2+1+2 phase VRMs, CMOS reset, Digi+
– A total of 8x 4-pin connectors for fans and pumps

ASUS Pro WS Z890-ACE SE: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS Pro WS Z890-ACE SE is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS Pro WS Z890-ACE SE boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– Dual BIOS
– No
– Built-in IO Shield
– No
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 9066 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP 3.0
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 3x (total)
– Wi-Fi / Bluetooth
– No
– Cooling
– Backplate
– No
– M.2 Heatsink
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB4 (internal) Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 2
– USB 2.0 (internal) possible ports
– 4
– Front-panel audio header
– Yes
– SPI TPM header
– Yes

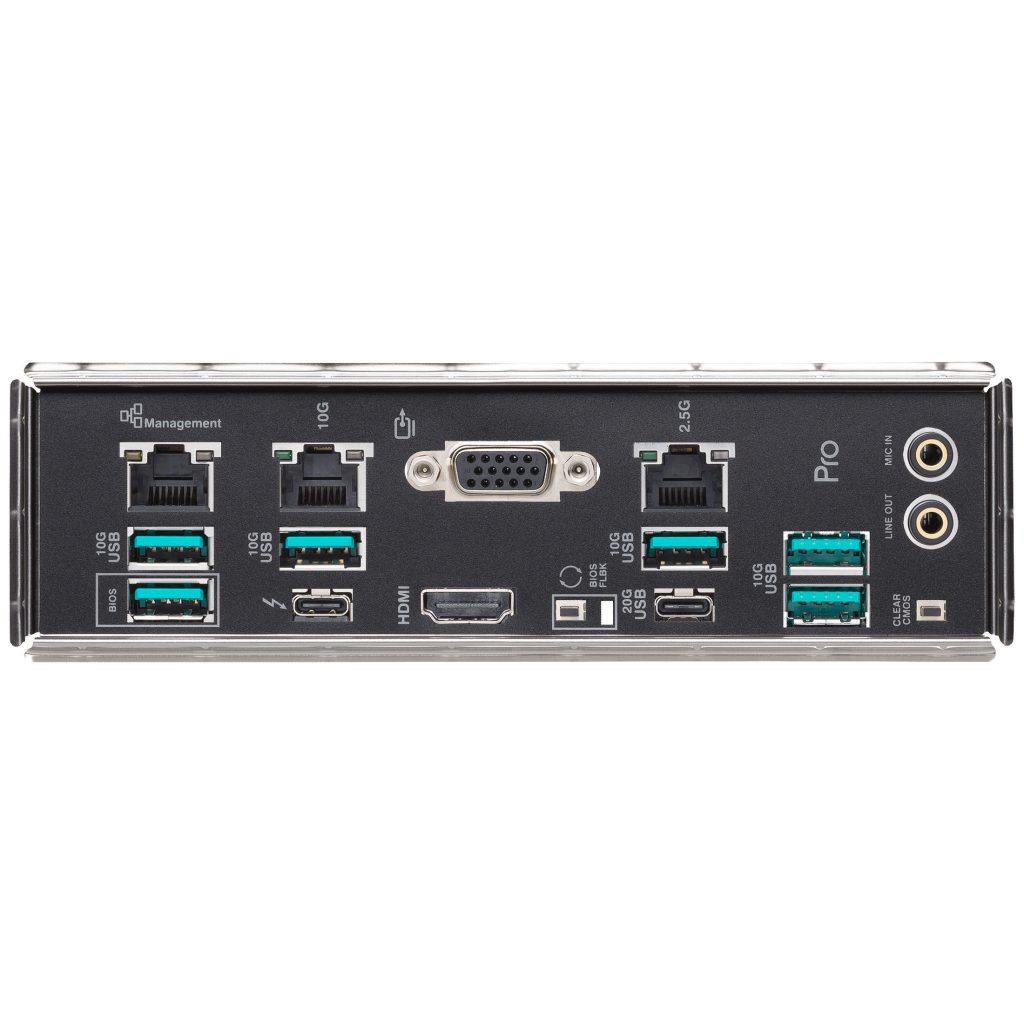

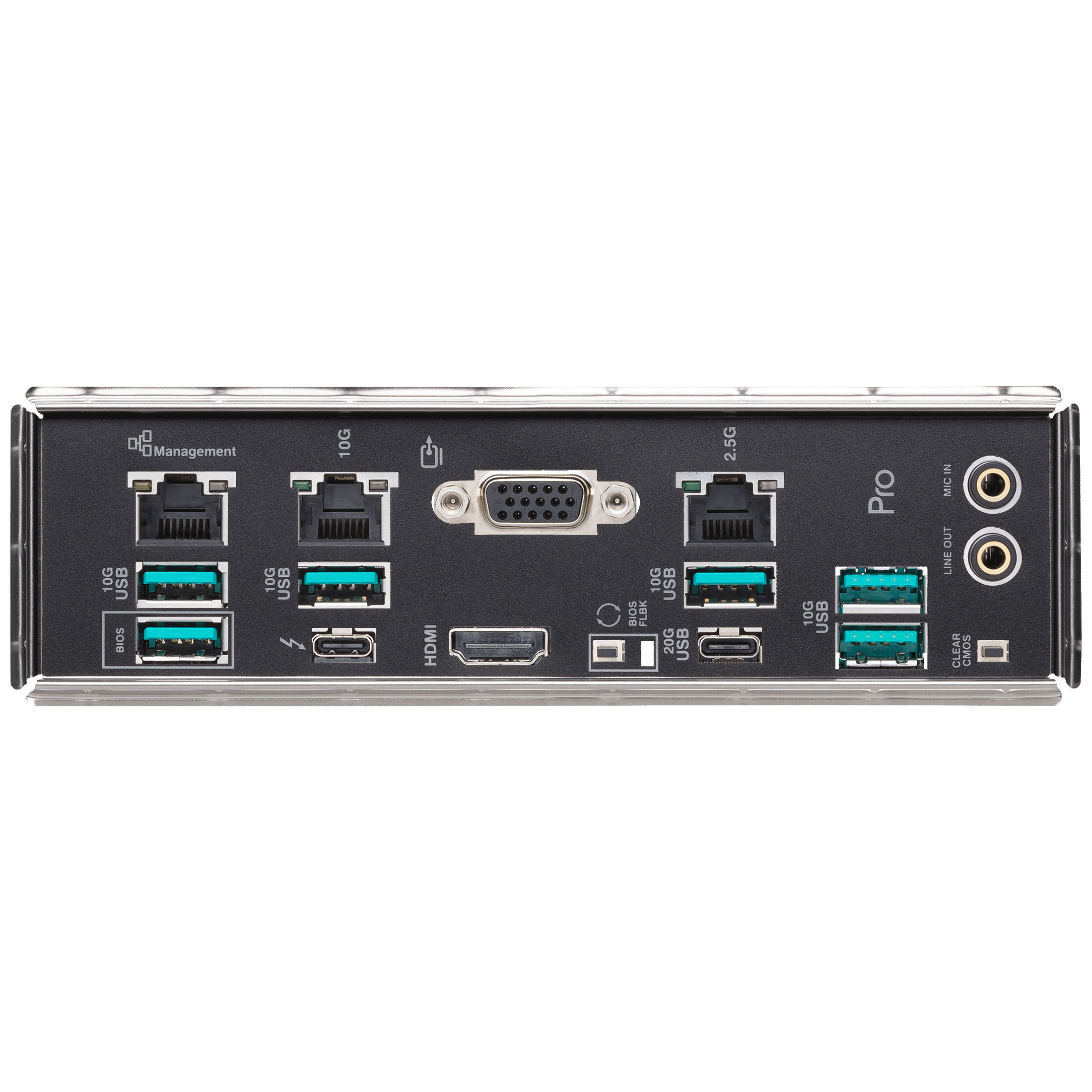

– External ports
– USB 4 Gen 3×2 (external) Type-C
– 1
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 6
– Storage ports
– M.2 PCIe 4.0 x4
– 3
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 8
– Expansion slots
– PCIe x16 slots (total)
– 2
– PCIe x4 slots (total)
– 1
– PCIe 5.0 x16 (mechanical)
– 2
– PCIe 4.0 x16 (mechanical)
– 1
– Fan Header
– 4-pin Fan Connectors
– 8
– Audio
– Sound Chip
– Realtek ALC1220P
– Lighting
– Lighting / RGB
– No
