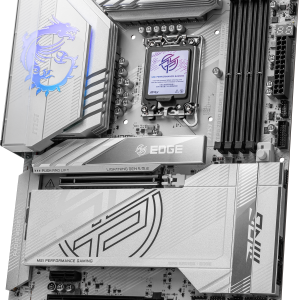

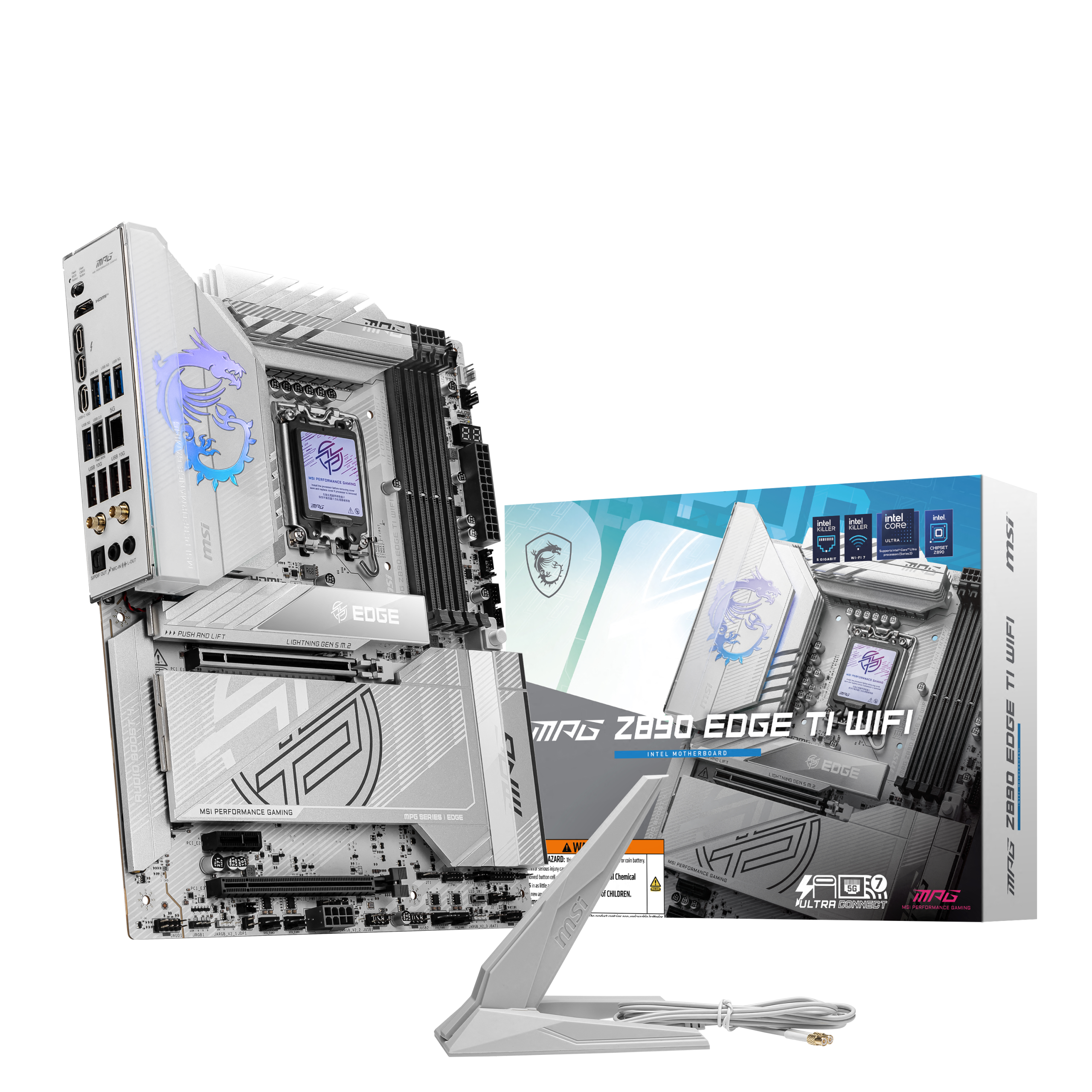

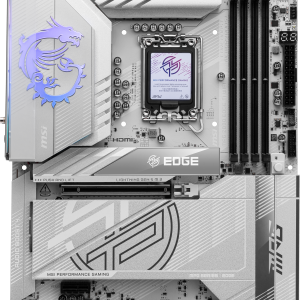

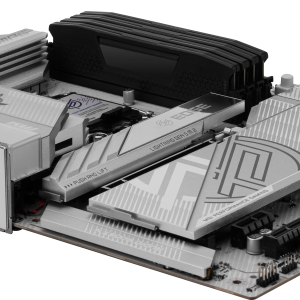

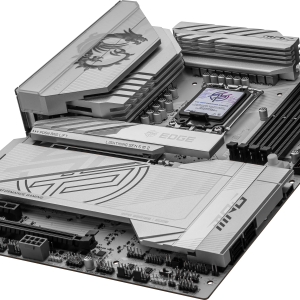

MSI MPG Z890 Edge TI WIFI motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gaming enthusiasts.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x1
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9200 MHz
– 5x M.2 (including 1x PCIe 5.0 and 4x PCIe 4.0) / 4x SATA 6G

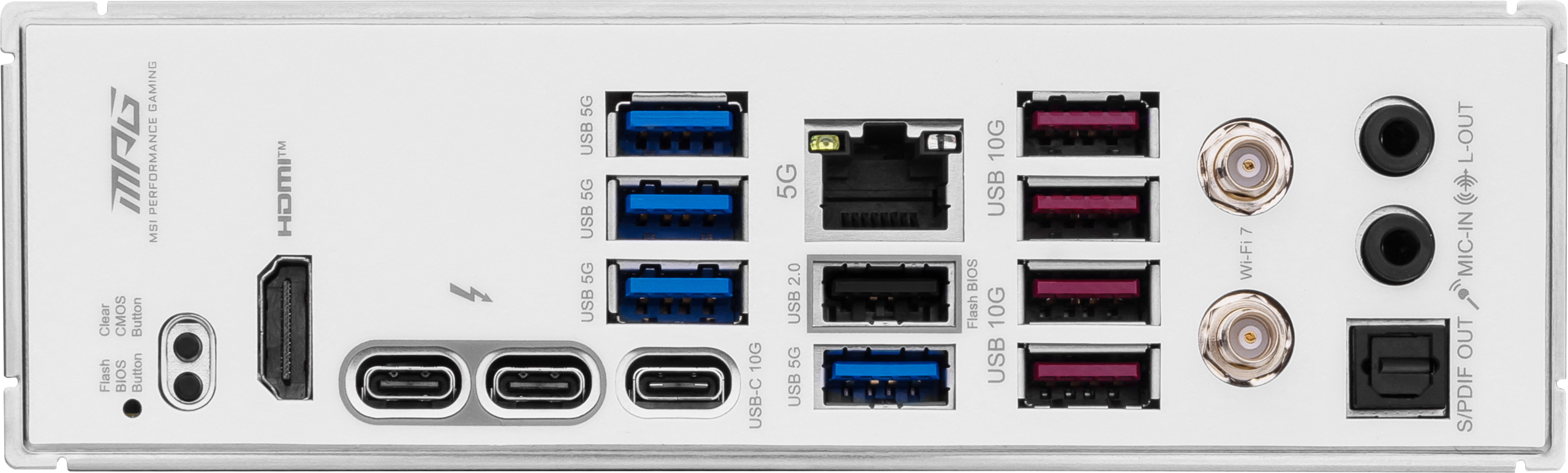

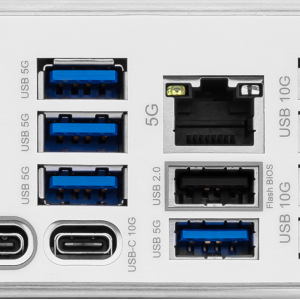

– USB on the I/O panel: 2x Thunderbolt 4, 1x USB-C 3.1, 4x USB 3.1, 4x USB 3.0, and 1x USB 2.0
– A total of 8x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

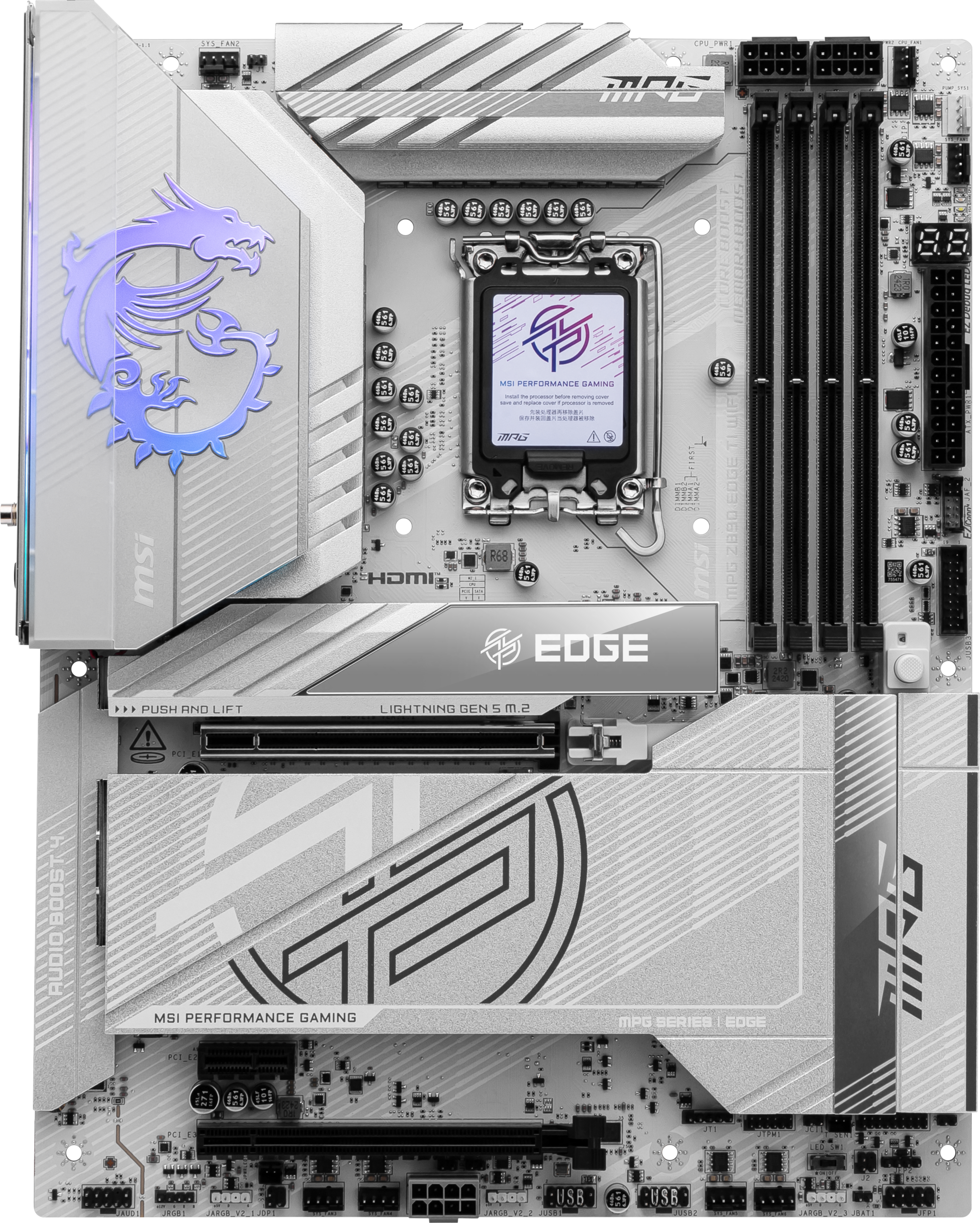

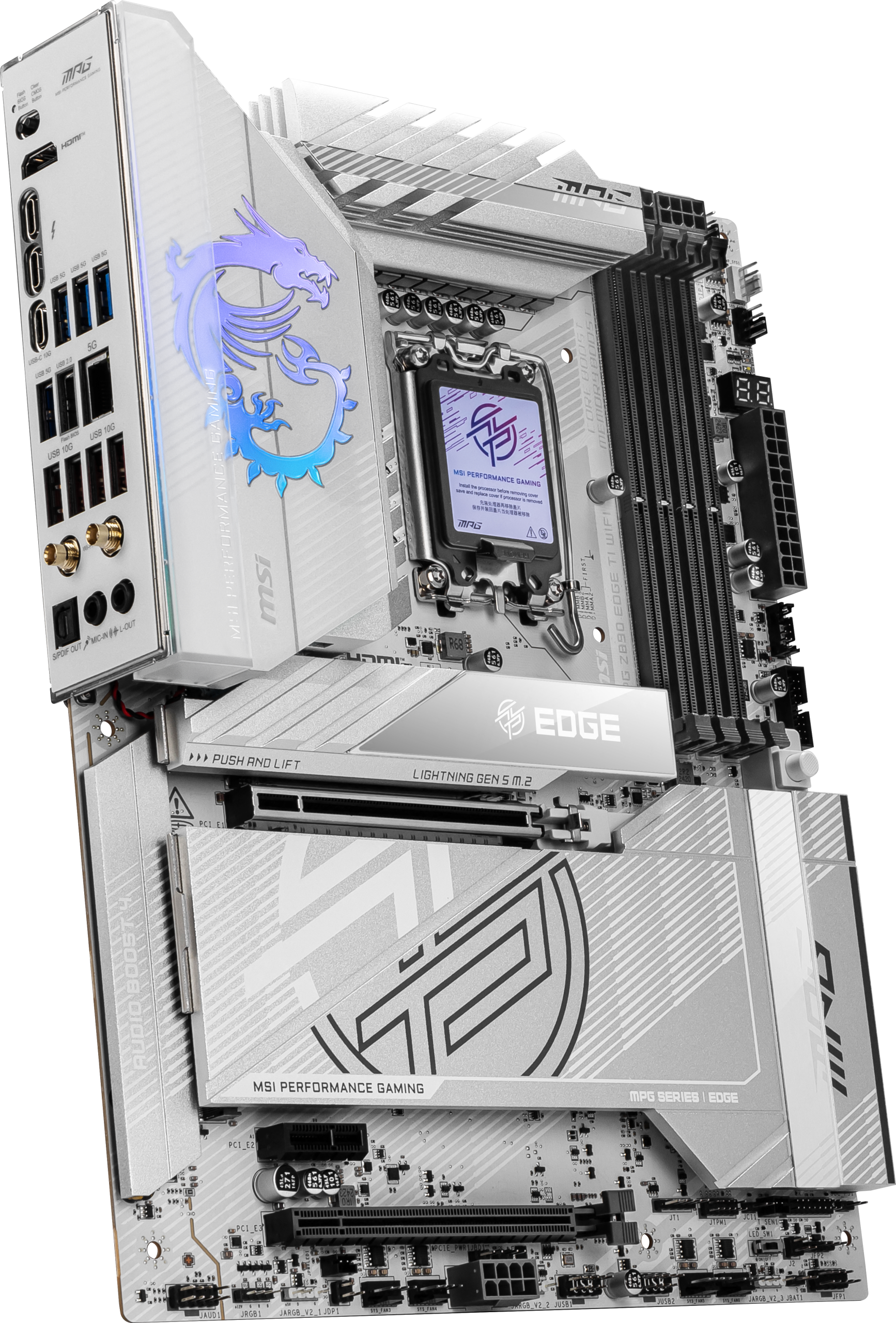

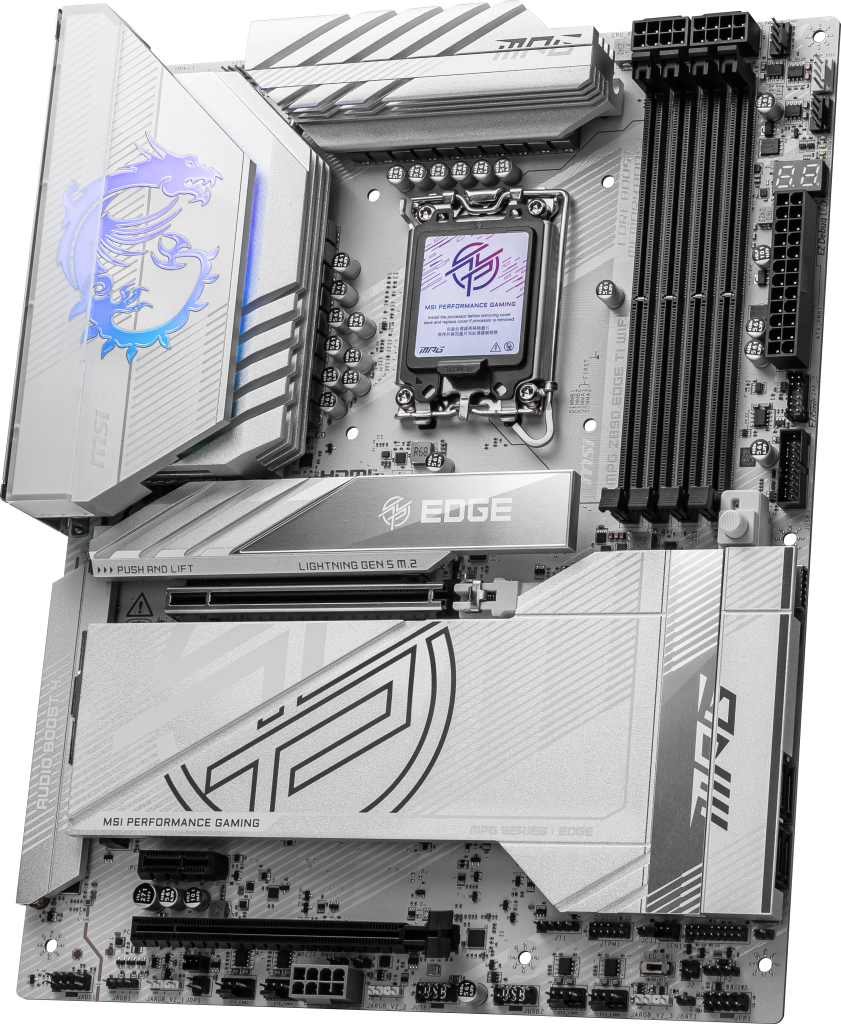

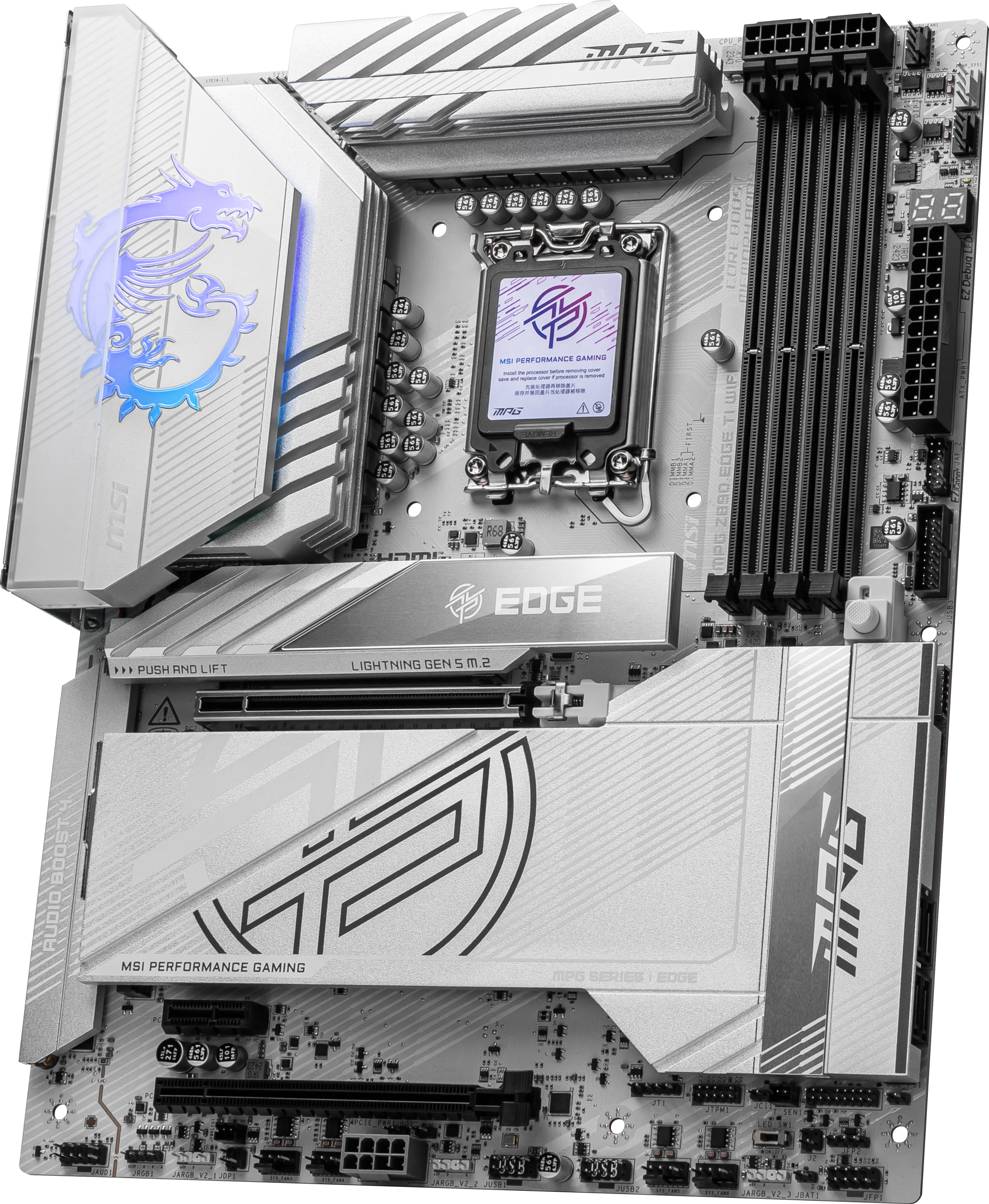

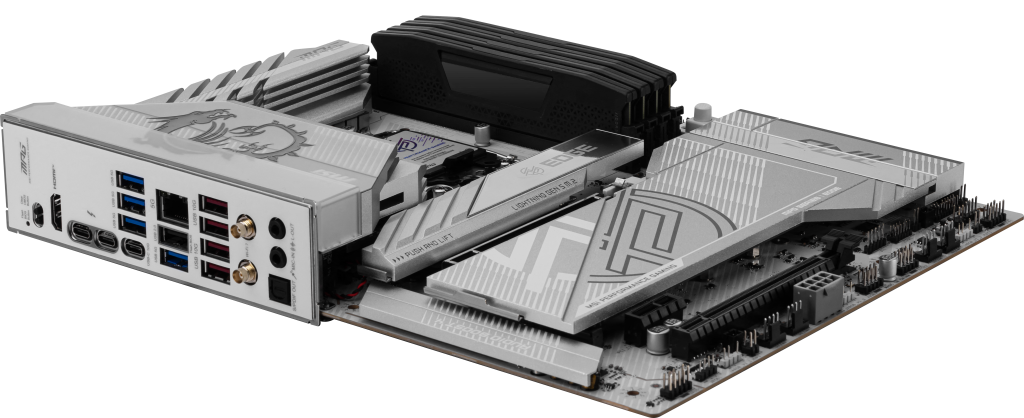

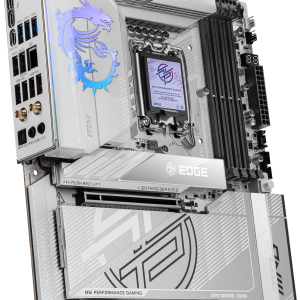

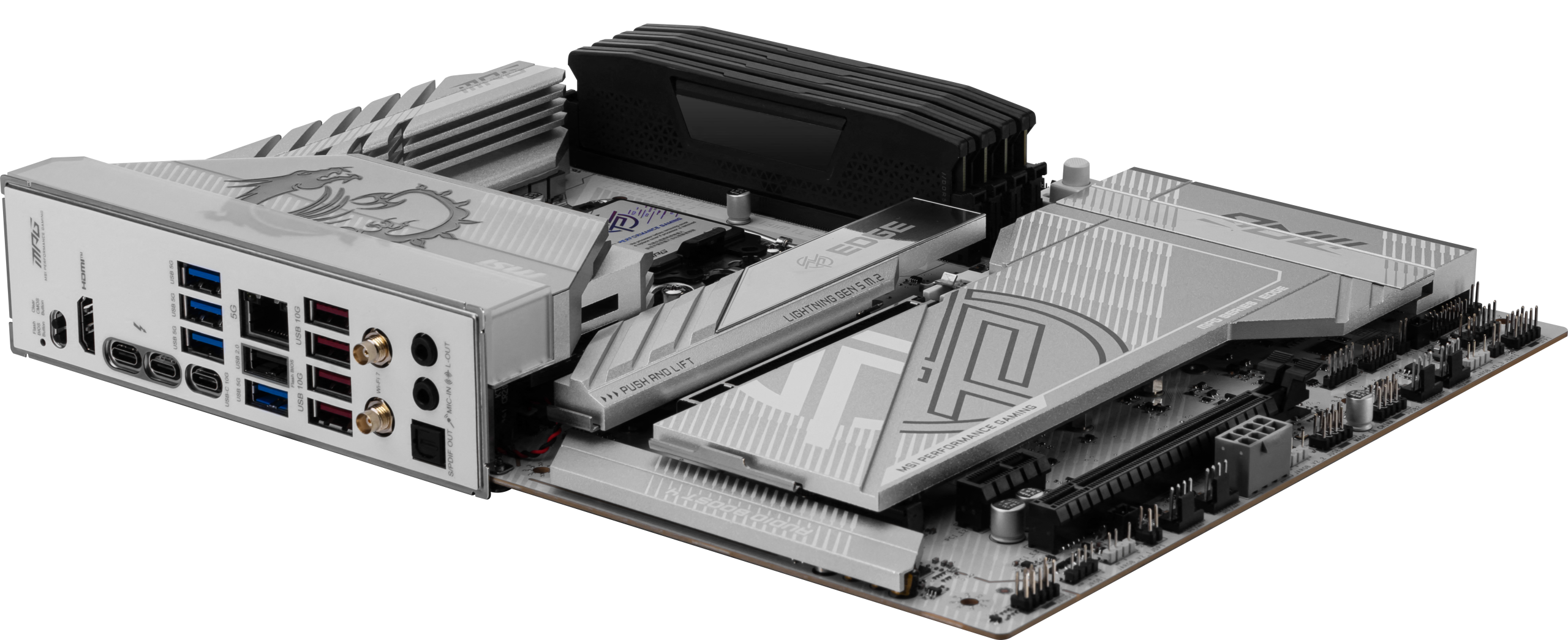

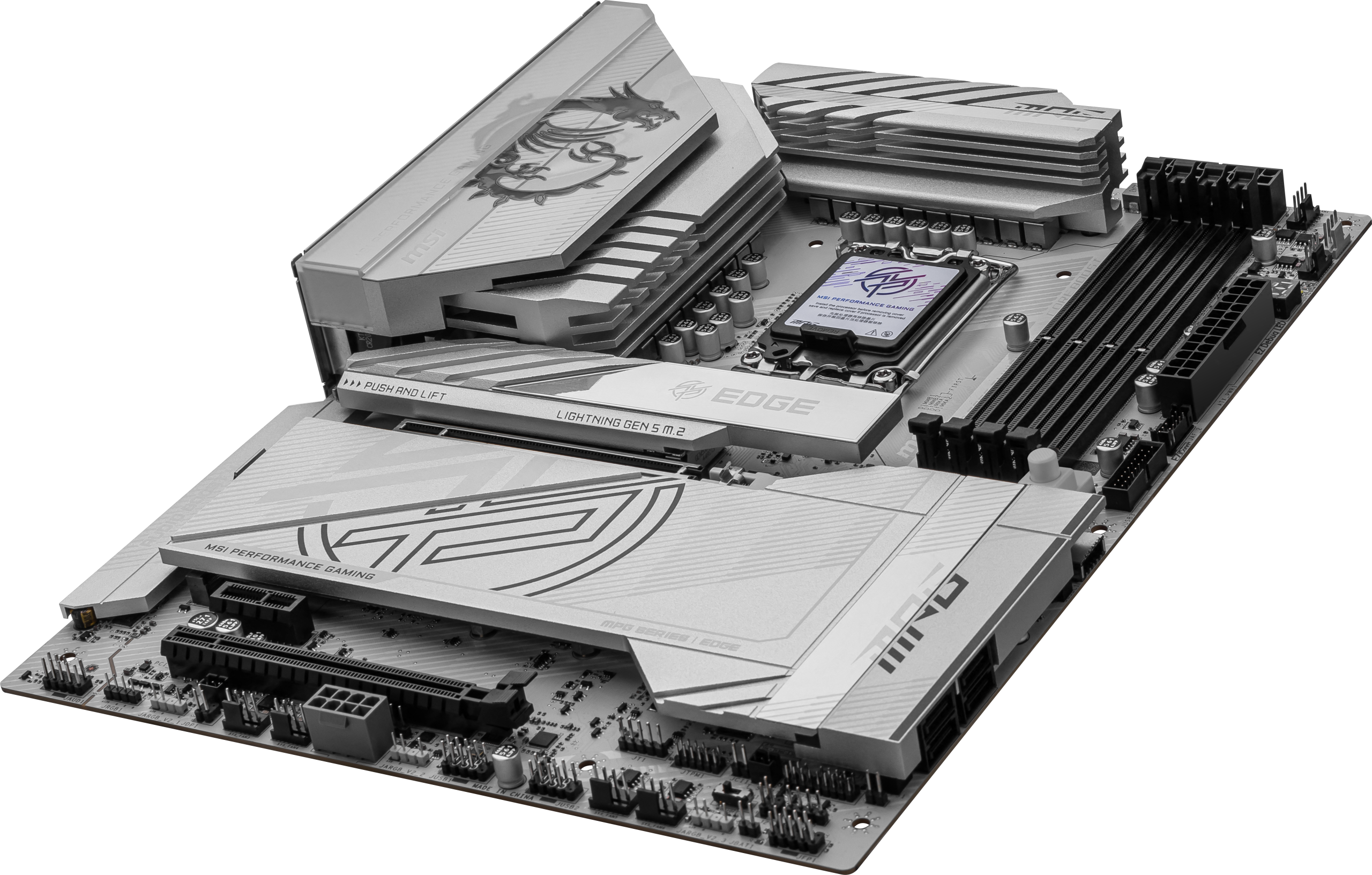

MSI MPG Z890 Edge TI WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The MSI MPG The Z890 Edge TI WIFI is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the MSI MPG Z890 Edge TI WIFI boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Suitable for Overclocking
With its 16+1+1+1 phase VRMs, the MSI MPG Z890 Edge TI WIFI+ offers you the ability to overclock your CPU and thus get the full performance out of your gaming PC. The DDR5 RAM can also be overclocked. To be on the safe side, there is a Clear CMOS button on the I/O panel.

Technical Details
– Color
– Main Color
– White
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 9200 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 5 Gbit/s
– LAN Chip
– Intel Killer E5000B
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Wi-Fi Chip
– Intel Killer BE1750x
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Connectors
– 2
– USB 2.0 (internal) Header
– 2
– USB 2.0 (internal) Possible Connectors
– 4
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes
