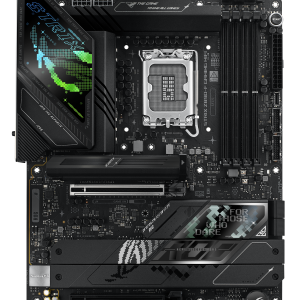

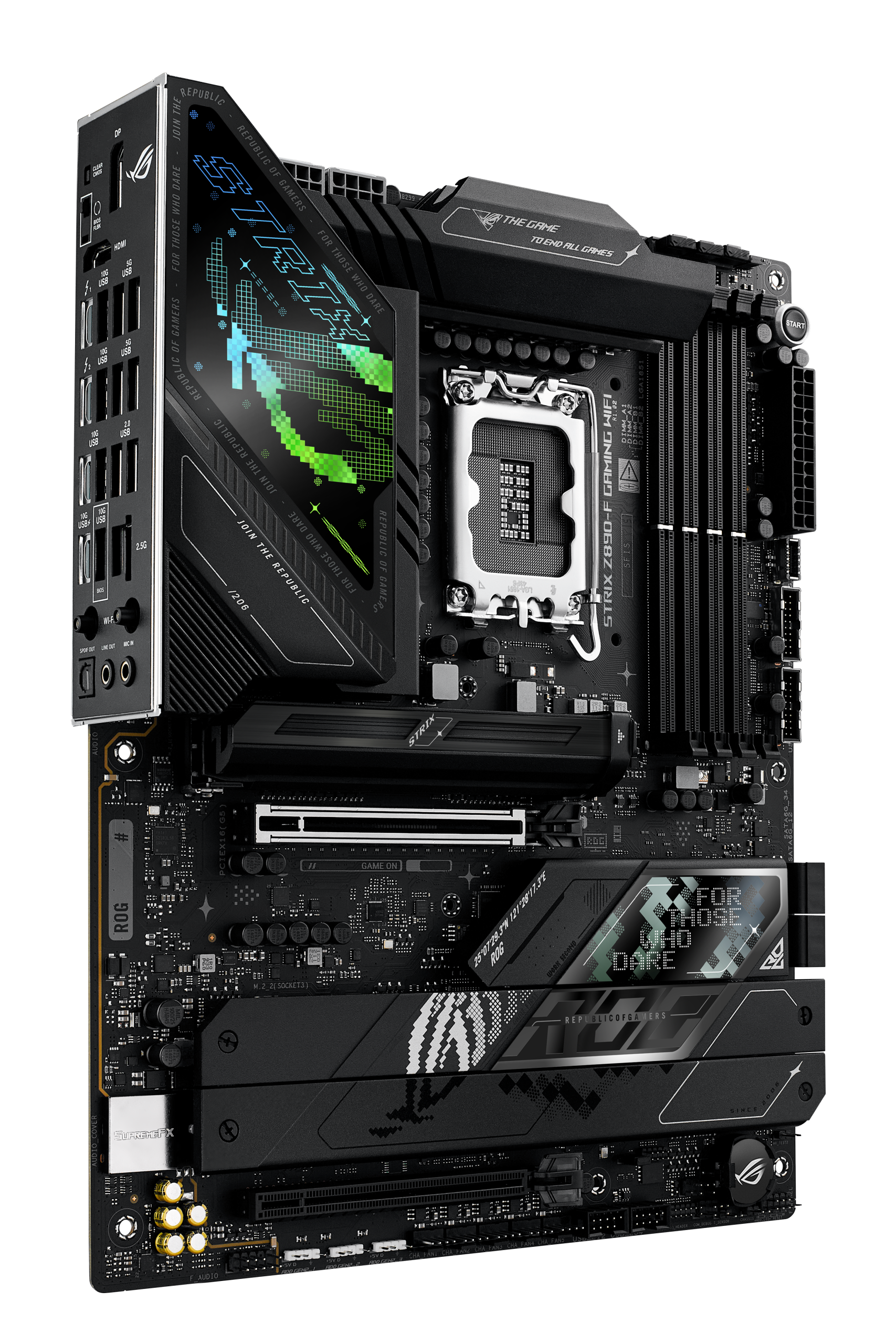

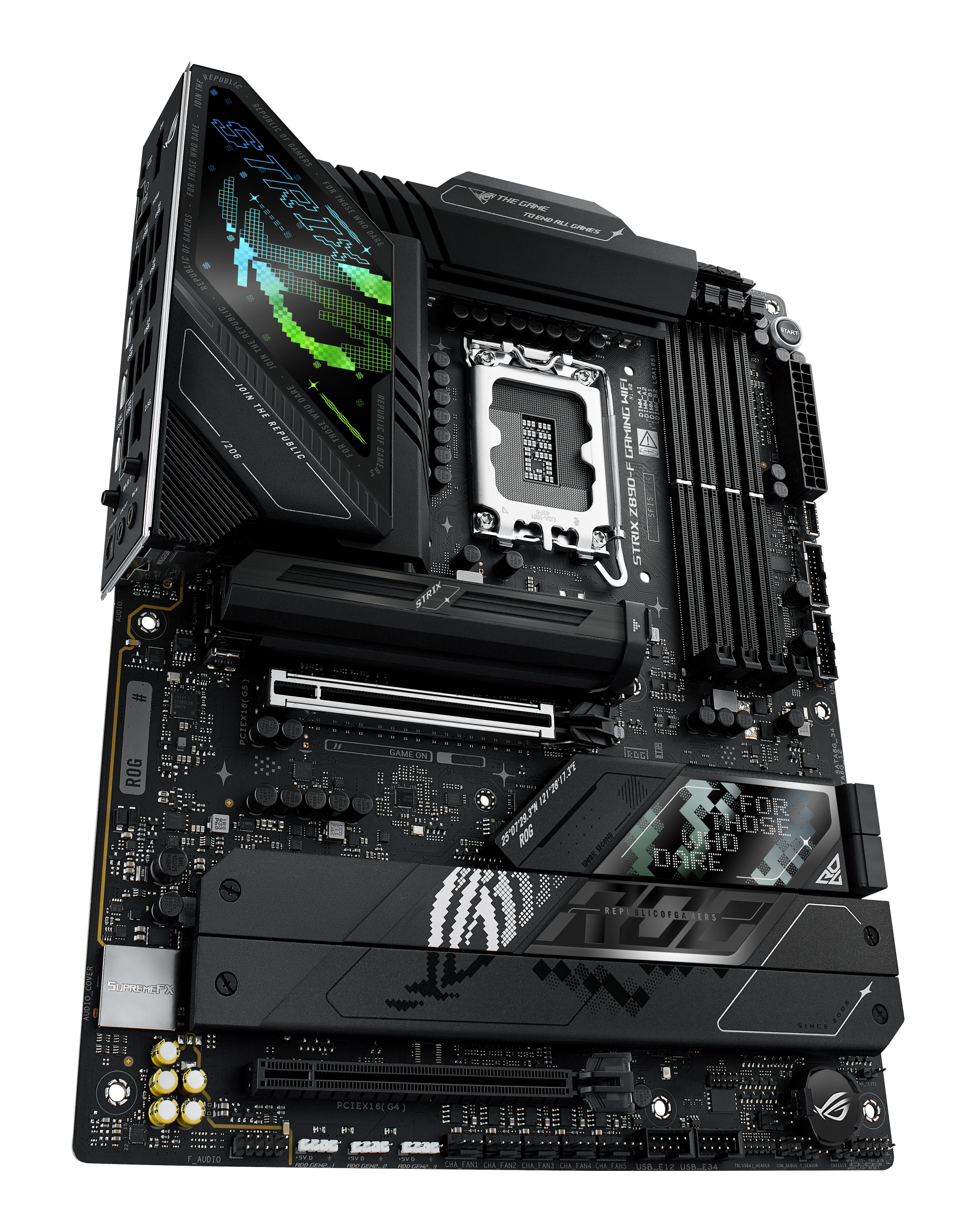

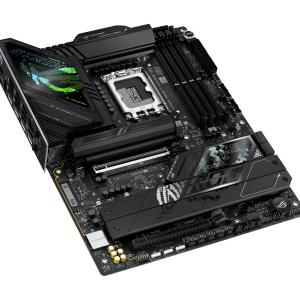

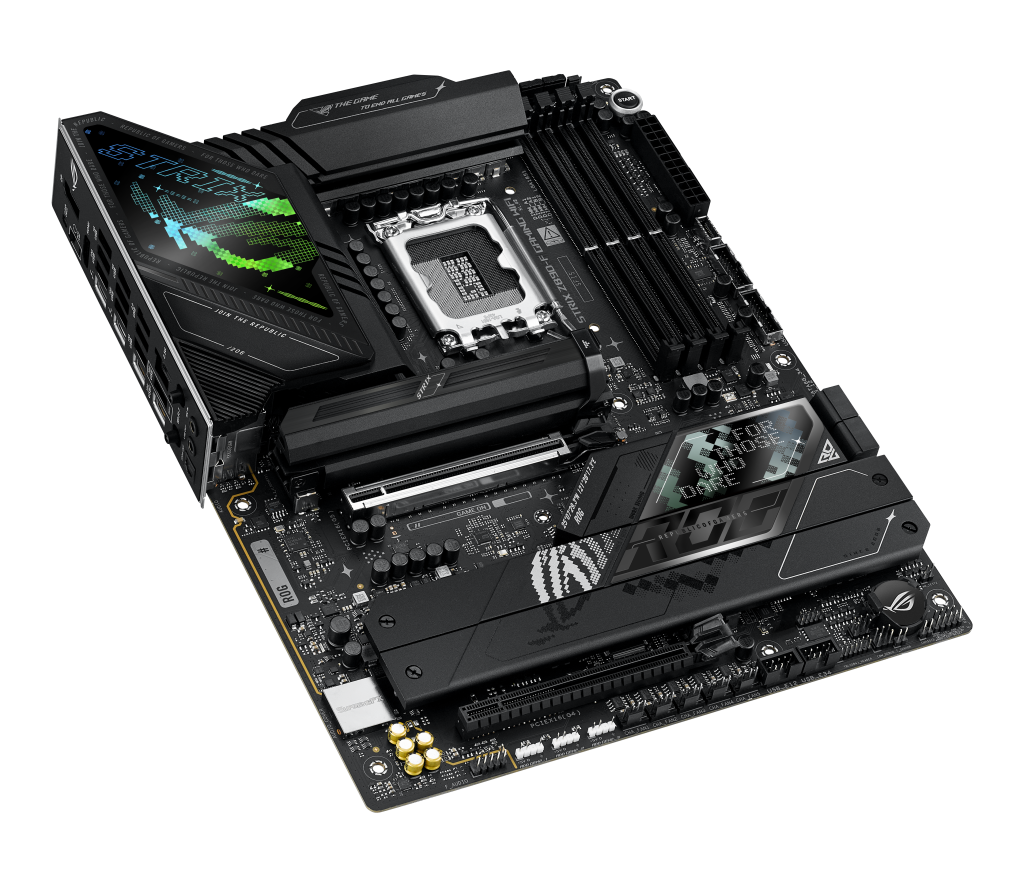

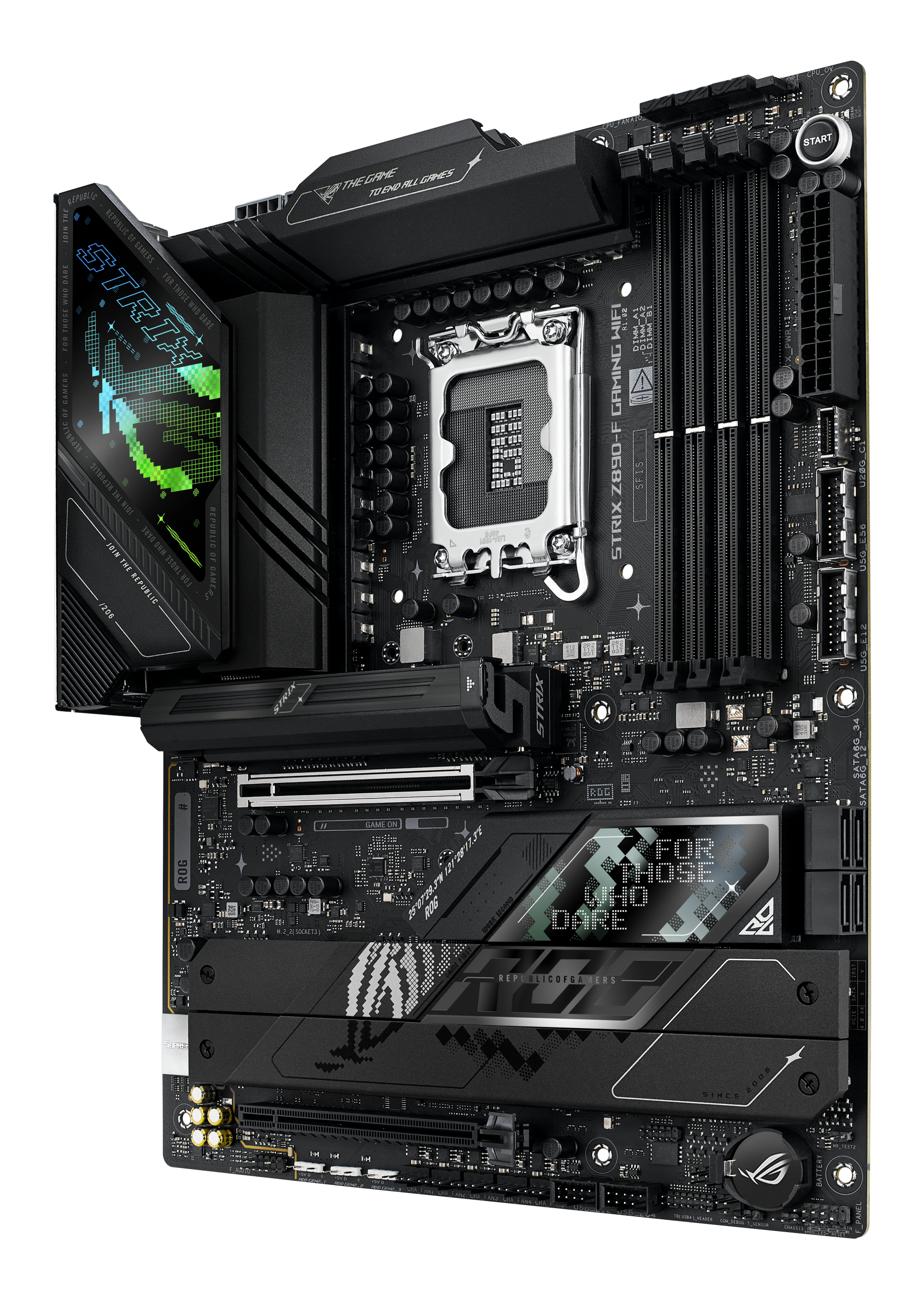

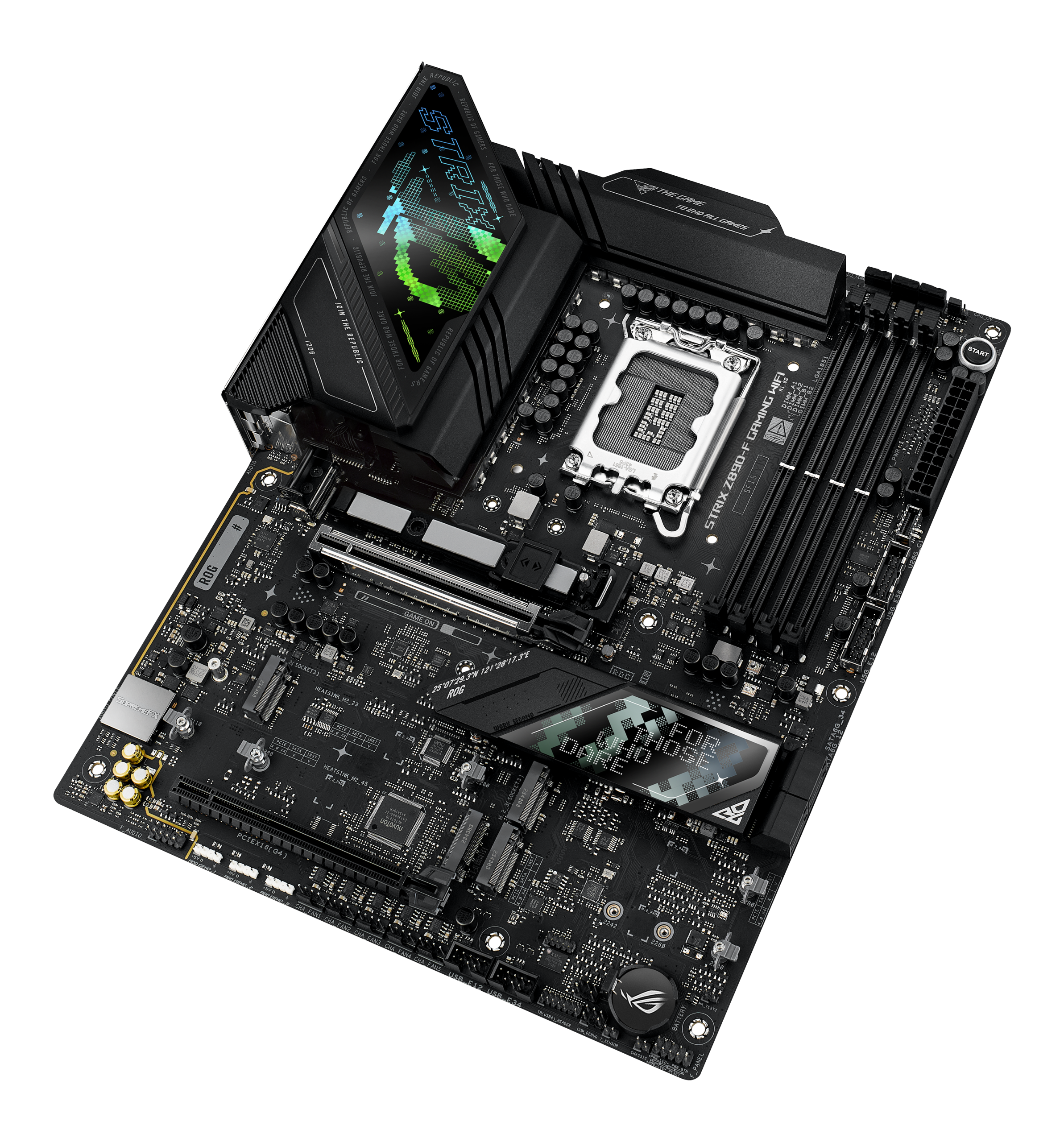

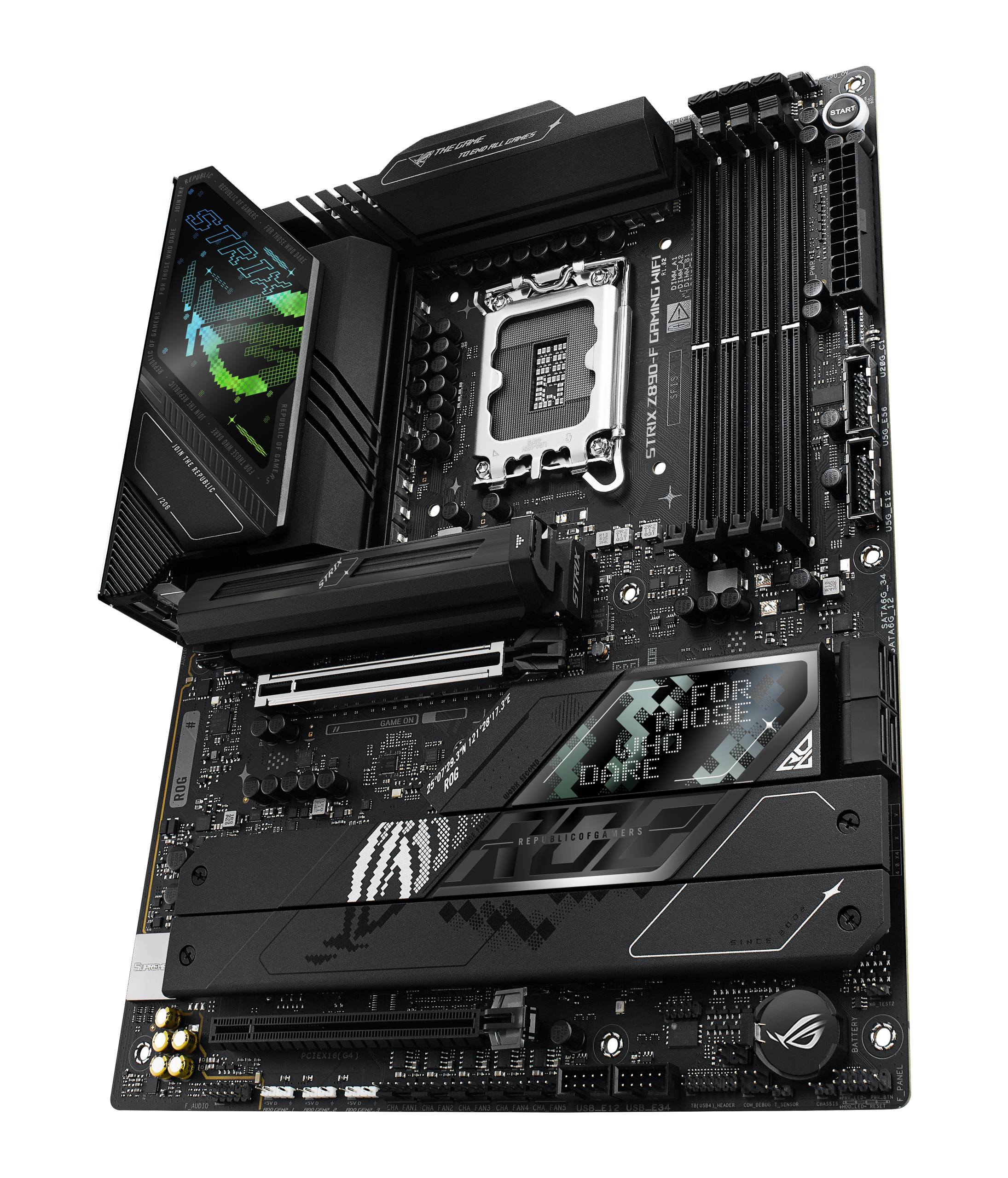

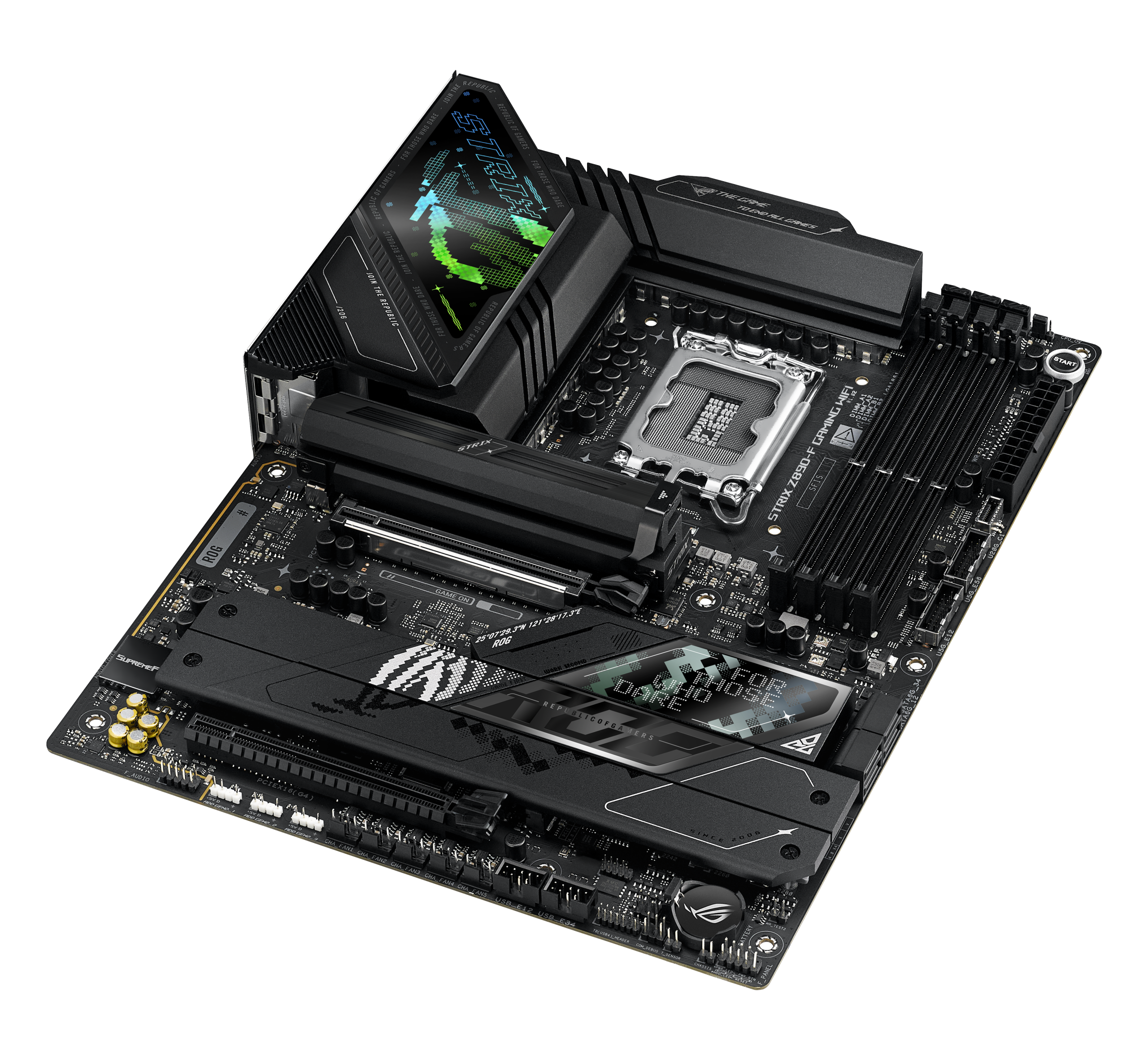

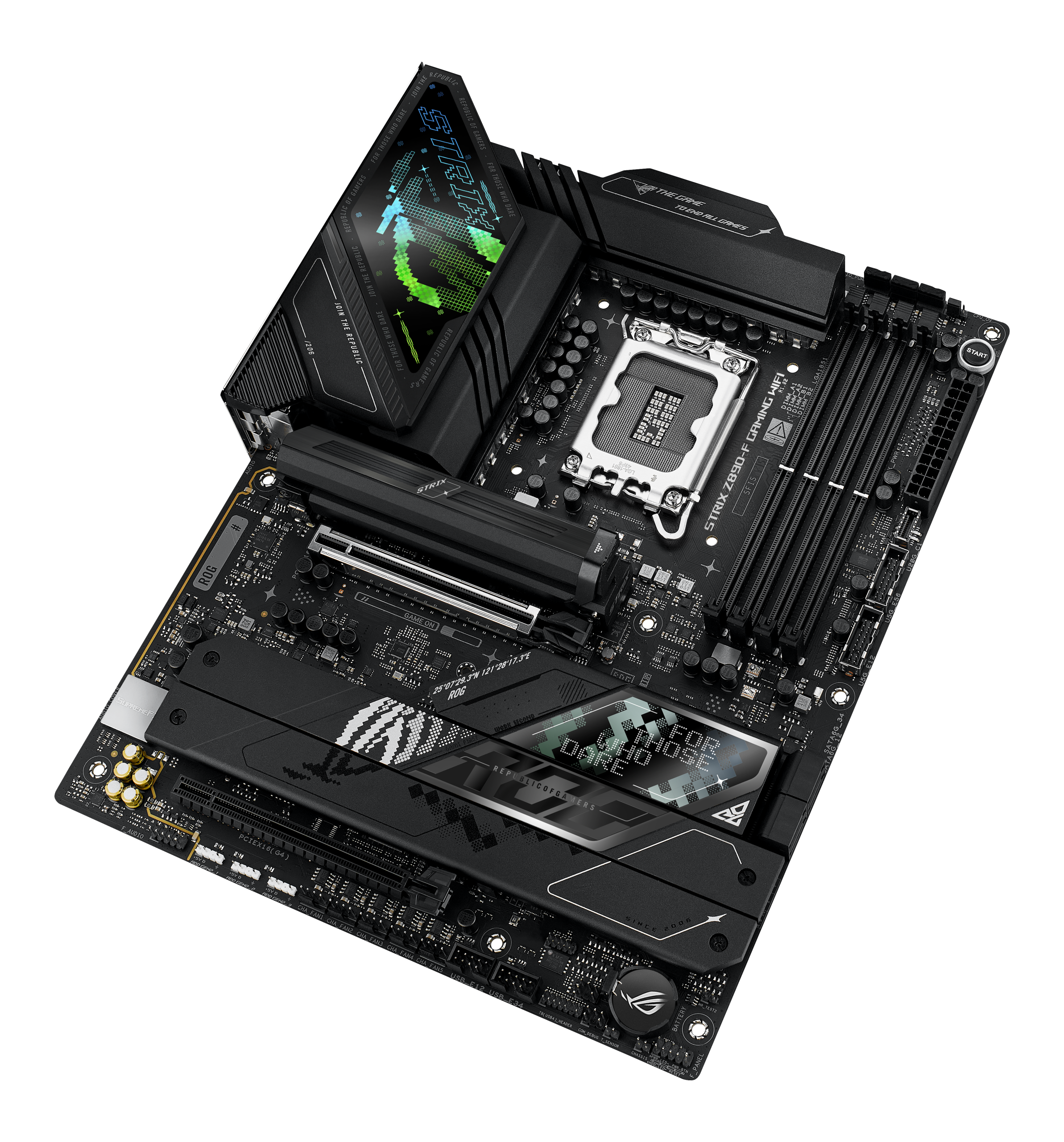

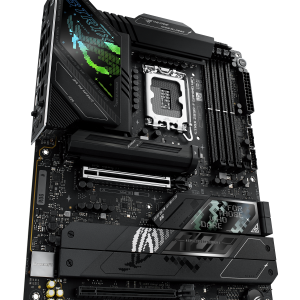

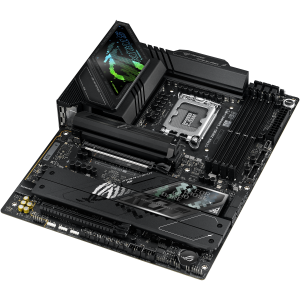

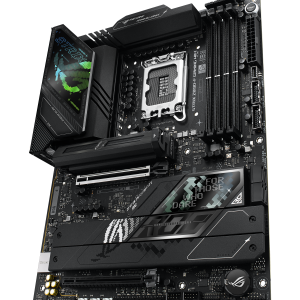

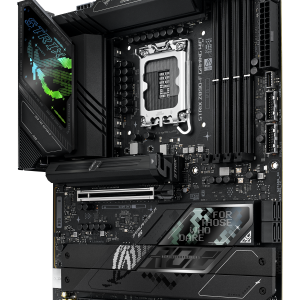

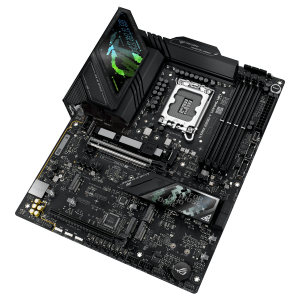

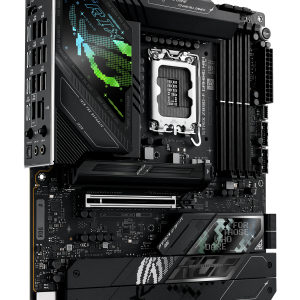

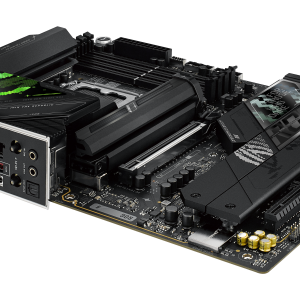

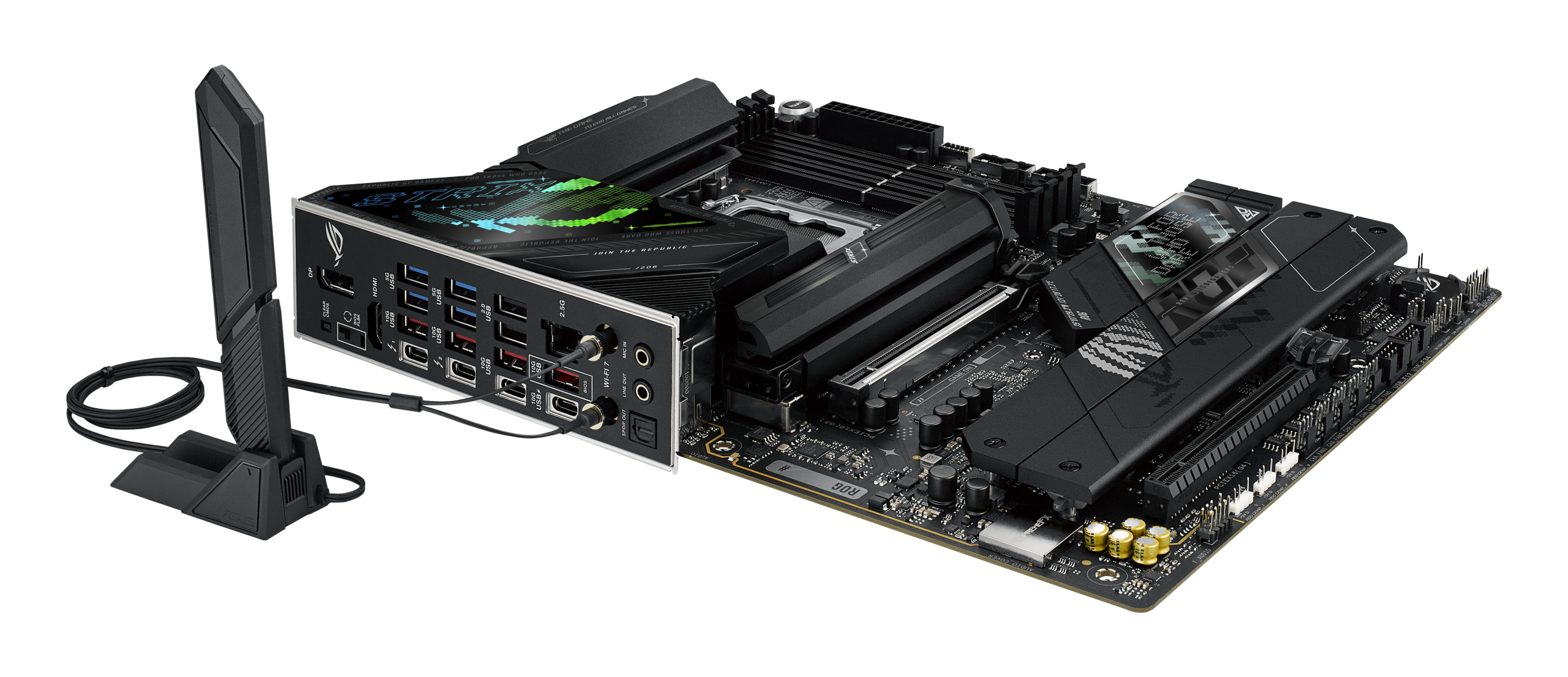

ASUS ROG STRIX Z890-F motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8600 MHz
– 5x M.2 (including 1x PCIe 5.0 and 4x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4, 2x USB 3.2 Type-C, 4x USB 3.2, 4x USB 3.0, and 2x USB 2.0
– OC features: 16+1+2+1 VRMs, CMOS reset
– Total of 8x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

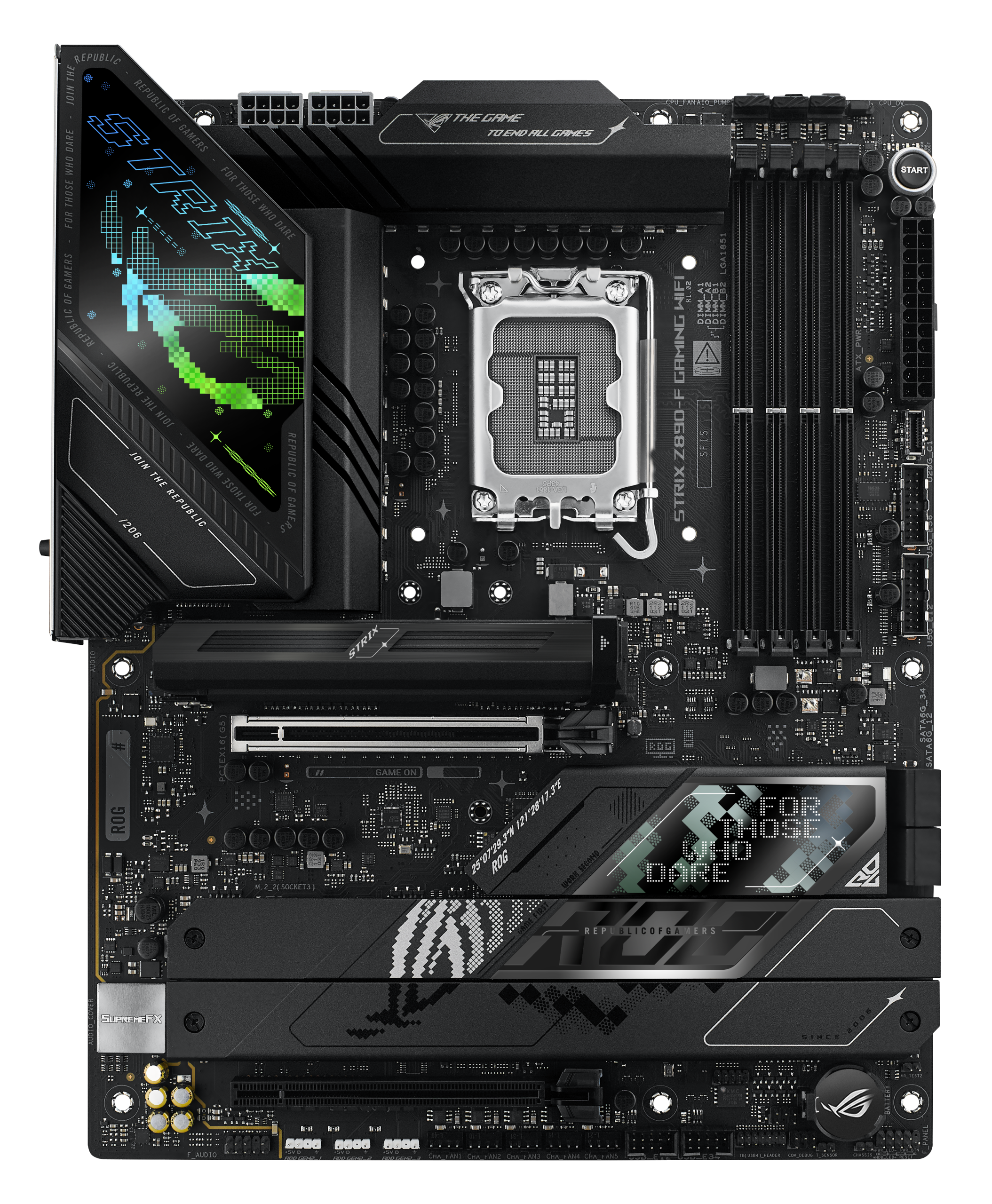

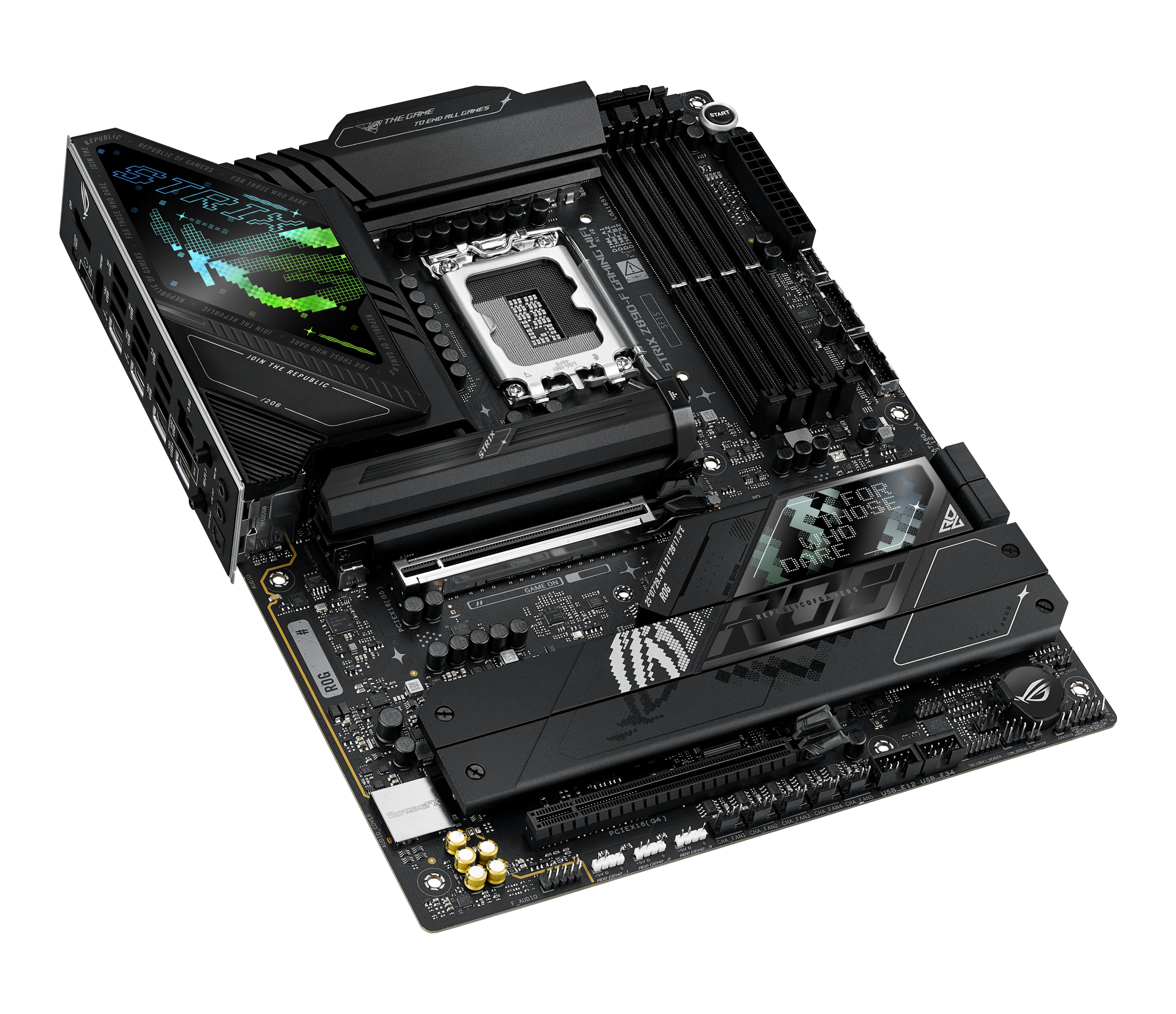

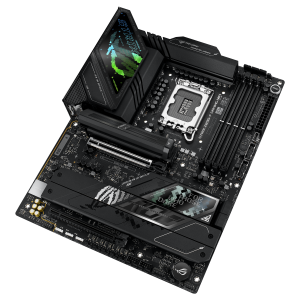

ASUS ROG Strix Z890-F Gaming WiFi: ATX motherboard with Intel LGA 1851 Socket and Z890 Chipset
The ASUS ROG Strix Z890-F Gaming WiFi is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG Strix Z890-F Gaming WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Advanced AI Technologies
The ASUS ROG Strix Z890-F Gaming WiFi features several integrated AI technologies, whose features will help you in a variety of ways. This includes AI Overclocking, which automatically creates optimal profiles based on your CPU and cooling to push your system to its limits. With AI Cooling II, temperature and noise levels are adjusted with a single click.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 8,600 MHz via XMP / OC / CUDIMM)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x4/x4, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280, chipset)
– 1x M.2 (PCIe 4.0 x4; 2280 / 22110, chipset)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Thunderbolt 4 (USB-C)
– 1x front panel audio header
– 1x 10-1-Pin System Panel Header
– 1x start button
– 1x BIOS flashback button
– 1x Clear CMOS button
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU OPT fan (4-pin)
– 1x AIO pump header
– 5x case fans (4-pin)
– RGB header:
– 2x 3-pin ARGB (5V)

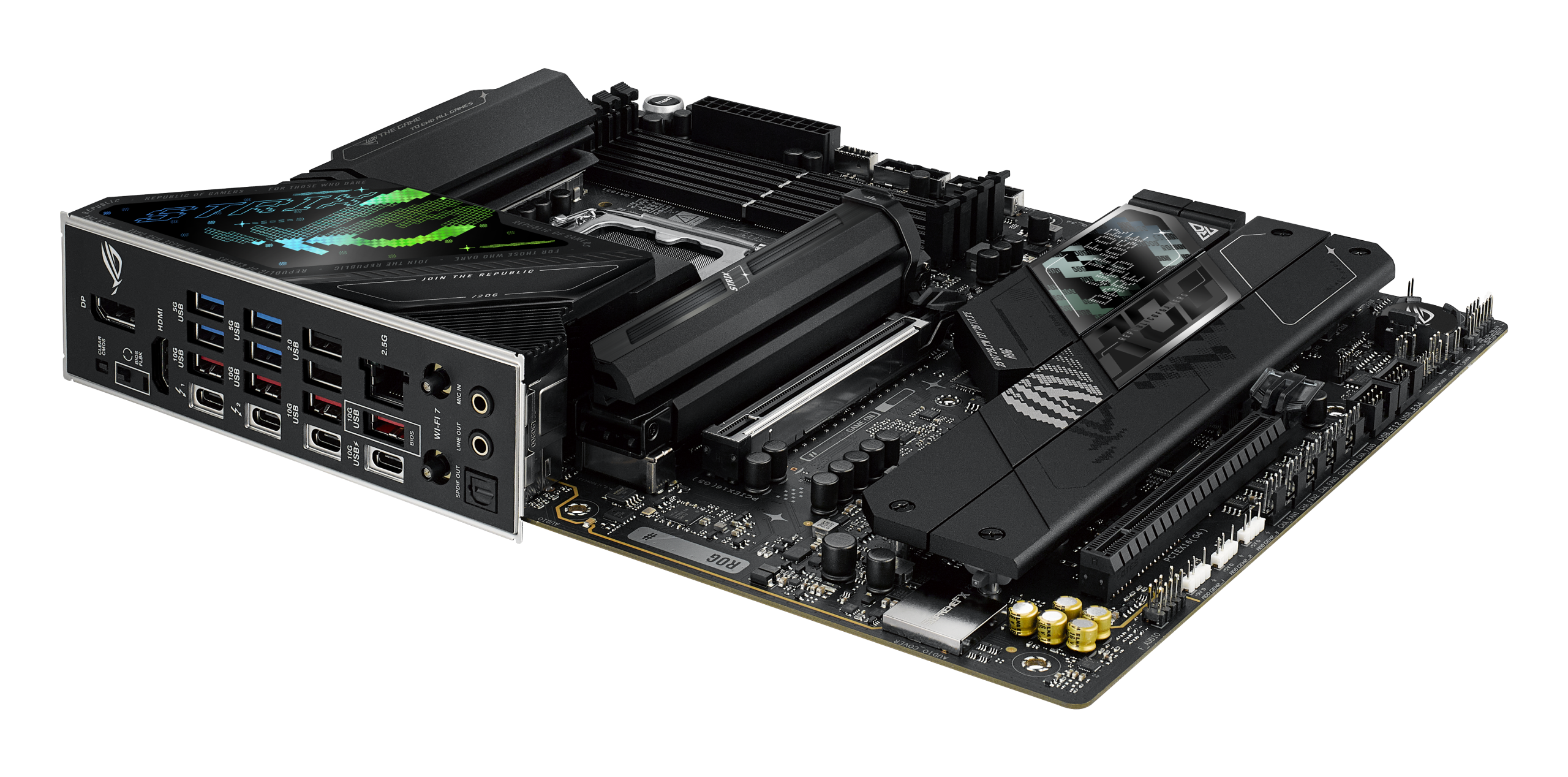

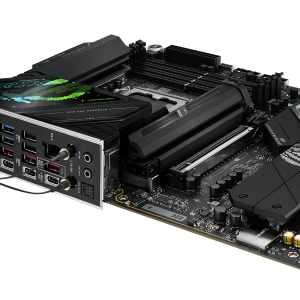

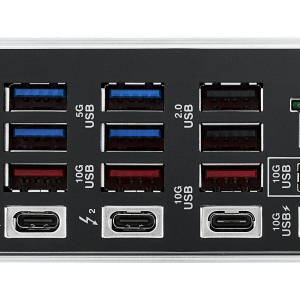

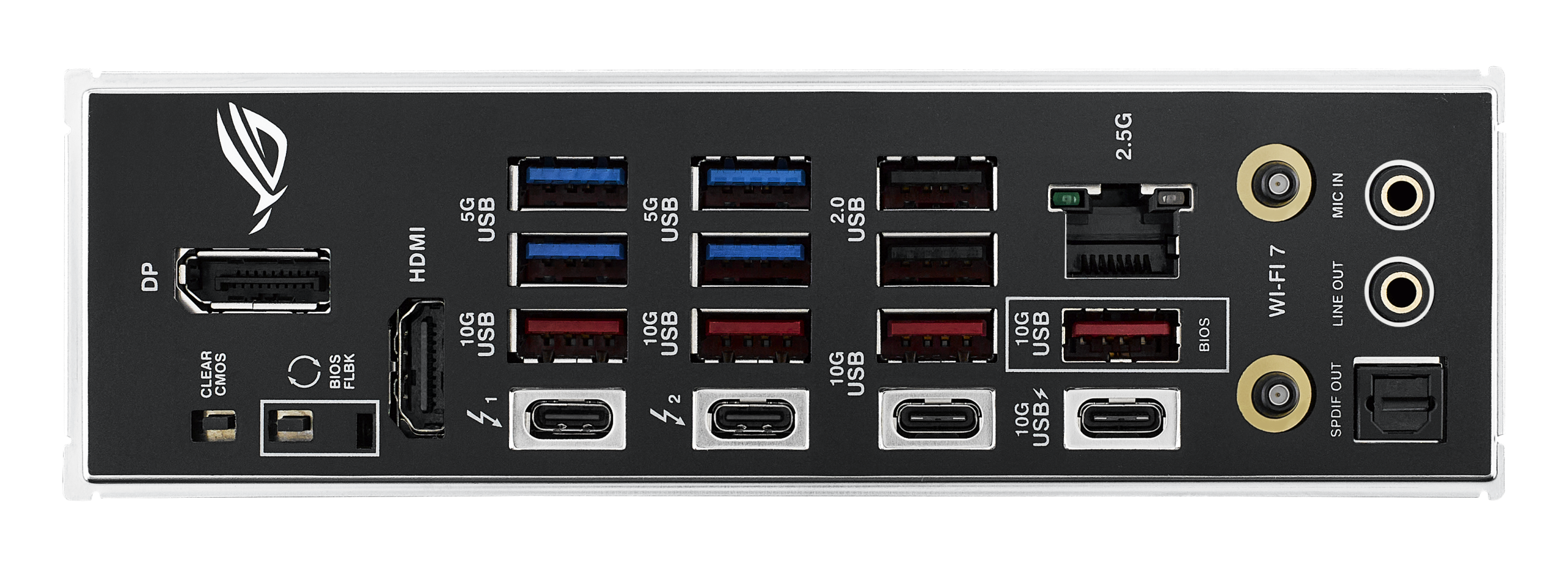

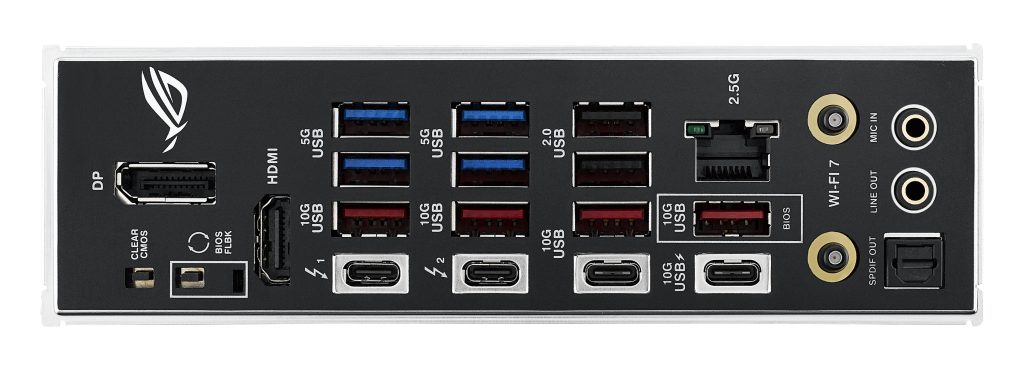

– External connections:
– 2x Thunderbolt 4 (USB-C)
– 4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s, Power Delivery)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort
– 1xHDMI
– 1x 2.5 Gigabit LAN (Intel I219V)
– 1x WiFi/Bluetooth module (Realtek AC9560)
– 2x 3.5 mm jack (Realtek ALC 4080)
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX12V

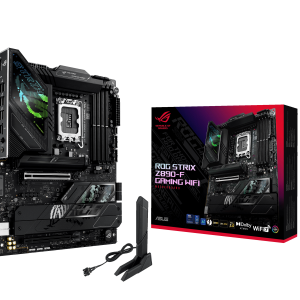

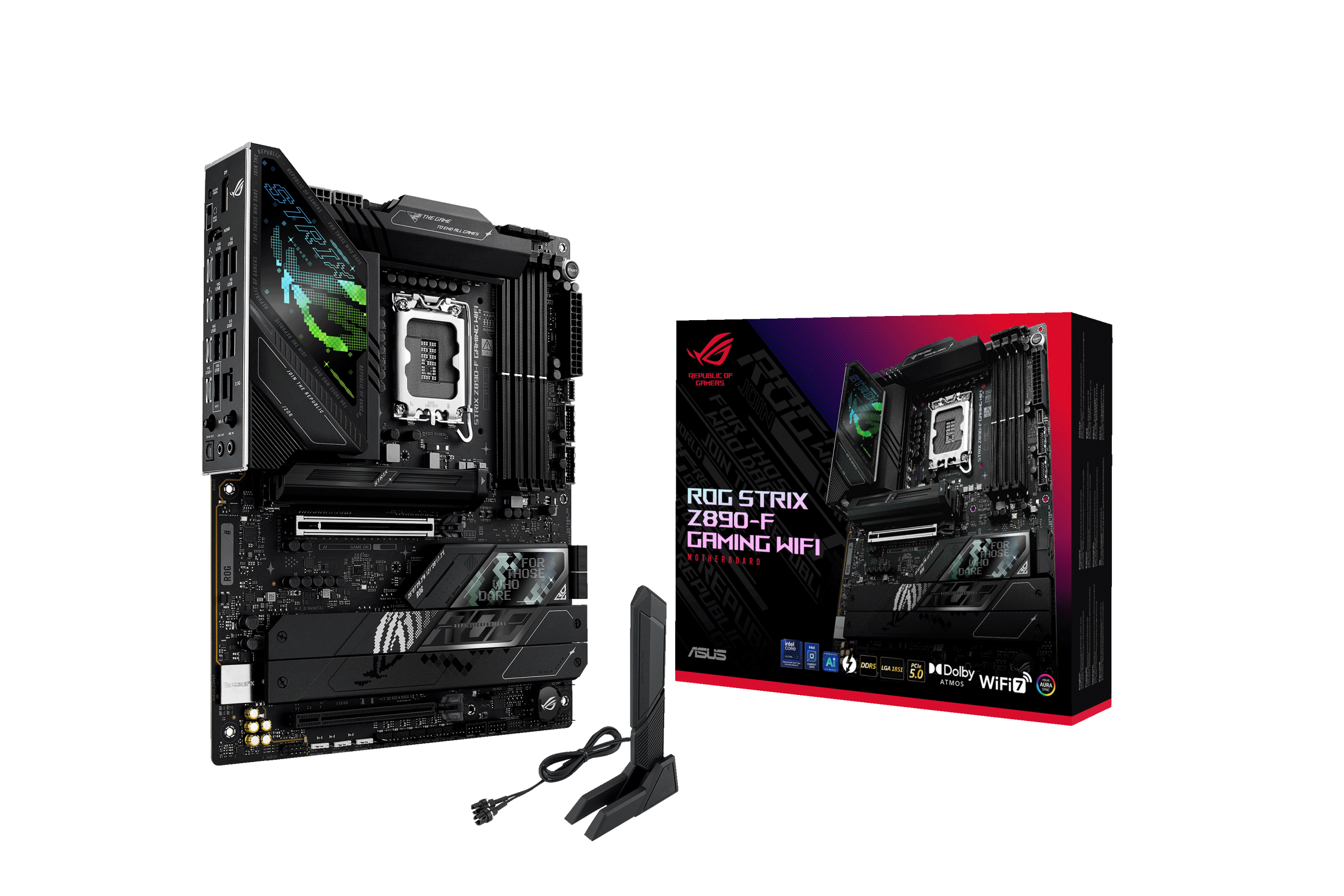

– Accessories:
– 1x WiFi antenna
– 2x SATA cables
– 1x Thermal pad
