MSI MAG Z790 Tomahawk WiFi, Socket LGA 1700, Intel Z790, ATX - DDR5

– 1x PCIe 5.0 (x16), 1x PCIe 4.0 (x4), 1x PCIe 3.0 (x1)
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 7200 MHz
– 4x M.2 slots, including 3 PCIe 4.0 and 1 PCIe 3.0
– USB on the I/O panel: 2x USB 2.0 / 2x USB 3.0 Type A / 3x USB 3.1 Type A and 1x USB 3.2 Type C
– Overclocking features: BIOS Flashback, diagnostic LEDs, Clear CMOS jumper
– RGB LED lighting and 4x RGB headers
– A total of 8 connectors for fans and pumps

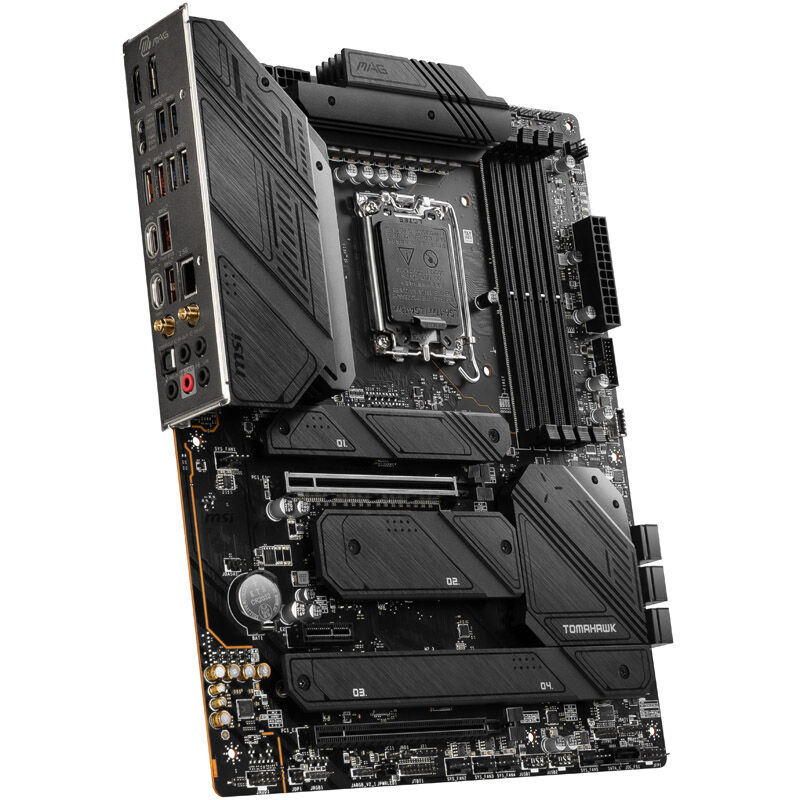

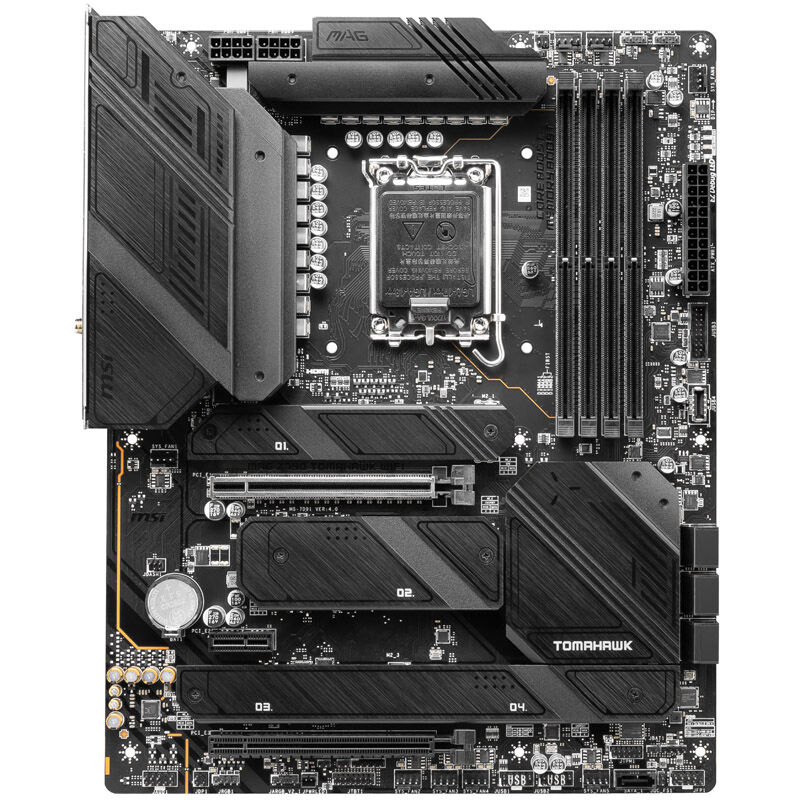

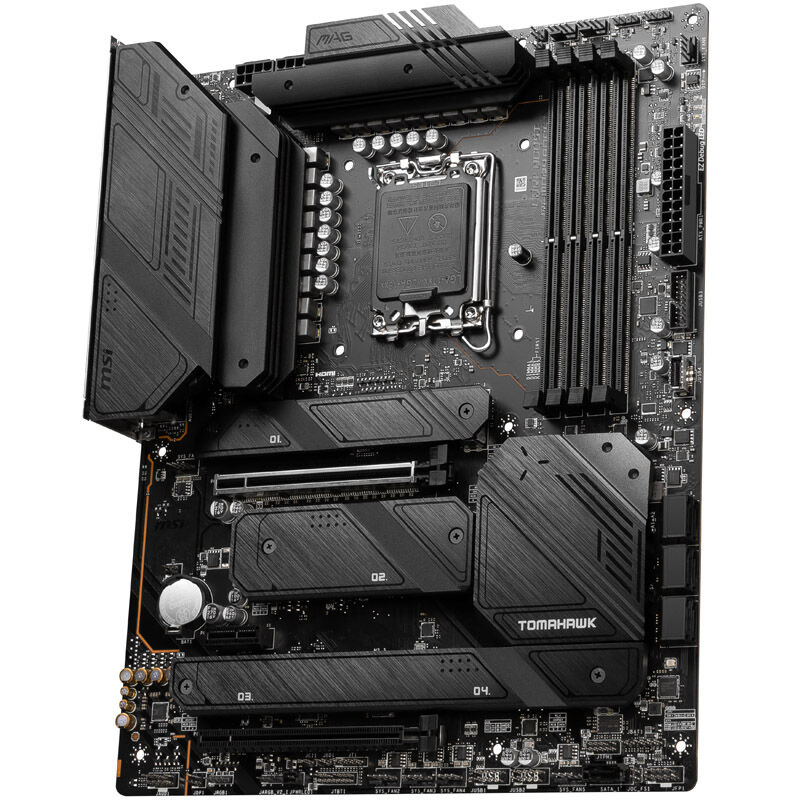

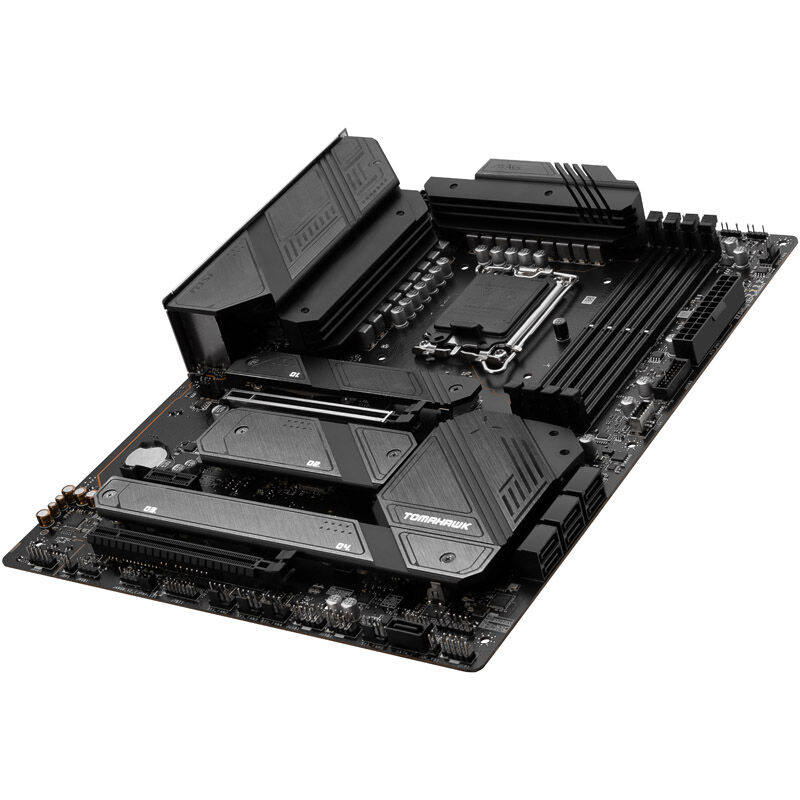

The MSI MAG Z790 Tomahawk WiFi ATX motherboard with Intel Z790 chipset in detail
The MSI MAG Z790 Tomahawk WiFi is an ATX motherboard with the high-end Intel Z790 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake, and Raptor Lake desktop processors. It supports DDR5 memory up to 5200 MHz and, thanks to its optimized power supply, is ideal for overclocking.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z790
– Socket:
 -1700 (for 12th, 13th, and 14th generation Intel Core CPUs)
– RAM:
– 4x DDR5 (4800 MHz, up to 7200 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16
– 2x PCIe 3.0 x16 (electrical x4 / x1)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 7x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
– 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
– 1x M.2 (PCIe 3.0 x4 / SATA 6G, 2242-2280, chipset)
– 1x M.2 (PCIe 4.0 x4 / SATA 6G, 2242-2280, chipset)
– 1x USB-C (one header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (one header, USB 3.2 Gen 1, max 5 Gbit/s)
– 4x USB 2.0 (two headers, max. 480 Mbit/s)
– 1x Front Panel Audio Connector
– 2x system panel connectors
– 1x Chassis Intrusion Connector
– 1x Clear CMOS jumper
– 1x TPM Module Connector
– 1x tuning controller connector
– Fan header:
– 1x CPU fan (4-pin)
– 1x pump (4-pin)
– 6x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x 4-pin RGB (12V)

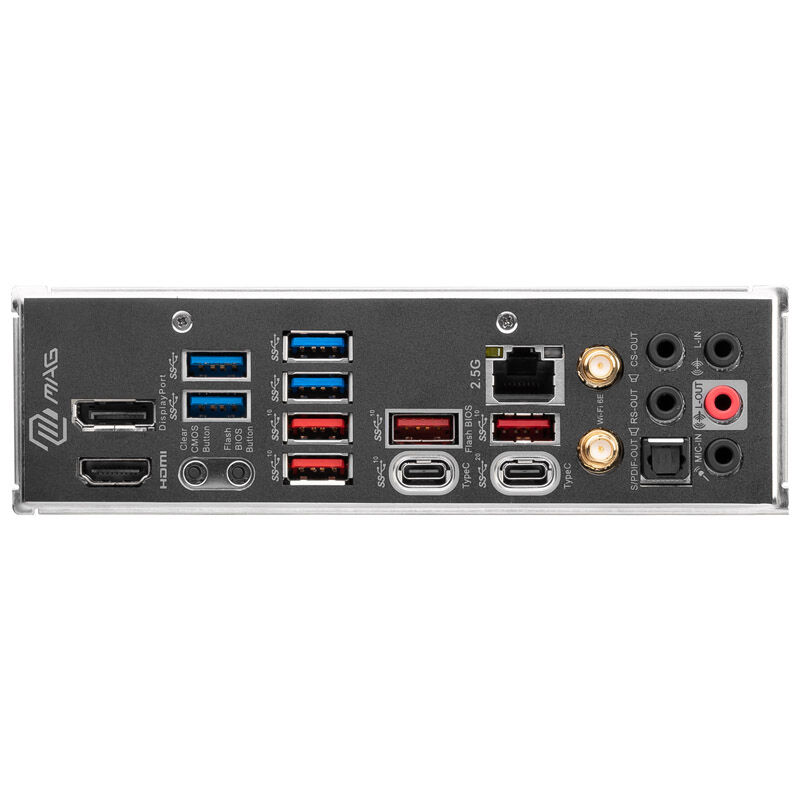

– External connections:
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x RJ-45 (Intel I225-V, max. 2.5 Gbit/s)
– 2x WLAN antenna (Intel Wifi 6E, Bluetooth 5.2)
– 5x 3.5 mm jack (Realtek ALC 4080)
– 1x S/PDIF
– 1x Flash BIOS button
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX/EPS 12V
