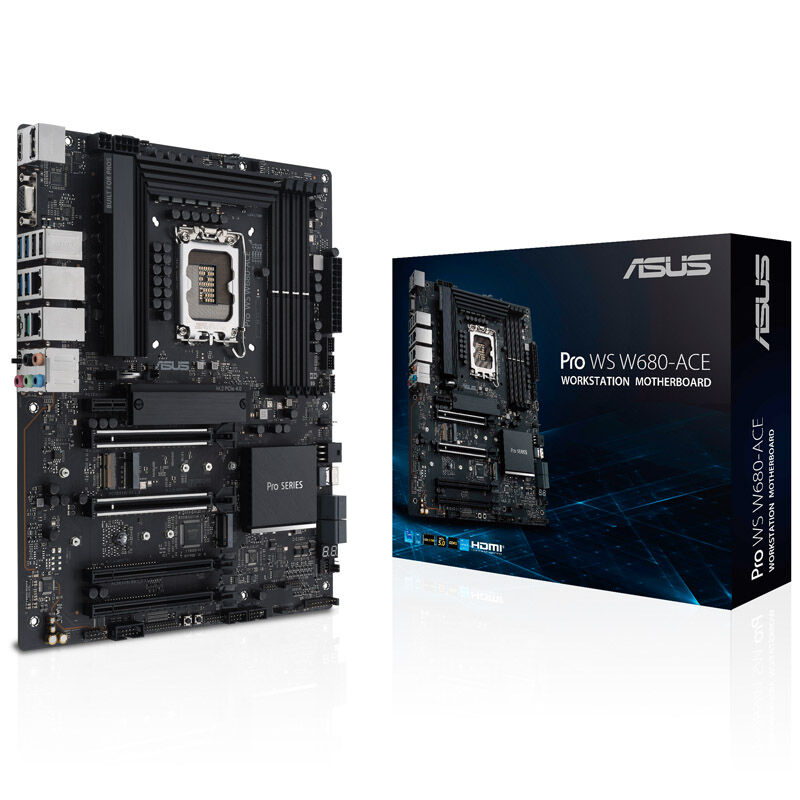

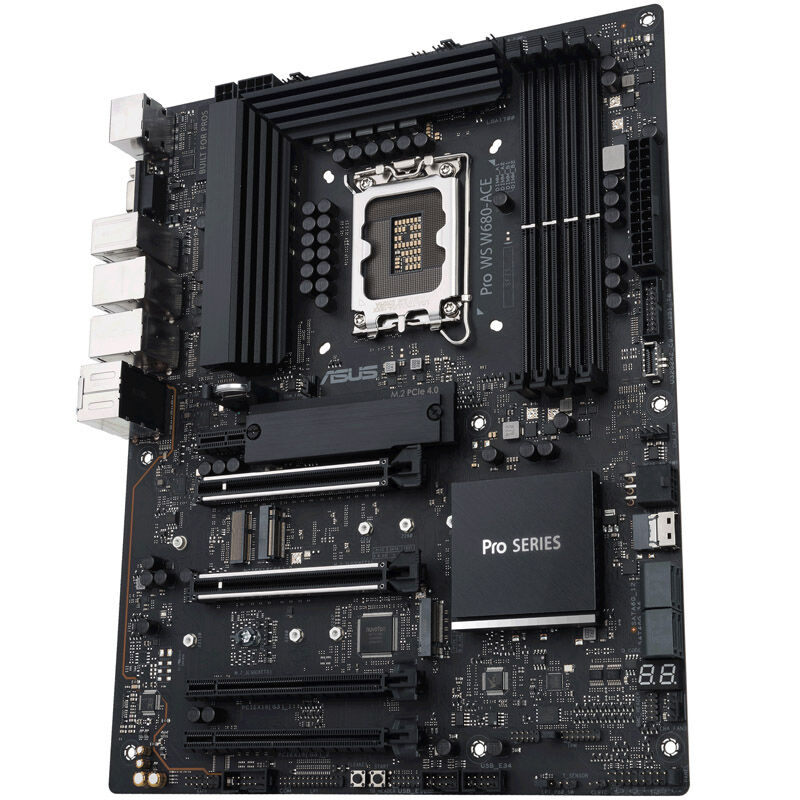

ASUS PRO WS W680-ACE, Intel W680 motherboard, Socket 1700, DDR5

– 2x PCIe 5.0 x16 (1x x16, 1x x8), 2x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 6000 MHz
– 3x M.2 slots (PCIe 4.0) & 1x Slim SAS SFF-8654 x4 (PCIe 4.0 x4/?SATA)

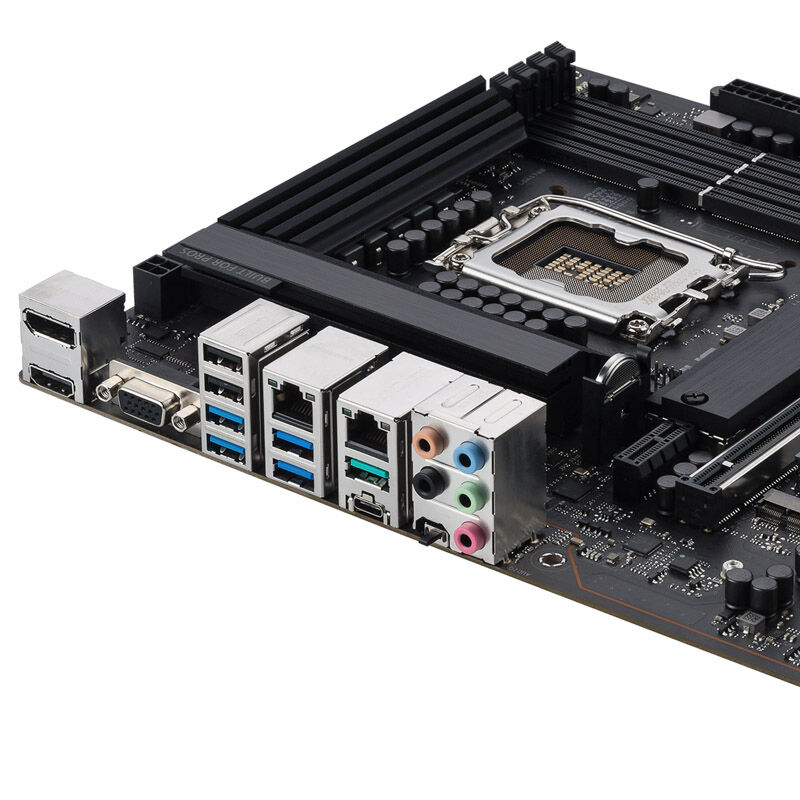

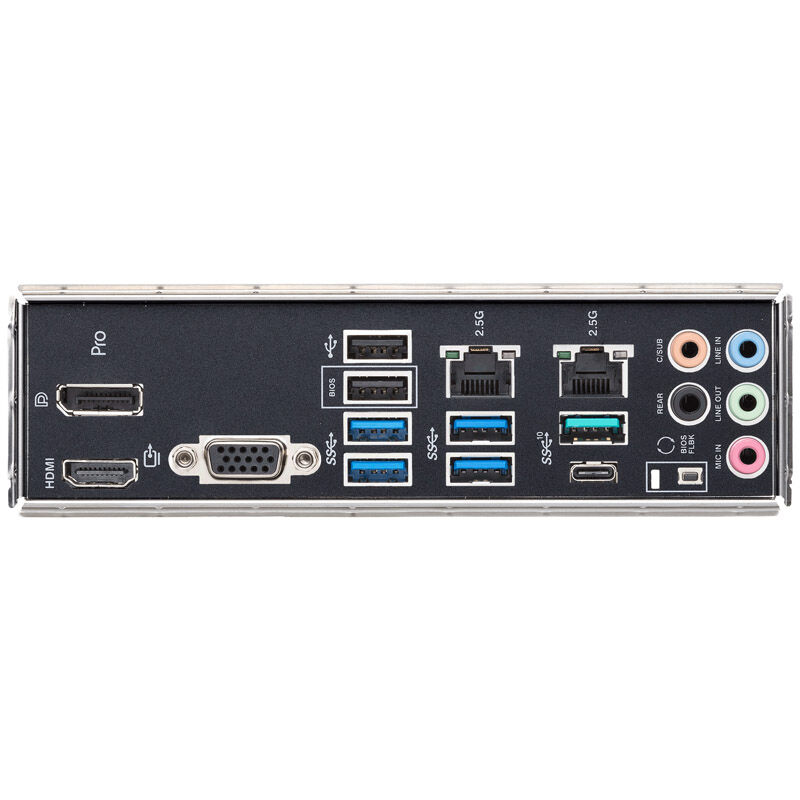

– USB on the I/O panel: 1x USB-C 3.1, 1x USB-A 3.1, 4x USB-A 3.0, 2x USB-A 2.0
– Overclocking features: Power button (internal), FlexKey button (internal), USB BIOS Flashback (external), VRM heatsink
– A total of 6 connectors for fans and pumps

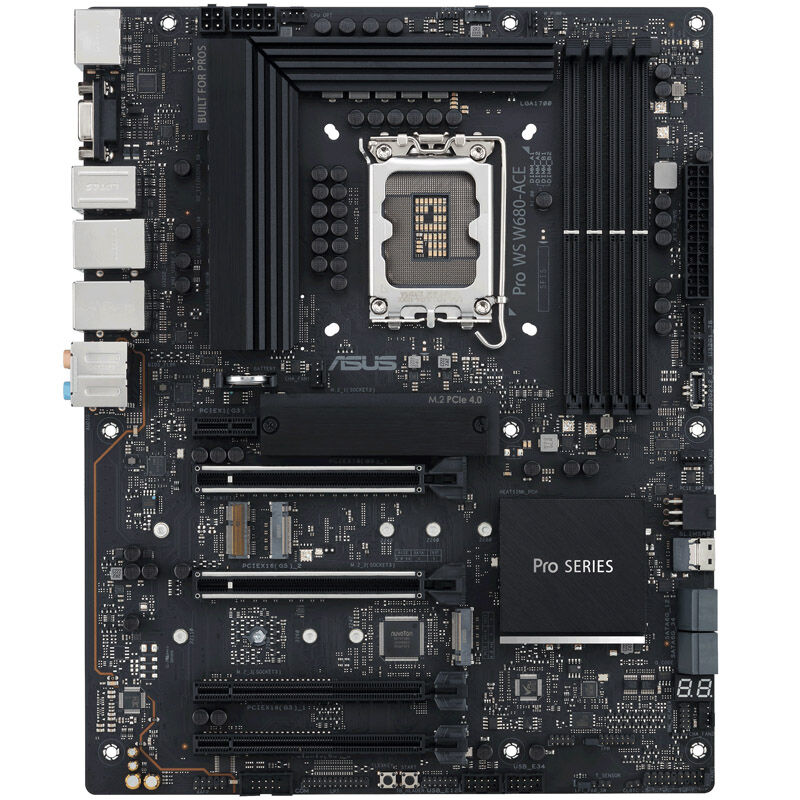

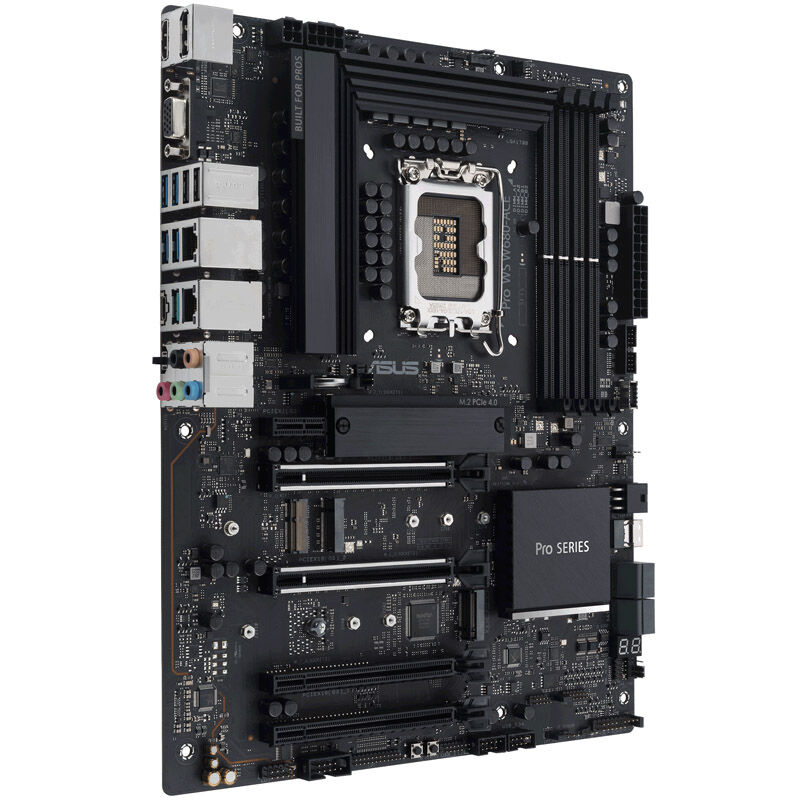

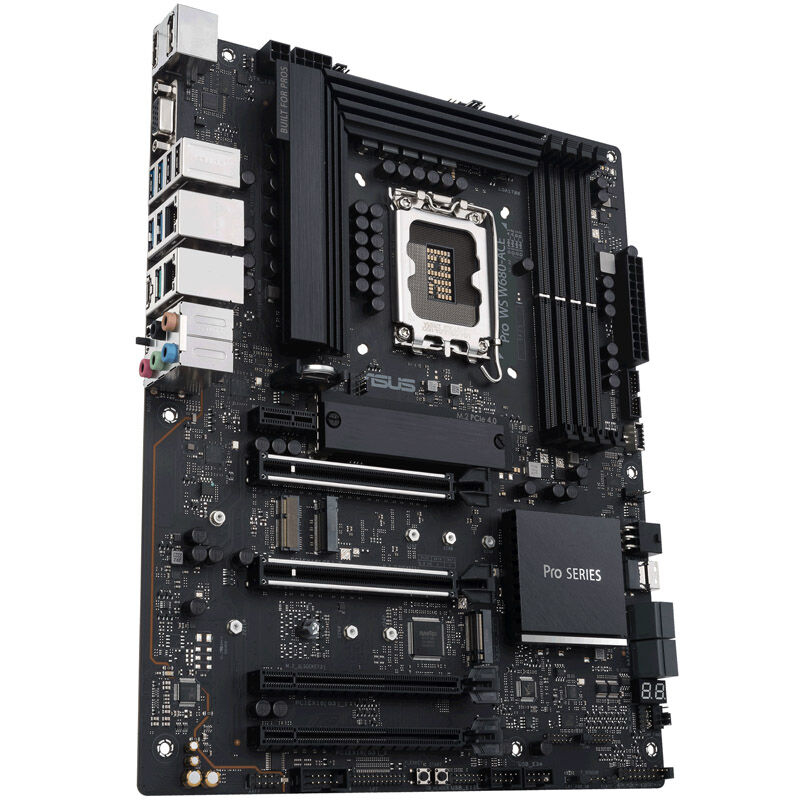

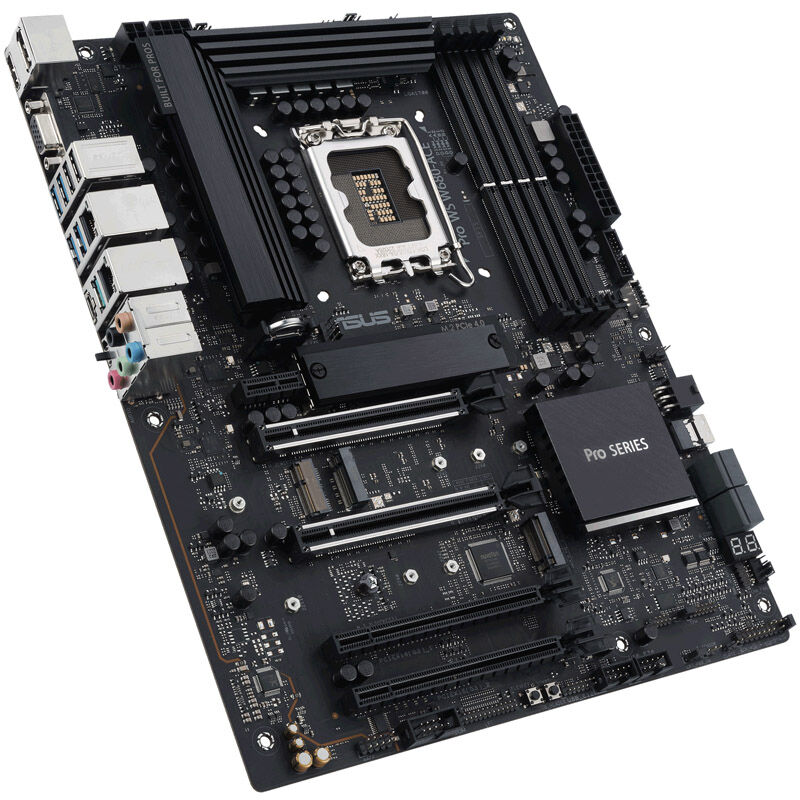

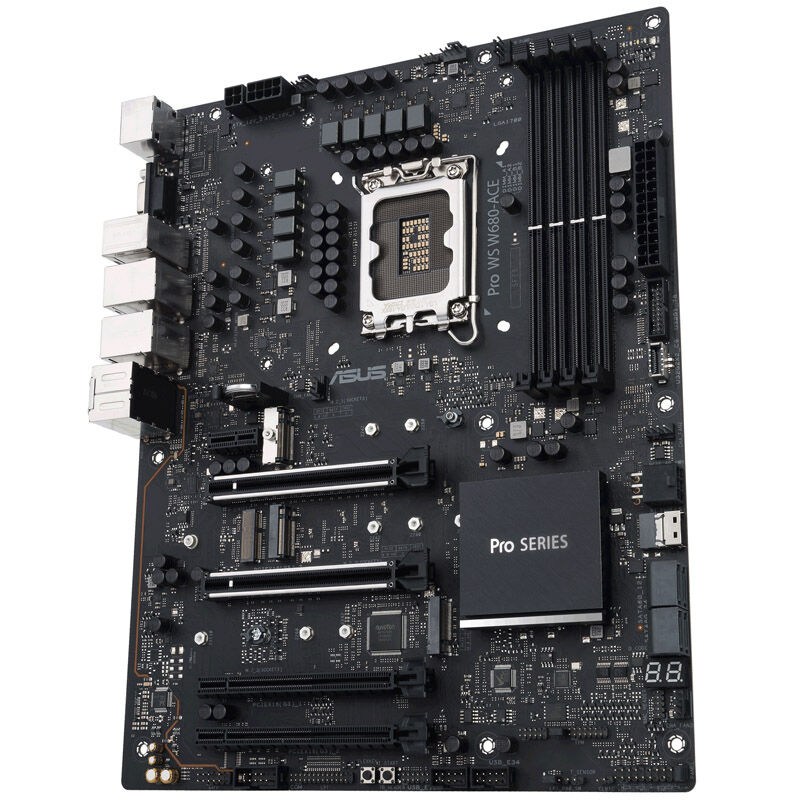

The ASUS PRO WS E-ATX motherboard W680-ACE with Intel W680 chipset in detail
The ASUS PRO WS W680-ACE is an E-ATX motherboard with the Intel W680 workstation chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake, desktop processors. It supports DDR5 memory up to 6,000 MHz and, thanks to its reliable power supply, is ideal for continuous use.

The workstation motherboard offers advanced security management with USB port management, software blacklisting, and Regedit on/off controls via ASUS Control Center Express. Its stability has been tested for 24/7 operation. To ensure increased durability, the motherboard is equipped with SafeSlot and SafeDIMM.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly performing BIOS updates for your motherboard. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
– Processor
– Processor Manufacturer: Intel
– Processor Socket: LGA 1700
– Compatible Processors: Intel Celeron, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
– Maximum Number of SMP Processors: 1
– Supported Processor Slots: LGA 1700
– Memory
– Supported Memory: DDR5-SDRAM
– Number of Memory Slots: 4
– Memory Type: DIMM
– Memory Channels: Dual-Channel
– ECC
– Non-ECC
– Maximum RAM: 128 GB
– Unbuffered Memory
– Storage Controller
– Supported Storage Drives: HDD & SSD
– Supported Storage Drive Interfaces: M.2, NVMe, SATA III
– Maximum Supported Number HDD capacity: 8
– Number of supported storage drives: 11
– RAID support:
– RAID levels 0, 1, 5, 10
– Graphics:
– Parallel processing technology: Not supported
– Internal I/O ports:
– Number of USB 2.0 ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
– USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
– SATA III ports: 4
