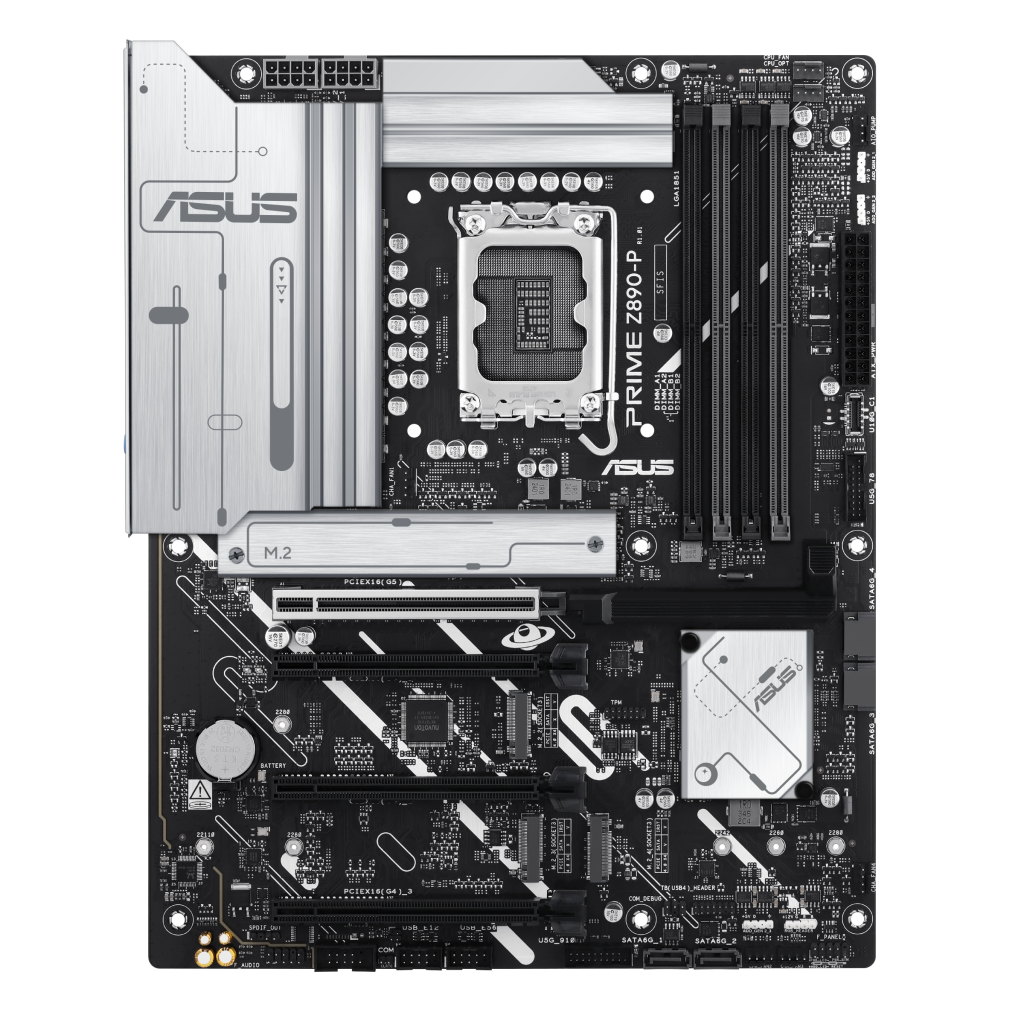

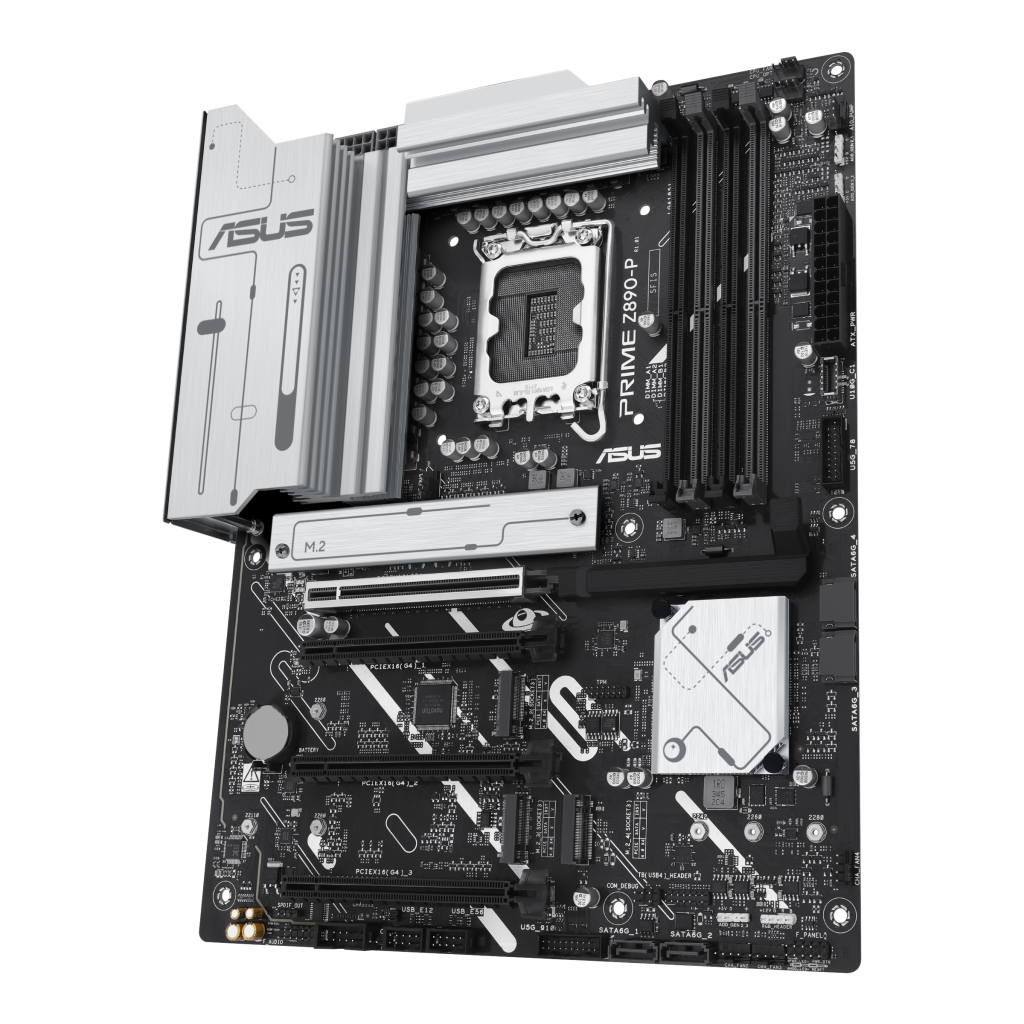

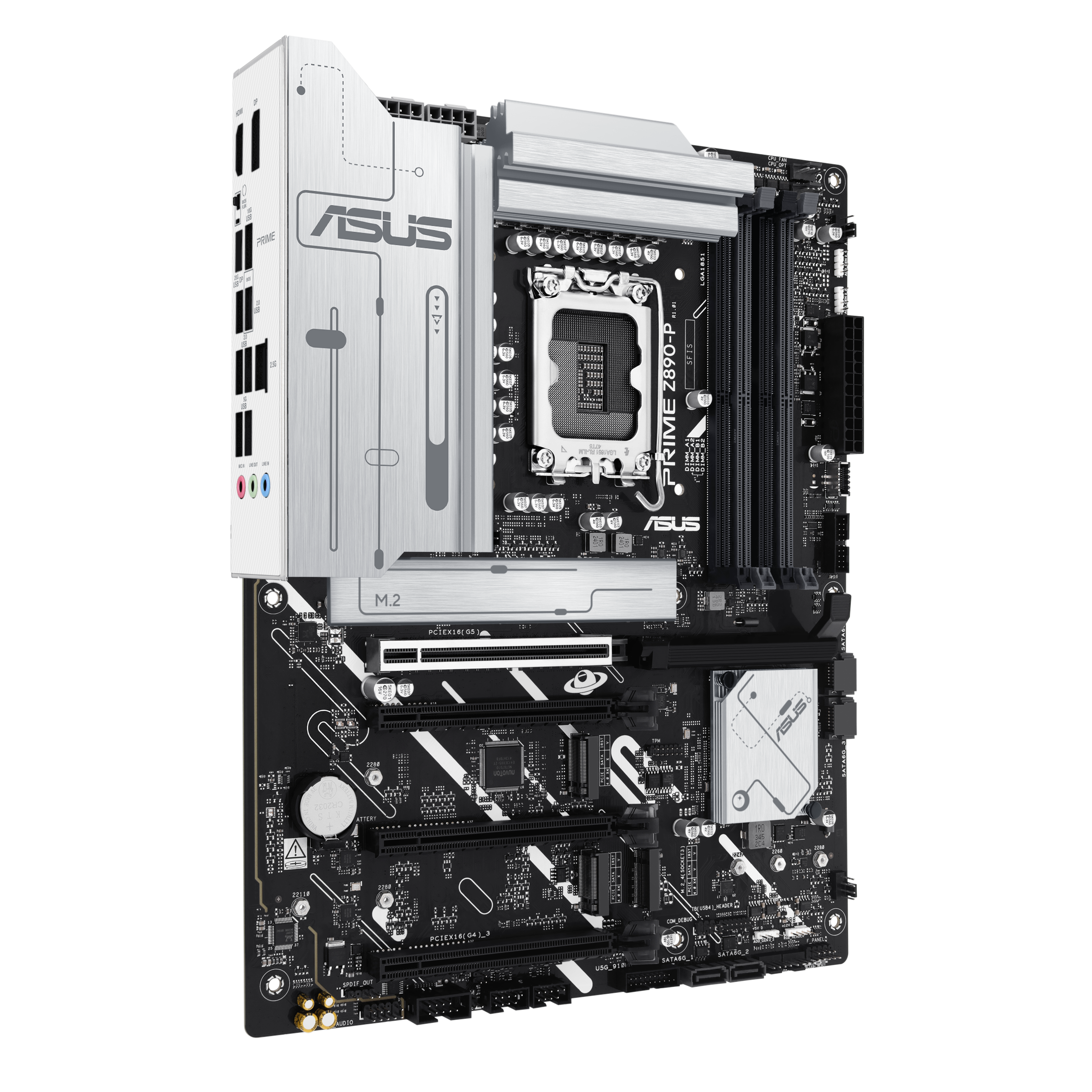

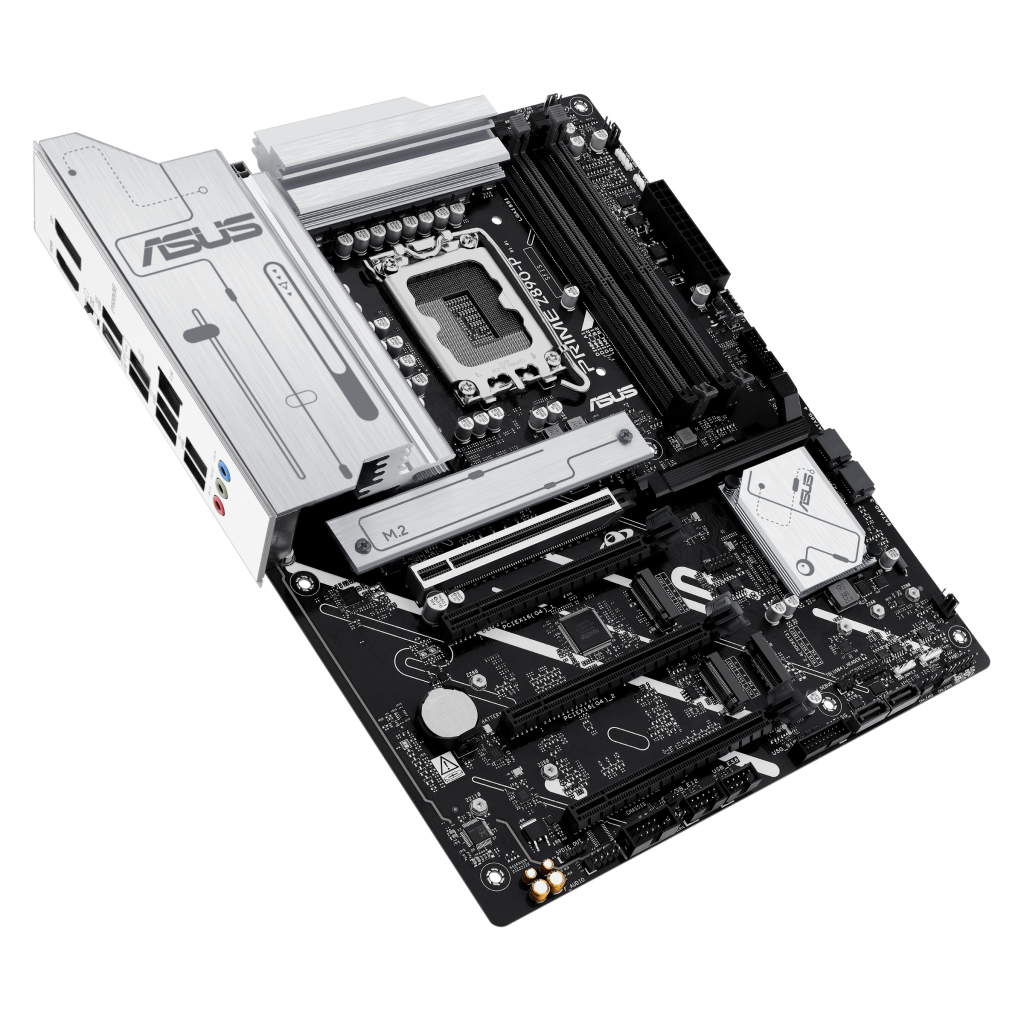

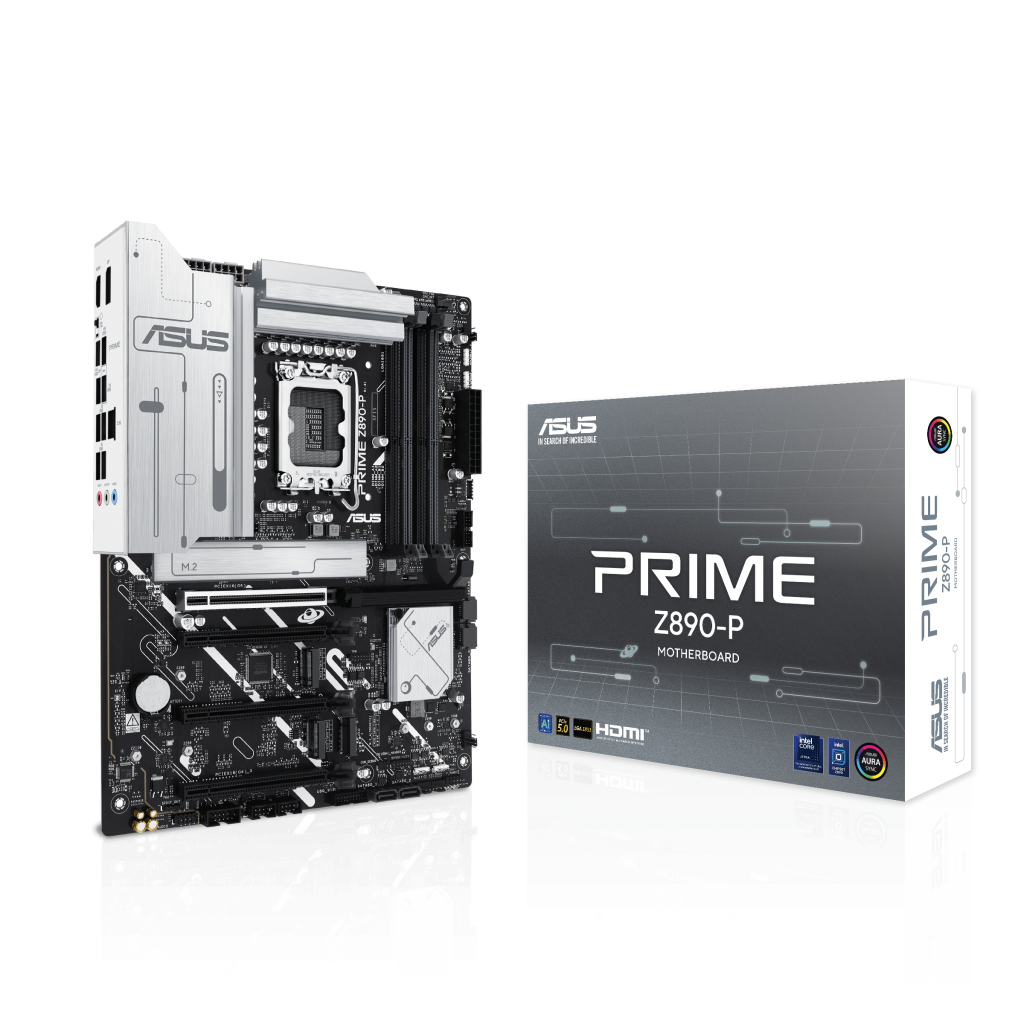

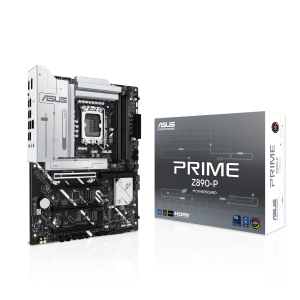

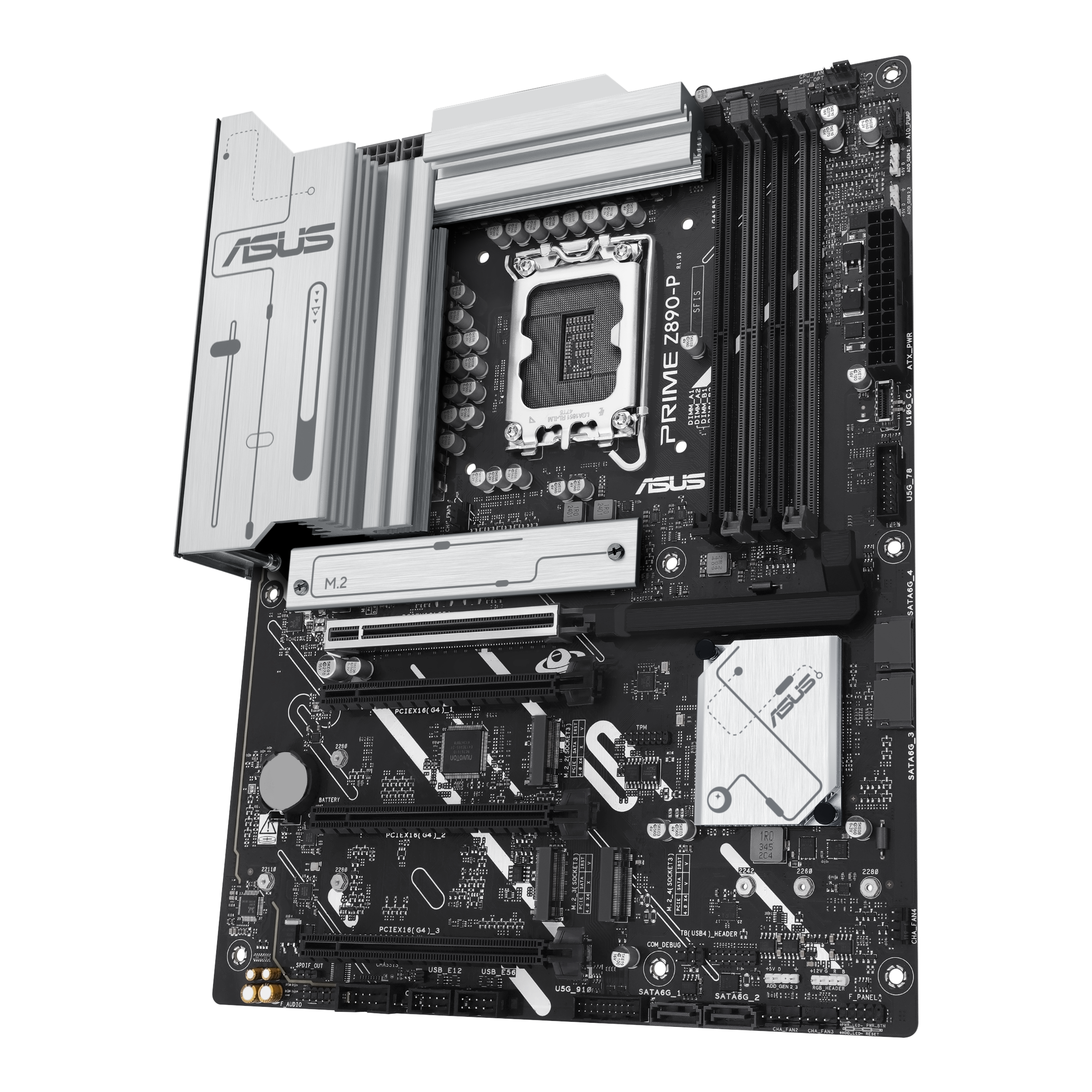

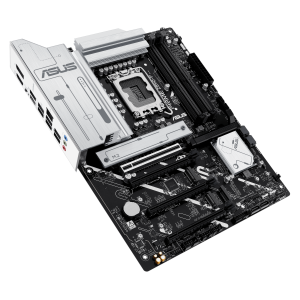

ASUS Prime Z890-P motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gaming enthusiasts.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x16 (x1)
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 7,600 MHz
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 1x Thunderbolt (USB-C), 1x USB 3.2, 2x USB 3.0, and 4x USB 2.0
– OC features: CMOS reset, Digi+
– A total of 7x 4-pin connectors for fans and pumps

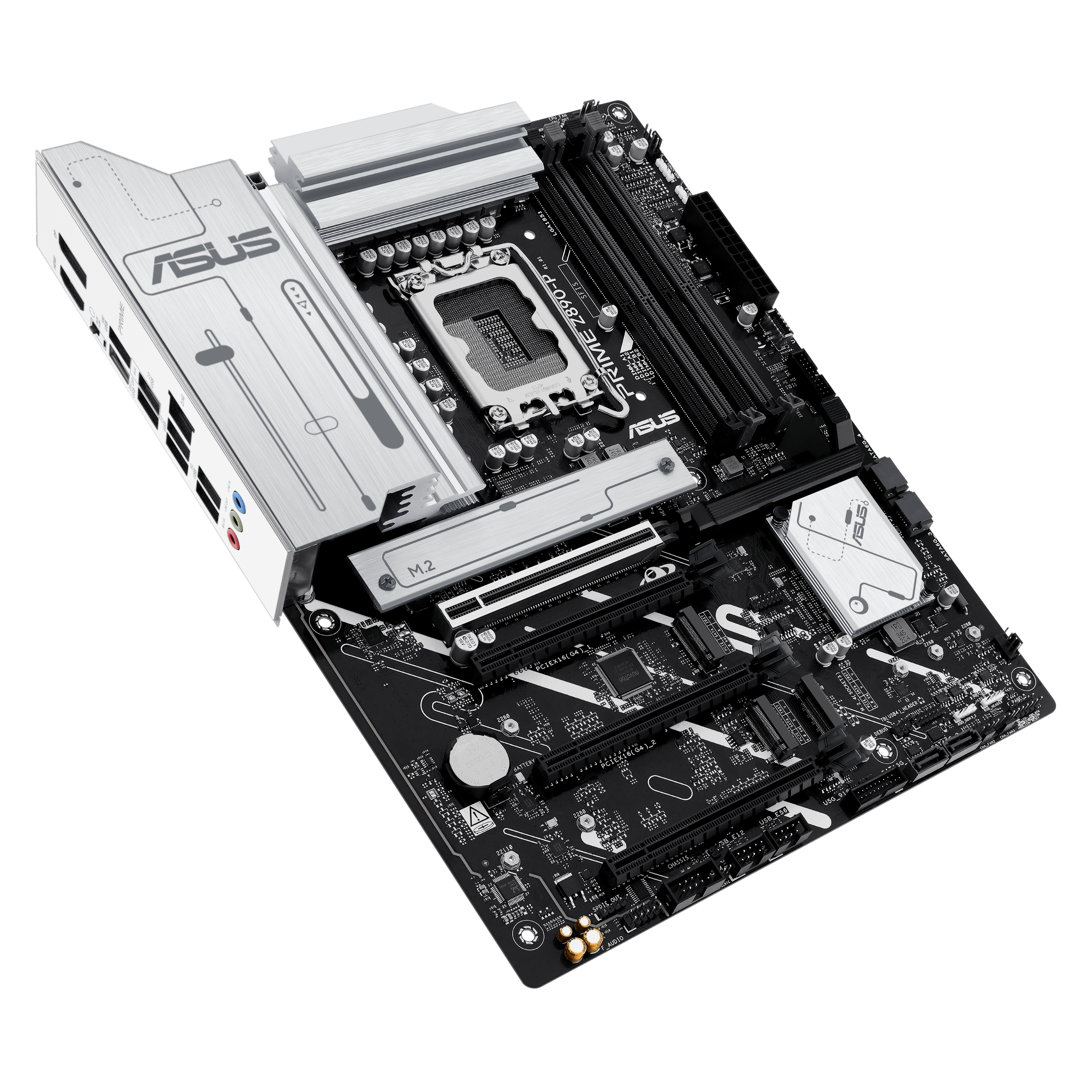

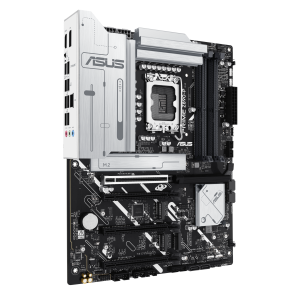

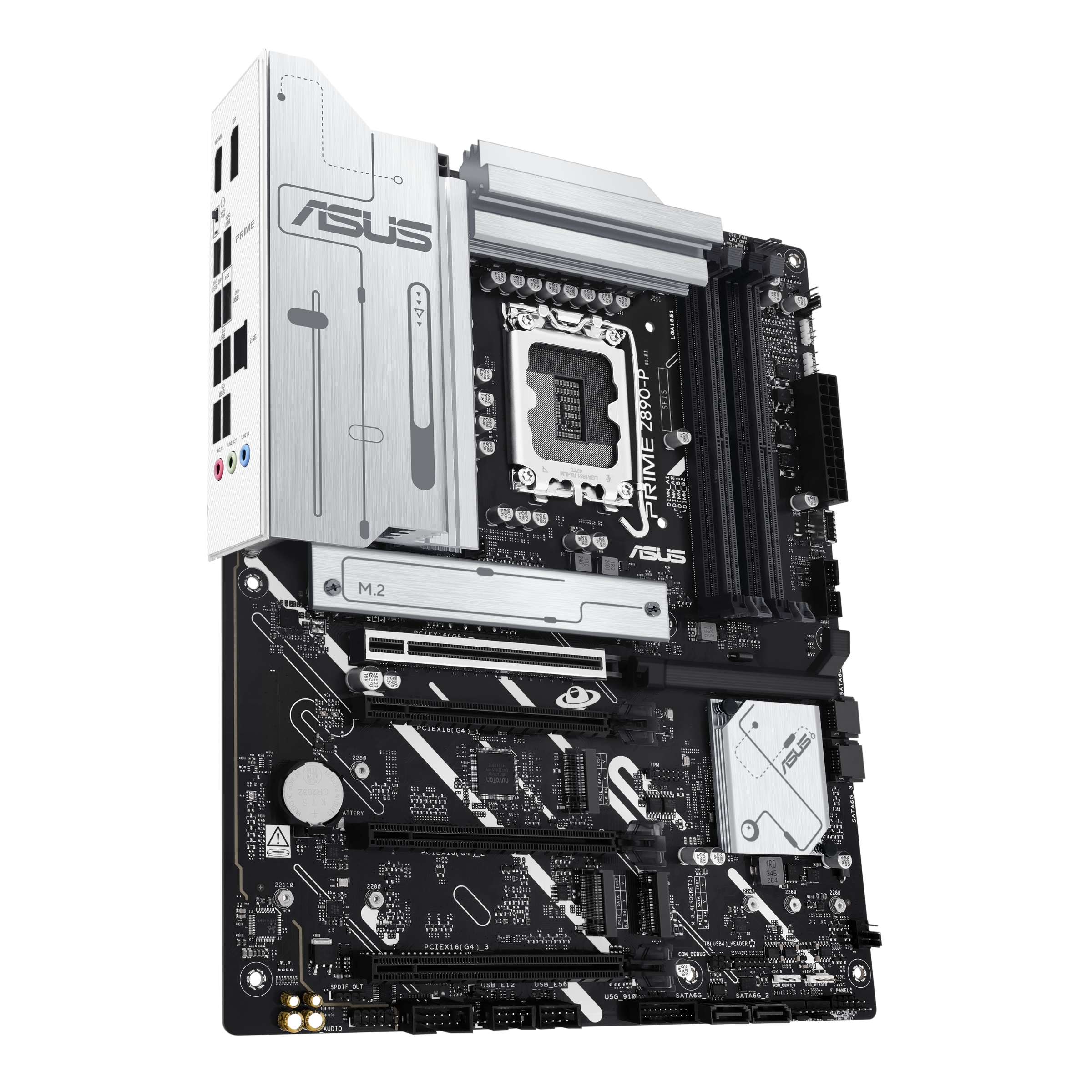

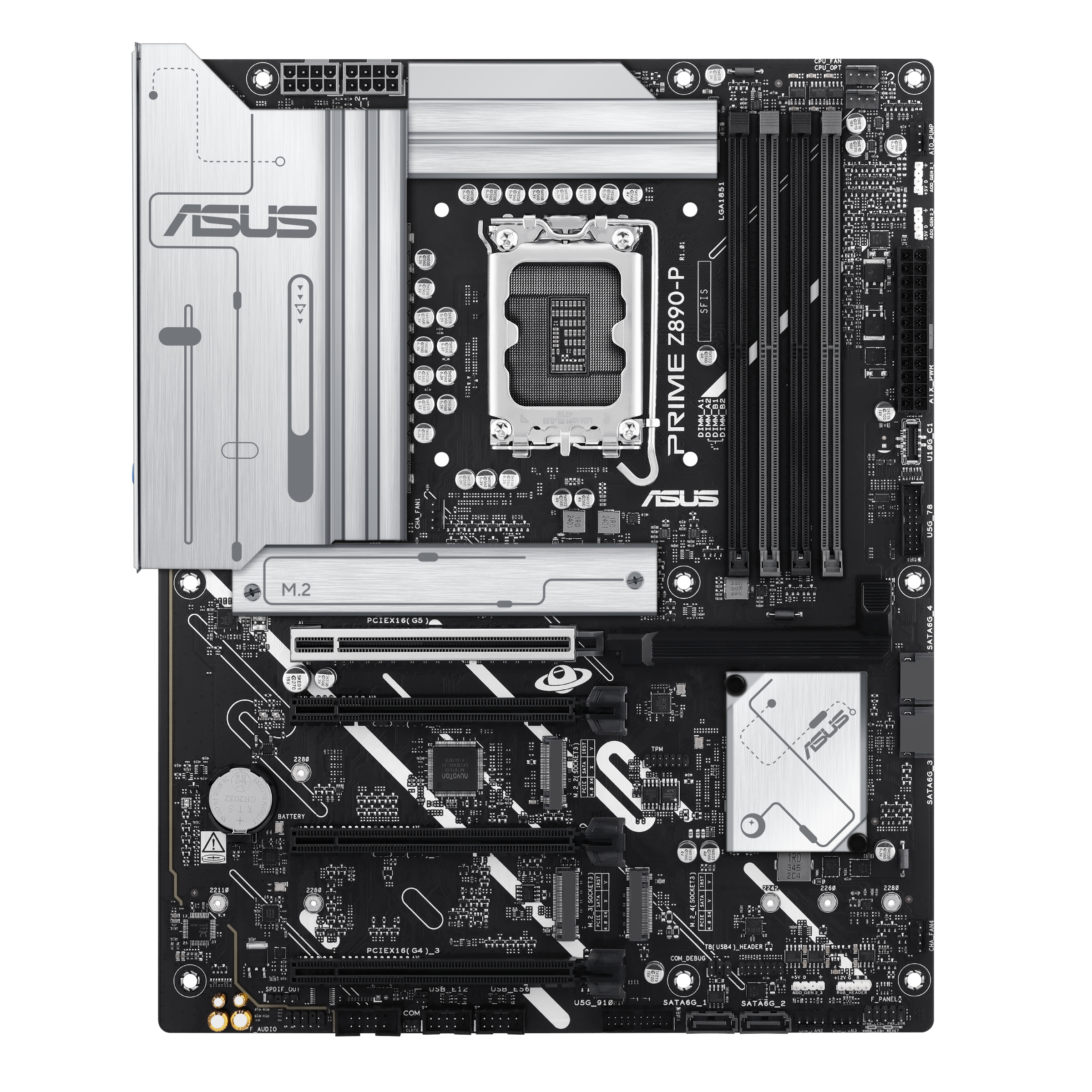

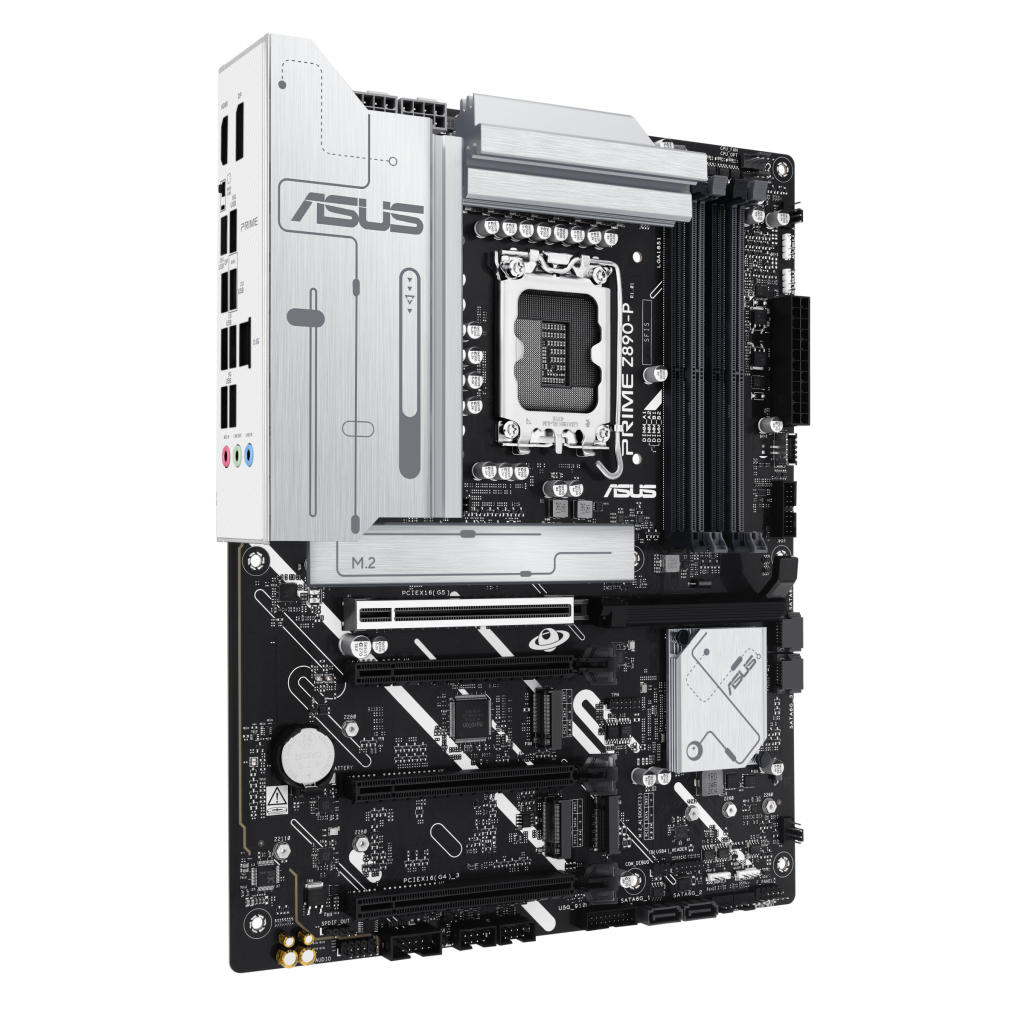

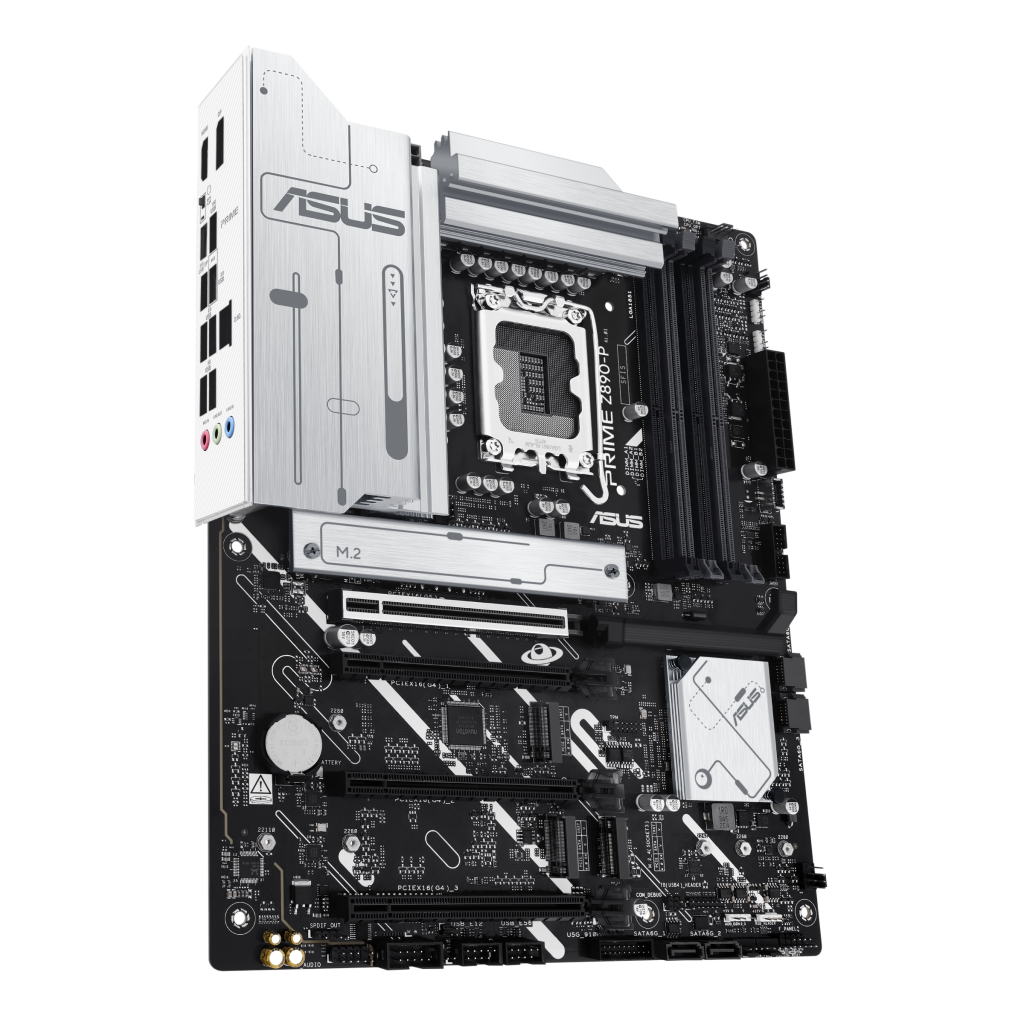

ASUS Prime Z890-P: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS Prime Z890-P is An ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS Prime Z890-P boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Gaming
The ASUS Prime Z890-P was specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruption. The first-class voltage converters ensure a stable power supply to the CPU, ensuring it operates reliably even at high clock speeds for extended periods. The DDR5 RAM can also be overclocked to higher clock speeds.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (up to 7,600 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 2x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 4.0 x16 (electrical x1, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280 / 22110, CPU)
– 1x M.2 (PCIe 4.0) x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280 / 22110, chipset)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Thunderbolt header
– 1x front panel audio header
– 1x 10-1-Pin System Panel Header
– 1x SPI TPM header (14-1 pin)
– 1x COM port header
– 1x BIOS flashback button
– 1x Clear CMOS Button
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x CPU OPT Fan (4-pin)
– 1x AIO Pump Header
– 4x Case Fans (4-pin)
– RGB Header:
– 3x 3-pin ARGB (5 V)
– 1x Aura RGB Header

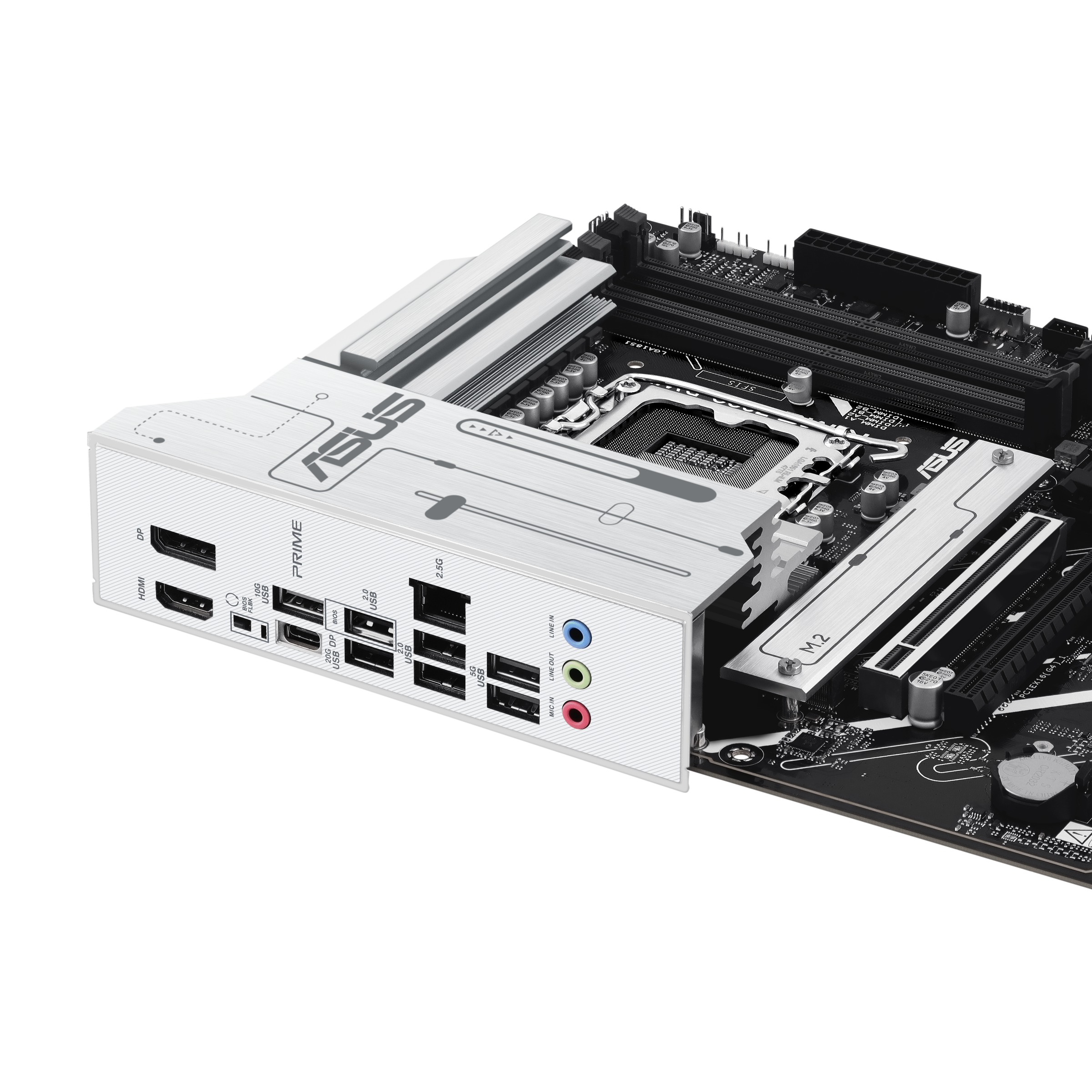

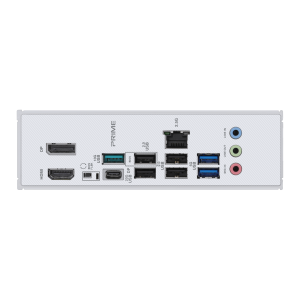

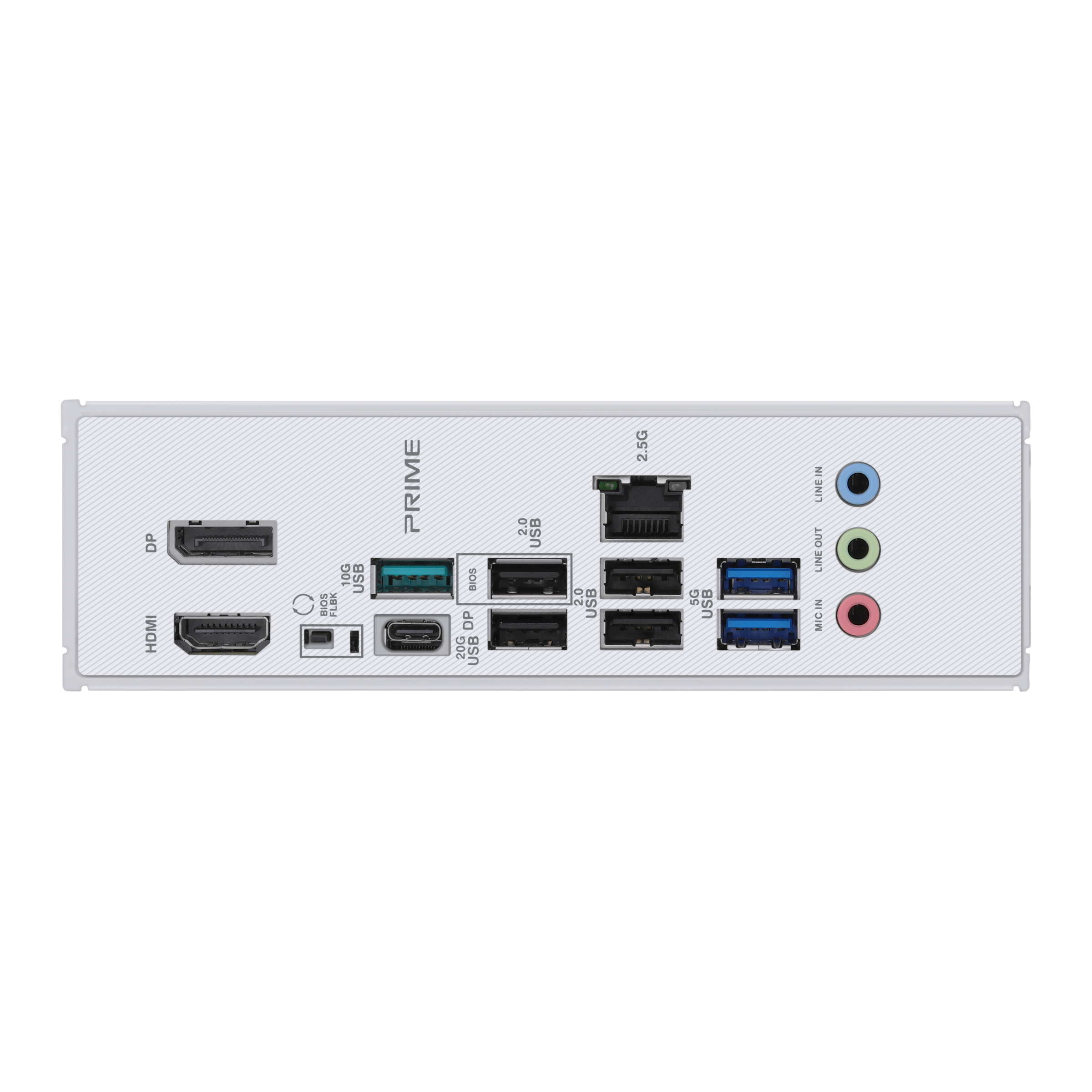

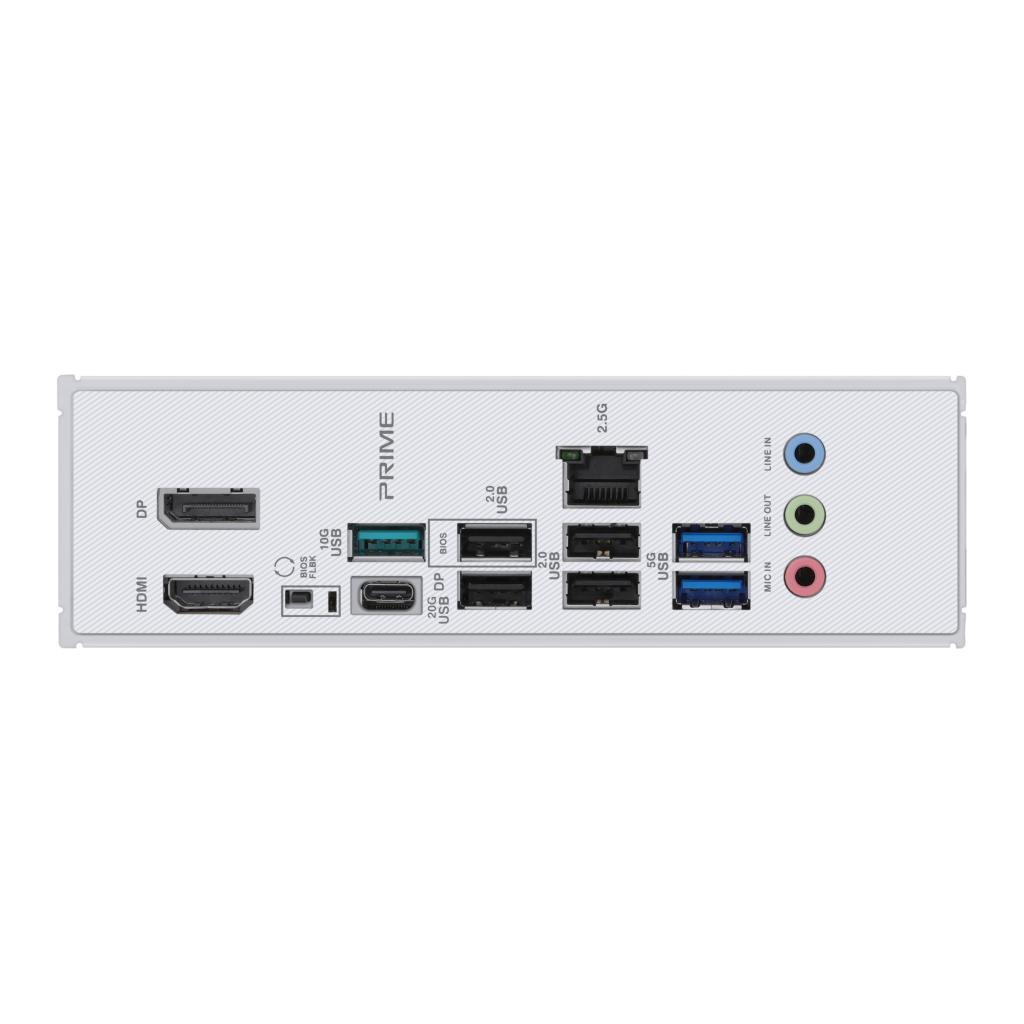

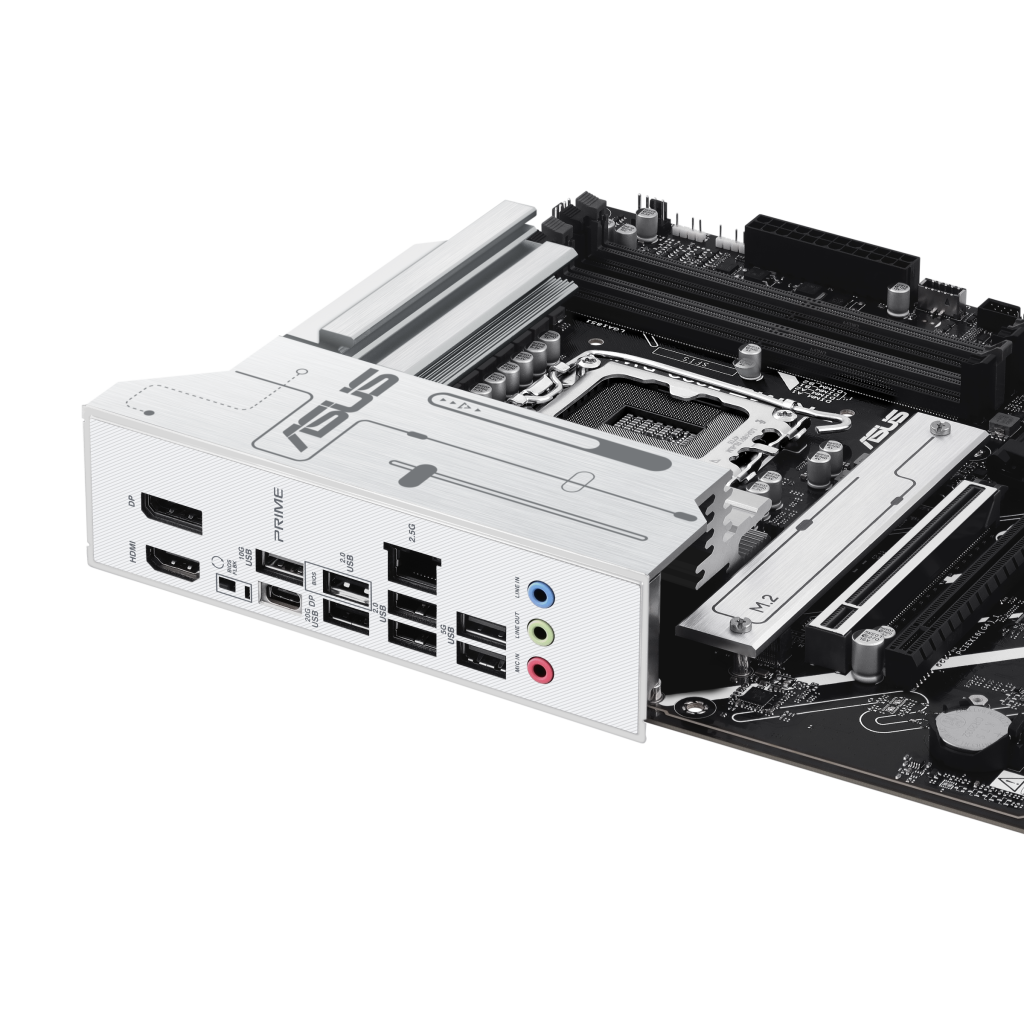

– External Connectors:
– 1x Thunderbolt (USB-C)
– 1x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 2x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (Type-A, max. 480 Mbps)
– 1x DisplayPort
– 1x HDMI
– 1x 2.5 Gigabit LAN (Intel I219V)
– 3x 3.5 mm jack
– 1x S/PDIF audio
– Power Supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
– Accessories:
– 2x SATA cables
