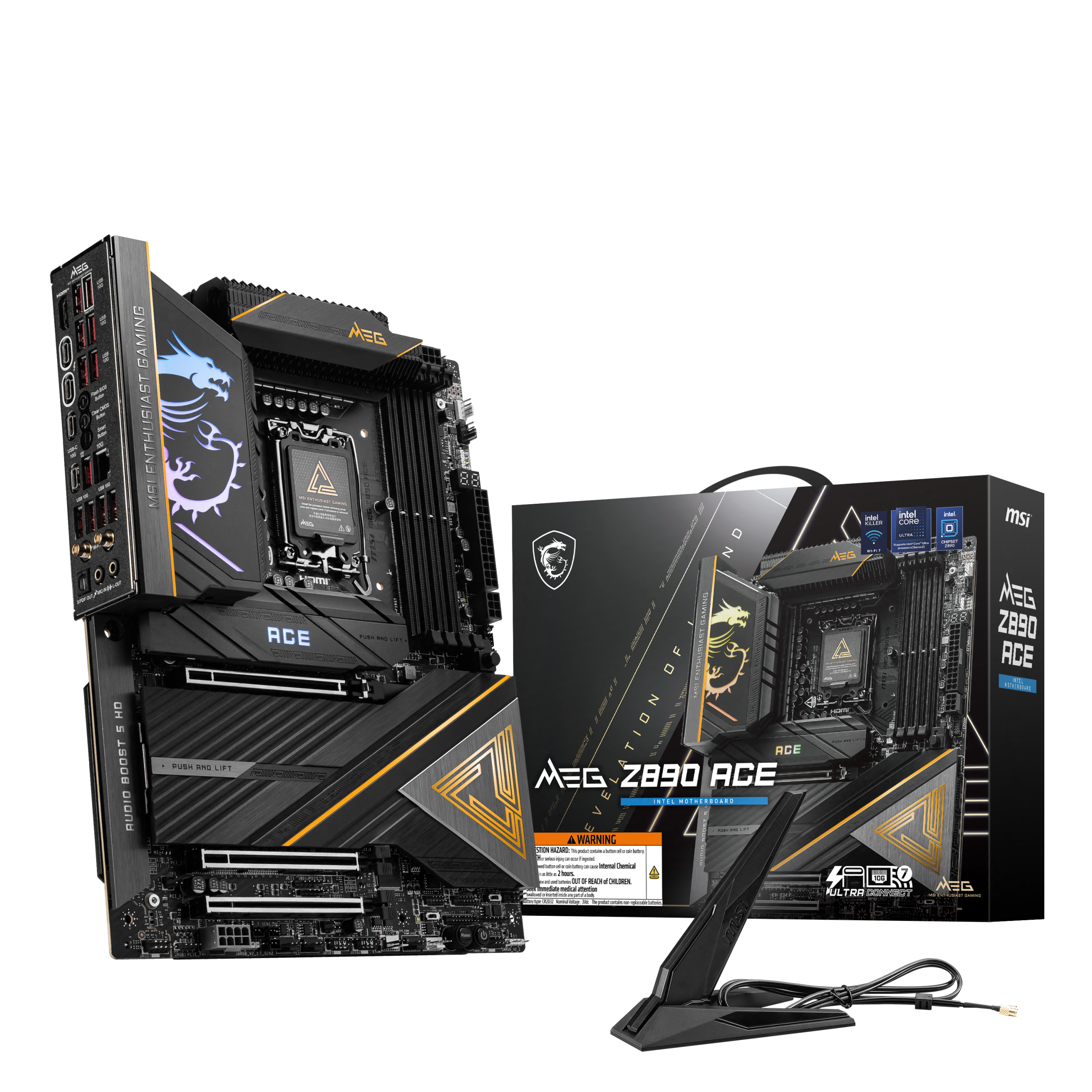

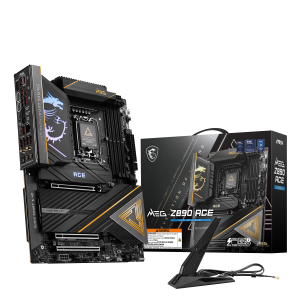

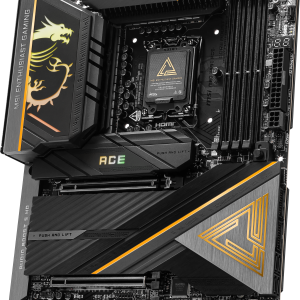

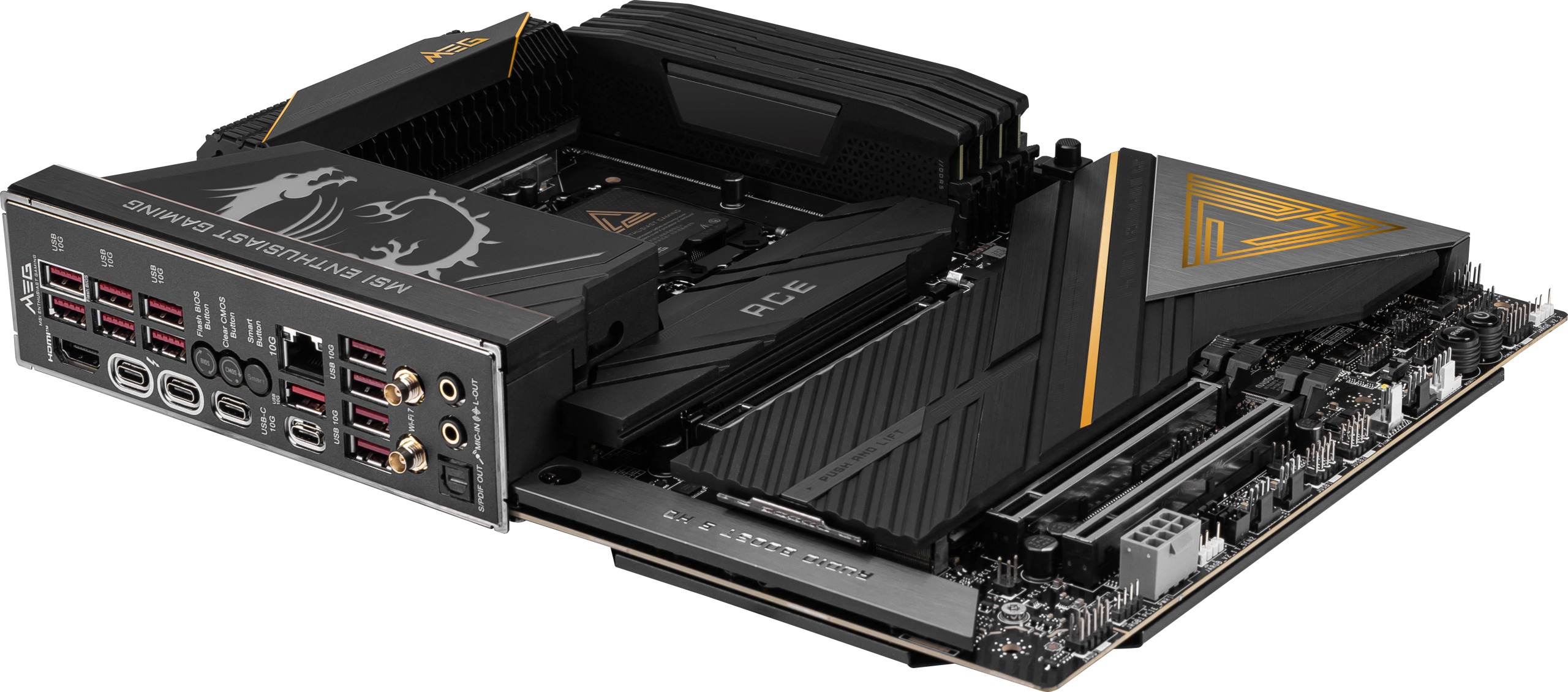

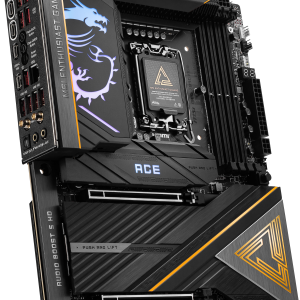

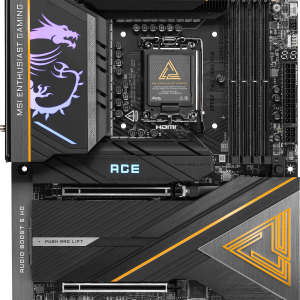

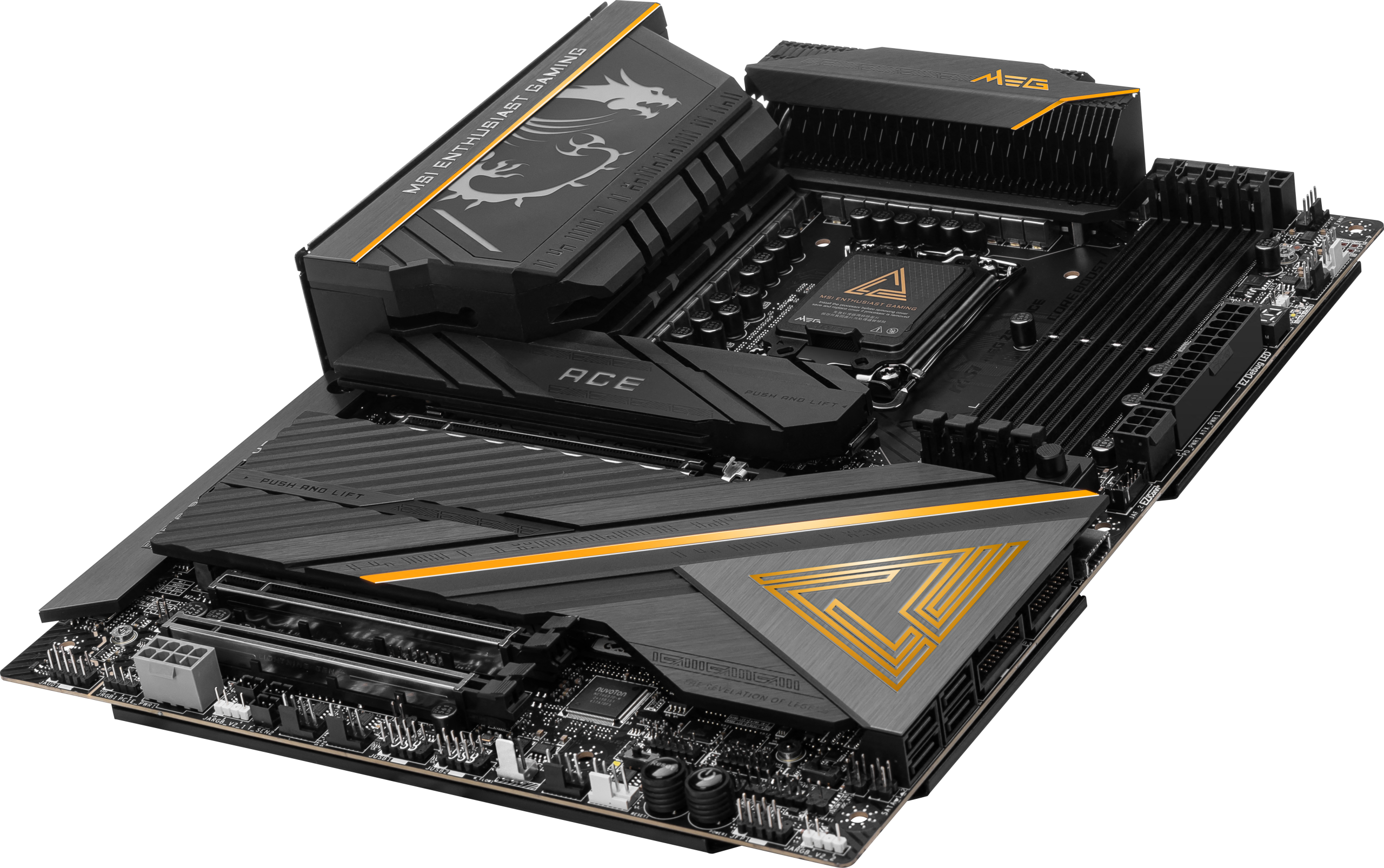

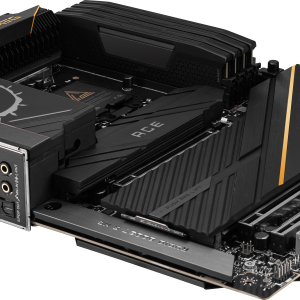

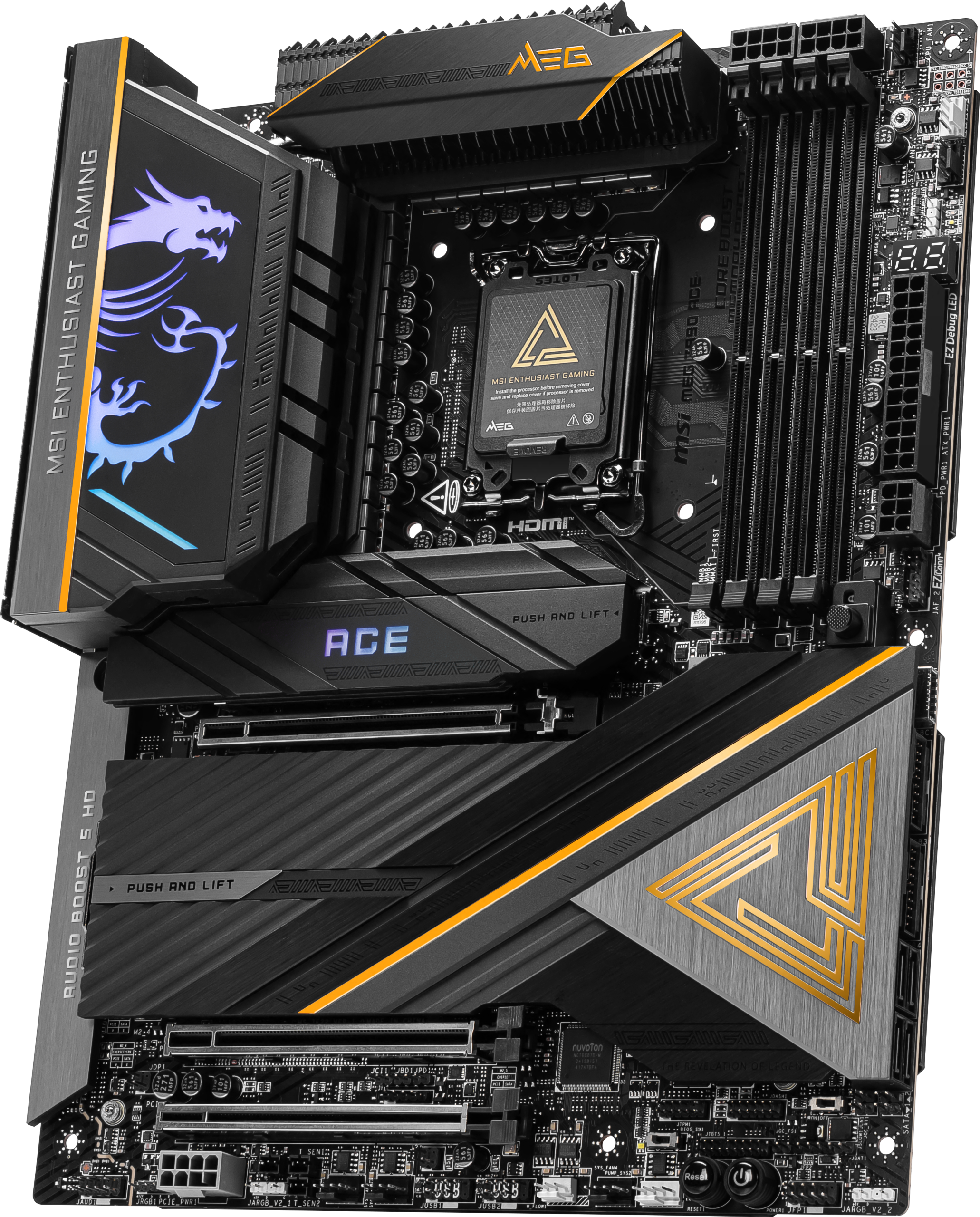

MSI MEG Z890 ACE motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for gaming enthusiasts and high-end builds.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 5.0 x16 (x8), and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9200 MHz
– 5x M.2 (including 2x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G

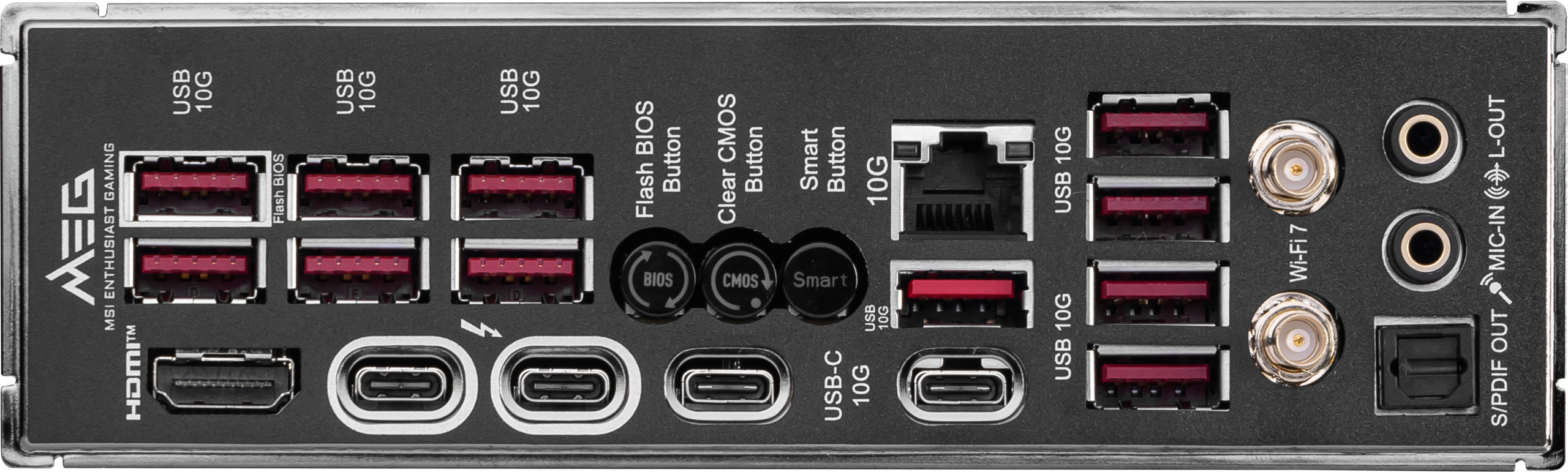

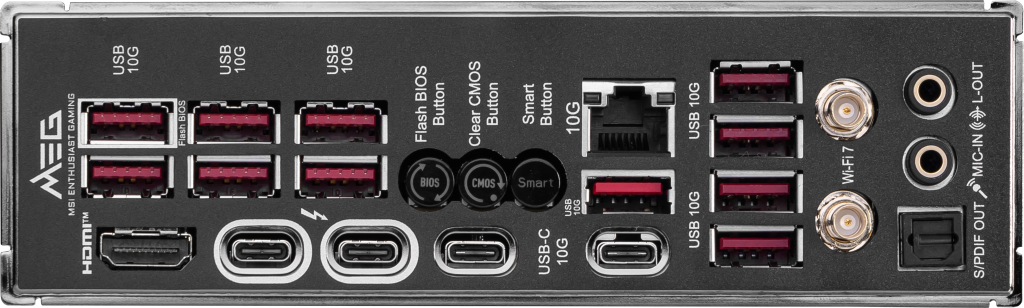

– USB on the I/O panel: 2x Thunderbolt 4, 2x USB-C 3.1, 11x USB 3.1
– A total of 8x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

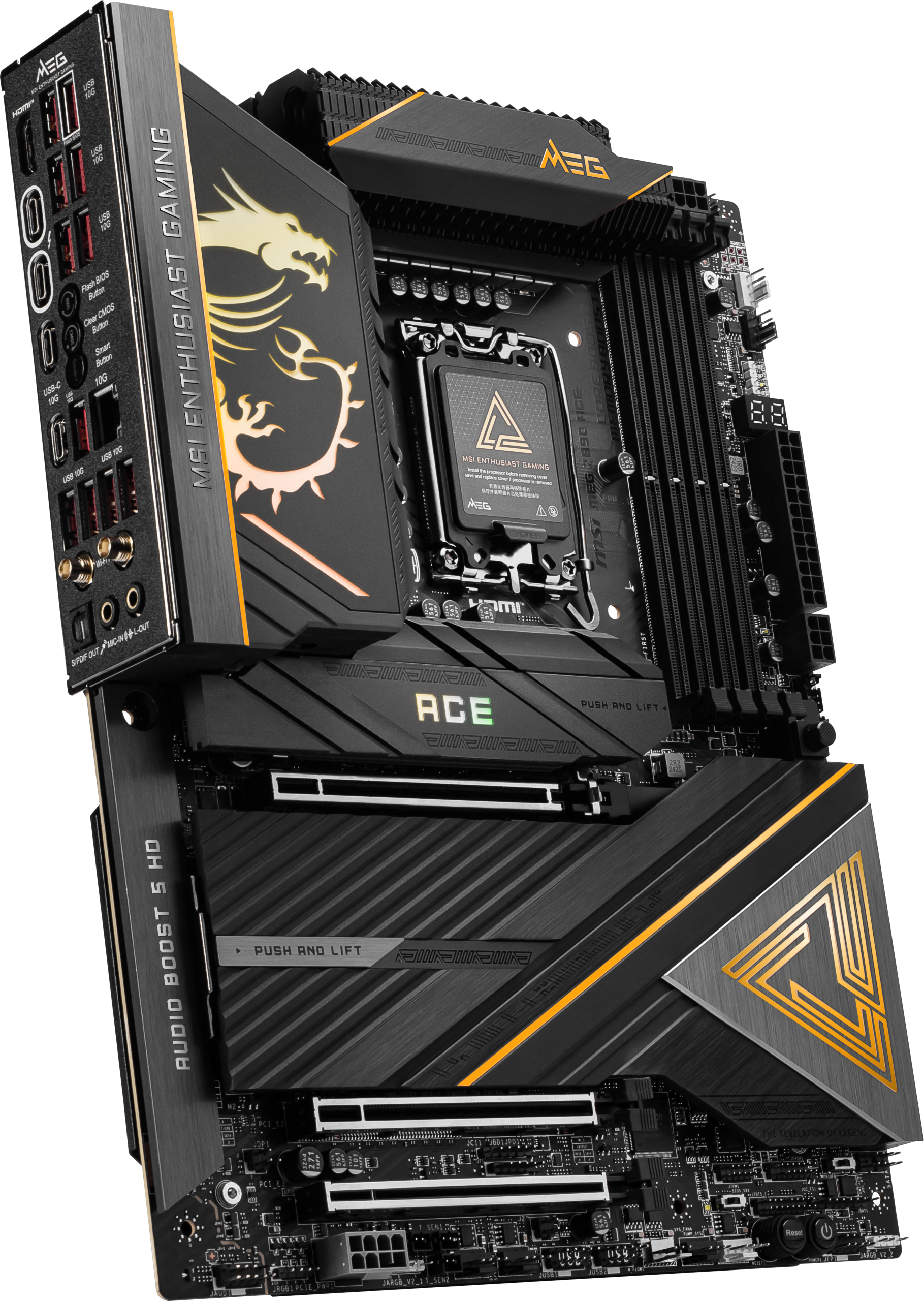

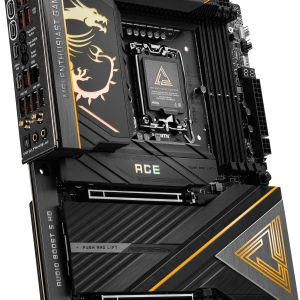

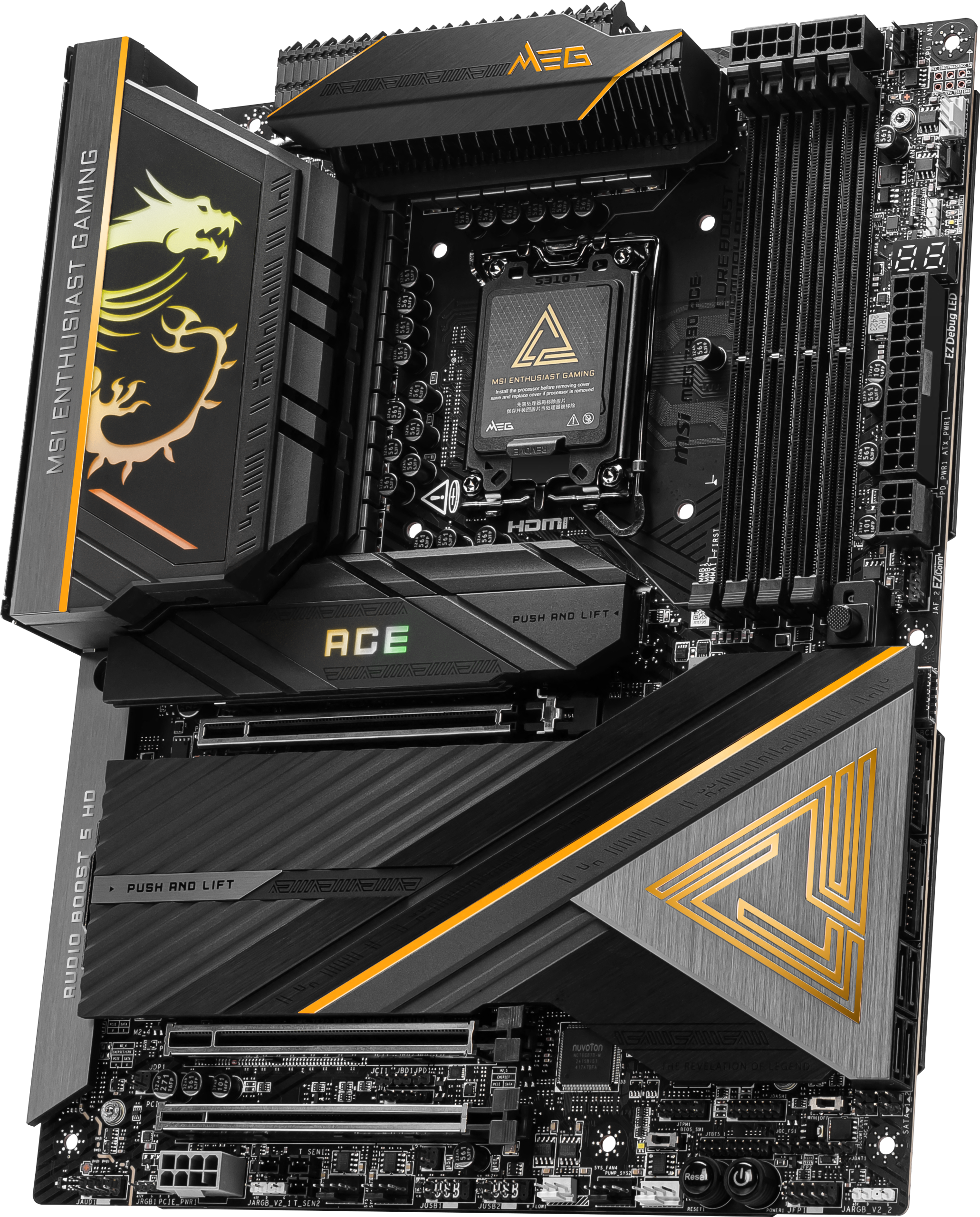

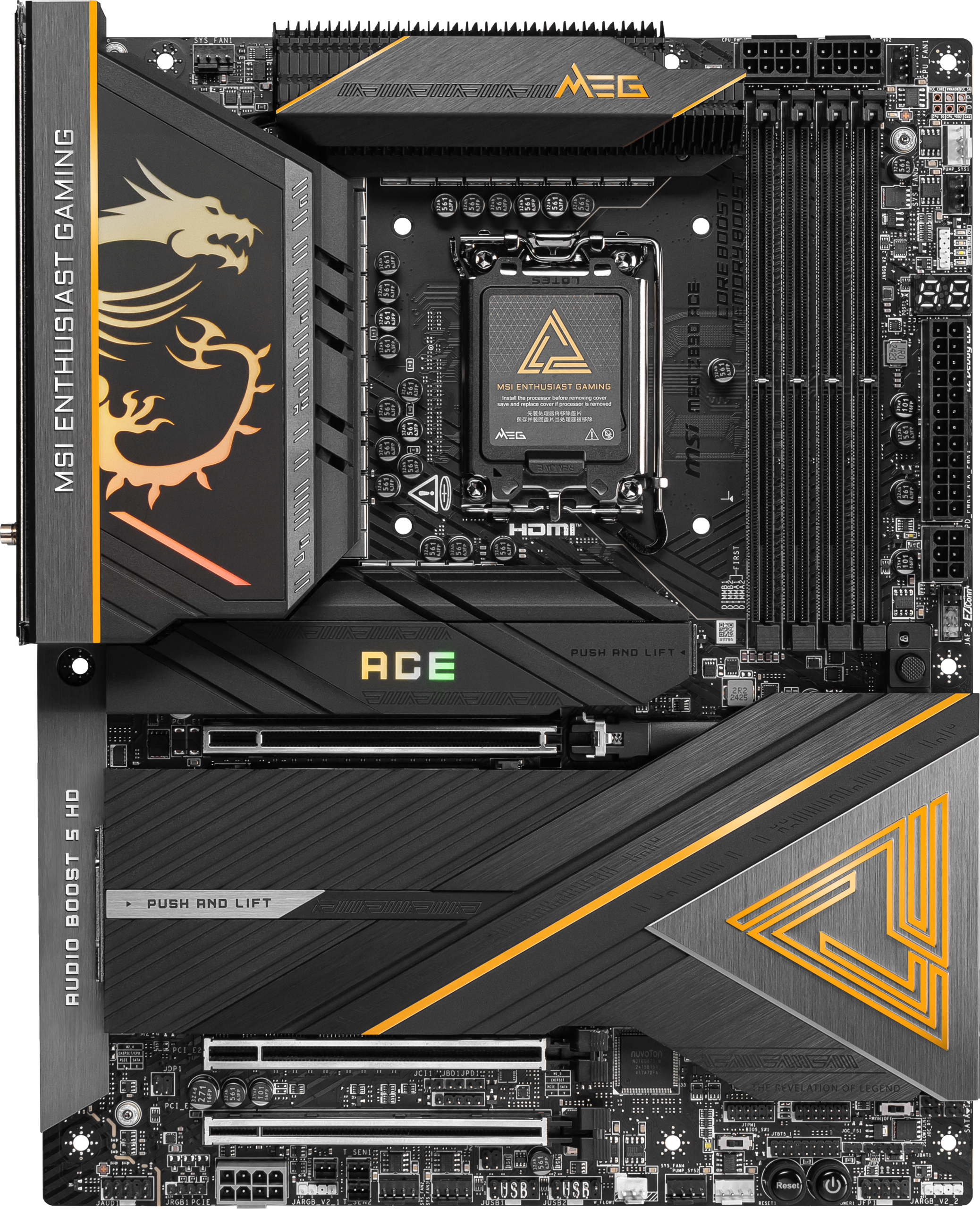

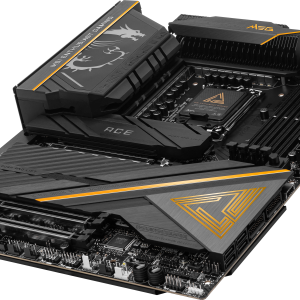

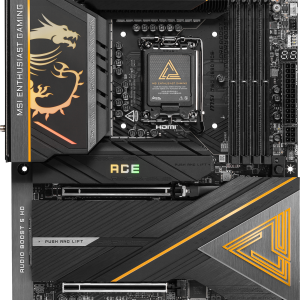

MSI MEG Z890 ACE: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The MSI MEG Z890 ACE is an ATX motherboard with The high-end Intel Z890 chipset and the LGA 1851 socket support second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the MSI MEG Z890 ACE boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Suitable for Overclocking

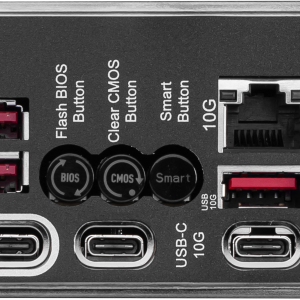

With its 24+2+1+1 phase VRMs, the MSI MEG Z890 ACE allows you to overclock your CPU and thus get the full performance out of your gaming PC. The DDR5 RAM can also be overclocked. To be on the safe side, theres a Clear CMOS button on the I/O panel.

Technical Details
– Color
– – Main Color
– Black
– Dimensions
– Length / Depth
– 243.8 mm
– Width
– 304.8 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel Z890
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 9200 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 10 Gbps
– LAN Chip
– Marvell AQC113CS
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Wi-Fi Chip
– Intel Killer BE1750x
– Cooling

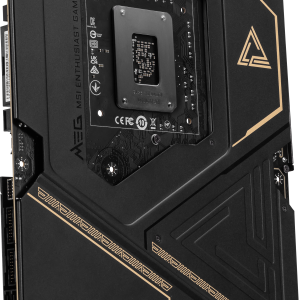

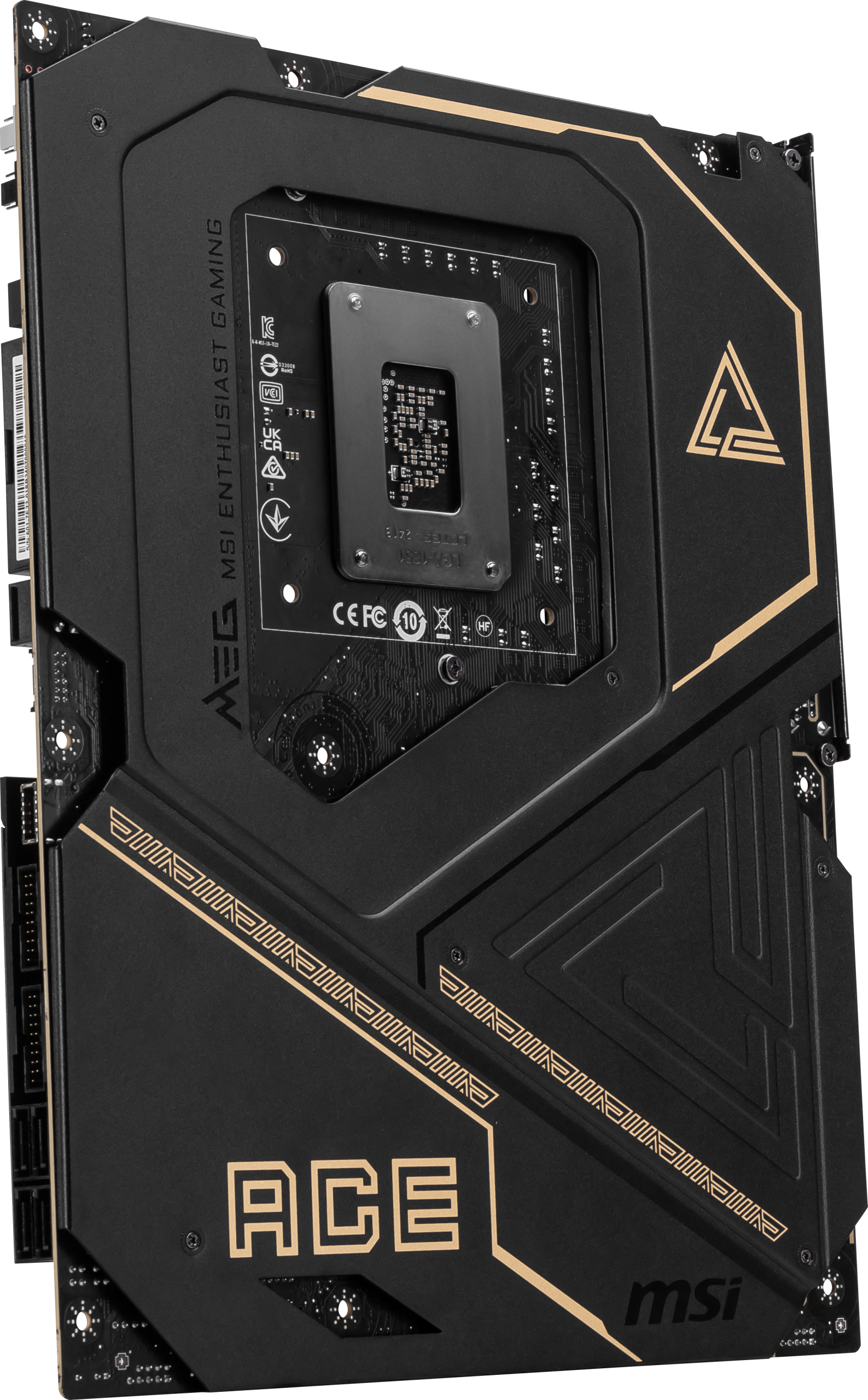

– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-Pin
