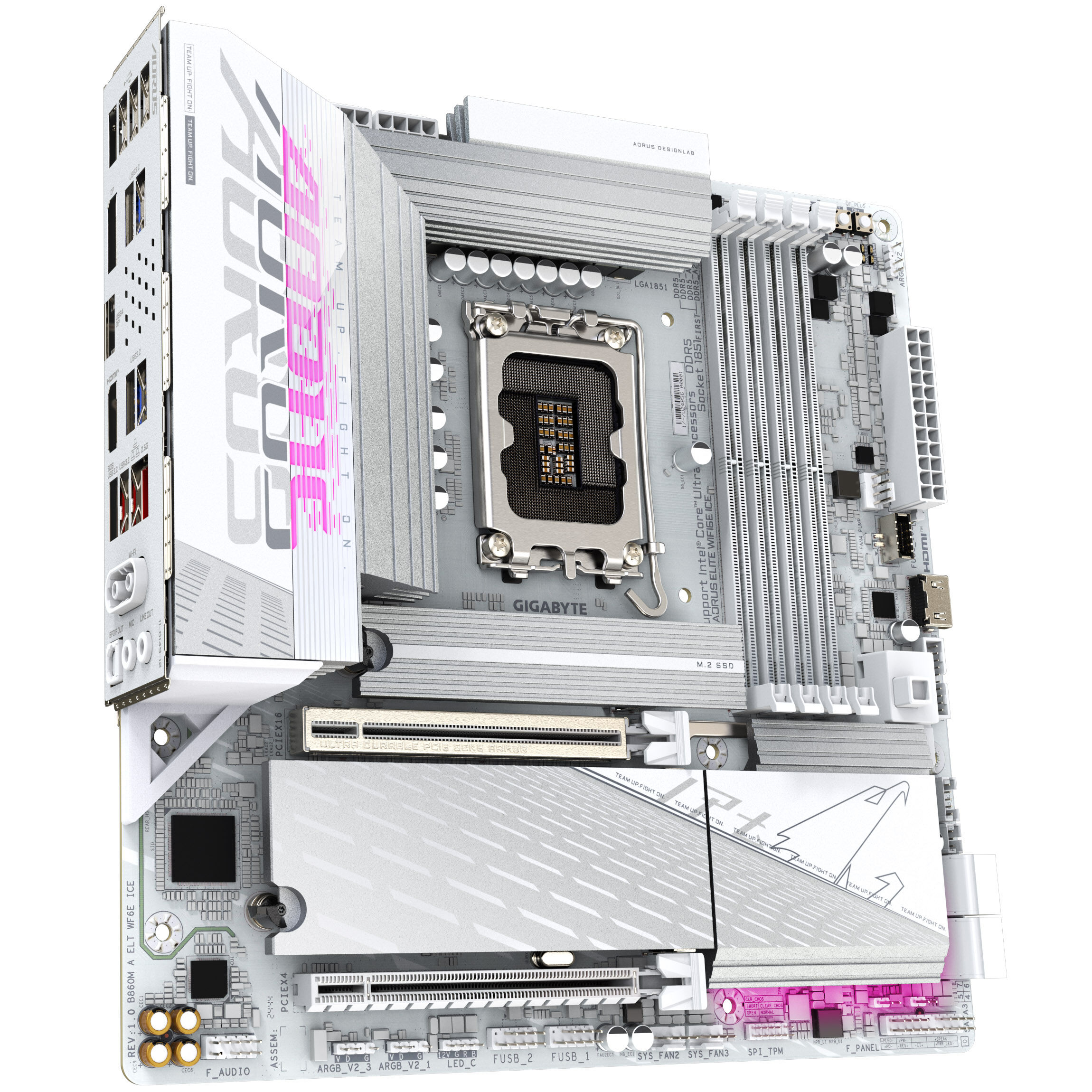

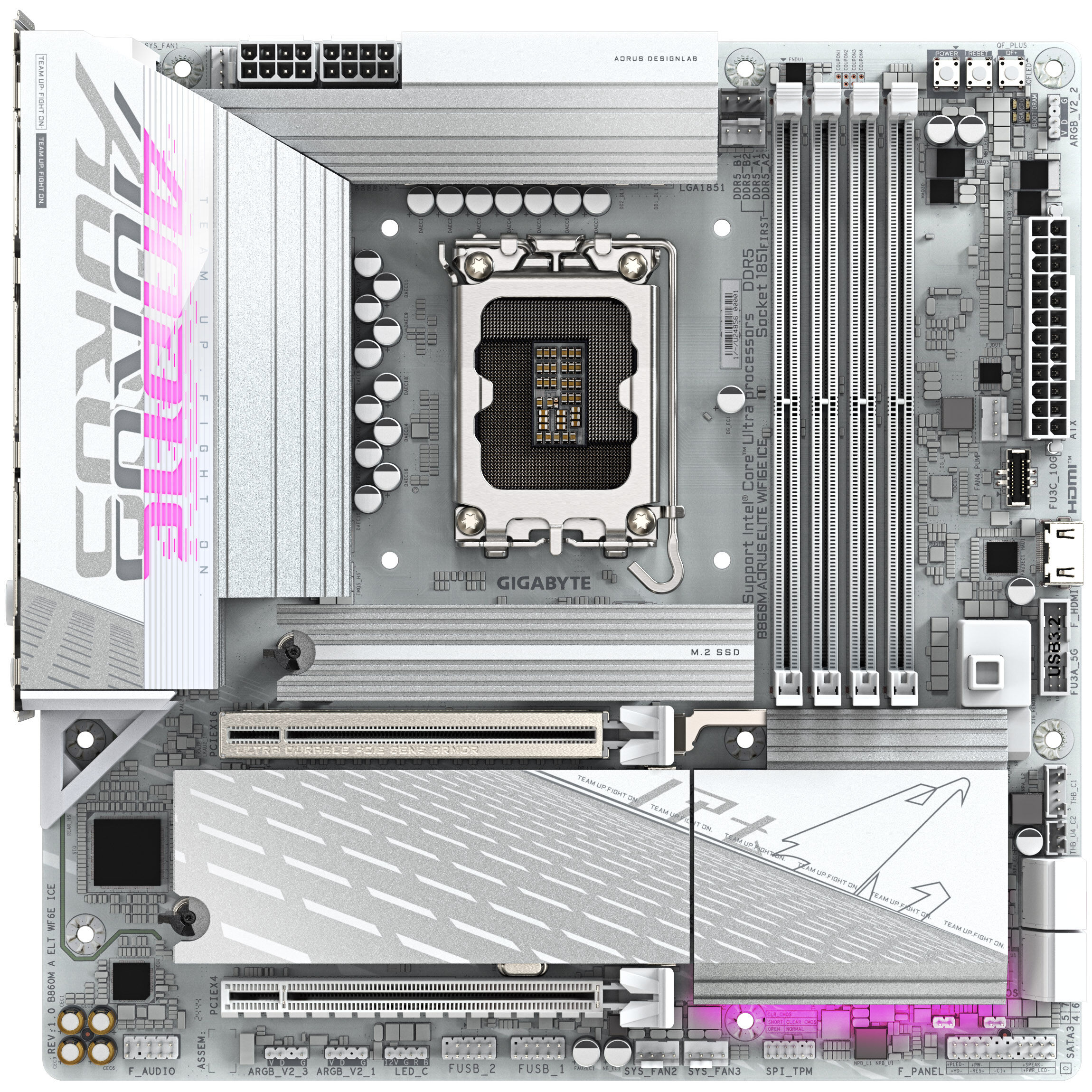

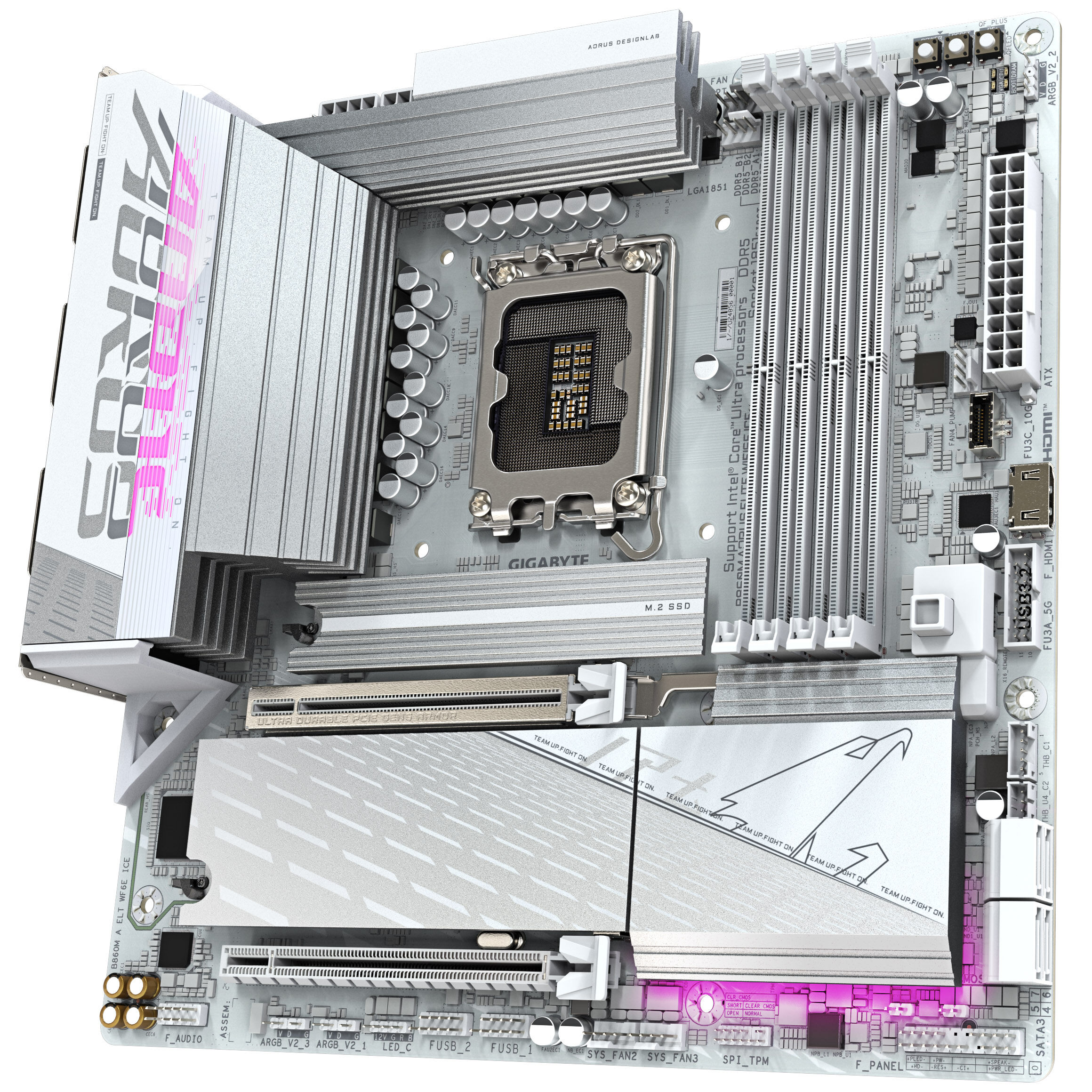

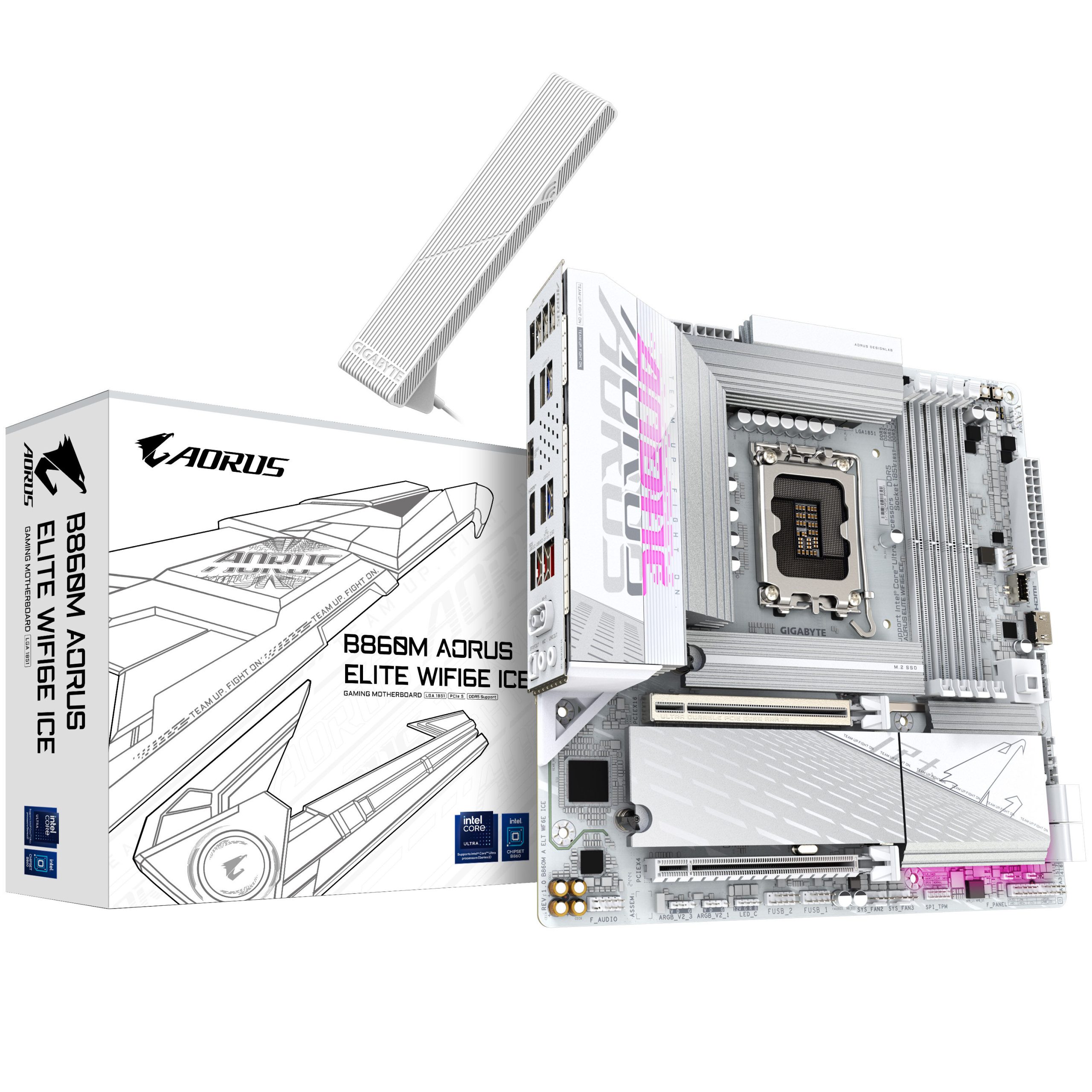

Gigabyte B860M Aorus Elite WiFi6E ICE motherboard, Socket 1851, Intel B860, mATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 9200 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA

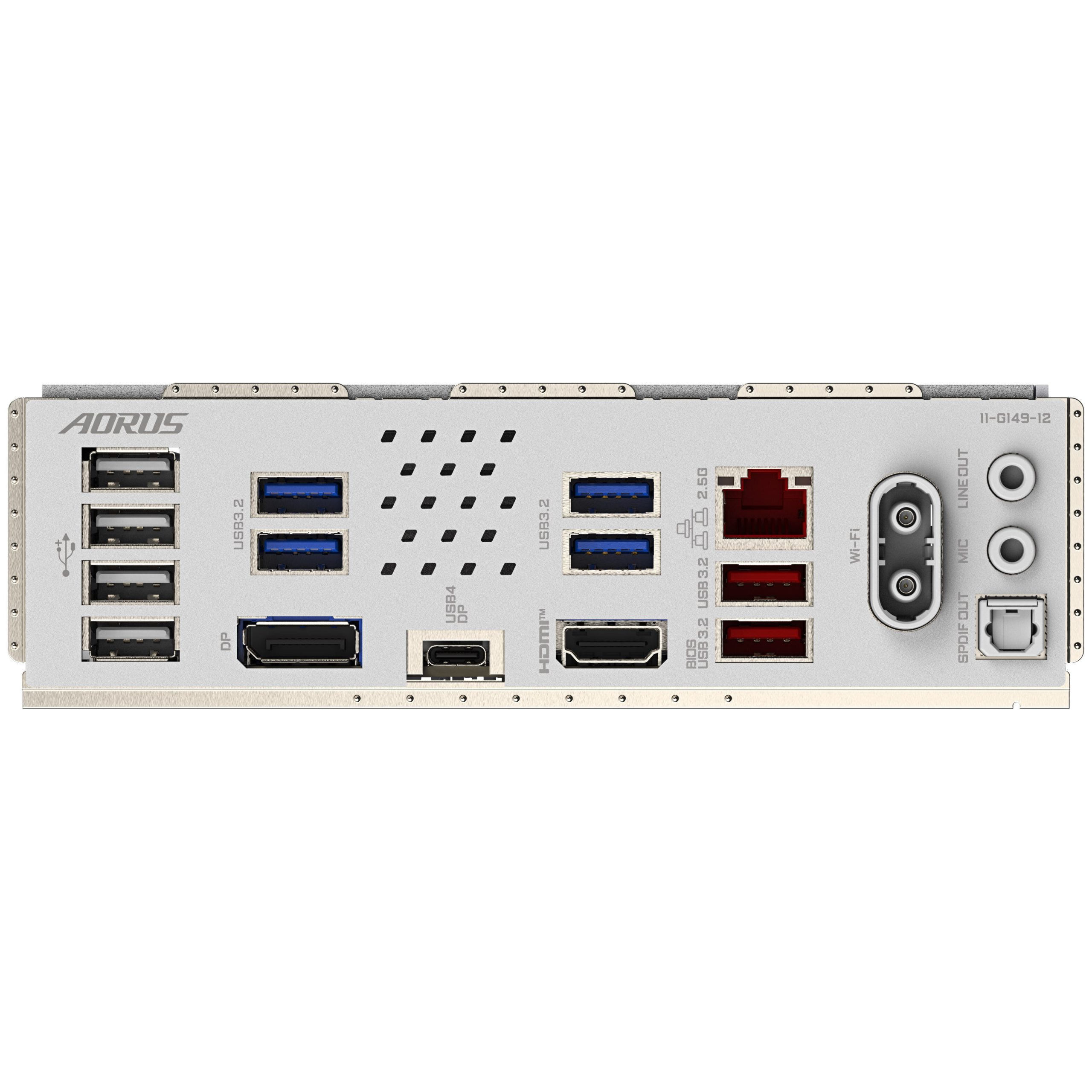

– USB: 1x USB 4, 3x USB 3.1, 6x USB 3.0, 8x USB 2.0
– Cooling: 4x 4-pin PWM connectors for fans and radiators

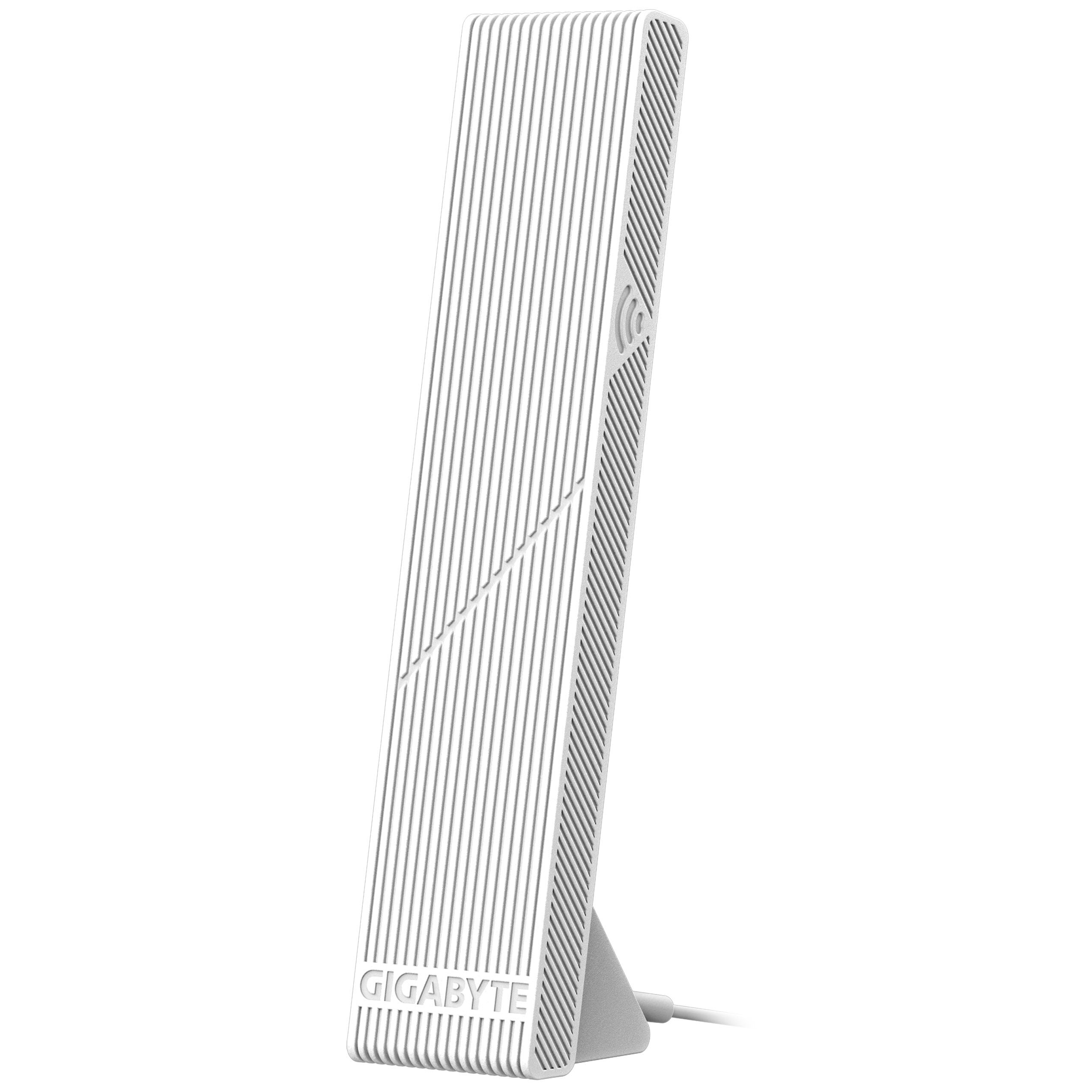

– Connectivity: Wi-Fi 6E and Bluetooth 5.3

GIGABYTE B860M AORUS ELITE WIFI6E ICE: micro-ATX motherboard with Intel LGA 1851 socket and B860 chipset
The GIGABYTE B860M The AORUS ELITE WIFI6E ICE is a Micro-ATX motherboard with the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake processors and is suitable for gamers who dont care about extreme CPU overclocking.

The B860 motherboards also support USB 4, which achieves very fast data transfer rates of up to 40 Gbps. The B860M AORUS ELITE WIFI6E ICE also offers PCIe 5.0 for graphics cards and M.2 SSDs. The DDR5 memory is overclockable with XMP, allowing you to get the most out of your RAM.

Technical Details
– Color
– Primary Color
– White
– Secondary Color
– Light Gray
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Performance Specifications
– Voltage Converters (VRMs)
– 12+1+2
– Motherboard
– Motherboard Chipset
– Intel B860
– Dual BIOS
– No
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 6400 MT/s
– Max. Memory Speed (OC)
– 9200 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– Intel XMP
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbit/s
– WLAN / Bluetooth
– Yes
– WLAN Standard
– Wi-Fi 6E
– Bluetooth Standard
– 5.3
– Wi-Fi Chip
– Realtek RTL8852CE
– Cooling
– Backplate
– No
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-Pin
