Gigabyte B760M DS3H DDR4, Socket LGA 1700, Intel B760M, Micro-ATX - DDR4

– 1x PCIe 4.0 x16 (x16), 2x PCIe 3.0 x1
– DDR4 memory up to 3200 MHz, with RAM overclocking up to 5333 MHz
– 2x M.2 slots, including 2x PCIe 4.0
– USB on the I/O panel: 1x USB-C 3.1, 3x USB 3.0, and 2x USB 2.0
– A total of 4 connectors for fans and pumps

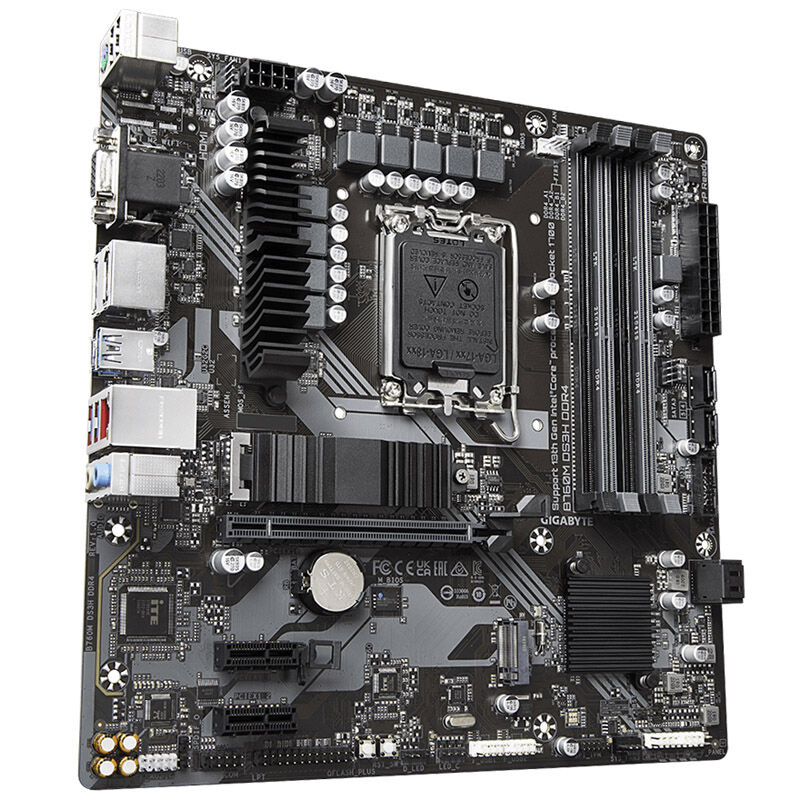

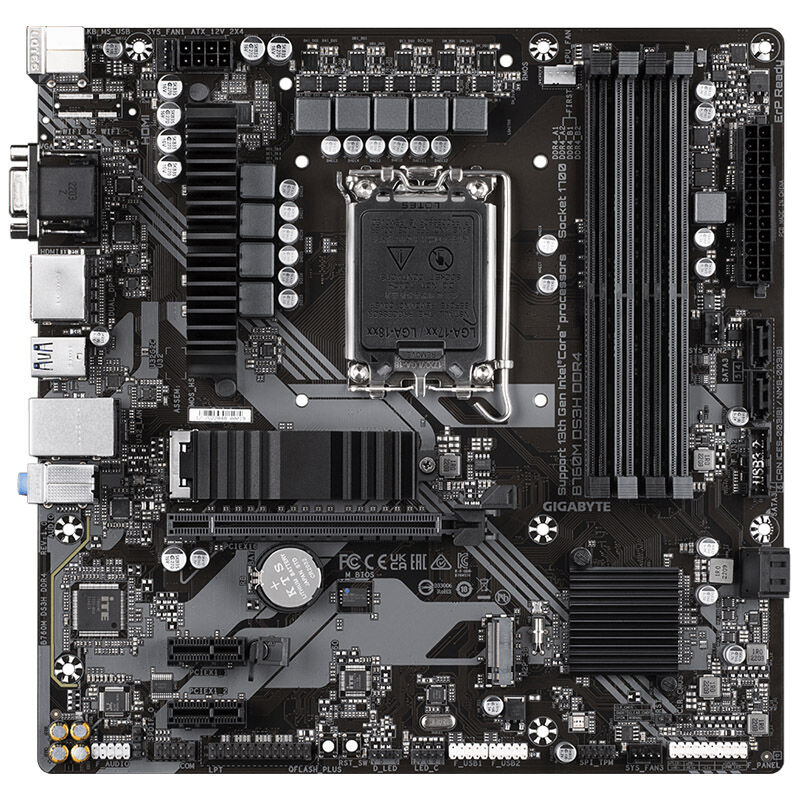

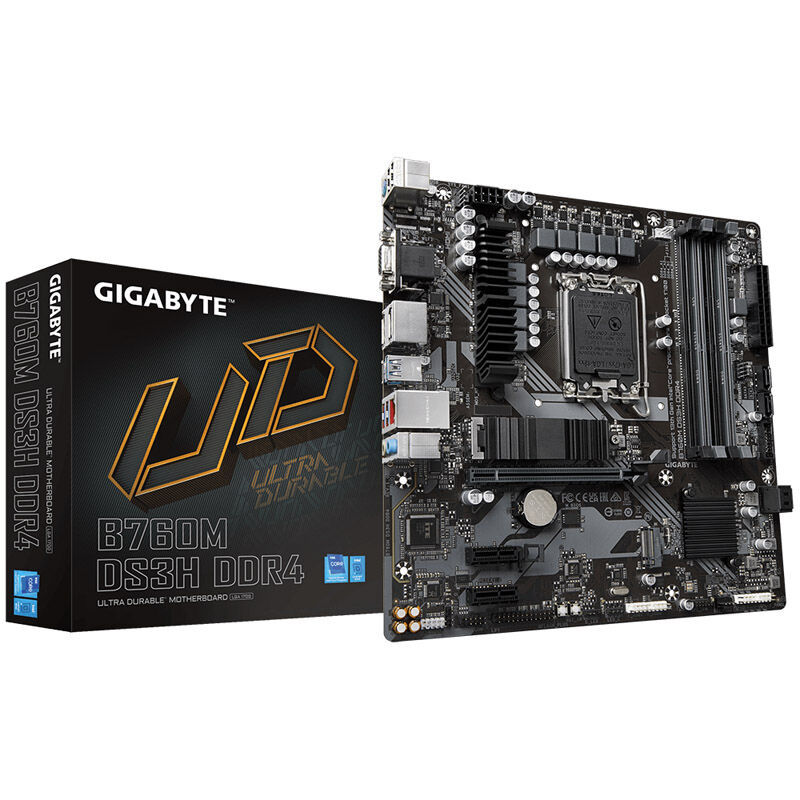

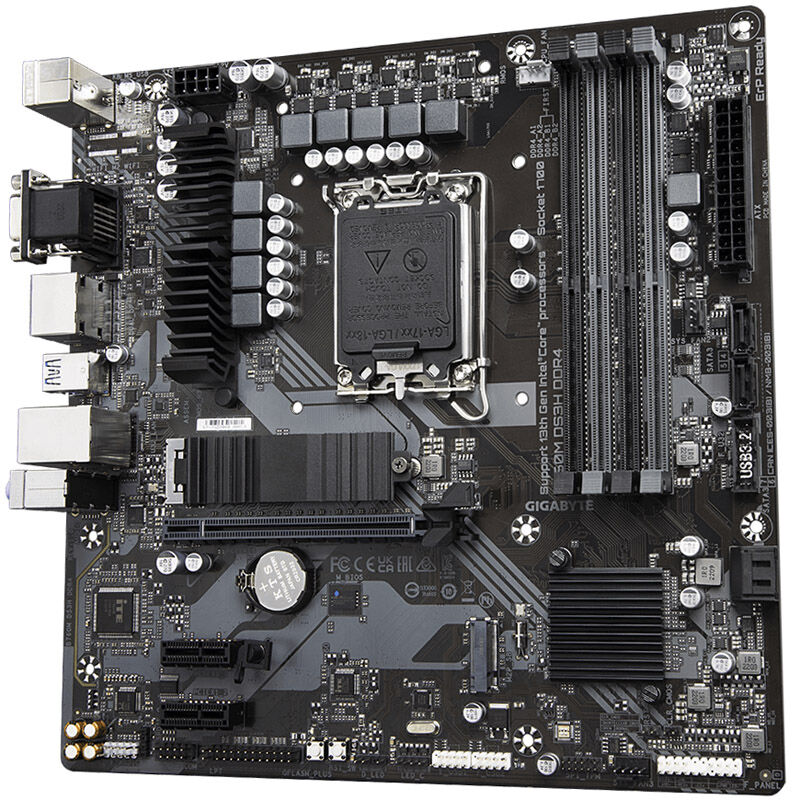

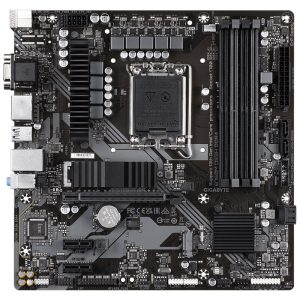

The GIGABYTE B760M DS3H DDR4 Micro-ATX motherboard with Intel B670 chipset in detail
The GIGABYTE B760 DS3HM DDR4 is a Micro-ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs. Codenamed: Alder Lake and Raptor Lake. It supports DDR4 memory up to 5333 MHz and, thanks to its outstanding power delivery, is ideal for RAM overclocking.

Note: This motherboard supports DDR4 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– Intel B760
– Socket:
– LGA 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 4x DDR4 (3200 MHz, up to 5333 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 2x PCIe 3.0 x1 (chipset)
– Internal Connectors:
– 4x SATA 6G
 -1x M.2 (PCIe 4.0 x4, 2280-22110, CPU)
– 1x M.2 (PCIe 4.0 x4, 2280-22110, chipset)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Front Panel Audio Header (AAFP)
– 1x system panel header
– 1x Trusted Platform Module Header (GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 modules only)
– 1x S/PDIF Out Header
– 1x Q-Flash Plus button
– 1x reset jumper
– 1x reset button
– 1x Clear CMOS jumper
– Fan header:
– 1x CPU fan (4-pin)
– 3x case fans (4-pin)
– RGB header:
– 1x RGB Header (4-pin, 12 V)
– 1x ARGB (3-pin, 5 V)

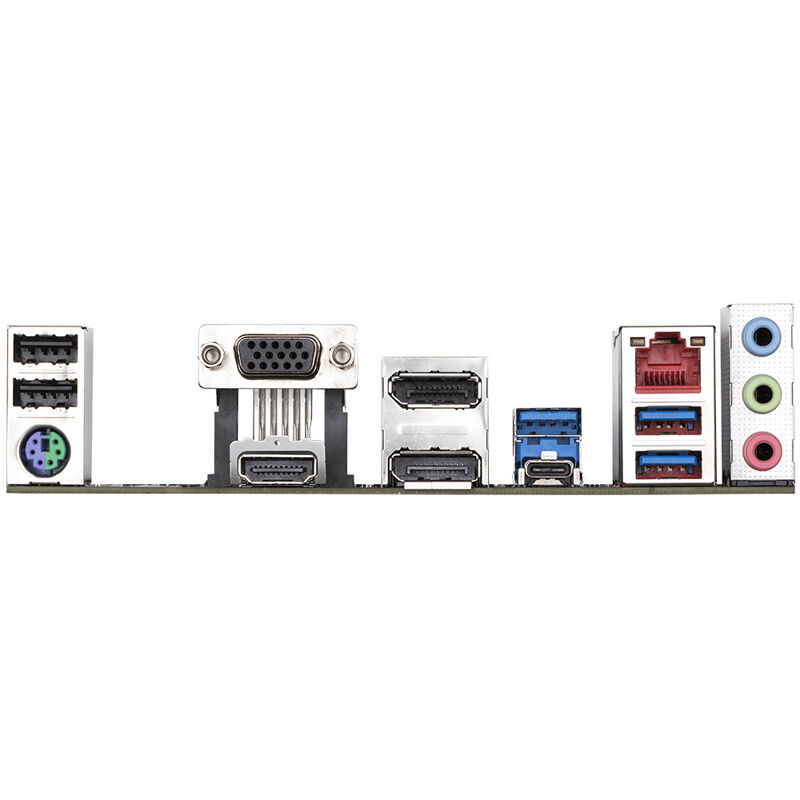

– External Connectors:
– 1x PS/2 Combo for keyboard and mouse
– 1x USB 3.1 (Type-C, USB 3.2 Gen 2, max. 10 Gbps)
– 3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (Type-A, max. 480 Mbps)
– 1x HDMI 2.0
– – 2x DisplayPort 1.2
– 1x RJ-45 (max. 2.5 Gbps, Realtek)
– 3x 3.5 mm jack (Realtek 7.1)
– Power Supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
