ASUS Prime Z790M-Plus, Intel Z790 motherboard, Socket 1700, DDR5

– 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 4.0 x1
– DDR5 memory up to 5,600 MHz, up to 7,200 MHz with RAM overclocking
– 3x M.2 slots with PCIe 4.0 x4 for fast NVMe SSDs

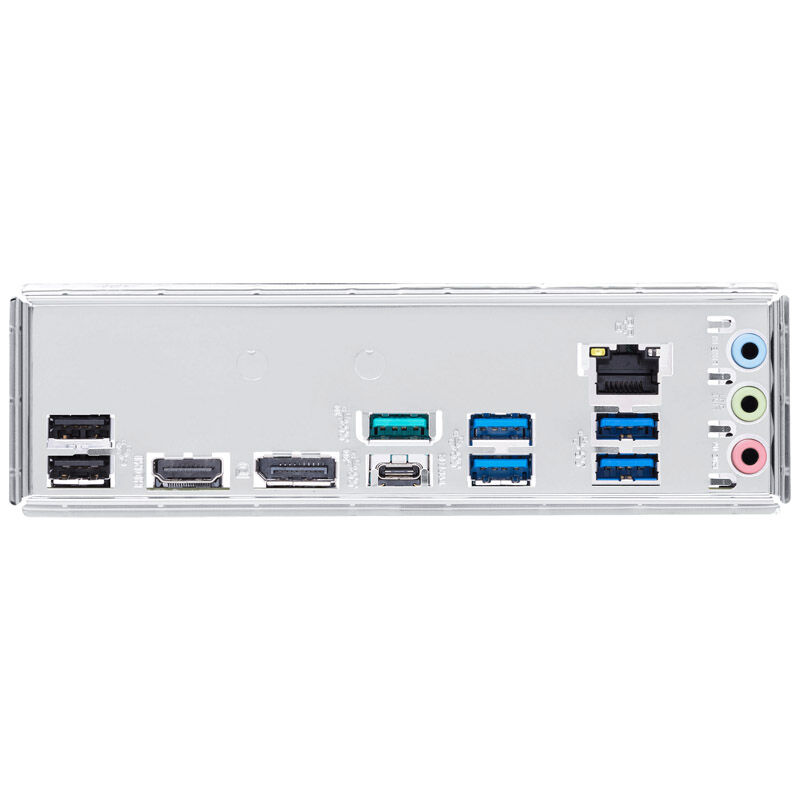

– USB on the I/O panel: 1x USB-C 3.2, 1x USB-A 3.1, 4x USB-A 3.0, 2x USB-A 2.0
– Overclocking features: 11 virtual phases (10+1), VRM heatsink, DIGI+ VRM Control
– A total of 6 connectors for fans and pumps
– Gigabit LAN for fast network connectivity

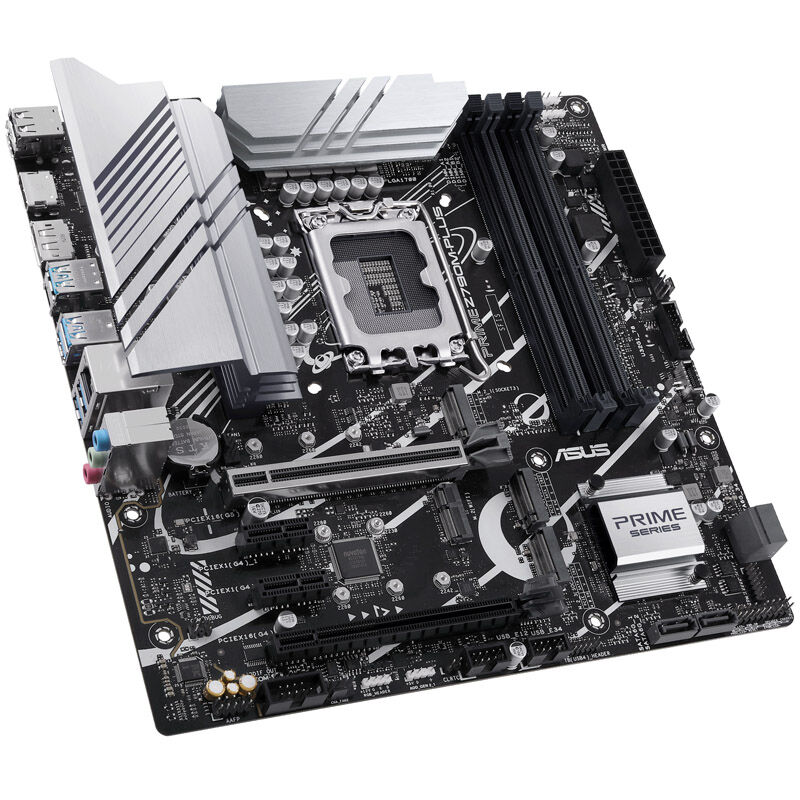

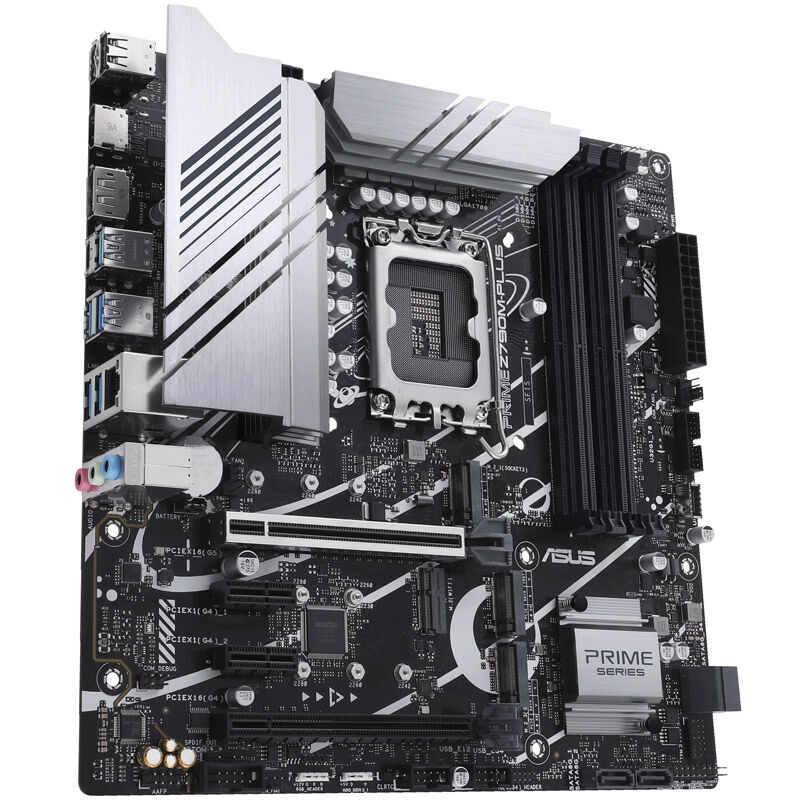

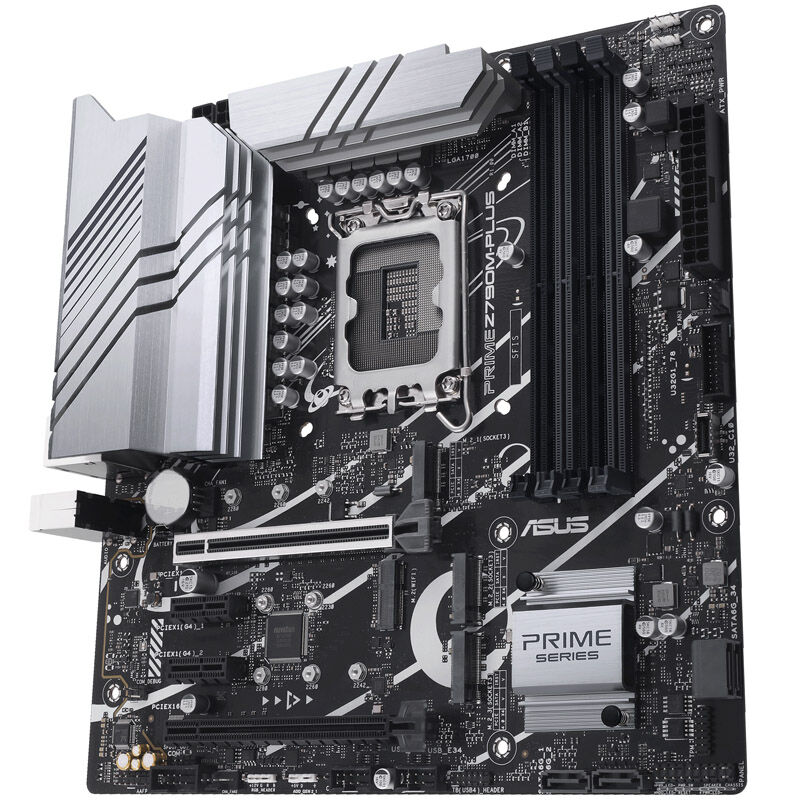

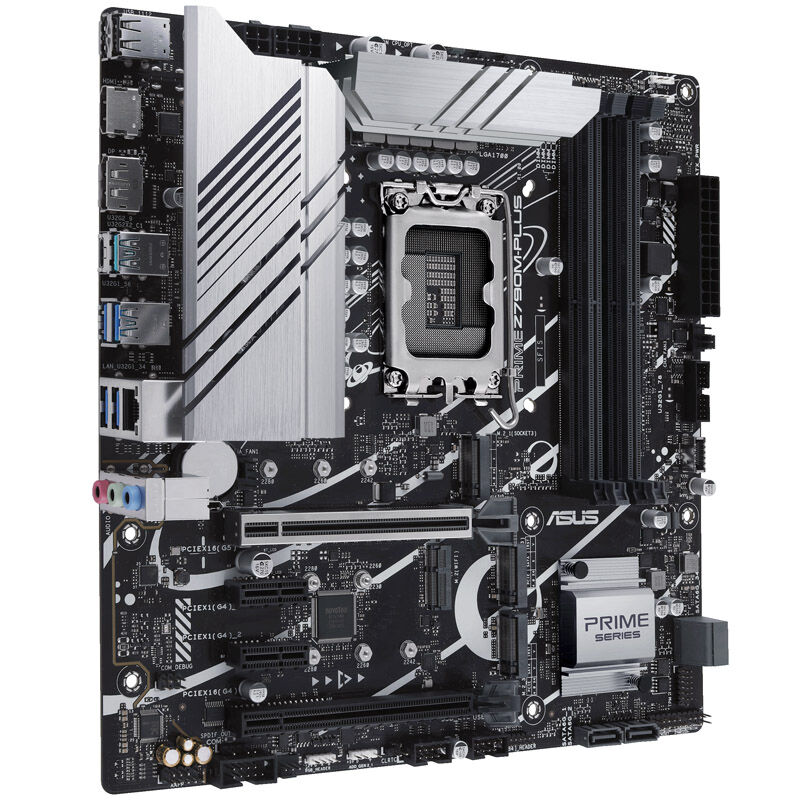

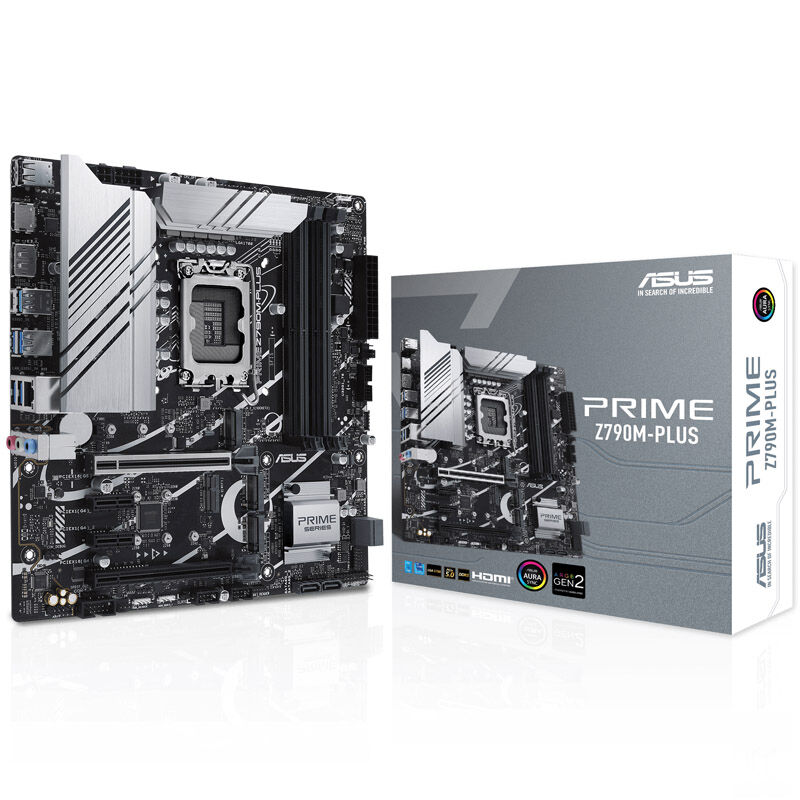

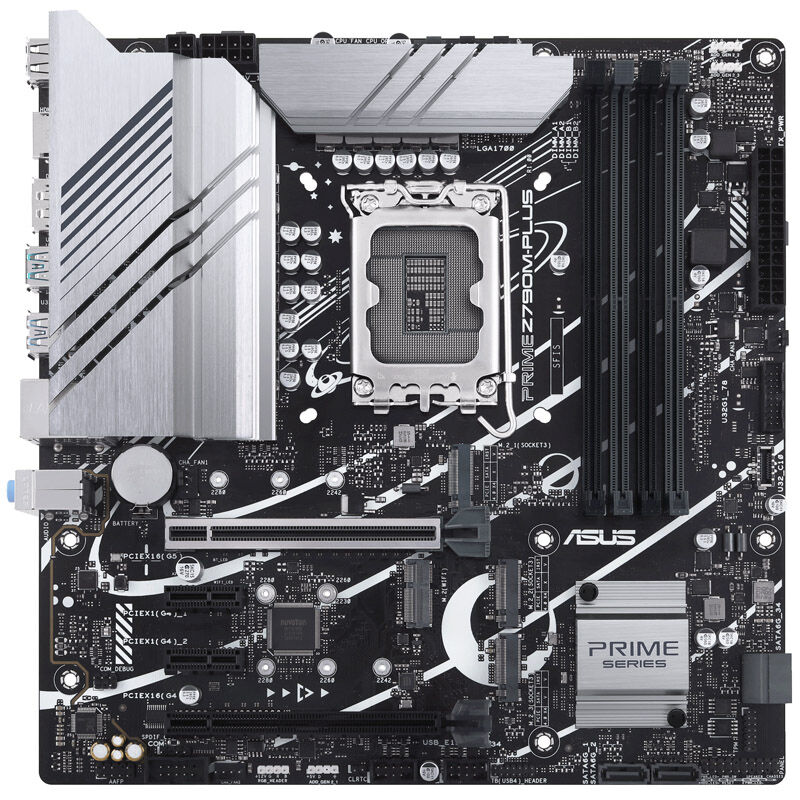

The ASUS Prime Z790M-PLUS Micro-ATX motherboard with Intel Z790 chipset in detail
The ASUS Prime Z790M-PLUS is a Micro-ATX motherboard with the high-end Intel Z790 chipset and the LGA 1700 socket. The motherboard is suitable for 12th and 13th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake, desktop processors. It supports DDR5 memory up to 7,200 MHz and, thanks to its outstanding power supply, is ideal for overclocking.

In addition to a stable power supply with 10+1 phase VRMs, the ASUS Prime Z790M-PLUS impresses with other features that make overclocking your system much easier, such as DIGI+ VRM Control for adjusting VRM voltage and frequency modulation.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly performing BIOS updates for your motherboard. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
– Processor
– Processor Manufacturer: Intel
– Processor Socket: LGA 1700
– – Compatible Processors: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
 -Memory
– Supported Memory: DDR5 SDRAM
– – Number of Memory Slots: 4
– Memory Type: DIMM
– Memory Channels: Dual-Channel
– Non-ECC
– Supported Memory Speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
– Maximum RAM: 128 GB
– Unbuffered Memory
– Storage Controller
– Supported Storage Drives: HDD & SSD
– Supported Storage Drive Interfaces: M.2, PCI Express 4.0, SATA
– Maximum Supported Number of HDDs: 3
– Number of Supported Storage Drives: 4
– RAID Support:
– RAID Levels 0, 1, 5, 10
– Internal I/O Ports:
– Number of USB 2.0 Ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) Ports: 2
– SATA Ports: 4
