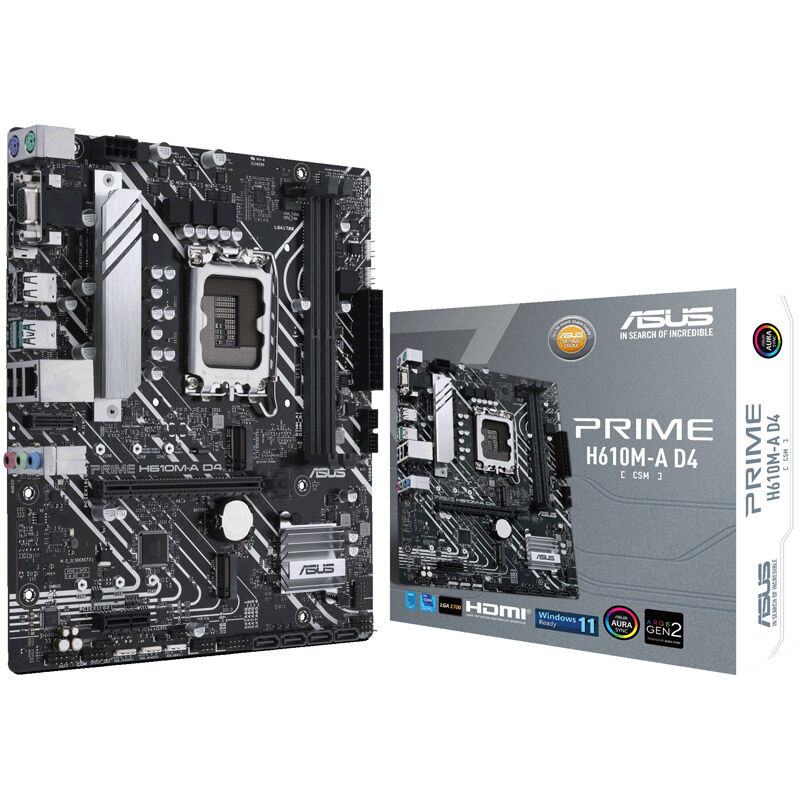

ASUS Prime H610M-A D4-CSM, Intel H610 motherboard - Socket 1700, DDR4

– 1x PCIe x16 slot, including 1x PCIe 4.0
– DDR4 memory up to 3200 MHz
– 2x M.2 slots, including 1x PCIe 3.0 x4 and 1x PCIe 3.0 x2
– USB on the I/O panel: 4x USB 2.0 / 2x USB 3.0 Type A
– A total of 3 fan connectors and 5x RGB headers
– With Gbit LAN

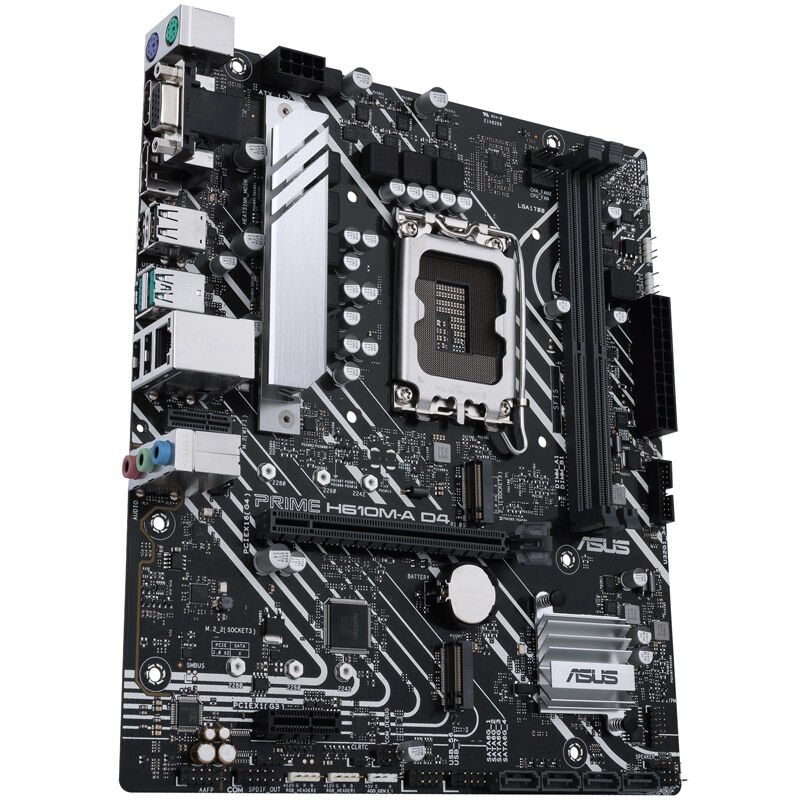

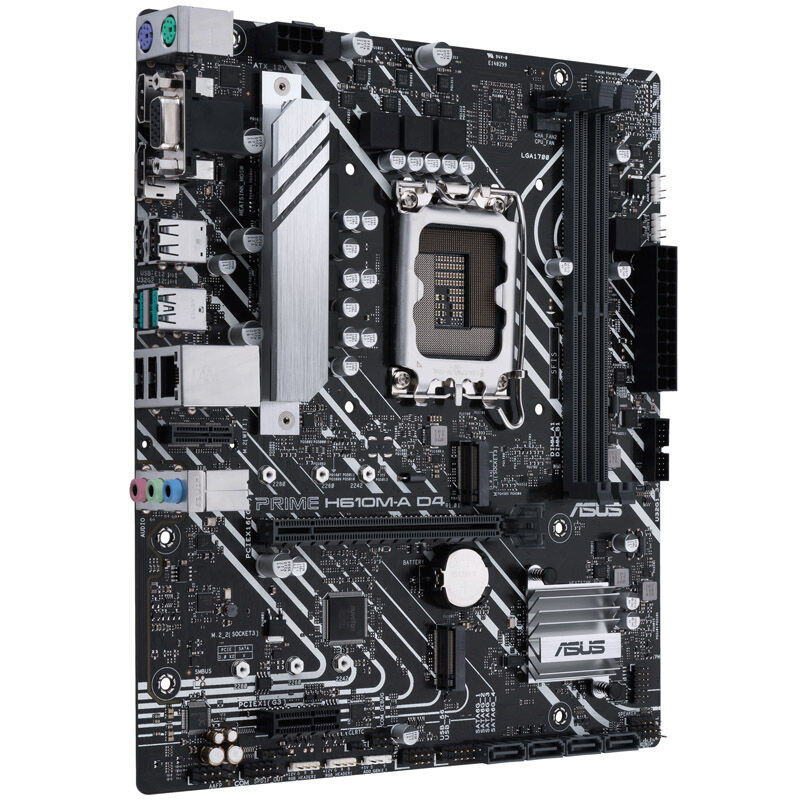

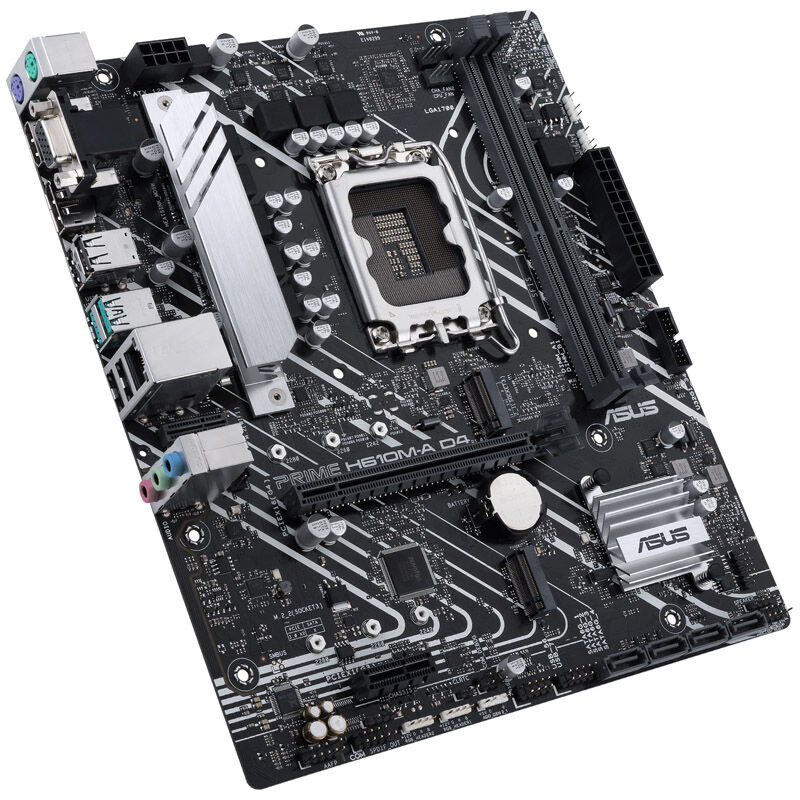

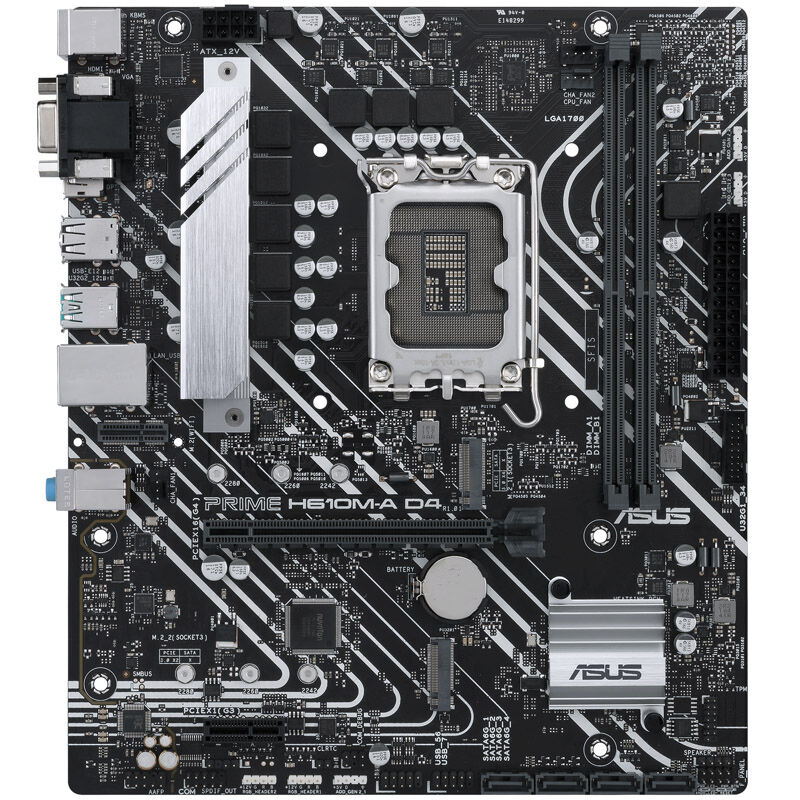

The ASUS Prime H610M-A D4-CSM Micro-ATX motherboard with Intel H610 chipset in detail
The ASUS Prime H610M-A D4-CSM is a Micro-ATX motherboard with the Intel H610 chipset and the LGA 1700 socket. The motherboard is compatible with 12th, 13th, and 14th generation Intel Core processors, Alder Lake and Raptor Lake. It supports DDR4 memory up to 3200 MHz and also offers features such as heat spreaders for VRMs and chipset, and Gbit LAN.

Note: This motherboard supports DDR4 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– Micro-ATX (244 x 211 mm)
– Chipset:
– -Intel H610
– Socket:
– 1700 (for 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 2x DDR4 (3,200 MHz)
– Dual-Channel
– Max. 64 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (x16)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 3.0 x4, 2242-2280)
– 1x M.2 (PCIe 3.0 x2, 2242-2280)
– 1x M.2 Key E (for optional WLAN module)
– 2x USB 3.0 (one header, USB 3.2 Gen 1, max. 5 Gbps)
– 3x USB 2.0 (two headers, max. 480 Mbps)
 – 1x Front Panel Audio Header (AAFP)
– 1x 10-pin System Panel Header
– 1x Clear CMOS Jumper
– 1x SPI TPM Header (14-pin)
– 1x S/PDIF Header
– 1x COM Port Header
– Fan Header:
– 1x CPU Fan (4-pin)
– 2x Chassis Fan (4-pin)
– RGB Header:
– 3x 3-pin ARGB (5 V) 1x 4-pin RGB (12 V)

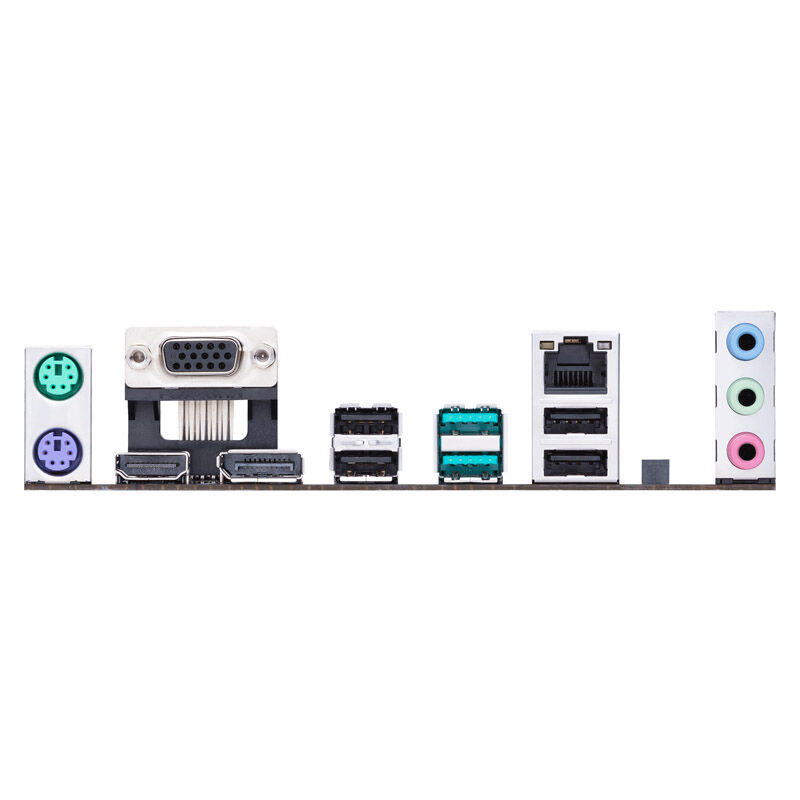

– External Connectors:
– 2x PS/2 for Keyboard and Mouse
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
 -4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x D-Sub port
– 1x HDMI 2.1
– 1x RJ-45 (Intel, max. 1 Gbit/s)
– 3x 3.5 mm jack (Realtek ALC 897)
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
