The D5 pump motor is a powerful pump engine that has to be completed with a suitable housing. The electronically commutated spherical motor features extremely smooth operation and a long life.
- SKU: WAPU-128
- MPN: 41105
- EAN: 4260073418430
B-Grade
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).

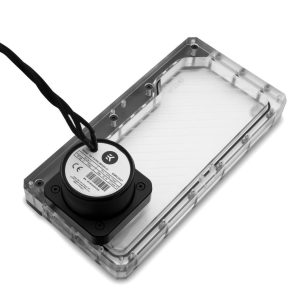

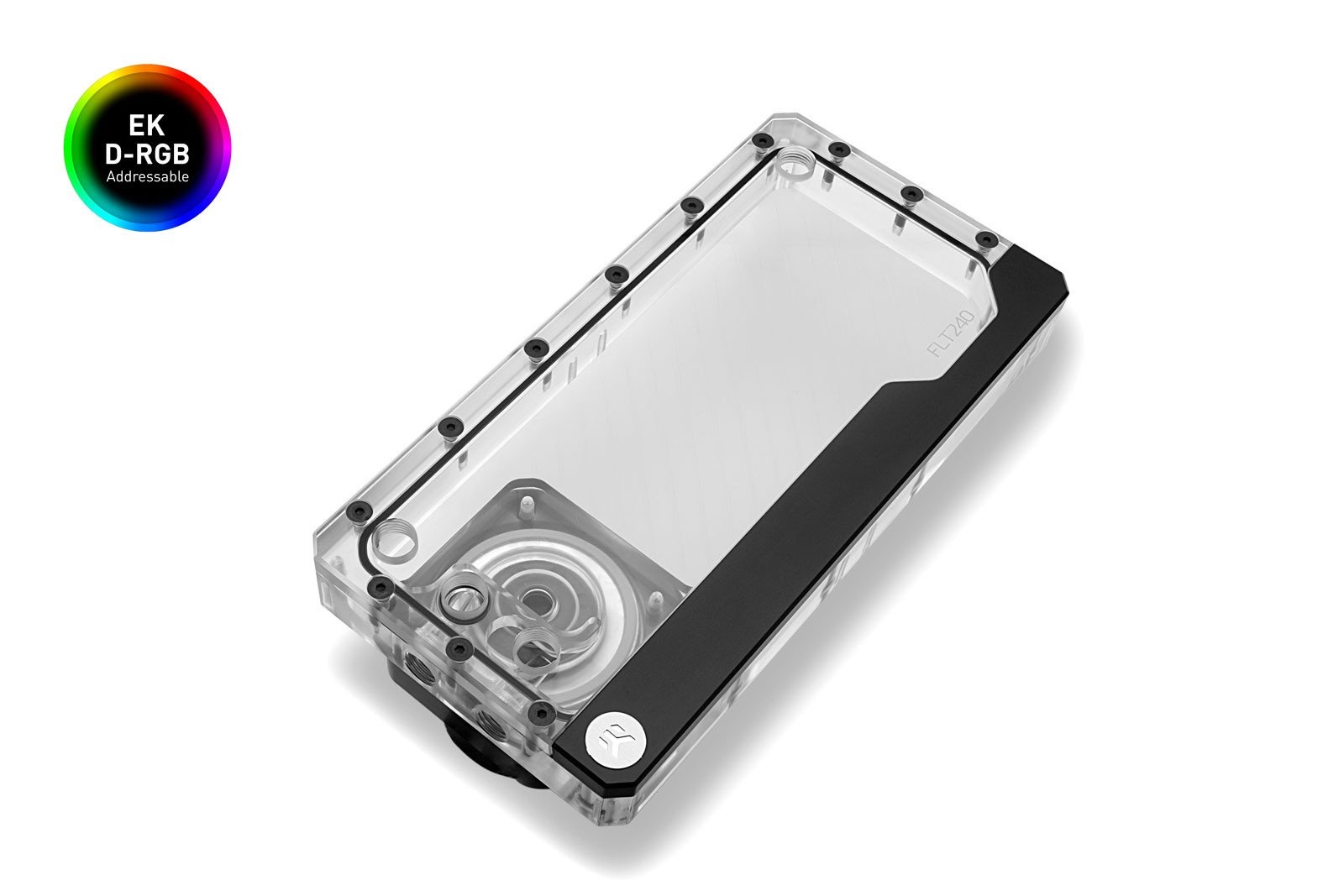

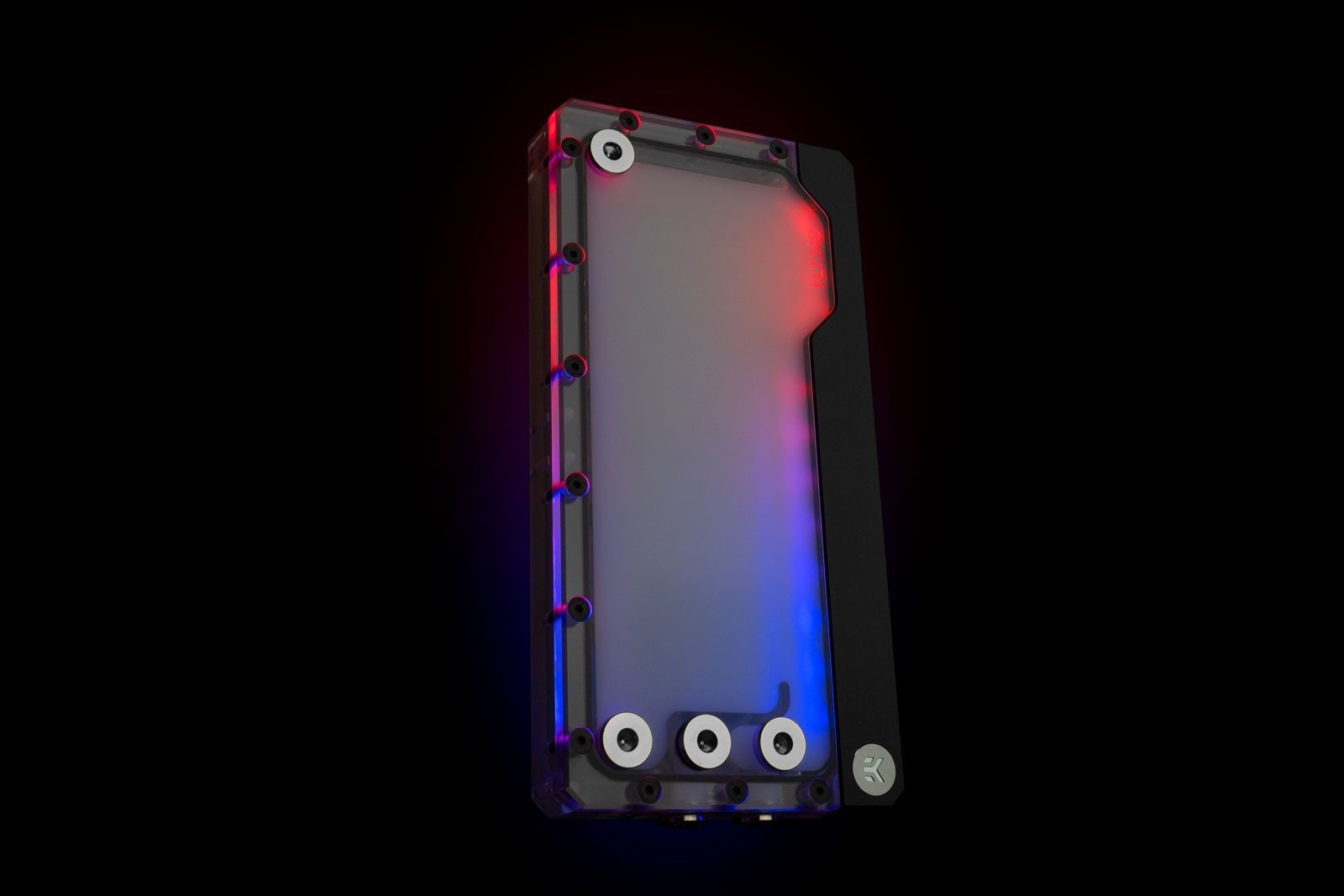

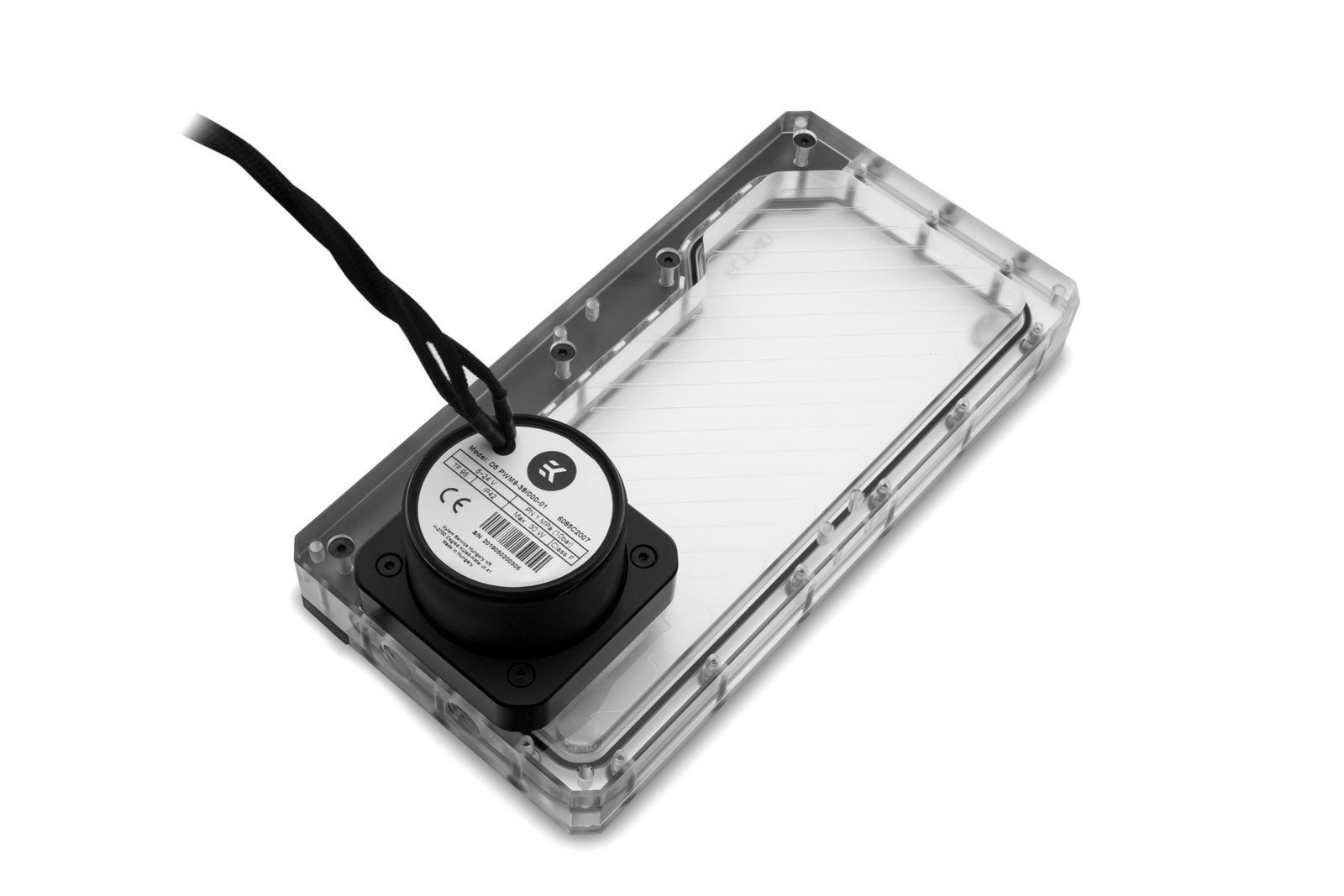

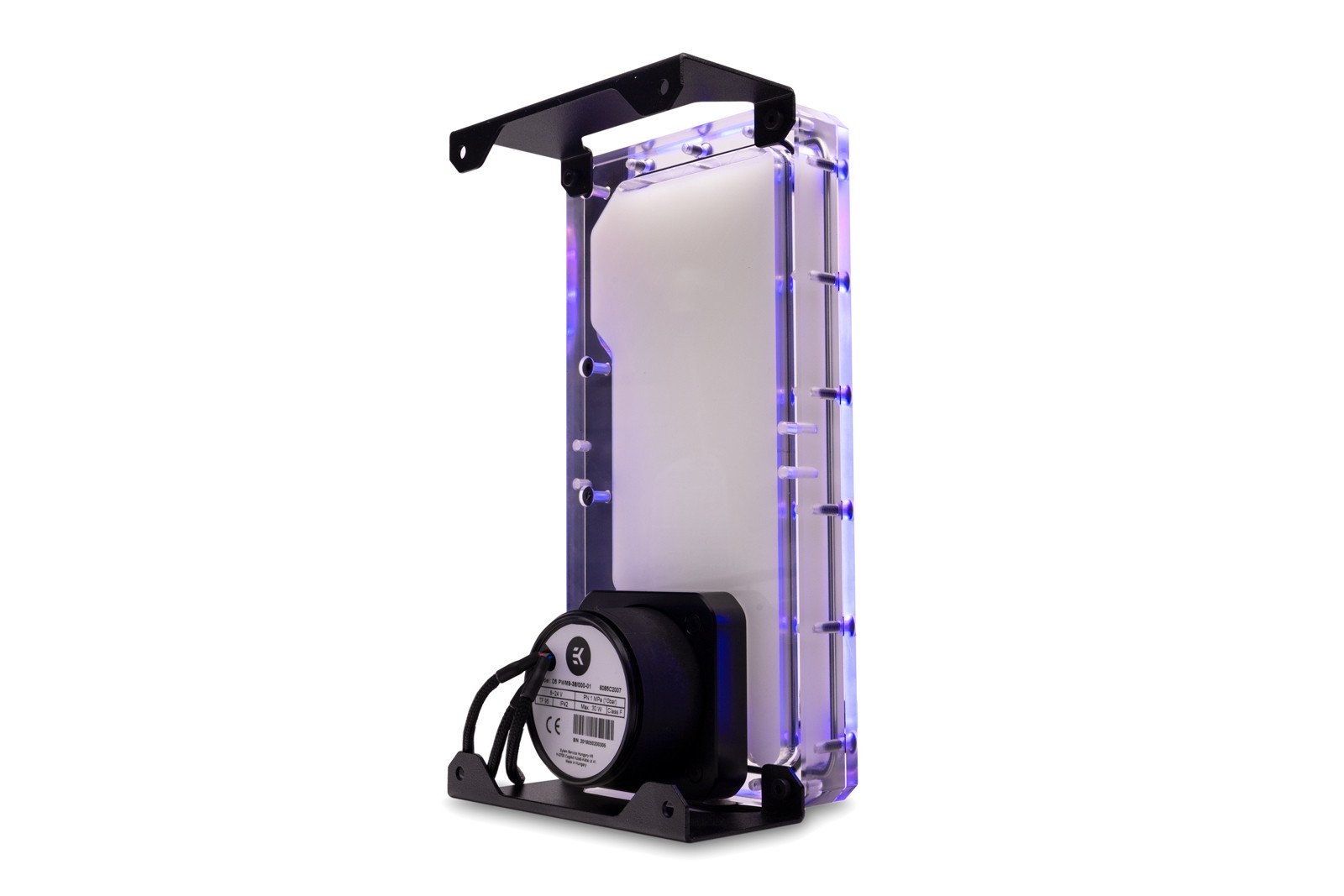

EK-Quantum Kinetic FLT 240 D5 PWM D-RGB - Plexi - B-Grade
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Earn 159 Points
We price match UK retailers. Try It Now!
- SKU: BG-XSW6-341
- MPN: 3831109819791
- EAN: 3831109819791
- Warranty: 3 Months
Details
This item has been inspected and is fully functional. B-Grade items may show signs of previous handling.
Item opened but unused
All new Flat (FLT) series EK-Quantum Kinetic FLT D5 pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of six G1/4 ports so that users can choose the most optimal setup for their liquid cooling loops.
EK-Quantum Kinetic FLT D5 series pump-reservoir units are equipped with genuine D5 pumps, made in Europe, which are capable of delivering flow rates of 1500 liters per hour with a maximum head pressure up to 3.9 meters! These new FLT series combo units are available in three different sizes of 120mm, 240mm, and 360mm.
The new flat-shaped pump-reservoir units are to revolutionize the way you were thinking about combo units and loop building. Since 120mm fan mounting patterns are the most dominant mounting options inside PC cases these days, these new Kinetic FLT D5 combo units will allow greater flexibility for installation since they dont require drilling of new mounting holes on your case.
The combo unit is equipped with a total of six industry-standard G1/4 ports, which can be, based on the orientation of the unit, used as inlet and outlet ports, as well as fill and drain ports.
The reservoir is manufactured of premium quality acrylic material, machined to perfection, while the sealing is performed by a quality EPDM o-ring. Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible LED hotspots as possible.
Technical specifications:
– Size (HxWxT): 245x120x86mm (with the mounting system)
– Capacity: ~265ml
– D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)
Pump electrical and mechanical properties:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60 degreesC
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
– Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
Operational regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Enclosed:
– EK-Quantum Kinetic FLT 120 PWM D5 D-RGB
– Mounting mechanism with all necessary screws for 120mm fan mounting
– Pair of EK reservoir holders with mounting screws
– 4 x G1/4 Plugs
– 1 x Allen key for reservoir holders
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Guides
Related Products
- Available for Collection
£87.65£73.04 Inc VatEx Vat
Available
The Alphacool Core reservoir has an integrated pump top for powerful D5 pumps and comes with a VPP655 PWM pump.
- SKU: 1023566
- MPN: 15484
- EAN: 4250197154840
£133.54£111.28 Inc VatEx Vat
Available
Alphacools new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.
- SKU: 49134
- MPN: 13169
- EAN: 4250197131698
- Available for Collection
£103.80£86.50 Inc VatEx Vat
Available
The conventional shaft, shaft bearings, and shaft seals have been eliminated. The occurrence of bearing clearance – and the associated increase of noise – is not possible due to the principle involved. Consequently, the pump continues to work quietly throughout...
- SKU: 1025883
- MPN: 30060
- EAN: 4251312607142
- Available for Collection
£105.29£87.74 Inc VatEx Vat
Available

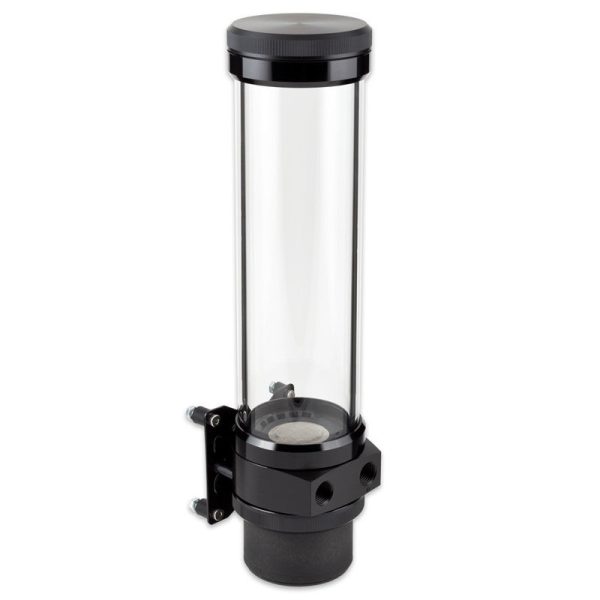

Expansion tank with 470 milliliter capacity from aqua computer.
