Expansion tank from aqua computer with 470 ml capacity
- SKU: WAAU-674
- MPN: 34142
- EAN: 4260473314103
Alphacools top for Laing D5 is now a member of the Eisdecke series and receives an update.
For years now this top is already a measure. Again and again, small improvements have been made. The second major update differs both, visually and technically in a few details.

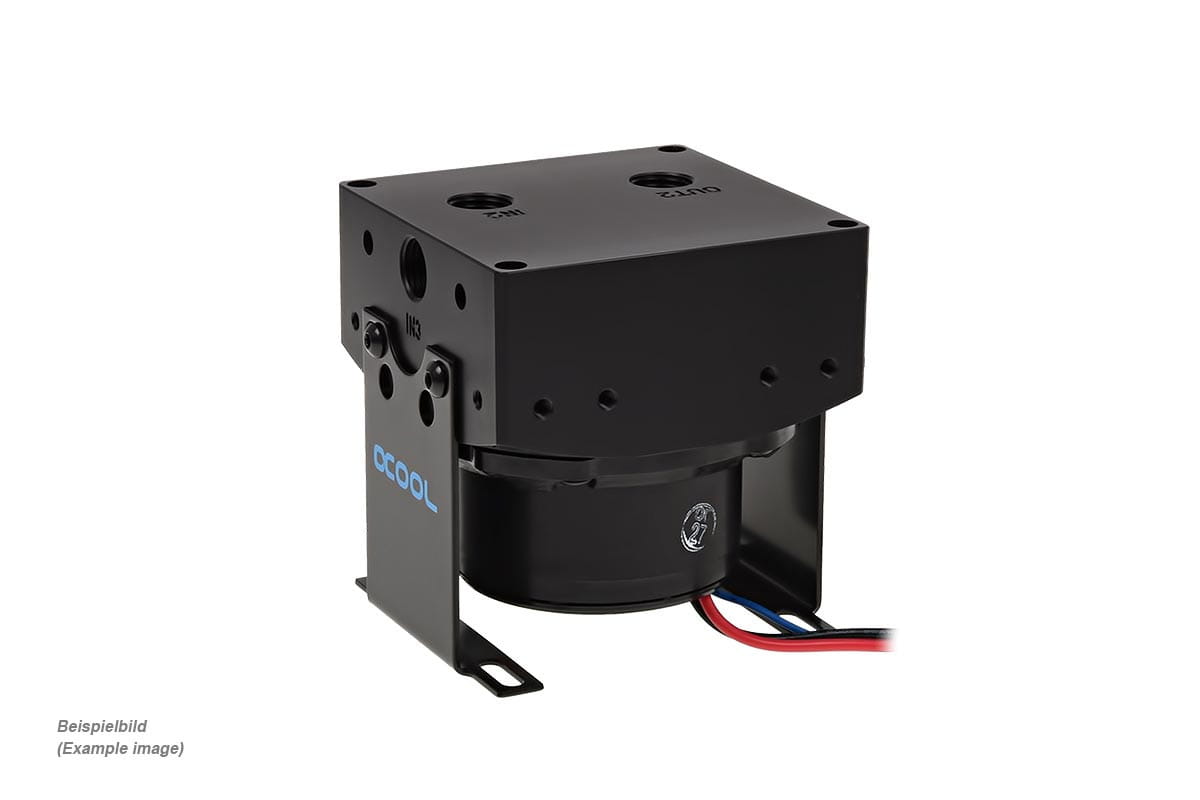

Alphacool VPP655 PWM - G1/4 Male including Eisdecke D5 - Acetal V.3
Alphacools top for Laing D5 is now a member of the Eisdecke series and receives an update.
For years now this top is already a measure. Again and again, small improvements have been made. The second major update differs both, visually and technically in a few details.
Alphacools top for Laing D5 is now a member of the Eisdecke series and receives an update.
For years now this top is already a measure. Again and again, small improvements have been made. The second major update differs both, visually and technically in a few details.
Earn 102 Points
We price match UK retailers. Try It Now!
Details

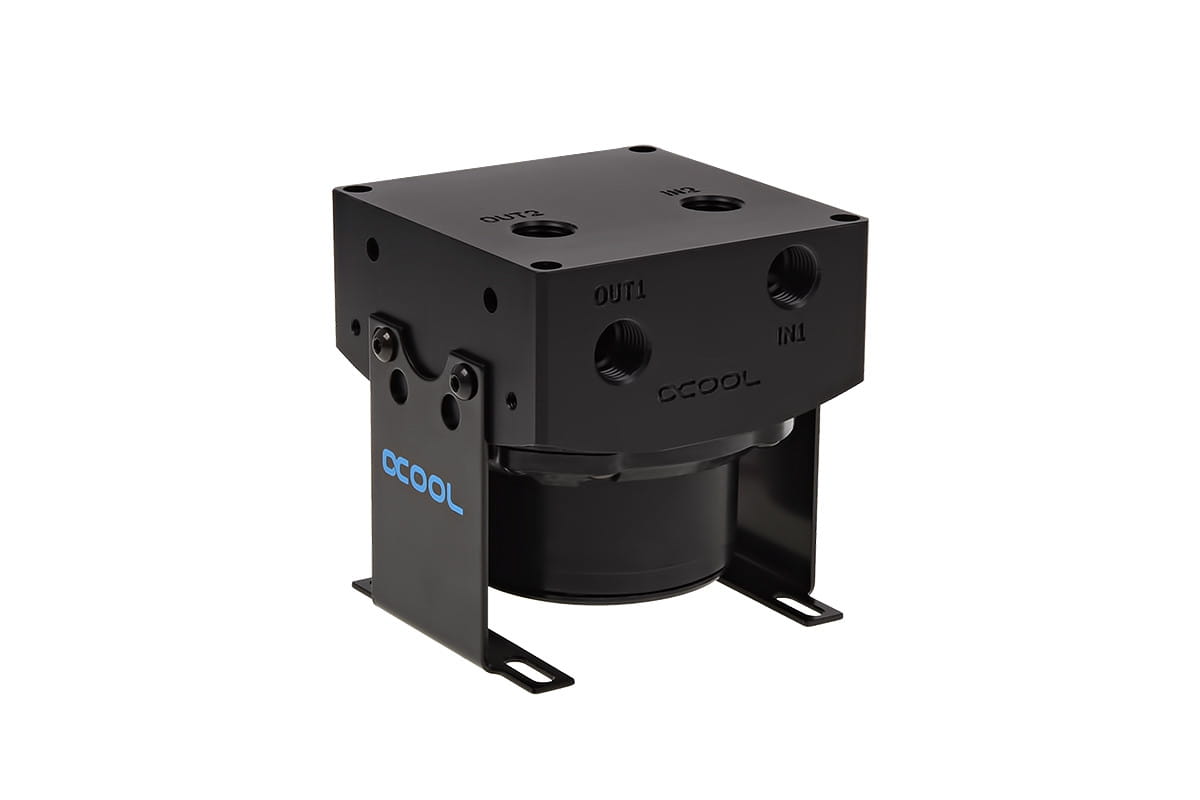

The principle: On the bottom there is space for the Laing D5 or VPP655 pump and in the front or on top the inlet and outlet.

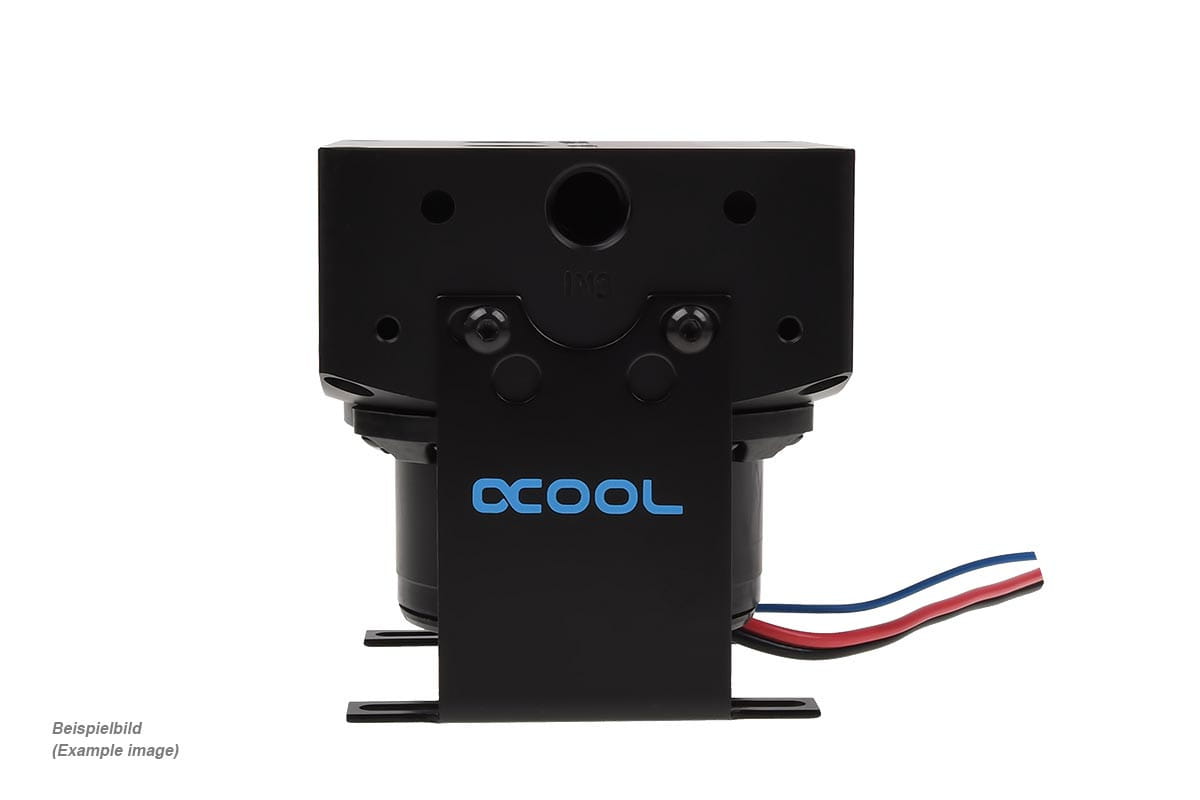

For even more flexibility, the Eisdecke gets three inlets and two outlets. Another feature is the new holder to give the entire unit a stable footing and complete the overall visual image. Optional installation in 3.5 drive bay is possible.
The top can be converted by using the suplementary element, whitch is given as an accessory, to an complete reservoir which has also been revised.
Technical Details
Dimensions (LxWxH): 80 x 80 x 40mm
Dimensions with stands: 83 x 80 x 87mm
Material: Acetal
Threads: 5x ¼
Alphacool VPP655
Alphacools new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.
This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.
The ball motor design allows efficient operation of the pump in combination with excellent performance. The pump can simply be connected to a 12V Molex connector of the system PSU.
The special feature of this model is the fact that only the pump core itself is shipped. Why pay more for all the things you wont need when using this pump with a third-party pump top?
Please note: Pump control possible with Heatmaster!
Note: For pump control via the Heatmaster the Alphacool pump adaptor cable (Item No. 25066) is required!
Datasheet D5 Pump VPP655
Technical specifications
Dimensions (WxHxD): 65x65x57mm (without connectors)
Motor: Electronically commuted spherical motor
Rated voltage: 12V DC
Power consumption: 23W
Permitted voltage range: 8-24V DC
Pressure head at 12V: 3,7m
Maximum flow: 350l/h
Pumped media: Water, water/glycol mixtures
Maximum system temperature: 60 degreesC
Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal

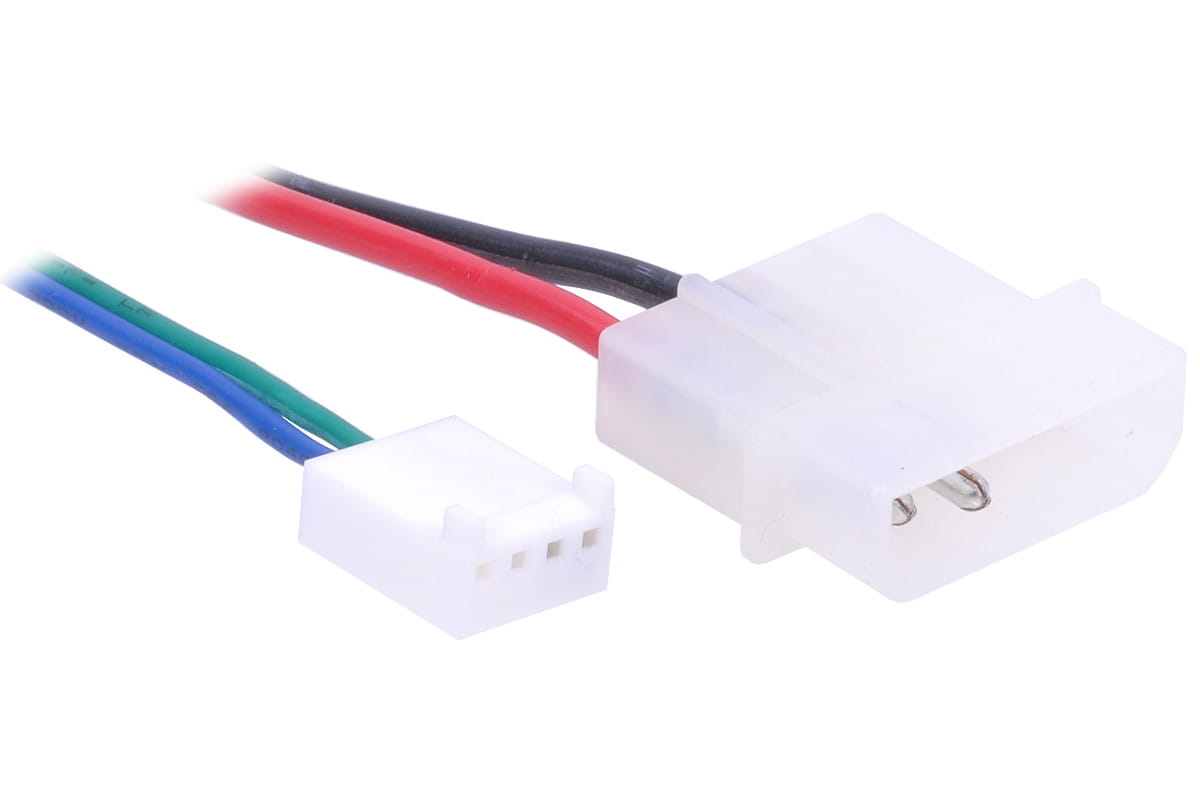

Power connector: 4 Pin Molex
Scope of delivery
Alphacool VPP655 PWM – G1/4 inner thread including Eisdecke D5 – Acetal V.3
