The Alphacool ES 2U Reservoir is a versatile reservoir optimized for use in 2U server cases. The quick-release fasteners on the front ensure quick and easy maintenance. The cooling system can be continuously monitored using the integrated flow and temperature sensors. The illuminated window makes the fill level easy to read at any time.

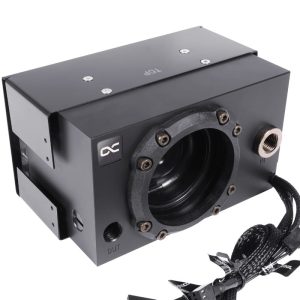

Alphacool ES 2U Reservoir VPP/D5 with flow/temperature sensor
The Alphacool ES 2U Reservoir is a versatile reservoir optimized for use in 2U server cases. The quick-release fasteners on the front ensure quick and easy maintenance. The cooling system can be continuously monitored using the integrated flow and temperature sensors. The illuminated window makes the fill level easy to read at any time.
The Alphacool ES 2U Reservoir is a versatile reservoir optimized for use in 2U server cases. The quick-release fasteners on the front ensure quick and easy maintenance. The cooling system can be continuously monitored using the integrated flow and temperature sensors. The illuminated window makes the fill level easy to read at any time.
Earn 167 Points
We price match UK retailers. Try It Now!
Details
The Alphacool ES 2U Reservoir is a versatile reservoir optimized for use in 2U server cases. The quick-release fasteners on the front ensure quick and easy maintenance. The cooling system can be continuously monitored using the integrated flow and temperature sensors. The illuminated window makes the fill level easy to read at any time.
Optimized for servers

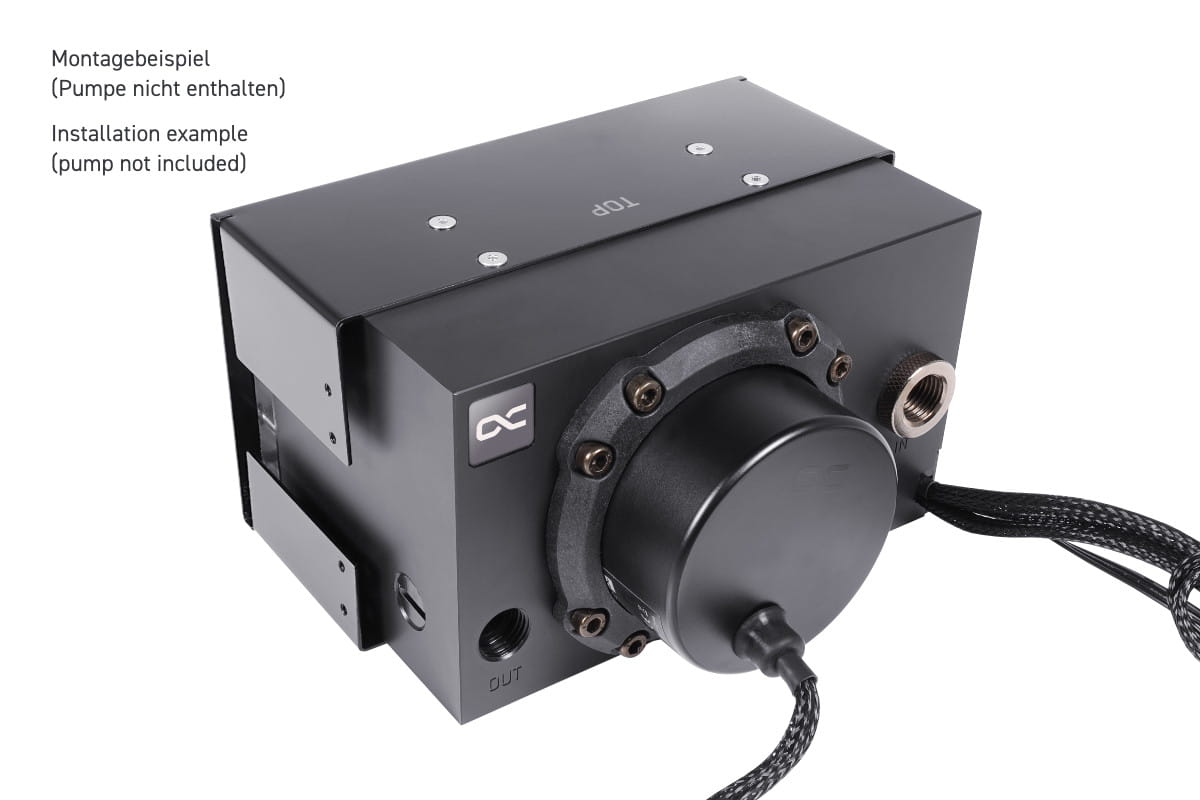

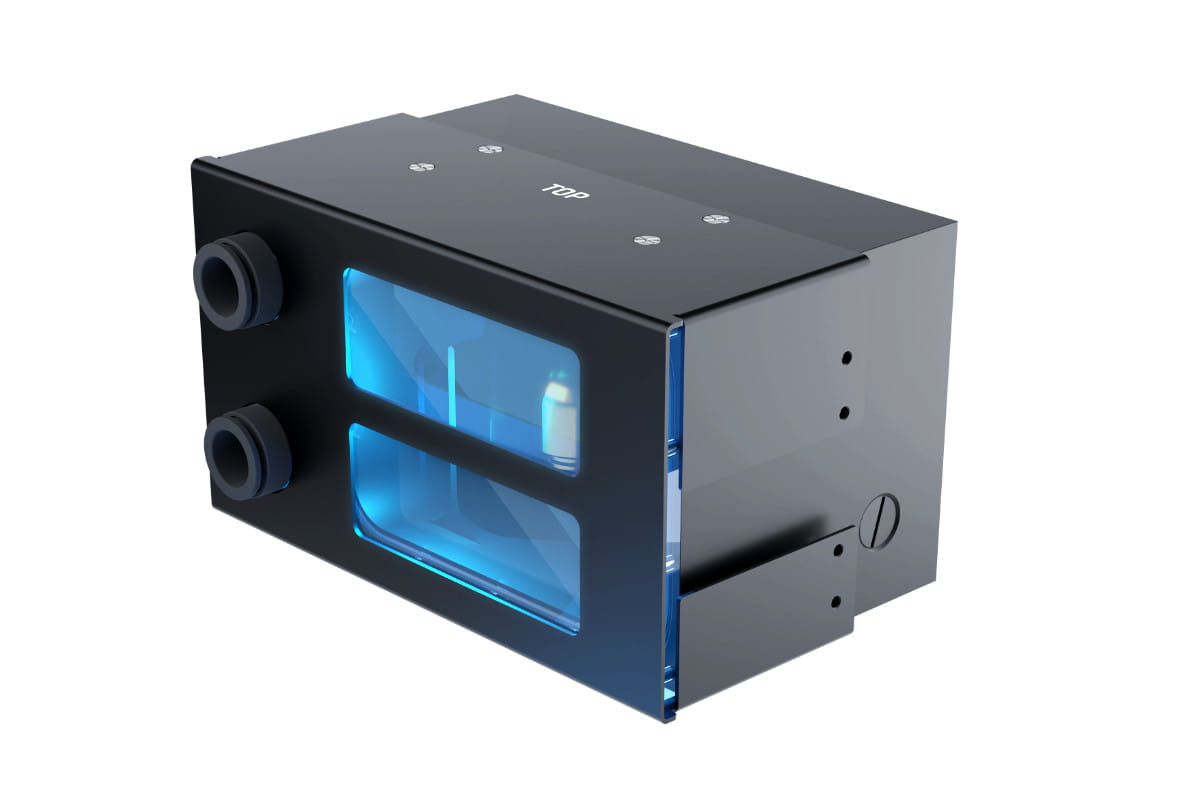

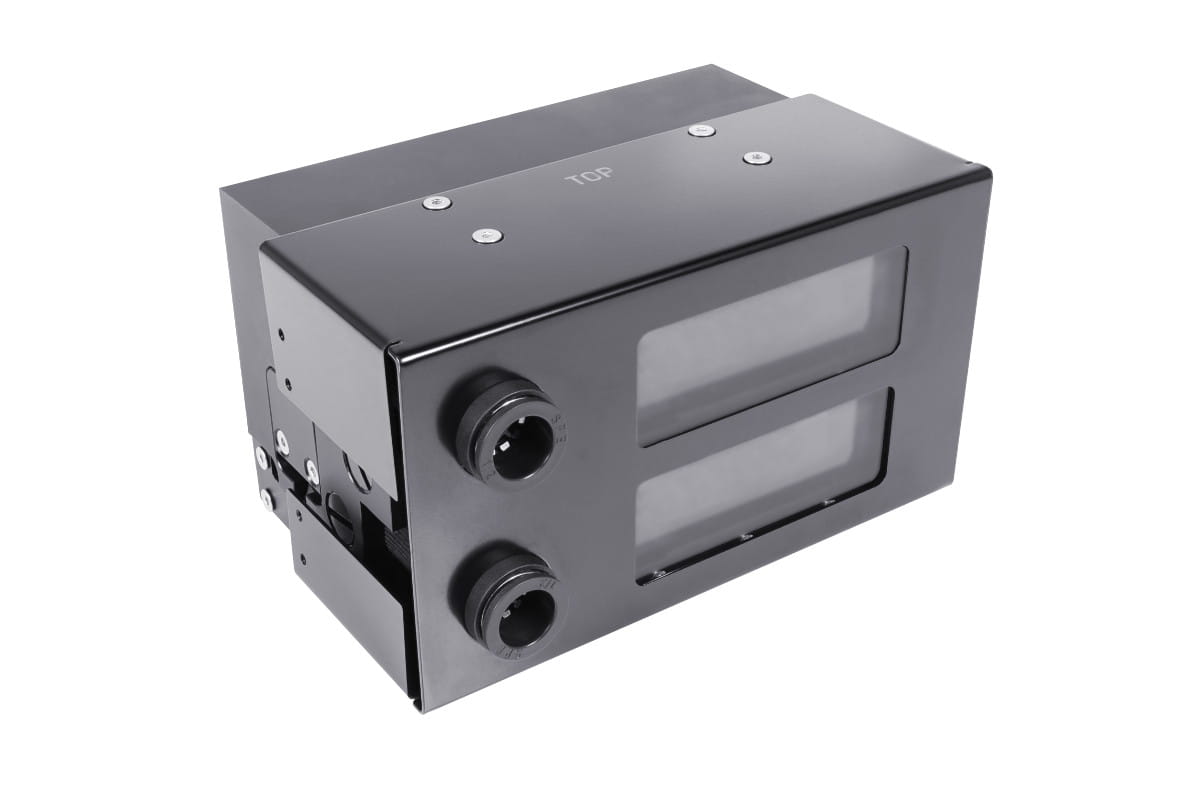

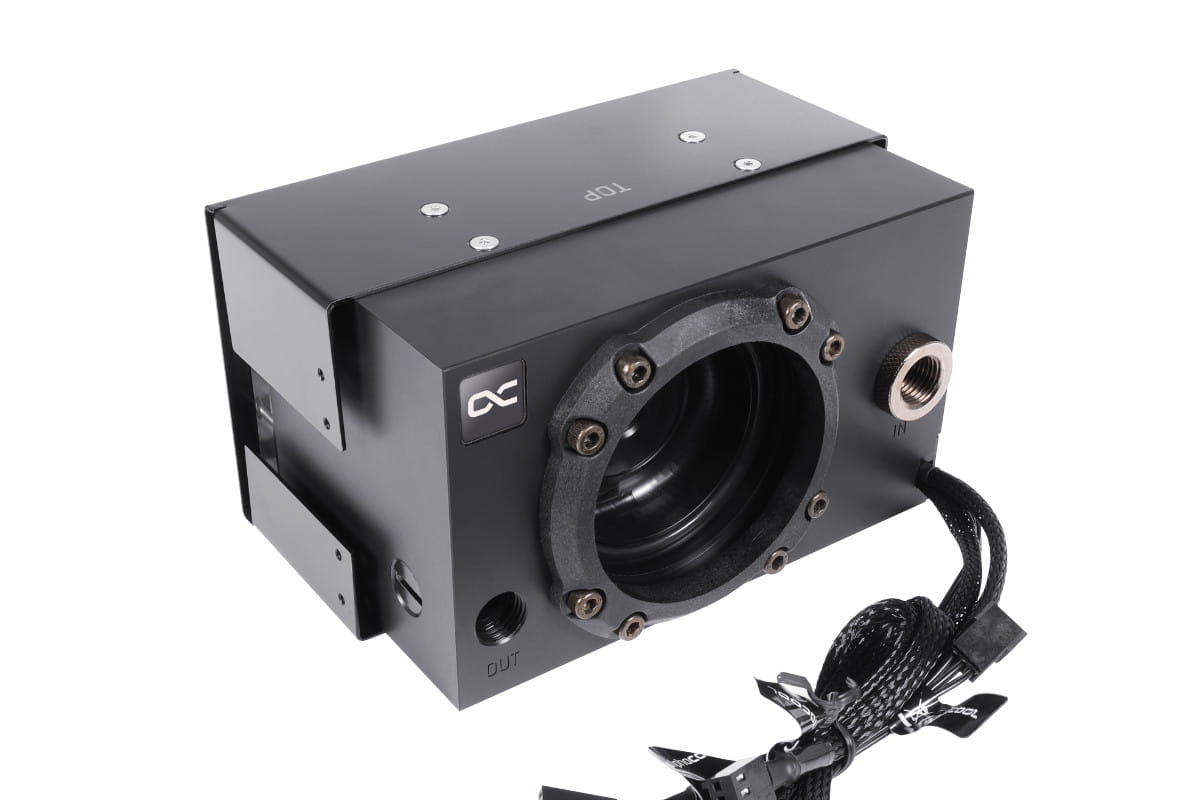

The Alphacool All-in-One reservoir has been specially developed for 2U server cases. The device has a compact design to take up as little space as possible in the server case. Due to the quick-release fasteners on the front, the cooling system can be filled and vented quickly and easily. The illuminated window makes it possible to check the fill level in the system at any time. The Alphacool ES 2U reservoir is compatible with pumps using D5 format such as the Alphacool VPP Apex.
Integrated sensors

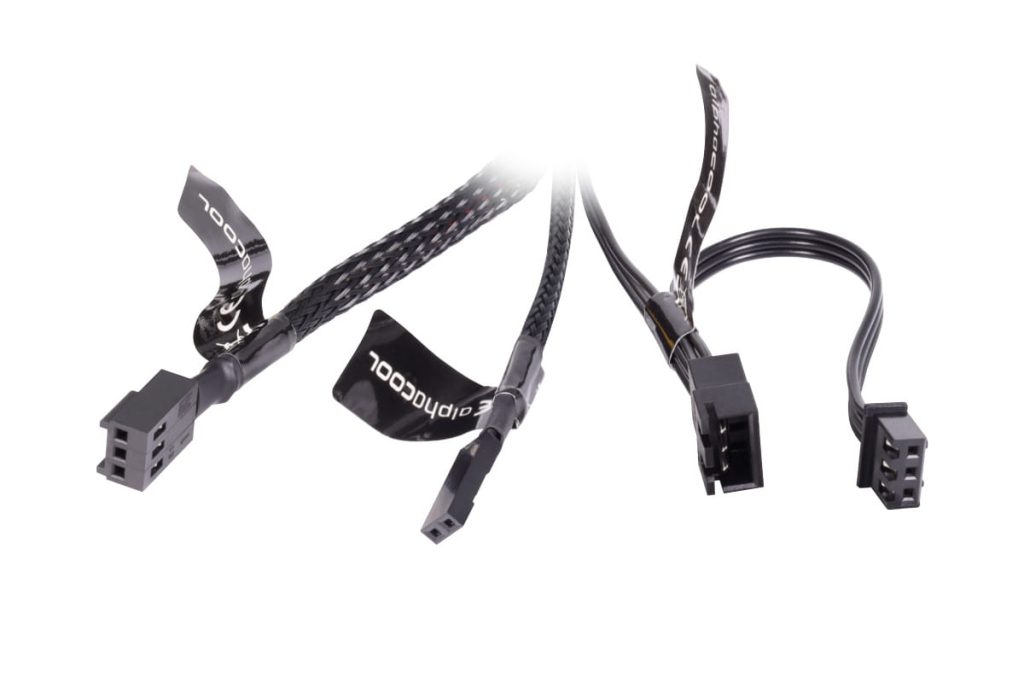

The reservoir has a temperature sensor that covers a measuring range of -40 to 125 degreesC and is connected to the mainboard via a 2-pin connector. In addition, a flow sensor, which is connected via a 3-pin connector, enables continuous monitoring of the water flow in the cooling system.
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturers warranty as well.
| General Specifications | |
|---|---|
| Dimensions (L × W × H) | 99.66 × 146.00 × 83.90 mm (without pump) |
| Weight | 1500 g |
| Color | Black |
| Material & Build | |
| Material | Metal, acetal |
| Threads & Ports | |
| Front Threads | 2 × G1/4 quick-release fasteners |
| Rear Threads | 1 × G1/4 In, 1 × G1/4 Out |
| Connections | |
| Flow Sensor | 3-pin connector |
| Temperature Sensor | 2-pin connector |
| aRGB Connection | 3-pin, 5V |
| Pump & Performance | |
| Pump Compatibility | D5 / VPP |
| Max. Working Temperature | 60 °C |
| Pressure Tested | 0.8 bar |
