The Alphacool ES 2U Reservoir is a development for the Enterprise Solution series.

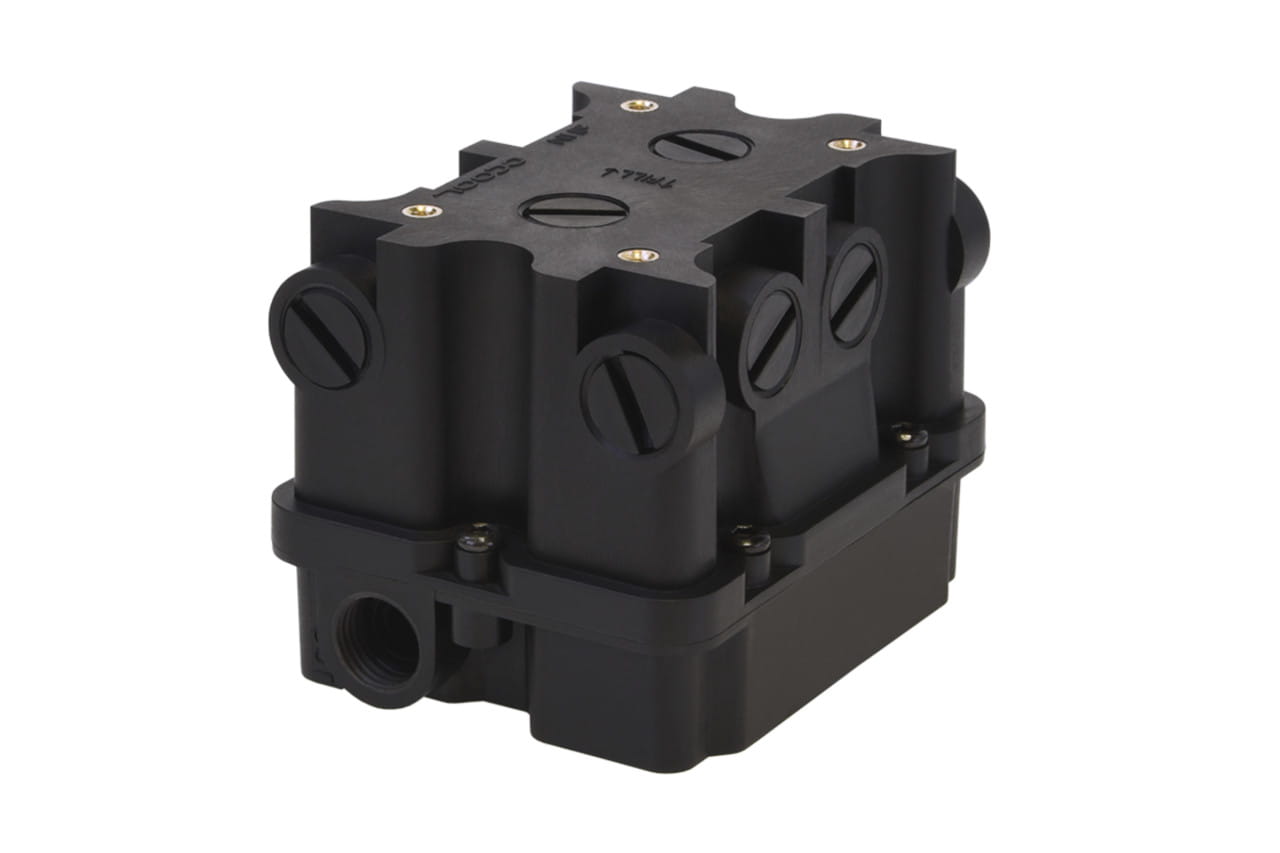

Alphacool ES Reservoir 2U - DDC Version
The Alphacool ES 2U Reservoir is a development for the Enterprise Solution series.
The Alphacool ES 2U Reservoir is a development for the Enterprise Solution series.
Earn 66 Points
We price match UK retailers. Try It Now!
Details
It has an integrated pump top for the powerful DDC pump and offers many connection and mounting options. The combination of all these features provides a perfect solution for 2U server racks and workstations.
Extensive connection options

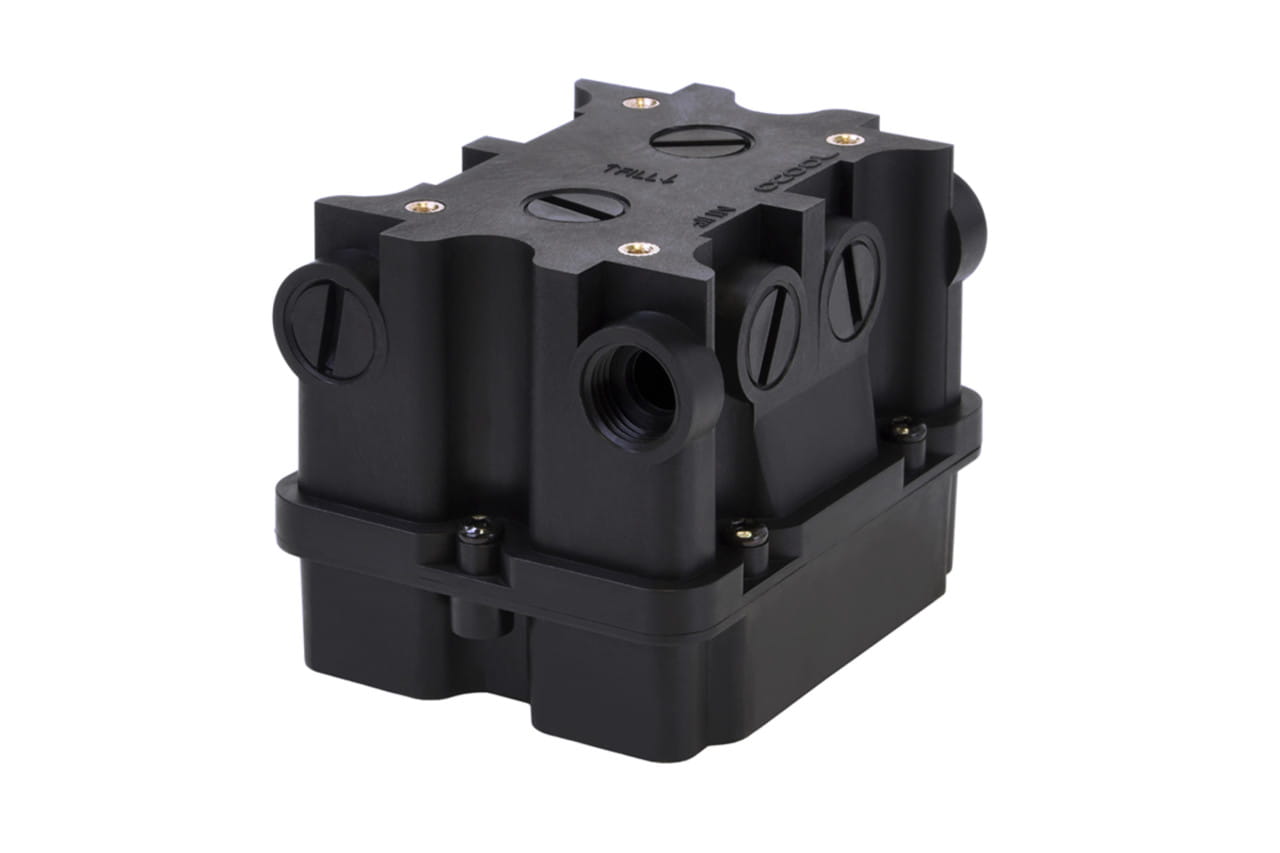

The ES 2U Reservoir has a total of 10 inputs and one output. All connections use a G1/4 thread. There are 2 inputs on each side and on top. Using the top inputs allows you to fill the reservoir perfectly. One inlet is used to fill in the liquid while the second inlet is used to allow the air to escape during filling. Thanks to the extensive connection possibilities there are various options to position the expansion tank in a server rack.
Mounting Options Directly on the Radiator

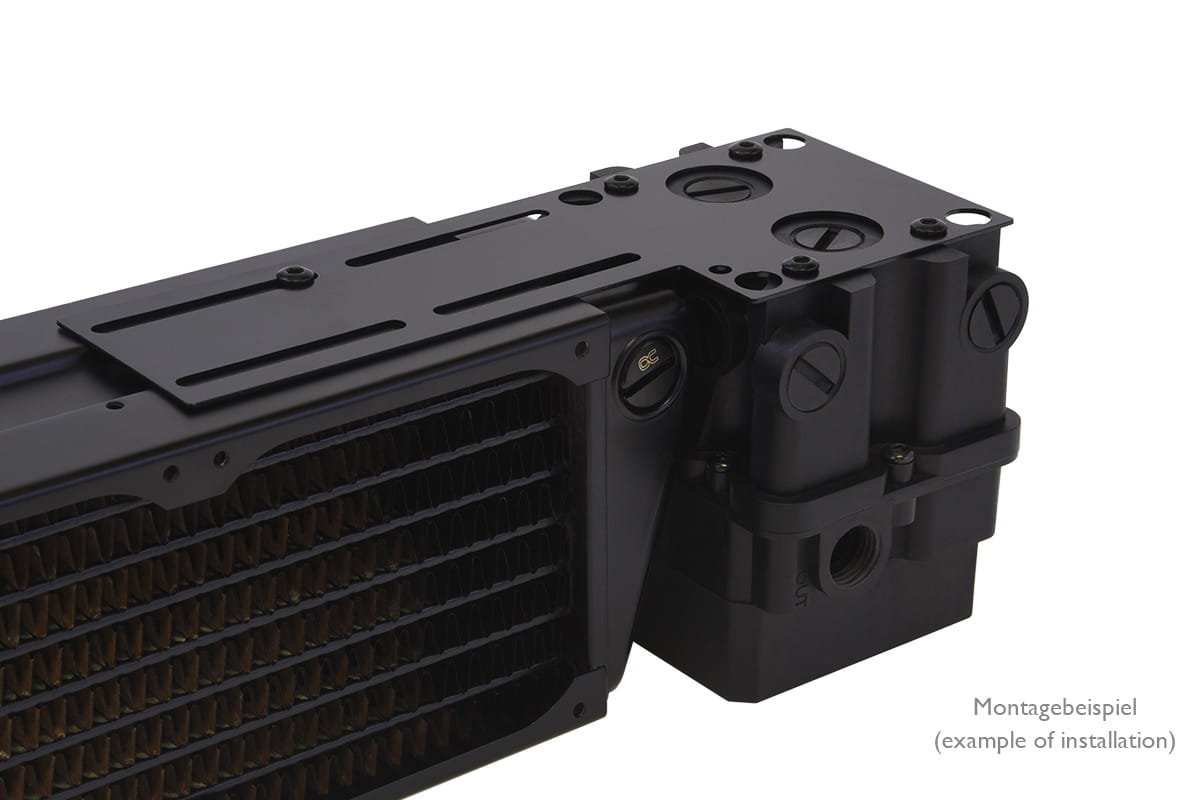

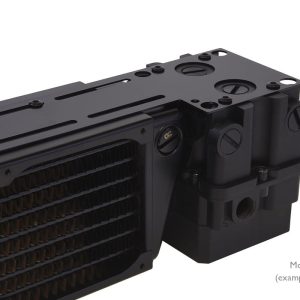

Ideally, the ES 2U expansion tank is mounted directly on the radiator. For this purpose, three mounting frames and a double nipple fitting are included in the package. The double nipple is used as a direct connection with an Alphacool NexXxoX radiator of the X-Flow series. The reservoir is then attached directly to the radiator using the enclosed mounting brackets. The Alphacool NexXxoS X-Flow radiators naturally have suitable mounting holes for this. This type of mounting makes it possible to position the radiator and reservoir either next to each other or offset in front of the radiator. The corresponding options are listed in detail in the instructions.
Further Mounting Options and Pump Installation
If the ES 2U reservoir is not to be mounted directly on the radiator, it can of course be fastened to any part of the case using the Velcro sheet provided. In this case, one part of the Velcro fastener is stuck to the bottom of the reservoir and the other part to any place in the server rack. To install the pump into the pump top only 4 screws and an O-ring are needed. The O-ring is placed on the reservoir, the pump is put on and fixed with four screws. The entire Alphacool ES Reservoir 2U is then ready for use.
The Alphacool ES 2U Reservoir – DDC version is an extremely compact reservoir especially for 2U server racks with extensive connection and mounting options.
| Technical Data | |
|---|---|
| Dimensions (W × D × H) | 62 × 80 × 60 mm |
| Net Weight | 93 g |
| Maximum Working Temperature | 60 °C |
| Connections | 11 × G1/4 |
| Pressure Tested | 0.8 bar |
