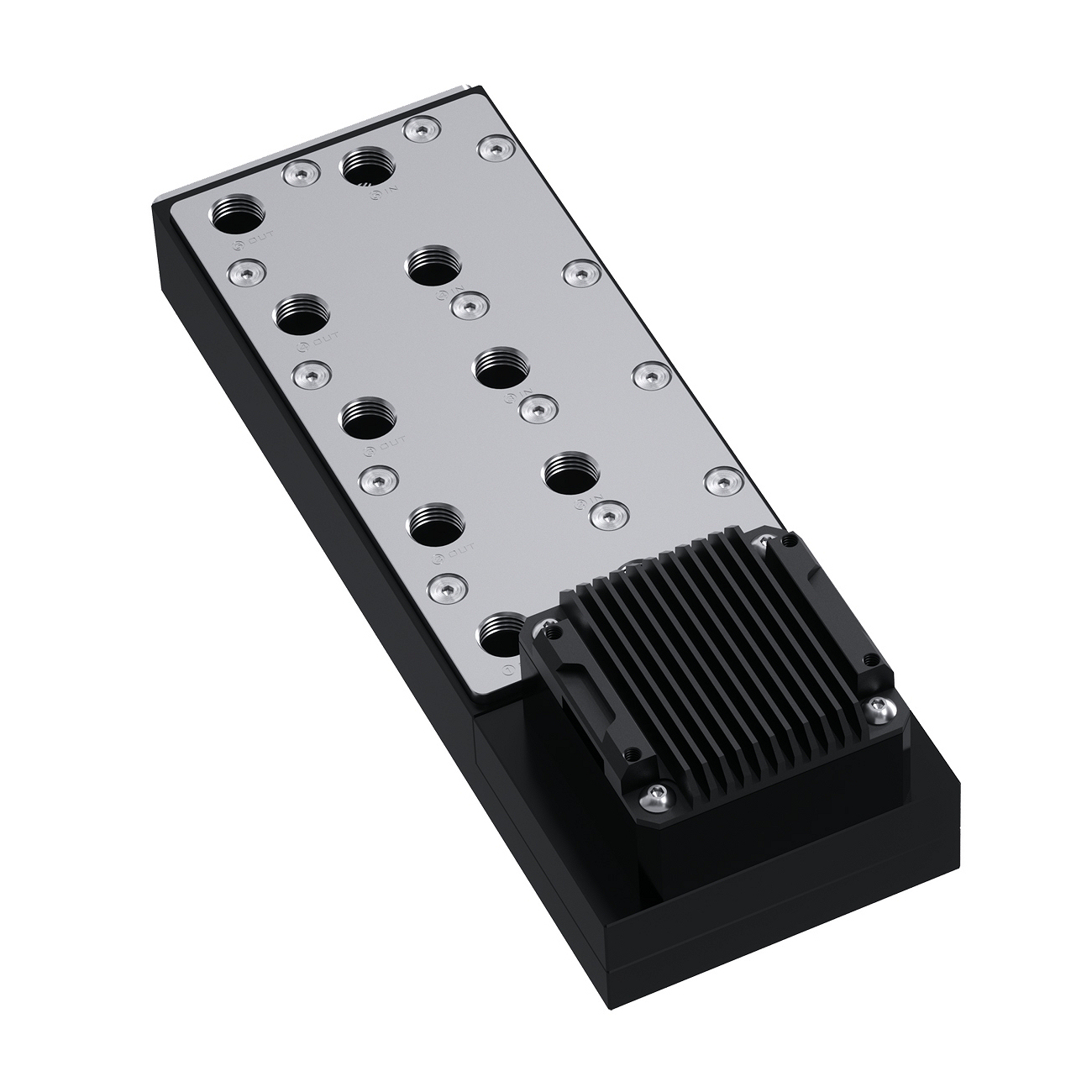

Barrow Commercial Grade Universal Distro Panel with 17w PWM Pump - SS/POM

The Barrow Commercial Grade Universal Distro Panel with 17W PWM Pump is designed for high-performance liquid cooling systems in multi-GPU servers, commercial workstations and AI computing environments. Featuring an integrated 17W pump and an efficient serial water-cooling circuit design, this distribution panel simplifies coolant routing, reduces the number of separate cooling components required and improves overall installation efficiency.

Manufactured from durable POM, aluminium alloy and reinforced 304 stainless steel, the distribution panel offers excellent strength, reliability and long-term durability. The 6mm thick stainless steel inlet and outlet panels feature precision CNC-machined G1/4 threads for secure connections, while integrated metal thread inserts in the rear mounting holes help prevent thread stripping and cross-threading during installation.

The integrated 17W pump delivers a maximum flow rate of 960 LPH and head pressure of 5–6 metres, with support for both PWM speed regulation and manual speed adjustment.

Features:
– Commercial-grade distribution panel with integrated 17W PWM pump
– Designed for multi-GPU servers, AI workstations and high-performance liquid cooling systems

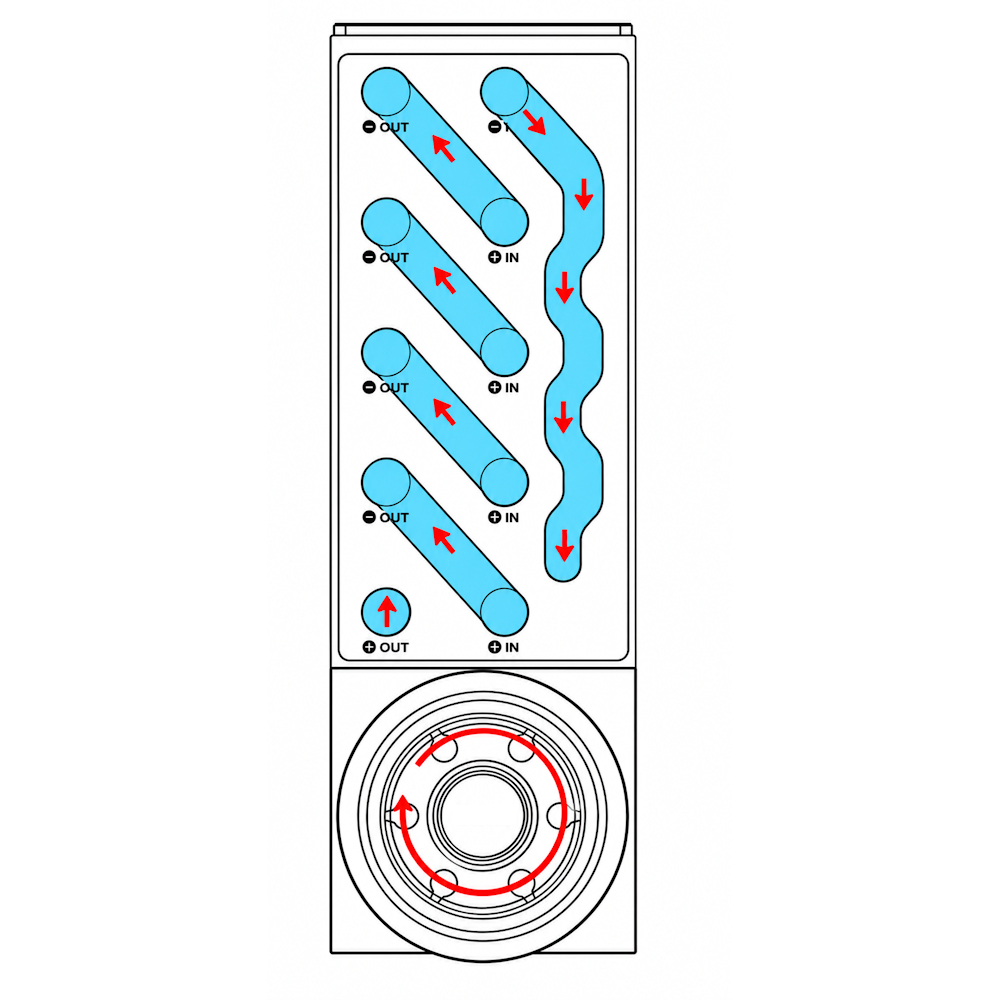

– Efficient serial water-cooling circuit design for streamlined coolant distribution
– Integrated 17W pump delivering up to 960 LPH flow rate and 5–6m head pressure
– PWM speed control and manual speed adjustment for flexible pump operation
– Durable POM construction reinforced with 6mm thick 304 stainless steel panels
– Aluminium alloy components for additional structural strength
– Precision CNC-machined G1/4 inlet and outlet threads for reliable fittings
– Integrated metal thread inserts in rear mounting holes for improved mounting durability
– Reinforced construction reduces the risk of thread stripping and cross-threading
– Integrated pump design reduces the need for separate cooling components
– Suitable for commercial servers and workstation installations

Pump Technical Data:
– Pump Type: Integrated 17W PWM Pump
– Rated Voltage: DC 12V
– Rated Current: 1.4A
– Rated Power: 17W
– Maximum Speed: 4000 RPM
– Maximum Head Pressure (Lift): 5–6m
– Maximum Flow Rate: 960 LPH
– Operating Noise: Less than 40dB
– Speed Regulation: PWM + Manual Speed Adjustment

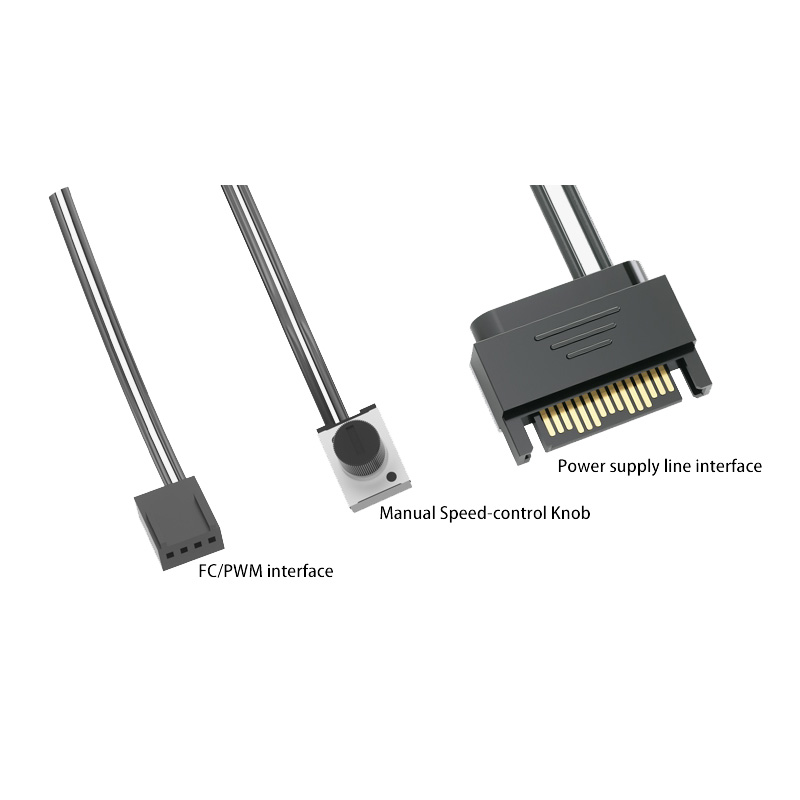

– Power Connector: SATA Power
– Speed Control Connector: FC/PWM
– Manual Control: External Speed Adjustment Knob
– Temperature Range: Below 60°C
– Service Life: Over 50,000 Hours

Technical Data:
– Manufacturer: Barrow
– Product Model: DC17-01
– Product Type: Universal Water Cooling Distribution Panel with Integrated Pump
– Material: POM + 304 Stainless Steel + Aluminium Alloy
– POM Colour: Black
– Stainless Steel Colour: Silver

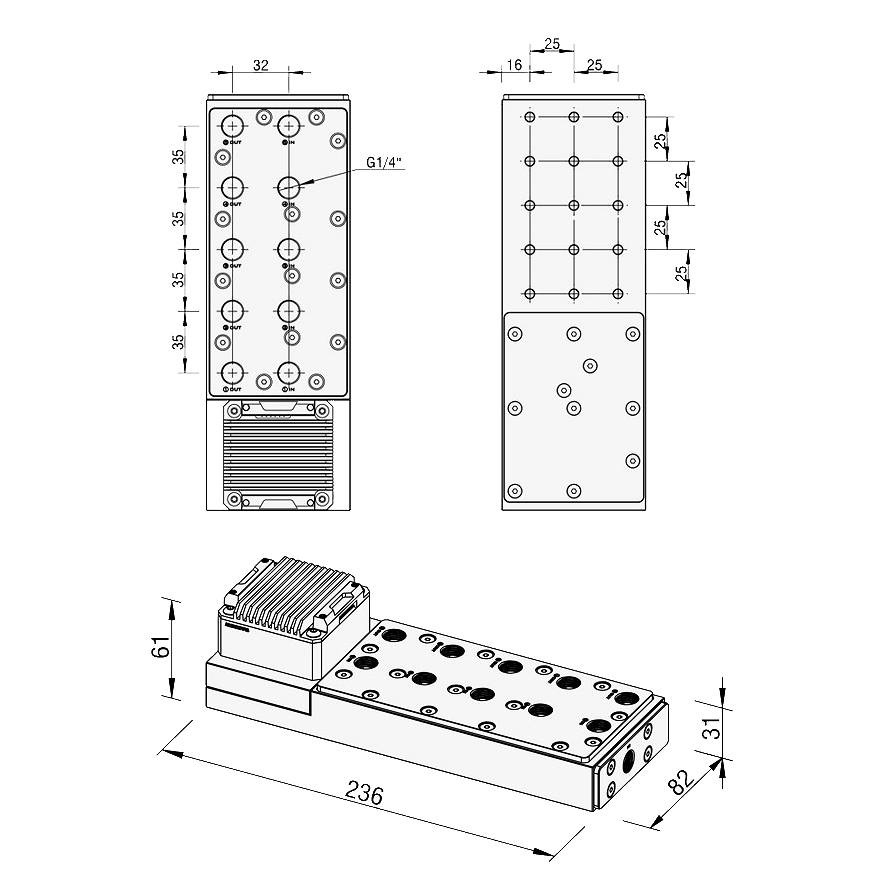

– Stainless Steel Panel Thickness: 6mm
– Inlet/Outlet Thread Size: G1/4
– Rear Mounting Thread Size: M4
– Cooling Configuration: Serial Flow Distribution
– Application: Multi-GPU Servers, Commercial Workstations, AI Model Training, Rendering and Data Processing
– Barrow Part Code: DC17-01

Included:
1x Barrow Commercial Grade Universal Distro Panel with 17W PWM Pump – SS/POM (DC17-01)

Note: When installing the distribution panel, ensure all mounting screws are correctly aligned with the integrated metal thread inserts before tightening. Avoid excessive torque during installation. The integrated pump requires a 12V power connection and supports PWM or manual speed regulation.

Compatibility:
– Standard G1/4 threaded water cooling fittings
– Custom liquid cooling systems using serial coolant distribution
– Multi-GPU server and commercial workstation cooling configurations
– Suitable for AI model training, rendering and data processing systems
