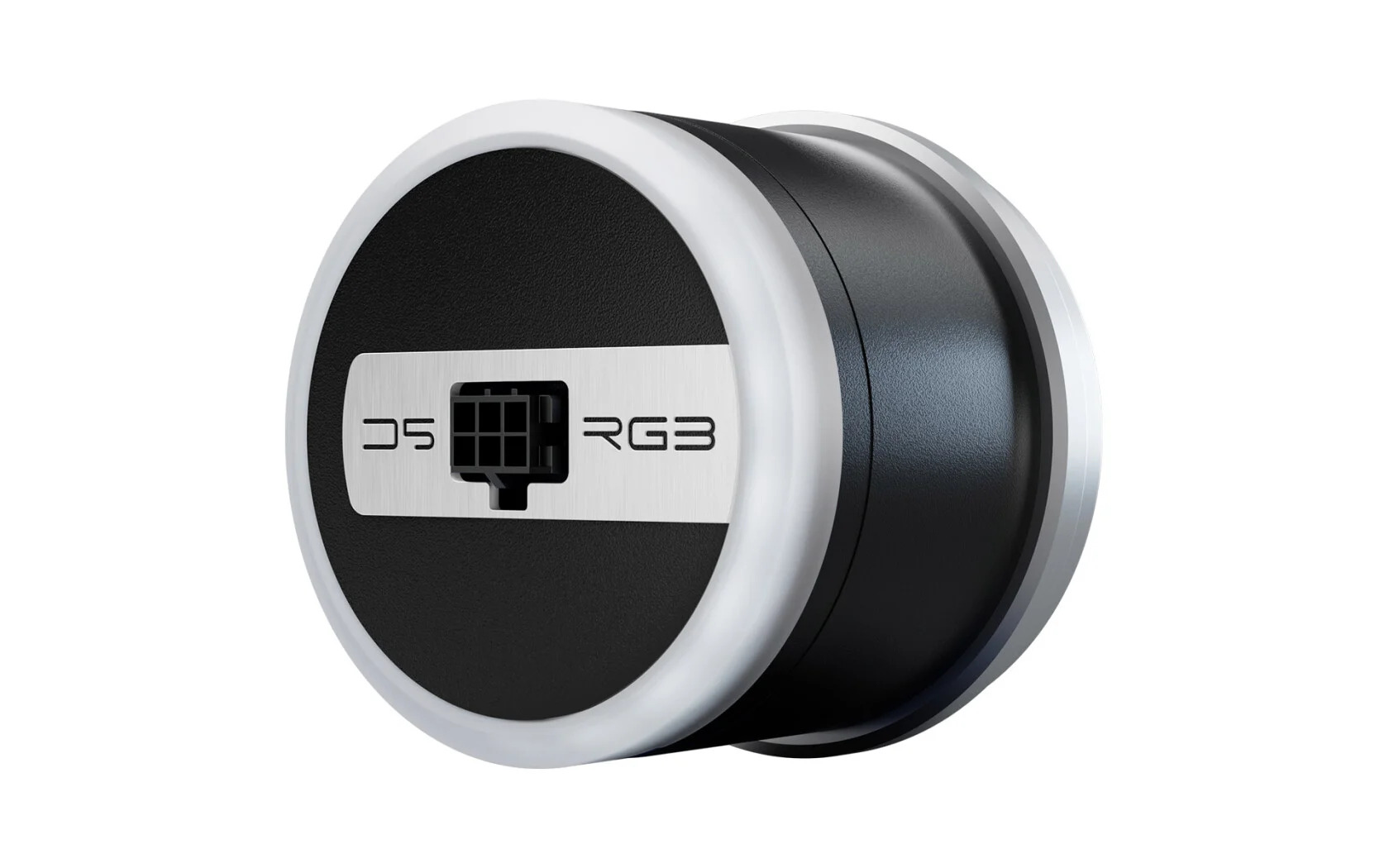

The HEATKILLER® D5 PWM aRGB pump combines legendary reliability with state-of-the-art technology and impressive lighting. Developed for demanding water cooling enthusiasts.
The HEATKILLER® D5 PWM aRGB pump combines legendary reliability with state-of-the-art technology and impressive lighting. Developed for demanding water cooling enthusiasts.
The HEATKILLER® D5 PWM aRGB pump combines legendary reliability with state-of-the-art technology and impressive lighting. Developed for demanding water cooling enthusiasts.
The HEATKILLER® D5 PWM aRGB pump combines legendary reliability with state-of-the-art technology and impressive lighting. Developed for demanding water cooling enthusiasts.

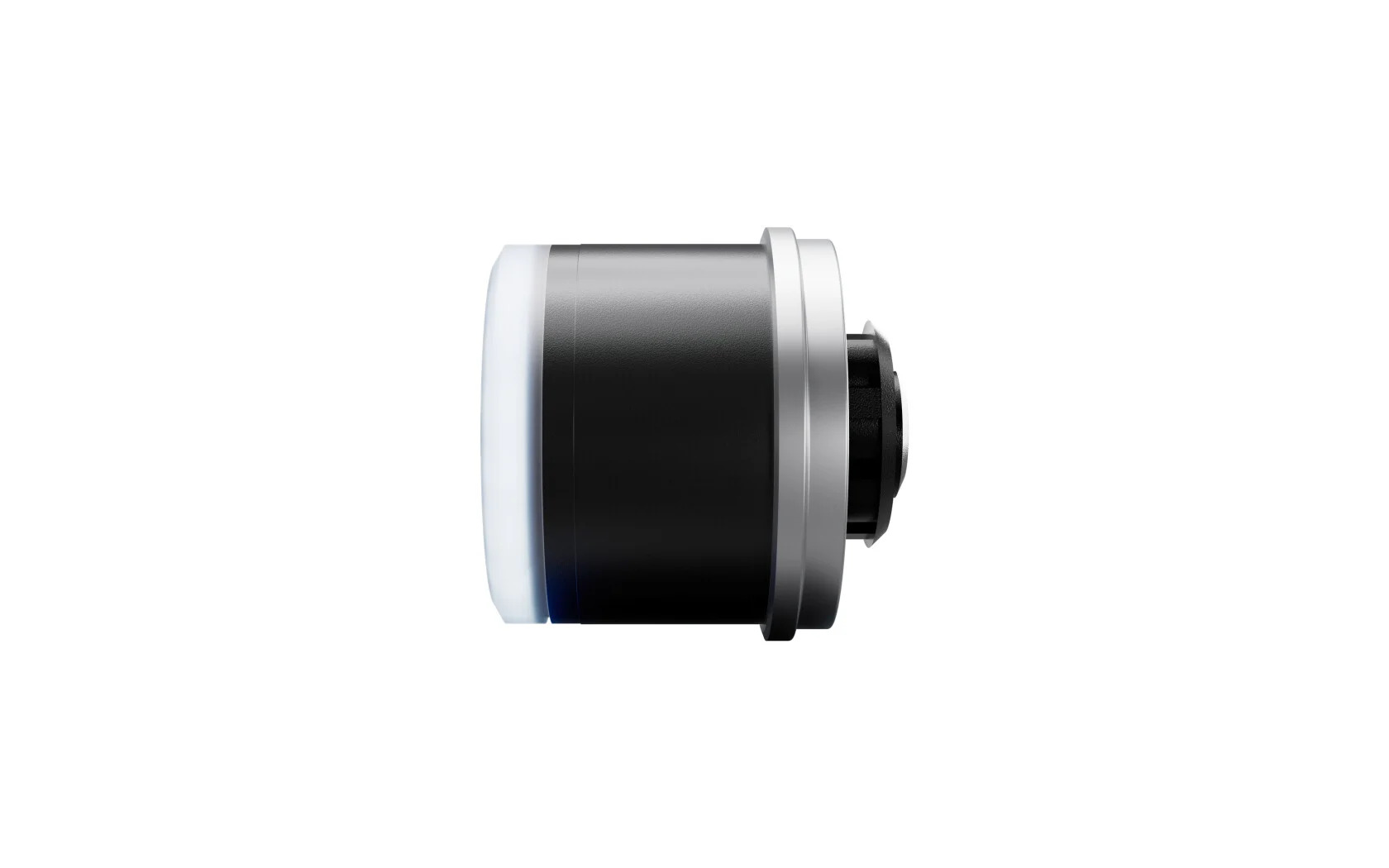

Original Xylem D5 PWM – Reliable, powerful, and quiet
At the heart of the HEATKILLER D5 aRGB is an original Xylem Lowara D5 pump. A pump mechanism that has proven itself over decades. Its patented designstands for maximum service life, high delivery rate, and silent operation.
Thanks to the shaftless spherical motor principle, there is no bearing play and therefore no increase in operating noise. The self-adjusting wet rotor bearing is lubricated and cooled directly by the coolant. The pump start reliably even after long periods of downtime. The efficient permanent magnet technology also ensures high Efficiency.
WPI Watercool Pump Interface – One cable, all functions

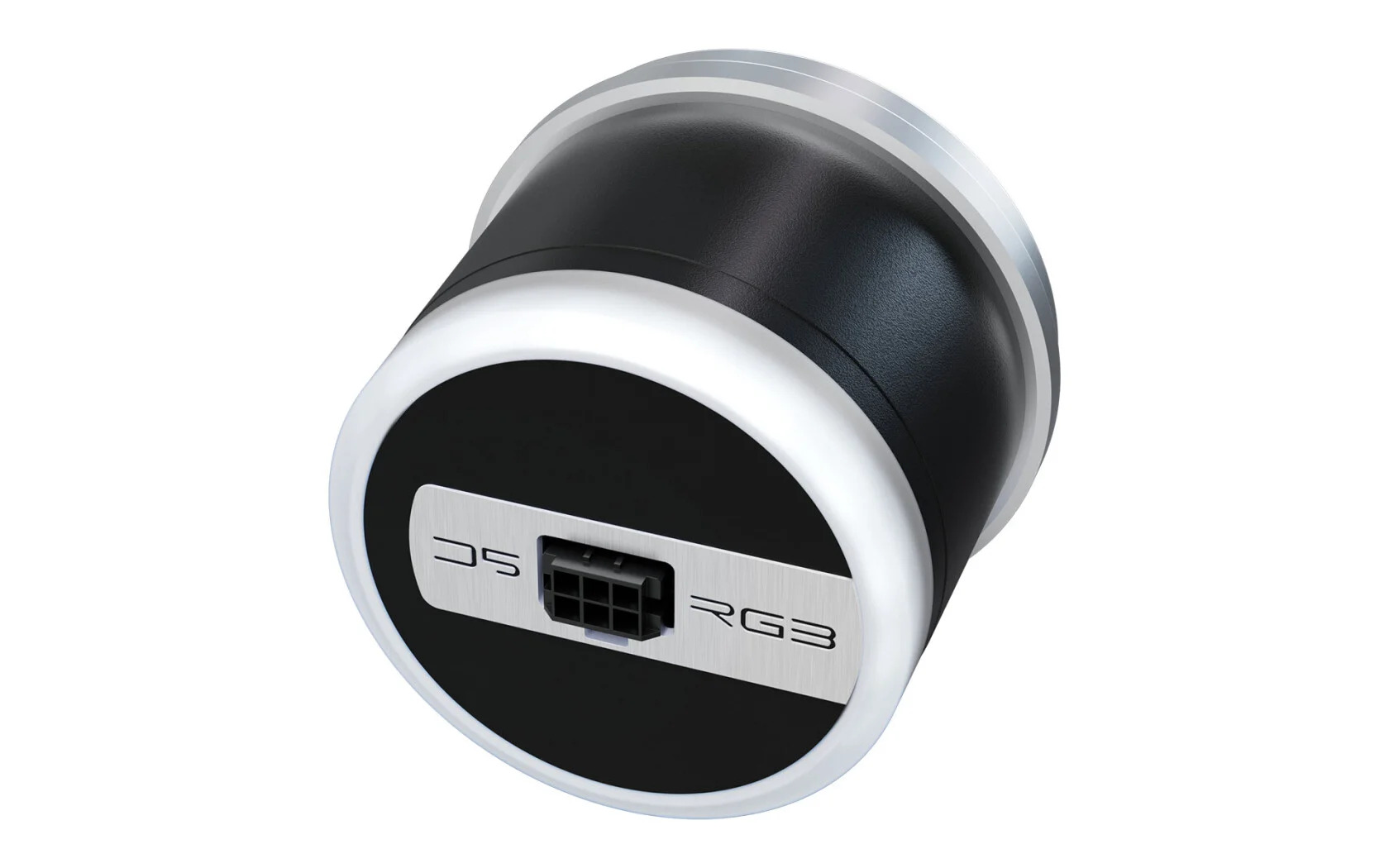

The Watercool Pump Interface (WPI) is the central interface for connecting HEATKILLER D5 PWM pumps. In addition to the supply voltages, PWM, RPM, and aRGB signals are also transmitted via a single cable. This makes cable Routing compact and elegant. Ideal in combination with Passive Control for the MO-RA IV series.
The pump can also be connected to a conventional motherboard using the included cable, regulated, and the aRGB LEDs controlled. The pump can also be connected to a conventional motherboard using the included cable, allowing you to regulate it and control the aRGB LEDs.

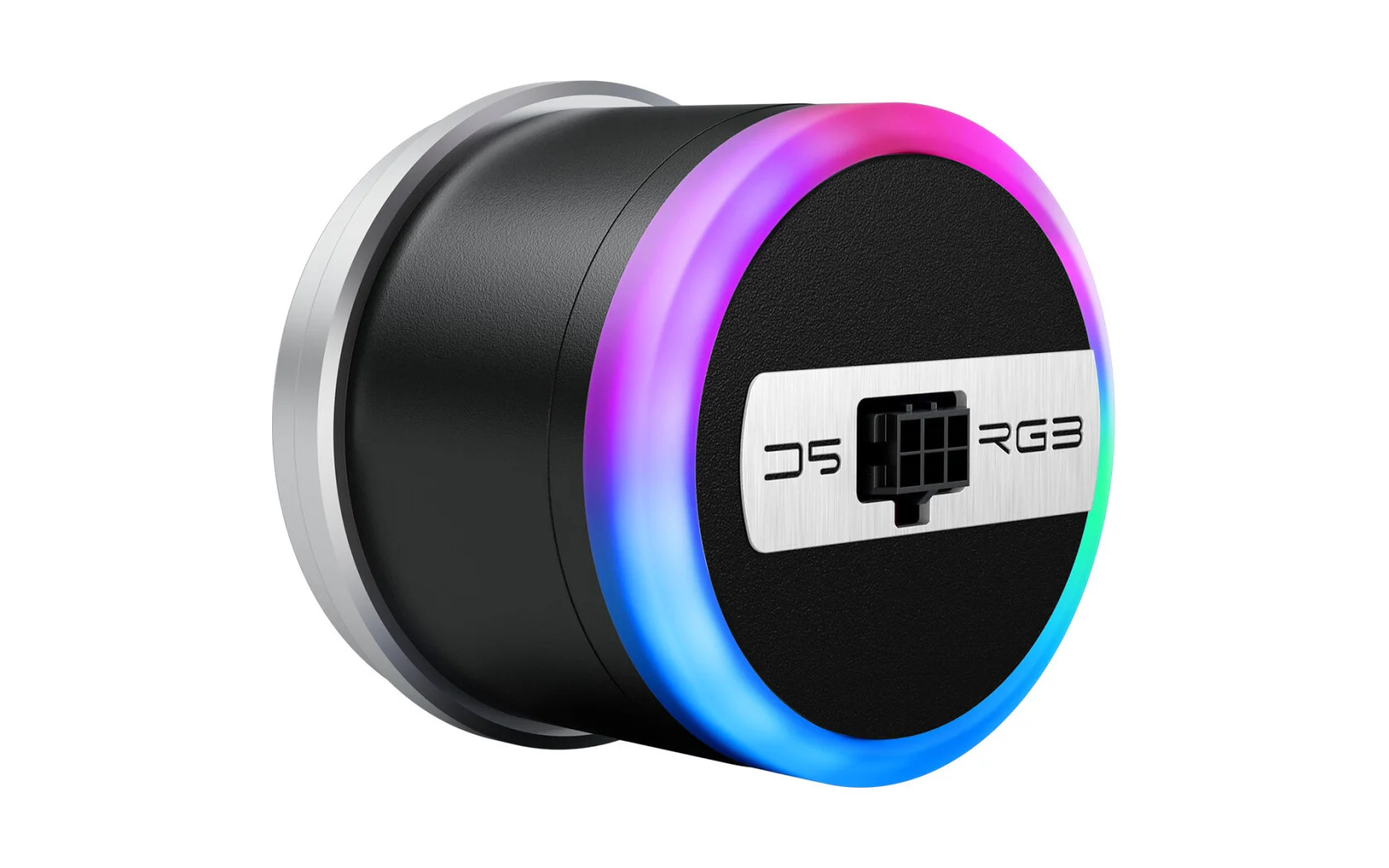

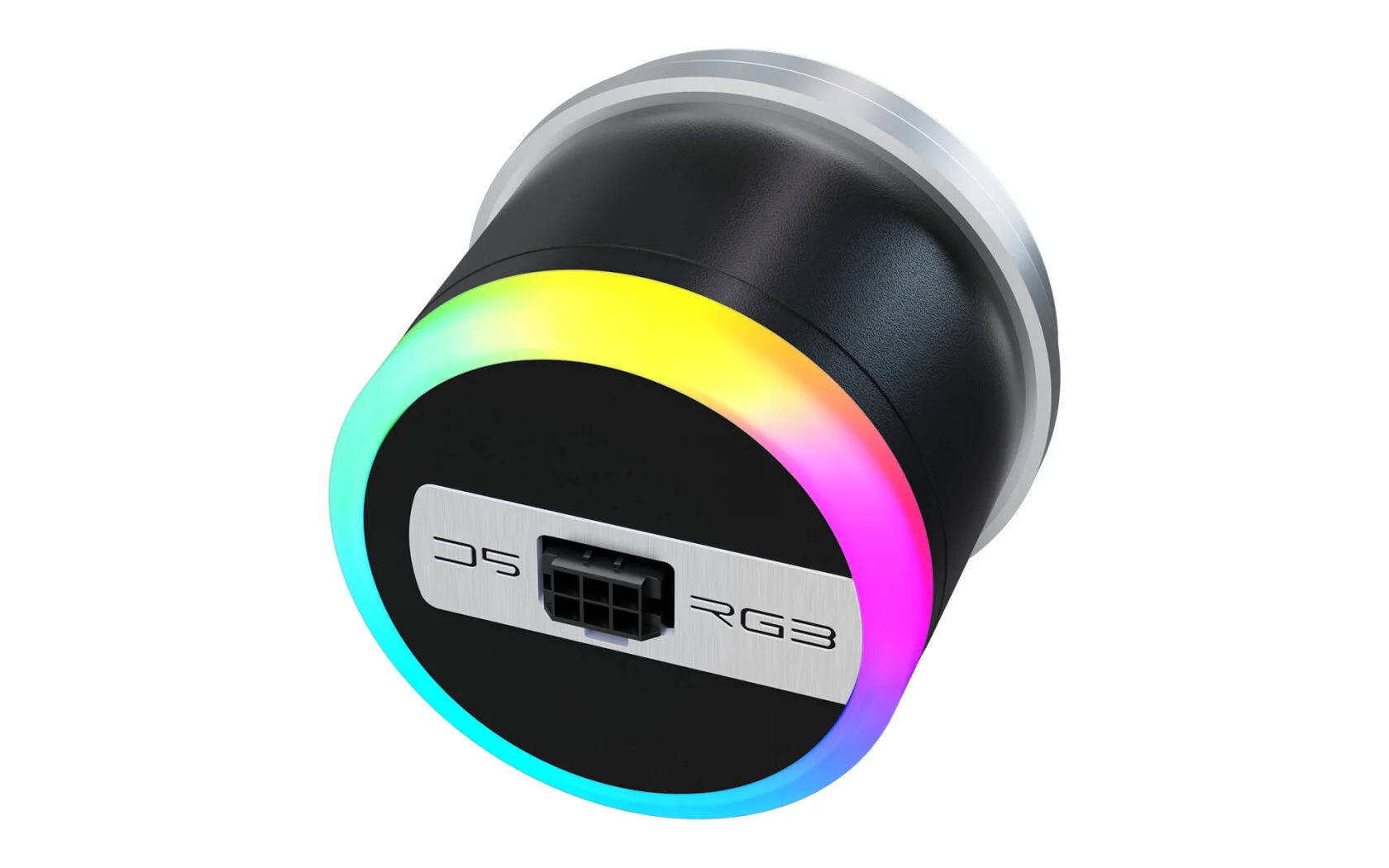

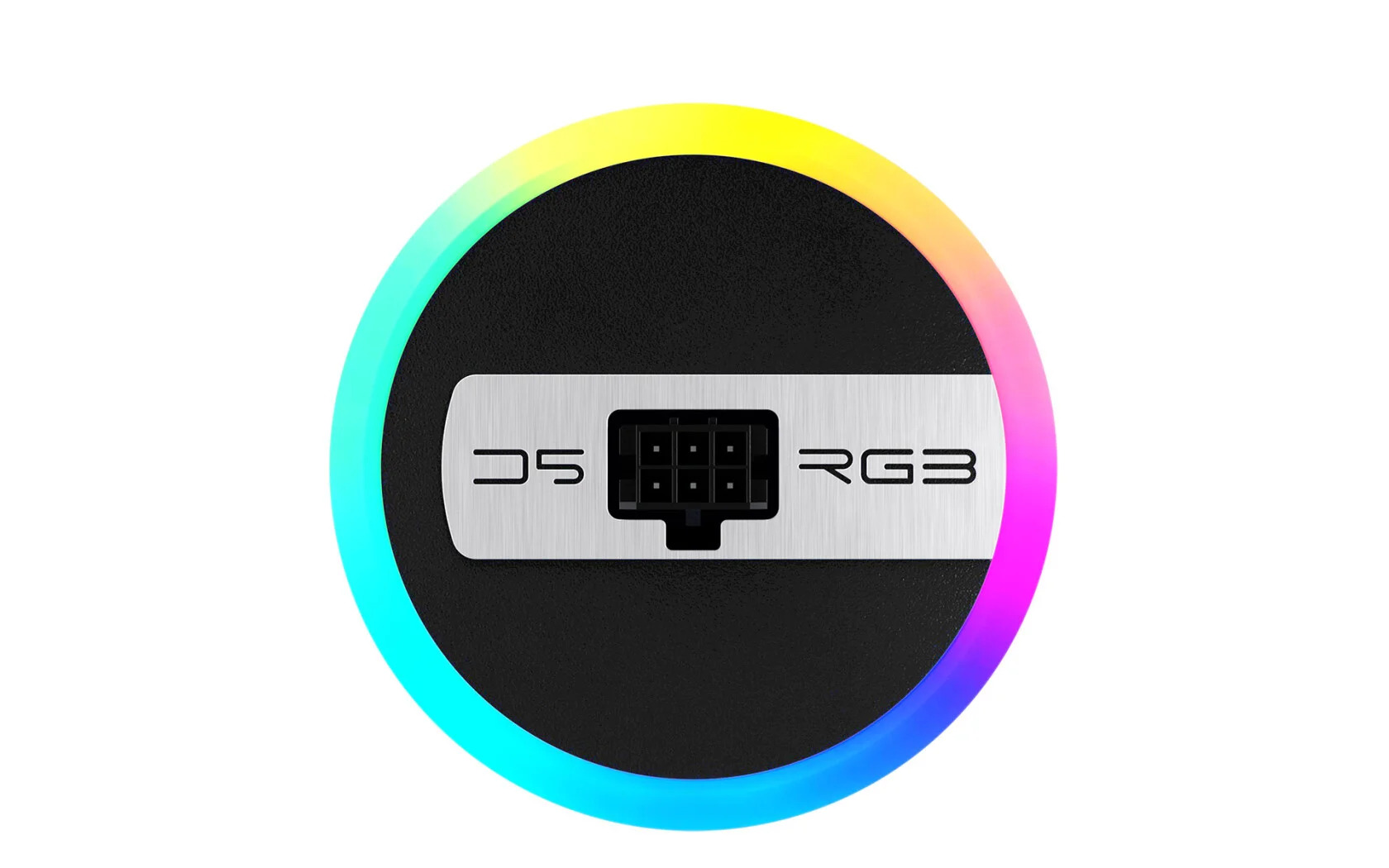

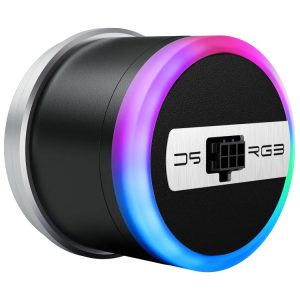

Shiny aRGB effects – flawless, uniform lighting
Sixteen individually controllable aRGB LEDs in combination with original PLEXIGLAS GS LED provide impressive lighting effects. This acrylic distributes the light homogously and prevents annoying light spots. The result is elegant, uniform illumination that integrates seamlessly into any aRGB setup and can be customized.
Perfectly matched to HEATKILLER TUBE & MO-RA IV TANK
The pump is delivered without attachments. A suitable pump attachment (e.g., HEATKILLER® D5-TOP) or a compensation tank with D5 option (e.g. MO-RA IV Tank or HEATKILLER TUBE) is required for operation. The electrical connection is conveniently made via the Watercool Pump Interface or directly via the motherboard with the included cable.
| Specification | |
|---|---|
| Dimensions | |
| Diameter | 65 mm |
| Length (with rotor) | 67 mm |
| Motor & Design | |
| Motor Type | Electronically commutated spherical motor |
| Electrical Specifications | |
| Rated Voltage | 12 V DC |
| Voltage Range | 8 – 24 V DC |
| Max. Power Consumption | 30 W |
| Power Connection | 6-pin WPI (RPM, PWM, aRGB) |
| Performance | |
| Pressure Head (at 12 V) | 3.7 m |
| Max. Flow Rate | 1500 l/h |
| Compatibility | |
| Acceptable Media | Water, water-glycol mixtures |
| Max. System Temperature | 60 °C |
| Materials | |
| Construction Materials | Stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminium oxide, hard carbon |
| Scope of Delivery | |
| Included Pump | 1x HEATKILLER D5 PWM aRGB |

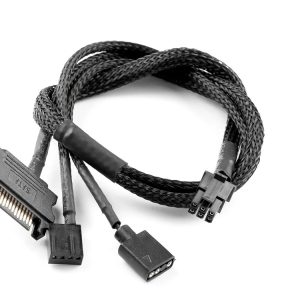

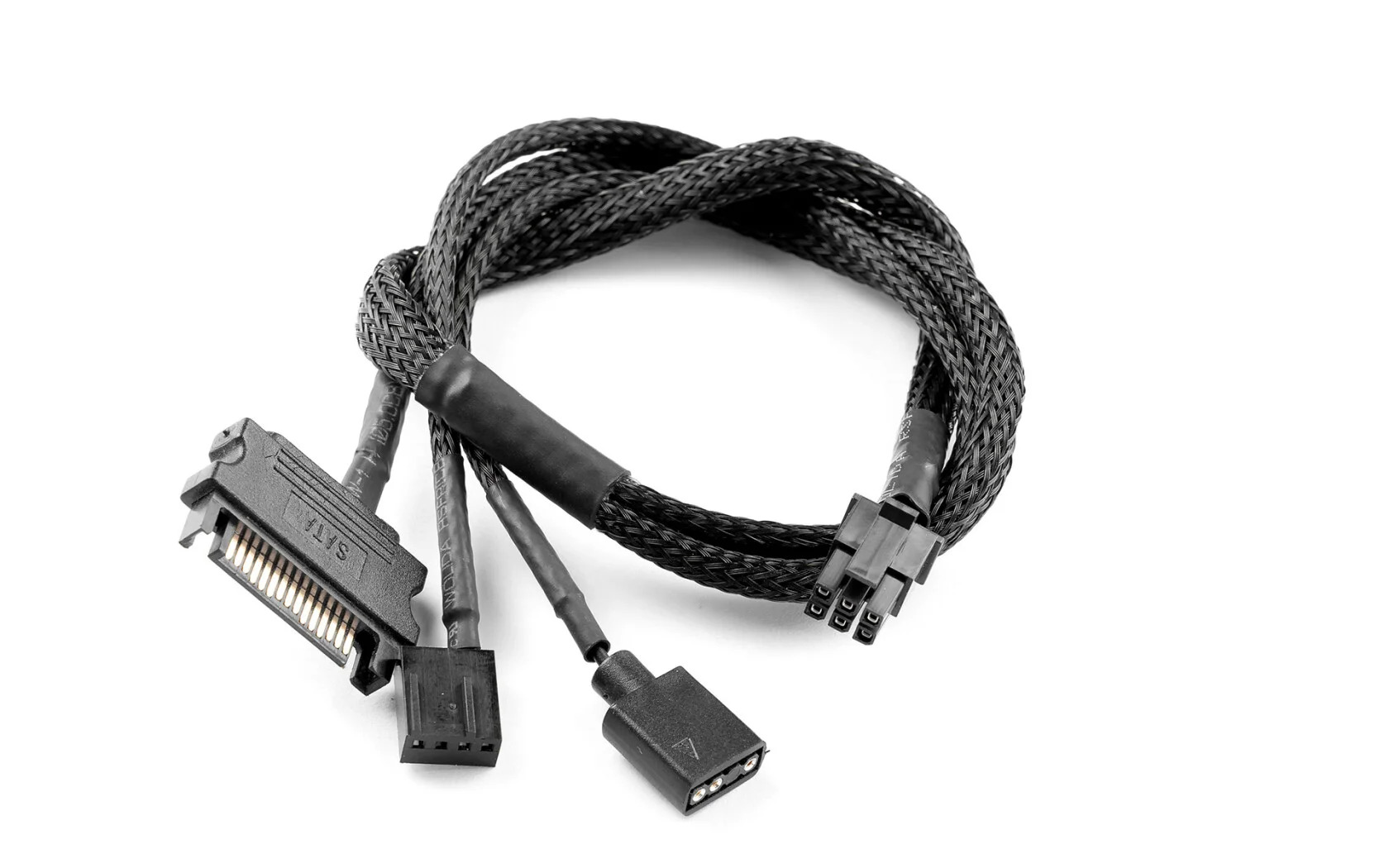

| Cable | 1x 40 cm connection cable (Motherboard, aRGB & SATA) |
£117.90£98.25 Inc VatEx Vat
