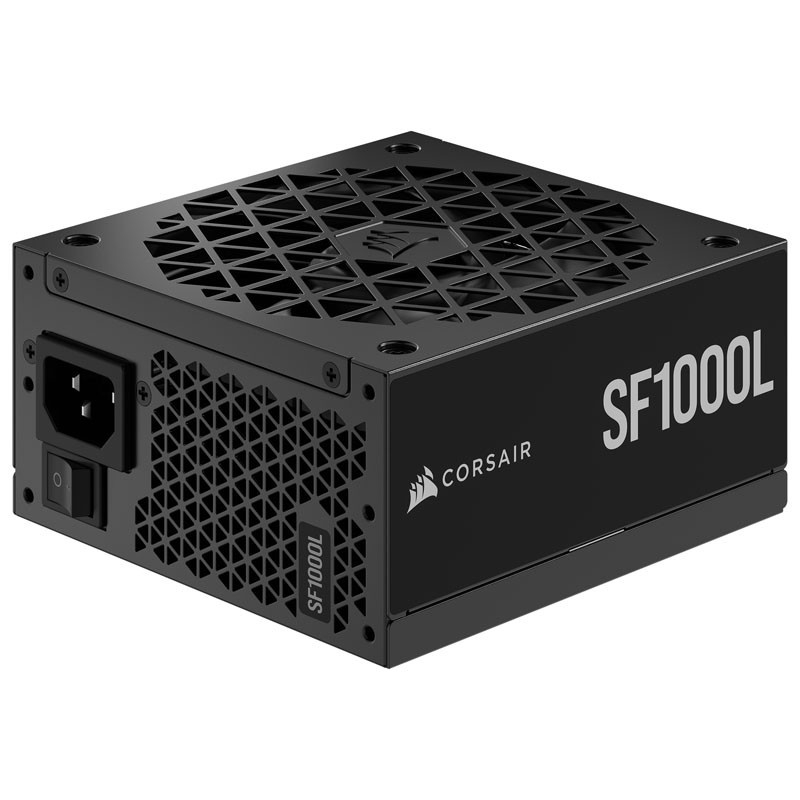

Corsair SF-L Series power supply 80 PLUS Gold, ATX 3.0, PCIe 5.0 - 1000 Watt

– Small size for small cases
– 1,000 watts of nominal power for components from the high-end segment
– With 80 PLUS Gold certification
– Fully modular cable management with black cables
– Seven 6+2 pin PCIe connectors for graphics cards and your CPU

Powerful SFX-L power supply with 80 PLUS platinum efficiency
With a total output power of 1,000 watts, the ATX 3.0 power supply from Corsair from the SF-L series is suitable for gaming PCs that have components from the high-end segment installed in a small housing and rely on powerful and demanding graphics cards.

Meaningful performance data
Thanks to the SFX-L form factor, the power supply is ideal for use in small form factor cases. Despite the high performance, the 120 mm fan keeps the SF-L Series at cool operating temperatures even after extensive use. With a low load of up to 400 W, the fan remains off and the power supply unit is therefore silent.

Extensive connectivity for your hardware in SFX format
The Corsair SF-L Series also impresses with extensive connectivity. In addition to a 24-pin connector and two 8-pin connectors for the mainboard and your CPU, there are also five 6+2-pin PCIe connectors for graphics cards or other devices. A 12VHPWR adapter for high-end cards is also included. Four 6-pin connectors including cable selection are available on the power supply for drives and other components.

Thanks to modular cable management, you only use the cables that you actually need for your build. This allows you to build particularly tidy setups without superfluous cables.

Technical details:
– Dimensions: 125 x 63.5 x 130 mm (W x H x D)
– Color: Black
– Fan: 120mm (automatic control)
– Standard: ATX 3.0
– Efficiency (minimum):
-80 PLUS Gold
– Form factor: SFX-L
– Power: 1,000 W
– +3.3V: 20A
– +5V: 20A
– +3.3V and +5V: 150W
– +12V: 1,000W, 83.3A
– +5 Vsb: 3 A, 15 W

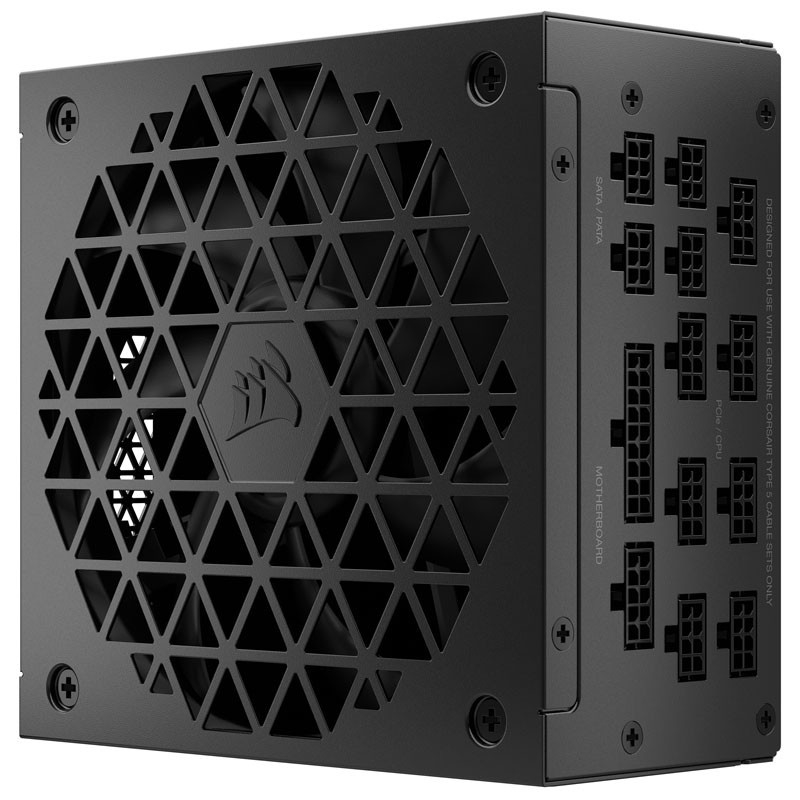

– Connections (rear):
– 1x 18+10 pin motherboard (24 pin)
– 7x 6+2 pin PCIe/CPU
– 1x 16-pin PCIe 5.0 12VHPWR
– 4x SATA/PATA
– Protection:
– overcurrent protection
– overload protection
– Overvoltage protection
– over-temperature protection
– short circuit protection
– undervoltage protection
– Scope of delivery:
– 1x Corsair SF-L Series power supply 80 PLUS Gold, ATX 3.0, PCIe 5.0 – 1,000 watts
– 1x 18-pin+10-pin MB 24P (300mm)
– 2x 8-pin CPU 4+4P (400mm)
– 1x 12VHPWR 12+4P (400mm)
– 2x 8-pin PCI-E 6+2P (250mm)
– 1x 8-pin PCI-E 6+2P/6+2P (400mm, 100mm splitter)
– 1x 4-pin PATA 90 degrees (370mm-100/115/115mm)
– 1x 6-pin SATA 90 degrees (445mm-100/115/115/115mm)
– 1x 6-pin SATA (445mm-100/115/115/115mm)
– 1x accessory set
