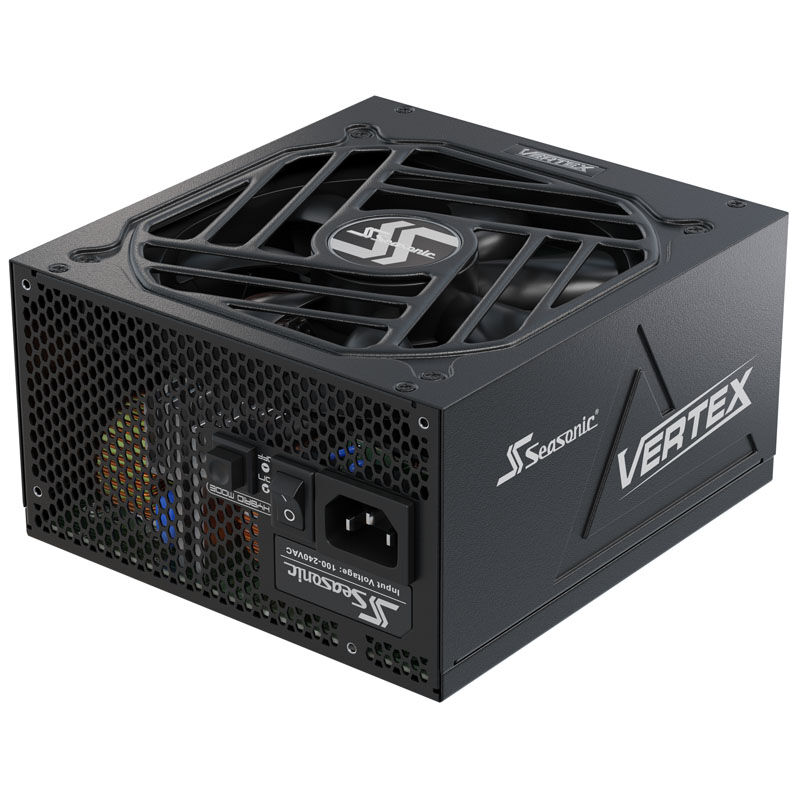

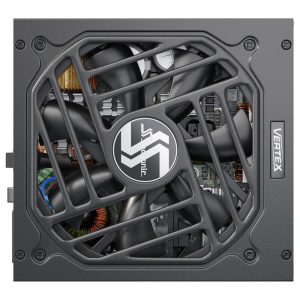

Seasonic VERTEX GX-1200 PSU

– 1,200 watts of nominal power for components from the high-end segment
– With 80 PLUS Gold certification
– Fully modular cable management with black cables
– Three 6+2 pin PCIe connectors for graphics cards
– 12+4-pin PCIe 5.0 12VHPWR connector for demanding graphics cards
– Extremely powerful ATX power supply with 80 PLUS Gold efficiency

The Seasonic Vertex GX 80 ATX 3.0 power supply, with its 1,200 watts total output power, is suitable for gaming PCs that have built-in components from the absolute high-end segment and rely on powerful and demanding graphics cards.

Impressive performance data
The power pack is extremely efficient, which also results from the use of high-quality electrical components. This is noticeable, among other things, in the fact that high-quality Japanese electrolytic capacitors are installed. The power supply, certified with 80 PLUS Gold, achieves an efficiency of up to 92% at a load of 50%.

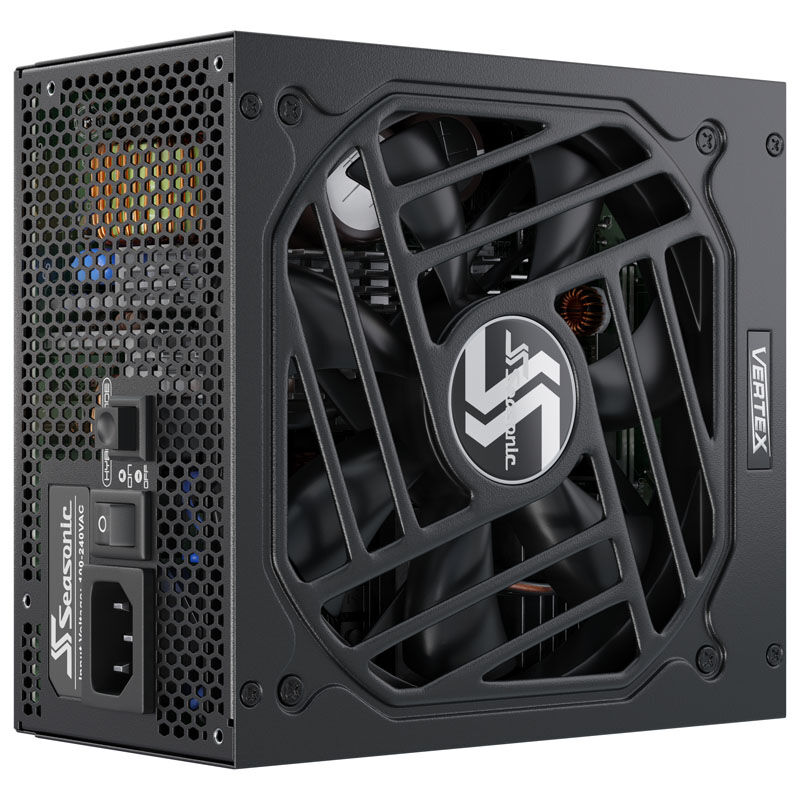

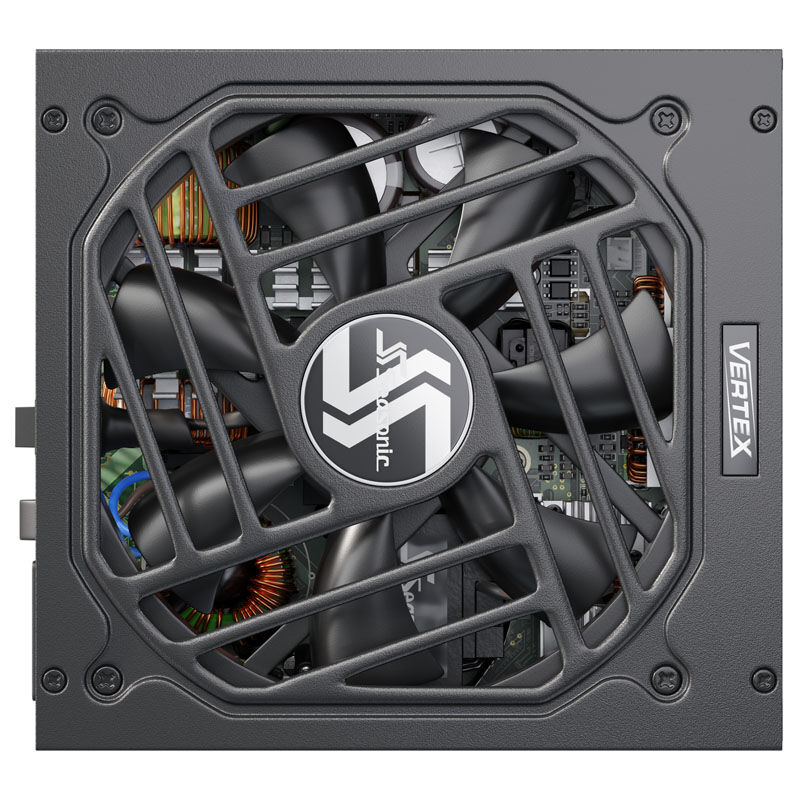

Thanks to the ATX form factor, the power supply is ideal for most cases. Despite the extreme performance, the 135 mm fan keeps the Seasonic Vertex GX 80 at cool operating temperatures even after extensive use. With a low load of up to 30%, the fan remains off and the power supply unit is therefore silent.

Extensive connectivity for power-hungry, high-end hardware

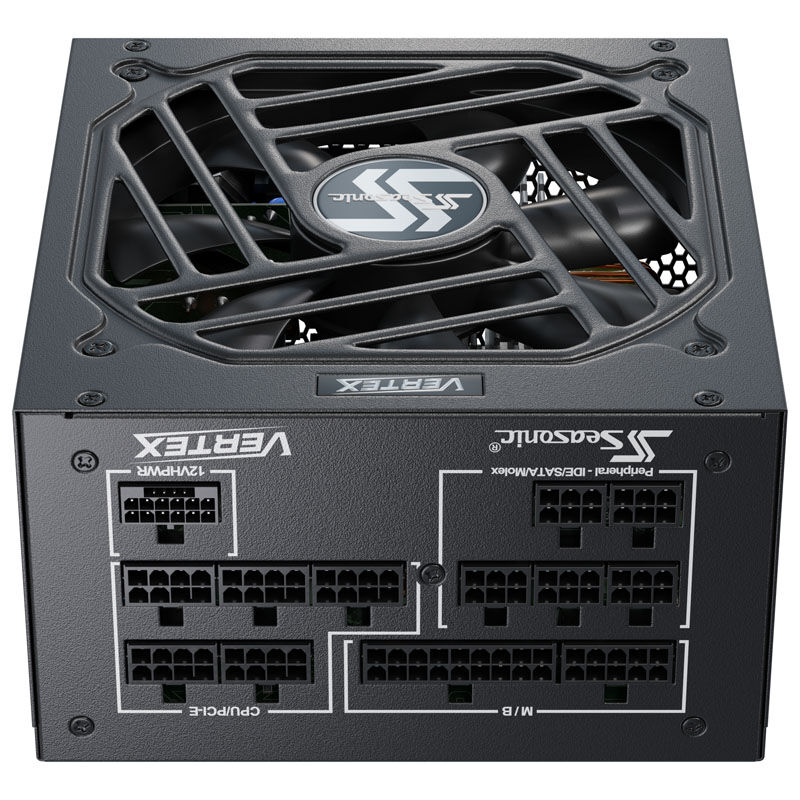

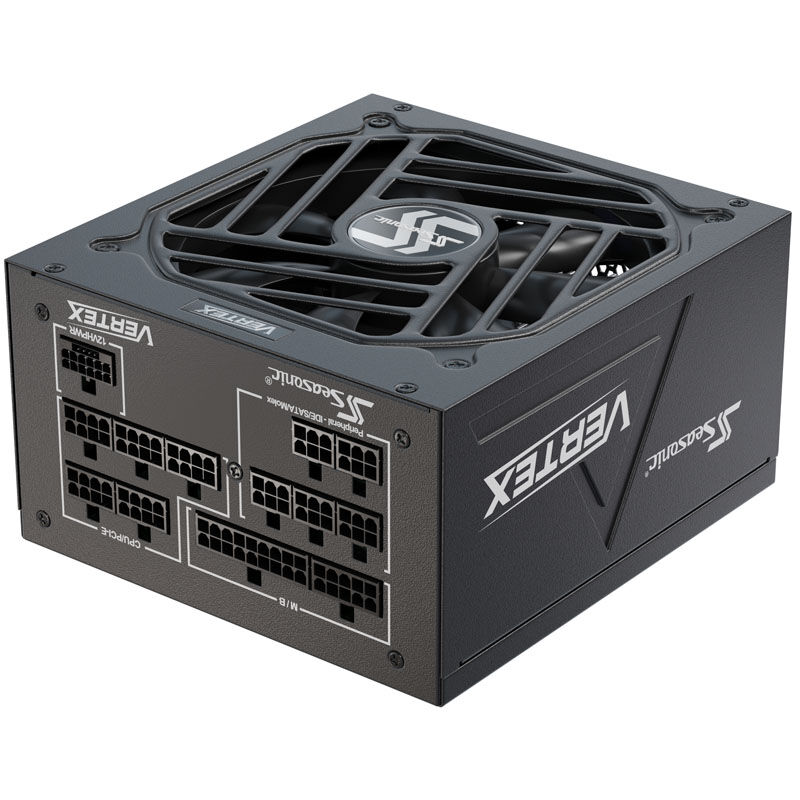

The Seasonic Vertex GX 80 also impresses with extensive connectivity. In addition to a 24-pin connector and two 8-pin connectors for the mainboard and your CPU, there are also three 6+2-pin PCIe connectors for graphics cards and a 12VHPWR PCIe 5.0 connector and cable for high-end graphics cards available. Five 6-pin connectors with a selection of cables are available for drives and other components.

Thanks to modular cable management, you only use the cables that you actually need for your build. This allows you to build particularly tidy setups without superfluous cables.

Technical details:
– Dimensions: 150 x 86 x 160 mm (W x H x D)
– Color: Black
– Fan: 135 mm (automatic control, hydrodynamic bearing)
– Standard: ATX 3.0
– Efficiency (minimum):
– ~ 90 / 92 / 86% @ 20 / 50 / 100% load at 230V / 50Hz, 80 PLUS Gold
– Form factor: ATX
– Power: 1,200 W
– +3.3V: 25A
– +5V: 25A
– +3.3V and +5V: 125W
– +12V: 1,200W, 100A
– -12V: 0.3A, 3.6W
– +5 Vsb: 3 A, 15 W

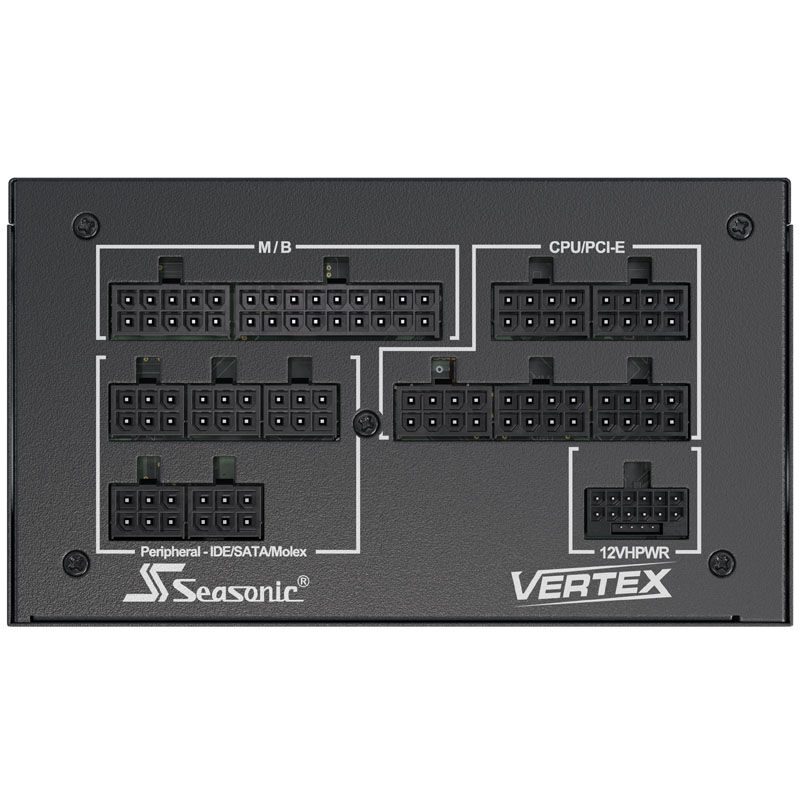

– Connections (rear):
– 1x 24-pin motherboard
– 5x 6+2 pin PCIe/CPU
– 1x 12+4 pin PCIe 5.0 12VHPWR
– 5x SATA/Molex
– Protection:
– overcurrent protection
– overload protection
– Overvoltage protection
– over-temperature protection
– short circuit protection
– undervoltage protection

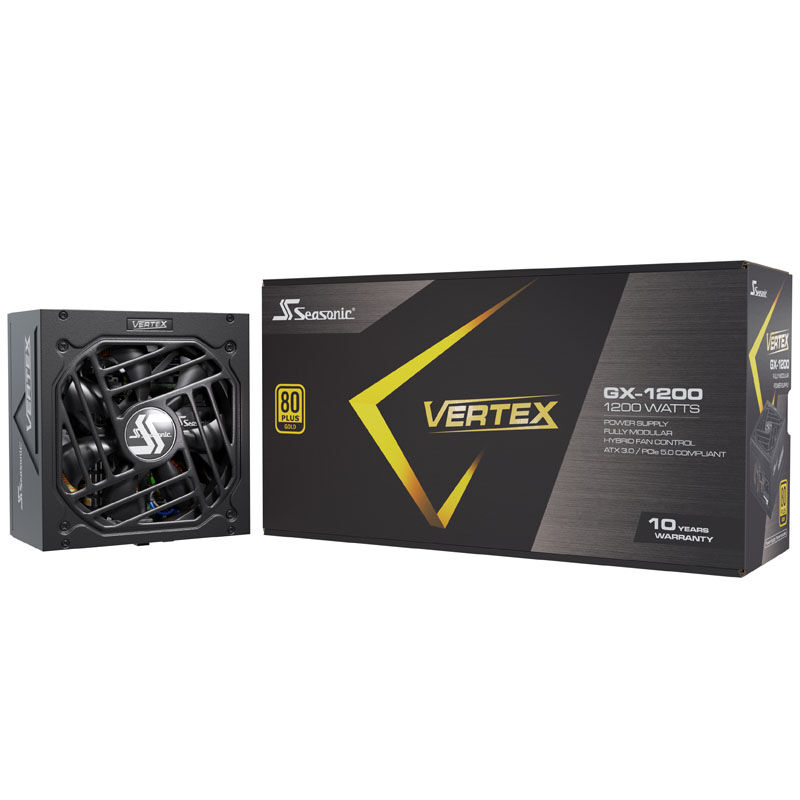

– Scope of delivery:
– 1x Seasonic Vertex GX 80
– 1x 20+4 pin cable (610mm)
– 1x 12+4 pin PCIe 5.0 12VHPWR cable (750mm)
– 2x 4+4 pin CPU cable (650mm)
– 3x 8-pin / 6+2-pin PCIe cables (750 mm)
– 4x SATA cables (four connectors each, 950 mm)
– 1x SATA cable (two connectors each, 550 mm)
– 1x Molex cable (three connectors each, 690 mm)
