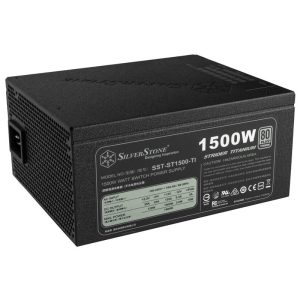

Silverstone SST-ST1500-TI v1.1 power supply 80 PLUS Titanium, modular - 1500 watts

Therefore, if necessary, the +12 volt line, which is crucial today, can be loaded with almost the entire nominal power – ideal for fast graphics cards and modern processors in power-hungry high-end PCs. The + 3.3 and + 5 volt rails together can deliver 120 watts – enough for a whole battery of HDDs. In addition, there is the whisper-quiet 135 mm fan with a gentle and precise rotation curve and the optimized airflow, which make the power supply one of the quietest of its kind.

The Silverstone ST1500-TI 1,500W power supply at a glance:
– 1,500 watts and 125 amps on the 12 volt rail
– 80 PLUS Titanium certificate for high efficiency
– ATX form factor with a length of 180 millimeters
– – Fully modular cable management
– Connections: 1x 24-pin, 2x 4 + 4-pin, 8x 6 + 2-pin, 16x SATA, 6x Molex & 1x floppy

> The Silverstone ST1500-TI: Full performance with high efficiency
The 1,500 watt model has more than enough connections and power for nimble high-end gaming computers or powerful workstations. The electronics deliver up to 1,200 watts and 125 amps on the +12 volt line, while the +3.3 and +5 volt rails provide 120 watts and 25 and 22 amps, respectively. The particularly high level of efficiency meets the requirements of 80 Plus Titanium 230V EU and thus exceeds 90/94 percent at 10/100 percent load (at 230 volts input voltage). The highly efficient circuit design has independent DC-to-DC converters for the 3.3 and 5 volt outputs, which ensures extremely precise voltage regulation.

Technical details:
– Dimensions: 150 x 86 x 180 mm (W x H x D)

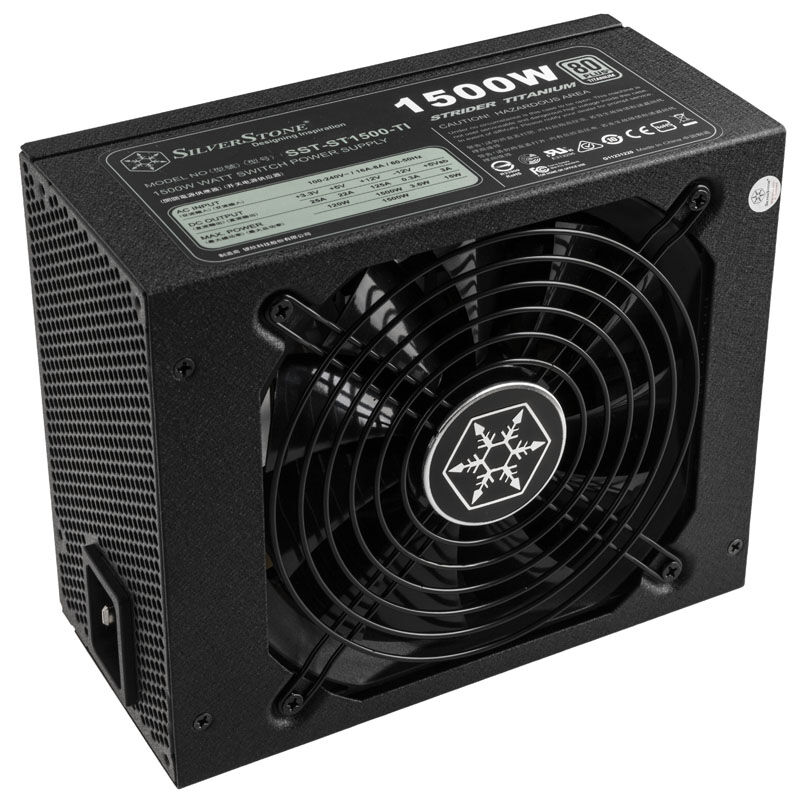

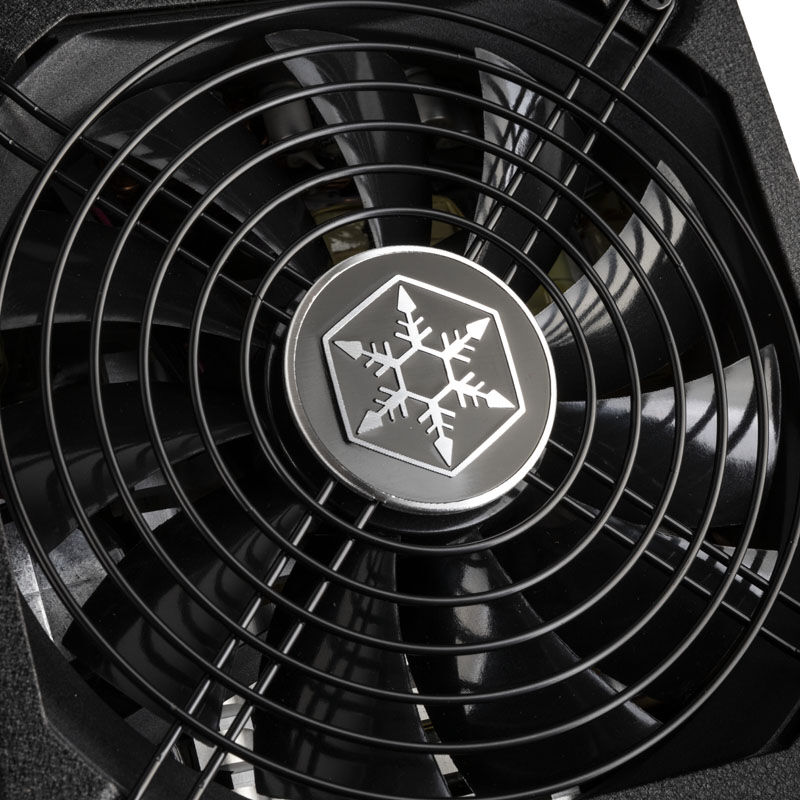

– Fan: 135 mm (automatic control)
– Efficiency: at least 90/94 percent at 10/100 percent load, 80 PLUS Titanium certified
 -Active PFC
– Form factor: ATX12V 2.4
– Power: 1,500 W.
 -+ 3.3V: 25 A
– + 5V: 22 A
– 3.3V + 5V: 120W
– + 12V: 1,500 W / 125 A
– -12V: 0.3A
 -+ 5Vsb: 3.0 A

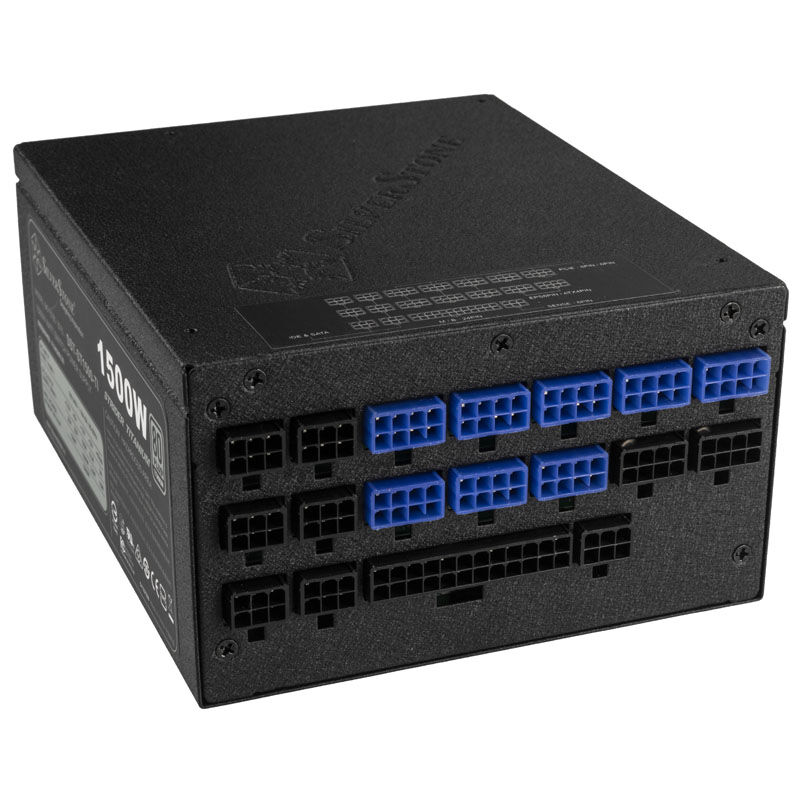

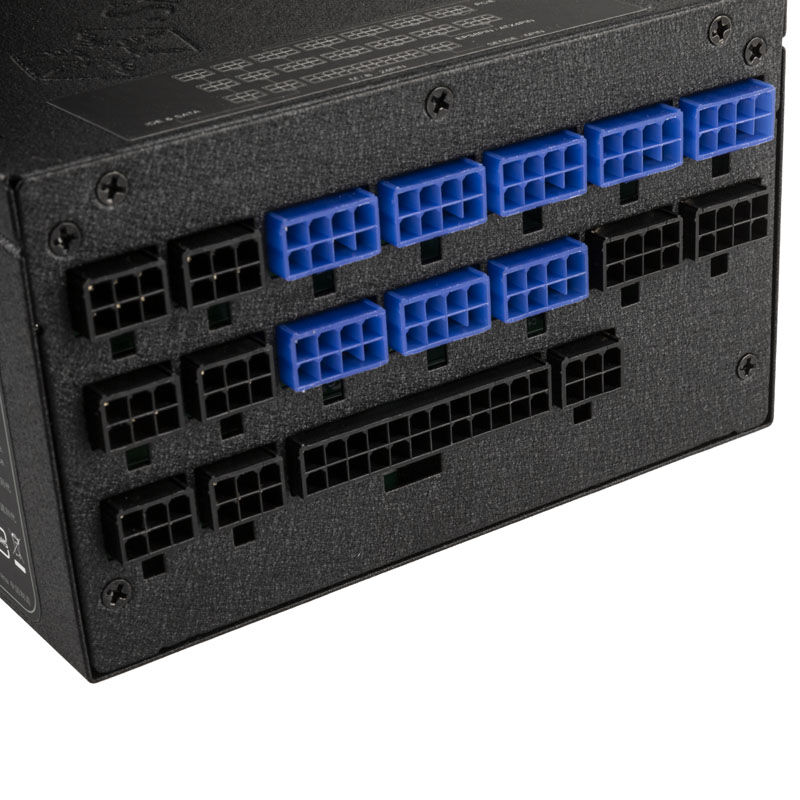

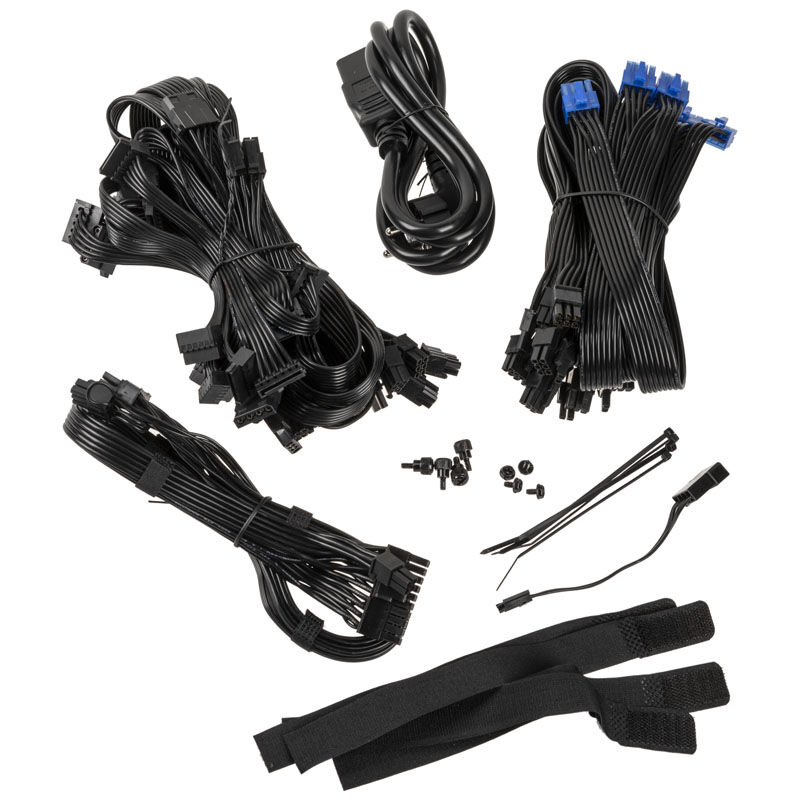

– Connections (modular):
– 1x 20 + 4-pin (550 mm)
– 1x 4 + 4 pin (750 mm)
– 1x 4 + 4 pin (550 mm)
– 8x 6 + 2-pin PCIe (550 mm)
– 4x SATA (600 + 150 + 150 + 150 mm)
– 2x Molex (600 + 150 + 150 + 150 mm)
– 1x floppy (100 mm)
– Protection circuits:
– OVP / UVP (protection against overvoltage and undervoltage)
– SCP (short circuit)
– OPP (overload)
– OCP (overcurrent on rails +12, +3.3 and +5 volts)
– MTBF: 100,000 hours
– Manufacturers guarantee: 5 years
