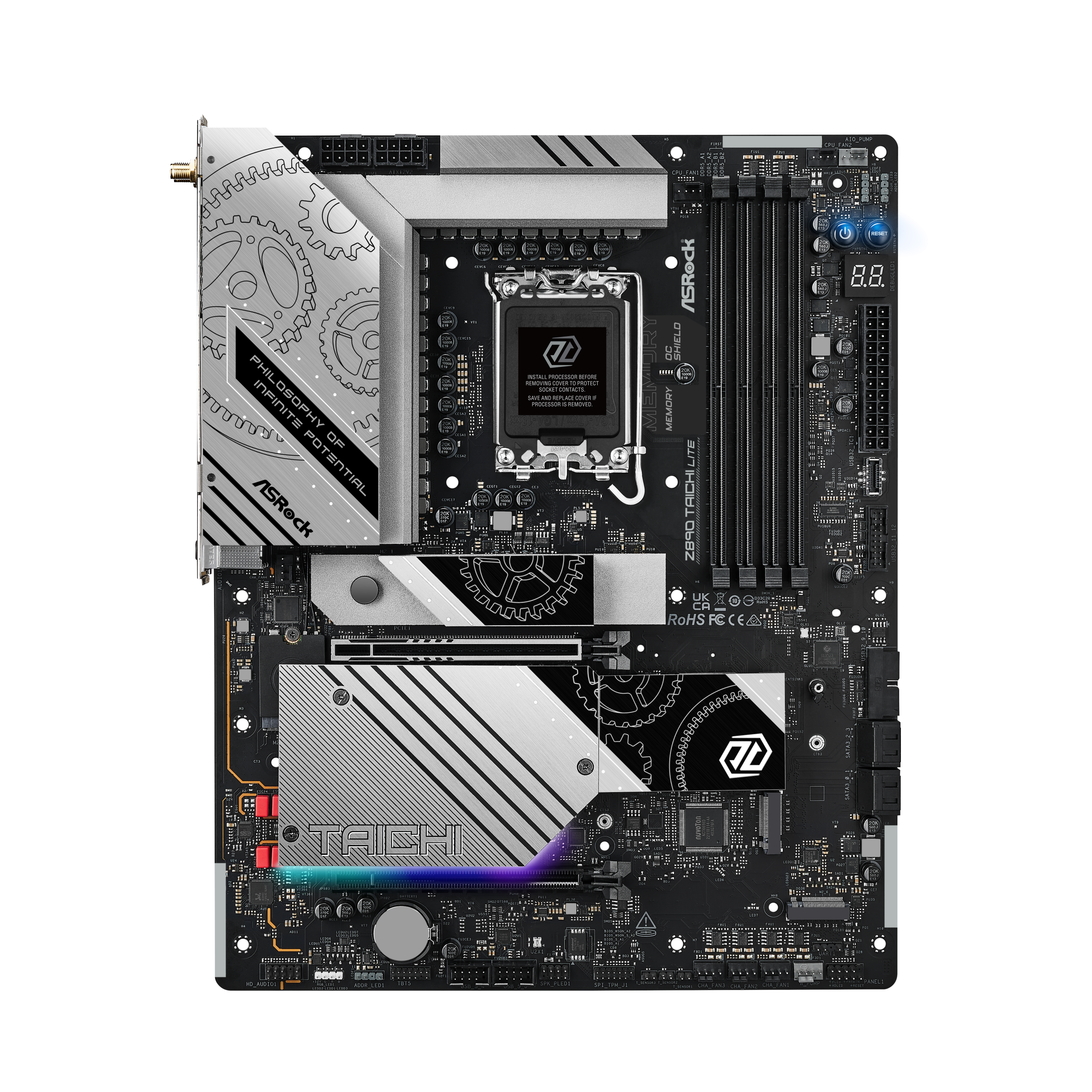

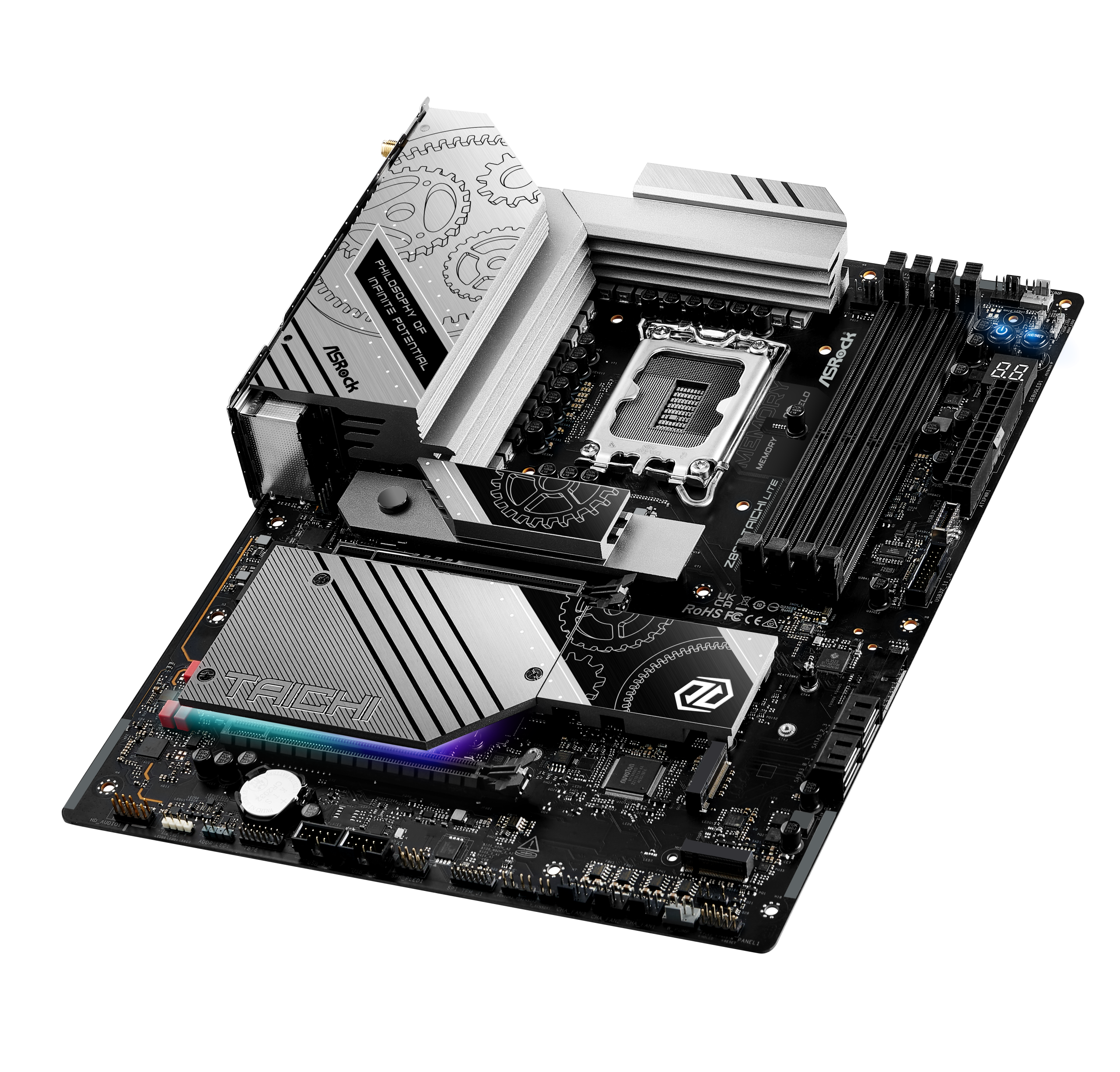

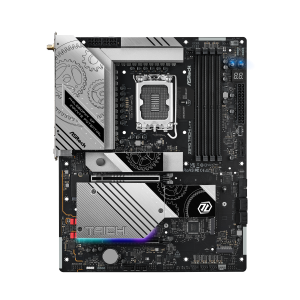

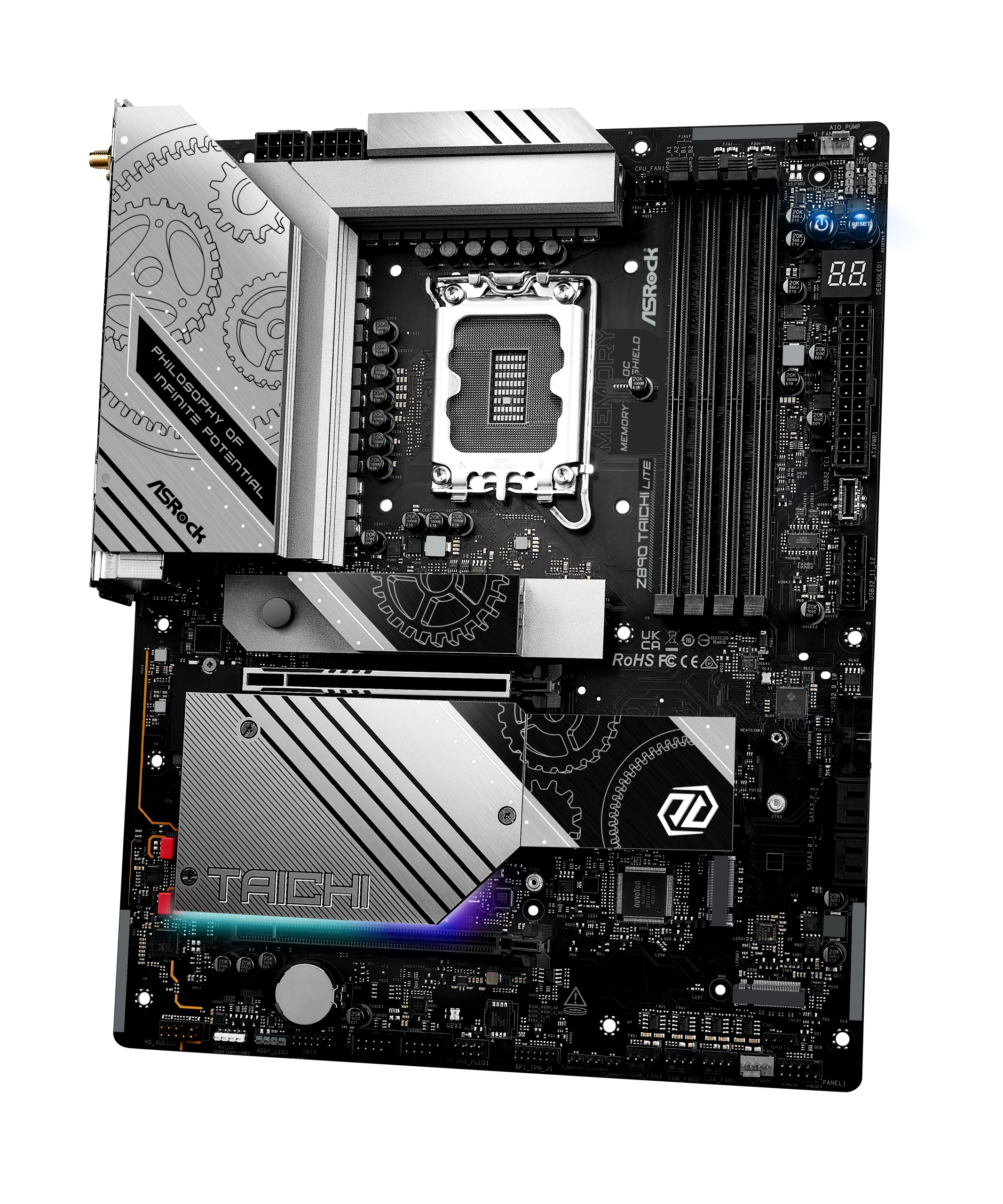

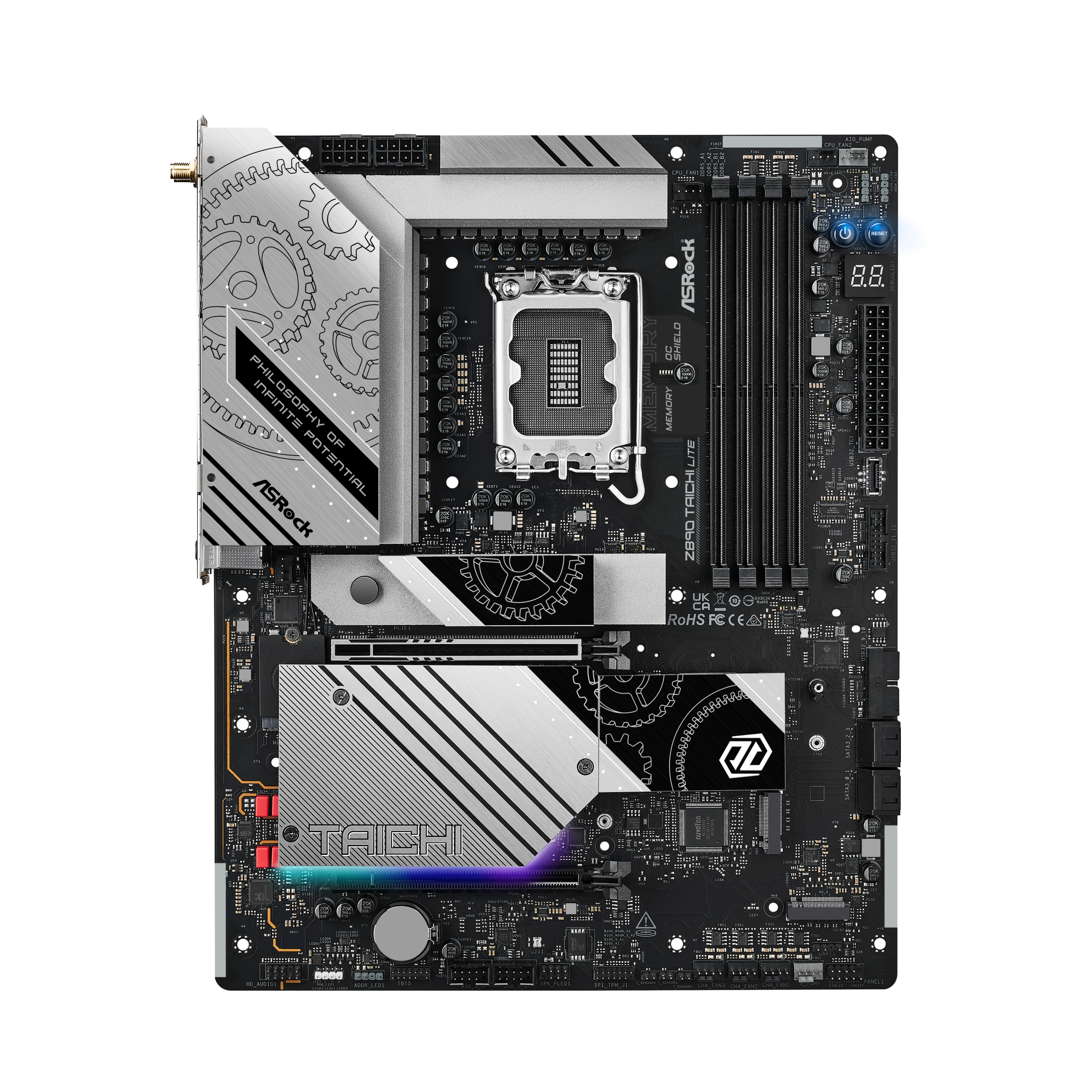

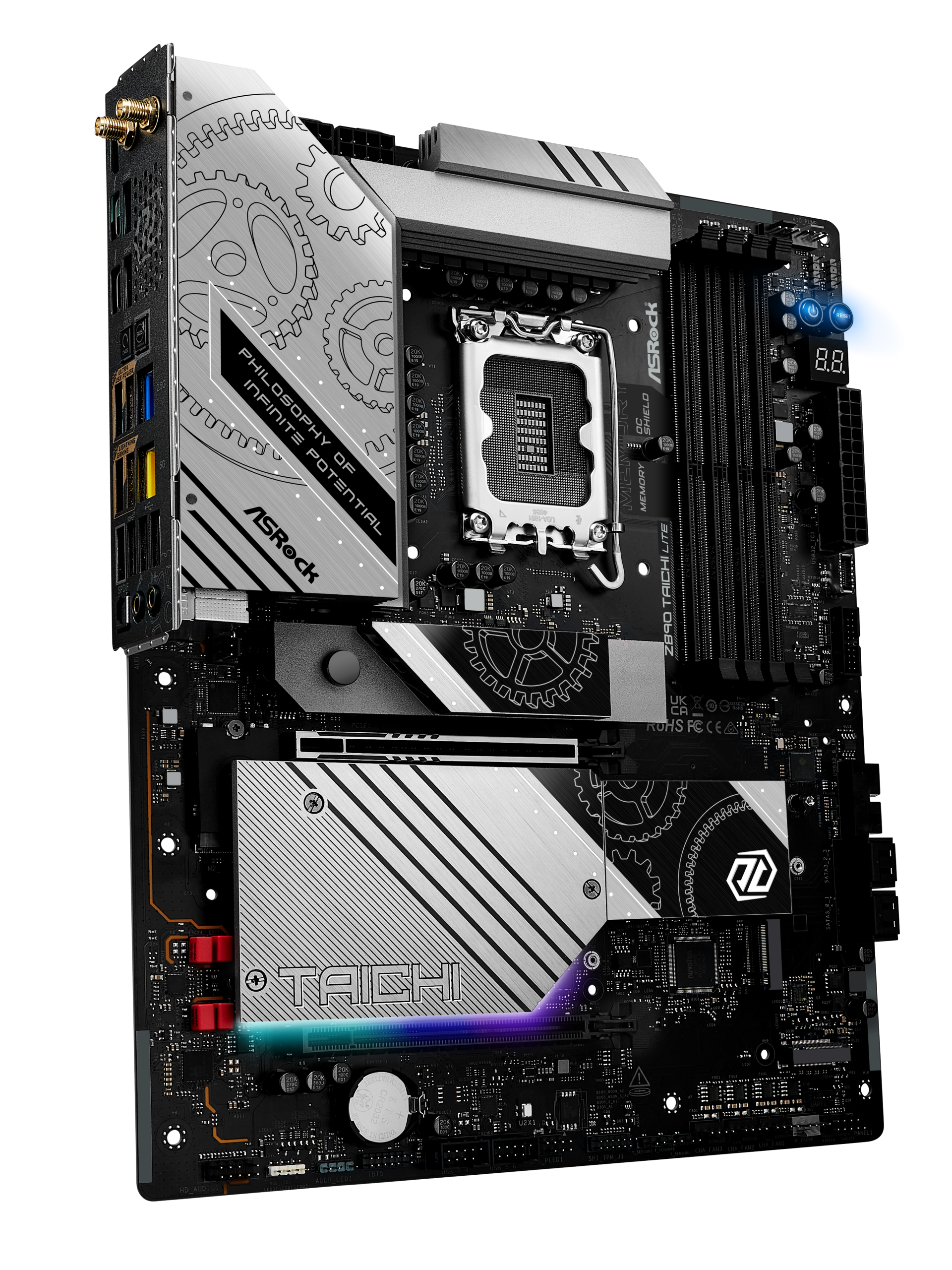

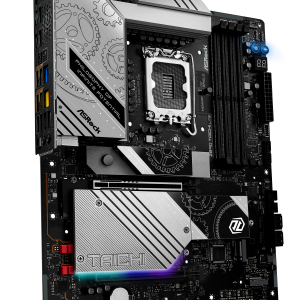

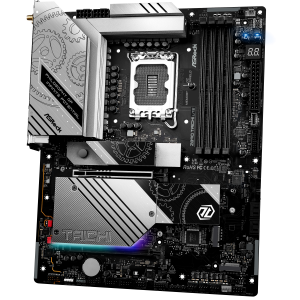

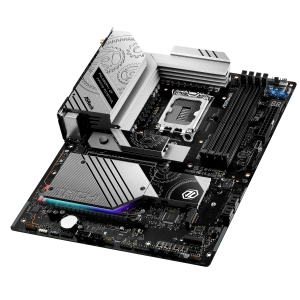

ASRock Z890 Taichi Lite motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end builds and overclockers who want to get the most out of their system.

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x4
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9600 MHz
– 6x M.2 (including 1x PCIe 5.0 and 5x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4, 4x USB 3.1, 4x USB 3.1, and 2x USB 2.0
– A total of 8x 4-pin connectors for fans and pumps
– OC features: 20+1+2+1+1 phase VRMs, CMOS
– Supports WiFi 7 and Bluetooth 5.4

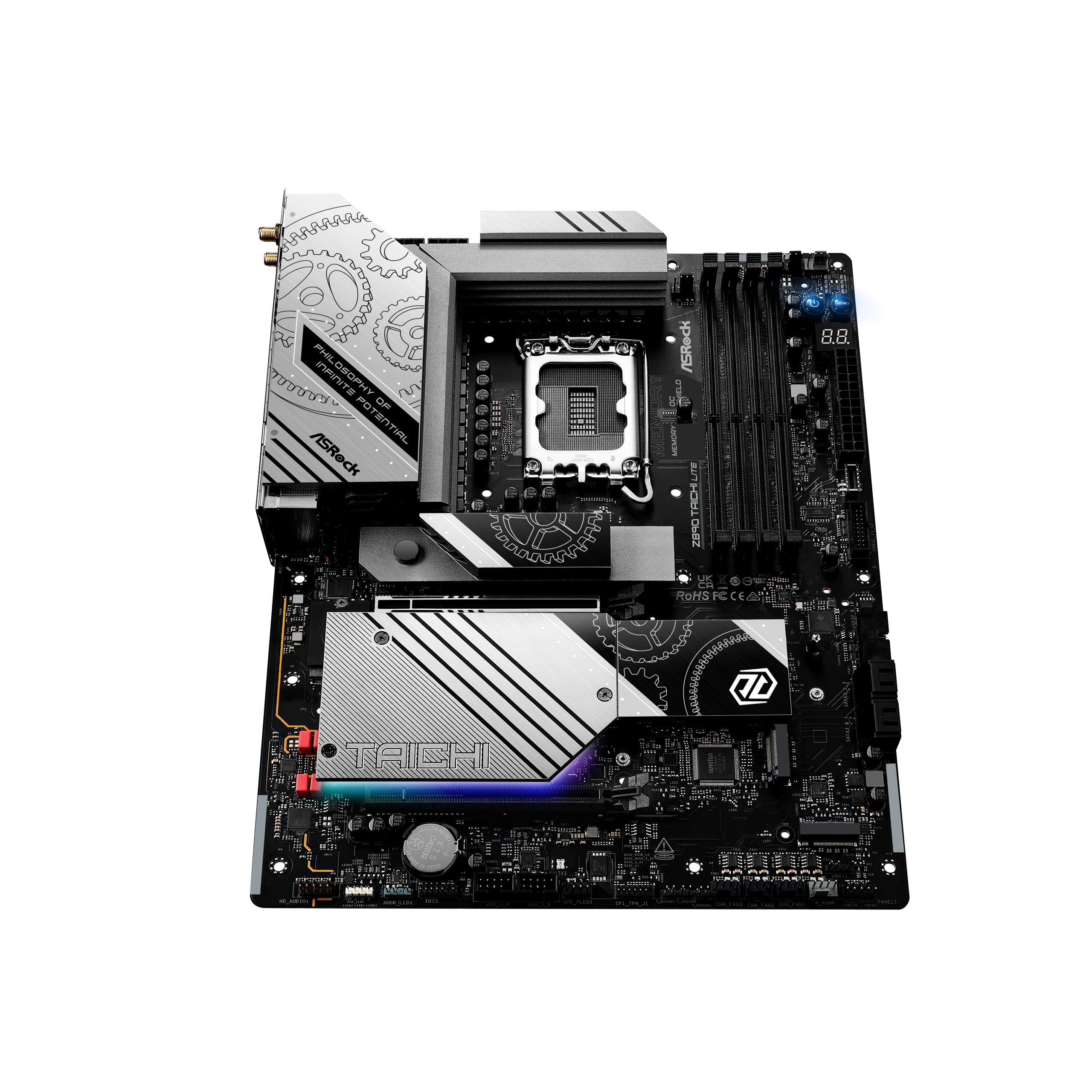

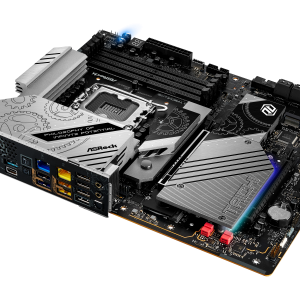

ASRock Z890 Taichi Lite: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASRock Z890 Taichi Lite is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASRock Z890 Taichi Lite boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Suitable for Overclocking
With its 20+1+2+1+1 phase VRMs, the ASRock Z890 Taichi Lite offers you the ability to overclock your CPU and thus get the full performance out of your gaming PC. The DDR5 RAM can also be overclocked. To be on the safe side, theres a Clear CMOS button on the I/O panel.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 UDIMM (up to 9600 MHz via OC / XMP 3.0)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2230 / 2242 / 2260 / 2280, chipset)
– 3x M.2 (PCIe 4.0 x4; 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Power LED & Speaker Header
– 3x Thermistor Cable Headers
– 1x Dr. Debug header no
– 1x front panel audio
– 1x power button with LED
– 1x reset button with LED
– 1x SPI TPM header (2.0)
– Fan header:
– 2x CPU fan (4-pin)
– 1x AIO pump (4-pin)
– 4x case fans (4-pin)
– 1x pump
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x RGB

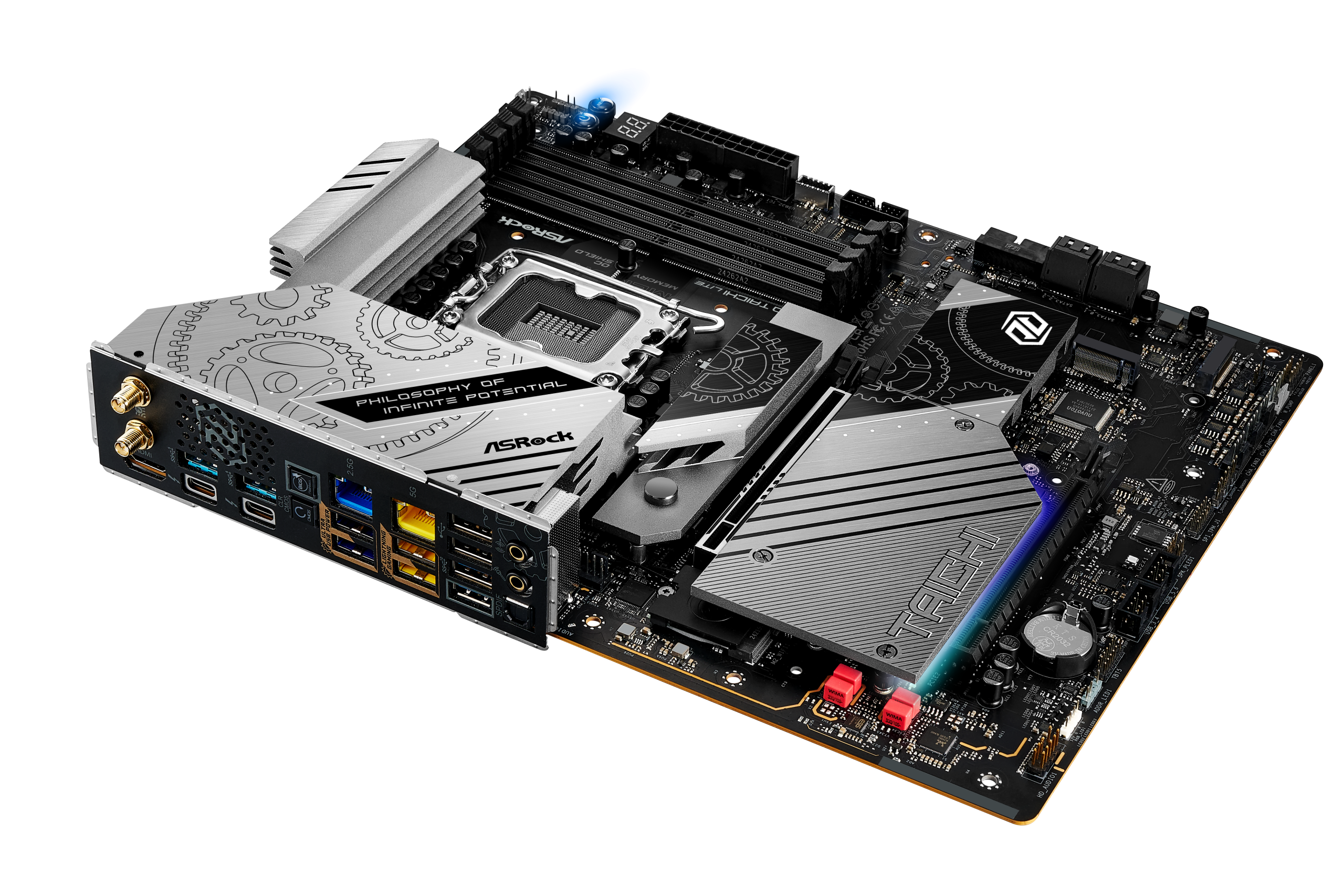

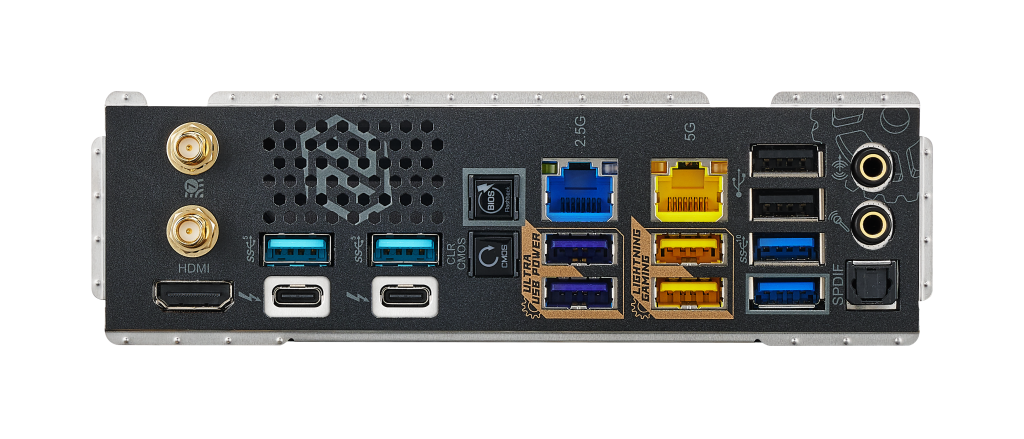

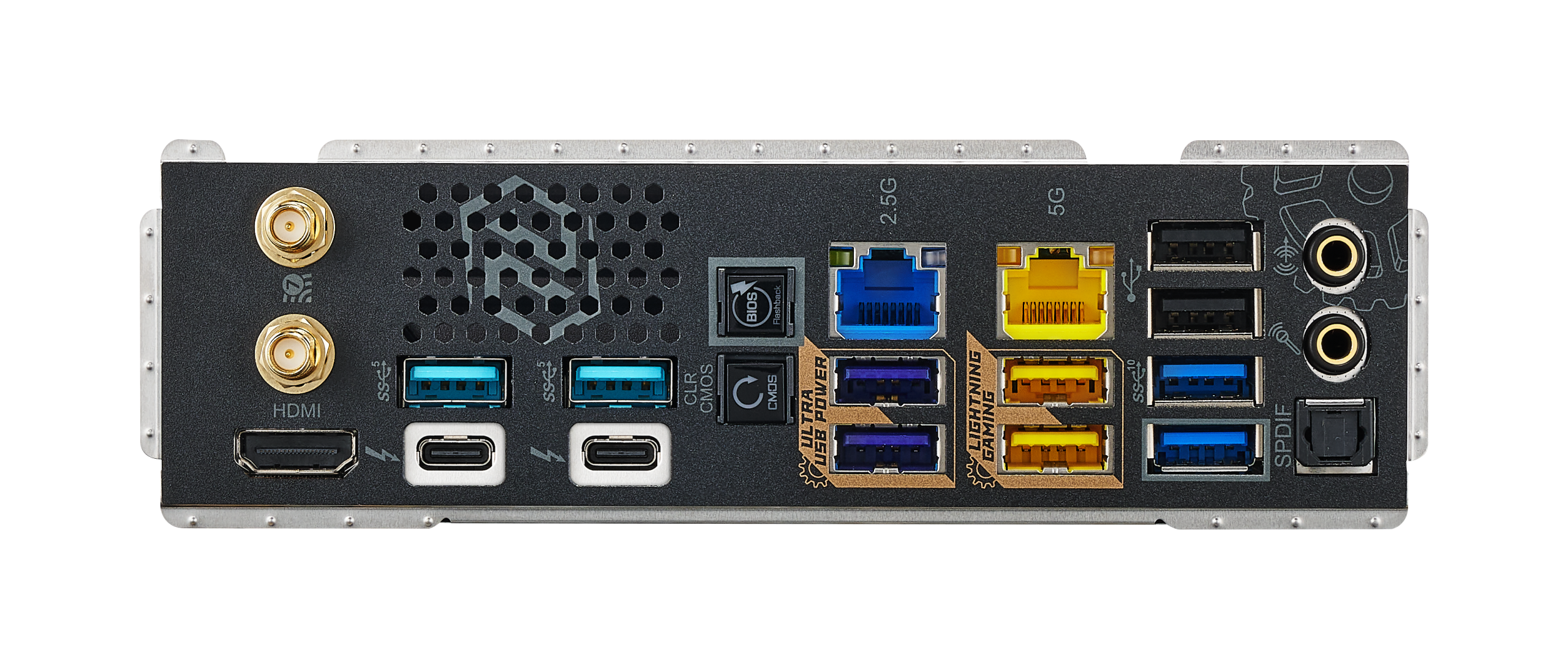

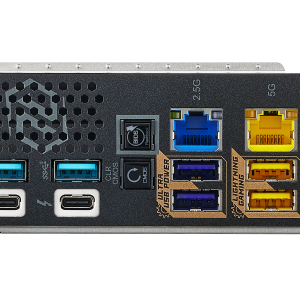

– External connections:
– 2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
– 4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x 5 Gigabit LAN (Realtek 8126)
– 1x 2.5 Gigabit LAN (Dragon RTL8125BG) 2x 3.5 mm jack (Realtek ALC 4082)
– 1x HDMI
– 1x BIOS Flashback Button
– 1x Clear CMOS Button
– 1x Smart Button
– 2x Wi-Fi/Bluetooth Module
– 1x S/PDIF Out
– Power Supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU

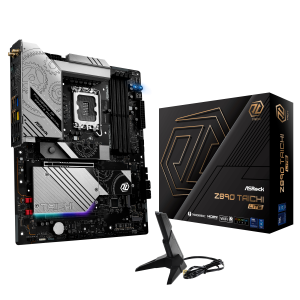

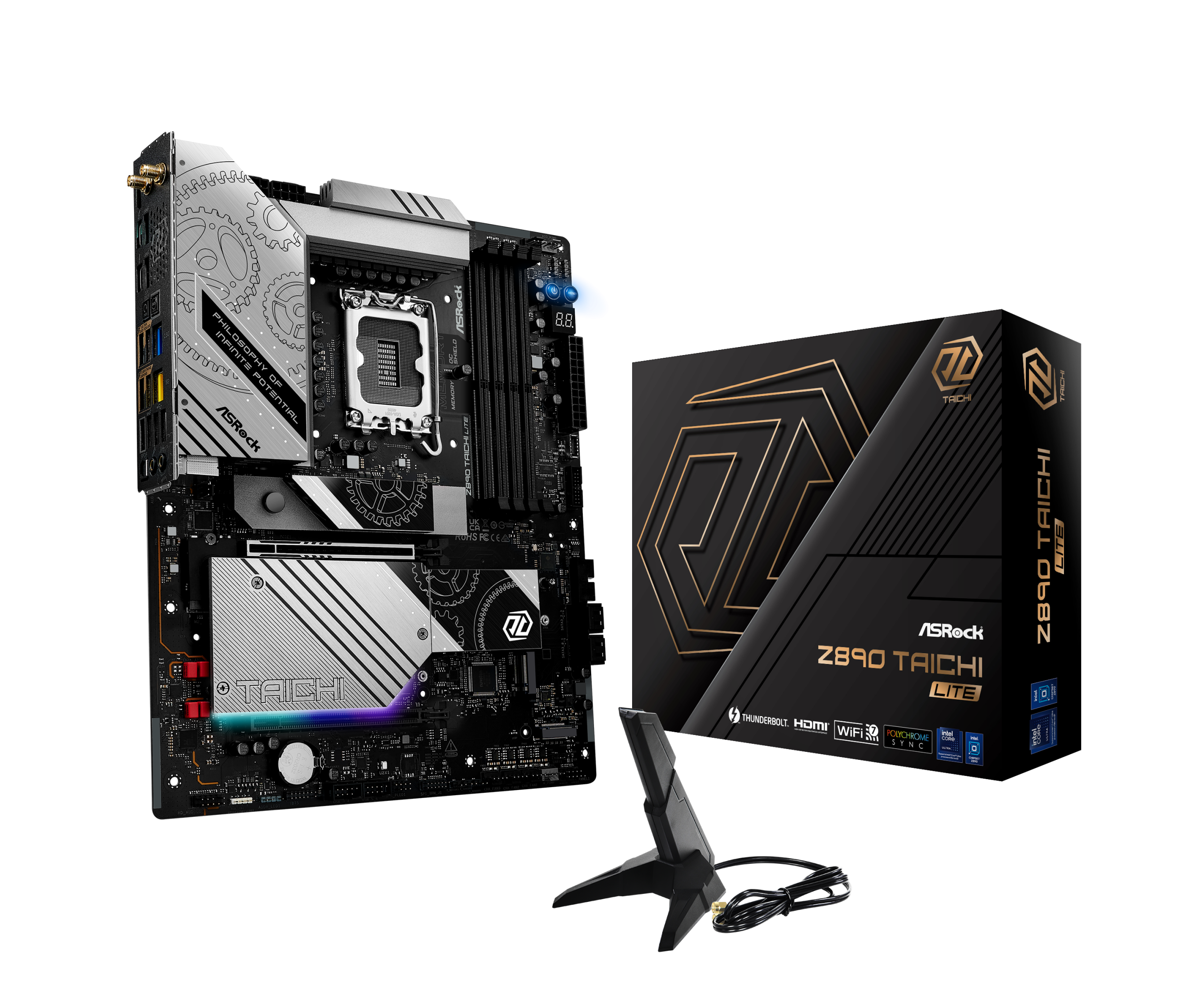

– Included:
– 1x ASRock Z890 Taichi Lite
– 4x SATA Cables
– 1x Antenna
– 1x ARGB Splitter Cable
– 3x Thermistor Cables
– 2x Screws for M.2
– 2x Standoffs for M.2
