The Lamptron CR530 fan control makes it easy to control fans installed in a computer. The fans are fully automatically controlled by a temperature sensor.
The Lamptron CR530 fan control makes it easy to control fans installed in a computer. The fans are fully automatically controlled by a temperature sensor.
The Lamptron CR530 fan control makes it easy to control fans installed in a computer. The fans are fully automatically controlled by a temperature sensor.

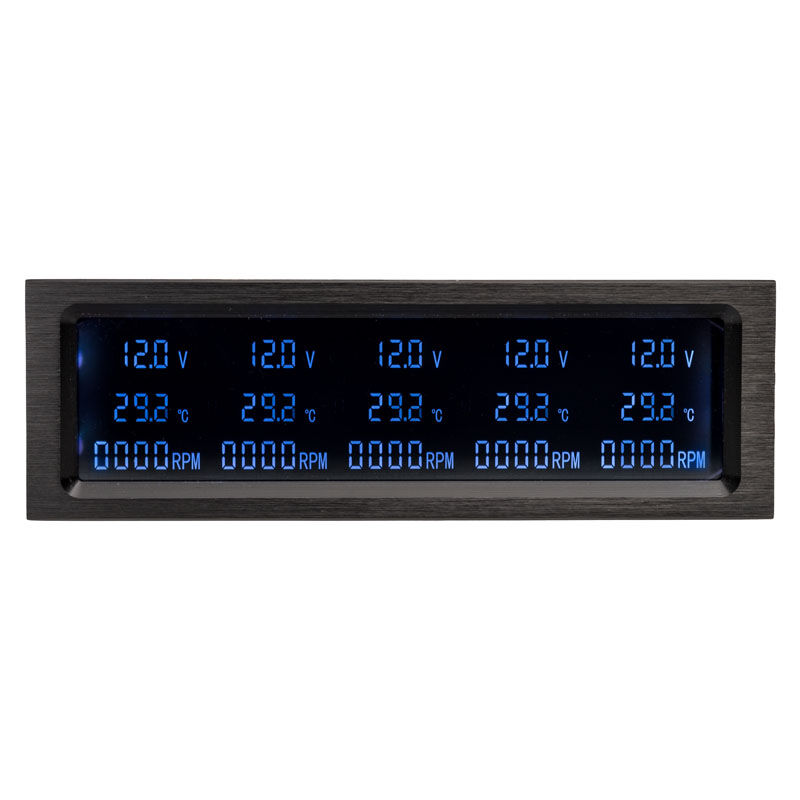

There are a total of five channels each with 30 watts of power available, with four ports for standard fan (3-pin) and a connection for PWM fan (4-pin) or another standard fan are suitable. The CR530 has a temperature sensor and a backlit LC display that provides extensive information on the connected fans. The colors of the LC display can be changed via a DIP switch.
The most important features of the CR530 fan controller at a glance:
– High-quality housing made of aluminum
–Â LC display with lighting
–Â Five channels each with 30 watts of power
–Â Connections for 4x 3-pin & 1x 4-pin fans
–Â A temperature sensor already included
–Â Fully automatic control via temperature detection
Design & installation of the CR430 fan controller

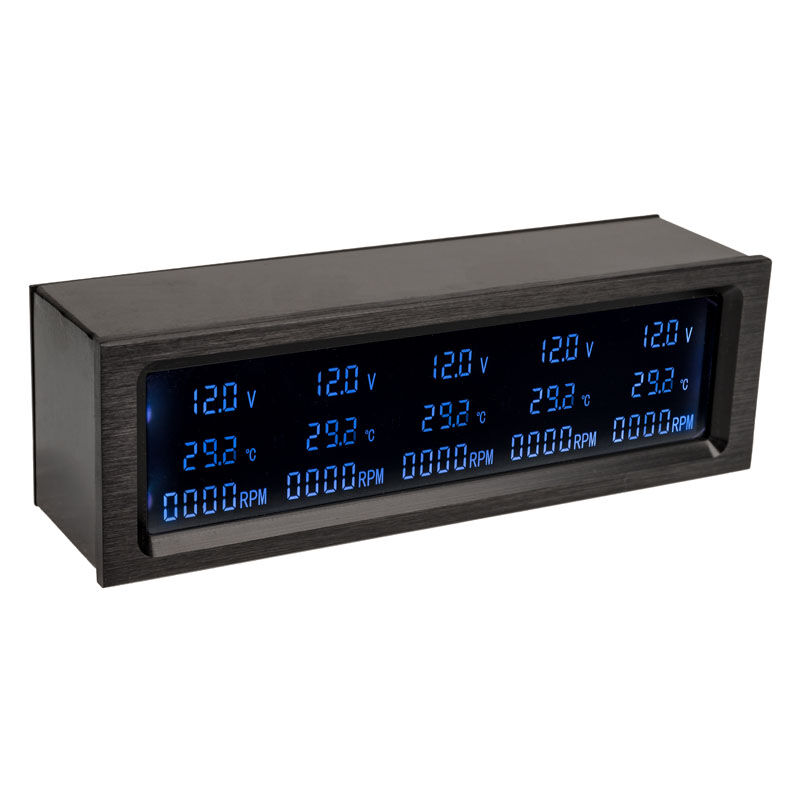

Lamptrons CR530 fan controller adds a practical solution to the regulation of built-in fans. The compact housing captivates with its black optic and surrounds the blue glowing LC display in a perfect way. The control is fully automatic by the controller, which monitors the housing temperature with a sensor. For example, the CR530 can be placed and controlled in a closed 5.25-inch format in a case with a transparent side panel or outside of the case.

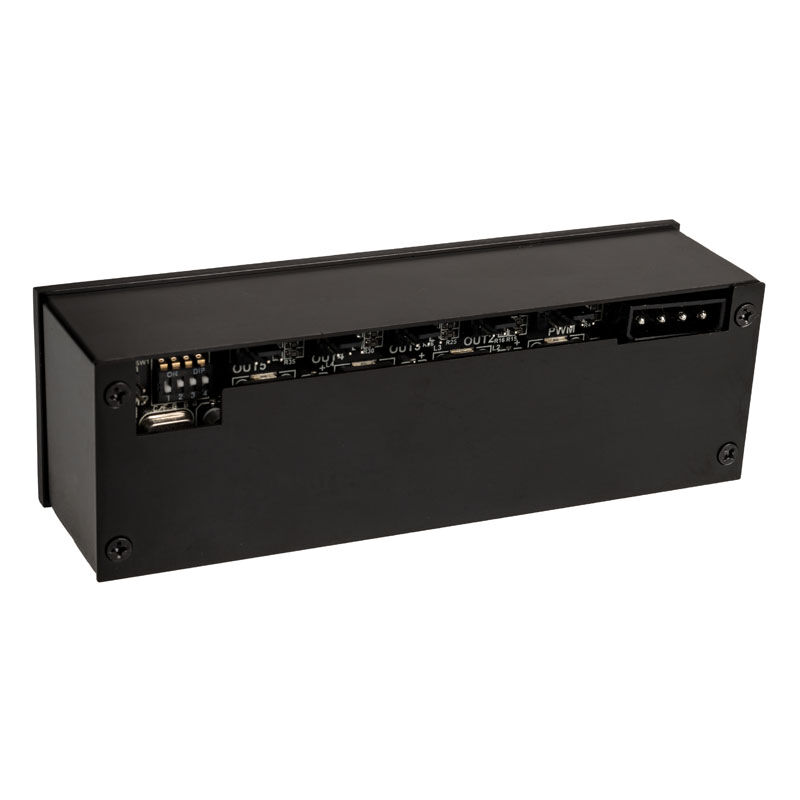

A total of four standard (3-pin) and one PWM fan (4-pin) can be connected, the latter could also be replaced by a standard fan. In addition to the 4-pin cable and the four 3-pin cables, the scope of supply also includes a temperature sensor. Power is supplied to the fan control via a 4-pin Molex connector, which in turn is not included.
Note: Four 4-pin PWM fans can be connected to the four 3-pin connectors instead of standard fans. However, these can only be regulated by the voltage.
| General Specifications | |
|---|---|
| Total Dimensions (W x H x D) | 148 x 46.5 x 39 mm |
| Weight | 350 g |
| LCD Dimensions (W x H) | 129 x 32.5 mm |
| Compatibility | 1x 5.25″ Bay |
| Color | Black (case), Blue or White (lighting) |
| Fan Channels | 5 (max 30 W per channel) |
| Electrical Specifications | |
| Voltage | 0 – 12 V DC |
| Connections | |
| Connectors | 1x 4-pin Molex 1x 4- or 3-pin fan 4x 3-pin fan 1x 2-pin temperature sensor |
| Delivery Contents | |

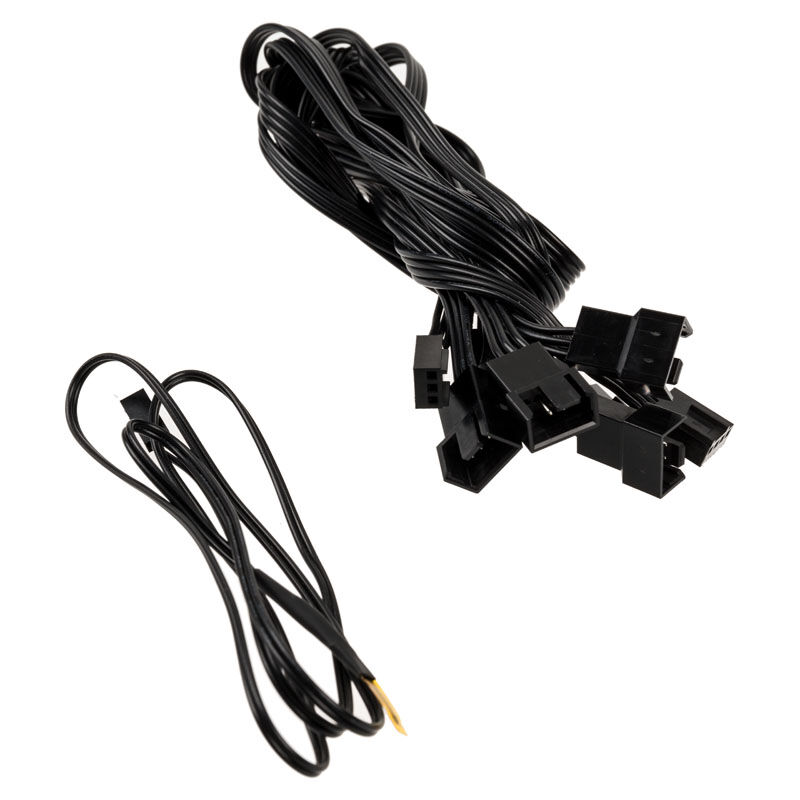

| Included Items | 1x CR530 fan control 1x 4-pin fan cable 4x 3-pin fan cables 1x 2-pin temperature sensor |
