Comprehensive fan and RGB controller from Lamptron with a large LC display. The controller has up to four fans with or without PWM control and RGB products with or without digital RGB LEDs.
Comprehensive fan and RGB controller from Lamptron with a large LC display. The controller has up to four fans with or without PWM control and RGB products with or without digital RGB LEDs.
Comprehensive fan and RGB controller from Lamptron with a large LC display. The controller has up to four fans with or without PWM control and RGB products with or without digital RGB LEDs.
The separate LC display can be attached to PCI slots, the numerous information can then be admired through a transparent side panel made of hard or acrylic glass. It is controlled via an infrared remote control.
The features of the Lamptron CU135 controller at a glance:

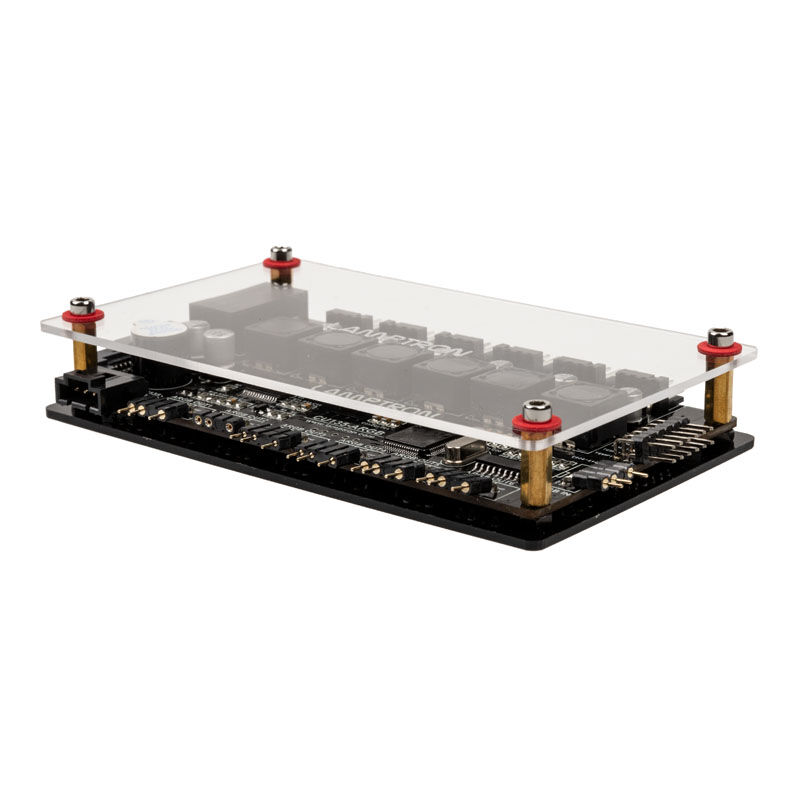

– Control board for fans and RGB-LED lighting
– Large LC display with displays for temperature, voltage and speed
– Synchronization with mainboard or other RGB controller possible
– channels for fans with or without PWM with up to 30 watts per channel
– Six headers for up to 60 digitally addressable RGB LEDs (5VDG)
– Six headers for temperature sensors, 6x sensors included

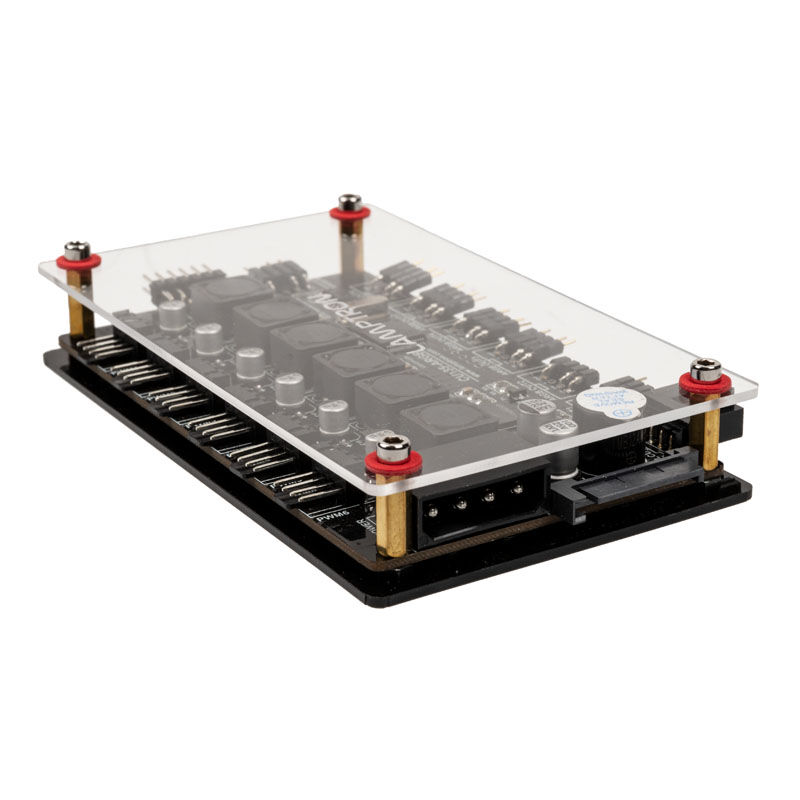

– Power supply via 4-pin Molex and SATA
– Including remote control
– Maximum control of ventilation & lighting
The Lamptron CU135 controller offers almost unlimited control over fans and RGB lighting. With up to 30 watts of power per channel, there is almost no limit. The fan controller supports both fans with and without PWM. Power is supplied via a 4-pin Molex connection. A total of up to six fans can be connected to the controller board.
In addition, six digitally addressable 3-pin RGB devices (5VDG) can be connected. The additional power supply required is via a SATA connection. There are also six temperature sensors included, which can also be connected to the circuit board.

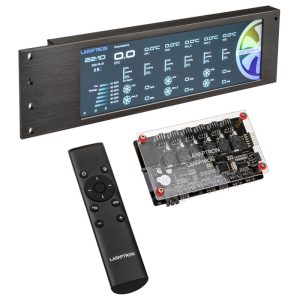

Including LC display and infrared remote control
The fan speed is controlled using the remote control provided. In addition, the lighting modes are set via the remote control. The Lamptron CU135 can be connected to a mainboard or other RGB controller using the cable supplied, thus enabling the RGB and ARGB lighting to be synchronized with external control devices.

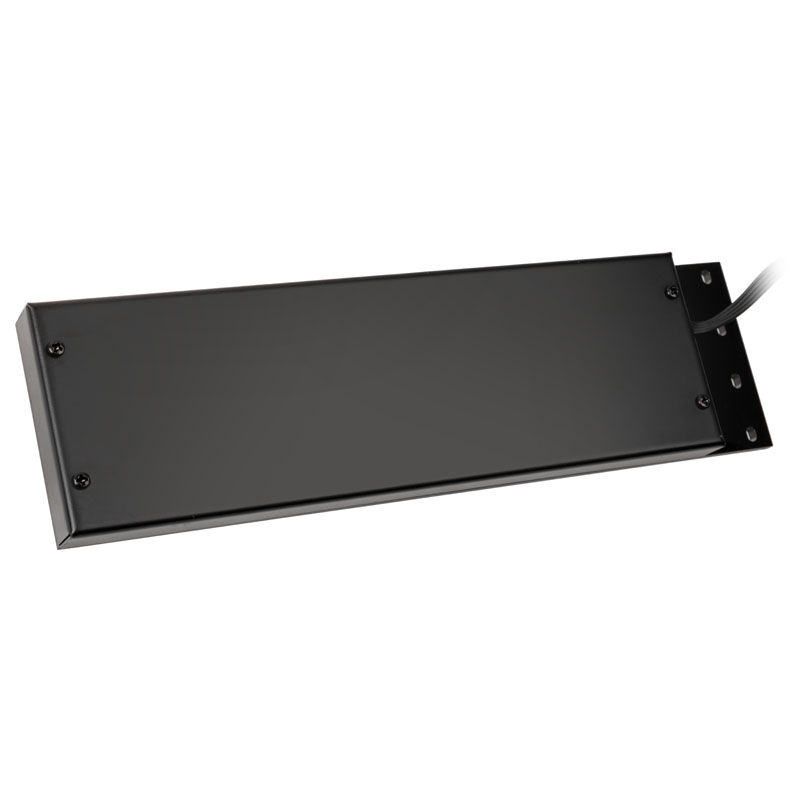

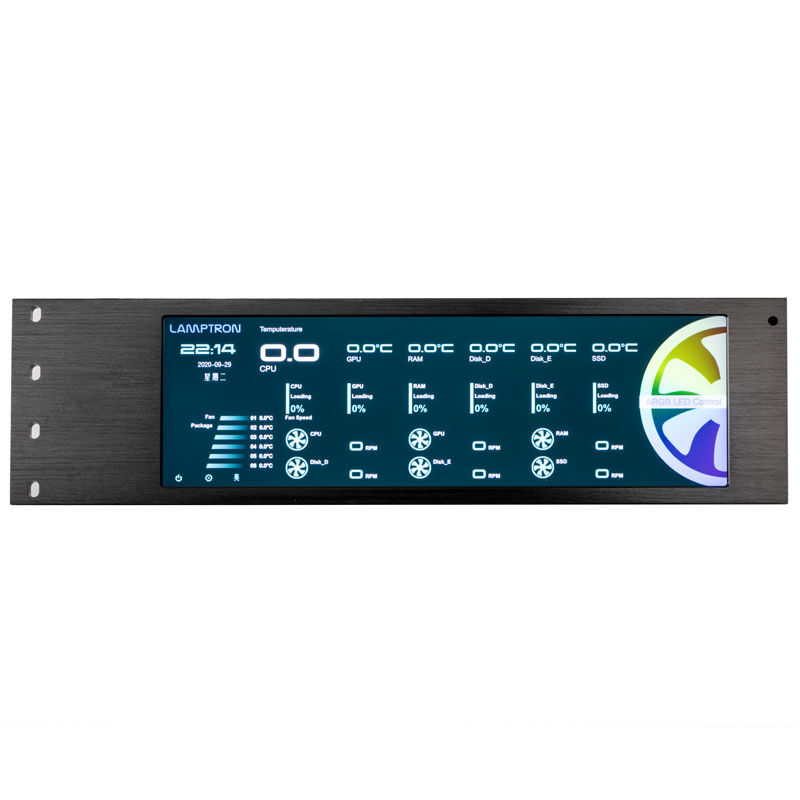

So that you know how fast the fans are turning, what voltage they are running at and what temperatures are inside the case, Lamptron has included a stylish LC display. It is attached to four free PCI slots and the output can be admired through a transparent side window. The controller board is connected to it with a cable and can be hidden somewhere in the housing.
| General Specifications | |
|---|---|
| Main Colour | Black |
| Material | Aluminum |
| Board Dimensions (W x H x D) | 121.5 x 21 x 72.5 mm |
| Display Dimensions (W x H x D) | 261 x 21 x 71 mm |
| Screen Size | 181 x 58 mm |
| PCI Slot Compatibility | 4x PCI Slots (Display) |
| Voltage Range | 0 – 12 V (Stepless Adjustment) |
| Power & Connections | |
| Power Input | 1x 4-pin Molex 1x SATA |
| Temperature Sensors | 6x 2-pin |
| PWM Fan Channels | 6x 4-pin PWM (Max. 30W per Channel) |
| A-RGB Channels | 7x 3-pin (1x Input, 6x Output, 5VDG, up to 60 LEDs per Channel) |
| Scope of Delivery | |

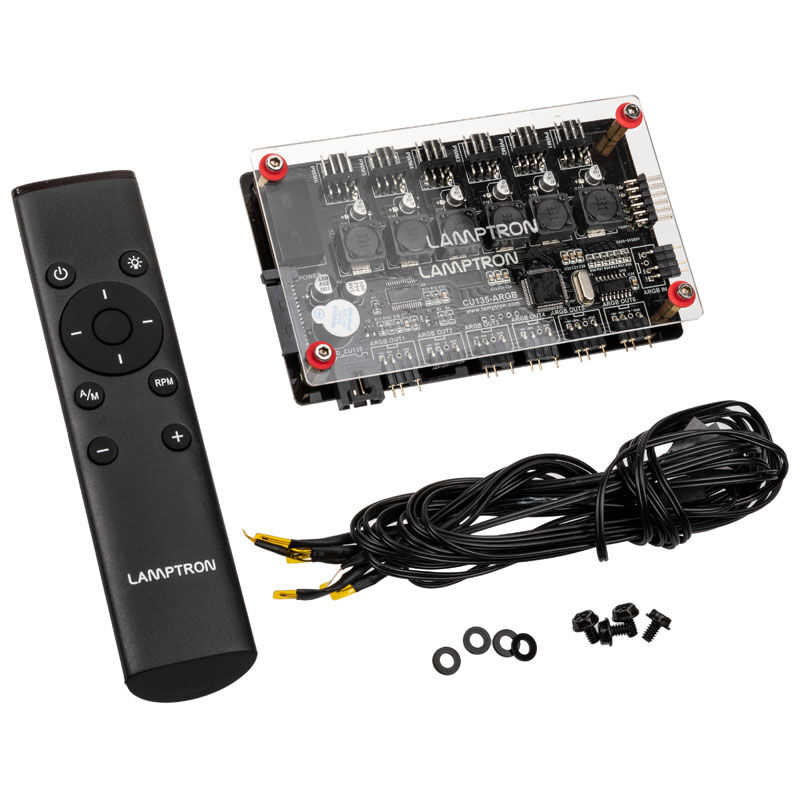

| Included Items | 1x Controller Board with Acrylic Glass Cover 1x LC Display 6x Temperature Sensors 1x Remote Control Mounting Material for Display |
£212.60£177.17 Inc VatEx Vat
