In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and changing requirements, but also the RGB lighting suitable for the hardware.
Lamptron SM436 PCI RGB Fan and LED Controller - Black
In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and changing requirements, but also the RGB lighting suitable for the hardware.
In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and changing requirements, but also the RGB lighting suitable for the hardware.
Earn 37 Points
We price match UK retailers. Try It Now!
- SKU: LULS-321
- MPN: LAMP-SM436B
- EAN: 6900628404089
- Warranty: 12 Months
Details

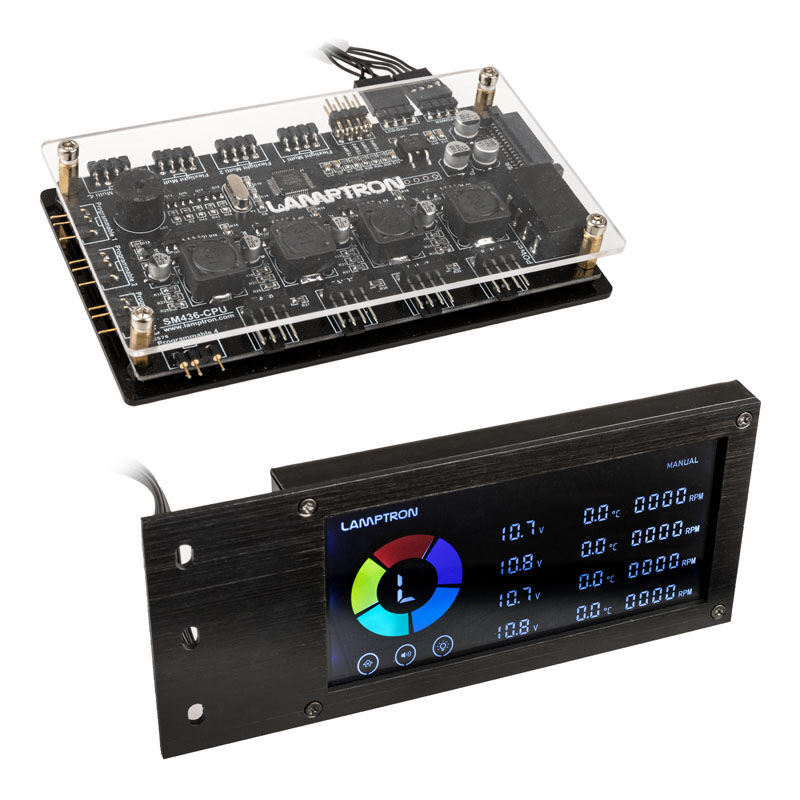

The Lamptron SM436 PCI RGB & Fan Controller offers not only a far-reaching functionality, but also a high compatibility. Up to four fans with or without PWM control and RGB products with or without digital RGB LEDs run on it. The separate LC display can be attached to PCI slots, the numerous information can then be admired through a transparent side panel made of hard or acrylic glass. Control is via an infrared remote control.
The features of the Lamptron SM436 PCI RGB & Fan Controller at a glance

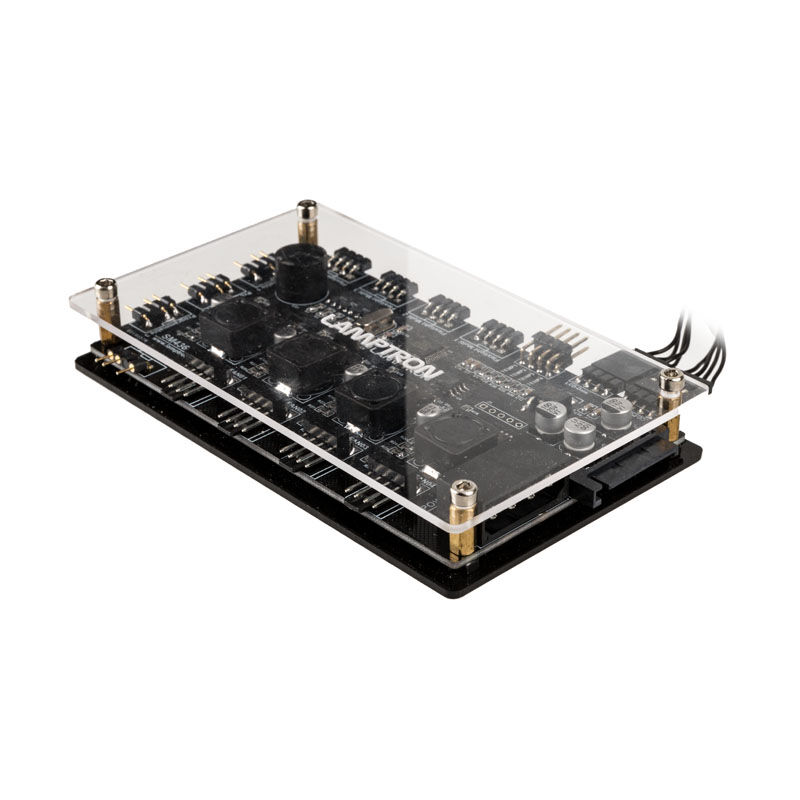

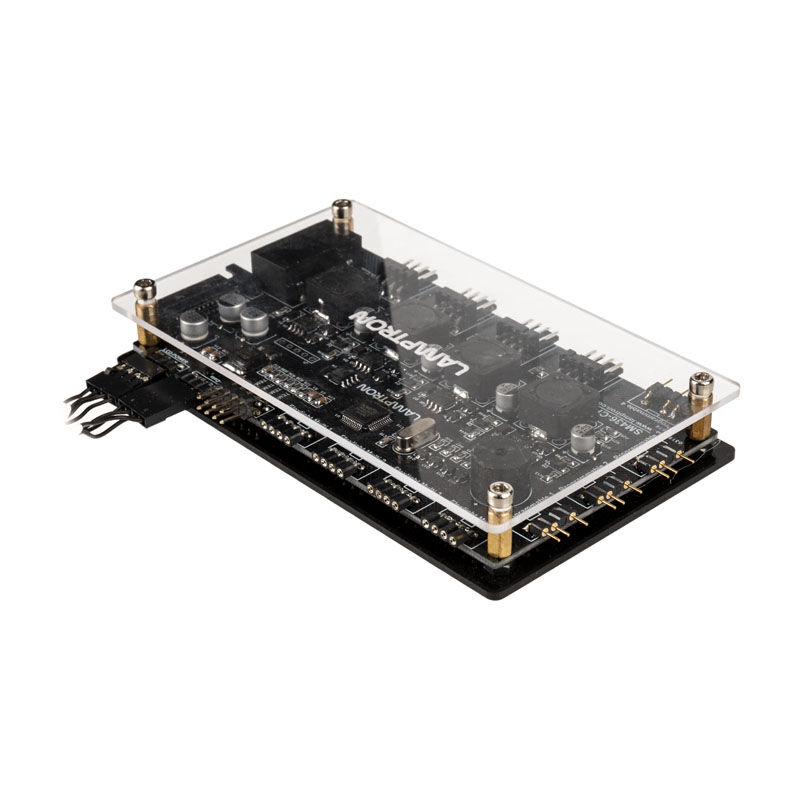

– Control board for fan and RGB LED lighting
– Separate LC display with temperature, voltage and speed indicators
– Four channels for fans with or without PWM with up to 36 watts per channel
– Four headers for up to 60 RGB LEDs (12VGRB)
– Four headers for up to 60 digitally addressable RGB LEDs (5VDG)
– Power supply via 4-pin Molex and SATA
– Including an infrared remote control
– Maximum control of ventilation & lighting
The Lamptron SM436 PCI RGB & Fan Controller offers nearly unlimited control over fans and RGB lighting. With up to 36 watts of power per channel, there is almost no limit. The fan controller supports both fans with and without PWM. Power is supplied via a 4-pin Molex connector. In total, up to four fans can be connected to the board of the controller.
In addition, four 4-pin RGB LED fans or strips (12VGRB) and four digitally-addressable 3-pin RGB devices (5VDG) can be connected. The additionally required power supply takes place via a SATA connection. In addition, four temperature sensors are included, which can also be connected to the board.
Including LC display and infrared remote control
The control of the lighting and the speed of the fan is done via the enclosed infrared remote control. For example, the fans can either be set to quiet mode at 40 percent or maximum mode. Or leave the fan control to the controller. In addition, the lighting modes are set via the remote control.

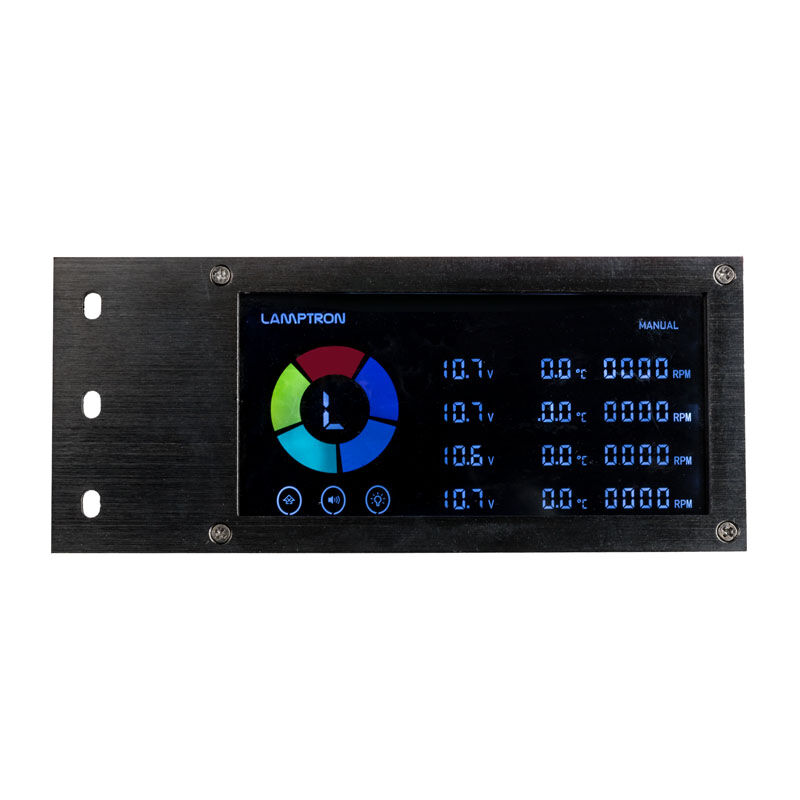

In order to know how fast the fans are turning and at what voltage they are currently running and what temperatures prevail inside the housing, Lamptron has added a stylish LC display. It is attached to three free PCI slots and the output can be admired through a transparent side window. The board of the controller is connected to it with a cable and can be hidden somewhere in the housing.
Technical details:
Dimensions (board): 121.5 x 21 x 72.5 mm (W x H x D)
Dimensions (display): 140 x 21.5 x 60 mm (W x H x D)
Screen: 95mm x 60mm
Compatibility: 3x PCI slots (display)
Material: aluminum
Color: Black
Fan channels: 4 (max 36 W per channel)
Voltage: stepless 0 – 12 V.
Connections:
1x 4-pole molex
1x SATA
4x 2-pin temperature sensor
RGB LED Connections:
4x 3-pin RGB (5VDG, up to 60 LEDs per channel)
4x 4-pin RGB (12VGRB, up to 60 LEDs per channel)

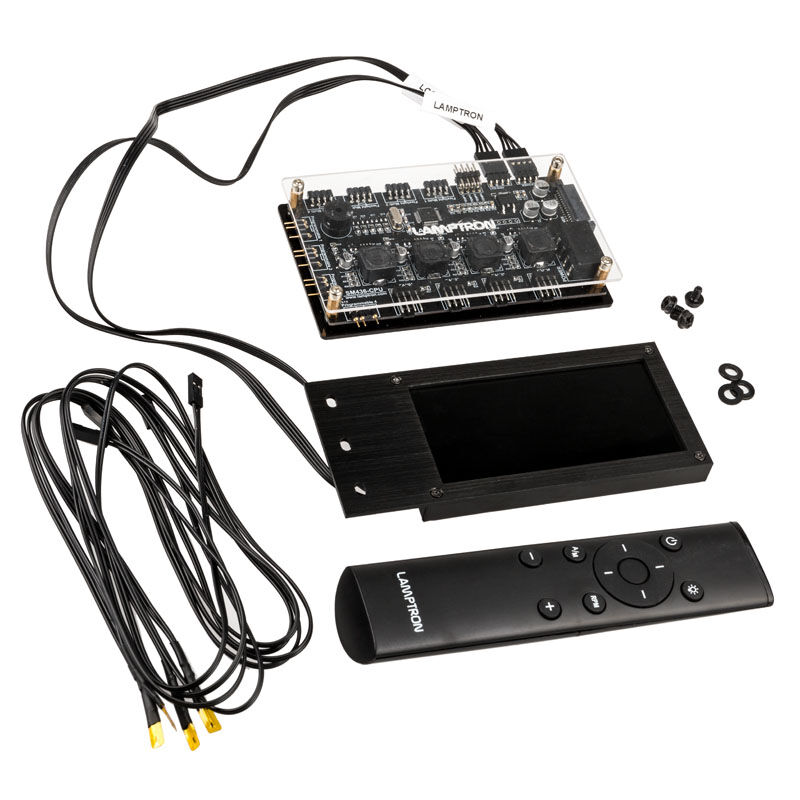

Delivery:
1x controller board with cover made of acrylic glass
1x LC display
2x connection cable controller / display
4x temperature sensors
1x infrared remote control
Mounting material for display
