Lamptron TC20 PCI RGB fan and LED controller - silver

but also the RGB lighting suitable for the hardware. The Lamptron TC20 PCI RGB Controller & Fan Display offers not only a wide functionality, but also a high compatibility. It can be used to operate RGB LED products with up to 60 LEDs. The separate LC display can be attached to PCI slots, the numerous information can then be admired through a transparent side panel made of hard or acrylic glass. The lighting is controlled via an infrared remote control. In addition, a fan can be passed through, on the display is then to see its speed of rotation.

The features of the Lamptron TC20 PCI RGB controller and fan display at a glance
– Control board for RGB LED lighting
– Separate LC display with displays for temperature, voltage and fan speed
 Input and output for fans for speed determination
– -A header for up to 60 RGB LEDs (12VGRB)
– Power supply via 4-pin Molex and SATA
– Including an infrared remote control
– Maximum control of ventilation & lighting

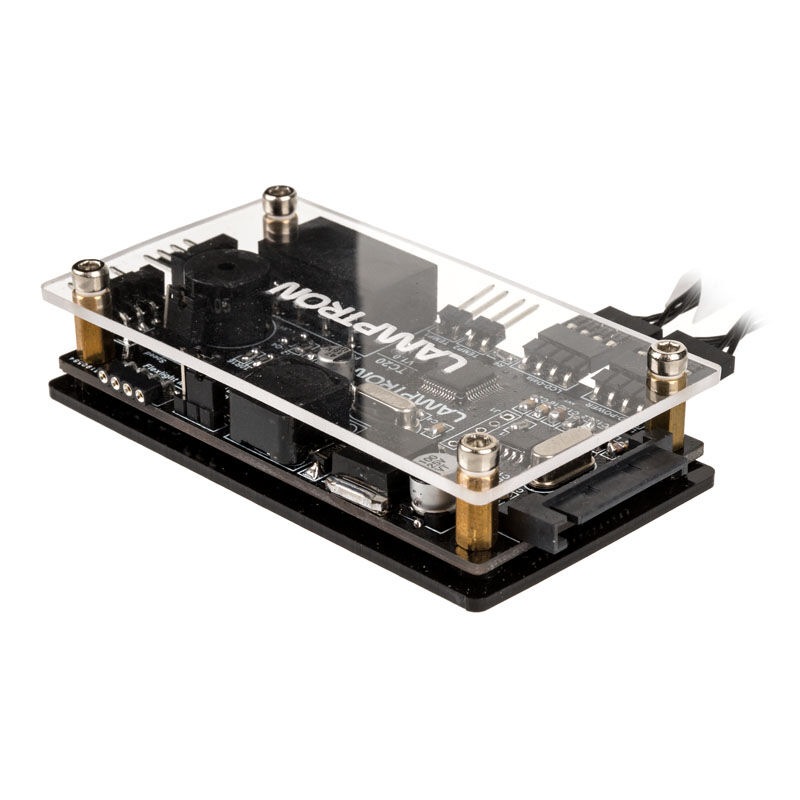

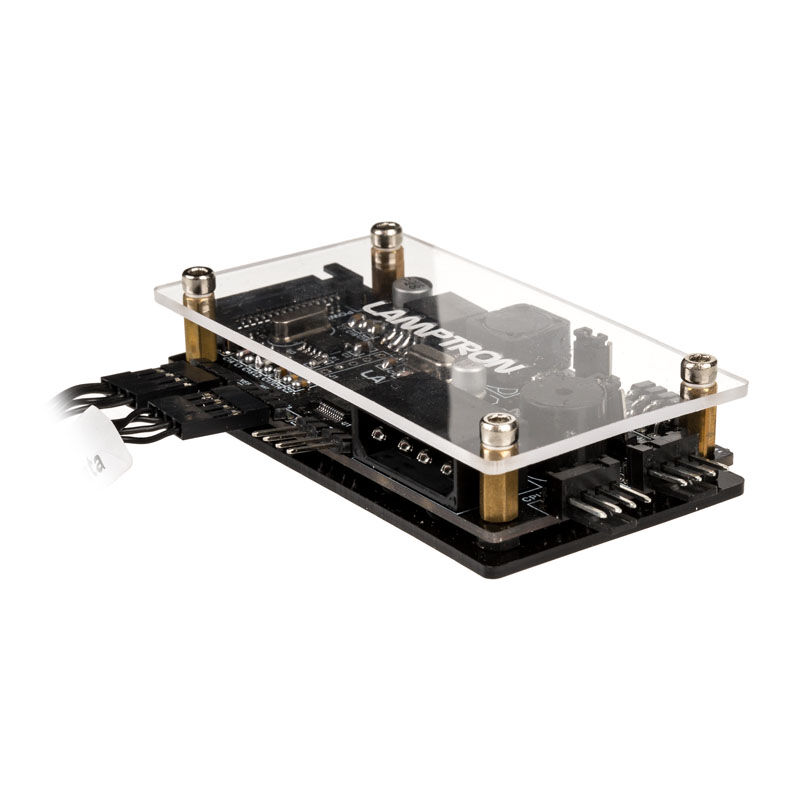

The Lamptron TC20 PCI RGB controller and fan display provides extensive control over RGB lighting from fans or strips. For example, the RGB LED lighting of fans or strips with up to 20 watts can be connected and controlled via a 4-pin connector (12VGRB). The controller supplies a total of 60 LEDs with power, which is fed via a SATA connection and a Molex connection. So it is also possible here to connect several RGB LED products by daisy-chaining or with the aid of a Y-cable.

The lighting is controlled via the enclosed infrared remote control. With this the lighting modes and effects as well as the colors can be determined.
Including LC display

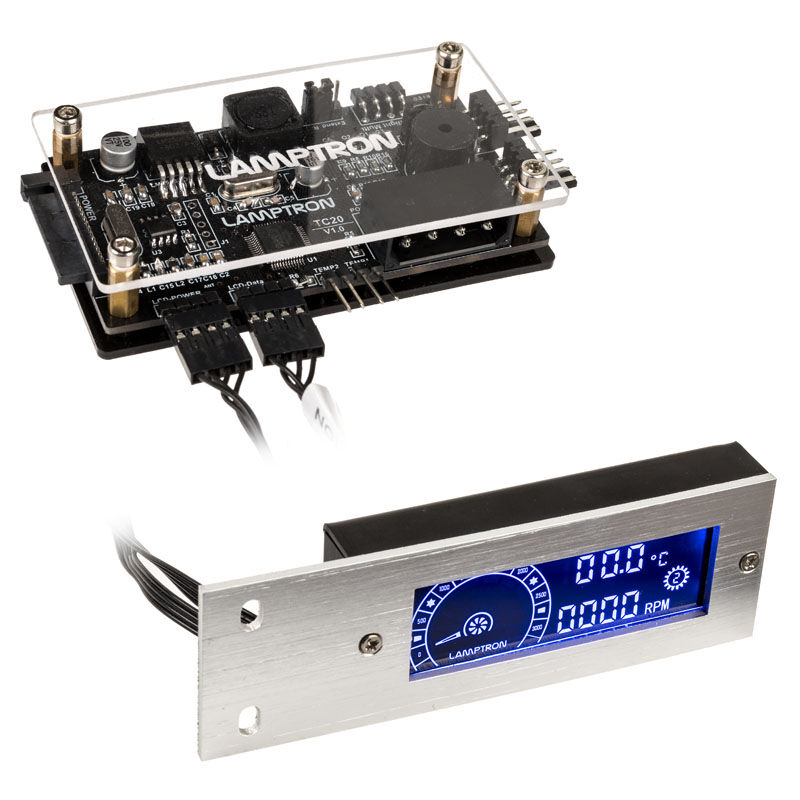

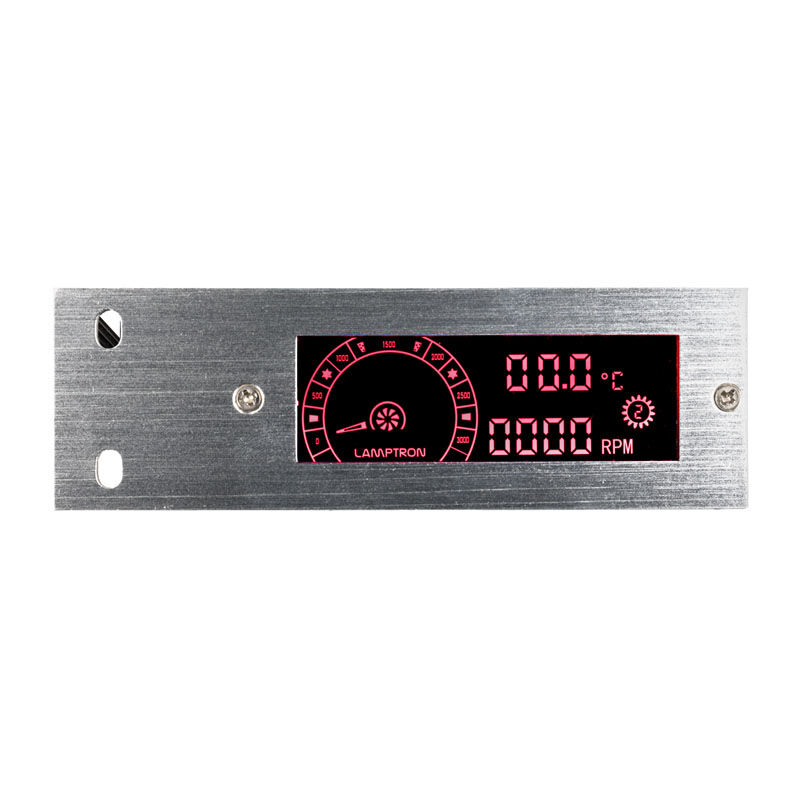

In order to know how fast the fans are turning and at what voltage they are currently running and what temperatures prevail inside the housing, Lamptron has added a stylish LC display. It is attached to two free PCI slots, the board of the controller can be freely placed in the housing and hidden. The kit also includes two temperature sensors.

It can also connect a fan or loop through. The TC20 supports both fans with and without PWM. The fans are still controlled via the motherboard – the cable for looping through the signal is included with the controller. The display then shows the rotational speed of the connected fan.

Technical details:
Dimensions (board): 83 x 21 x 46 mm (W x H x D)
Dimensions (display): 100 x 12.5 x 32 mm (W x H x D)
Screen: 55mm x 18mm
Compatibility: 2x PCI slots (display)
Material: aluminum
silver
Fan channels: 1
Voltage: 0 – 12 V
Connections:
1x 4-pole molex
1x SATA
2x 2-pin temperature sensor
RGB LED Connections:
1x 4-pin RGB (12VGRB, up to 60 LEDs)

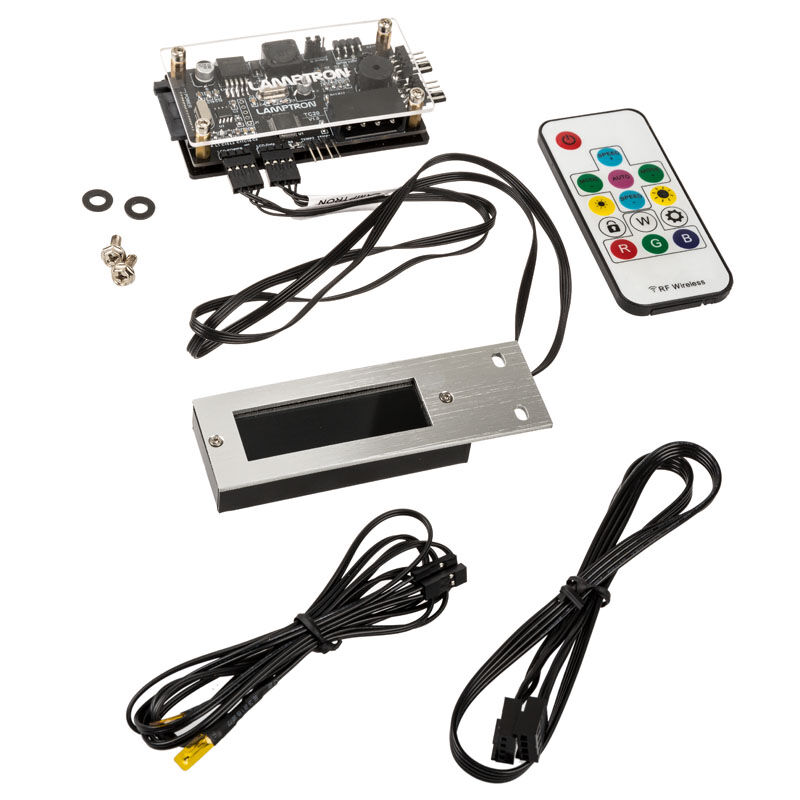

Delivery:
1x controller board with cover made of acrylic glass
1x LC display
2x connection cable controller / display
2x temperature sensors
1x infrared remote control
Mounting material for display
