Lamptron TC20 PCI RGB Fan and LED Controller - Black
In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and changing requirements, but also the RGB lighting suitable for the hardware.
In the days of Tempered Glass, it is no longer just the cooling performance and volume development of the PC that have to be adapted to ones own and changing requirements, but also the RGB lighting suitable for the hardware.
Earn 21 Points
We price match UK retailers. Try It Now!
- SKU: LULS-313
- MPN: LAMP-TC20B
- EAN: 6900628404058
- Warranty: 12 Months
Details

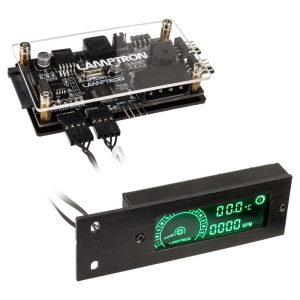

The Lamptron TC20 PCI RGB Controller & Fan Display offers not only a wide functionality, but also a high compatibility. It can be used to operate RGB LED products with up to 60 LEDs. The separate LC display can be attached to PCI slots, the numerous information can then be admired through a transparent side panel made of hard or acrylic glass. The lighting is controlled via an infrared remote control. In addition, a fan can be passed through, on the display is then to see its speed of rotation.
The features of the Lamptron TC20 PCI RGB controller and fan display at a glance

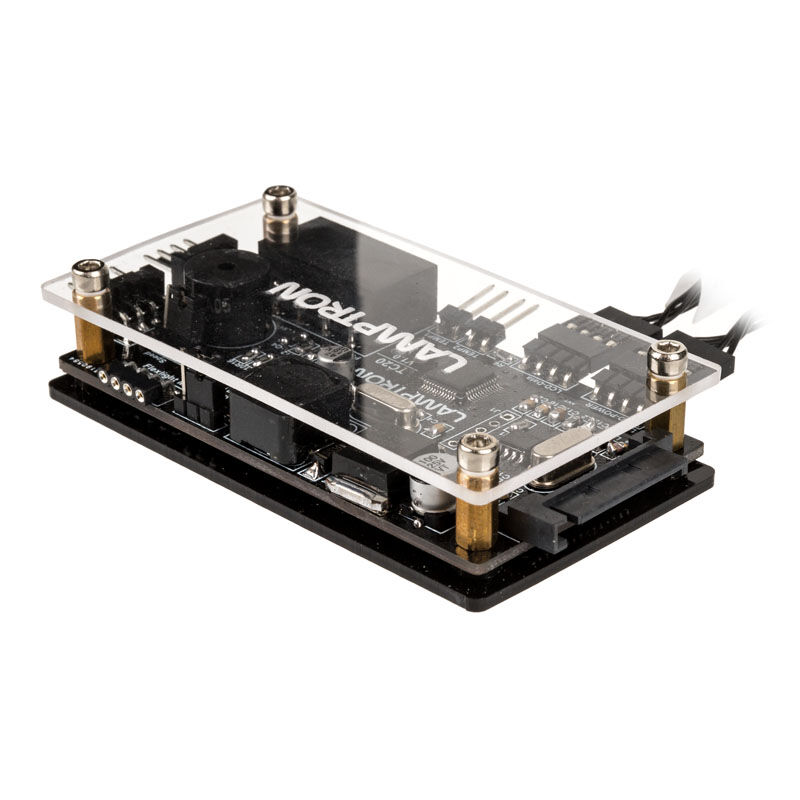

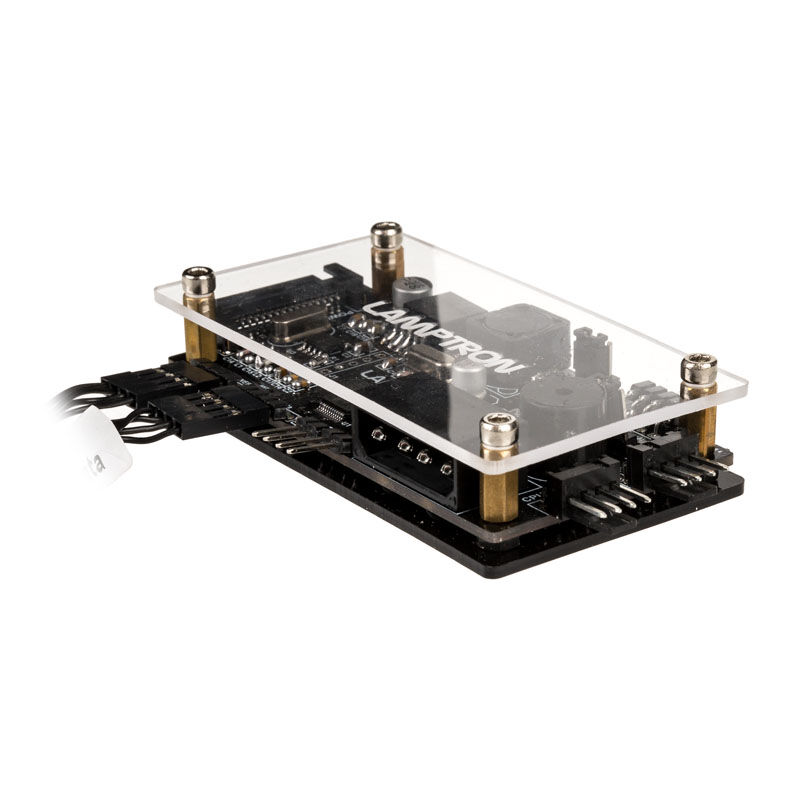

– Control board for RGB LED lighting
– Separate LC display with displays for temperature, voltage and fan speed
– Input and output for fans for speed determination
– A header for up to 60 RGB LEDs (12VGRB)
– Power supply via 4-pin Molex and SATA
– Including an infrared remote control
– Maximum control of ventilation & lighting
The Lamptron TC20 PCI RGB controller and fan display provides extensive control over RGB lighting from fans or strips. For example, the RGB LED lighting of fans or strips with up to 20 watts can be connected and controlled via a 4-pin connector (12VGRB). The controller supplies a total of 60 LEDs with power, which is fed via a SATA connection and a Molex connection. So it is also possible here to connect several RGB LED products by daisy-chaining or with the aid of a Y-cable.
The lighting is controlled via the enclosed infrared remote control. With this the lighting modes and effects as well as the colors can be determined.

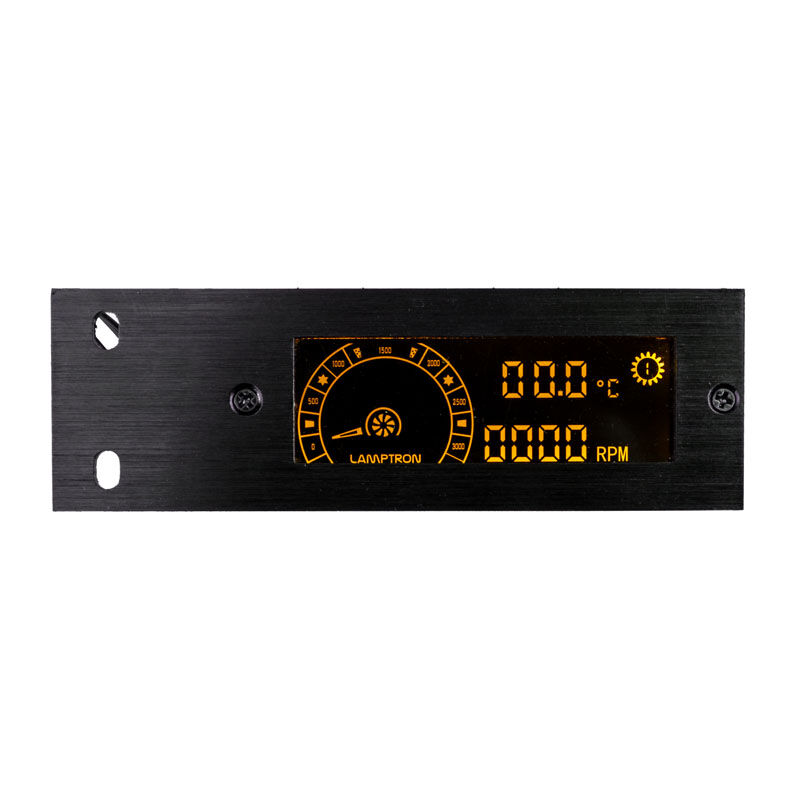

Including LC display
In order to know how fast the fans are turning and at what voltage they are currently running and what temperatures prevail inside the housing, Lamptron has added a stylish LC display. It is attached to two free PCI slots, the board of the controller can be freely placed in the housing and hidden. The kit also includes two temperature sensors.
It can also connect a fan or loop through. The TC20 supports both fans with and without PWM. The fans are still controlled via the motherboard – the cable for looping through the signal is included with the controller. The display then shows the rotational speed of the connected fan.
| General Specifications | |
|---|---|
| Main Colour | Black |
| Material | Aluminum |
| Board Dimensions (W x H x D) | 83 x 21 x 46 mm |
| Display Dimensions (W x H x D) | 100 x 12.5 x 32 mm |
| Screen Size | 55 x 18 mm |
| PCI Slot Compatibility | 2x PCI Slots (Display) |
| Voltage Range | 0 – 12 V |
| Fan Channels | 1 |
| Power & Connections | |
| Power Input | 1x 4-pole Molex 1x SATA |
| Temperature Sensors | 2x 2-pin |
| RGB LED Connections | |
| Analog RGB | 1x 4-pin (12V GRB, up to 60 LEDs) |
| Scope of Delivery | |

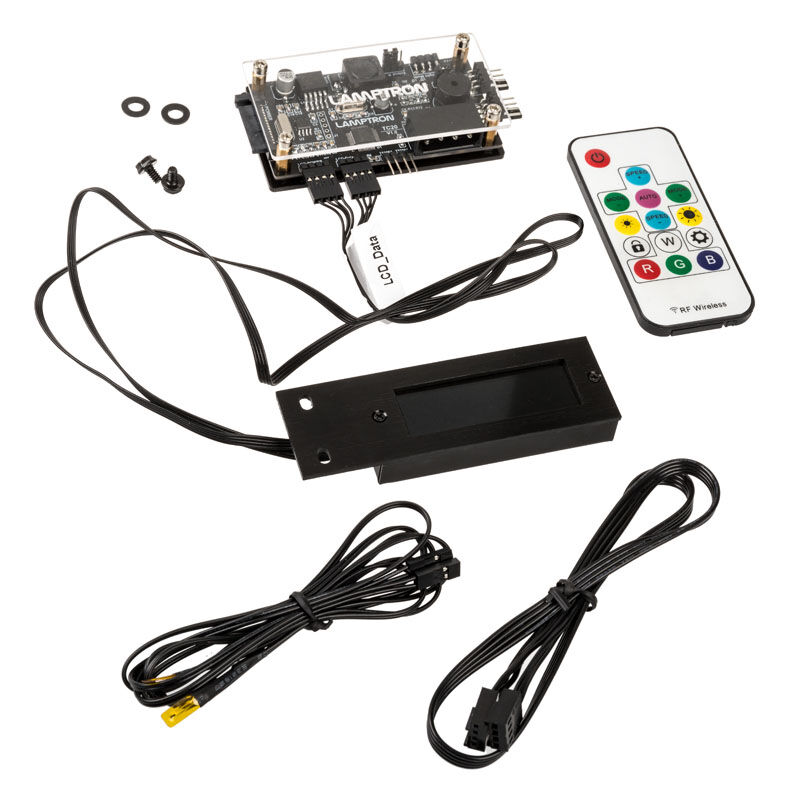

| Included Items | 1x Controller Board with Acrylic Glass Cover 1x LC Display 2x Connection Cables (Controller / Display) 2x Temperature Sensors 1x Infrared Remote Control Mounting Material for Display |
