The features of the Lamptron RF625 controller at a glance:

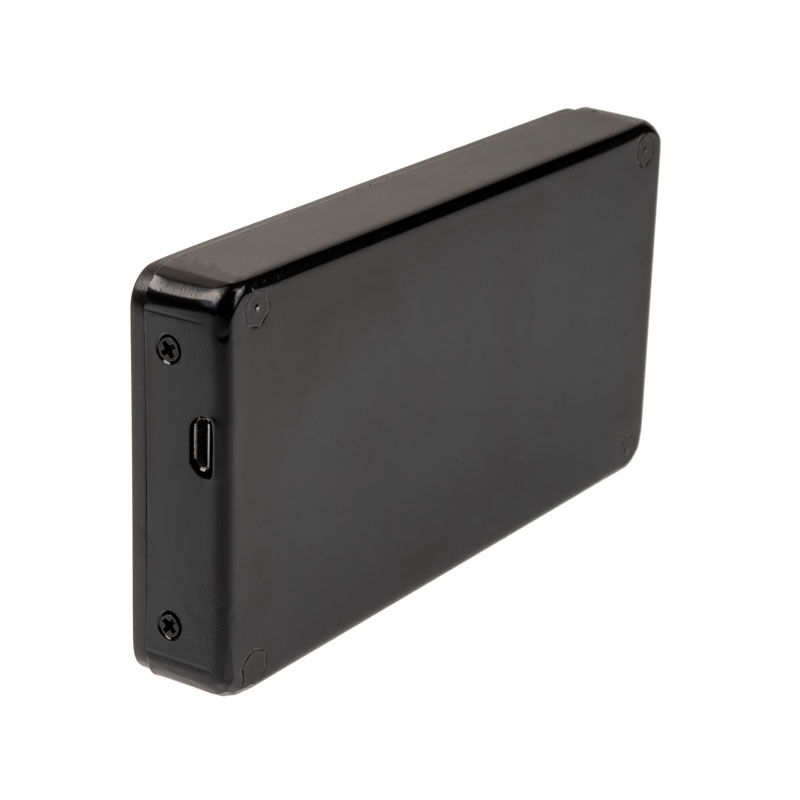

Lamptron RF625 fan and ARGB controller, black
The features of the Lamptron RF625 controller at a glance:
The features of the Lamptron RF625 controller at a glance:
Earn 63 Points
We price match UK retailers. Try It Now!
- SKU: LULS-344
- MPN: LAMP-RF625B
- EAN: 6900628401958
- Warranty: 12 Months
Details
– Control board for fans and RGB LED lighting
– Practical LC display with displays for temperature, voltage and speed
– Designed to sync with motherboard or other RGB controller
– Four channels for fans with or without PWM with up to 25 watts per channel
– Four headers for up to 60 digitally addressable ARGB LEDs (5VDG)
– Four headers for up to 60 RGB LEDs (v)
– Four headers for temperature sensors, 4x sensors included
– Powered by 4-pin Molex and SATA
– Convenient control thanks to the remote control
– Everything at a glance

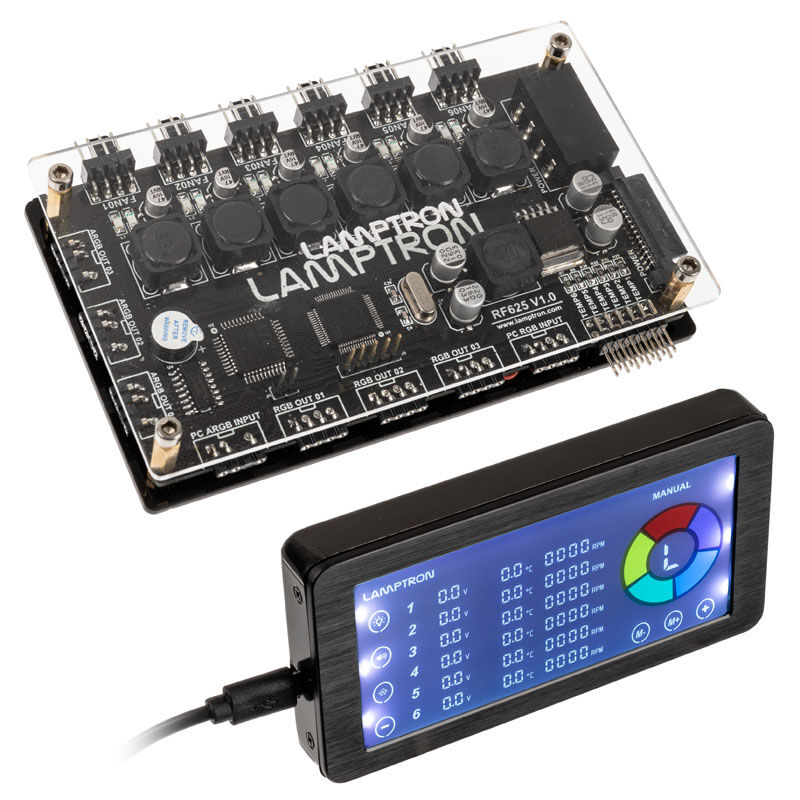

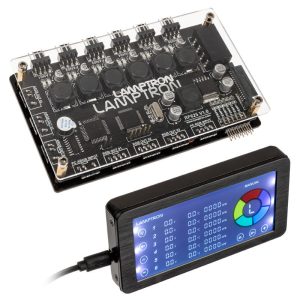

Comprehensive fan and RGB controller from Lamptron with a practical LC display. The controller controls up to four fans with or without PWM control and RGB lights with or without digital ARGB LEDs. The LC display is attached to the PCI slots. To attach the display you need three free bezel slots. It is controlled via the included infrared remote control.
The maximum control

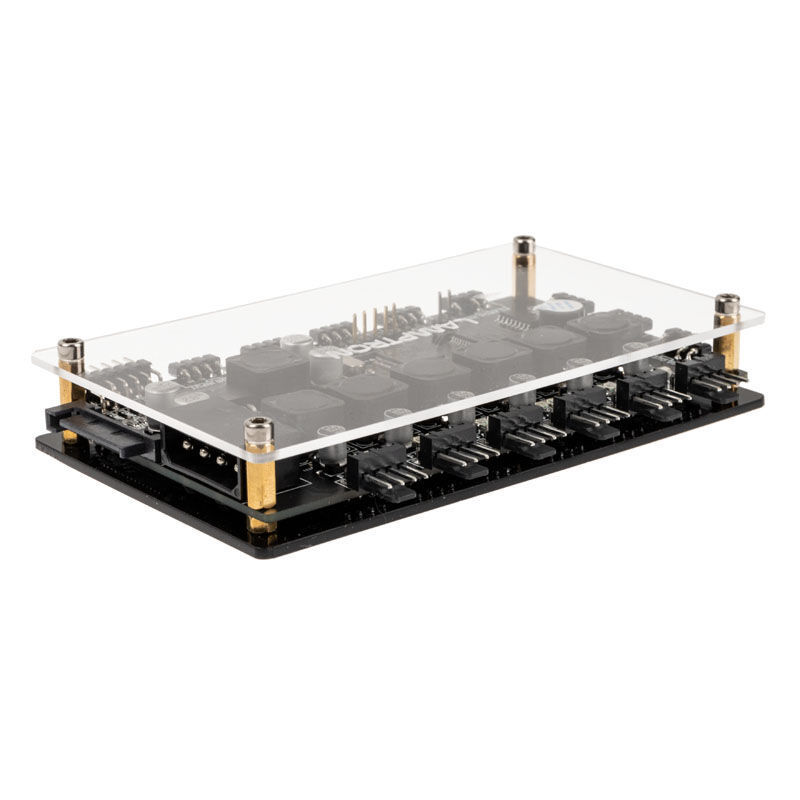

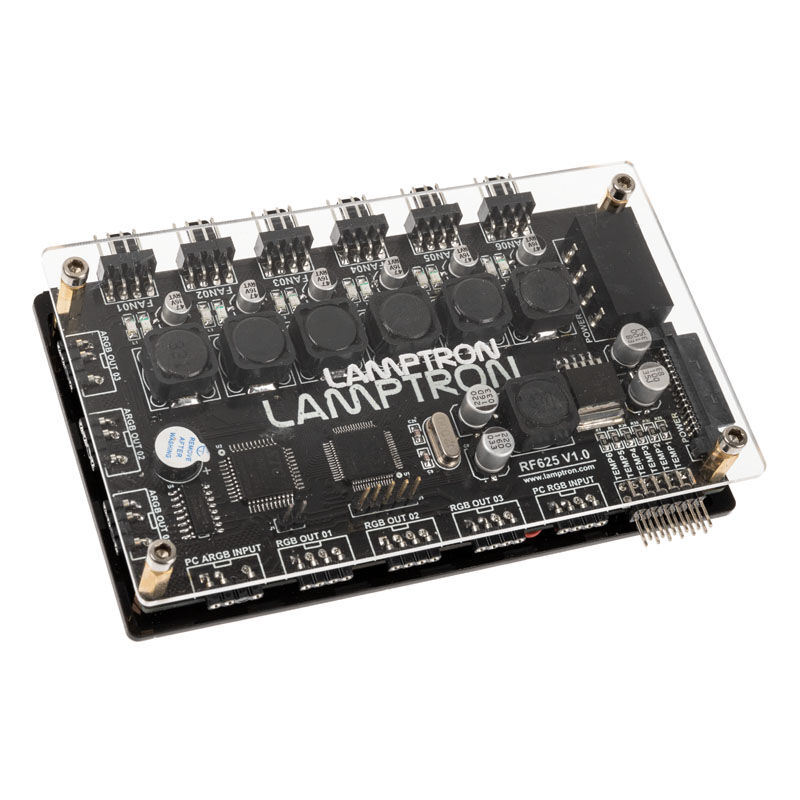

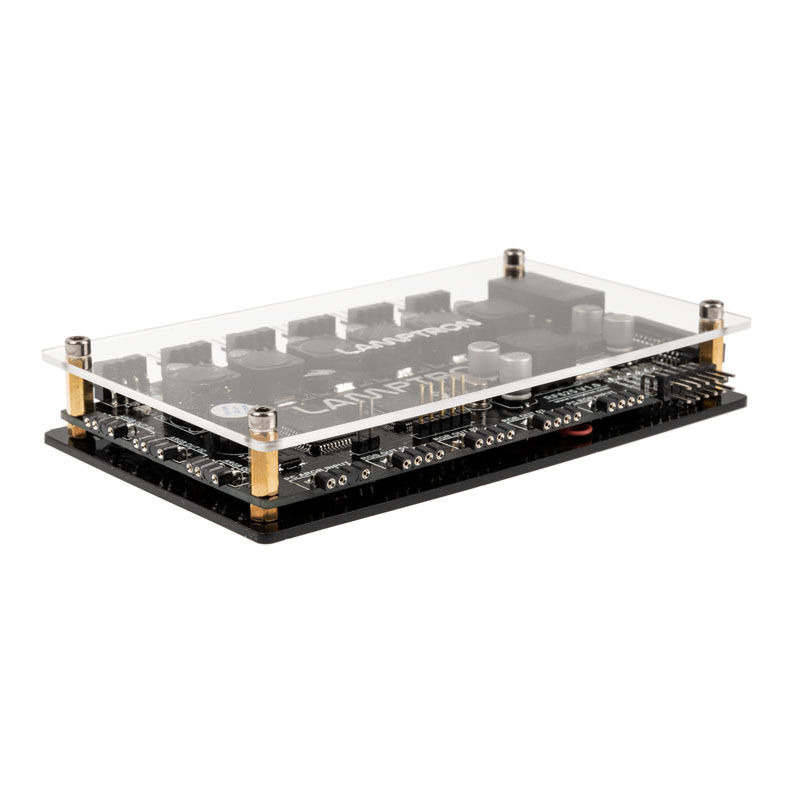

The Lamptron RF625 Controller offers almost unlimited control over fans and RGB lighting. With up to 25 watts of power per channel, there are no limits. The fan controller supports both fans with and without PWM. The power is supplied via a 4-pin Molex connector. A total of up to four fans can be connected to the controller board.
In addition, four digitally addressable 3-pin RGB devices (5VDG) can be connected. The additional power supply required is via a SATA connection. Four temperature sensors are also included, which can also be connected to the circuit board.
Includes LC display and infrared remote control
The speed of the fans is controlled using the included remote control. In addition, the lighting modes are set via the remote control. The Lamptron RF625 can be connected to a mainboard or other RGB controller using the included cable, allowing the RGB and ARGB lighting to be synchronized with external control devices.

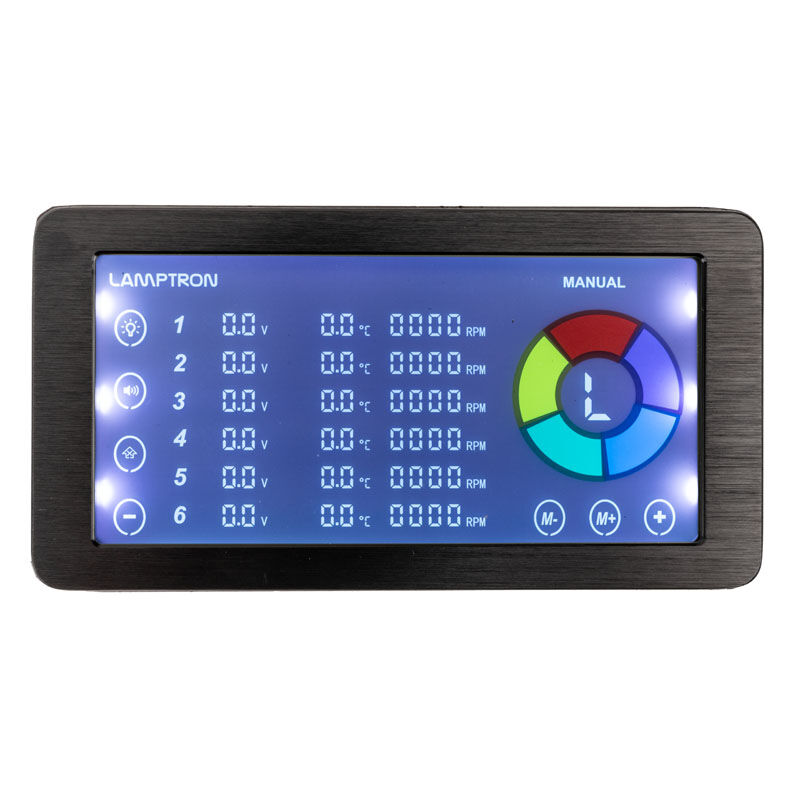

Lamptron has included a stylish LC display so that you can know how fast the fans are rotating, what voltage they are currently running at and what temperatures are inside the housing. It attaches to three free PCI slots.
| General Specifications | |
|---|---|
| Main Colour | Black |
| Material | Aluminum |
| Board Dimensions (W x H x D) | 121.5 x 21 x 72.5 mm |
| Display Dimensions (W x H x D) | 115 x 15.5 x 65 mm |
| Screen Size (H x W) | 95 x 45 mm |
| PCI Slot Compatibility | 3x PCI Slots (Display) |
| Voltage Range | 0 – 12 V (Continuously Variable) |
| Power & Connections | |
| Power Input | 1x 4-pin Molex 1x SATA |
| Temperature Sensors | 4x 2-pin |
| PWM Fan Channels | 4x 4-pin PWM (Max. 25W per Channel) |
| A-RGB Channels | 4x 3-pin (5VDG, up to 60 LEDs per Channel) |
| RGB Channels | 4x 4-pin (12V GRB, up to 60 LEDs per Channel) |
| Scope of Delivery | |

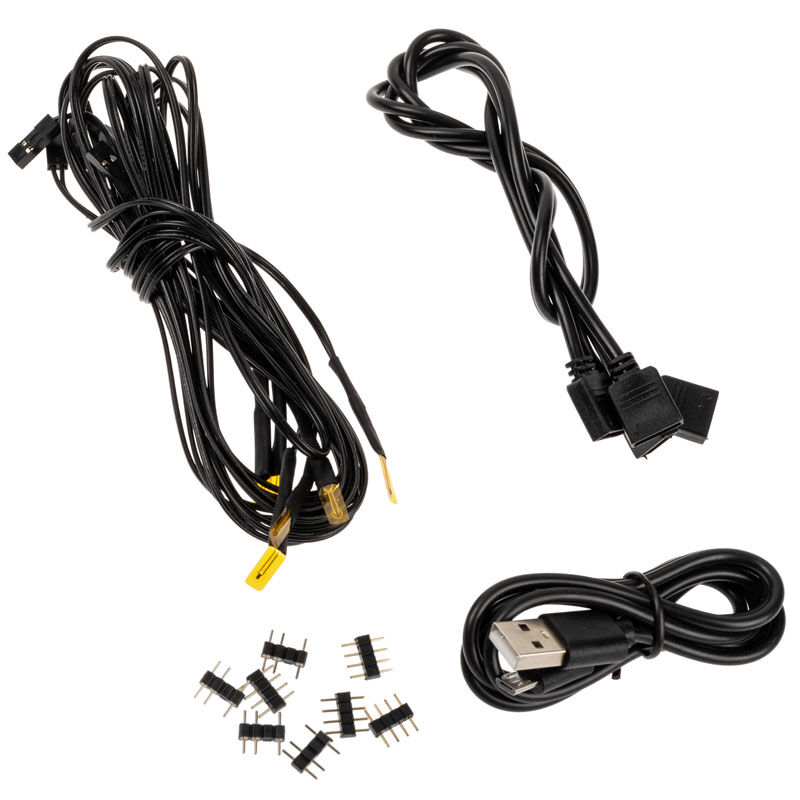

| Included Items | 1x Controller Board with Acrylic Glass Cover 1x LC Display 4x Temperature Sensors 1x Remote Control Mounting Material for Display |
