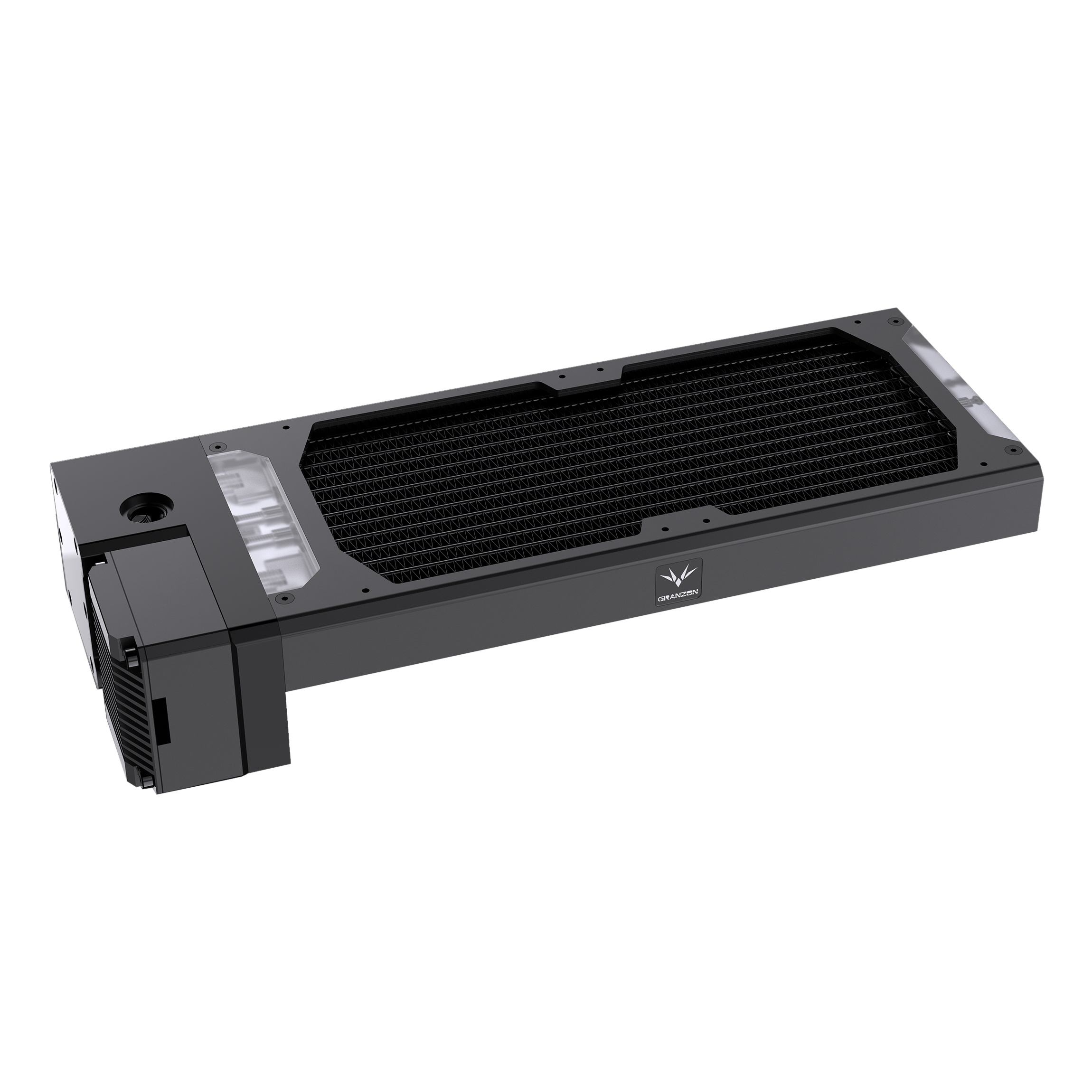

GRANZON Watercooling! Unlock extraordinary performance and exquisite aesthetics. GRANZON practice the unremitting pursuit of excellent design, unique innovation and craftsmanship quality.
Developed so that everybody can become a master, not just professionals, they are unstoppable.
Features:
– Dual pass radiator designed for computer liquid cooling
– High liquid and air flow design
– Copper fin 16FPI spacing optimized for silent fans
– Copper tubes and Brass chambers
– Integrated 17W DDC style Pump
– Integrated Pump chamber, can be used as a small reservoir
– Perfect for all overclocking and silent projects
– Pump is 4Pin Molex powered, and 4Pin PWM controlled
– Can be used as the base for a custom AIO cooler, just select your CPU block and tubes!
Technical Details:
Material: Copper fins, brass chambers
Fins spacing: 16 FPI (Fins Per Inch)
Max pressure: 0.32Bar
Max speed: 1800 – 4800 RPM
Max Flow: 6m / 700 LPH

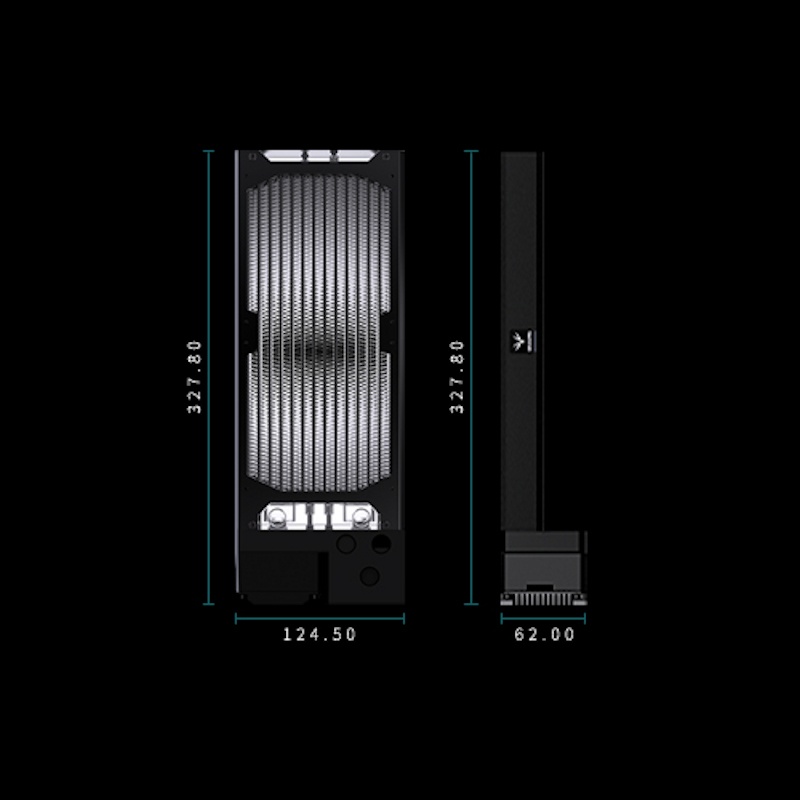

Dimensions: 124.5 x 327.80 x 62.00mm (GZMN240N)
Tube: 14x
Connection threads: G1/4
Pump Power: 4Pin Molex + 4Pin PWM

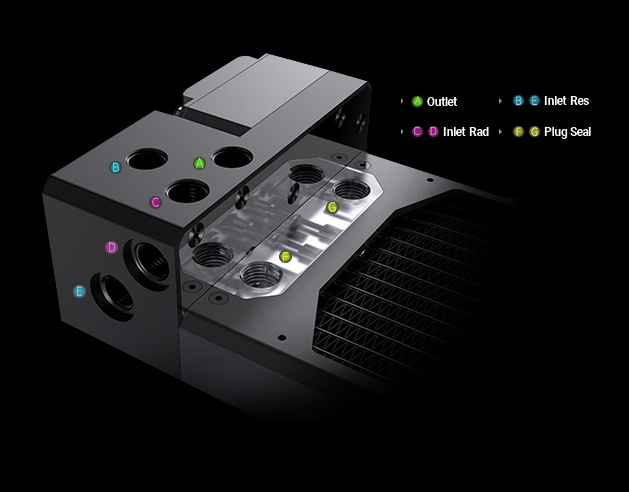

Port Configuration:
A: Outlet
B / E: Inlet to Res Chamber
C / D: Inlet to Radiator
F / G: Plug seal
Includes:
Granzon 240mm Radiator with 15w DDC Pump and Reservoir (GZMN240N) – Black
Allen key
Blank plug set
Mounting Screws for 25mm Fans
Warnings
Please pay attention to the length of the screw. If the screw is too long, it will break through the radiator and cause water leakage, voiding the warranty. This radiator comes with screws suitable for 120mm fans of 25mm thickness. If you want to install a thinner or thicker fans, please use the right length of the screw.
