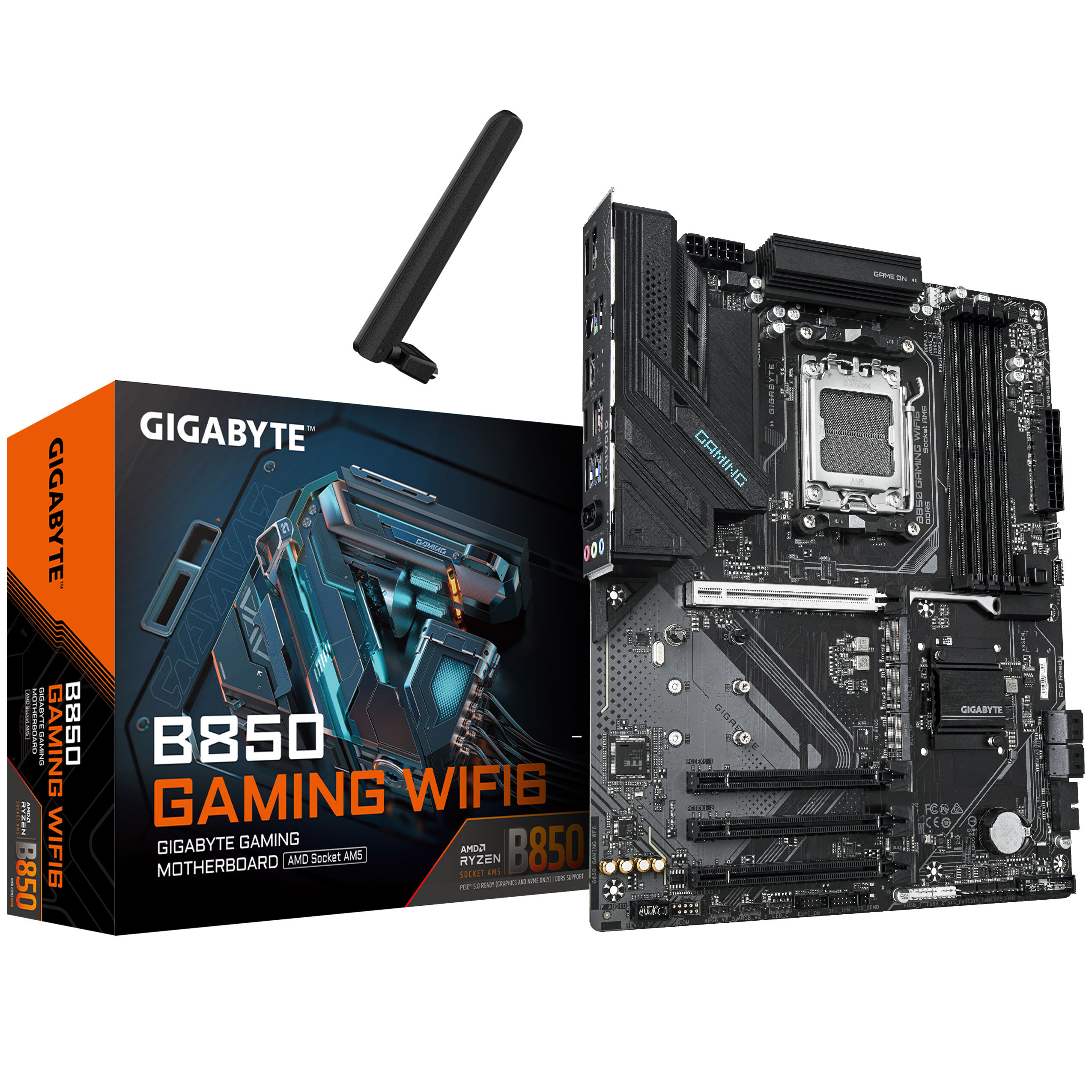

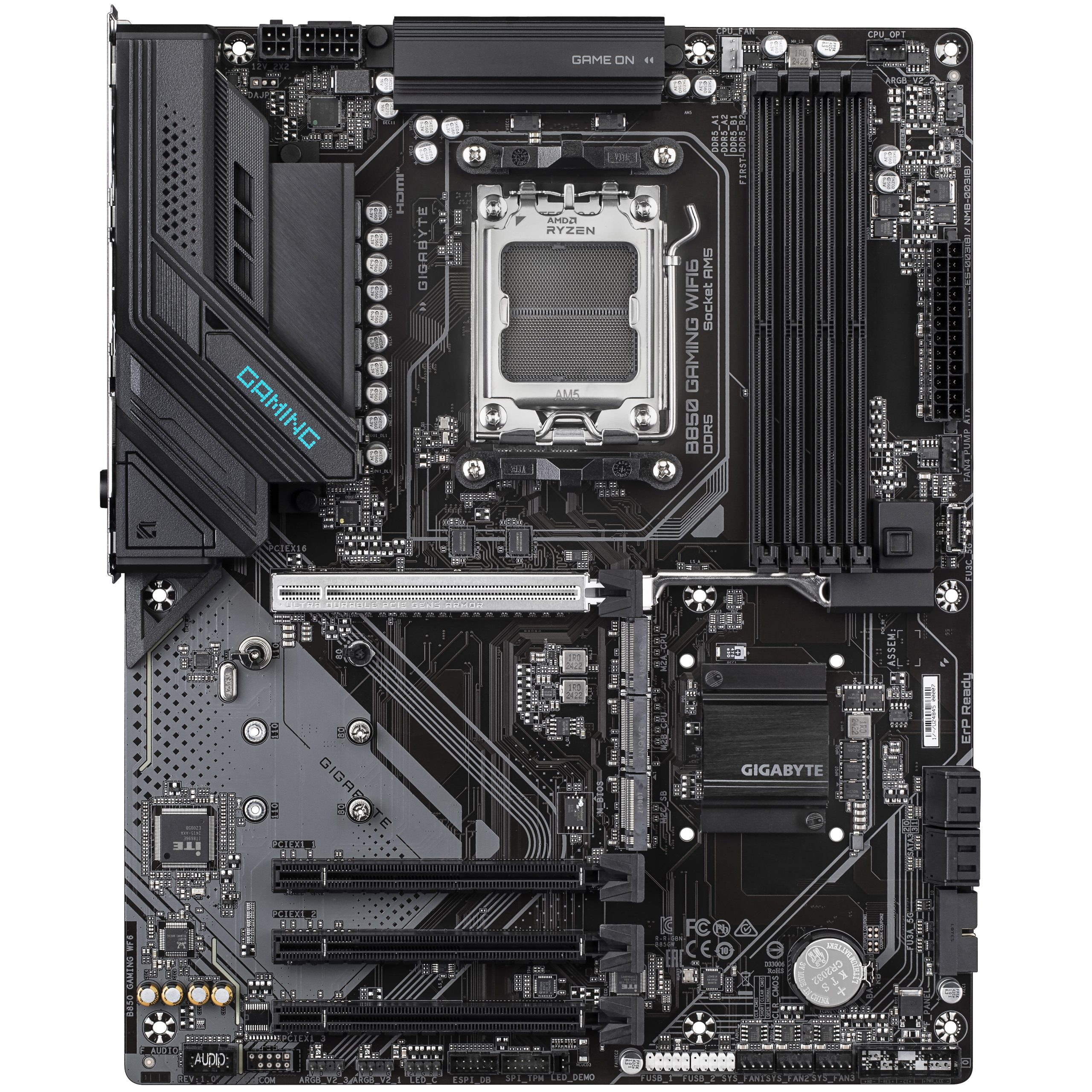

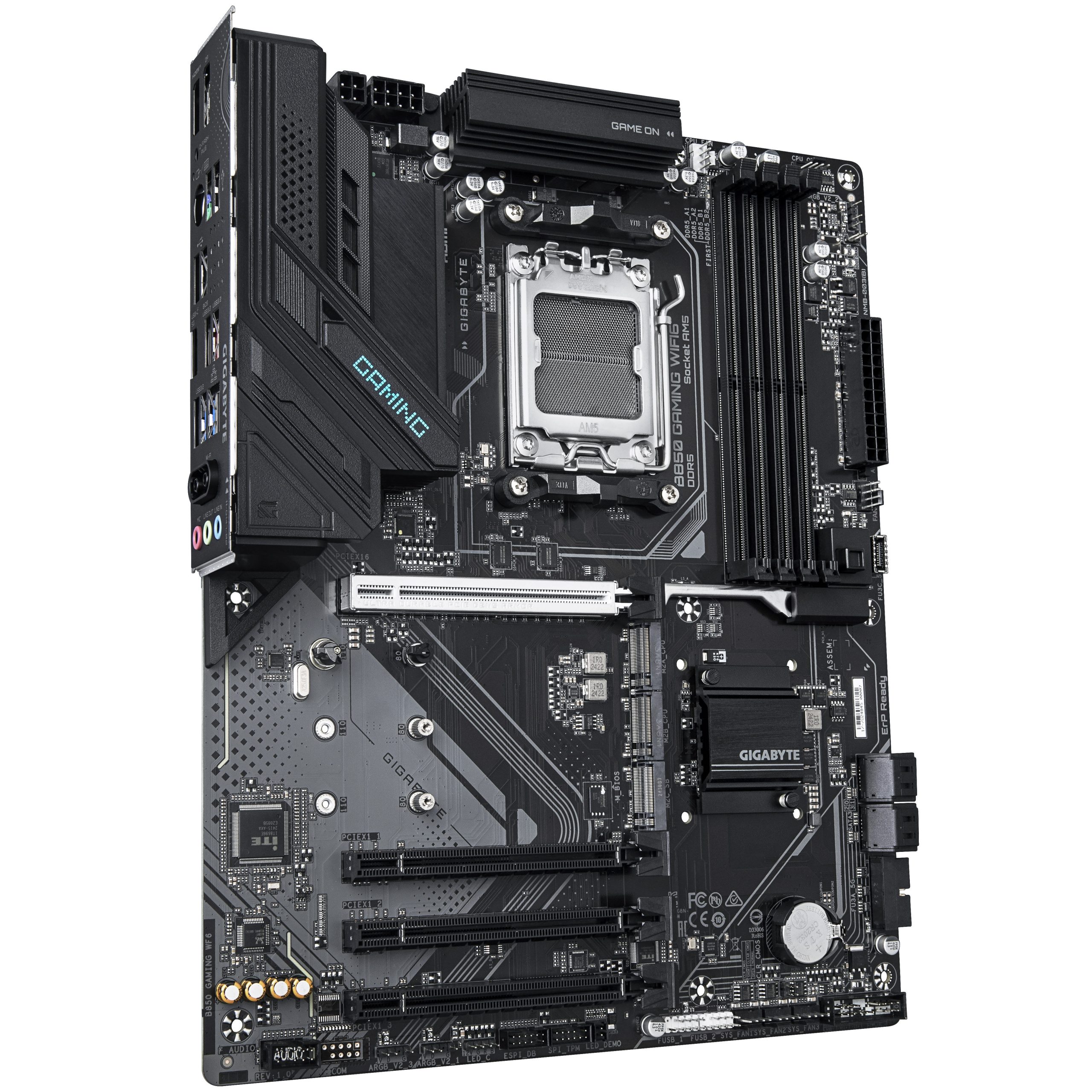

Gigabyte B850 Gaming WiFi6 motherboard, socket AM5 (LGA 1718), AMD B850, ATX, DDR5

This motherboard is ideal for budget builds and light overclocking.

– 1x PCIe 5.0 x16 (x16 with Ryzen 9000/7000 series) and 3x PCIe 3.0 x1
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8200 MHz (XMP & AMD EXPO support)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x USB 3.1, 1x USB 3.0 Type-C, 2x USB 3.0, 4x USB 2.0
– OC features: 6+2+2 phase VRMs, Q-Flash Plus, up to 8200 MHz DDR5
– A total of 6x 4-pin connectors for fans and pumps

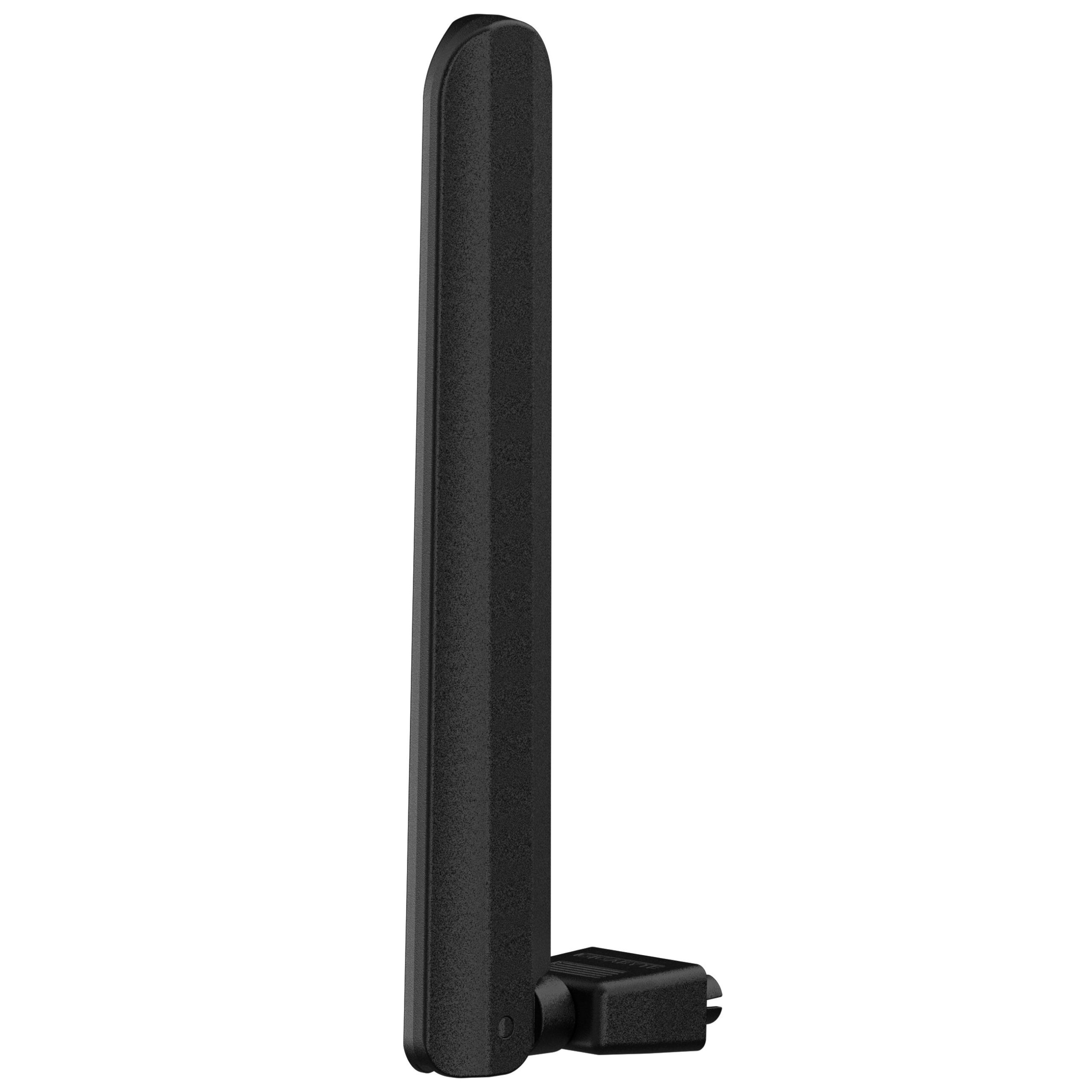

– Supports WiFi 6 and Bluetooth 5.3

GIGABYTE B850 Gaming WiFi6: ATX motherboard with AMD AM5 socket and B850 chipset
The GIGABYTE B850 Gaming WiFi6 is an ATX motherboard with the midrange AMD B850 chipset and the LGA 1718 socket. It supports AMD Ryzen 9000 series processors, codenamed Summit Ridge. The B850 platform supports advanced overclocking features, enabling DDR5 clock speeds of up to 8200 MHz. Furthermore, the GIGABYTE B850 Gaming WiFi6 boasts full PCIe 5.0 connectivity, providing twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Gray
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850
– Dual BIOS
– No
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 4400 MT/s
– Max. Memory Speed (OC)
– 8200 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO, Intel XMP
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x (total)
– Wi-Fi / Bluetooth
– Yes
– Bluetooth Standard
– 5.3
– Wi-Fi Chip
– Realtek RTL8851BE
– Cooling
– Backplate
 -No
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 4-pin + 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Connectors
– 2
– USB 2.0 (internal) Headers
– 2
– USB 2.0 (internal) Possible Connectors
– 4
– RGB / LED Connectors
– 1x RGB (4-pin 5050 12VGRB), 2x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes

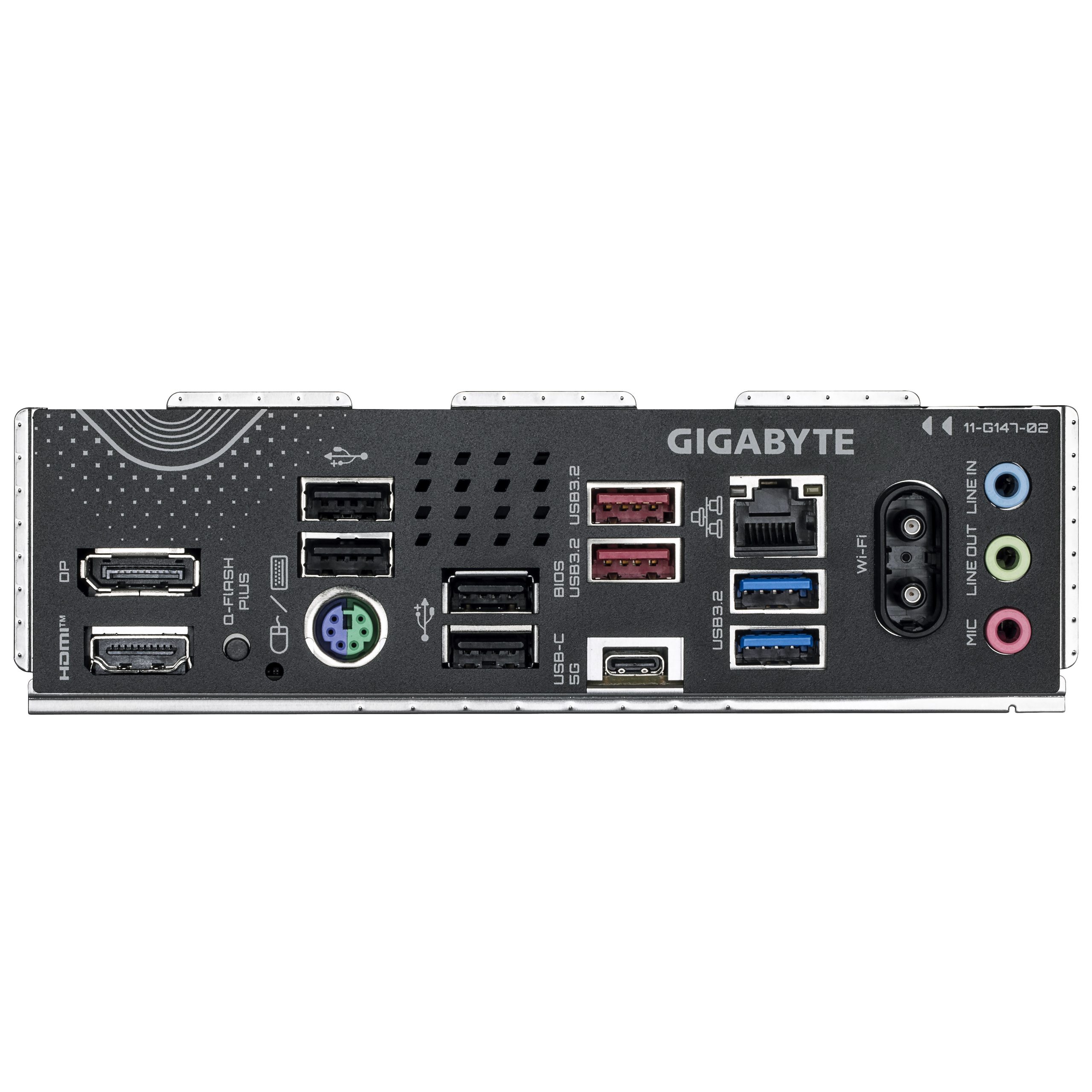

– External Connectors
– USB 3.1 (external) Type-A
– 2
– USB 3.0 (external) Type-C
– 1
– USB 3.0 (external) Type-A
– 2
– USB 2.0 (external) Type A
– 4
– Display connectors
– Display port (1x), HDMI (1x)
