ASUS Prime B760-Plus, Intel B760 motherboard, Socket 1700, DDR5

– 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1
– DDR5 memory up to 3200 MHz, with RAM overclocking up to 5333 MHz
– 3x M.2 slots, including 2x PCIe 4.0
– USB on the I/O panel: 1x USB-C 3.2 (20 Gbps), 2x USB-A 3.1 (10 Gbps), 1x USB-A 3.0 (5 Gbps), 2x USB-A 2.0 (480 Mbps)
– Overclocking features: High-quality VRMs, Clear CMOS jumper, VRM heatsink
– A total of 3 connectors for fans and pumps

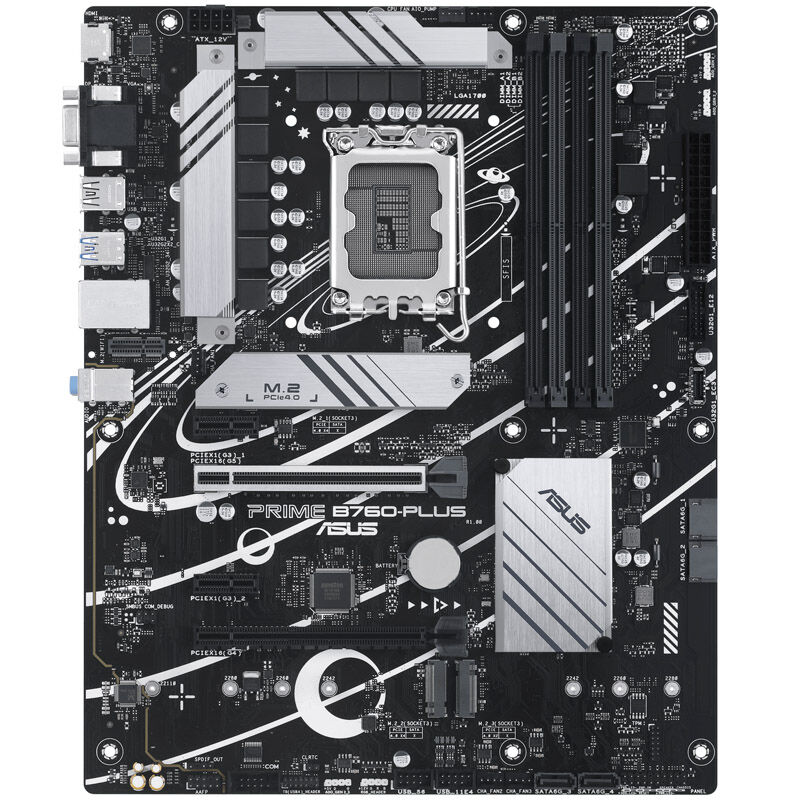

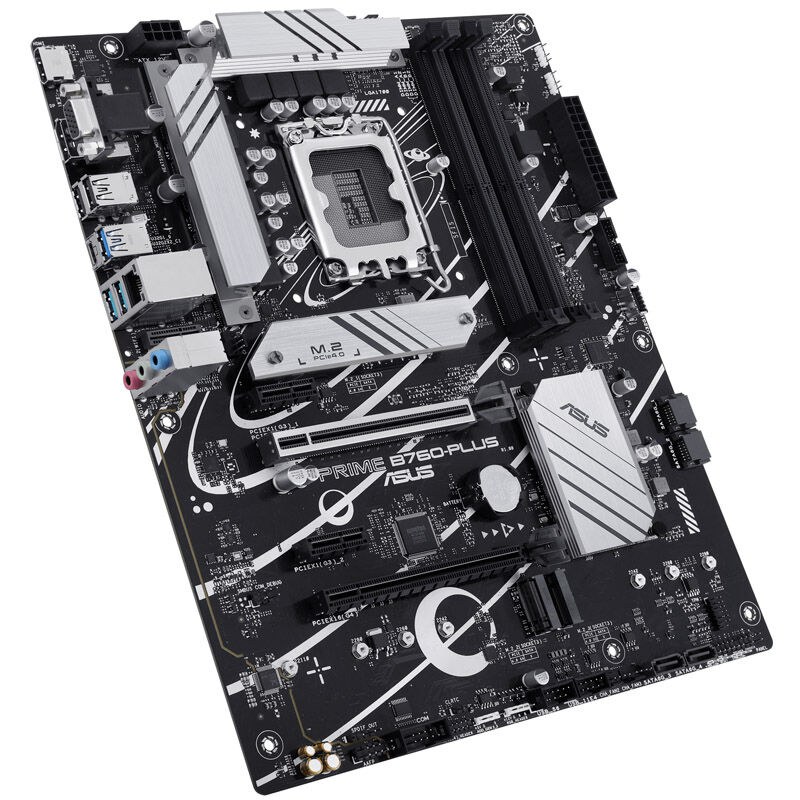

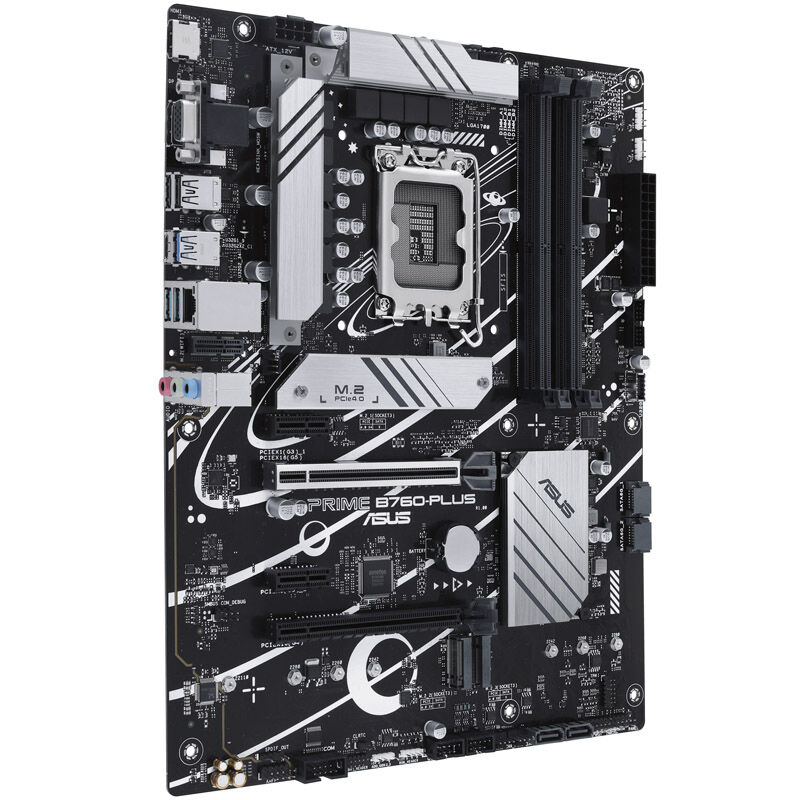

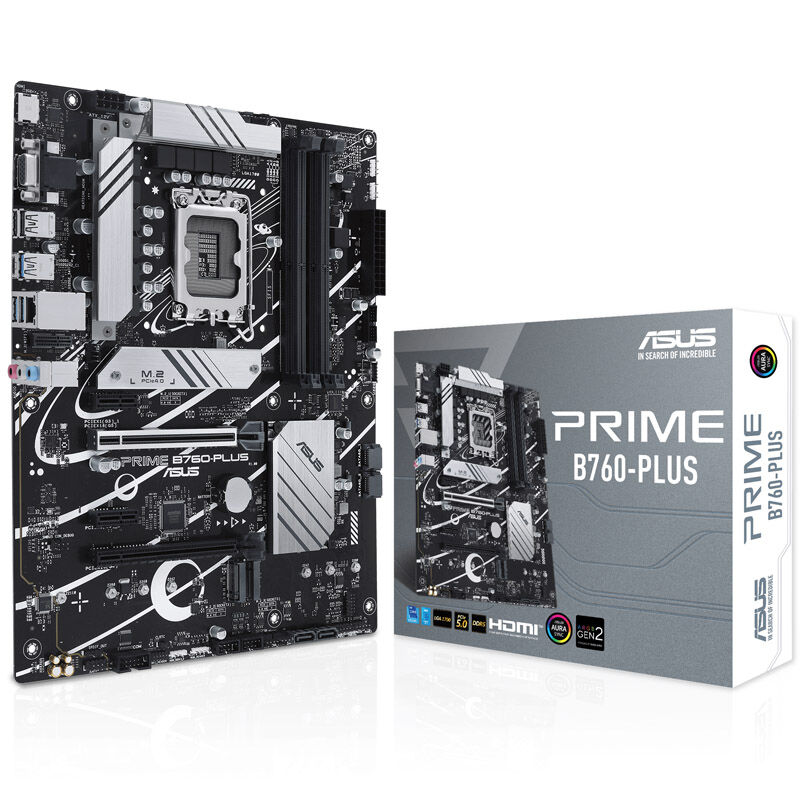

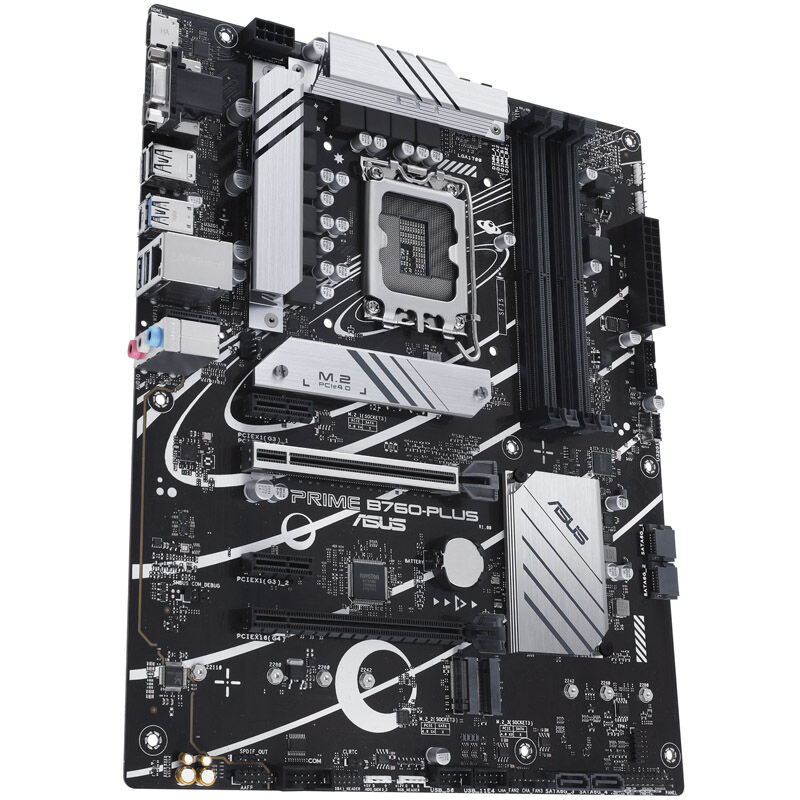

The ASUS Prime B760-PLUS ATX motherboard with Intel B760 chipset in detail
The ASUS Prime B760-PLUS is a ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is suitable for 12th and 13th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake, desktop processors. It supports DDR5 memory up to 3200 MHz and, thanks to its outstanding power supply, is ideal for RAM overclocking.

In addition to a stable power supply with high-quality VRMs, the ASUS Prime B760-PLUS impresses with other features that make overclocking your system much easier. DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as VRM coolers, ensure safety during overclocking attempts.

Technical Details:
Format:
– ATX
– Chipset:
– Intel B760
– Socket:
– LGA 1700 (for 12th, 13th, and 14th Core generation Intel CPUs)
– RAM:
– 4x DDR4 (3200 MHz, up to 5066 MHz via overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16
– 1x PCIe 4.0 x16 (x4)
– 2x PCIe 3.0 x1
– Internal Connectors:
– 1x USB 3.0 header (5 Gbps, 2x USB 3.0)
– 2x USB 2.0 headers (480 Mbps, 3x USB 2.0)
– 4x SATA 6 Gbps (B760)
– 1x serial, 1x TPM header
– 1x S/?PDIF header
– 1x speaker header
– 1x COM debug header
– Fan header:
– 1x CPU fan (4-pin)
– 3x case fans (4-pin)

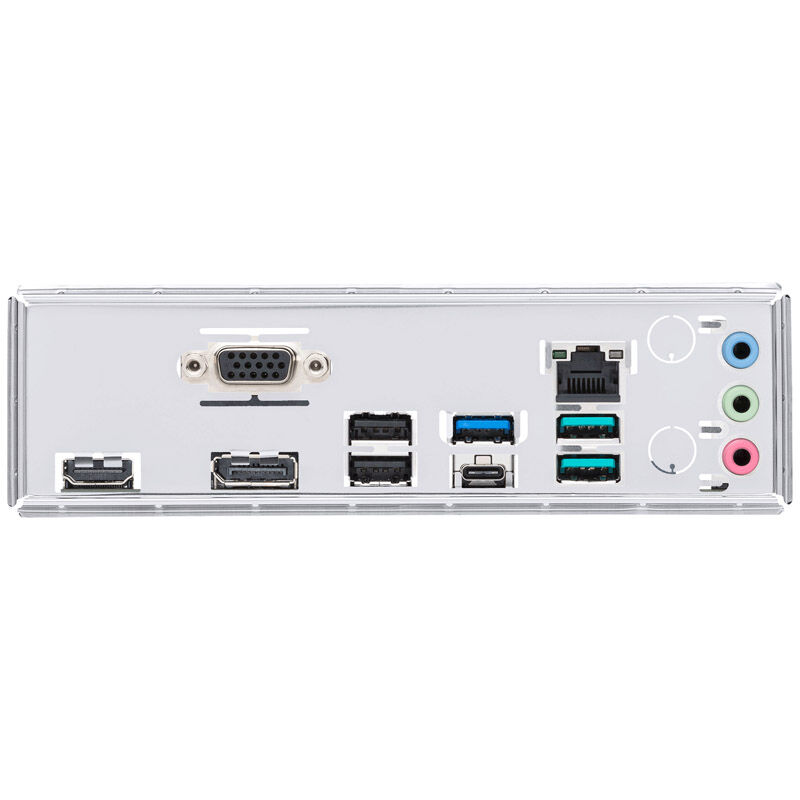

– External connections:
– 1x VGA (iGPU)
– 1x HDMI 2.1 (iGPU)
– 1x DisplayPort 1.4 (iGPU)
– 1x USB-C 3.2 (20Gb/s)
– 2x USB-A 3.1 (10Gb/s)
– 1x USB-A 3.0 (5Gb/?s)
– 2x USB-A 2.0 (480Mb/s)
– 1x 2.5GBase-T (Realtek)
– 3x jack
– 2x antenna connection
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
