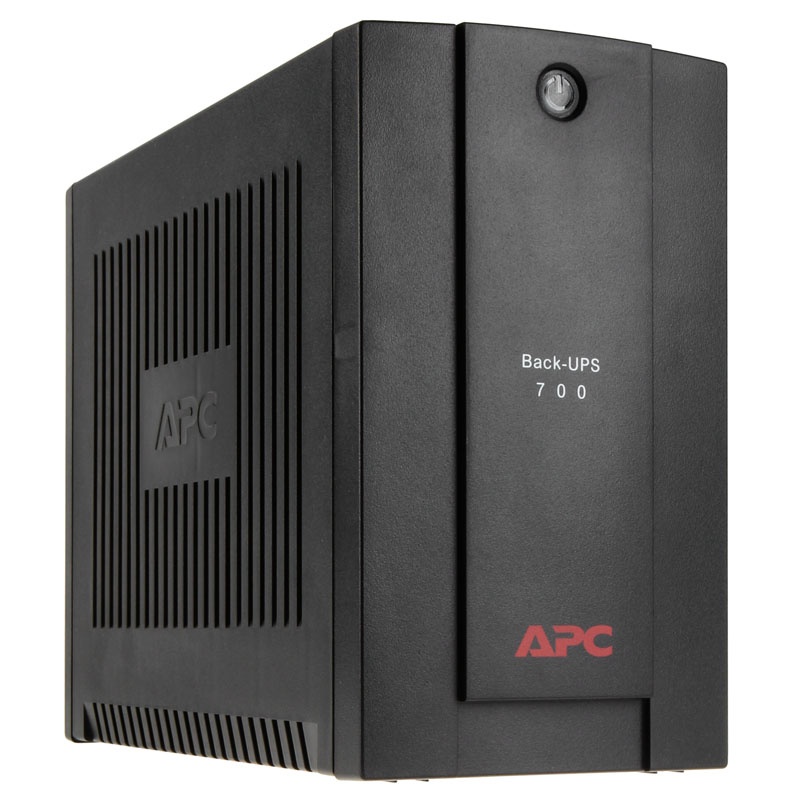

APC Back-UPS BX700U-GR - UPS (390 watts)

For foundation in 1981, the focus was still at the Solar Energy, meanwhile, is APC (American Power Conversion) with its systems for uninterruptible power supply (UPS, eng: UPS) and surge protection devices (Surge Protection) a leading provider of end-to-end solutions promoted to ensure the real-time infrastructure.

The UPS series Back-UPS BX provides a particularly good price-performance ratio on the protection of home offices, standalone computers or network components. The integrated overvoltage protection ensures that hardware and data are protected from dangerous power surges and voltage spikes, as well as from power outages. The models in the series Back-UPS are BX (320 C13 IEC) available with IEC sockets for connection to protective equipment or protective contact sockets (Schuko).

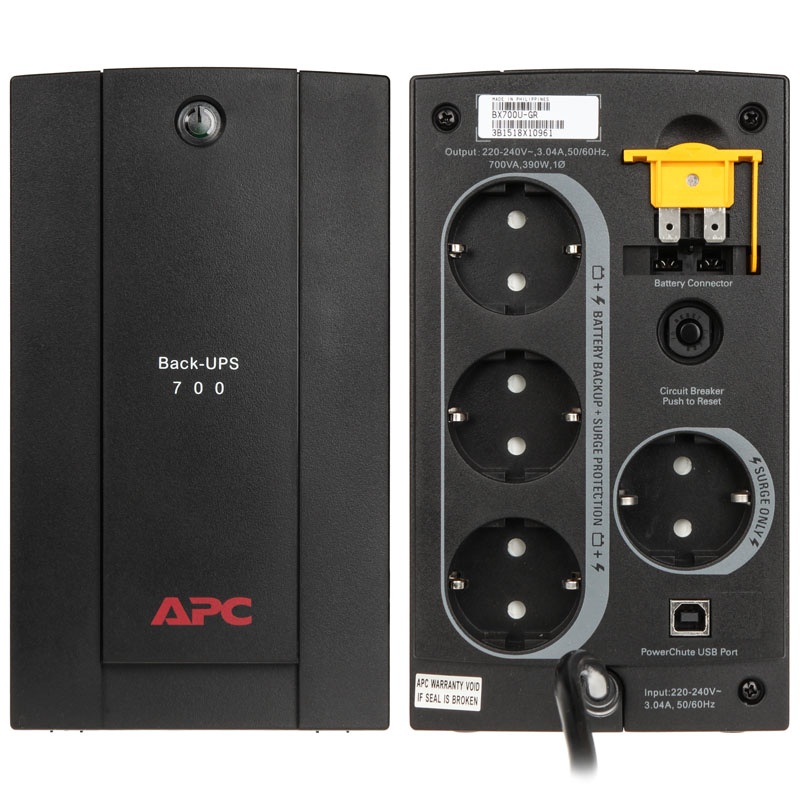

The offered Back-UPS BX700U-GR provides a maximum output power of 390 watts or 700 VA at a nominal output voltage of 230 V and a frequency of 50/60 Hz at the output. The UPS has four protective contact sockets (SCHUKO CEE 7) for the battery backup or surge protector and has a voltage regulation (AVR) on board, which prolongs the life and run time of the battery by correcting voltage conditions without discharging the battery. When input port is also a safety plug (CEE 7 / 7P) available, the nominal input voltage of 230 V at a frequency of 50 / 60Hz.

In this way, one or more connected devices for a specified period may autonomously, ie independent of the mains are powered. The backup time depends on the called-terminal capabilities and is at a load of 195 watts (50%), for example, about 9 minutes. The APC Back-UPS BX700U-GR indicates visually and / or acoustically whether the power supply to the connected devices currently via the mains or UPS battery is made whether this will soon be exhausted and that currently there is an overload on the power line.

The integrated surge protector line can absorb energy up to 273 joules (Surge energy rating).

Technical details:
    Dimensions: 115 x 200 x 256 mm (W x H x D)
    Weight: 6 kg
    Color: Black
    Inputs:
    1x CEE 7 / 7P Socket
    Outputs:
    4x CEE SCHUKO 7 (Battery Backup / Surge Protection)
    Uninterruptible power supply:
    Battery Type: Lead Acid Battery
    Output power: max. 390 W (700 VA)
    Autonomy time: 9/1 minutes (50% / 100%)
    Overvoltage protection:
    Surge energy rating: max. 273 joules
    Manufacturer Warranty: 2 years
