The Alphacool ES 1-Slot GPU water cooler for the RTX Pro 4500 Blackwell Workstation Edition was specifically developed for professional use in performance-optimized server environments. With its compact 1-Slot design and carefully engineered port positioning, it meets the highest standards in cooling performance, reliability, and ease of installation – especially in dense rack installations with limited space.
The Alphacool ES 1-Slot GPU water cooler for the RTX Pro 4500 Blackwell Workstation Edition was specifically developed for professional use in performance-optimized server environments. With its compact 1-Slot design and carefully engineered port positioning, it meets the highest standards in cooling performance, reliability, and ease of installation – especially in dense rack installations with...
The Alphacool ES 1-Slot GPU water cooler for the RTX Pro 4500 Blackwell Workstation Edition was specifically developed for professional use in performance-optimized server environments. With its compact 1-Slot design and carefully engineered port positioning, it meets the highest standards in cooling performance, reliability, and ease of installation – especially in dense rack installations with...
The Alphacool ES 1-Slot GPU water cooler for the RTX Pro 4500 Blackwell Workstation Edition was specifically developed for professional use in performance-optimized server environments. With its compact 1-Slot design and carefully engineered port positioning, it meets the highest standards in cooling performance, reliability, and ease of installation – especially in dense rack installations with limited space.

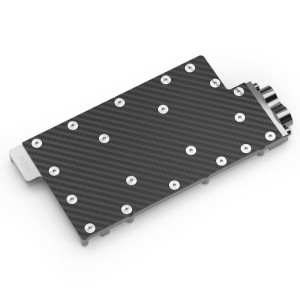

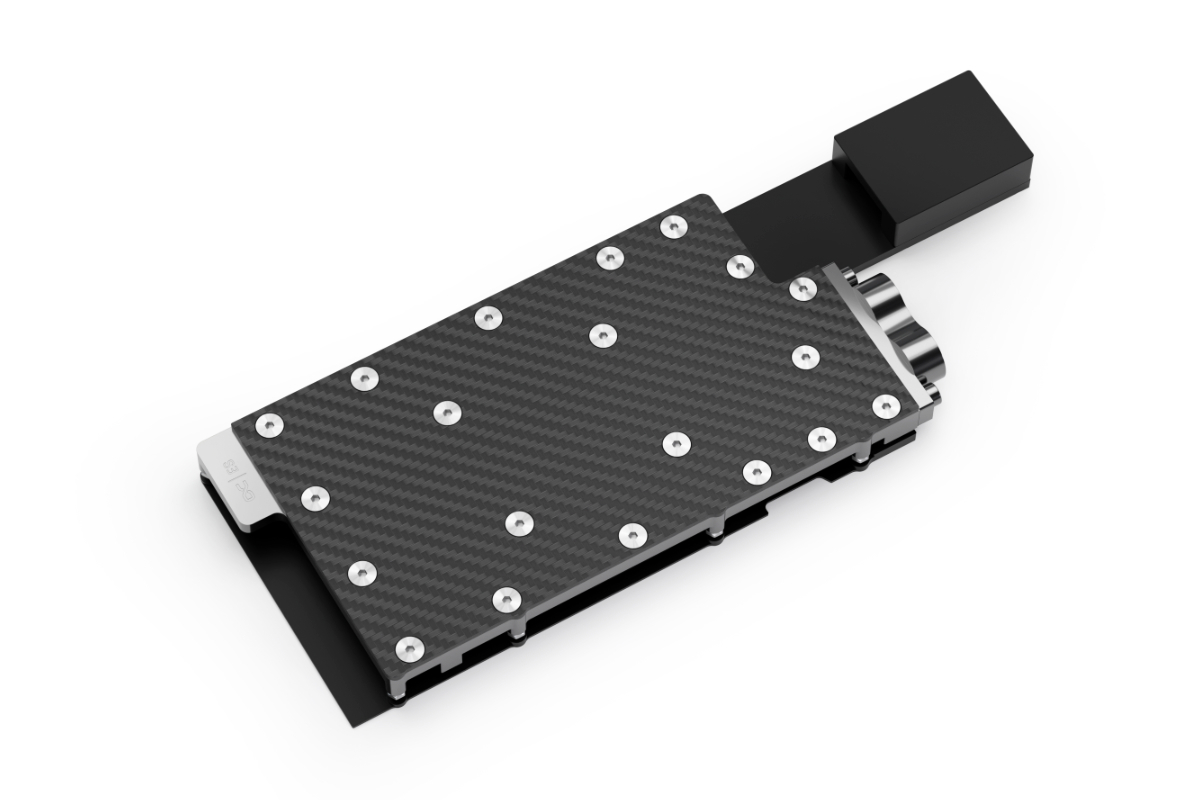

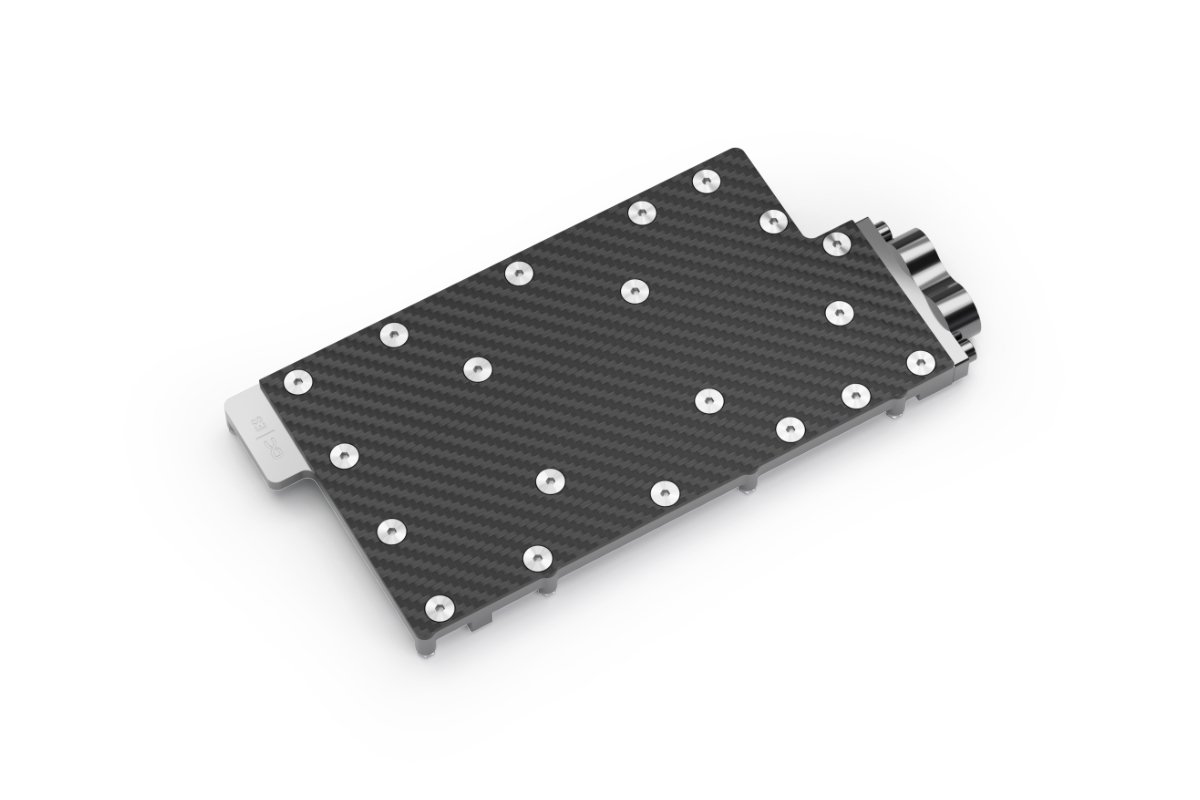

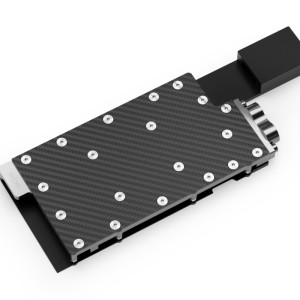

The top of the cooler is made from lightweight, durable carbon. This significantly reduces the overall weight compared to conventional solutions. At the same time, the matte carbon finish provides a subtle, high-quality appearance – functional and elegant in equal measure. The cooling block itself is made entirely of chrome-plated copper. The chrome plating is considerably harder and more durable than traditional nickel plating, offering reliable protection against corrosion, scratches, and mechanical impact – ideal for long-term 24/7 operation.

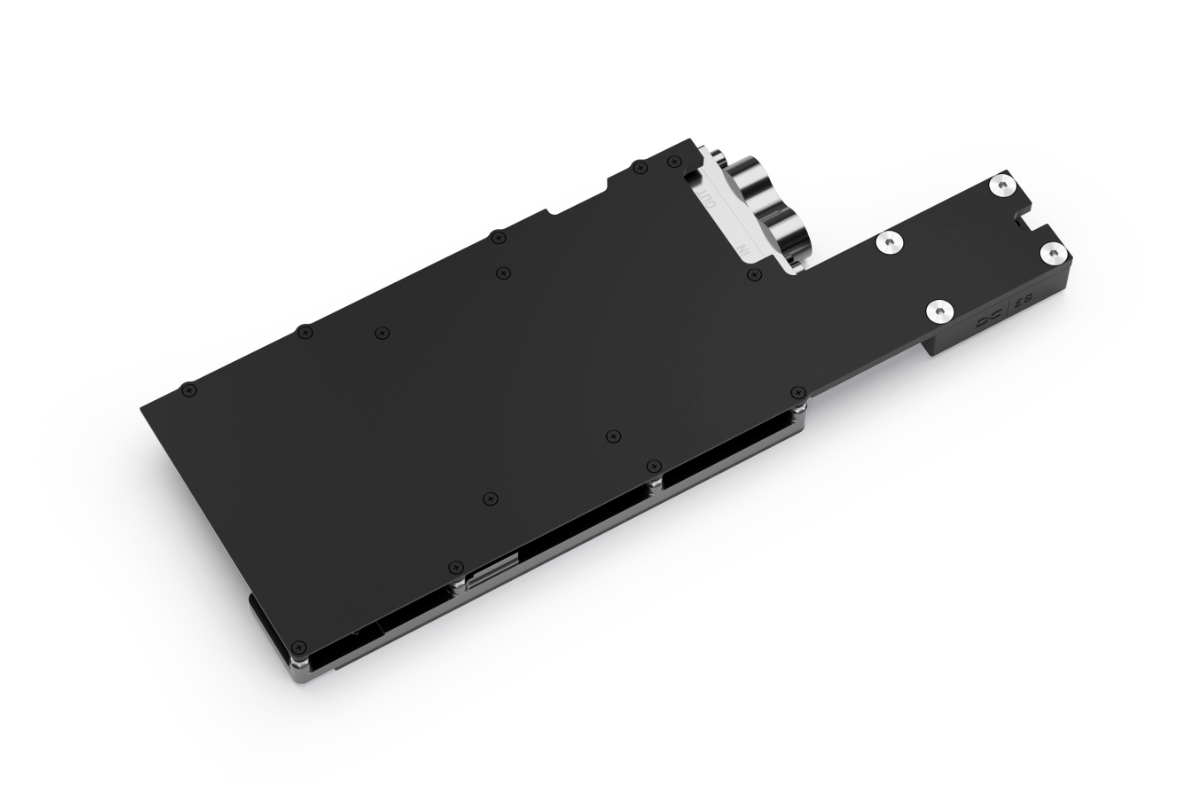

The inlet and outlet ports are positioned on the rear of the cooler to save space. This connection layout simplifies tubing and integration into existing cooling loops, even in very compact server chassis. An optimized internal channel structure ensures highly efficient heat dissipation from the GPU, VRAM, and voltage regulators. The targeted channel routing inside the cooler guarantees uniform water flow across all critical components.

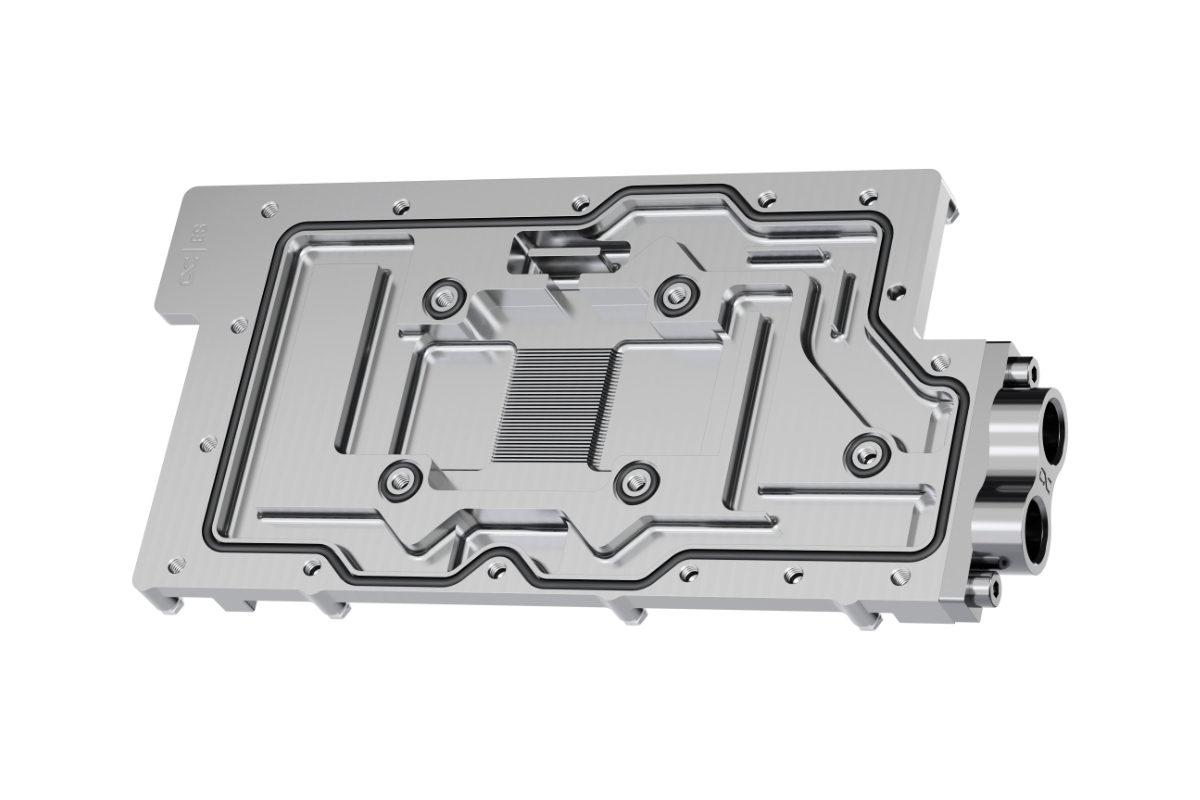

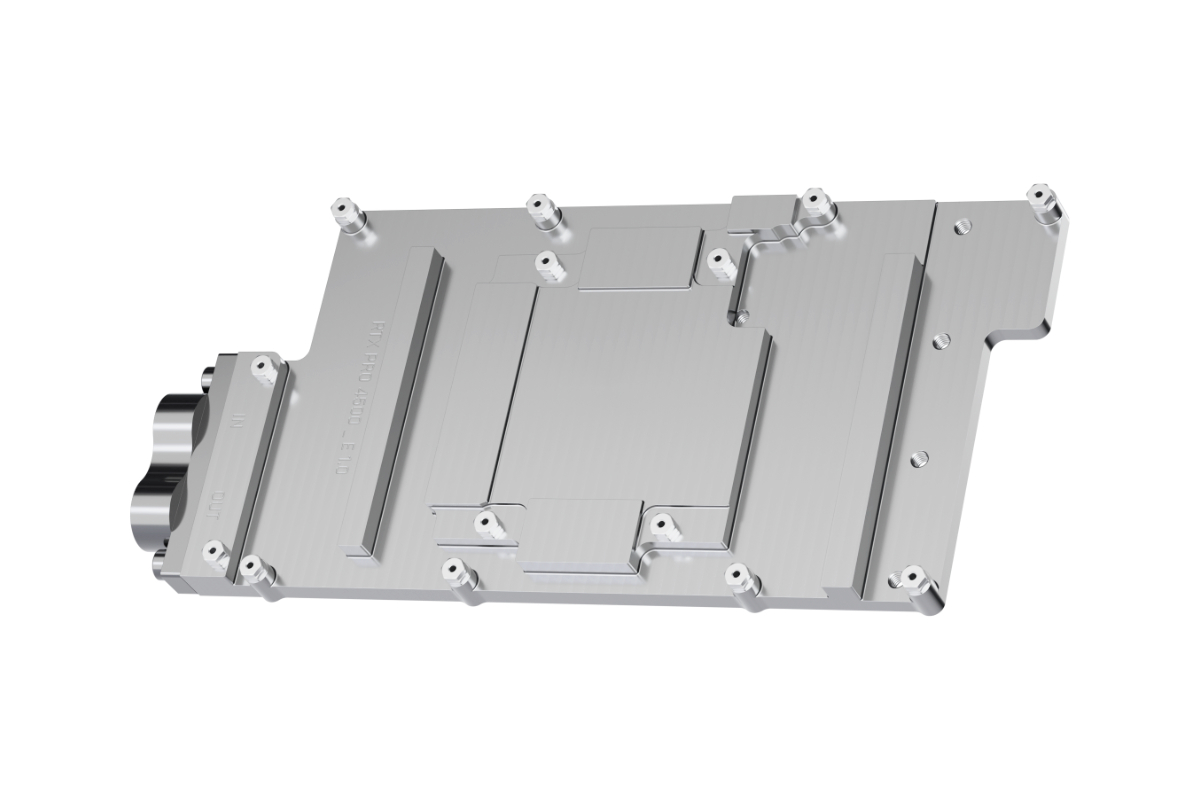

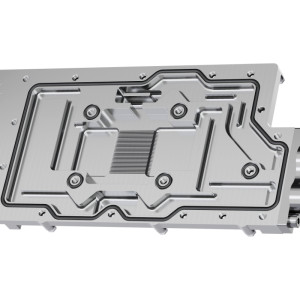

The solid copper base ensures optimal heat absorption and transfer. The robust chrome plating prevents flaking or damage under thermal stress.
The Alphacool ES 1-Slot GPU water cooler for the Nvidia RTX Pro 4500 Blackwell Workstation Edition is the ideal solution for enterprise applications where performance, reliability, and efficient space management are top priorities.
Compatibility:
– Nvidia RTX PRO™ 4500 Blackwell
| Technical Data | |
|---|---|
| Dimensions (L x W x H) | 264.30 x 94.70 x 20.70 mm |
| Cooler Material | Chrome-plated copper (Cu-HCP) |

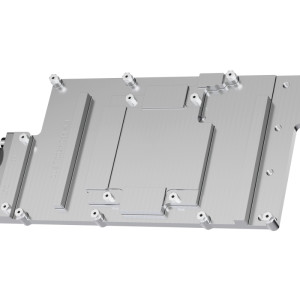

| Backplate Material | Aluminium (AlMg1SiCu) |
| Terminal Material | Brass (CuZn39Pb3) |
| Threads | 2x G 1/4 |
| Connection Thread Material | Brass (CuZn39Pb3) |
| Maximum Torque G1/4 Thread | 1.00 Nm |
| Maximum Torque M2 Thread | 0.13 Nm |
| Maximum Torque M4 Thread | 1.12 Nm |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Maximum Tested Pressure | 4.00 bar |
| Recommended Working Pressure | 0.00 – 2.00 bar |
| Fin Thickness | 0.4 mm |
| Fin Spacing | 0.4 mm |
| Cooling Technology | Jet Engine |
| Thermal Pad Specifications | |
| Thermal Conductivity | 7 W/mK |
| Thermal Pad Hardness (ASTM 2240) | 35 Shore 00 |
| Thermal Paste Specifications | |
| Volatilization Rate (24H@200°C) | Less than 0.5% |
| Density | 3.2 g/cc (Test method ASTM D792) |
| Viscosity | 150~200*10³ mPa.s (Test method ASTM D2196) |
| Continuous Operating Temperature | -40 °C to 120 °C |
| Breakdown Voltage | 250 V/mil (Test method ASTM D149) |
| Thermal Impedance | 0.1 +/- 0.01 °C in 2/W (Test method ASTM D5470) |
| Maximum Working Pressure | 40 psi |
| Quantity | 1 g |
| Colour | Gray |
