The Alphacool ES 1-Slot GPU water block for the AMD Radeon AI PRO R9700 has been specially developed for professional use in performance-optimized server and workstation environments. With its compact 1-slot design and well-planned port positioning, it meets the highest requirements for cooling performance, reliability, and ease of installation, especially where space is limited.

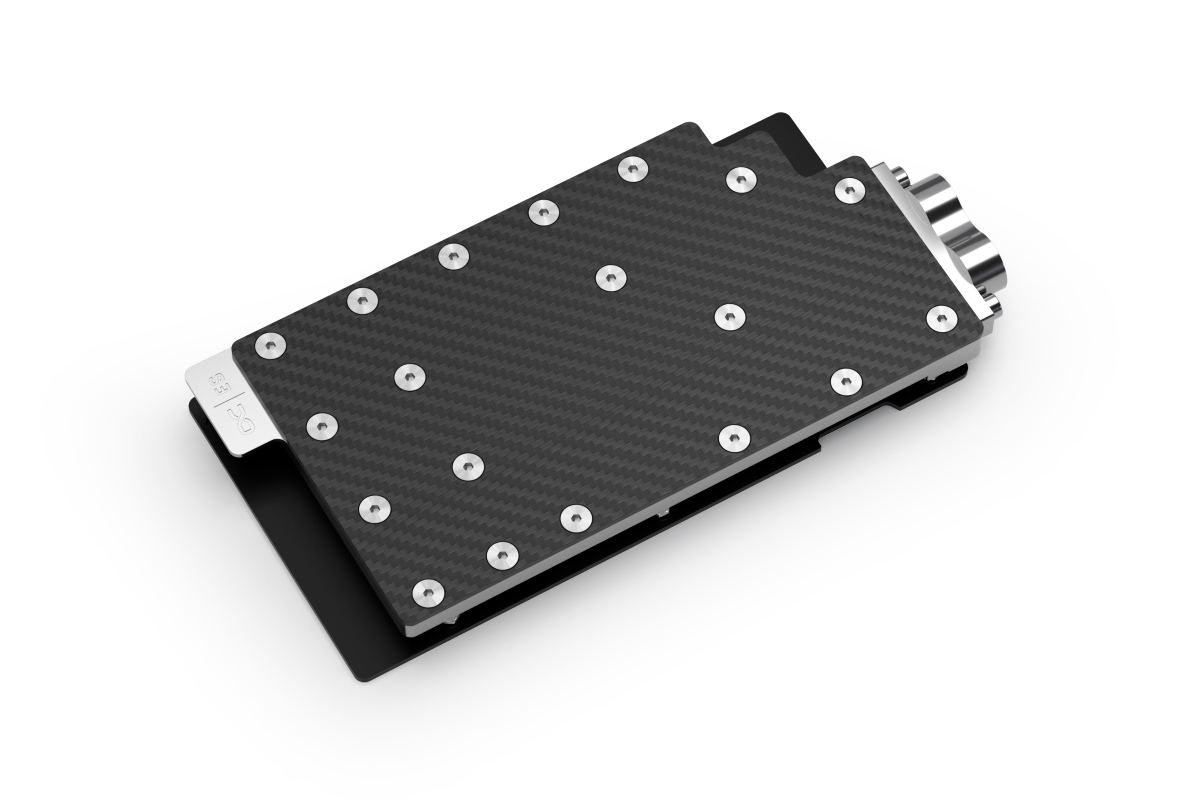

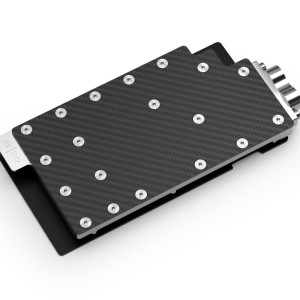

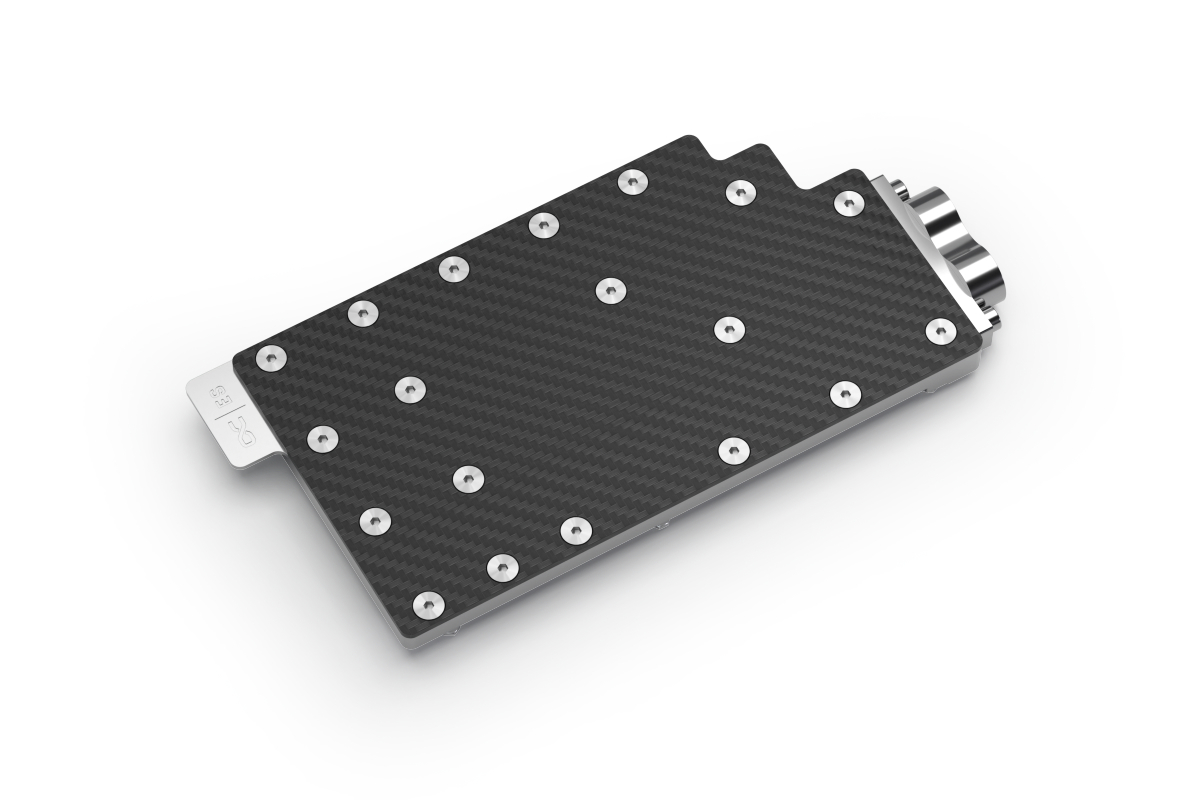

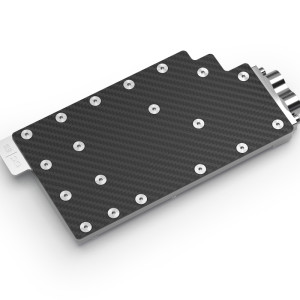

The top of the cooler is made of lightweight, durable carbon. This significantly reduces the weight of the cooler compared to conventional solutions. At the same time, the matte carbon finish provides a subtle, high-quality look that is both functional and elegant. The cooling block itself is made entirely of chrome-plated copper. The chrome plating is significantly harder and more resistant than conventional nickel plating and provides reliable protection against corrosion, scratches, and mechanical impact, making it ideal for long-term 24/7 operation.

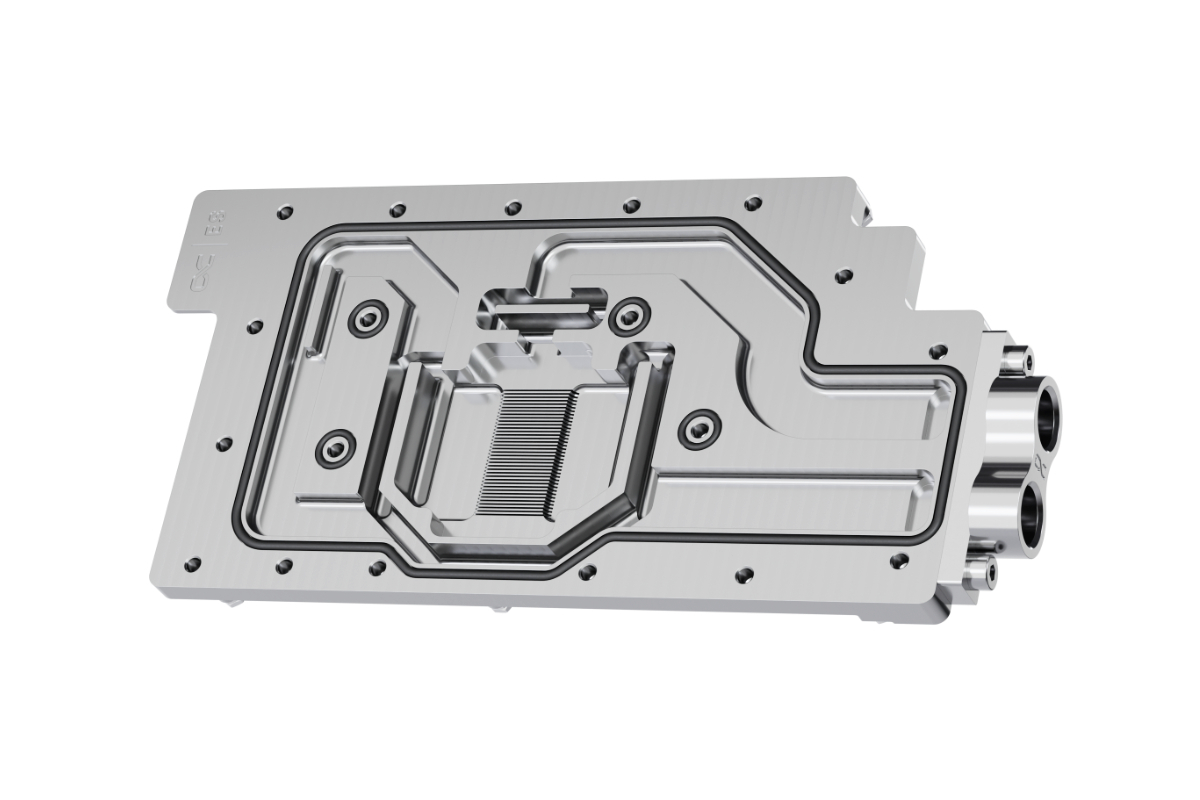

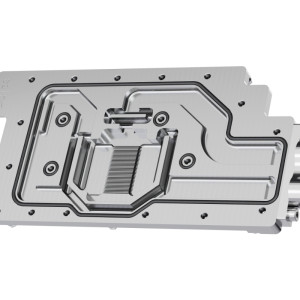

The inlet and outlet ports are positioned on the rear side of the cooler to save space. This port layout makes tubing and integration into existing cooling loops easier, even in very compact server or workstation cases. Thanks to an optimized cooling channel structure, heat is dissipated particularly efficiently from the GPU, VRAM, and voltage regulators. Targeted channel routing inside the cooler ensures an even flow of water across all relevant components.

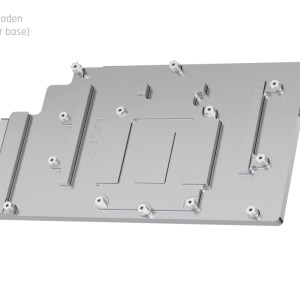

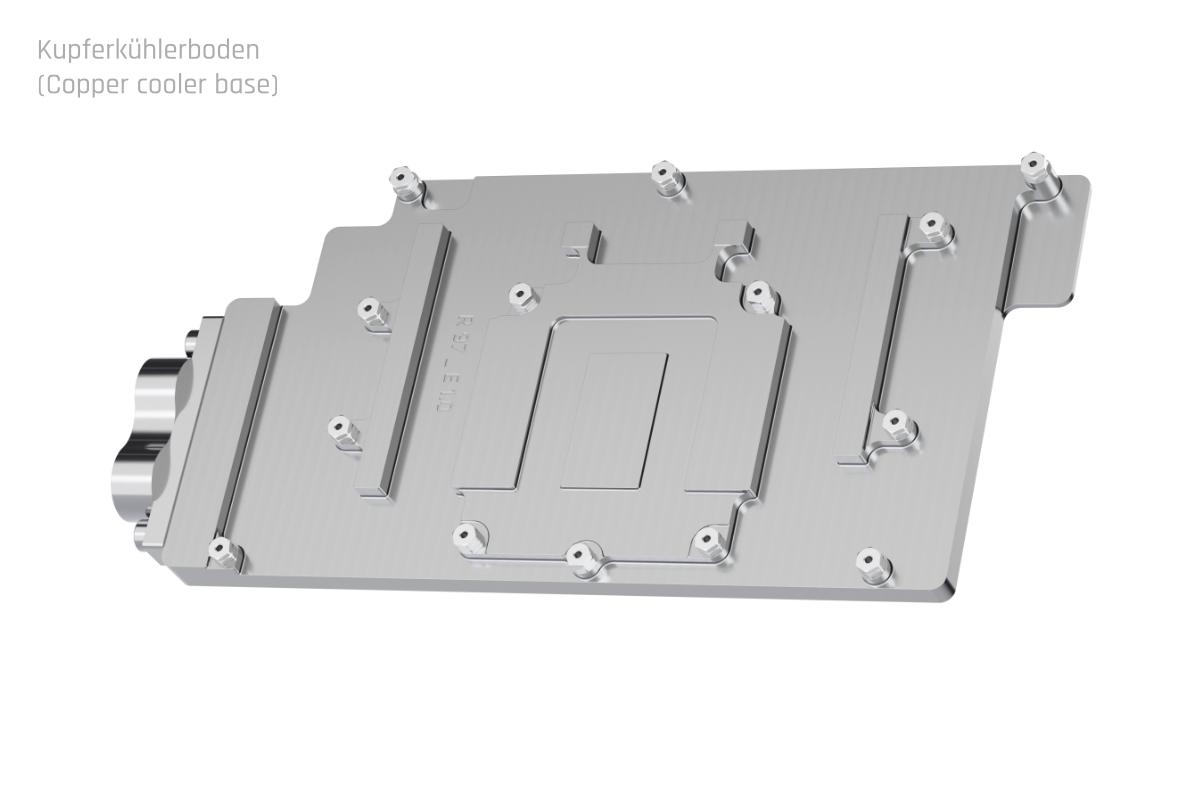

The solid copper base ensures optimal heat absorption and transfer. The robust chrome plating prevents peeling or damage under thermal stress.
The Alphacool ES 1-Slot GPU Water Block for the AMD Radeon AI PRO R9700 is the ideal solution for workstation and enterprise applications where performance, reliability, and efficient use of space are key priorities.
Compatibility:
– ASRock AMD Radeonâ„¢ AI PRO R9700 Creator 32GB
– Asus Turbo Radeonâ„¢ AI Pro R9700
– PowerColor Radeonâ„¢ AI PRO R9700
– Sapphire AMD RADEONâ„¢ AI PRO R9700 32GB
| Technical Data | |
|---|---|
| Dimensions (L x W x H) | 203.78 x 96.00 x 21.10 mm |
| Slot Size | 1 |
| Cooler Material | Chrome-plated copper (Cu-HCP) |

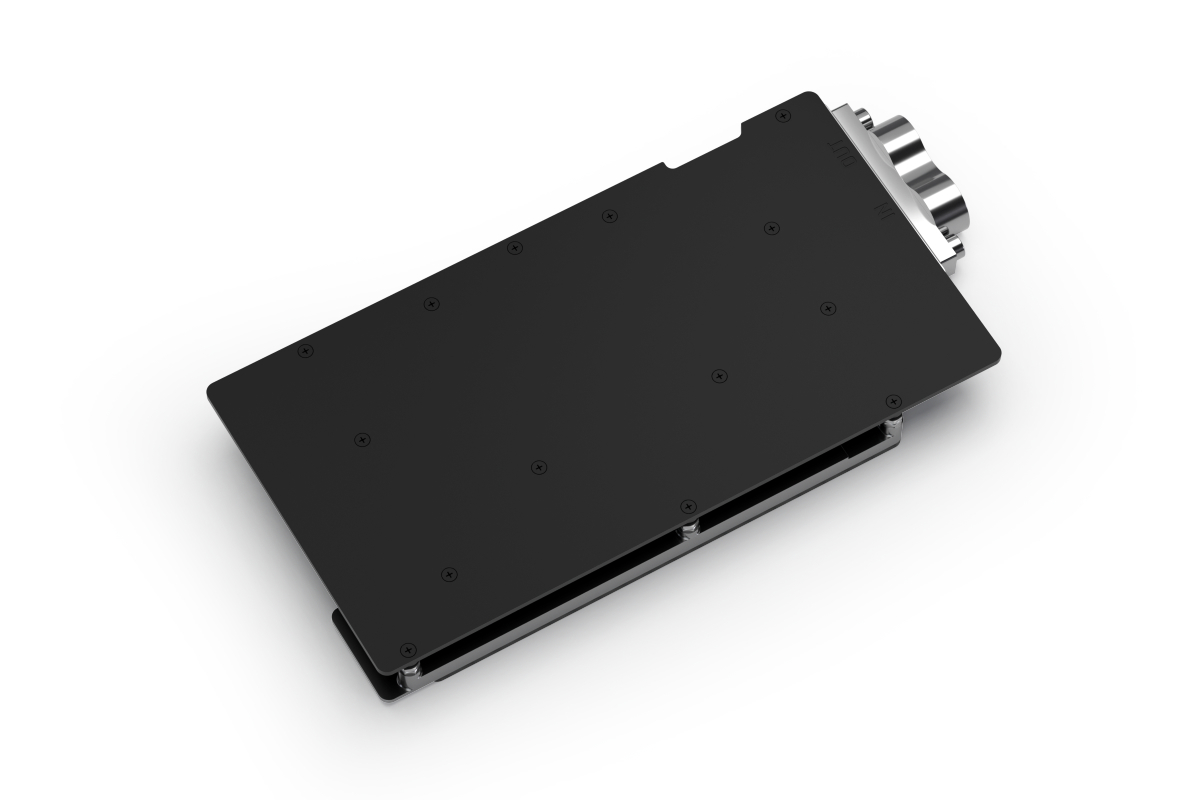

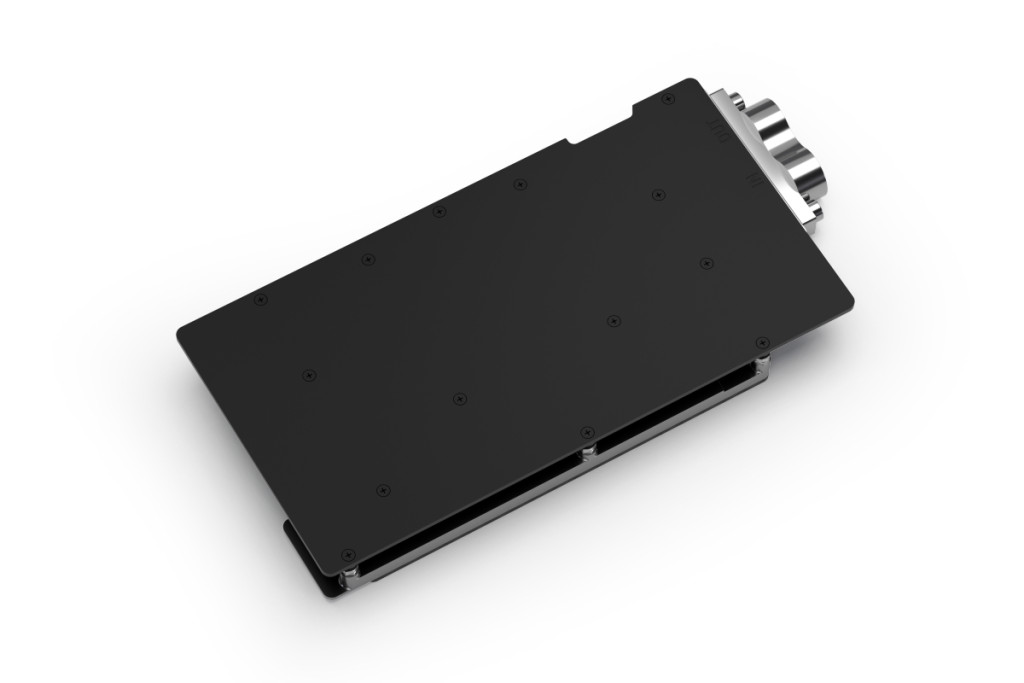

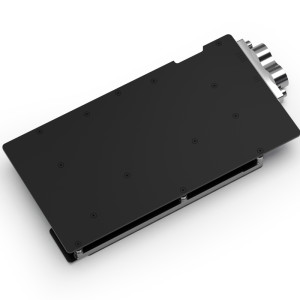

| Backplate Material | Aluminium (AlMg0.7Si) |
| Terminal Material | Brass (CuZn39Pb3) |
| Threads | 2x G 1/4 |
| Connection Thread Material | Brass (CuZn39Pb3) |
| Maximum Torque G1/4 Thread | 1.00 Nm |
| Maximum Torque M2 Thread | 0.13 Nm |
| Maximum Torque M3 Thread | 0.48 Nm |
| Maximum Torque M4 Thread | 1.12 Nm |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Maximum Tested Pressure | 4.00 bar |
| Recommended Working Pressure | 0.00 – 2.00 bar |
| Cooling Technology | Jet engine |
| Thermal Pad Specifications | |
| Thermal Conductivity | 7 W/mK |
| Hardness (ASTM 2240) | 35 Shore 00 |
| Thermal Paste Specifications | |
| Volatilization Rate (24H@200°C) | Less than 0.5% |
| Density | 3.2 g/cc (Test method ASTM D792) |
| Viscosity | 150~200*10³ mPa.s (Test method ASTM D2196) |
| Continuous Operating Temperature | -40°C to 120°C |
| Breakdown Voltage | 250 V/mil (Test method ASTM D149) |
| Thermal Impedance | 0.1 +/- 0.01 °C in 2/W (Test method ASTM D5470) |
| Maximum Working Pressure | 40 psi |
| Quantity | 1g |
| Color | Gray |
