The Alphacool ES 1-Slot GPU Water Block for the RTX Pro 6000 Blackwell Workstation Edition has been specifically developed for professional use in performance-optimized server and workstation environments. With its compact 1-slot design and carefully engineered port positioning, it meets the highest demands for cooling performance, reliability, and ease of installation – particularly in densely packed rack systems where space is limited.
The Alphacool ES 1-Slot GPU Water Block for the RTX Pro 6000 Blackwell Workstation Edition has been specifically developed for professional use in performance-optimized server and workstation environments. With its compact 1-slot design and carefully engineered port positioning, it meets the highest demands for cooling performance, reliability, and ease of installation – particularly in densely ...
The Alphacool ES 1-Slot GPU Water Block for the RTX Pro 6000 Blackwell Workstation Edition has been specifically developed for professional use in performance-optimized server and workstation environments. With its compact 1-slot design and carefully engineered port positioning, it meets the highest demands for cooling performance, reliability, and ease of installation – particularly in densely ...
The Alphacool ES 1-Slot GPU Water Block for the RTX Pro 6000 Blackwell Workstation Edition has been specifically developed for professional use in performance-optimized server and workstation environments. With its compact 1-slot design and carefully engineered port positioning, it meets the highest demands for cooling performance, reliability, and ease of installation – particularly in densely packed rack systems where space is limited.

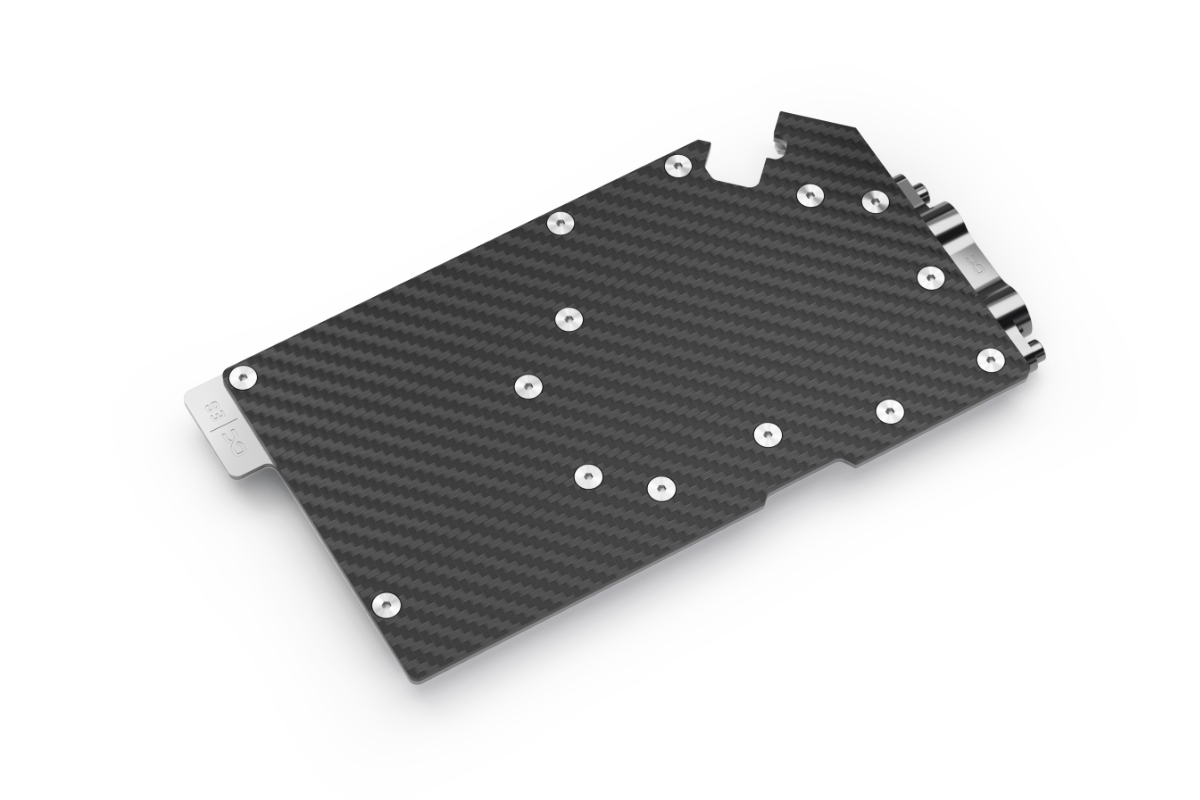

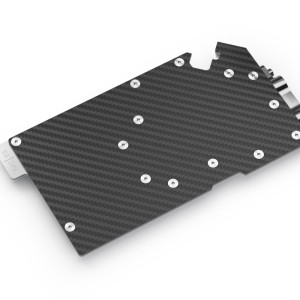

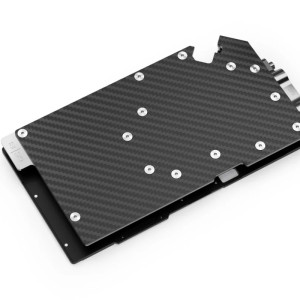

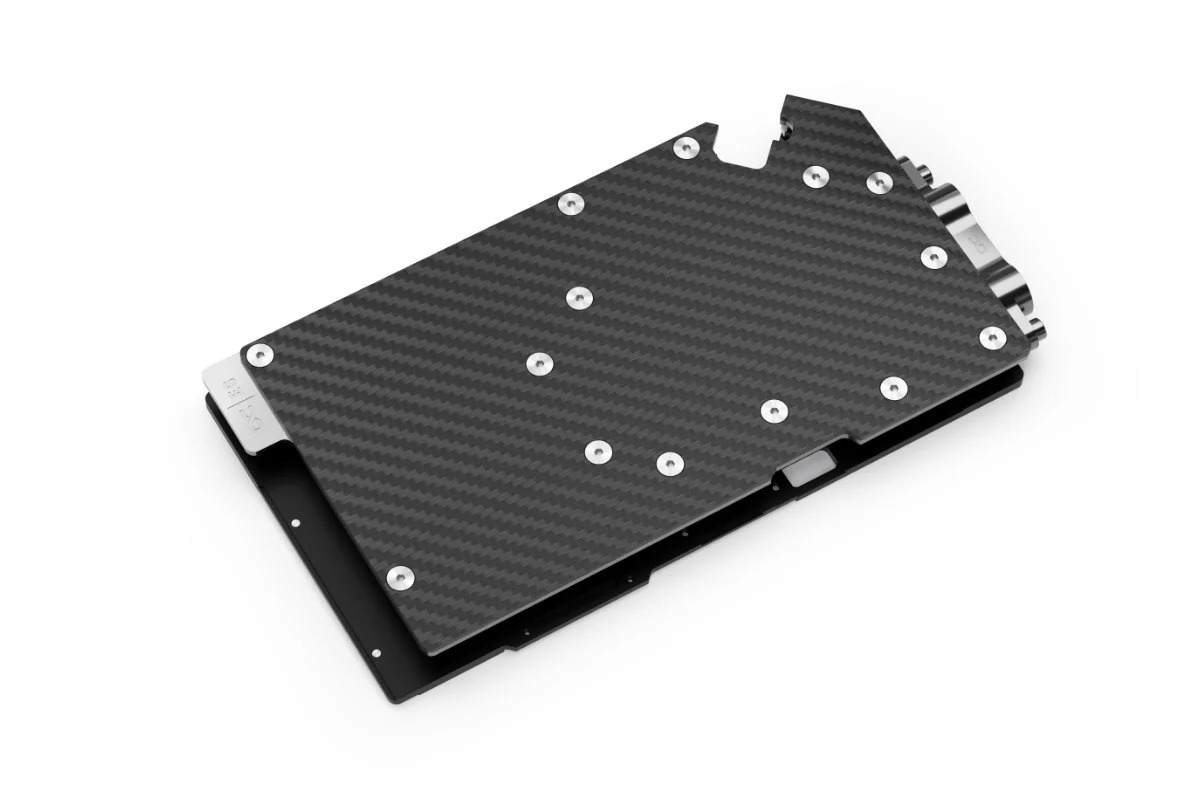

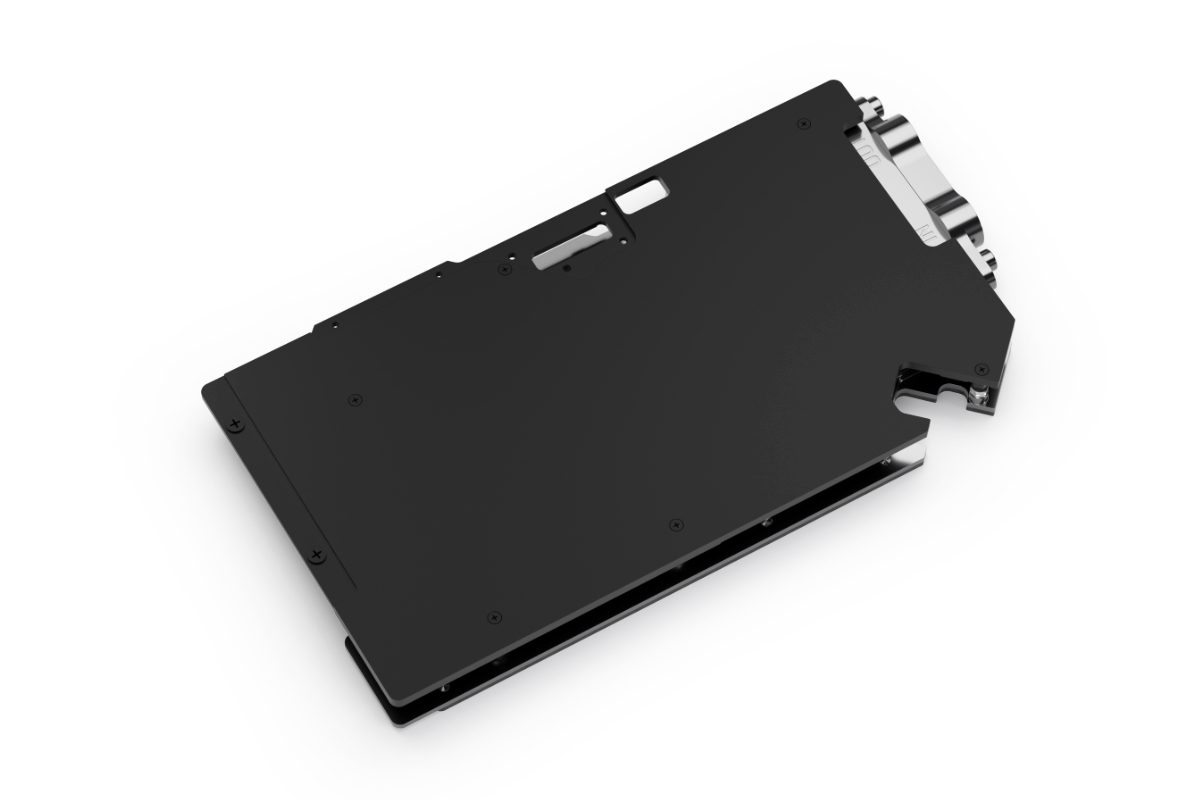

The top of the water block is made from lightweight, durable carbon fiber. This significantly reduces the overall weight of the cooler compared to conventional solutions. At the same time, the matte carbon finish provides a subtle, premium appearance that combines functionality with an elegant design. The cooling block itself is made entirely of chrome-plated copper. The chrome plating is considerably harder and more durable than conventional nickel plating and provides reliable protection against corrosion, scratches, and mechanical wear—making it ideal for long-term 24/7 operation.

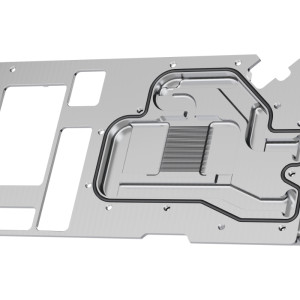

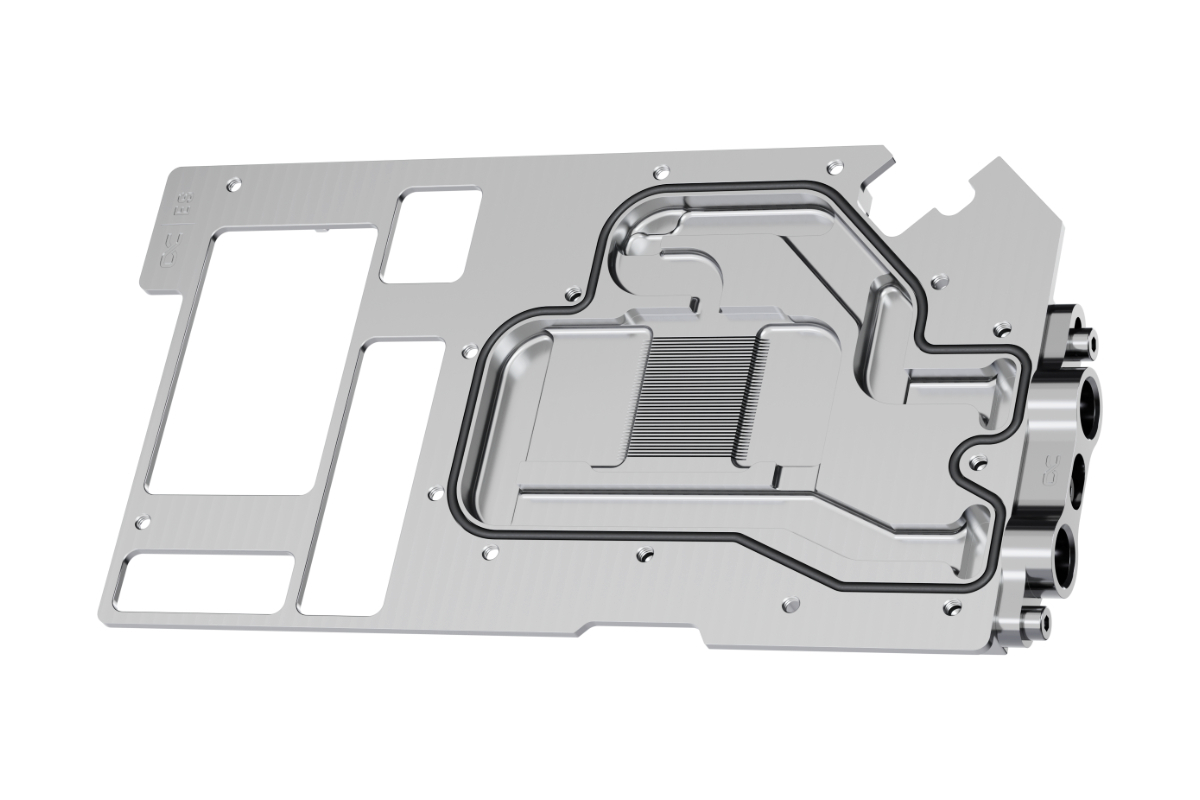

The inlet and outlet ports are positioned on the rear of the cooler to save space. This port layout simplifies tubing installation and integration into existing cooling loops, even in highly compact server chassis. An optimized cooling channel structure ensures particularly efficient heat dissipation from the GPU, VRAM, and voltage regulators. Targeted internal channel routing provides an even flow of coolant across all relevant components.

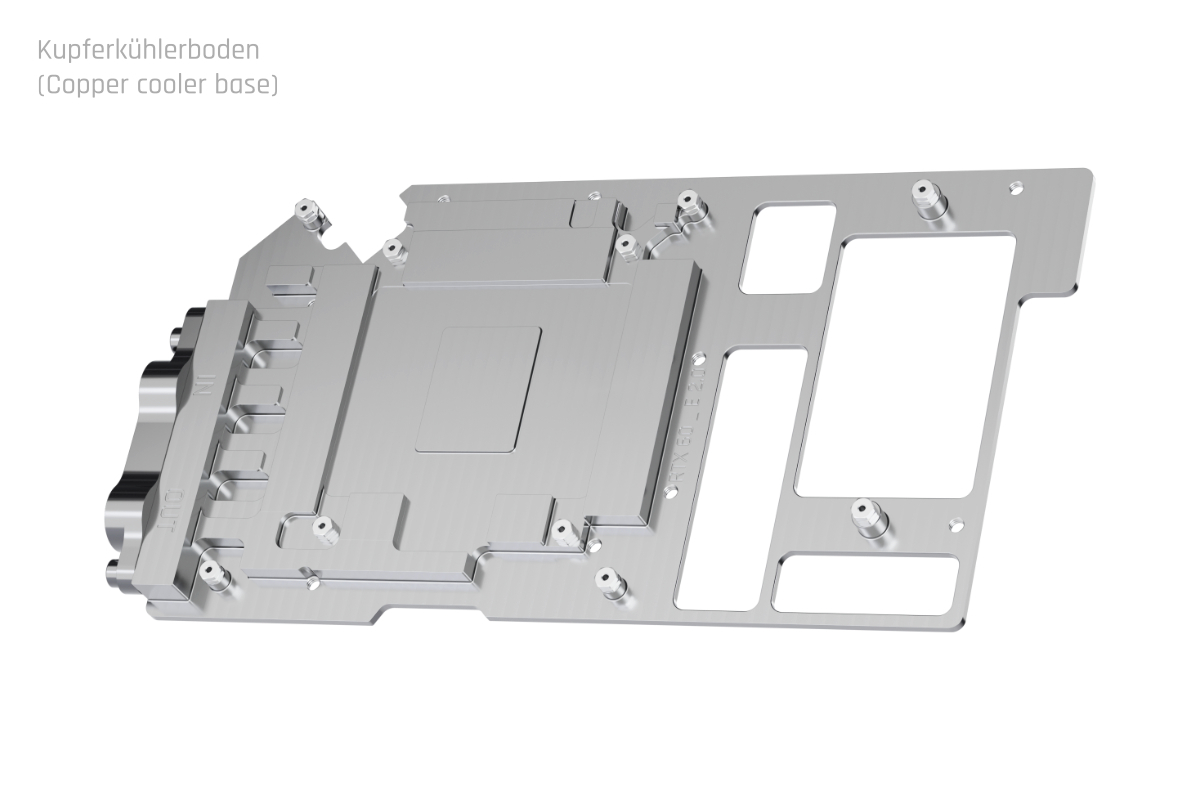

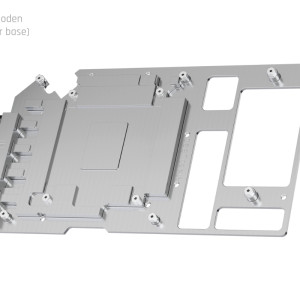

The solid copper base ensures optimal heat absorption and transfer. Its robust chrome plating prevents flaking or damage under thermal stress.
The Alphacool ES 1-Slot GPU Water Block for the NVIDIA RTX Pro 6000 Blackwell Workstation Edition is an ideal solution for enterprise applications where performance, reliability, and efficient use of space are key priorities.
Compatibility:
– Nvidia RTX PRO 6000 Blackwell Workstation-Edition, 96 GB GDDR7
| Technical Data | |
|---|---|
| Dimensions (L x W x H) | 231.10 x 121.82 x 19.90 mm |
| Slot Size | 1 |
| Cooler Material | Chrome-plated copper (Cu-HCP) |
| Cover Material | Aluminium (AlMg0,7Si) |
| Terminal Material | Brass (CuZn39Pb3) |
| Threads | 2 x G 1/4 |
| Connection Thread Material | Brass (CuZn39Pb3) |
| Maximum Torque G1/4 Thread | 1.00 Nm |
| Maximum Torque M2 Thread | 0.13 Nm |
| Maximum Torque M2.5 Thread | 0.27 Nm |
| Maximum Torque M4 Thread | 1.12 Nm |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Maximum Tested Pressure | 4.00 bar |
| Recommended Working Pressure | 0.00 – 2.00 bar |
| Thickness of Cooling Fins | 0.40 mm |
| Distance Between Cooling Fins | 0.40 mm |
| Cooling Technology | Jet engine |
| Thermal Pads | |
| Thermal Conductivity | 7 W/mK |
| Thermal Pads Hardness ASTM 2240 | 35 Shore 00 |
| Thermal Paste | |
| Volatilization Rate (24H@200°C) | Less than 0.5% |
| Density | 3.2 g/cc (Test method ASTM D792) |
| Viscosity | 150~200*10³ mPa.s (Test method ASTM D2196) |
| Continuous Using Temperature | -40 °C to 120 °C |
| Breakdown Voltage | 250 V/mil (Test method ASTM D149) |
| Thermal Impedance | 0.1 +/- 0.01 °C in 2/W (Test method ASTM D5470) |
| Max. Working Pressure | 40 psi |
| Quantity | 1 g |
| Color | Gray |
