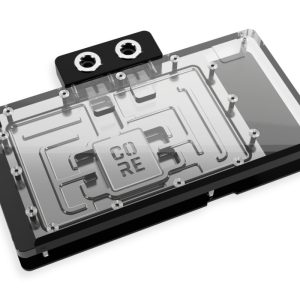

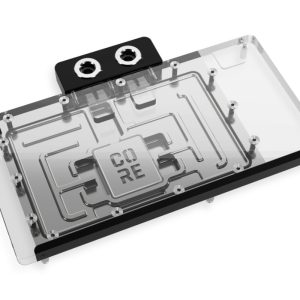

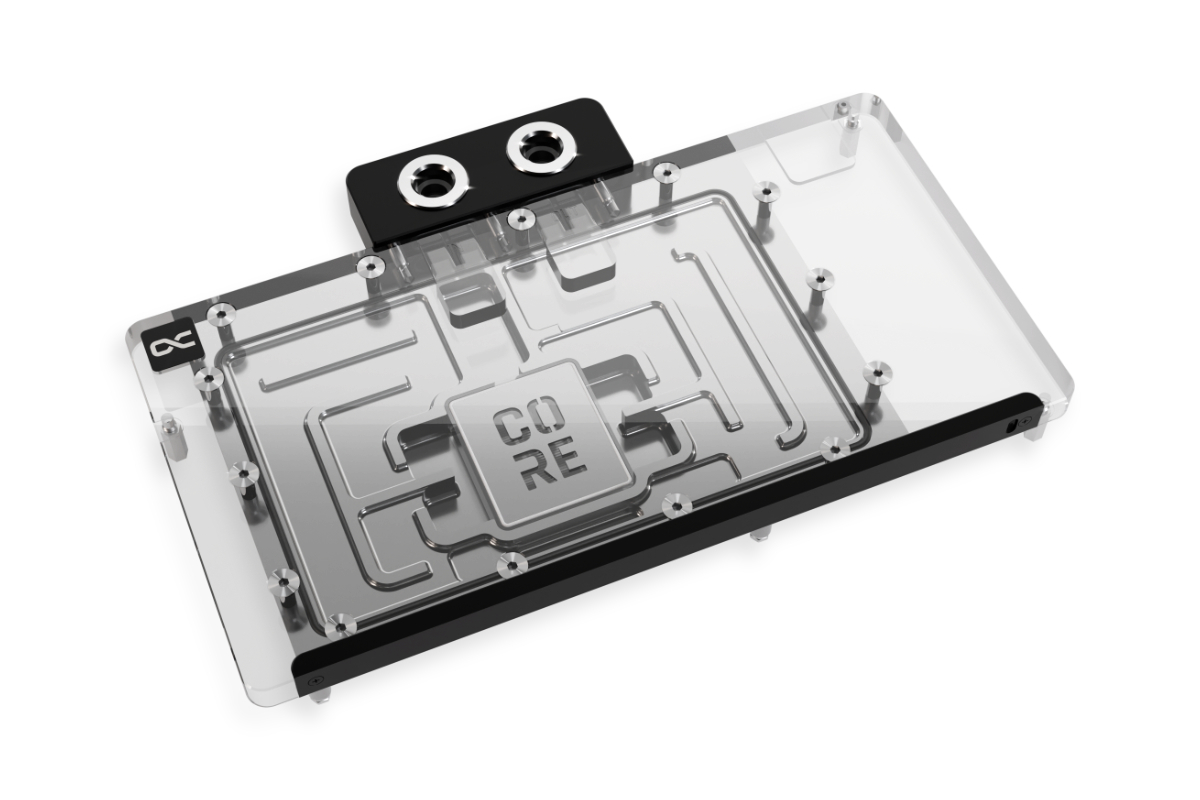

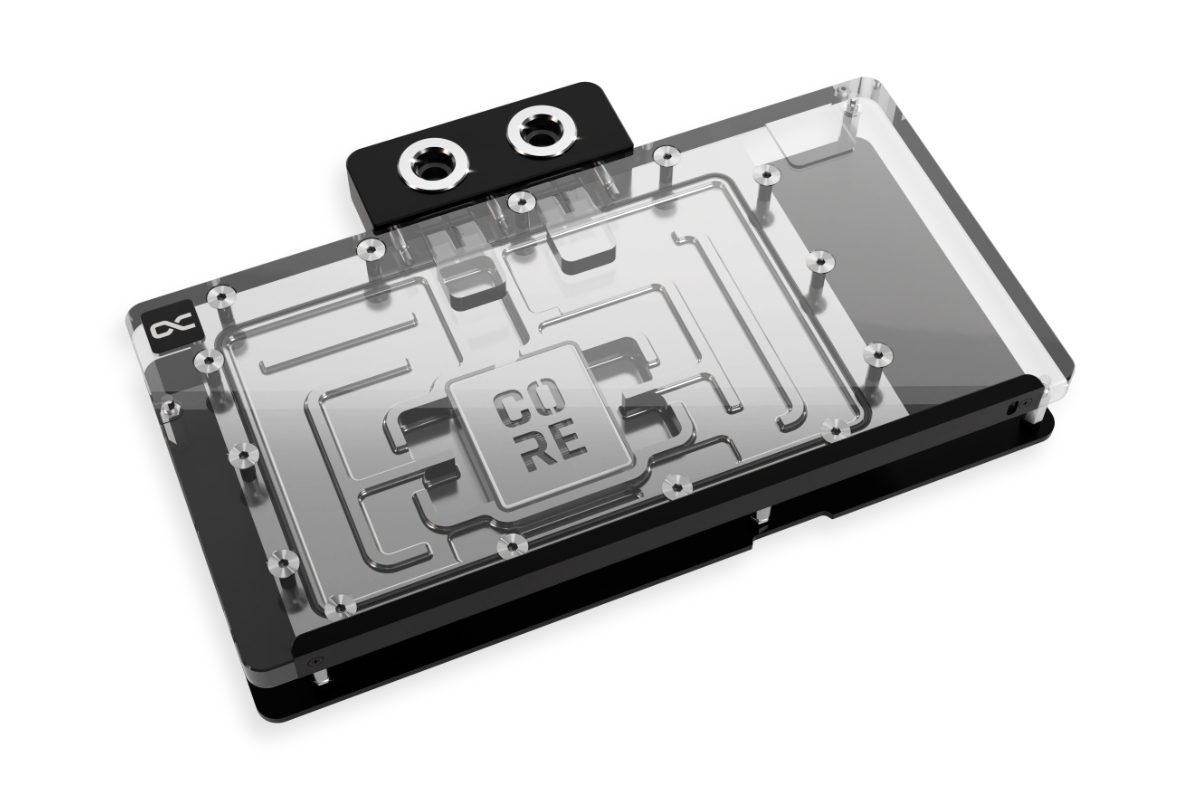

Alphacool Core Geforce RTX 5080 Solid + AMP with Backplate - B-Grade
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Missing Ther...
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Missing Ther...
Earn 159 Points
We price match UK retailers. Try It Now!
- SKU: BG-X6FL-237
- MPN: 14733
- EAN: 4250197147330
- Warranty: 3 Months
Details
This item has been inspected and is fully functional. B-Grade items may show signs of previous handling.
Item opened but unused
Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

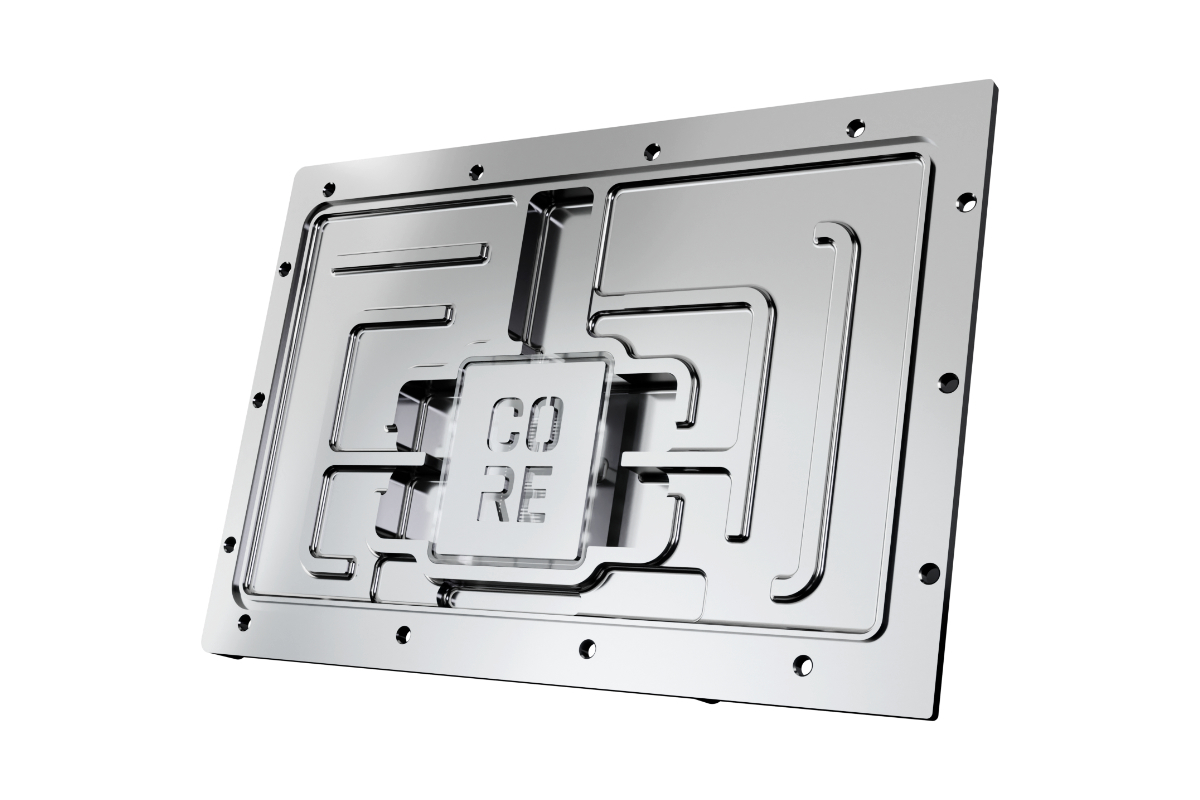

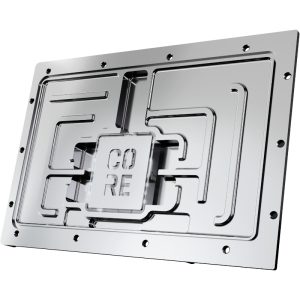

At the heart of the cooler is a copper block, precisely milled from a single piece and complemented by a precisely crafted brass terminal with a nylon cover. A chrome finish enhances the copper coolers durability and provides a smoother, more radiant surface than traditional nickel plating.

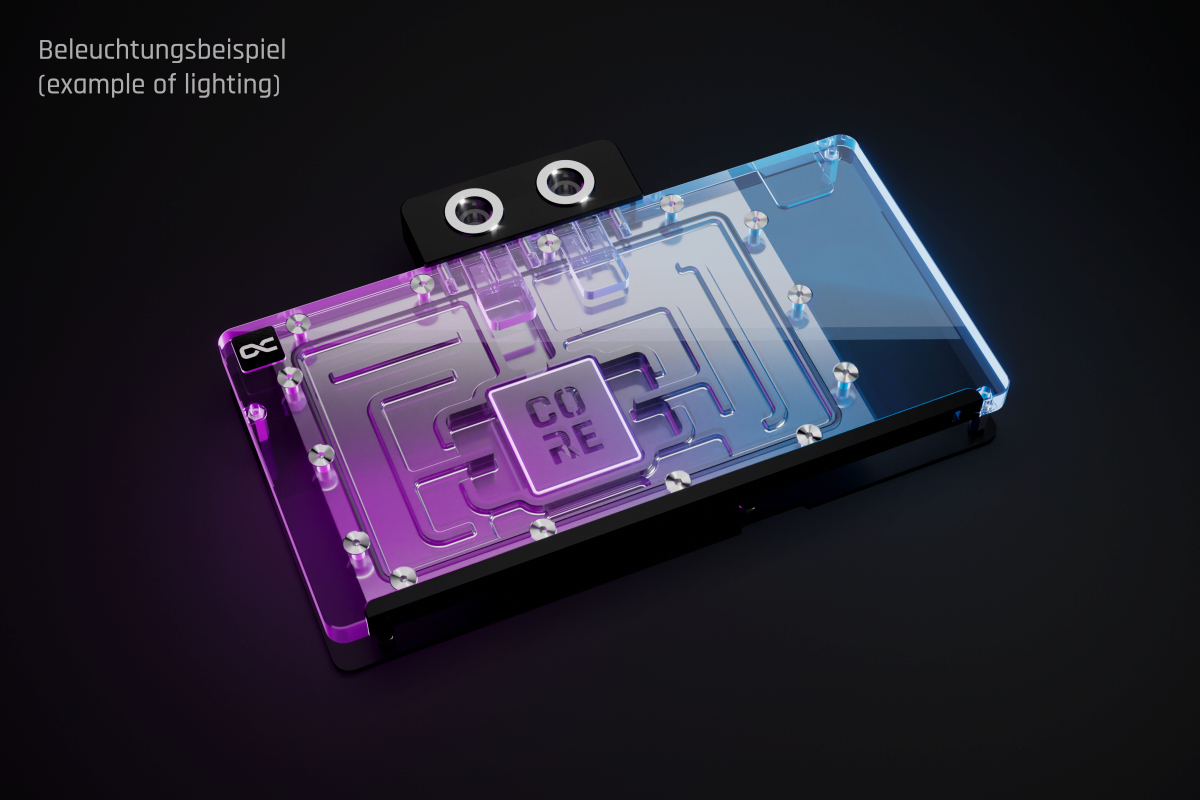

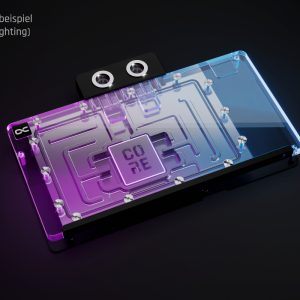

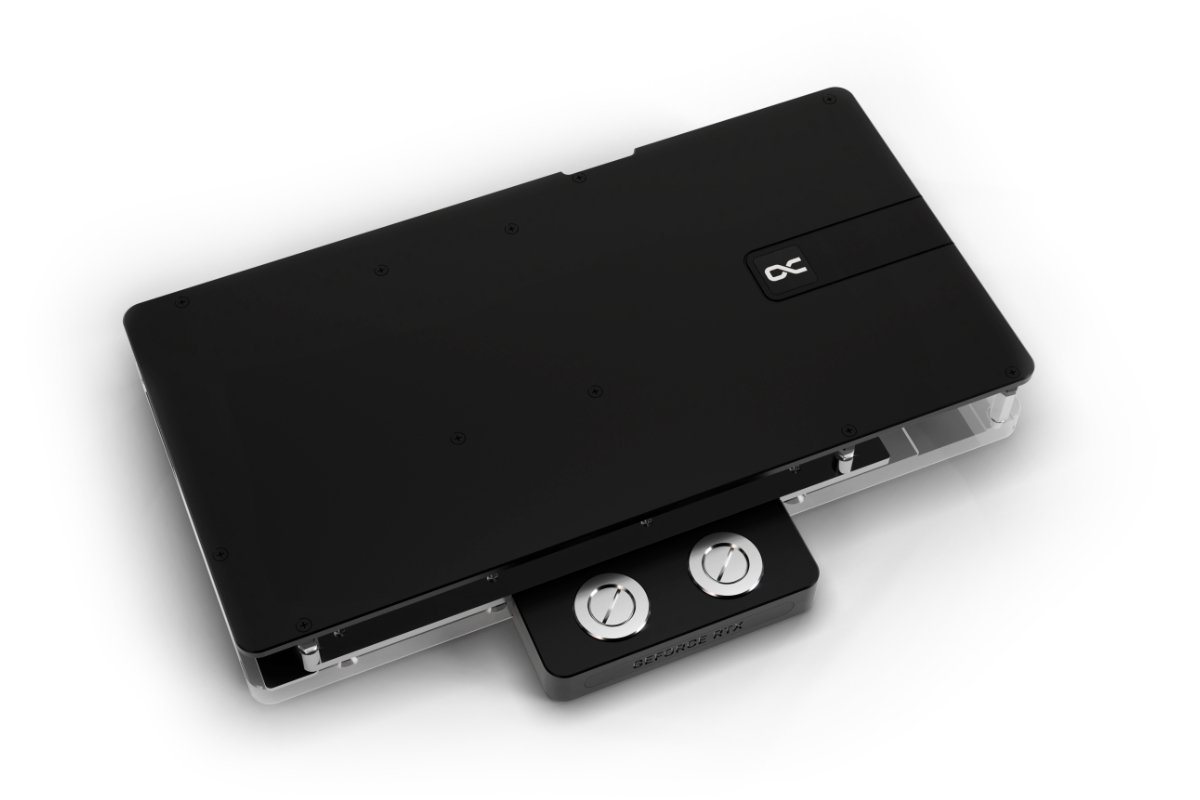

The visual design of the GPU water cooler has been slightly modified. A new highlight is the Core emblem placed above the jetplate, which emphasizes its affiliation with the Core series and visually enhances the design. The series continues to feature high-quality brass connectors that ensure optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and uniform appearance. The acrylic, combined with aRGB lighting, allows for even and impressive illumination of the entire cooler.
The GPU water cooler has been completely overhauled technically. To optimize cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the most advanced software and verified through practical tests. These extensive tests allowed for improvements to the cooler base and jetplate, ensuring the best possible cooling performance for the new Nvidia GeForce RTX generation.
Features:
– Optimized water flow through software and practical measurements
– Massive brass threads for secure fastening
– Superior chrome plating instead of nickel plating on the copper cooler
– Core design for maximum quality and feel
Compatibility:
– Zotac Gaming GeForce RTX 5080 Solid OC
– Zotac Gaming GeForce RTX 5080 Solid
– Zotac Gaming GeForce RTX 5080 AMP Extreme Infinity
Included in the Package:
1x Core Geforce RTX 5080 Solid + AMP cooler
1x Backplate
Putty tool
ARGB Adapter
PCIe Bracket
Plug tool
Screwdriver
G1/4 Plugs
M2x10mm screw
| Waterblock – General | |
| Dimensions (L × W × H) | 235.60 × 150.57 × 34.10 mm |
| Color | Transparent |
| Max. Working Temperature | 60 °C |
| Pressure Tested | 0.8 bar |
| Waterblock – Materials | |
| Base Material | Chrome-plated copper |
| Top Material | Acrylic |
| Terminal Material | Acetal |
| Thread Material | Brass |
| Waterblock – Cooling Structure | |
| Bottom Thickness | 3.25 mm |
| Fin Thickness | 0.40 mm |
| Fin Spacing | 0.40 mm |
| Connections | |
| Threads | 4 × G1/4 |
| RGB Lighting | |
| Lighting Type | Digital aRGB |
| Number of LEDs | 9 |
| Voltage | 5V |
| Connector | 3-Pin JST |
| Backplate | |
| Dimensions (L × W × H) | 235.60 × 150.57 × 6.00 mm |
| Thickness (without spacers) | 3.00 mm |
| Material | Aluminium |
Customer Product Reviews
Overall rating
Earn
25 point when you review this product
Write a review
Select rating and write review
Related Guides
Related Products
£134.46£112.05 Inc VatEx Vat
Available
Clearance
Original price was: £190.00£158.33.£40.00£33.33Current price is: £40.00£33.33. Inc VatEx Vat
Available

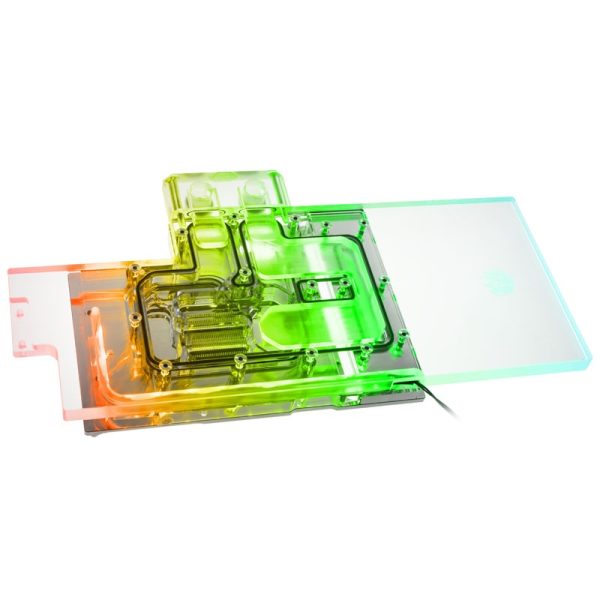

Thanks to the nickel-plated and chrome-plated copper block, efficient cooling of the GPU, memory and voltage converter is guaranteed. With its lid made of transparent acrylic glass and silver cover and the integrated DRGB LED lighting, the heat sink ensures...
- SKU: WACH-607
- MPN: BP-VG2080MGX
- EAN: 4712914776853
Clearance
- Available for Collection
Original price was: £190.00£158.33.£40.00£33.33Current price is: £40.00£33.33. Inc VatEx Vat
Available
On Sale
Original price was: £141.24£117.70.£60.00£50.00Current price is: £60.00£50.00. Inc VatEx Vat
Out of stock
EK-Quantum Vector RE RTX 3080/3090 Active Backplate D-RGB - Plexi is a cutting-edge addition to the EK Quantum Line. It is made to complement the existing EK-Quantum Vector RE RTX 3080/3090 water blocks and actively cool the backside of a reference...
- SKU: WAEK-2189
- MPN: 3831109836460
- EAN: 3831109836460
On Sale
Original price was: £141.24£117.70.£60.00£50.00Current price is: £60.00£50.00. Inc VatEx Vat
Out of stock

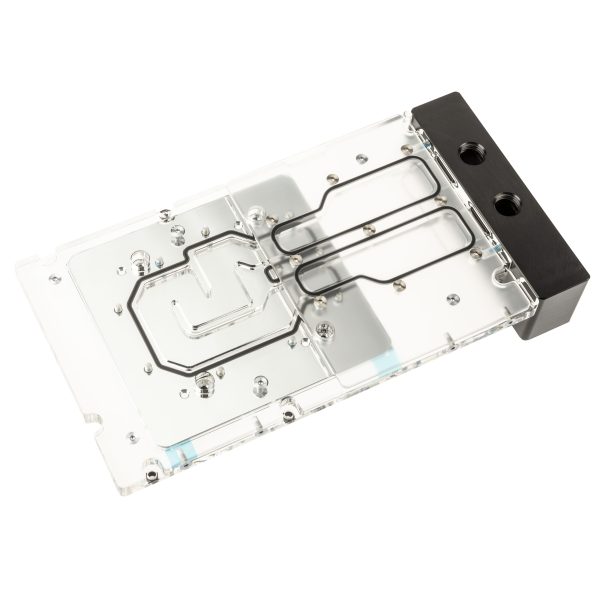

Bitspower X-TEND Water Cooling Backplate for GeForce RTX 4090 Founders Edition copper backplate directly covers the area of VRAM prone to heating.
