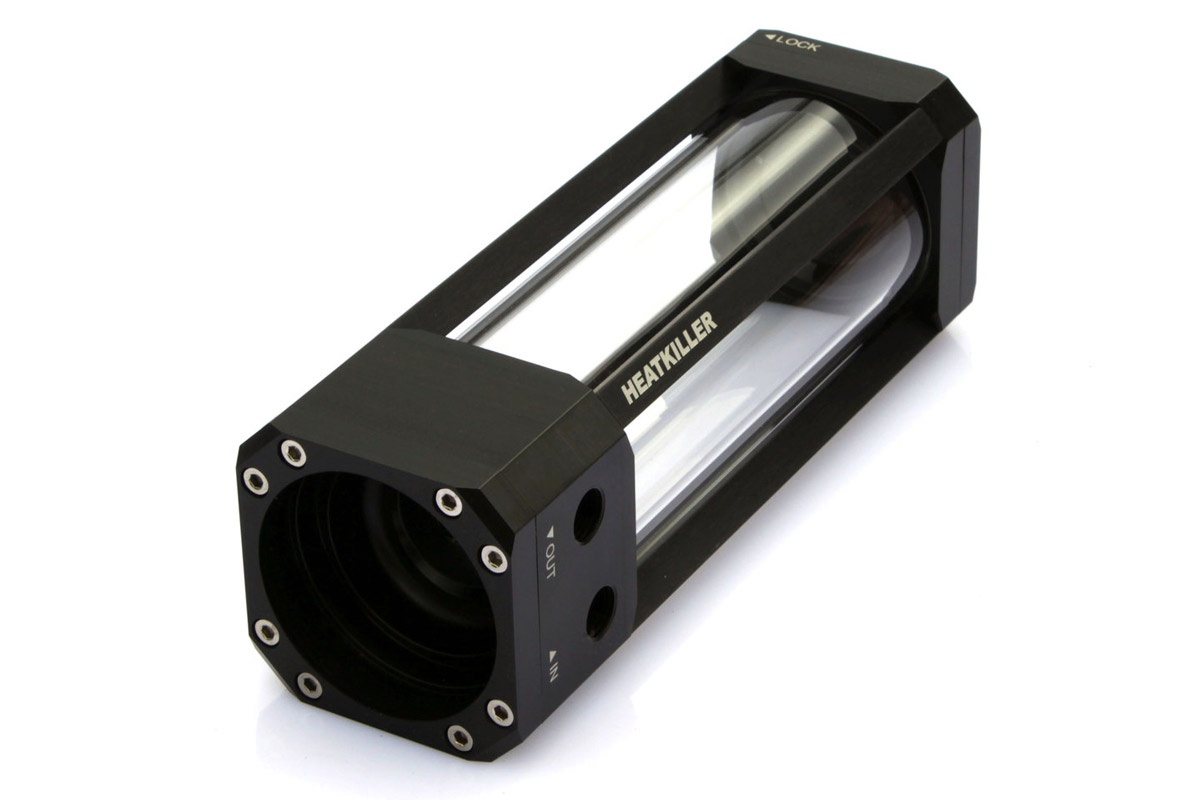

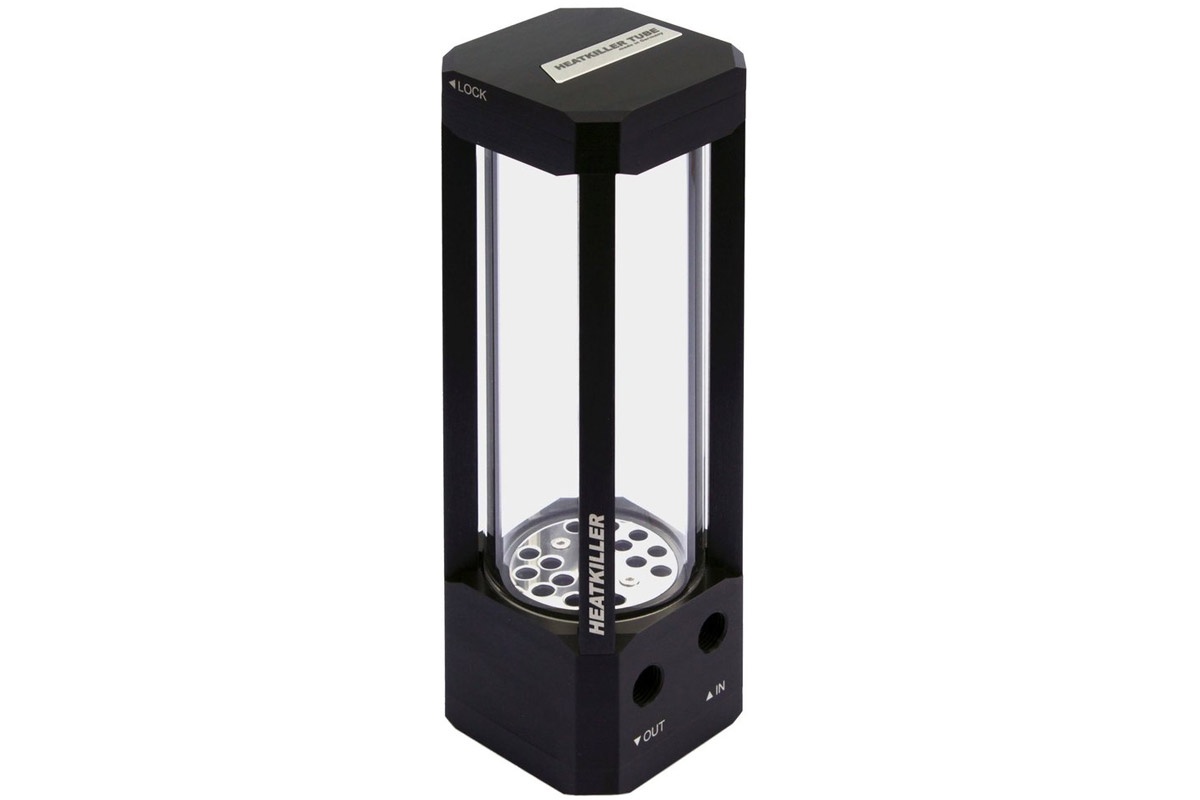

The HEATKILLER Tube Series is a modular series of high end reservoirs with a glass tube made from borosilicate glass. It has some outstanding features which are listed here.
The HEATKILLER Tube Series is a modular series of high end reservoirs with a glass tube made from borosilicate glass. It has some outstanding features which are listed here.
The HEATKILLER Tube Series is a modular series of high end reservoirs with a glass tube made from borosilicate glass. It has some outstanding features which are listed here.

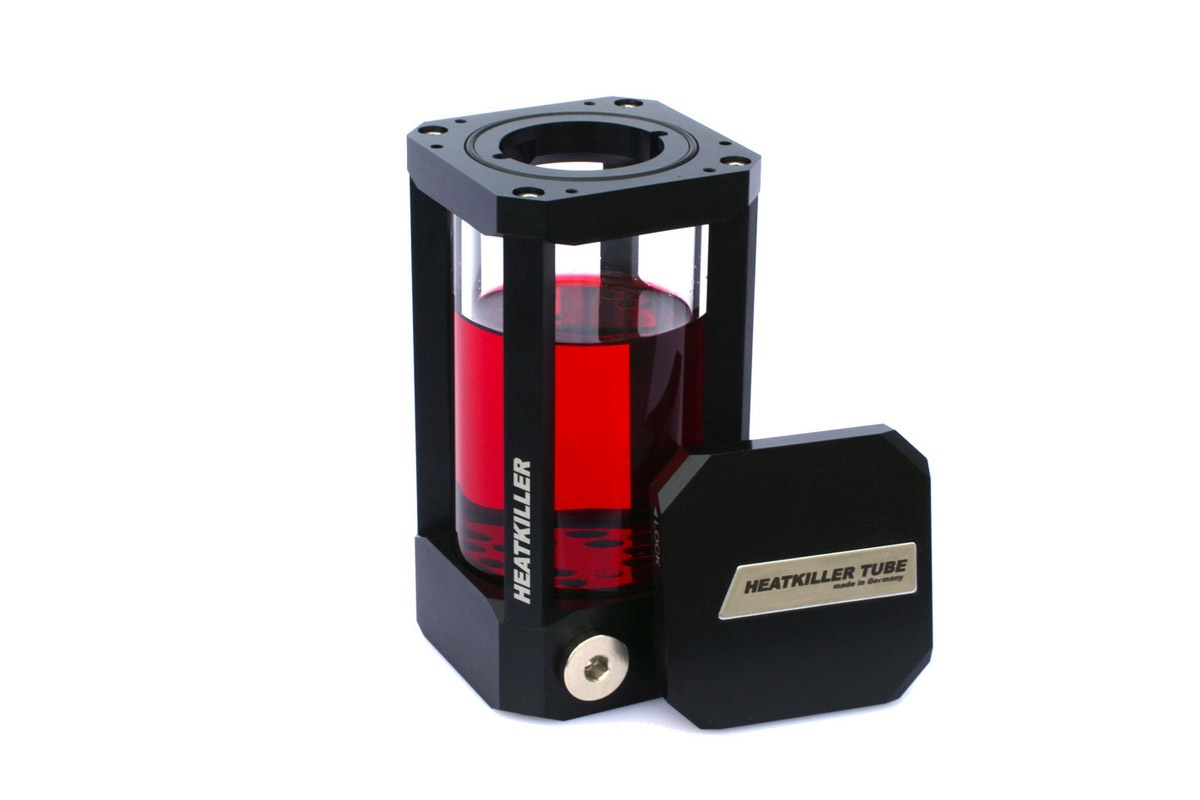

Large filling mouth
Thanks to a large filling mouth and a bayonet catch lid the HEATKILLER Tube Series reservoirs can be opened without any tools and is easy to fill. It has never been easier to re-fill a cooling medium.
Borosilicate glass tube
Borosilicate is a glass with very high chemical and thermic resistance. It is scratch-resistant and has very low heat expansion. These outstanding features make borosilicate an ideal material for reservoirs.
Three sizes
To account for different space availability in current cases, the HEATKILLER Tube Series reservoir glass tubes are available in sizes 100mm, 150mm and 200mm.
Three versions
Besides a standalone version, there are versions with direct connections for pumps. They support D5 and DDC pumps by Lowara (formerly known as Laing) and their derivatives.
Large volume
In designing the HEATKILLER Tube Series, we took great care not to waste any of the available volume. That makes the HEATKILLER Tube Series reservoirs very low maintenance, because they need fewer re-fills.
Anti- Cyclone-effect
The exclusively developed anti-cyclone-inlay which is located at the bottom of the reservoir prevents vortices that easily form in reservoirs. This reduces noise levels and makes air bleeding easier.
Streaming-optimized pump chambers
The pump adapter for D5 and DDC pumps comes with a streaming optimized pump chamber. This causes fewer vortices during use, which has a positive effect on both flow rate and air bleeding.
Made in Germany
The HEATKILLER@ Tube Series reservoirs are completely produced in Germany.
Extensive optional accessories
The HEATKILLER@ Tube Series reservoirs have various optional features, for example:
Variable Mounting systems
For optimal integration into a water cooled system we offer different mounting systems to fit your build.
…horizontal mount (pedestal)

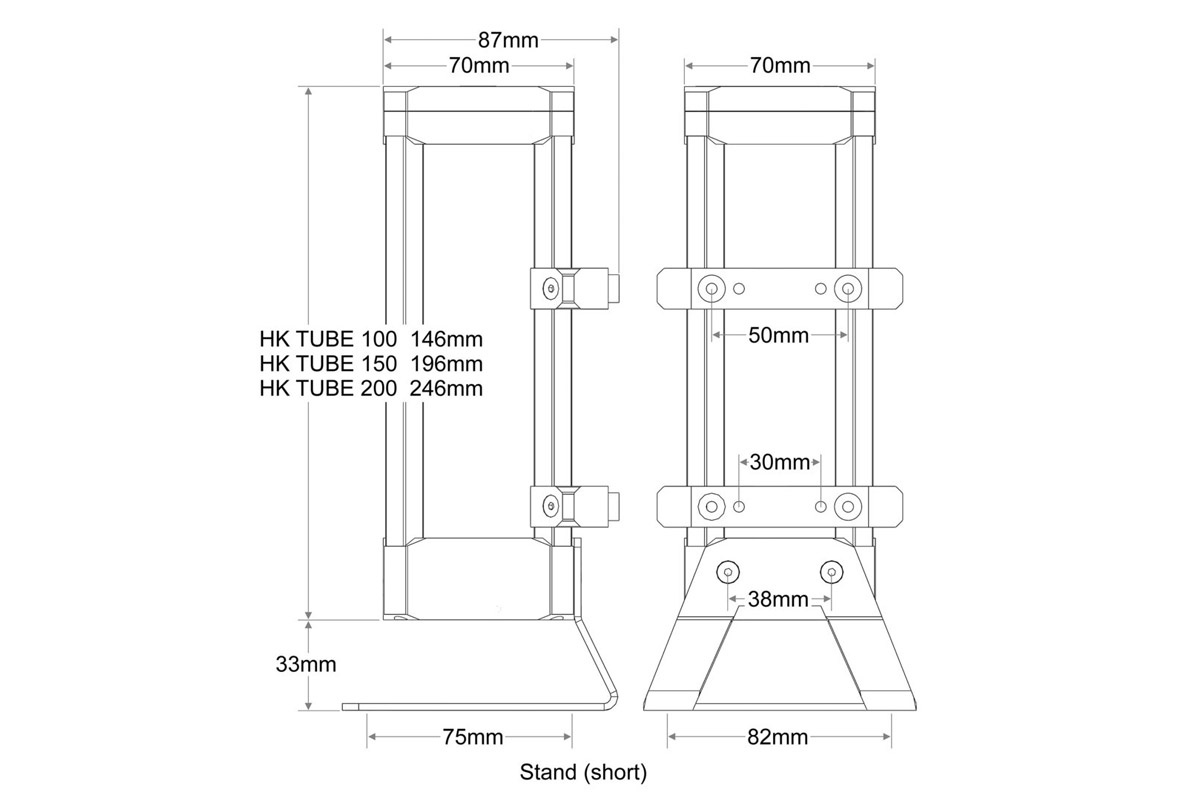

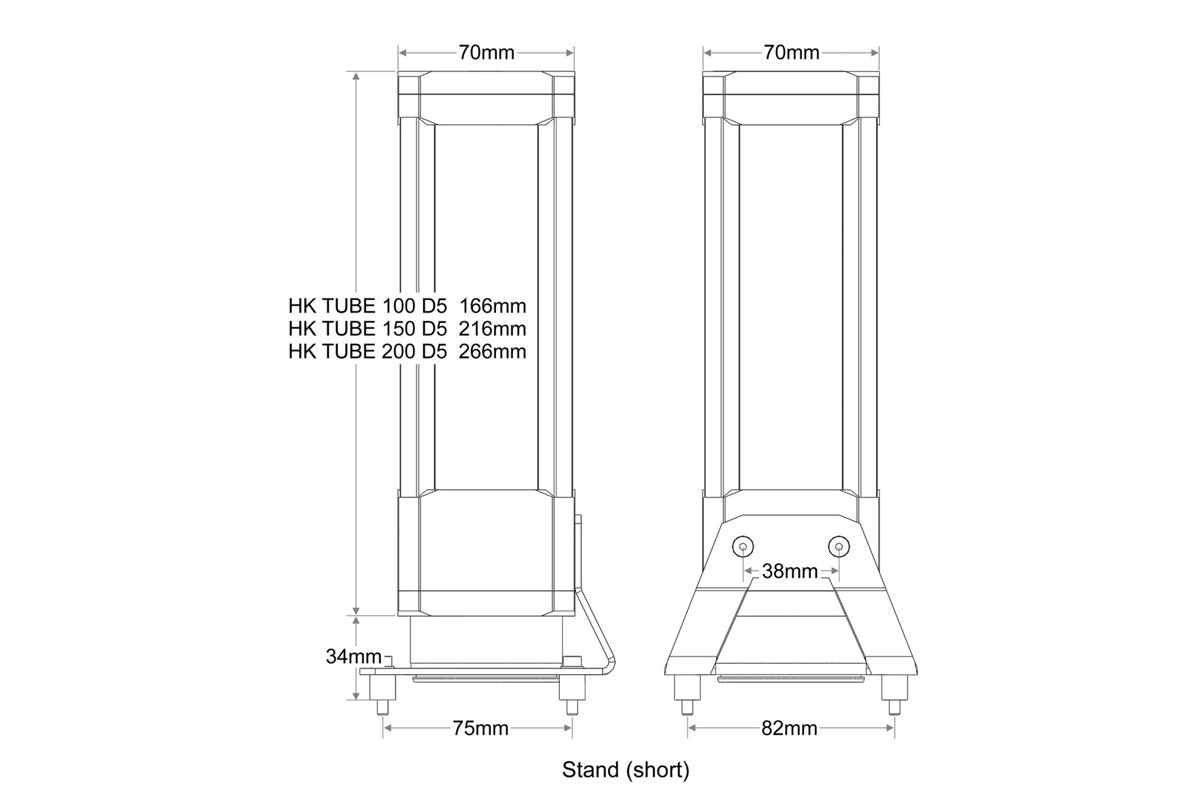

Two different height pedestals are available for mounting the HEATKILLER@ Tube Series reservoir to the case floor or free-standing.
… vertical mount
A multifunctional bracket mount offers options for vertical montage. Several adapters are available. Some can be used to attach the reservoir to 120x120mm or 140x140mm cooler slots. Others allow for a montage of the reservoir on a radiator from the MO-RA3 series.
Illumination
HEATKILLER@ Tube Series reservoirs can be set in scene with LED illumination. We offer splash-safe LED strips in various colors. The strips are hidden in the struts of the reservoir cage.
Colored struts
To customize your HEATKILLER@ Tube Series you can exchange the default struts. We offer aluminum struts in natural color or with a choice of anodized colors.
| Technical Data | |
|---|---|
| Material Cover | POM |
| Material Struts | Black anodized aluminum |
| Tube Material | Borosilicate glass |
| Material Bottom | POM |
| Material Inlay | Stainless steel |
| Dimensions (LxWxH) | 70 x 70 x 253.4 mm |
| Tube Length | 150 mm |
| Tube Diameter | 65 mm |
| Capacity | Approx. 375 ml |
| Weight | Approx. 790 g |
| Seal | NBR, VMQ |
| Connection Thread | 2x G1/4 inch (DIN ISO 228-1) |
| Scope of Delivery | |
| Included Items |
|
