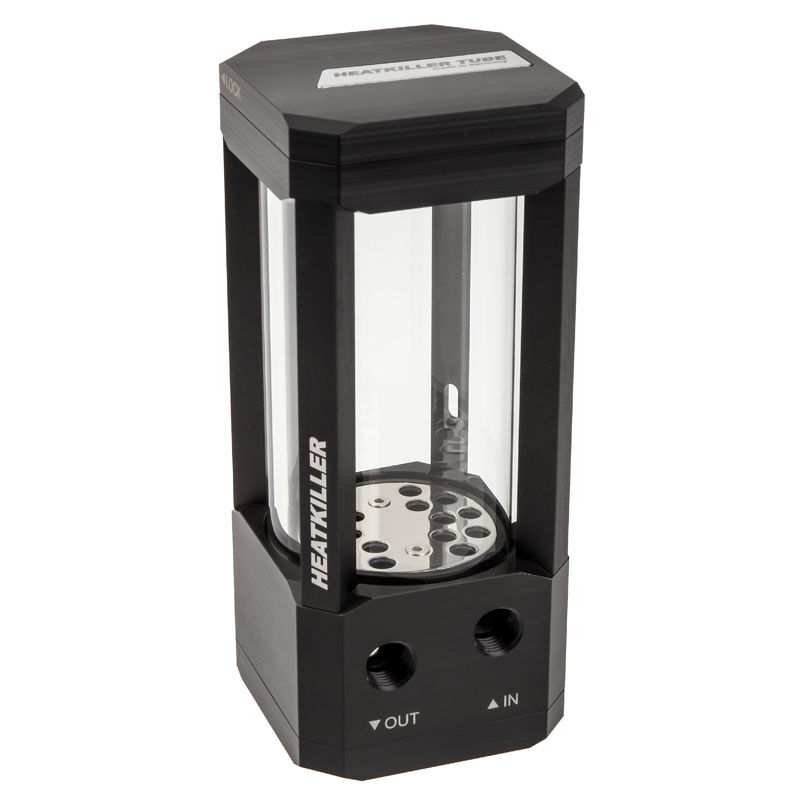

Watercool Heatkiller Tube 100 D5-attachments - black

It is made of the highest quality materials, is excellently processed and offers a simple assembly as well as an extremely easy way to fill the reservoir. A total of 250 ml of cooling liquid can be accommodated by the expansion tank, which has two G1 / 4-inch connections, is internally equipped with an anti-cyclone inlay and can be mounted directly on a D5 pump thanks to the pump adapter.
The Watercool Heatkiller Tube 100 D5 Compensation tank at a glance:

Modular expansion tank made of high quality materials
Flow-optimized pump chamber for D5 pumps
Space for 250 ml of coolant
Two G1 / 4-inch threads in the ground
Less turbulence thanks to anti-cyclone inlay
High adaptability through practical accessories
First-class workmanship and high-quality materials

The Heatkiller Tube 100 D5 Watercool expansion tank is made of a variety of materials that provide the best conditions for low-maintenance water cooling. The 250 ml tube consists of borosilicate glass which, thanks to its properties, is extremely scratch-resistant and also has a high chemical and thermal stability.

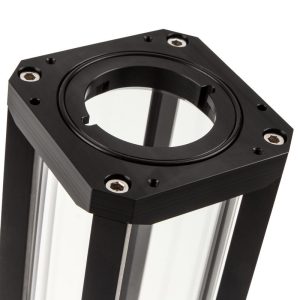

The lid and bottom are made of black POM, where the bottom is a pump adapter for D5 pumps and has a flow optimized pump chamber to reduce turbulence and to positively influence both the flow and the ventability. The side braces are made of anodised aluminum in black and can even be replaced by optional color variations. The anti-cyclone inlay integrated into the expansion tank consists of stainless steel and suppresses swirling, which can usually occur in expansion tanks. This reduces the noise level and improves the venting behavior of the compensating tank.

In order to integrate the expansion tank into a water cooling circuit, two G1 / 4-inch connections are provided in the bottom of the expansion tank to allow mounting of hoses, tubes or other accessories. Thanks to the huge filling opening in the cover of the Tube 100 AGB, which thanks to the bayonet closure can be opened very easily and absolutely without tools, the system can be filled very easily.

Technical details:
Dimensions: 70 x 70 x 203.4 mm (L x W x H)
Length of the tube: 100 mm
Diameter of tube: 65 mm
Material:
Aluminum (braces)
Borosilicate glass (reservoir)
POM (lower part / upper part)
Stainless steel (inlay)
Weight: 650 g
Color: Black
Filling volume: approx. 250 ml
Connections: 2x G1 / 4-inch
Delivery:
1x Heatkiller Tube 100 D5
1x assembly instructions
