Do you want a compact, stylish PC case with modern features and a view of your system? The Thermalright TL-M10 Vision is a Micro-ATX gaming case with a large LCD display, ARGB lighting, and versatile cooling and expansion options – designed for powerful builds in a compact format.
Do you want a compact, stylish PC case with modern features and a view of your system? The Thermalright TL-M10 Vision is a Micro-ATX gaming case with a large LCD display, ARGB lighting, and versatile cooling and expansion options – designed for powerful builds in a compact format.
Do you want a compact, stylish PC case with modern features and a view of your system? The Thermalright TL-M10 Vision is a Micro-ATX gaming case with a large LCD display, ARGB lighting, and versatile cooling and expansion options – designed for powerful builds in a compact format.
Do you want a compact, stylish PC case with modern features and a view of your system? The Thermalright TL-M10 Vision is a Micro-ATX gaming case with a large LCD display, ARGB lighting, and versatile cooling and expansion options – designed for powerful builds in a compact format.
– Micro-ATX case with a large integrated LCD display for system information or graphics
– Addressable RGB lighting and clear view through tempered glass side panel
– Supports modern I/O ports such as USB-C, USB 3.0, and audio
– Flexible cooling options with support for numerous fans and radiators
– Space for high-performance components like large graphics cards and CPU coolers

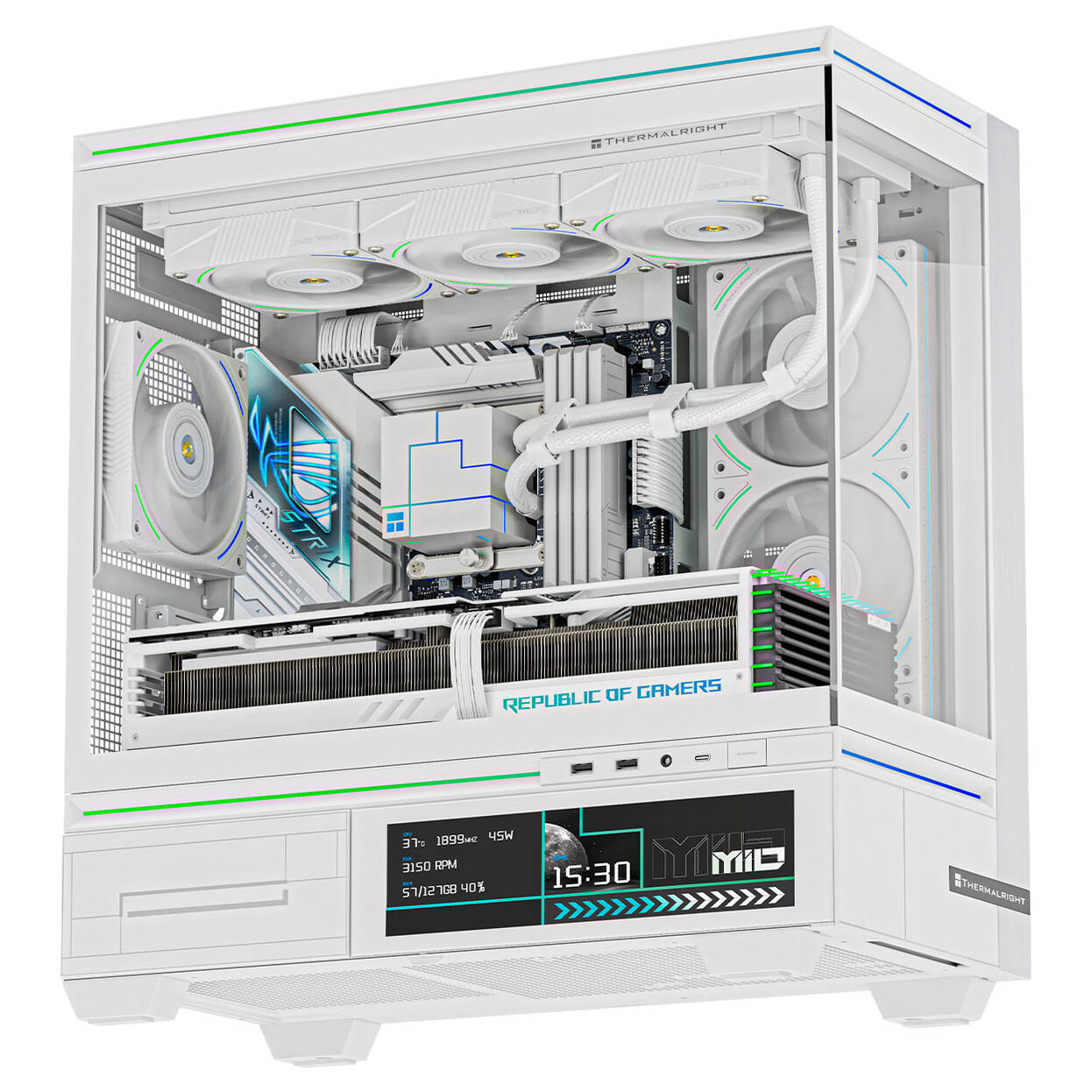

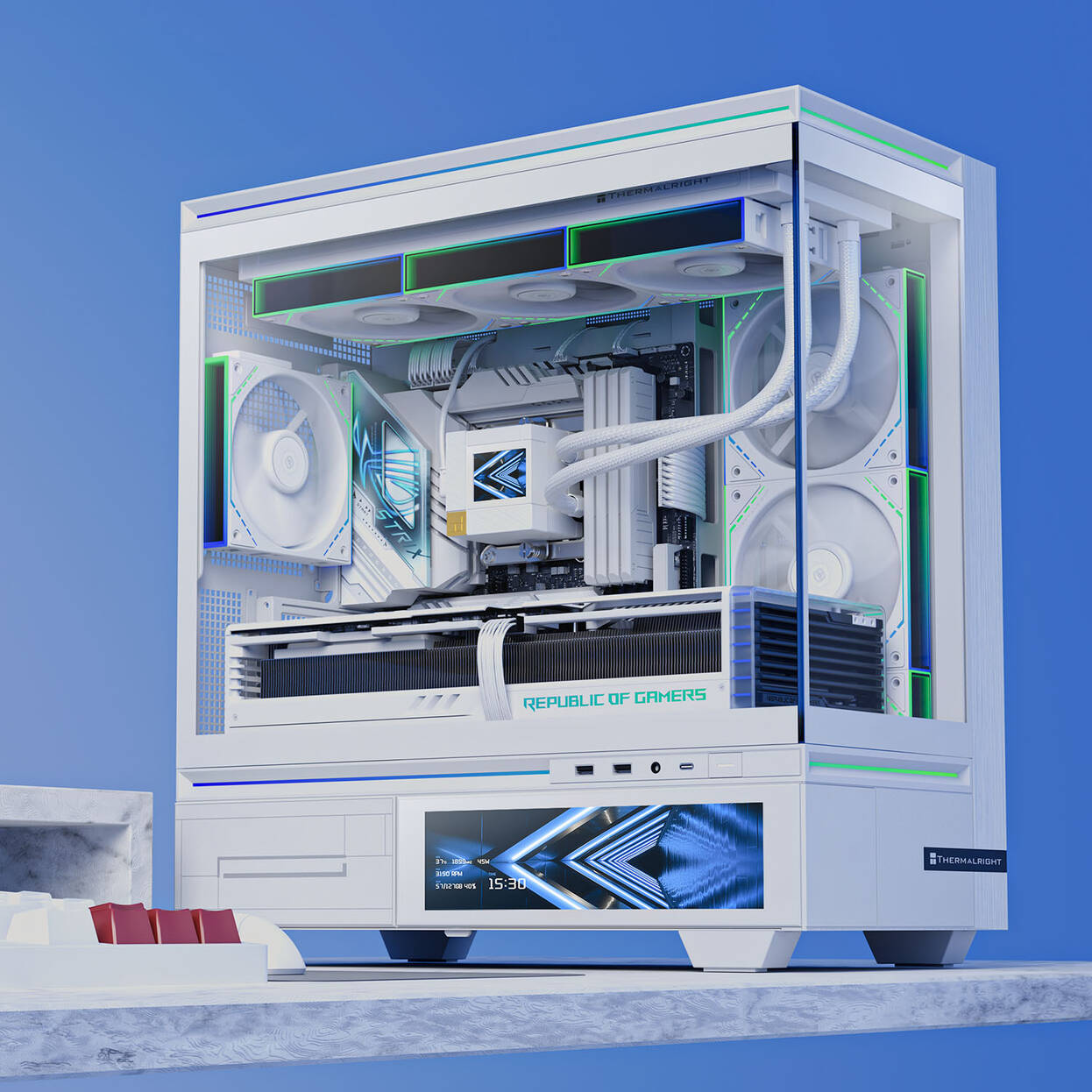

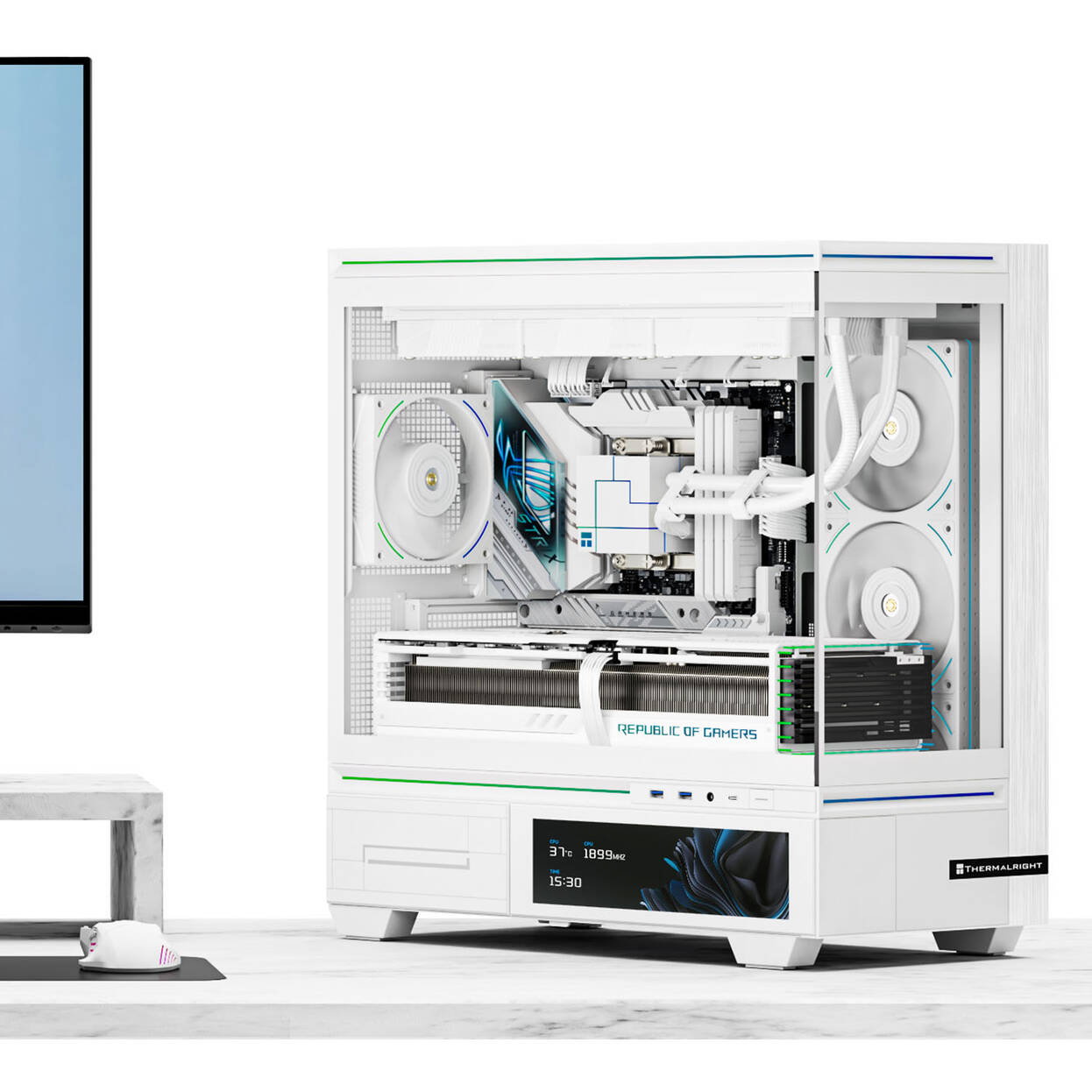

Thermalright TL-M10 Vision – Premium Micro-ATX Case with Display

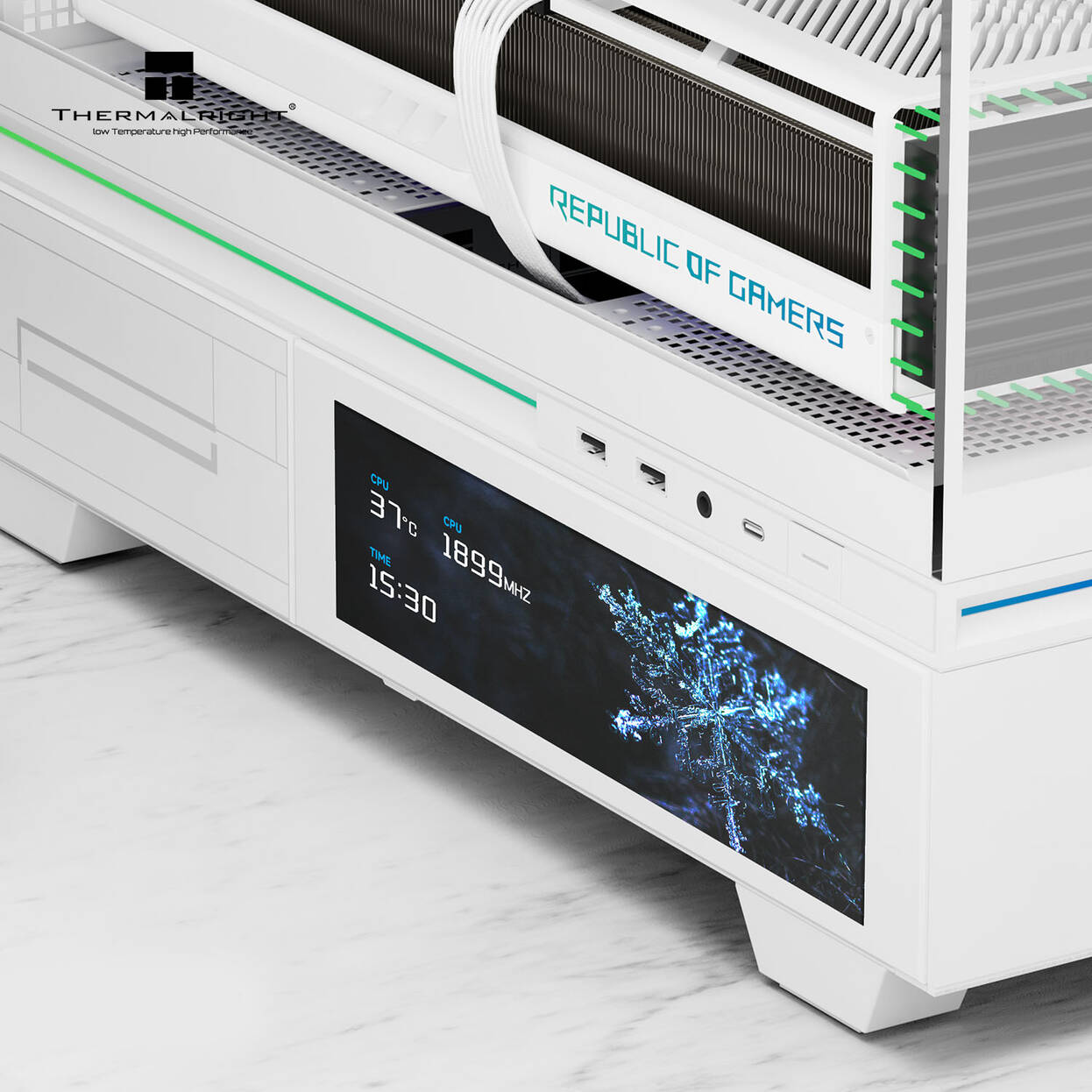

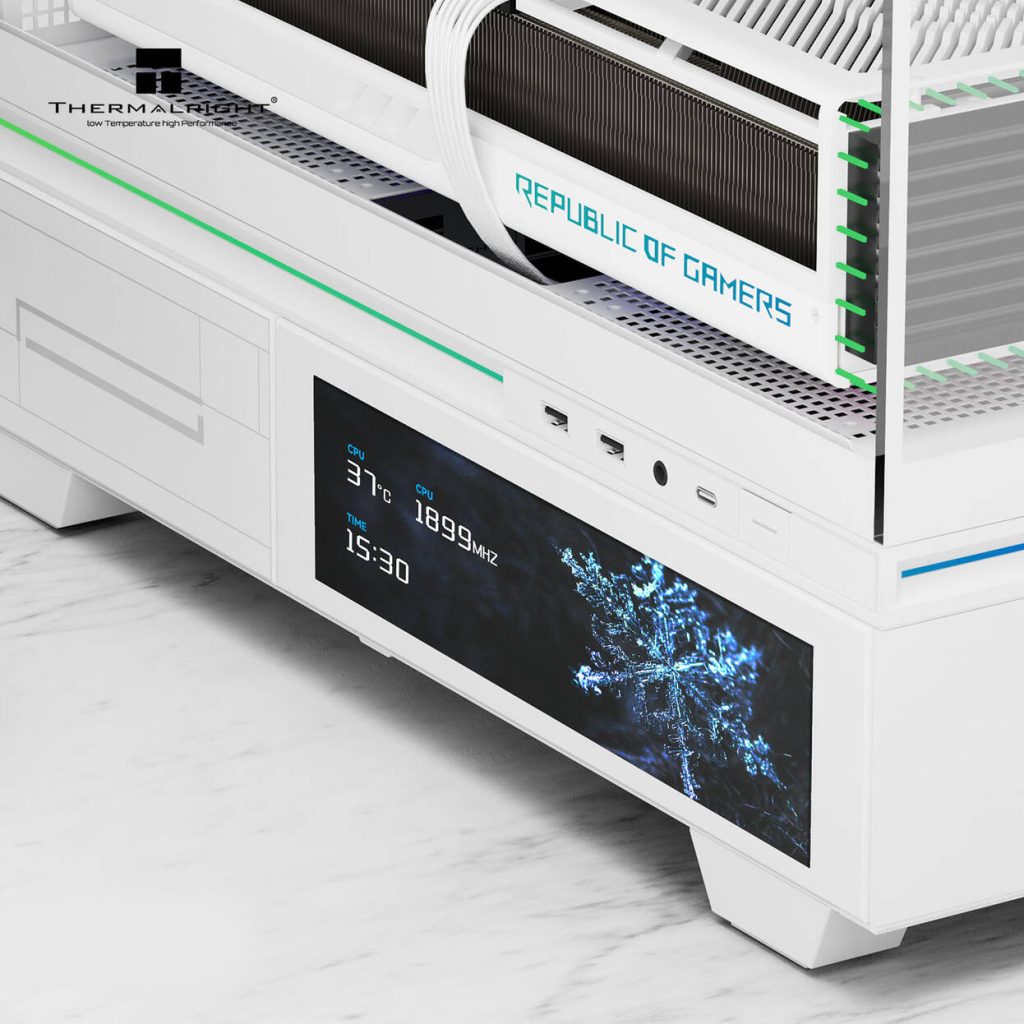

The Thermalright TL-M10 Vision was designed as a compact Micro-ATX case that combines functionality and style. In addition to the large integrated LCD display, which you can use for system information or custom graphics, the tempered glass side panel provides a direct view of your hardware.
Modern design and versatile cooling options
With addressable RGB lighting and numerous mounting points for fans and radiators, the TL-M10 Vision offers both visual highlights and a solid foundation for efficient cooling strategies. Its support for large CPU coolers and graphics cards makes it suitable for powerful gaming or workstation builds.
Component Compatibility and Front Ports
The I/O area provides modern connections such as USB-C, multiple USB 3.0 ports, and audio jacks. The interior of the case is designed to accommodate common hardware configurations in the Micro-ATX segment, including support for standard cooler and radiator sizes.
| Colour | |
|---|---|
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 476 mm |
| Width | 230 mm |
| Height | 450 mm |
| Weight | 6.3 kg |
| Case | |
| Case Type | Mid Tower |
| Motherboard Support | |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 185 mm |
| Max. GPU Length | 360 mm |
| Max. PSU Length / Depth | 160 mm |
| Display | |
| Display Included | Yes |
| Display Size in Inch | 9.16 “ |
| Power Supply | |
| PSU included | No |
| PSU Format | ATX |
| Power Supply Position | Rear bottom |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Max. Number of Fans | 10 |
| 120 mm fans | 10 |
| 140 mm fans | 2 |
| Radiator Support | |
| Max. Radiator Compatibility | 1x Triple (360 mm) |
| Drive Bays | |
| Max. 2.5 Inch Drives | 1 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| Hot swap drive bays | No |
| External Ports | |
| USB 3.1 (external) Type C | 1 |
| USB 3.0 (external) Type A | 2 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Case Features | |
| I/O position | Top |
| Side panel | With window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Bottom, Top |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Remote included | No |
| Transport System | No |
| Back Connect | |
| Back Connect | No |
| Expansion Slots | |
| Expansion slots / PCI slots | 5 |
| Features | |
| Housing Feedthrough | No |
| Connectivity | |
| Card reader | No |
| Fan Header | Fan Controller / Fan Hub: No |
| Mounting | |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | |
| Materials | ABS, SPCC (steel), Tempered Glass |
| Lighting | |
| Lighting / RGB | Yes |
| RGB Controller | No |
| RGB Type | ARGB / DRGB |
| Lighting Colour | RGB |
| Additional Contents | |
| Included fans | None |
