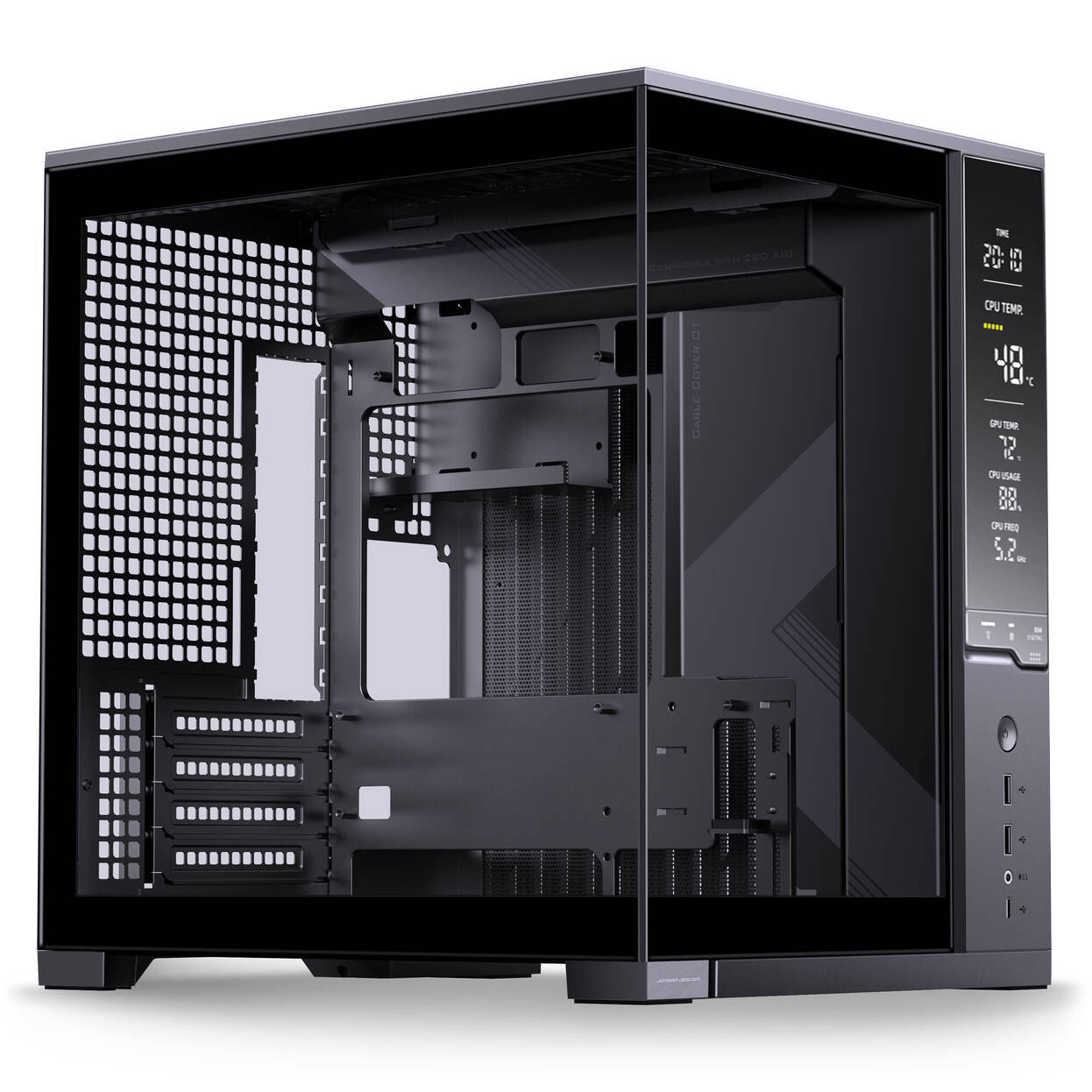

The Jonsbo D34 is a compact PC case designed for high-performance Micro-ATX and Mini-ITX PCs. An integrated display on the front shows hardware information directly on the case. The open mesh design simultaneously supports high airflow for gaming and workstation hardware.
The Jonsbo D34 is a compact PC case designed for high-performance Micro-ATX and Mini-ITX PCs. An integrated display on the front shows hardware information directly on the case. The open mesh design simultaneously supports high airflow for gaming and workstation hardware.
The Jonsbo D34 is a compact PC case designed for high-performance Micro-ATX and Mini-ITX PCs. An integrated display on the front shows hardware information directly on the case. The open mesh design simultaneously supports high airflow for gaming and workstation hardware.

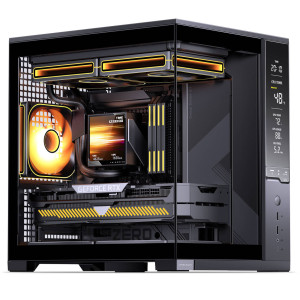

The Jonsbo D34 is a compact PC case designed for high-performance Micro-ATX and Mini-ITX PCs. An integrated display on the front shows hardware information directly on the case. The open mesh design simultaneously supports high airflow for gaming and workstation hardware.

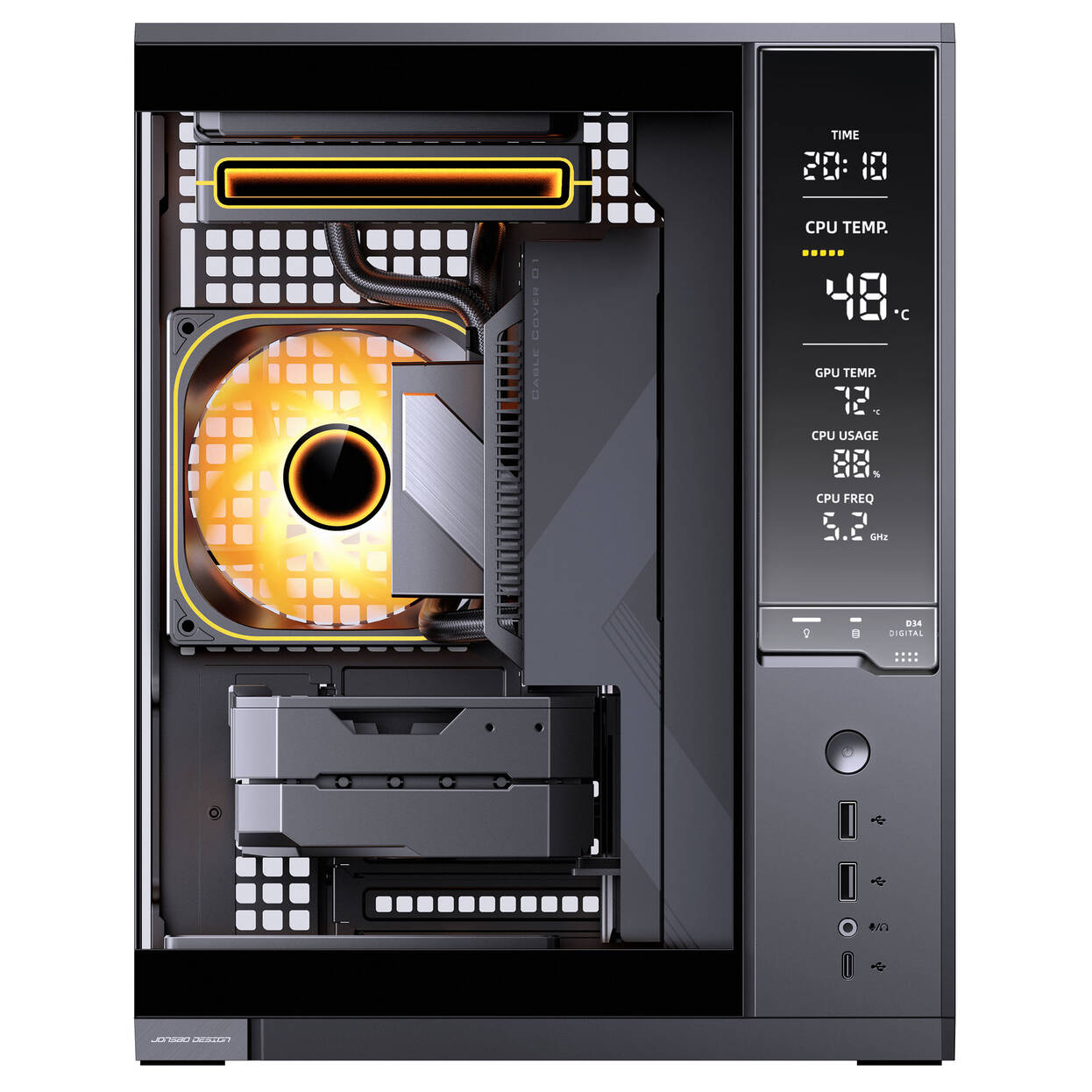

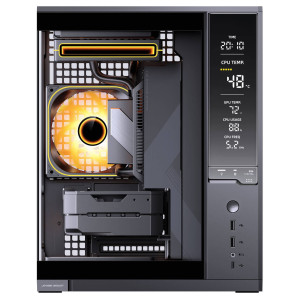

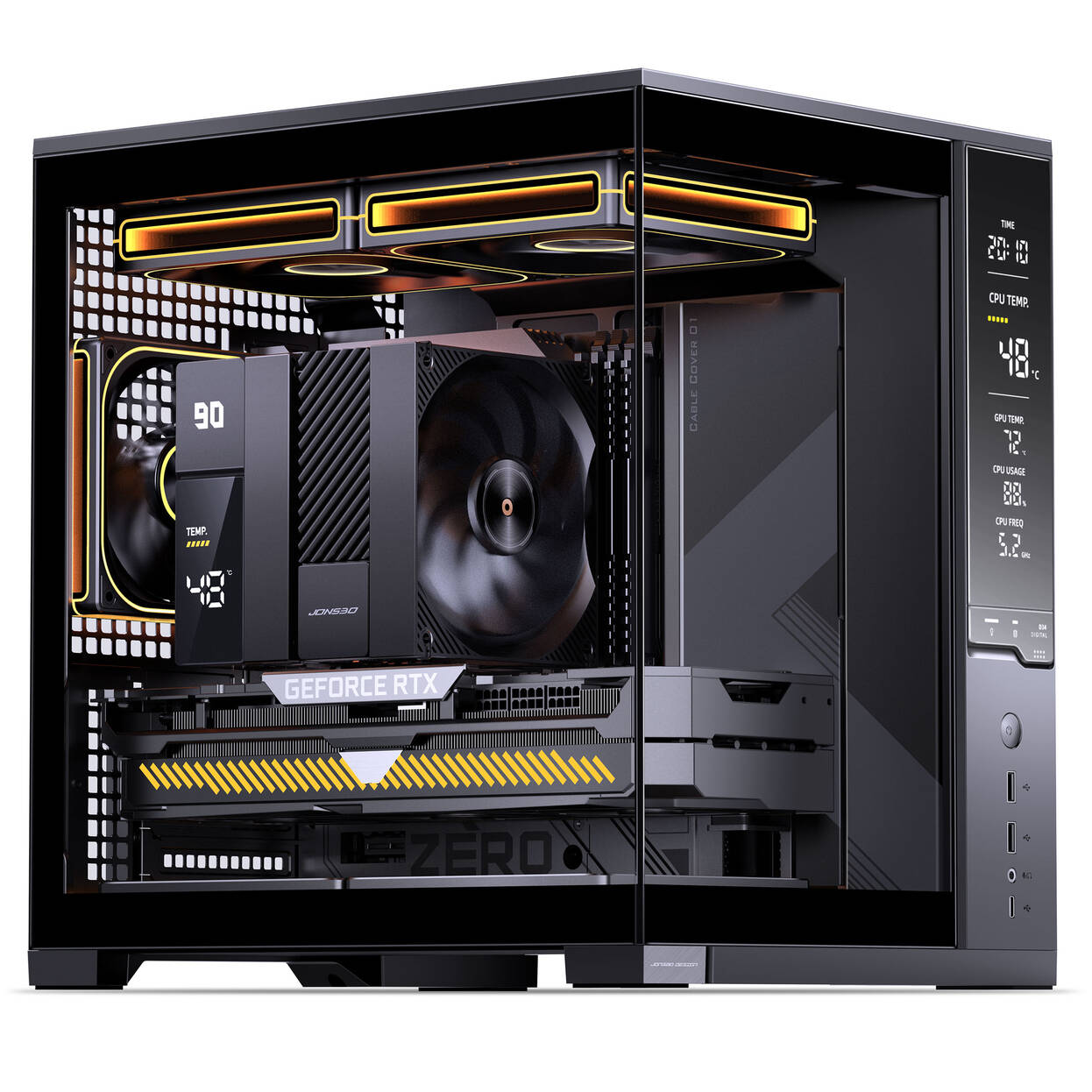

– Digital display: Shows hardware data directly on the case
– 280mm radiator: Plenty of cooling surface in a compact format
– 333 mm GPU: Space for powerful graphics cards
– Back Connect: Supports compatible mATX motherboards
– USB-C: Fast front port with USB 3.2 Gen 2
– Compact design with high airflow

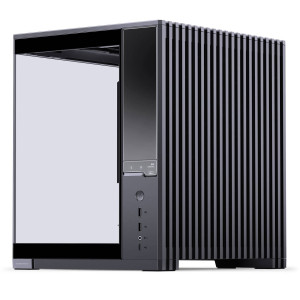

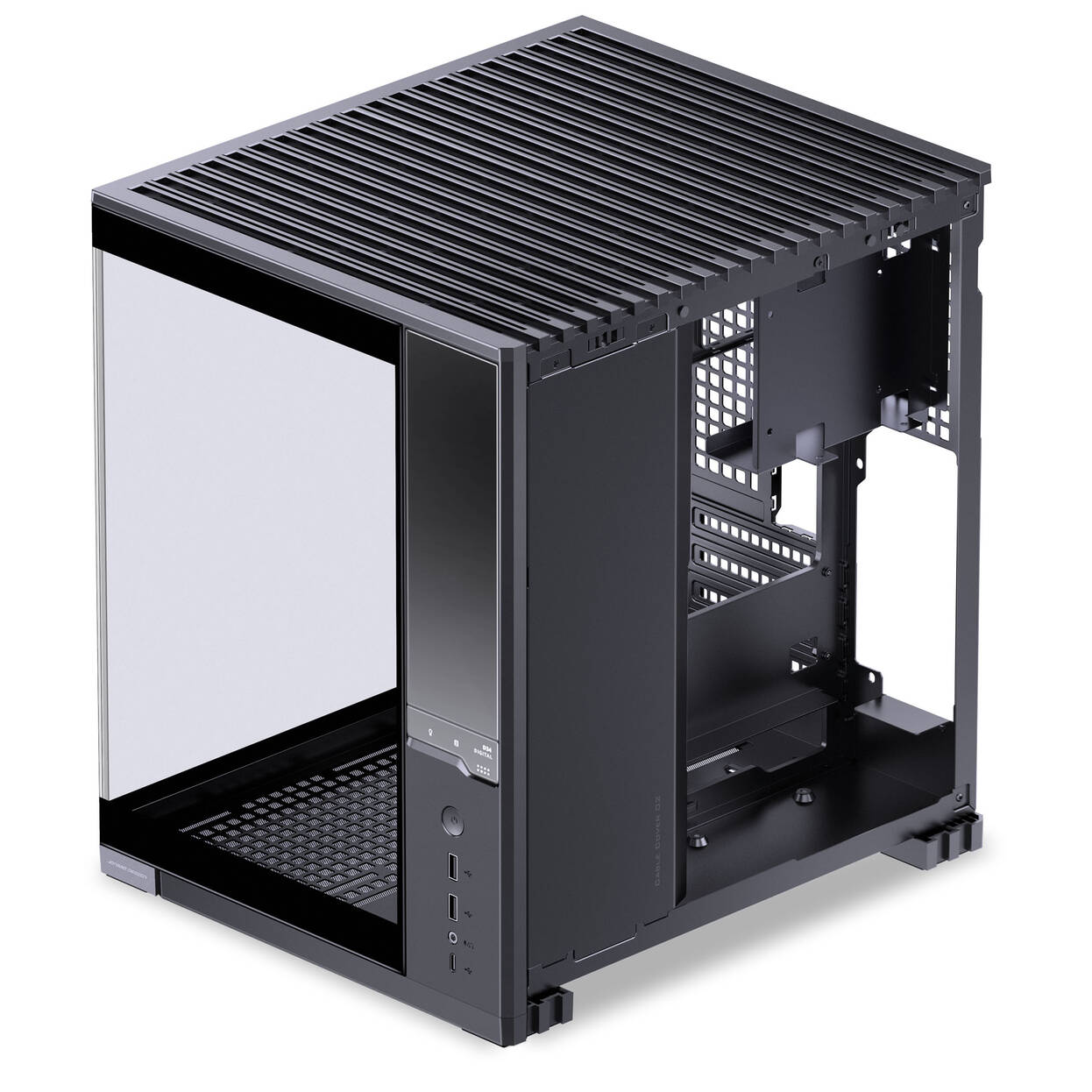

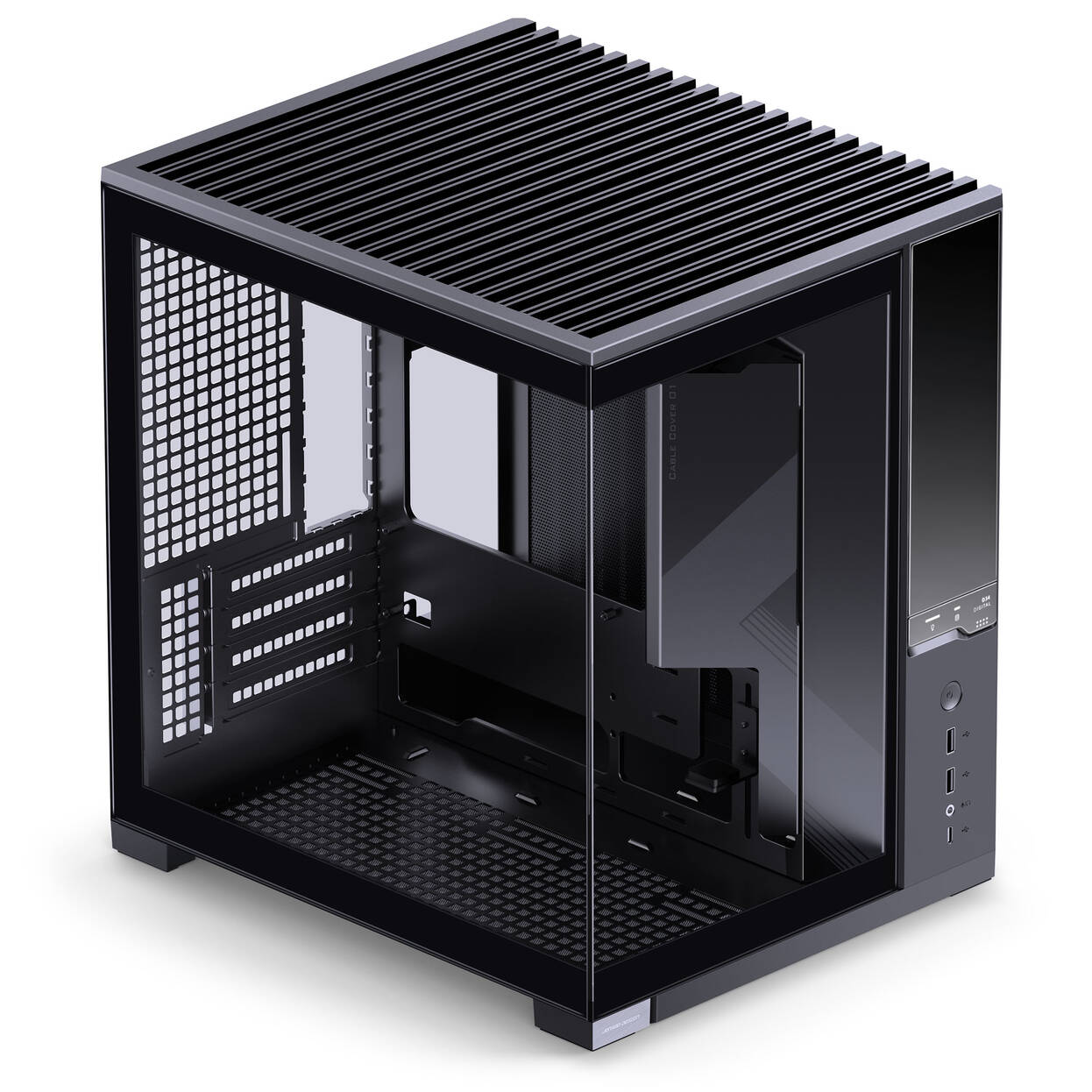

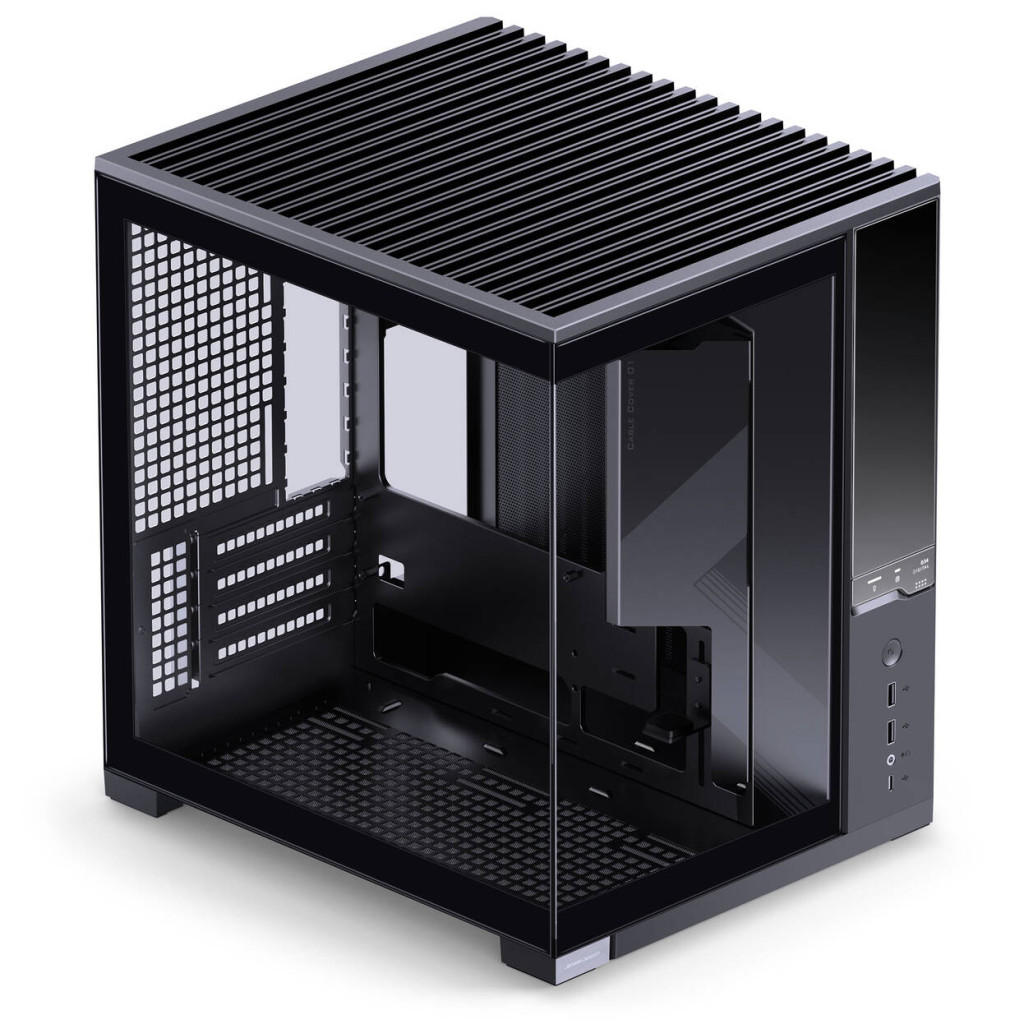

The D34 features a comparatively compact build. The top and side areas use a continuous mesh design with integrated metal mesh. This allows cooling air to flow largely unhindered through the case. At the same time, the mesh acts as protection against dust ingress.
Flexible cooling for high-performance hardware

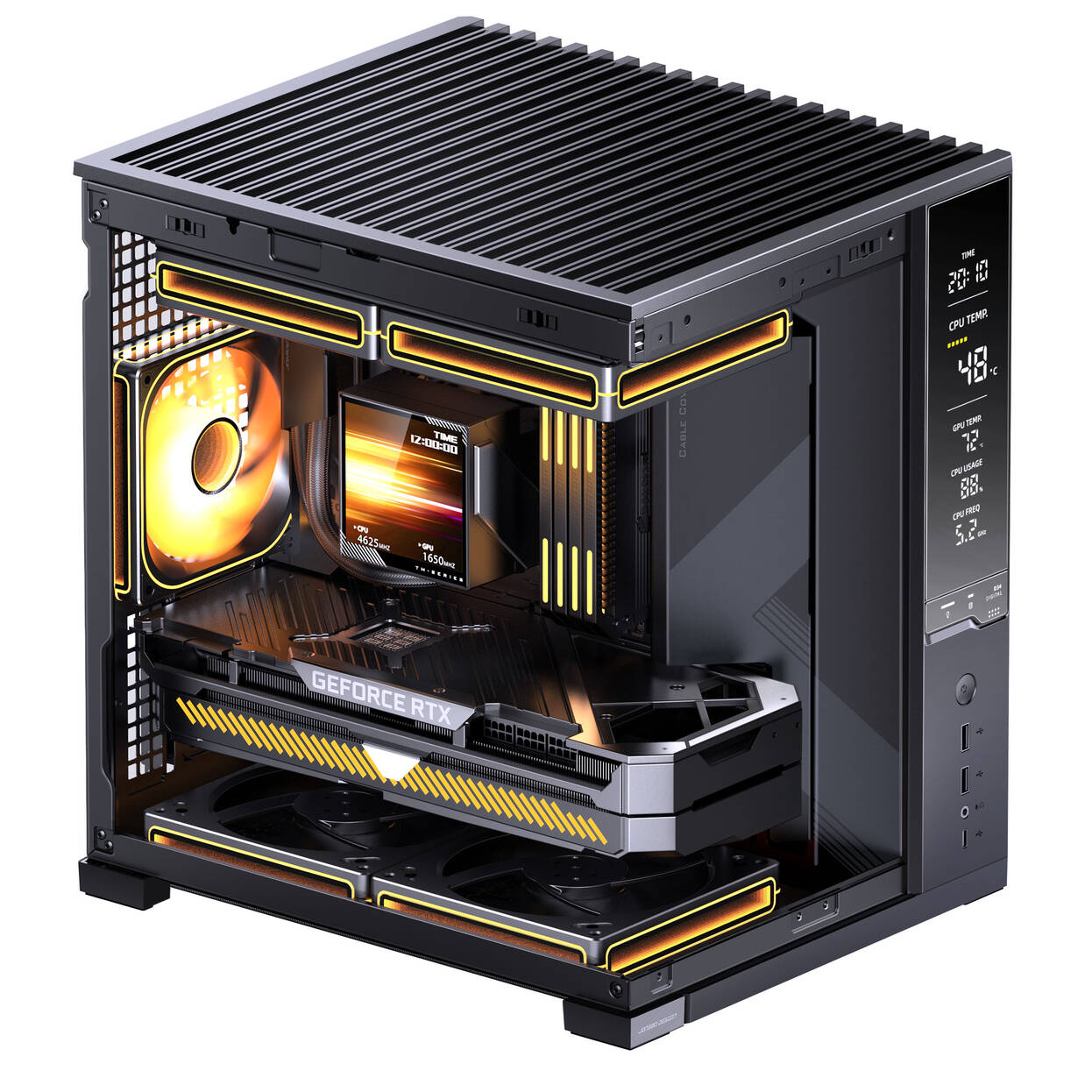

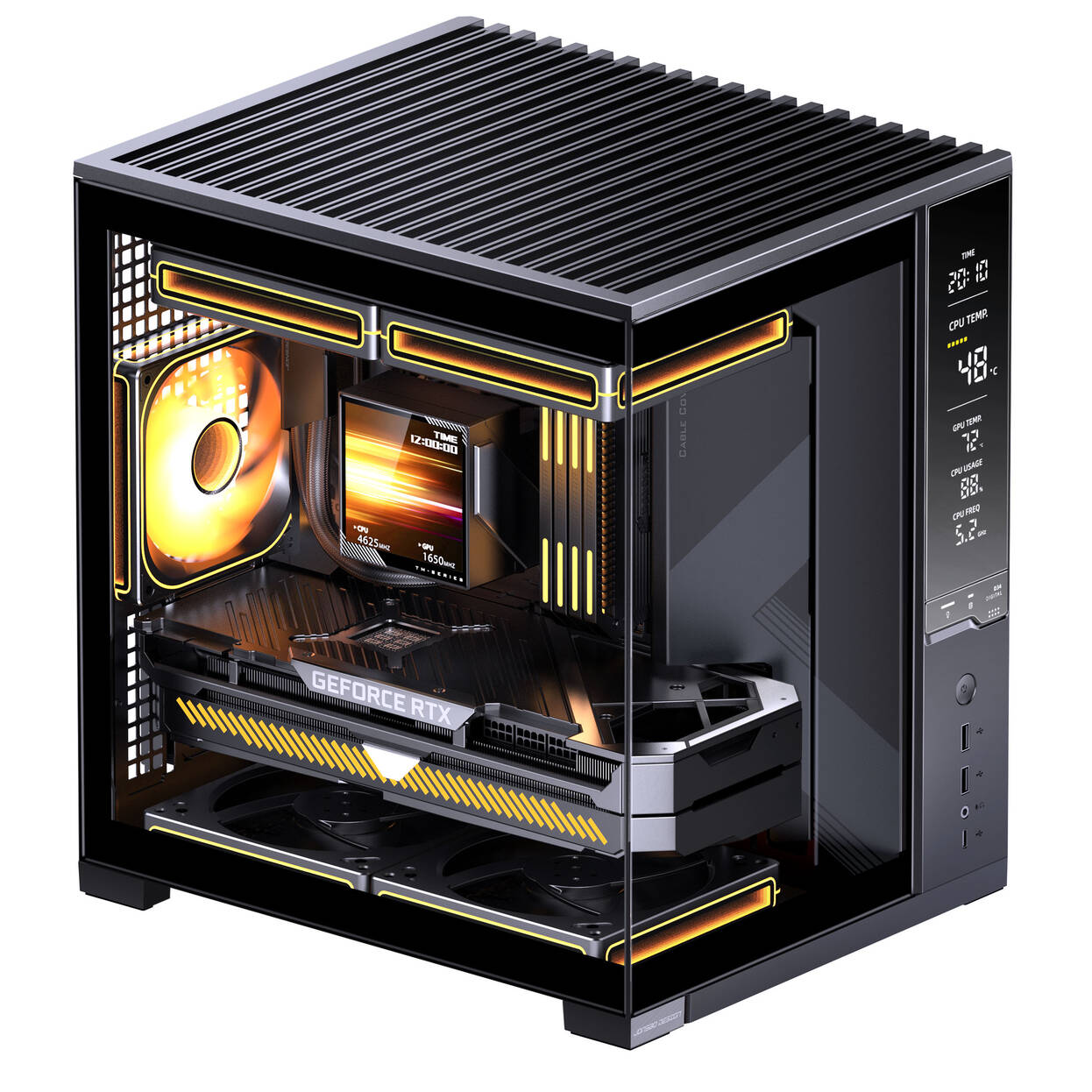

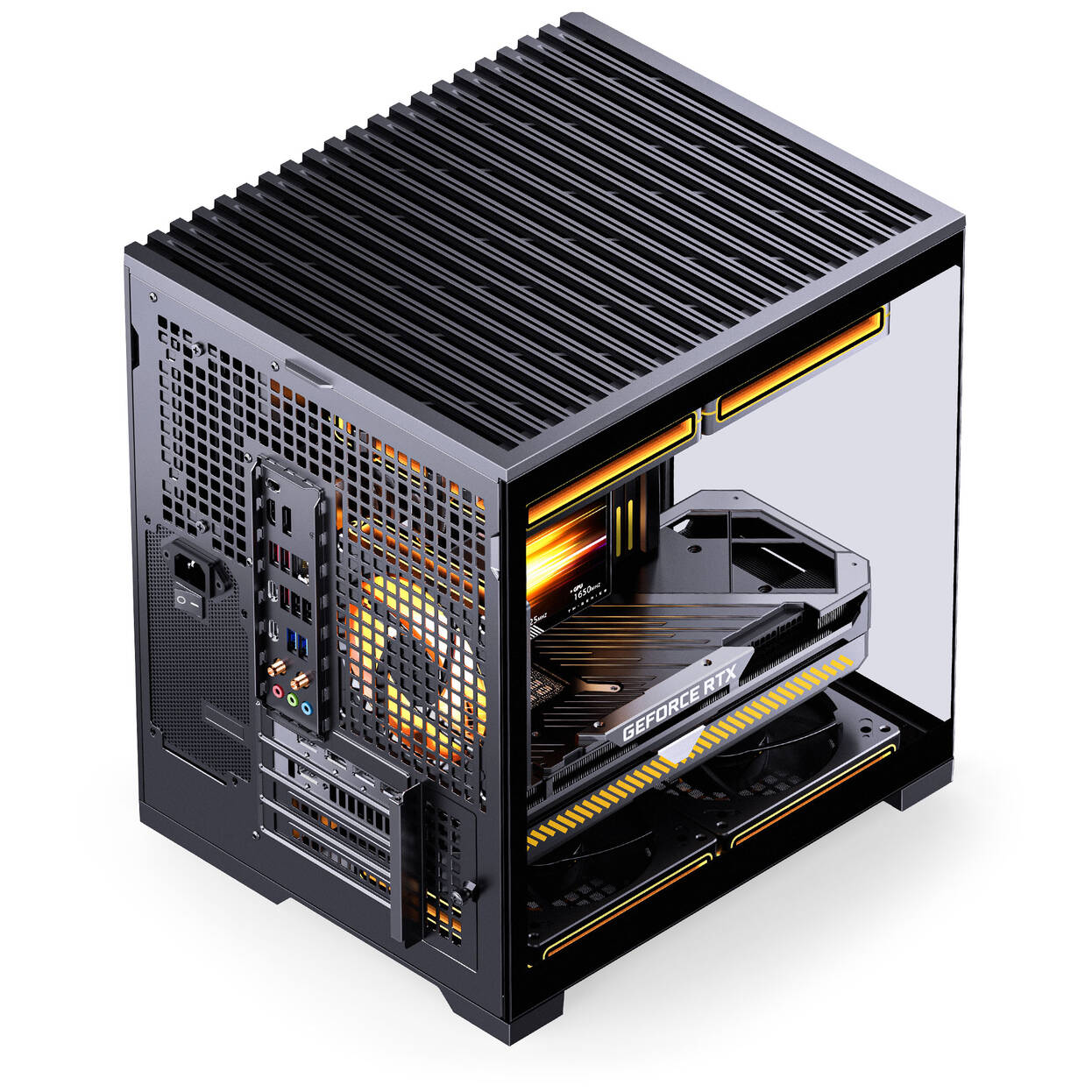

Two 120 mm or 140 mm fans can be mounted in both the top and bottom. An additional 120 mm fan can be fitted at the rear. The case also supports radiators of 240 or 280 mm length in the top. CPU air coolers may be up to 165 mm high.
Lots of hardware in a small footprint

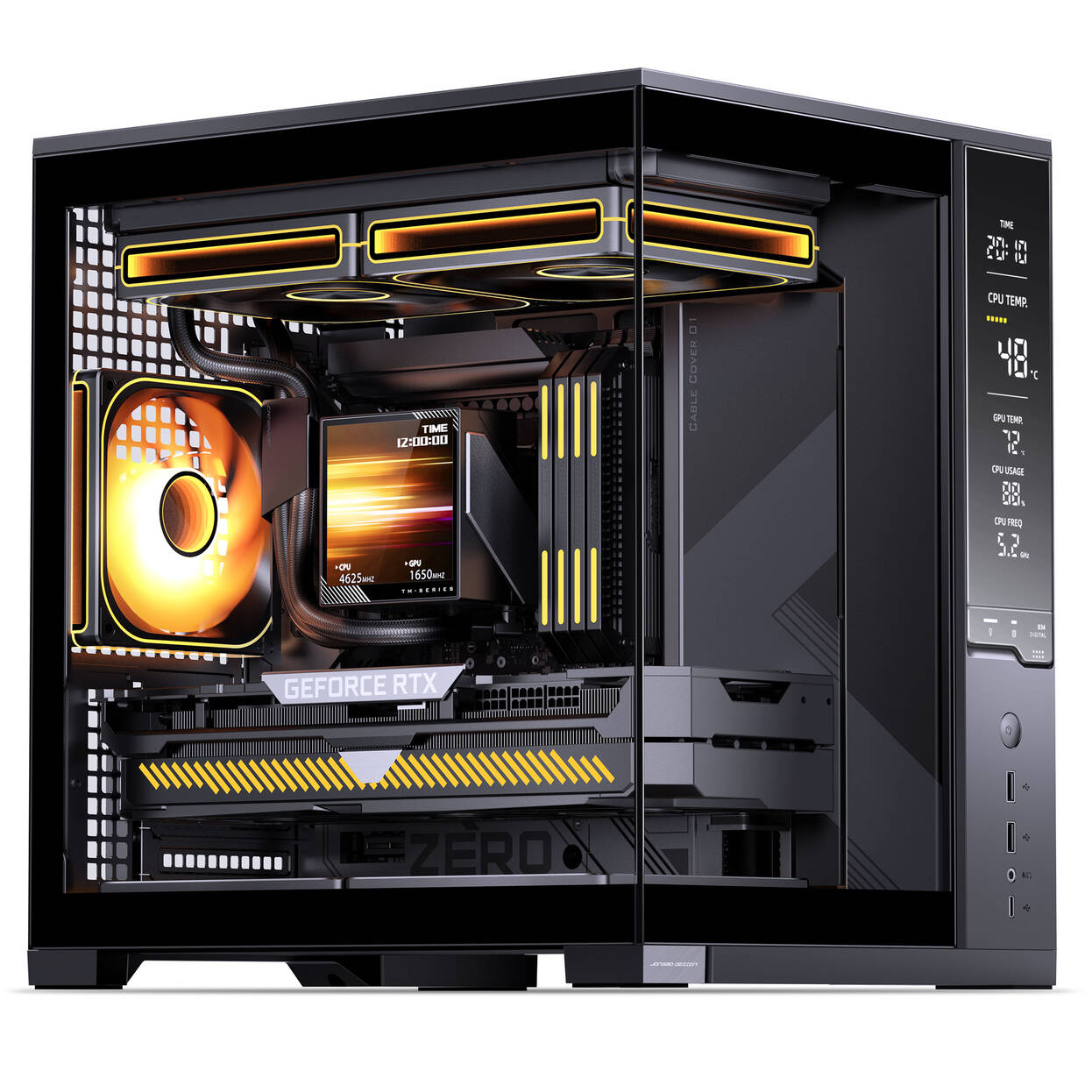

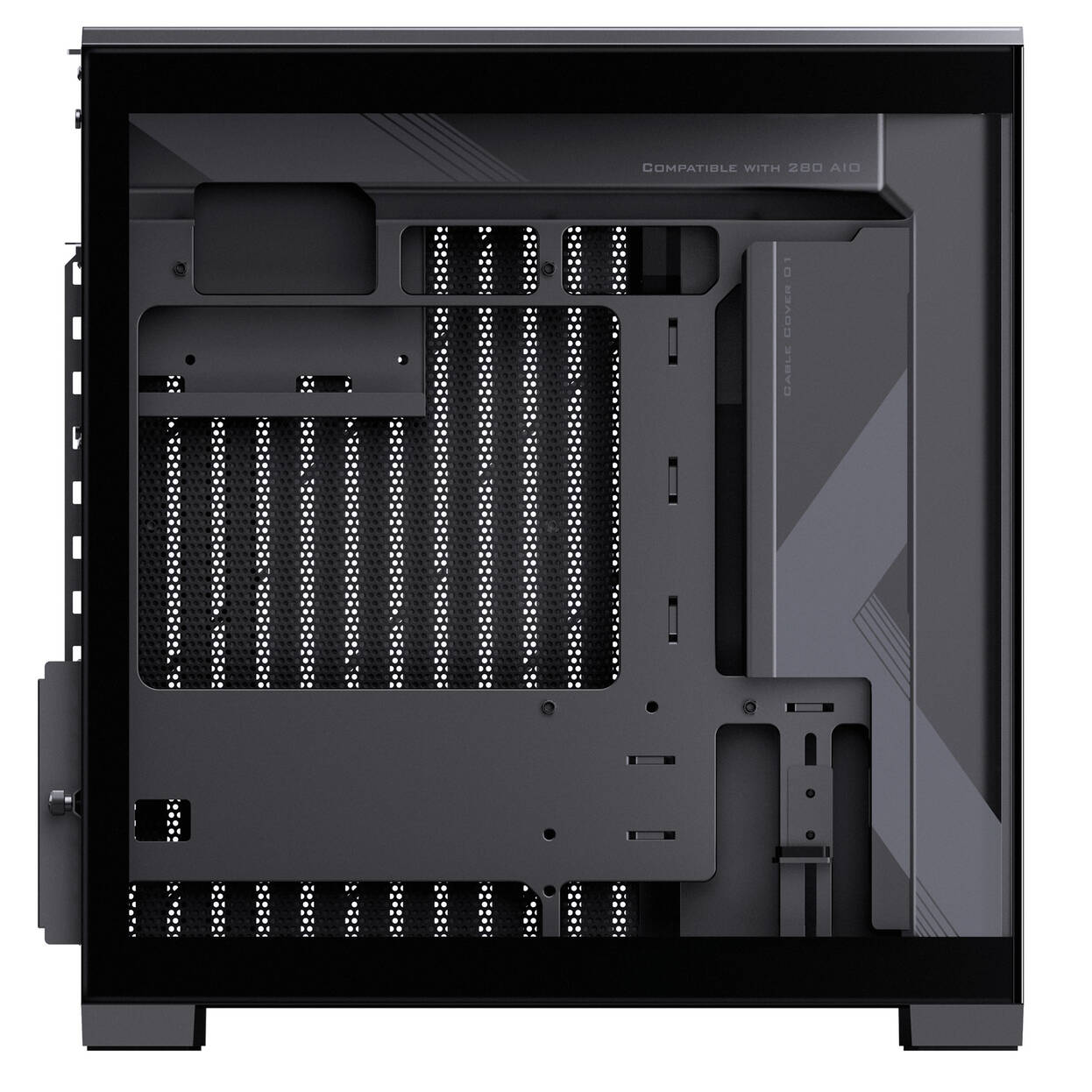

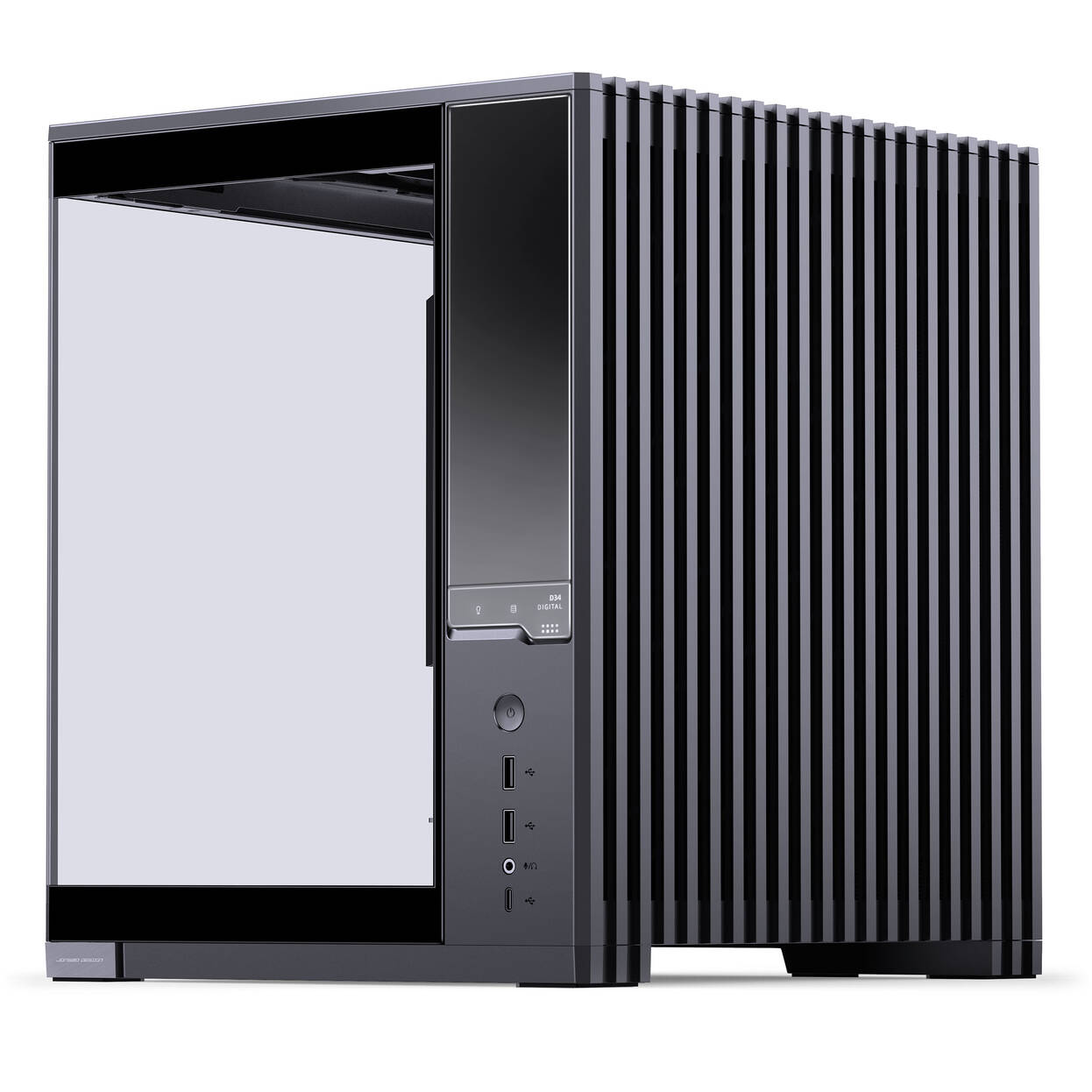

Graphics cards up to 333 mm in length can be accommodated in the D34. Besides classic Micro-ATX motherboards, the case also supports compatible Back-Connect models for tidy cable management. A standard ATX power supply also fits. At the front, there is USB-C with USB 3.2 Gen 2, two USB-A ports, and a combined audio jack.
| Technical Data | |
|---|---|
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 338.5 mm |
| Width | 288.9 mm |
| Height | 366 mm |
| Weight | 6.685 kg |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 165 mm |
| Max. GPU Length | 333 mm |
| Display | |
| Display Included | Yes |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Rear Side |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Case Fan Support (Bottom) | 120 mm Fan (2x), 140 mm Fan (2x) |
| Case Fan Support (Rear) | 120 mm Fan (1x) |
| Case Fan Support (Top) | 120 mm Fan (2x), 140 mm Fan (2x) |
| Max. Number of Fans | 5 |
| 120 mm Fans | 5 |
| 140 mm Fans | 4 |
| Radiator Support | |
| Max. Radiator Compatibility | 1x Dual (280 mm) |
| Radiator/AIO Support (Top) | 240 mm Radiator, 280 mm Radiator |
| Drive Bays | |
| Max. 2.5 Inch Drives | 2 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| Hot-Swap Drive Bays | No |
| External Ports | |
| Front I/O – USB Type-C Ports Total | 1 |
| Front I/O – USB Type-A Ports Total | 2 |
| USB 3.2 (External) Type-C | 1 |
| USB 3.0 (External) Type-A | 2 |
| Audio Outputs & Inputs | 1x Combined Output/Input (3.5 mm Jack, 4-pin, TRRS) |
| Case Features | |
| I/O Position | Front |
| Side Panel | With Window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front Door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Bottom |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Transport System | No |
| Back Connect | |
| Back Connect | No |
| Expansion Slots | |
| Expansion Slots / PCI Slots | 4 |
| Features | |
| Housing Feedthrough | No |
| Compatibility | |
| |
| Connectivity | |
| Card Reader | No |
| Fan Header | |
| Fan Controller / Fan Hub | No |
| Mounting | |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | |
| Materials | Metal, Tempered Glass |
| Lighting | |
| Lighting / RGB | No |
| Additional Contents | |
| Fans Included | No |
| Included Fans | None |
