– Compact dimensions, including carrying handle – perfect for taking with you
– High-quality steel, front and lid with fine perforations for airflow
– Excellent workmanship
– Space for 240 radiators
– Supports full-fledged gaming graphics cards
– Supports motherboards in mini-ITX and micro-ATX format
– Space for powerful SFX power supplies
– Excellent use of space and consistently well thought-out concept
Putting together a compact desktop mini host is not only fun, but also brings with it some challenges. As the case size decreases, conflicts such as compatibility, heat dissipation and the experience of assembling increase.
Compact design with high compatibility

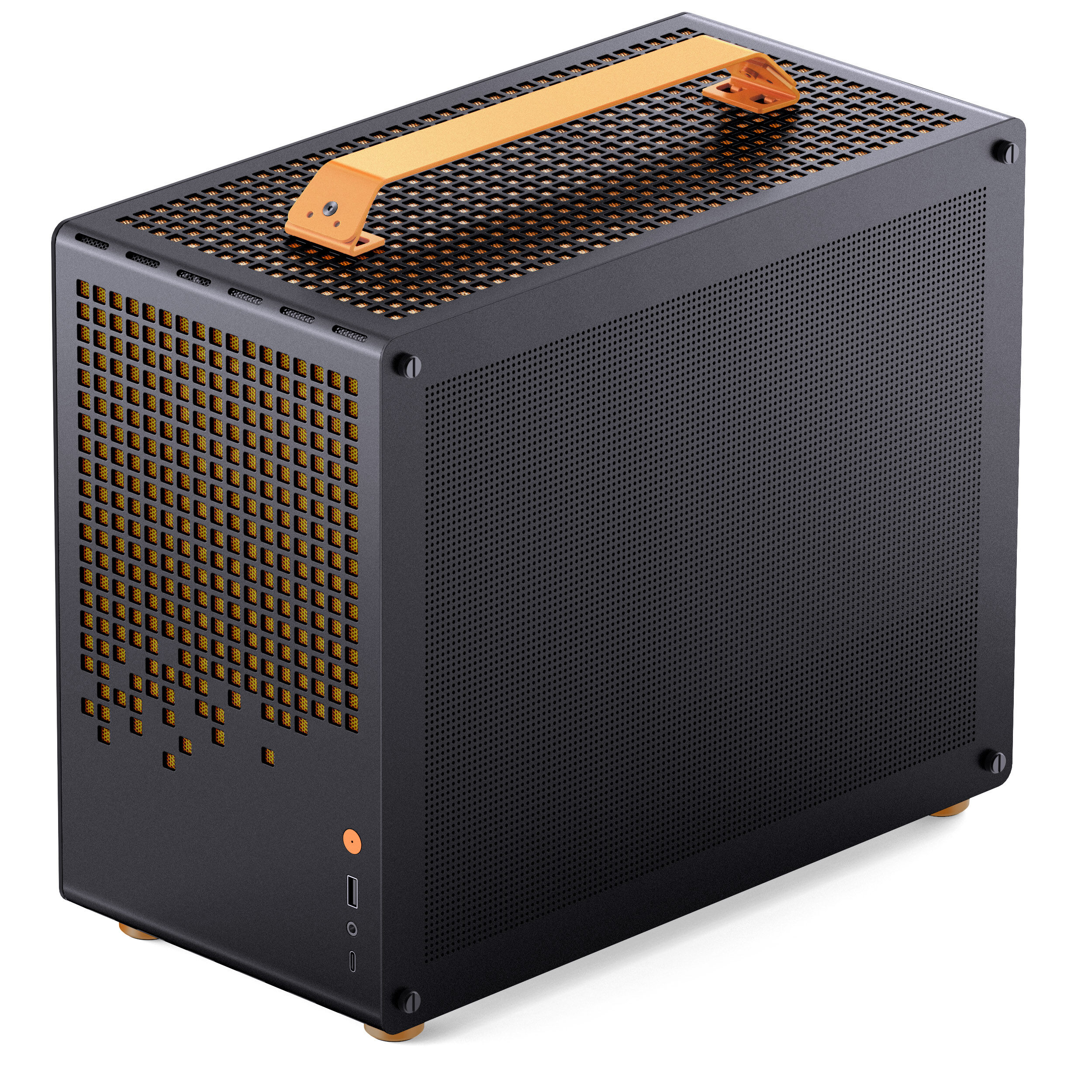

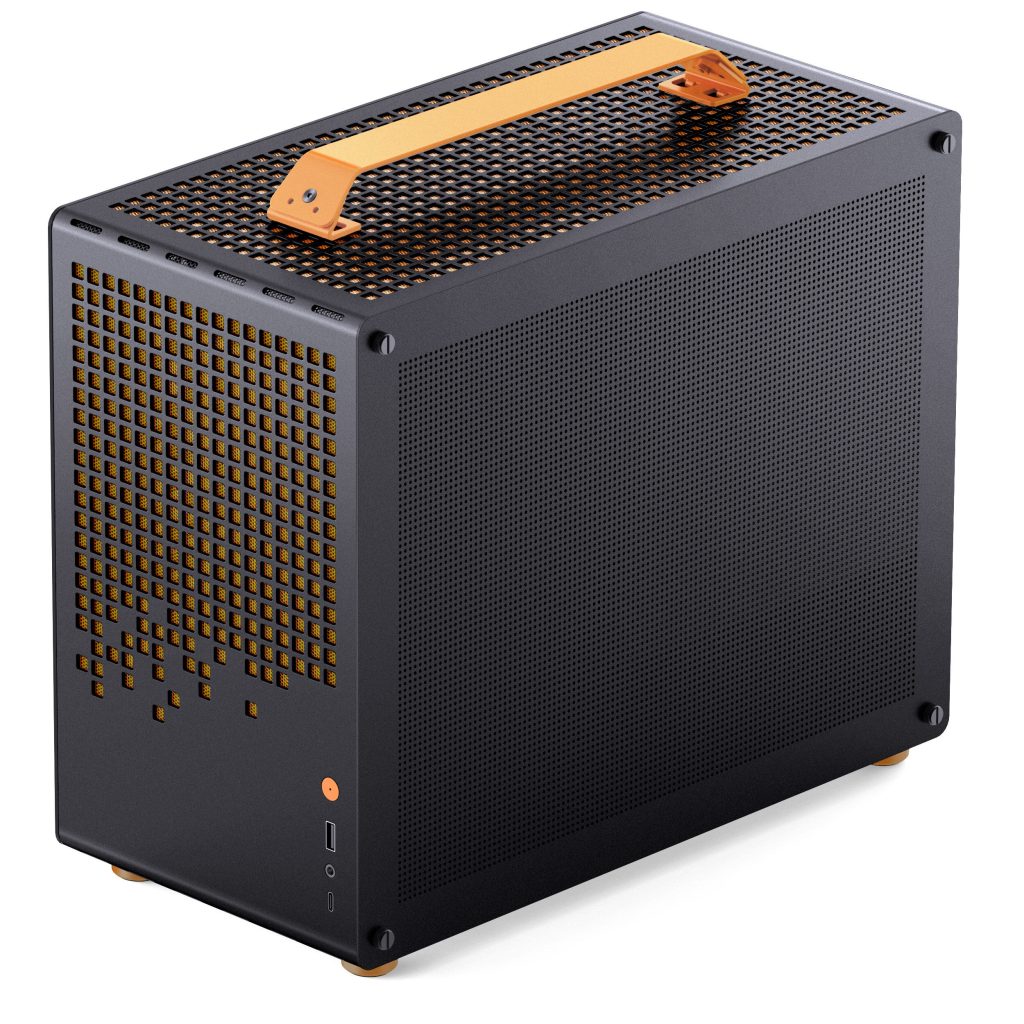

The material of the case is up to 2 mm thick and is provided with a large number of mesh openings to improve heat dissipation while also providing a treat for the eye.

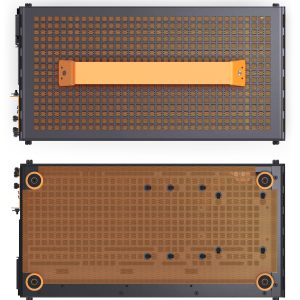

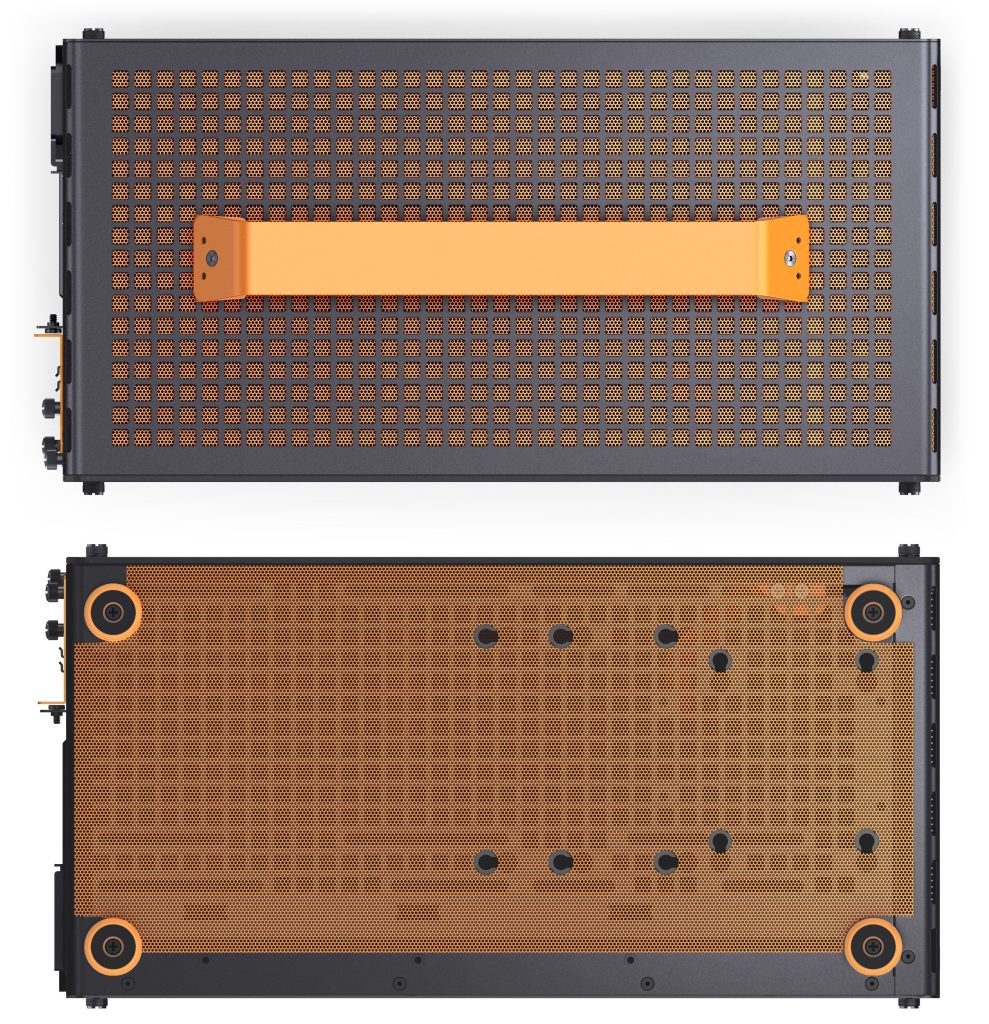

The removable handle with a thickness of 2 mm enables easy mobility and can be easily assembled and disassembled without affecting the internal hardware installation. It is attached to the case by a screwless hook connection, which means no screw holes affect the appearance after disassembly.
Space-saving yet powerful
With its volume of only about 20 liters, it fits effortlessly into various desktop environments. The main dimensions are 370mm * 186mm * 295mm (depth/width/height, excluding handles/feet and other protrusions), allowing compatibility with full-size Micro ATX motherboards and long graphics cards, almost the same dimensions as an ITX case.
Highest performance even with limited space
It supports 240mm radiators with a thickness of 30mm. The pull-out holder makes installation easier and effectively reduces the difficulty of hardware installation in narrow spaces.
Case Z20 is compatible with CPU coolers up to 164mm high. Combined with top mounted fans and a rear mounted fan, CPU heat can be dissipated quickly.
Important: When installing an Intel CPU, the cooler height limit is 164mm, when installing AMD CPUs, the cooler height limit is 163mm.
Technical Details
| Primary Colour | Black |
|---|---|
| Secondary Colour | Orange |
| Dimensions (W × H × D) | 370 mm × 186 mm × 295 mm |
| Weight | 3.7 kg |
| Material | 2 mm Steel |
| Motherboard Form Factors | Mini-ITX, Micro-ATX |
| Maximum Radiator Size | 240 mm |
| Drive Bays | Up to 3× 2.5-inch, up to 1× 3.5-inch |
| Expansion Slots | 4 |
| USB 3.1 Type-C | 1× (USB 3.2 Gen 2, 10 Gbit/s) |
| USB 3.0 Type-A | 1× (USB 3.2 Gen 1, 5 Gbit/s) |
| Max. CPU Cooler Height | 164 mm |
| Max. GPU Length | 363 mm |
Specification
| Primary Colour | Black |
|---|---|
| Secondary Colour | Orange |
| Length / Depth | 295 mm |
| Width | 370 mm |
| Height | 186 mm |
| Weight | 5 kg |
| Case Type | Mini Case |
| Motherboard Compatibility | Micro-ATX, Mini-ITX |
| Max. Motherboard Size | Micro-ATX |
| Max. CPU Cooler Height | 194 mm |
| Max. GPU Length | 363 mm |
| Max. PSU Length | 180 mm |
| Display Included | No |
| PSU Included | No |
| PSU Formats Supported | ATX, SFX, SFX-L |
| PSU Position | Front |
| Riser Cable Included | No |
| Max. Number of Fans | 5 |
| 92 mm Fans | 1 |
| 120 mm Fans | 5 |
| 140 mm Fans | 4 |
| Radiator Compatibility | Up to 240 mm (Dual) |
| 2.5-inch Drive Bays | 3 |
| 3.5-inch Drive Bays | 1 |
| 5.25-inch Drive Bays | 0 |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 1 |
| Audio I/O | 1× combo jack (3.5 mm, 4-pin TRRS) |
| I/O Position | Front |
| Side Panel | With window |
| Cable Management | Yes |
| Dust Filters | Yes |
| Noise Dampening | No |
| Transport System | Yes |
| Back Connect Support | No |
| Expansion Slots | 4 |
| VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | Aluminium, Plastic, SPCC Steel, Tempered Glass |
| RGB Lighting | No |
| Included Fans | None |
£90.22£75.18 Inc VatEx Vat
