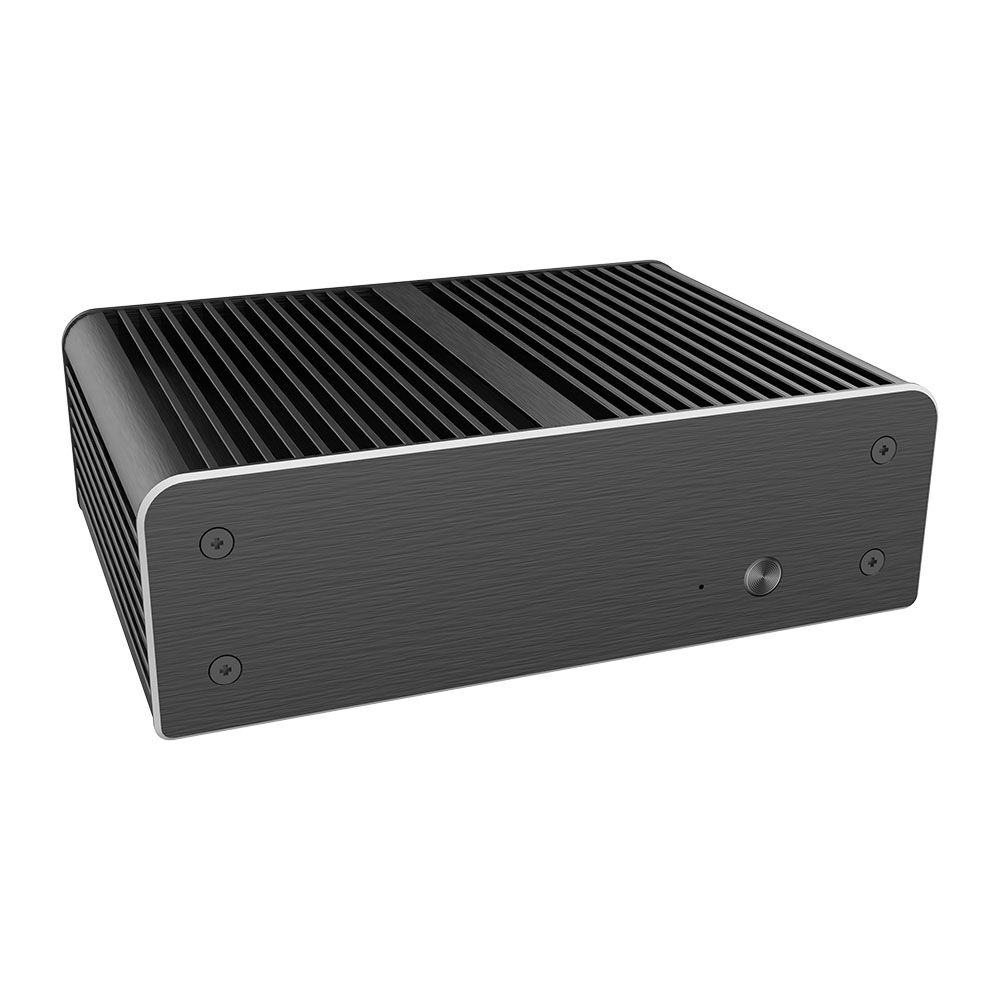

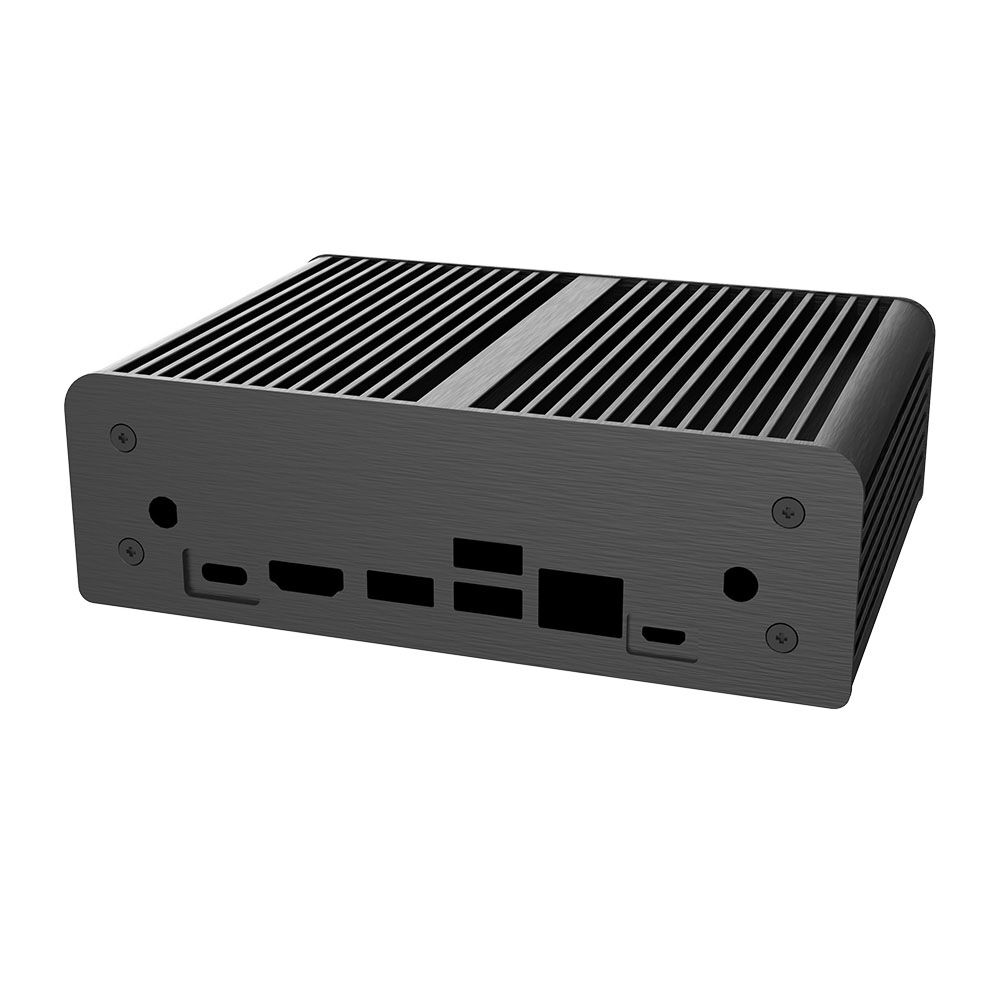

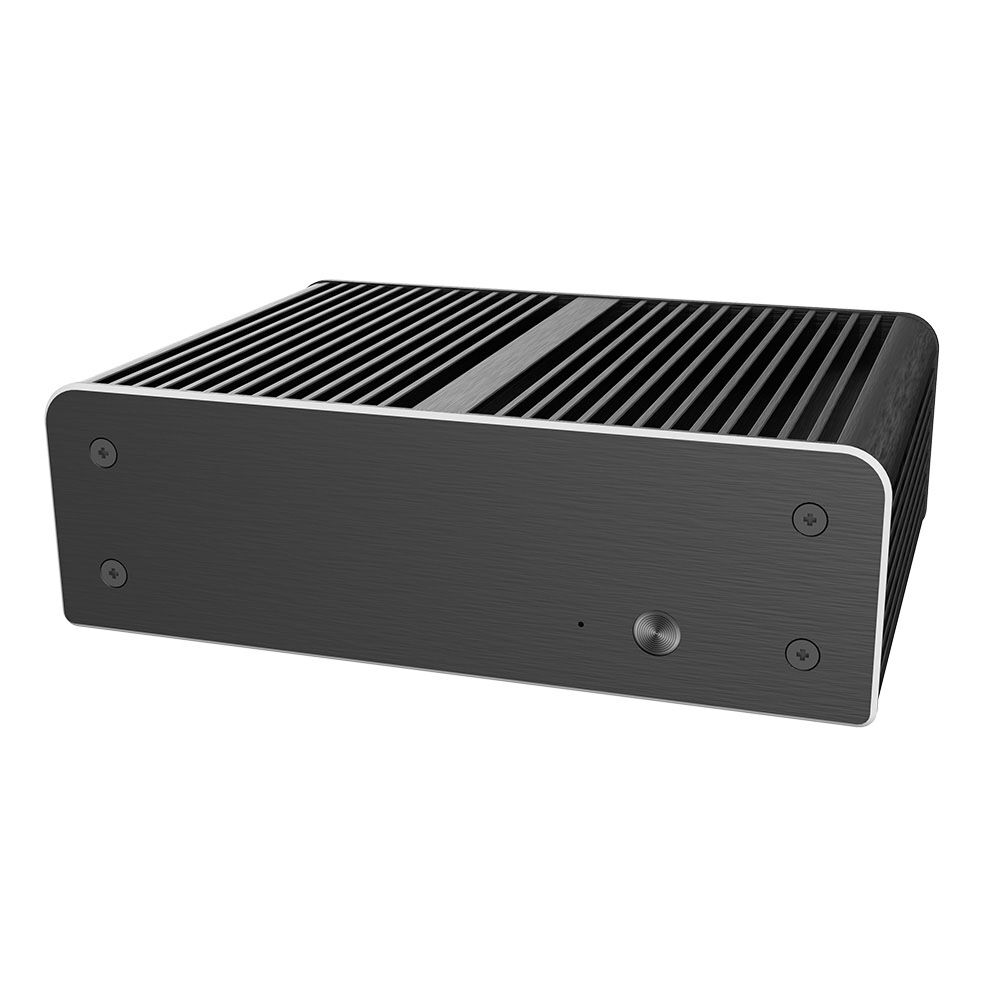

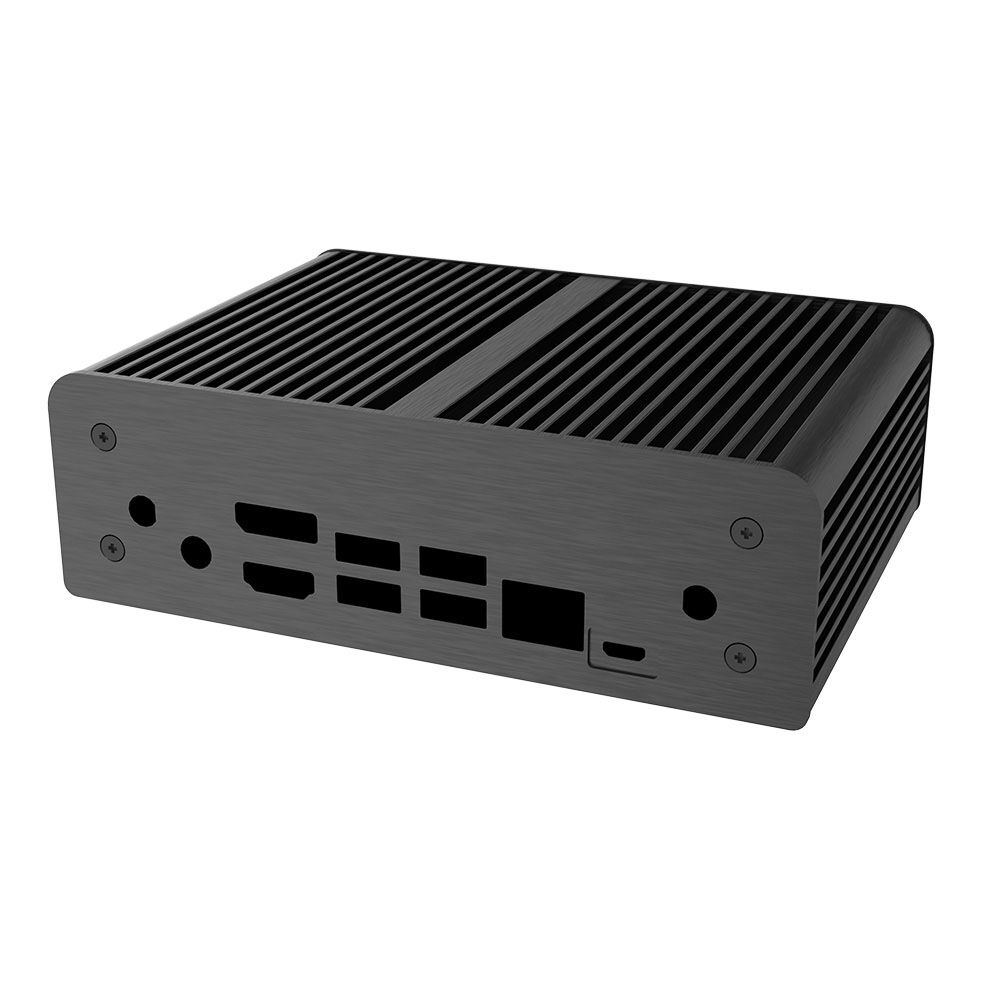

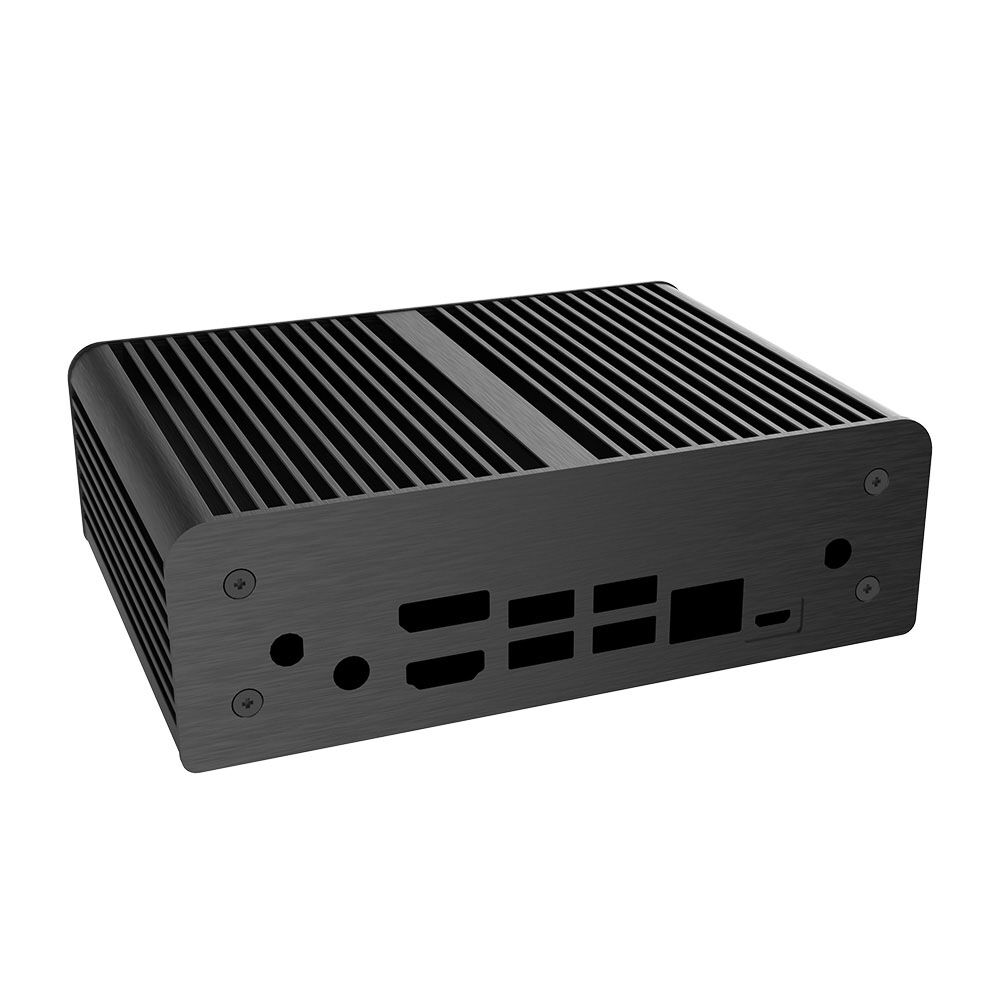

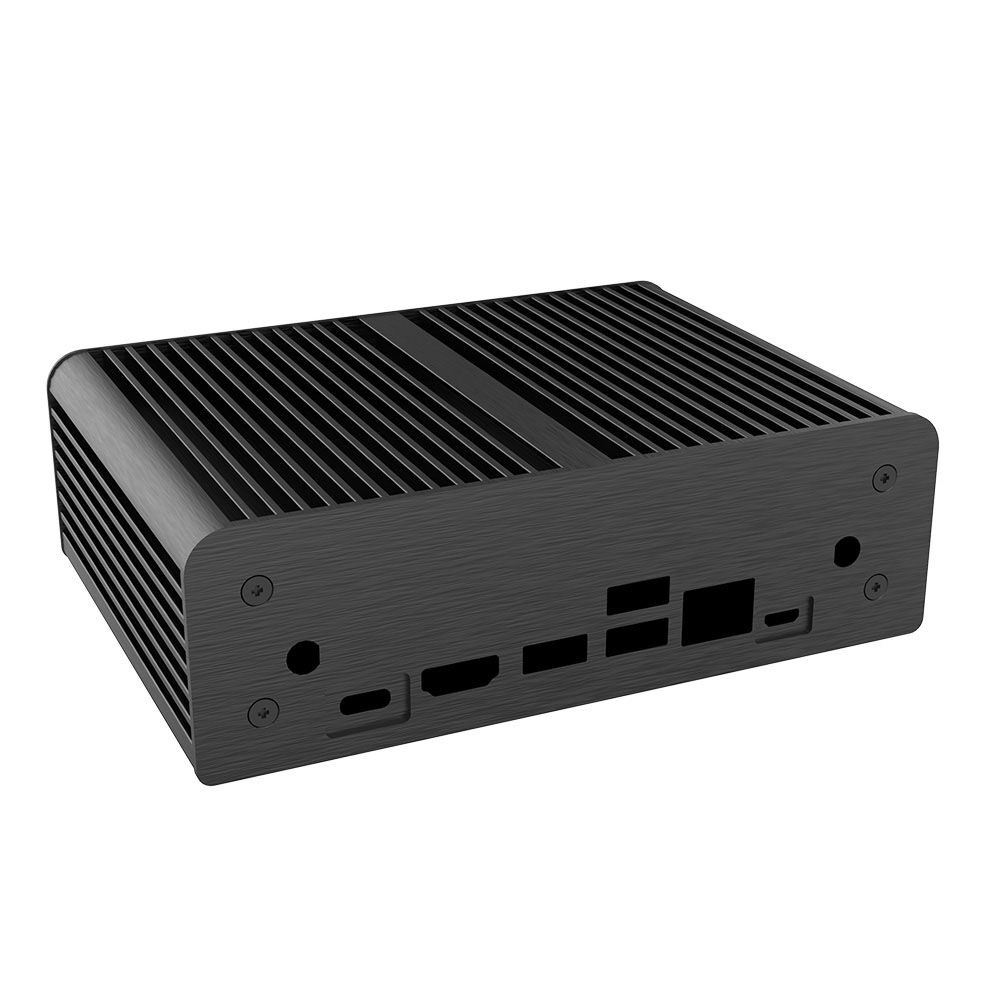

Akasa Machina N Fanless Case (for NVIDIA Jetson Xavier and Nano) - black, aluminum
- Particularly compact with only 0.77 L internal volume for versatile use
- Silent operation thanks to fanless design
- Robust aluminum housing helps with heat dissipation
- Aluminum heat sink ensures the highest possible performance
- Additional I/O panel for complete support of the Jetson boards
- Particularly compact with only 0.77 L internal volume for versatile use
- Silent operation thanks to fanless design
- Robust aluminum housing helps with heat dissipation
- Aluminum heat sink ensures the highest possible performance
- Additional I/O panel for complete support of the Jetson boards
Earn 70 Points
We price match UK retailers. Try It Now!
- SKU: GEAK-162
- MPN: A-NVD01-M1B
- EAN: 4710679551852
- Warranty: 12 Months
Details
– Particularly compact with only 0.77 L internal volume for versatile use
– Silent operation thanks to fanless design
– Robust aluminum housing helps with heat dissipation
– Aluminum heat sink ensures the highest possible performance
– Additional I/O panel for complete support of the Jetson boards
Small form factor with high performance: The Akasa Machina N fanless housing
A black housing made of robust aluminum with only 0.77 L internal volume. Specially developed for the NVIDIA Jetson Xavier and Nano developer kits, this housing offers silent and cool operation of your developer board. The housing is suitable for modern AI workloads as well as for more common applications such as automation, monitoring, and the like.
Generous I/O with some optional extras
The pre-installed I/O ports make it easier for you to operate developer modules that otherwise have no connection options. From basic GPIO to USB and display ports, everything you need is included. This means you can easily connect all kinds of devices to your developer kit without worrying about pinouts. Installation is as simple as sliding your developer module into the slot and installing the heatsinks.
With cutouts for the GPIO, an optional camera ribbon cable and holes for additional WiFi antennas, Akasa also thinks of every little detail. This means you can control your device remotely. Only one power cable needs to be connected to the device, which, together with the small form factor, enables versatile use in a variety of places.
Technical details
– Dimensions: 150.6 x 47.3 x 109 mm (W x H x D)
– Material: aluminum
– Color: black
– Internal volume: 0.77 L
– Supported boards:
– NVIDIA Jetson Nano (B01 revision)
– NVIDIA Jetson Nano 2 GB
– NVIDIA Jetson Xavier NX
– I/O panel:
– 1x DisplayPort
– 4x USB Type-A
– 1x RJ45 LAN port
– 1x USB Type-C (data transfer only)
– 2x antenna holes
– 1x GPIO interface
– 1x interface for camera ribbon cable
– DC power connector
– Scope of delivery:
– 1x Akasa Machina N
– 1x thermal paste
– 1x mounting kit
– 2x heat sink
– Instructions
