The MCP35X2 is the dual motor version of Swiftechs flagship MCP35X pump. The product is designed to provide extreme flow rates in loops that include multiple devices, for example multiple radiators and triple or quad SLI/Crossfire liquid cooled graphics cards; pump redundancy also provides maximum safety in mission critical systems: if one pump fails, flow will continue to circulate thru the system thanks to the second pump. The unit features:
-

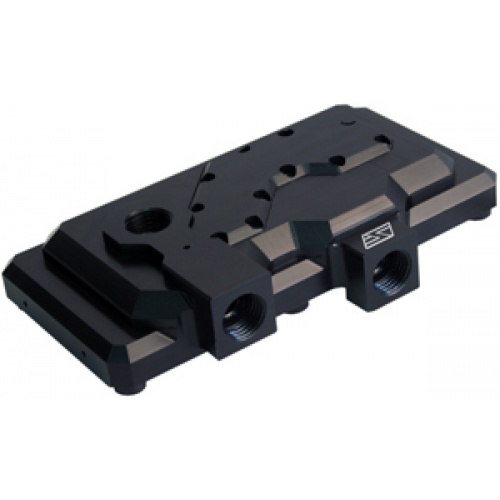

The MCP35X2-H dual pump housing:
- designed to provide considerably enhanced hydraulic performance;
- compatible with multiple tubing options thanks to the G1/4 port standard;
- compatible with the optional MCP35X-Res reservoir;
- available in two colors; classic black or fashionable white
- also sold separately, and compatible with all MCP35 series pumps
-
Two MCP35X pump motors:
- 12VDC and PWM controlled, allowing variable speed control thru the motherboard from 1300 to 4500 rpm, and linked with Swiftechs PWM splitter cable for simultaneous pump speed adjustements using only one PWM motherboard header.

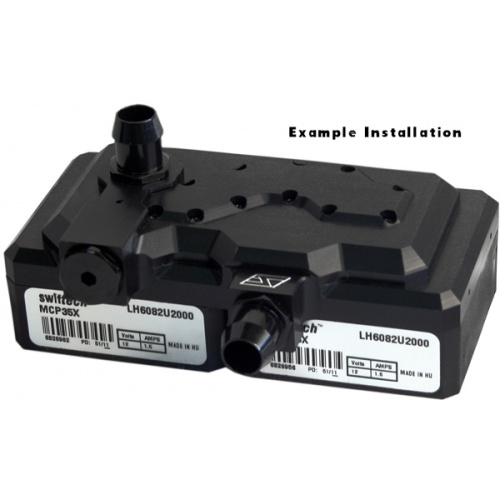

Swiftech MCP35X2BK Dual Laing DDC Pump top - Black
The MCP35X2 is the dual motor version of Swiftechs flagship MCP35X pump. The product is designed to provide extreme flow rates in loops that include multiple devices, for example multiple radiators and triple or quad SLI/Crossfire liquid cooled graphics cards; pump redundancy also provides maximum safety in mission critical systems: if one pump fails, flow will continue to circulat...
The MCP35X2 is the dual motor version of Swiftechs flagship MCP35X pump. The product is designed to provide extreme flow rates in loops that include multiple devices, for example multiple radiators and triple or quad SLI/Crossfire liquid cooled graphics cards; pump redundancy also provides maximum safety in mission critical systems: if one pump fails, flow will continue to circulat...
Featured products
No products found
Technical Specifications | |
| Motor type | 2x Electronically commutated, brushless DC, spherical motors |
| Nominal voltage | 12 V DC |
| Operating voltage range | 9 to 13.4 VDC |
| Max. nominal power (@12 V) | 18 W x 2 |
| Max. nominal current (@12 V) | 1.5 A x 2 |
| Max. nominal head (@12 V) | 27.9 ft (8.5m) |
| Max nominal discharge (@12 V) | ~ 4.17 GPM (15.8 LPM) |
| Maximum pressure | 22 PSI (1.5 BAR) |
| Temperature range | Up to 140 degreesF (60 degreesC) |
| Electrical power connector | 2x Molex 4 pin |
| PWM + RPM Signals | 2x 4-pin connector |
| RoHS | Compliant |
| Port thread standard | G1/4 |
| MTBF | 50,000 Hours |
| Weight | 15 oz |
| Dimensions (not including fittings) | L4.9 x W2.8 x H1.6 (L126 x W72 x H42mm) |
