Silverstone has repeatedly set new standards with the TJ09. The TJ10 nachgeschobene now resembles the model of success, almost spitting image - only the front door gives it a different face. Here, the case loses none of its elegance - quite the contrary. The door hides the drive, so that the front cover can not be desecrated by vile plastic - pure aluminum everywhere you look, too.
Coupled with surprisingly good cooling, as always, fantastic workmanship and a high number of interesting features, one might almost shout to the world: A Kingdom for this case!

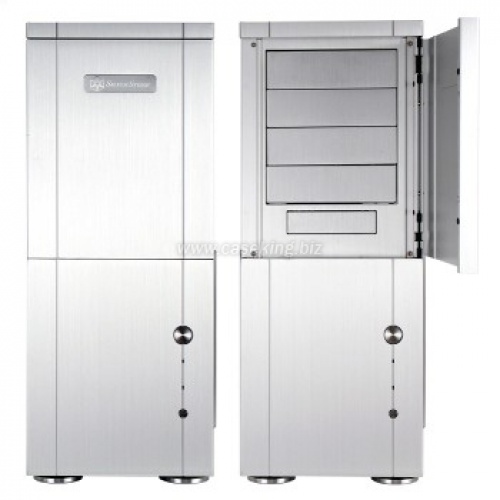

The front of the TJ10 impressed with a brushed aluminum surface and fine controls. In addition, emblazoned on the front door, the logo of Silverstone as a noble stamp, which emphasizes the impression of Luxuriösität more. The recessed into the surface depressions emphasize the massive and solid construction of the housing. In addition, the housing cover in a fold-out and massive I / O panel.
Silverstone has repeatedly set new standards with the TJ09. The TJ10 nachgeschobene now resembles the model of success, almost spitting image - only the front door gives it a different face. Here, the case loses none of its elegance - quite the contrary. The door hides the drive, so that the front cover can not be desecrated by vile plastic - pure aluminum everywhere you look, too.Coupled ...
Silverstone has repeatedly set new standards with the TJ09. The TJ10 nachgeschobene now resembles the model of success, almost spitting image - only the front door gives it a different face. Here, the case loses none of its elegance - quite the contrary. The door hides the drive, so that the front cover can not be desecrated by vile plastic - pure aluminum everywhere you look, too.Coupled ...
No products found

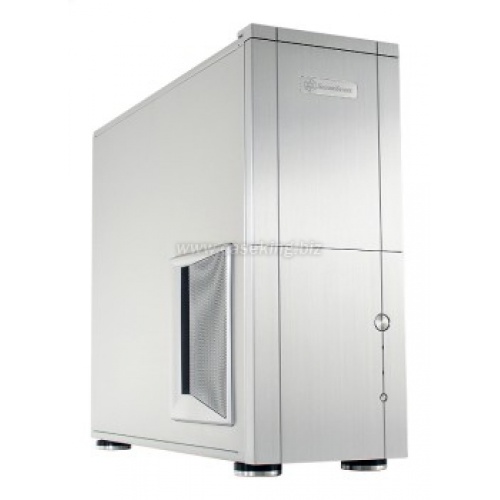

Already at first glance, the lateral gap in the housing, which allows parts of a view with attached side by TJ10. This unique eye-catching style factor, envy and object at the same time an incredibly ingenious solution in a refrigerator. The reason for this form is strictly separate room concept, which separates the six hard drives from the rest of the housing interior and at the same time to prevent that unsightly mesh front affects the appearance.
The HDDs can be installed even in the simple removable hard drive cages and decoupled, with the passive cooling is directly over the side mesh screen in front of the gap. The case can also accommodate up to four external 5.25 inch and an external 3.5 drive. Due to better thermal power supply is installed on the ground.
Mention is the removable motherboard supports. This can be drawn on the back of the housing and allows for comfortable fitting with unrestricted access. The carrier is particularly large, and even allows the installation of server motherboards in the E-ATX format. Since this also is sized according to the interior, are also on long graphics cards no problem
Technical details:
Dimensions: 207 x 521 x 644 mm (WxHxD)
Material: aluminum (5 mm front, 2 mm Body)
Weight: 13 kg
Color: Silver
Form Factor: ATX, E-ATX, ATX, SSI
Fan:
1x 120mm (center, 21 dB (A), 1.200 U / min)
1x 120mm (rear, 21 dB (A), 1.200 U / min)
1x 120mm (front HDD, optional)
2 x 120 mm (lid, optional)
Drive Bays:
4x 5.25 (external)
1x 3.5 (external)
6x 3.5 (internal)
Expansion Slots: 7
AC adapter (optional): 1x standard ATX
I / O panel:
2x USB 2.0
1x Firewire
1x each Audio In / Out
