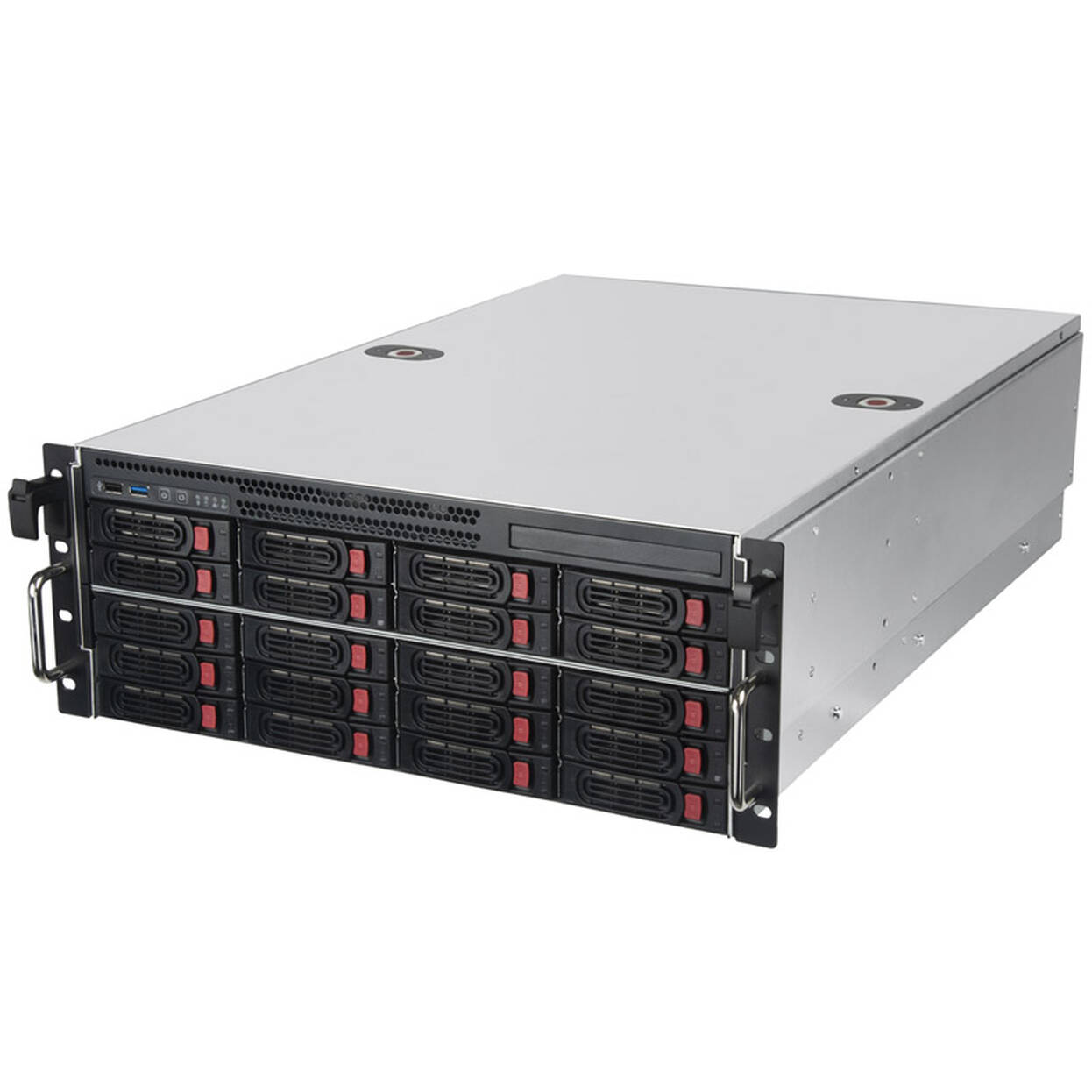

Distinctive front panel features 20 x hot-swappable 3.5" bays or 20 x hot-swappable 2.5" bays with handle bars allowing for easy accessibility to the internal components.
Distinctive front panel features 20 x hot-swappable 3.5" bays or 20 x hot-swappable 2.5" bays with handle bars allowing for easy accessibility to the internal components.
Distinctive front panel features 20 x hot-swappable 3.5" bays or 20 x hot-swappable 2.5" bays with handle bars allowing for easy accessibility to the internal components.
Features:
– Backplane support for 20 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
– Supports twenty 2.5″/3.5″ SAS/SATA HDD/SSD hot-swap trays
– Ball bearing sliding rails included for simple server rack integration
– Includes three 120mm x 38mm hot-swappable PWM fans
– Auto lock handle for convenient fixation of chassis into rack cabinet
– Supports ATX (PS2) / Mini Redundant PSUs
– Supports E-ATX or SSI-EEB motherboards
– Supports 7 standard PCI / PCIe slots
– Independent drive status LED
– Distinctive exterior
Distinctive front panel features 20 x hot-swappable 3.5″ bays or 20 x hot-swappable 2.5″ bays with handle bars allowing for easy accessibility to the internal components.
Storage device performance
HDD backplane supports 20 ports SAS / SATA drives and 12Gb/s Mini-SAS HD SFF-8643 x 5 with SGPIO
Excellent cooling capabilities
Utilizing the typical front-to-back directional airflow, RM43-320-RS comes pre-installed with three 120mm x 38mm hot-swappable PWM fans, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Simple server rack integration
RM43-320-RS comes included with a sliding rail kit allowing the chassis to be fixed into server racks without extra purchase
| Colour | |
|---|---|
| Primary Colour | Grey |
| Secondary Colour | Black |
| Fan Main Colour (Frame) | Black |
| Dimensions & Weight | |
| Length / Depth | 660 mm |
| Width | 442 mm |
| Height | 175 mm |
| Weight | 2.48 kg |
| Case | |
| Case Type | Server Case |
| Motherboard Support | |
| Compatible Motherboard Formats | ATX, Micro-ATX, Mini-ITX, SSI-CEB, SSI-EEB |
| Max. Motherboard Format | Micro-ATX |
| Internal Clearance | |
| Max. CPU Cooler Height | 148 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX, Redundant PSU |
| Power Supply Position | Rear Side |
| Cooling Support | |
| 80 mm Fan Support | 2 |
| 120 mm Fan Support | 3 |
| Radiator Support | No |
| Drive Bays | |
| 2.5″ Internal Drive Bays | 2 |
| 3.5″ External Drive Bays | 20 |
| Hot Swap Drive Bays | No |
| External Ports | |
| USB 3.0 Type-A | 1 |
| USB 2.0 Type-A | 2 |
| Audio Ports | 1 × Output + 1 × Input (3.5 mm TRS) |
| Expansion | |
| Expansion Slots / PCI Slots | 7 |
| Case Features | |
| I/O Position | Front |
| Side Panel | Closed |
| Cable Management | No |
| Dust Filters Included | No |
| Noise Dampening | No |
| Materials | |
| Material | Steel |
| Lighting & Control | |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Additional Contents | |
| Included Fans | 3 × 120 mm |
£782.86£652.38 Inc VatEx Vat
