The Alphacool ES Chiller 1000 ServerRack 5U is a compressor cooling system with a maximum cooling capacity of 1000 watts, making it the perfect choice for cooling servers and workstation systems. Equipped with an integrated pump, the chiller takes on the task of circulating and cooling the coolant. Ensuring that the desired temperature is maintained.
All in One
The ES Chiller ServerRack 5U is equipped with a display that can be used to configure various settings, including temperature control in precise 0.3 degreesC increments. The G1/4 connections are compatible with common connections for water cooling systems. A built-in reservoir holds a capacity of 2 liters. Thanks to the integrated pump, with a maximum delivery head of up to 10m, the chiller can be integrated directly into the cooling loop. An extra pump is not necessary. For the sake of additional protection, the chiller is equipped with overvoltage protection for the compressor and has an alarm that warns if the flow rate is too low or the temperature is too high.

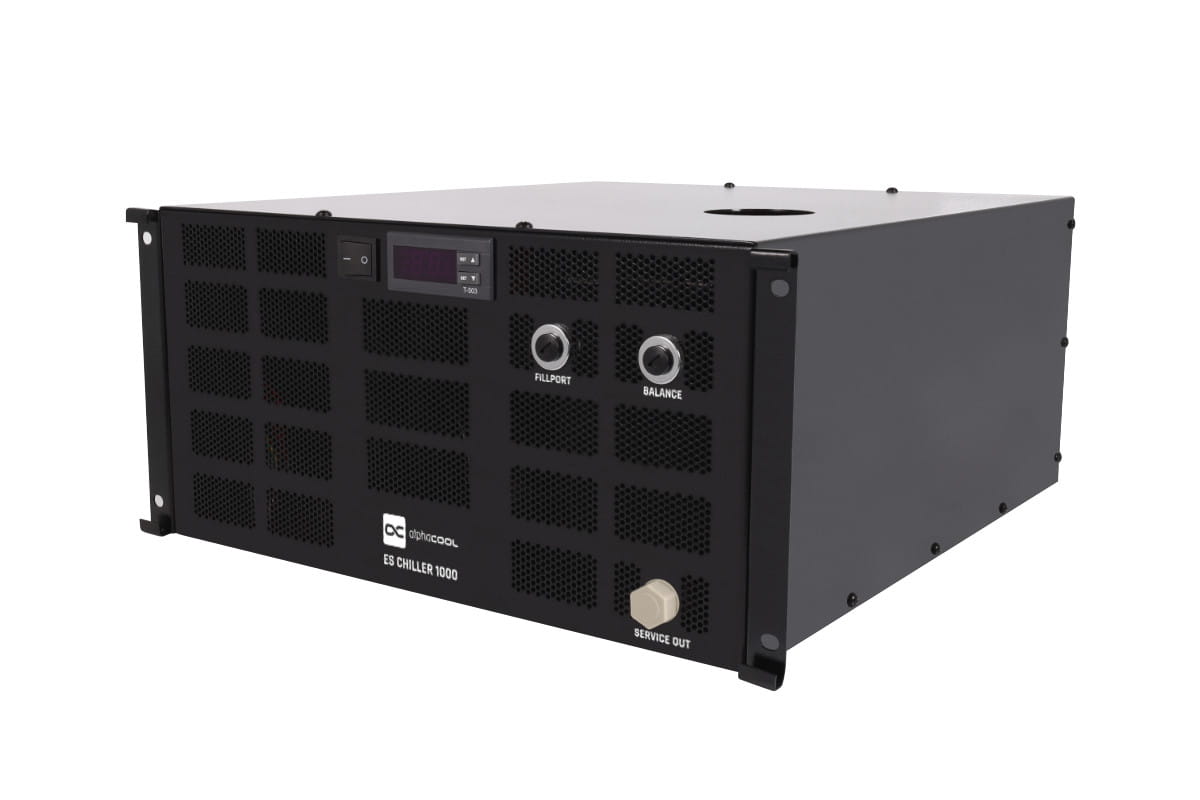

The Alphacool ES Chiller 1000 ServerRack 5U is a high performance cooling system for server and workstation environments, designed for the 5U form factor.
| General Specifications | |
|---|---|
| Dimensions (L × W × H) | 520 × 440 × 220 mm |
| Form Factor | 5U |
| Net Weight | 22 kg |
| Color | Black |
| Electrical Specifications | |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Operating Current | 0.4 – 2.68 A |
| Cooling Performance | |
| Compressor Power | 0.44 / 0.46 kW |
| Refrigeration Capacity | 0.89 / 1.08 kW |
| Temperature Precision | ±0.3 °C |
| Reducer Type | Capillary |
| Refrigerant | |
| Refrigerant Type | R-134a |
| Refrigerant Charge | 280 g |
| Pump & Reservoir | |
| Pump Power | 0.03 kW |
| Reservoir Capacity | 4 L |
| Inlet / Outlet | G1/4 inner thread |
| Max. Lift | 10 m |
| Max. Flow Rate | 10 L/min |
| Protection & Safety | |
| Protection Features | Compressor over-current protection, flow alarm, over-temperature alarm |
