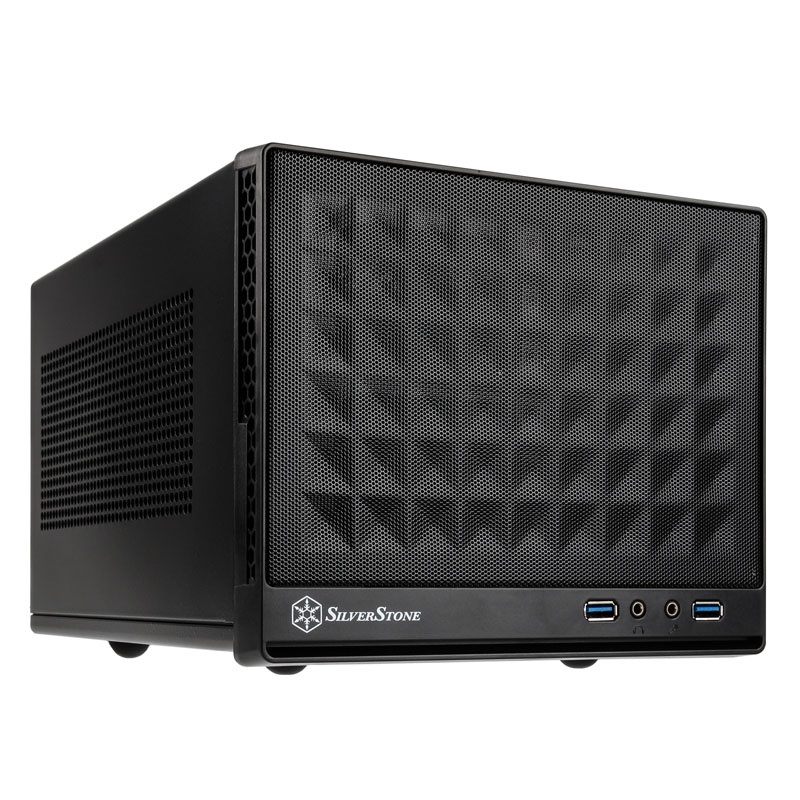

Silverstone Sugo SST-SG13B USB3.0 - Black

Features:
– Includes USB Type-C front port (SST-SG13B-C only)
– Supports standard-length expansion cards (10.6 inches)
– Mini-DTX / Mini-ITX motherboard & ATX PSU compatible
– Supports 120mm or 140mm single fan All-in-One Liquid Cooler
– Supports 2.5 and 3.5 hard drives
– Elevated standoff for motherboard back side components

Specification:
Type-C version
SST-SG13B-C (black, mesh front panel, Type-C port)
USB 3.0 version
SST-SG13B-Q (black, plastic front panel with faux aluminium finish)

Material: Mesh or plastic front panel, steel body

Motherboard: Mini-DTX, Mini-ITX
Drive bay: Internal 3.5 bay: 3,5 x 1 (compatible with 2.5 x 2) 2.5 x 1

Cooling system
Front: 1 x 120mm/140mm fan slot compatible with radiator(option)
Side: Oversized vents
Top: Oversized vents

Radiator support
Front 120mm / 140mm x 1
Expansion slot: 2
Front I/O port Type-C version: USB Type-C x 1, USB 3.0 x 1, Audio x 1, MIC x 1
USB 3.0 version: USB 3.0 x 2, Audio x 1, MIC x 1
Power supply Optional standard PS2(ATX)
Expansion card Compatible up to 10.6 (270mm) long, width restriction-5.11 (129mm)
Limitation of CPU cooler 61mm
Limitation of PSU 150mm*
Net weight SG13B:2.47Kg / SG13B-Q:2.43Kg
Dimension 222mm (W) x 181mm (H) x 285mm (D), 11.5 litres
8.74 (W) x 7.13 (H) x 11.22 (D), 11.5 litres

Note:
– Installing larger 140mm based radiator or fan will require the removal of the upper drive cage and sacrifice available room for graphics card to 9.3 (236mm) minus the thickness of the radiator.

– Maximum length for PSU is 150mm, we recommend 140mm due to varying connector locations on PSUs and the unique structure of SG13.
