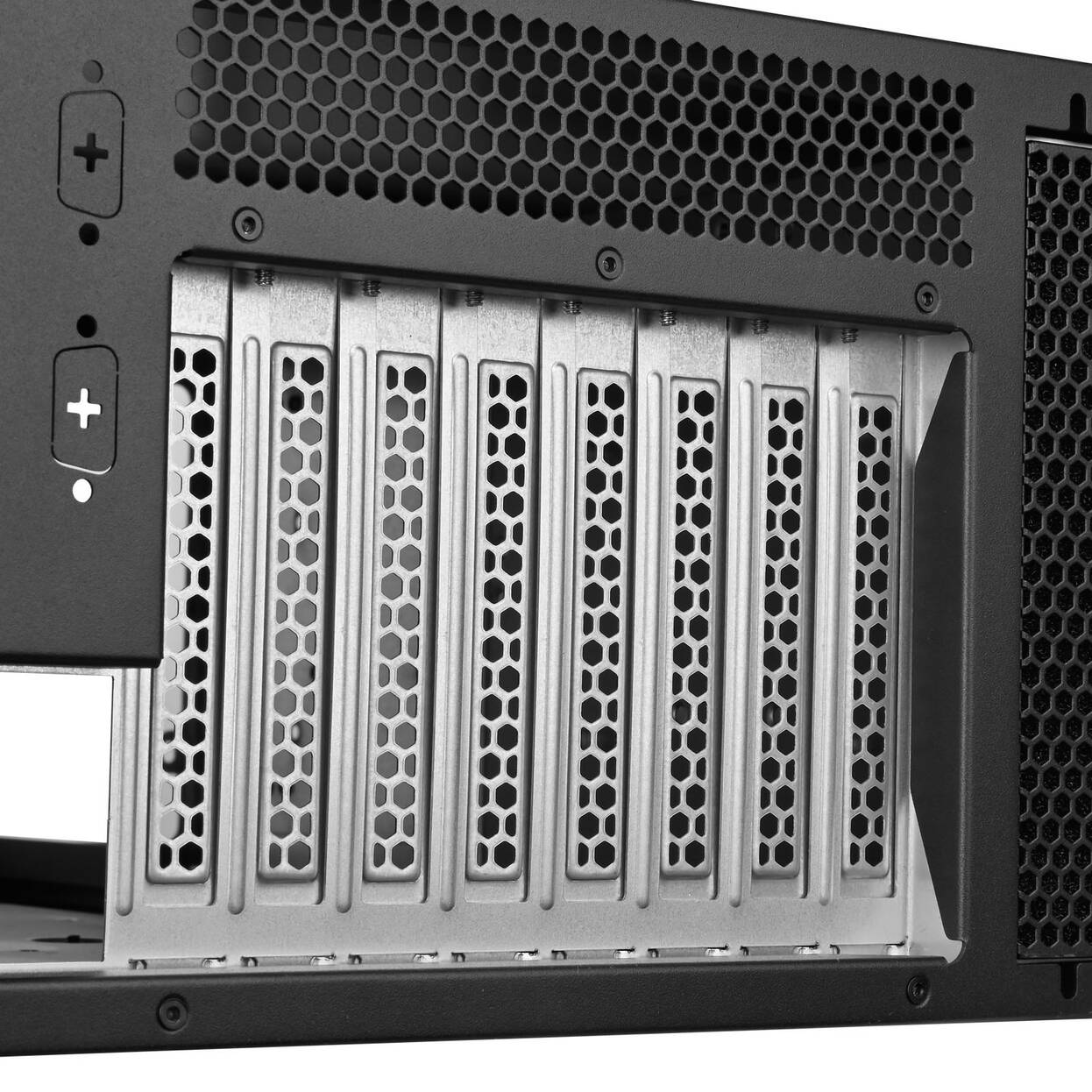

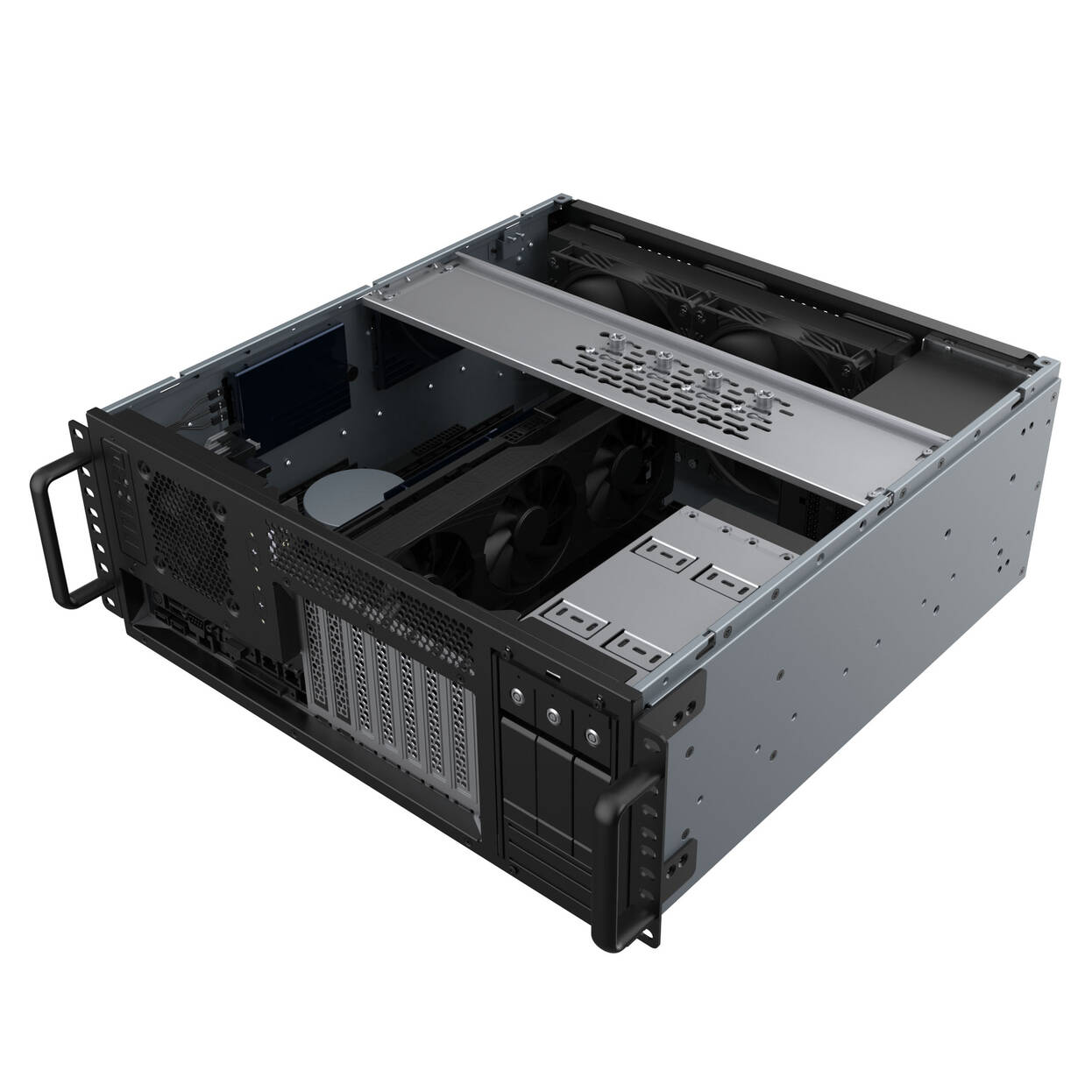

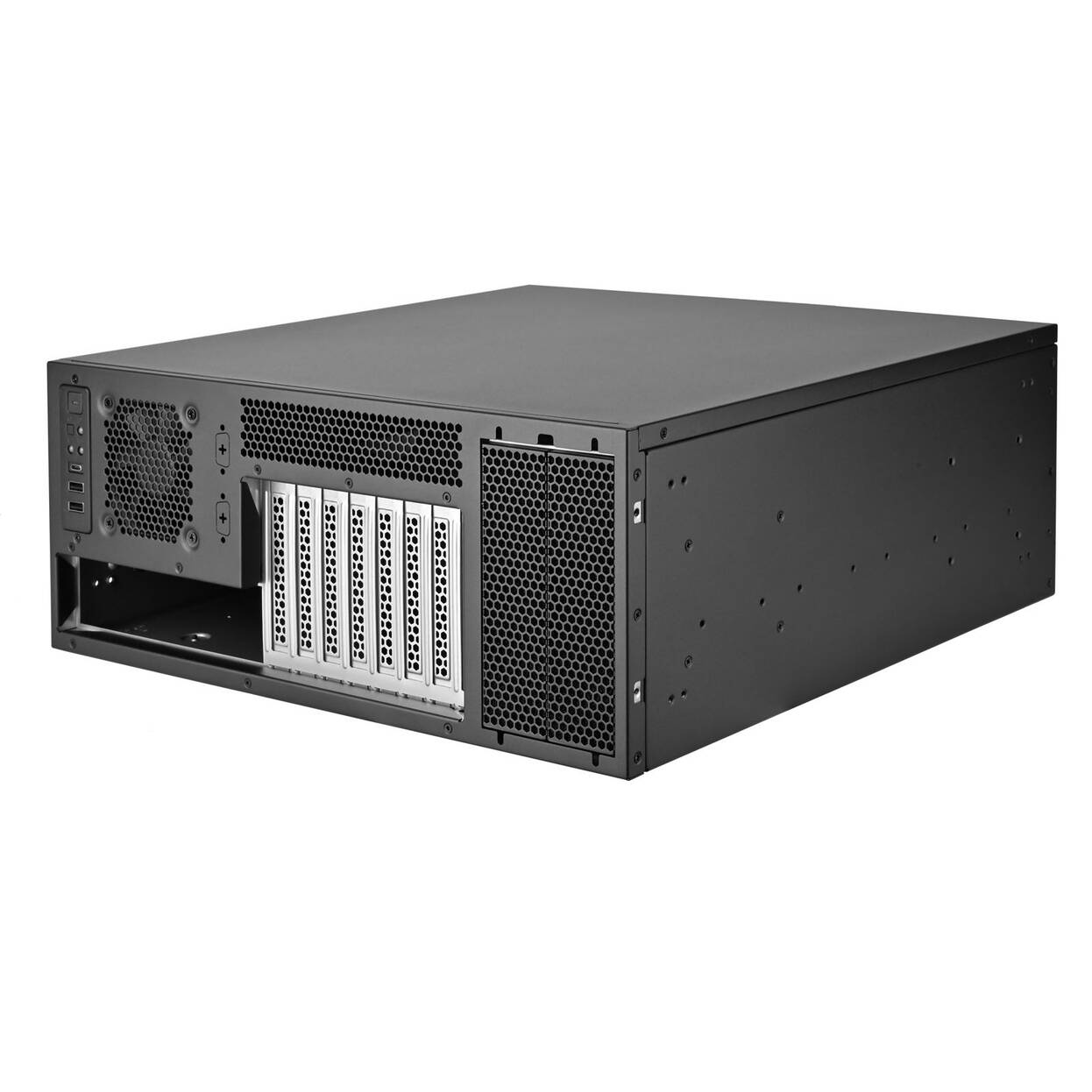

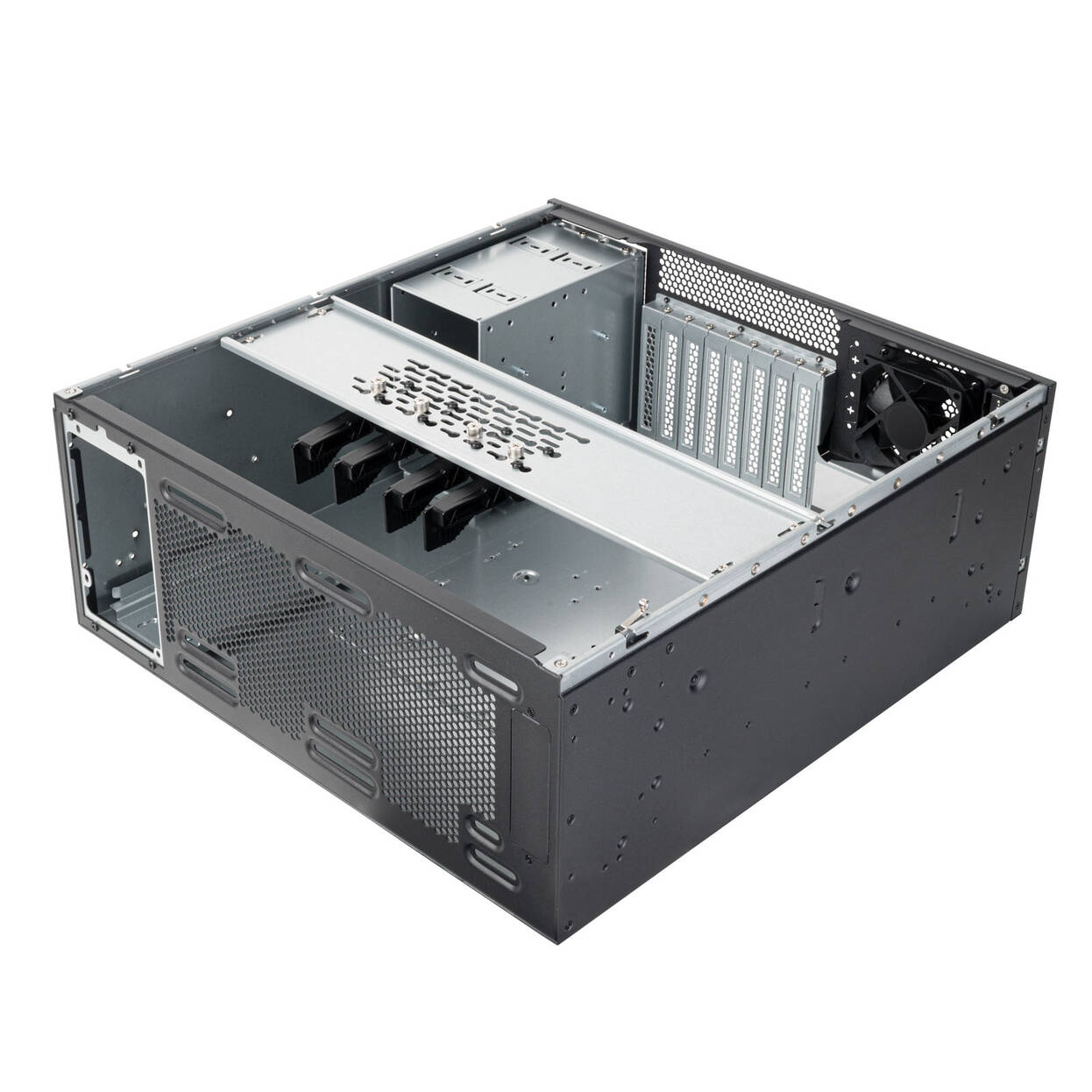

The RM46-502-l from Silverstone is a spacious 4U case designed for server builds. Several elements of the case are interchangeable, giving you more flexibility when building the server. For greater accessibility, the eight expansion slots are also directly accessible from the front.
The RM46-502-l from Silverstone is a spacious 4U case designed for server builds. Several elements of the case are interchangeable, giving you more flexibility when building the server. For greater accessibility, the eight expansion slots are also directly accessible from the front.
The RM46-502-l from Silverstone is a spacious 4U case designed for server builds. Several elements of the case are interchangeable, giving you more flexibility when building the server. For greater accessibility, the eight expansion slots are also directly accessible from the front.
Features:
– Functional case for servers
– Interchangeable elements
– Eight expansion slots accessible from the front for up to four graphics cards
– Mainboards up to SSI-EEB
– Radiator up to 280mm and up to three fans
– CPU cooler height up to 148mm
– 1x 5.25-inch and 2x 2.5-inch drive possible
– Spacious server case
The RM46-502-l from Silverstone is a spacious 4U case designed for server builds. Several elements of the case are interchangeable, giving you more flexibility when building the server. For greater accessibility, the eight expansion slots are also directly accessible from the front.
Excellent cooling for your server system
To ensure your servers are adequately cooled, there is the option to install fans. A 80mm fan is already included in the package. Additionally, there are two more fans on the back, sized 160mm, 140mm, and 120 mm.
There is also the option for water cooling if you prefer this for your server system. A 280mm radiator can be mounted at the front.
Suitable for server components
The tower can accommodate mainboards up to SSI-EEB standard. Without installed fans or radiators at the front, the graphics card can be up to 437mm long. Regarding width, note the following: With expansion card holder it should not exceed 116mm, without it can be up to 148mm wide.
The height of the CPU cooler must not exceed 132mm with expansion card holder, without it can be 148mm. There are no limits for the power supply.
Drives and connections

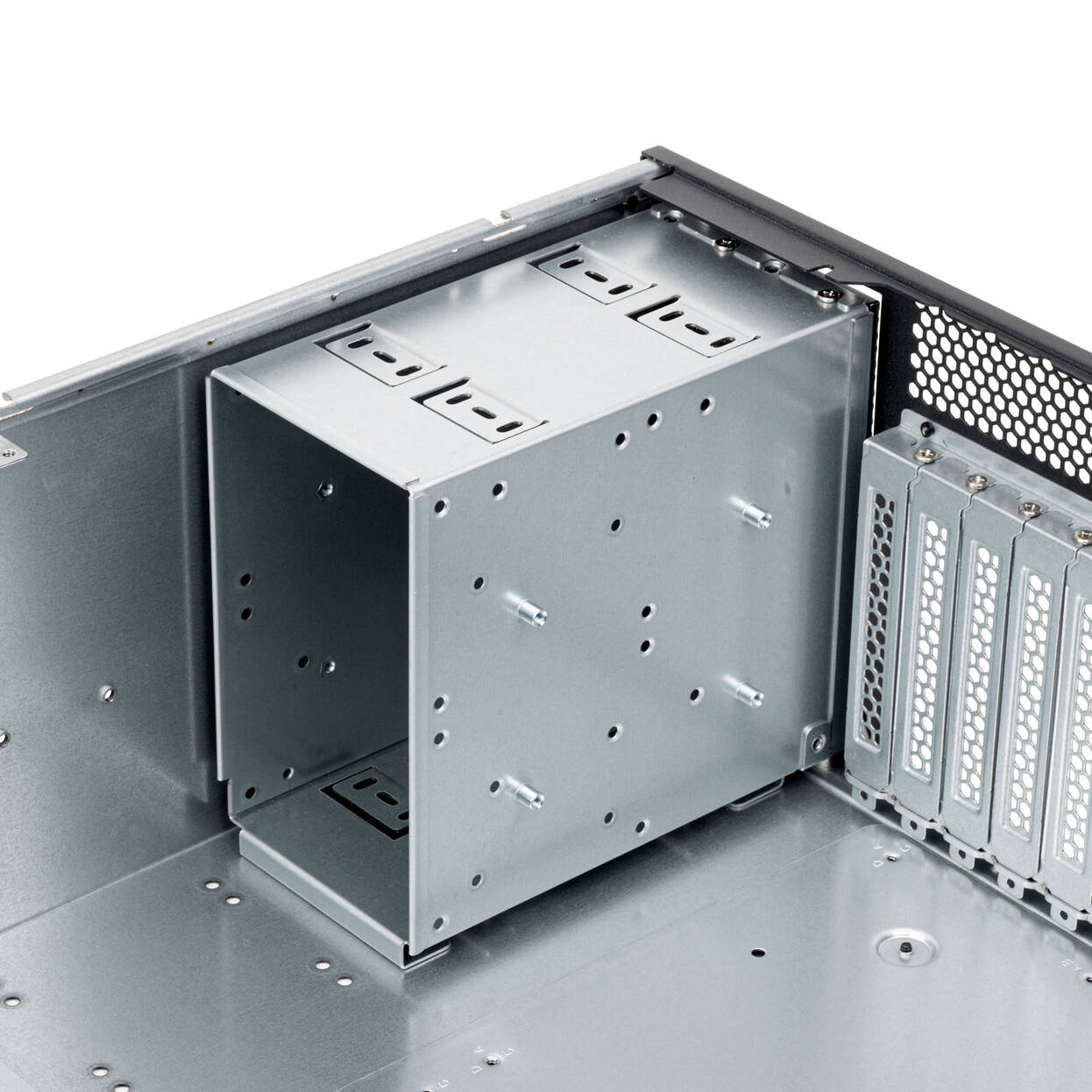

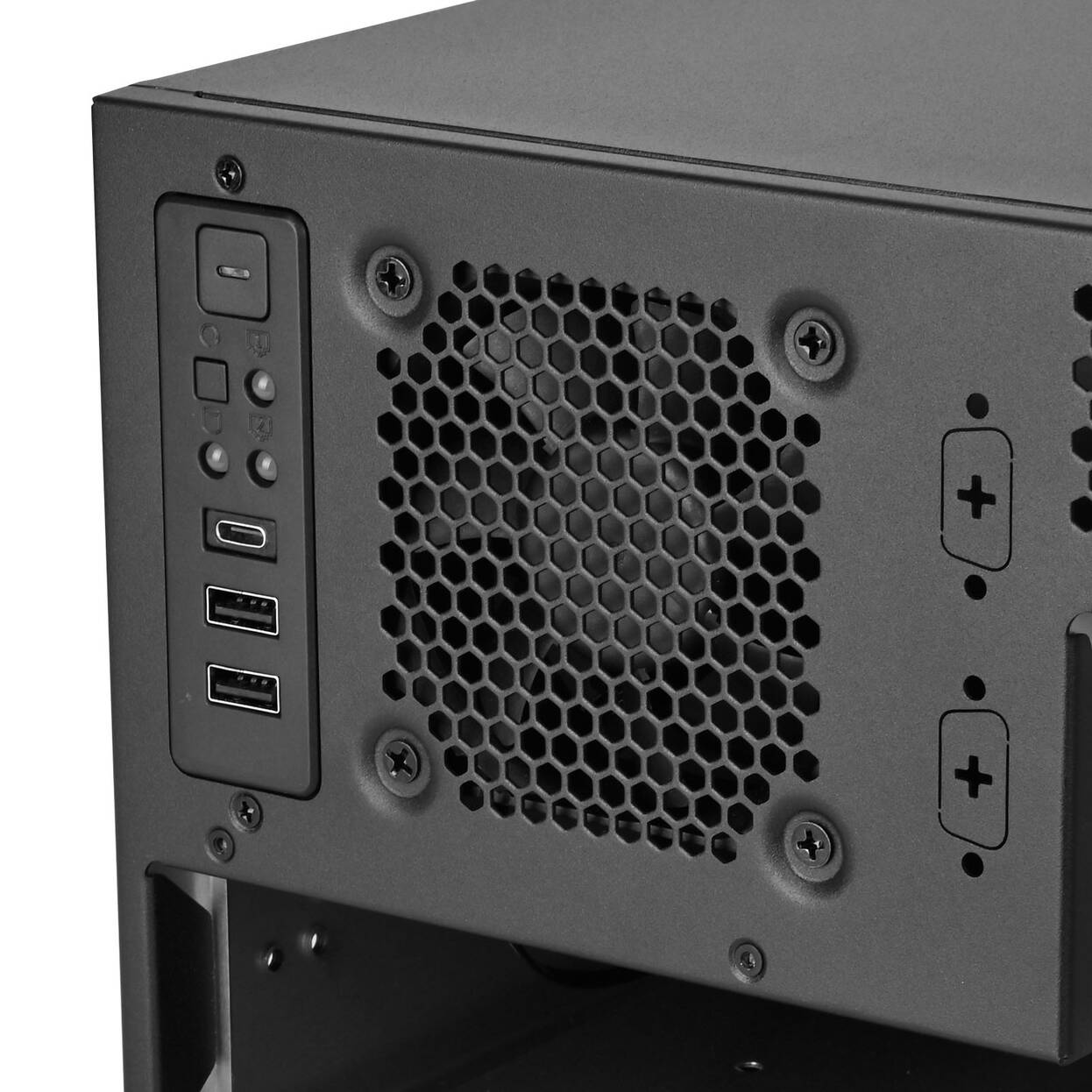

Externally, up to two 5.25-inch drives are possible and internally an additional two 2.5-inch drives. The I/O panel features a USB-C port and two USB-A ports. Several LEDs also indicate operational status, drive activity, and LAN activity
| General Specifications | |
|---|---|
| Colour | Black |
| Material | Steel |
| Weight | 8.69 kg |
| Dimensions | |
| Dimensions (W x H x D) | 440 x 176 x 456 mm |
| Motherboard Support | |
| Form Factors | SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX, Mini-ITX |
| Drive Bays | |
| External Bays | 2 × 5.25 inch (or 4 × 2.5 inch / 2 × 3.5 inch) |
| Internal Bays | 2 × 2.5 inch |
| Cooling Support | |
| Radiator Mounting (Rear) | 120 / 240 / 280 mm |
| Maximum Fans (Front) | 1 × 80 mm |
| Maximum Fans (Rear) | 2 × 120 / 140 / 160 mm |
| Power Supply Support | |
| PSU Type | ATX, Mini Redundant, 2U Redundant, 2U 1+1 CRPS |
| Max PSU Length | 430 mm (PSU + ODD / 5.25 inch device) |
| Expansion Slots | |
| Horizontal Slots | 8 |
| I/O Panel | |
| USB Ports | 1 × USB 3.1 Type-C (internal) 2 × USB 3.0 Type-A (internal) |
| Clearance | |
| Max CPU Cooler Height | 132 mm (with expansion card holder) 148 mm (without expansion card holder) |
| Max GPU Length | 437 mm (without rear fans / water cooling) |
| Max GPU Width | 116 mm (with expansion card holder) 154 mm (without expansion card holder) |
| Scope of Delivery | |
| Included Items | 1 × RM46-502-L Case 1 × 80 mm Fan |
Specifications
| Colour | |
|---|---|
| Primary Colour | Black |
| Dimensions & Weight | |
| Length / Depth | 456 mm |
| Width | 440 mm |
| Height | 176 mm |
| Weight | 8.69 kg |
| Case | |
| Case Type | Server Case |
| Motherboard Support | |
| Compatible Formats | ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-CEB, SSI-EEB |
| Max. Motherboard Format | SSI-EEB |
| Internal Clearance | |
| Max. CPU Cooler Height | 148 mm |
| Max. GPU Length | 437 mm |
| Max. PSU Length / Depth | 430 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX, Redundant PSU |
| Fan Support | |
| 80 mm Fans | 1 |
| 120 mm Fans | 2 |
| 140 mm Fans | 2 |
| 160 mm Fans | 2 |
| Radiator Support | |
| Max. Radiator Compatibility | 1 × Dual Radiator (280 mm) |
| Drive Bays | |
| 2.5 inch Internal Bays | 2 |
| 5.25 inch External Bays | 2 |
| External Ports | |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 2 |
| Case Features | |
| Side Panel | Open |
| Expansion Slots | |
| PCI / Expansion Slots | 8 |
| Materials | |
| Material | Steel |
| Lighting & Control | |
| Lighting / RGB | No |
| Fan / RGB Controller | No |
| Additional Contents | |
| Included Fans | 1 × 80 mm |
£313.45£261.21 Inc VatEx Vat
