Silverstone SST-RM42-502 Rackmount Server, 4U - gray

With seven full-size PCI slots and two 5.25-inch bays, which can also be fitted with 2.5- and 3.5-inch data carriers ex works, it is equally suitable for render stations and file- Server suitable.

The features of the Silverstone SST-RM42-502 rackmount case at a glance:
– 4U server case in gray
– For mainboards up to SSI-CEB form factor

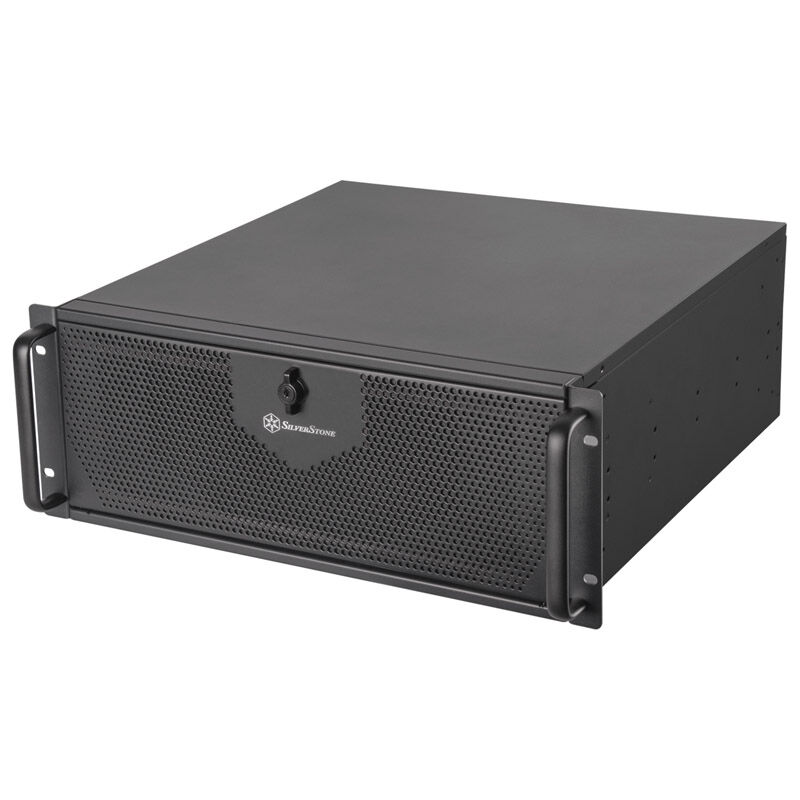

– Lockable front cover
– Space for two 120 mm or one 240 mm radiators
– Including a 120 and an 80 case fan
– Two 5.25-inch slots or up to five 2.5-inch or two 3.5-inch data carriers
– Front I / O with USB Type C / compatible with slide rails (optional)
– Expansion card protection for safe transport

Silverstone SST-RM42-502: Rackmount server housing with lots of space

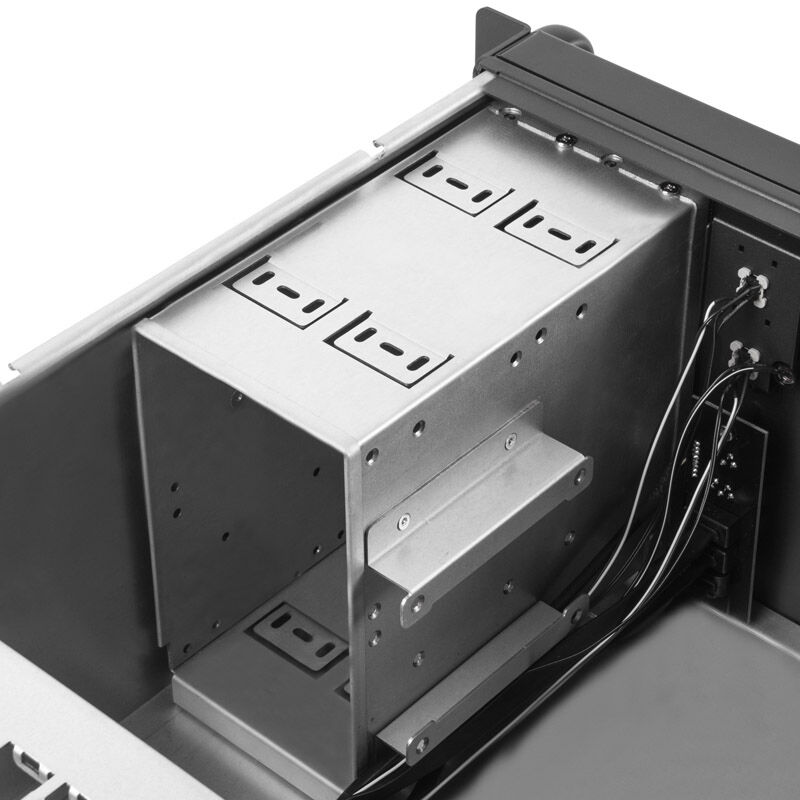

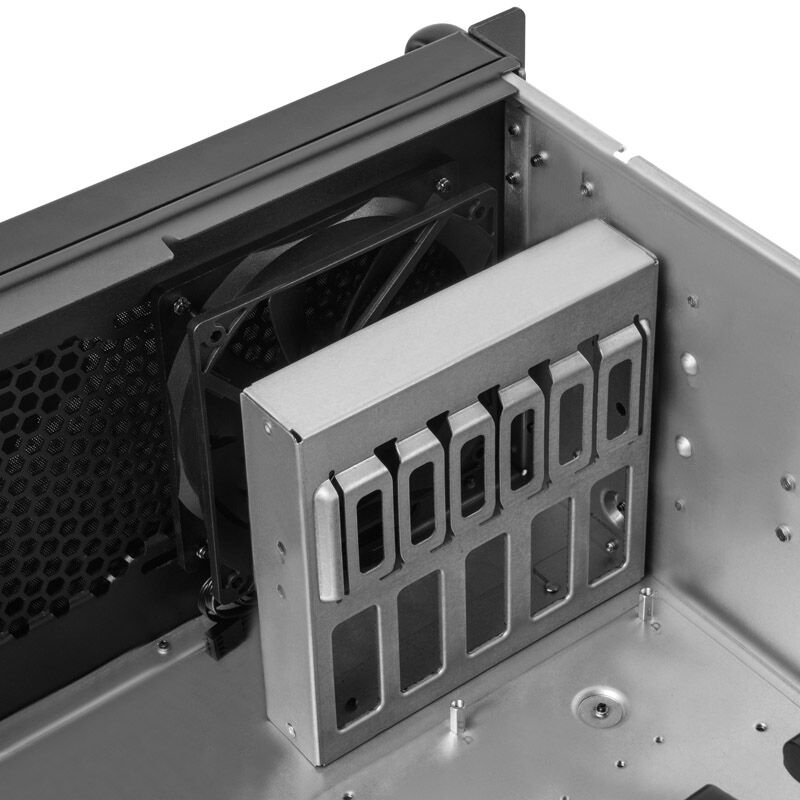

The Silverstone SST-RM42-502 rackmount server housing is equipped with two external 5.25-inch bays. Each of these slots is directly compatible with four 2.5-inch or two 3.5-inch data carriers. A 2.5-inch data carrier can be mounted below the slots regardless of the slot configuration. With its extensive space for storage drives, the SST-RM42-502 is ideally suited for file servers.

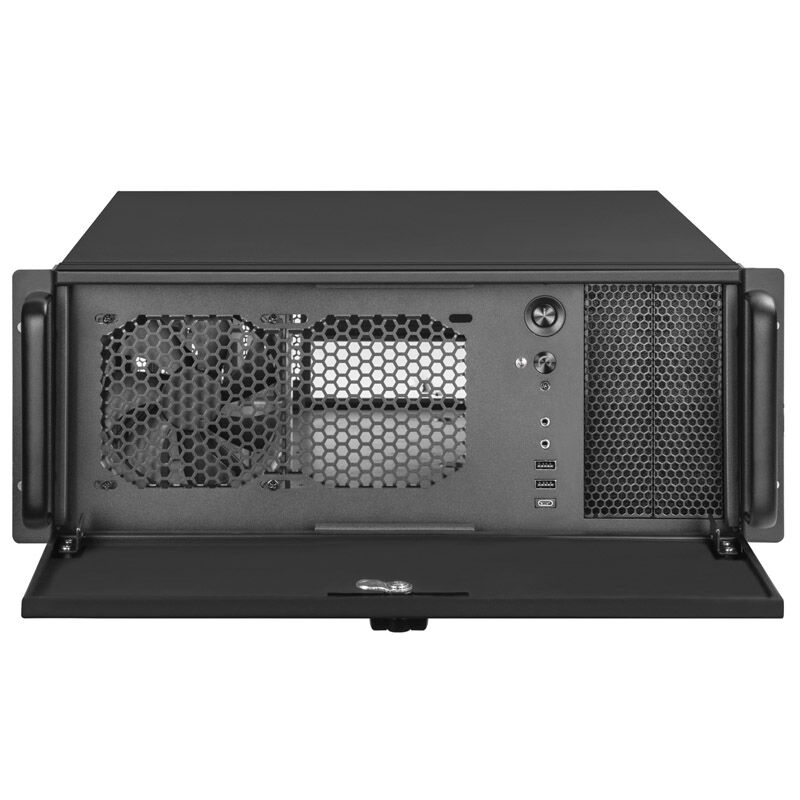

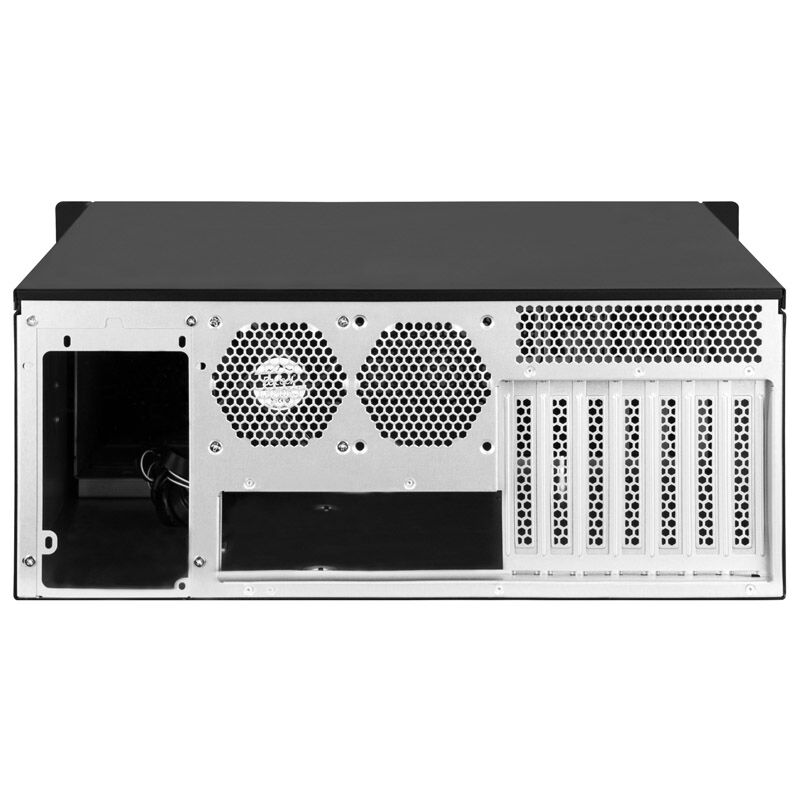

Silverstone has also thought of the dissipation of the heat generated in continuous operation. The front can accommodate two 120 millimeter fans or a large 240 mm radiator. Two 80 millimeter fans can also be attached to the rear. A 120 fan on the front and an 80 fan on the back of the housing are included ex works, so that fresh air supply and heat dissipation are provided. Filters on the front prevent dust from entering. The front door is lockable.

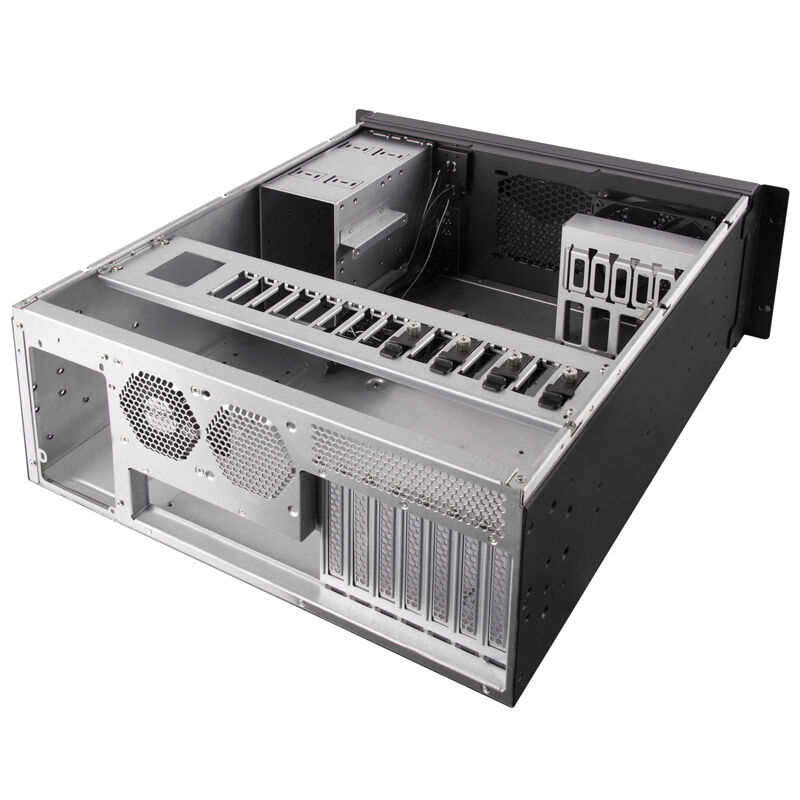

Main boards in Mini-ITX, Micro-ATX, ATX or SSI-CEB format can be installed on the mainboard carrier. The housing has seven expansion slots in full height. Graphics cards can be up to 42.6 centimeters long. The expansion card protection effectively protects graphics and other expansion cards from damage during transport or movement.

Technical details:
– Dimensions: 430 x 176 x 468 mm (W x H x D)
– Housing form factor: 4U
– Material: steel
– Color gray
– Form factor: SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX, Mini-ITX
– Power supply: 1x PS2 (ATX) (power supply + optical drive / 5.25 hard disk = 442mm) / mini redundant
– Expansion slots: 7
Drive bays:
– – 2x 5.25 inches (external)
– 4x 2.5 / 2x 3.5 inches (internal, if 1x 5.25 inches are dispensed with)
– 1x 2.5 inch (internal)
– Fan:
– 2x 120 mm (front)
– 2x 80 mm (rear)
– Pre-installed:
– 1x 120 mm (front)
– 1x 80 mm (rear)
– Radiator support:
– 2x 120 mm / 1x 240 mm (front)

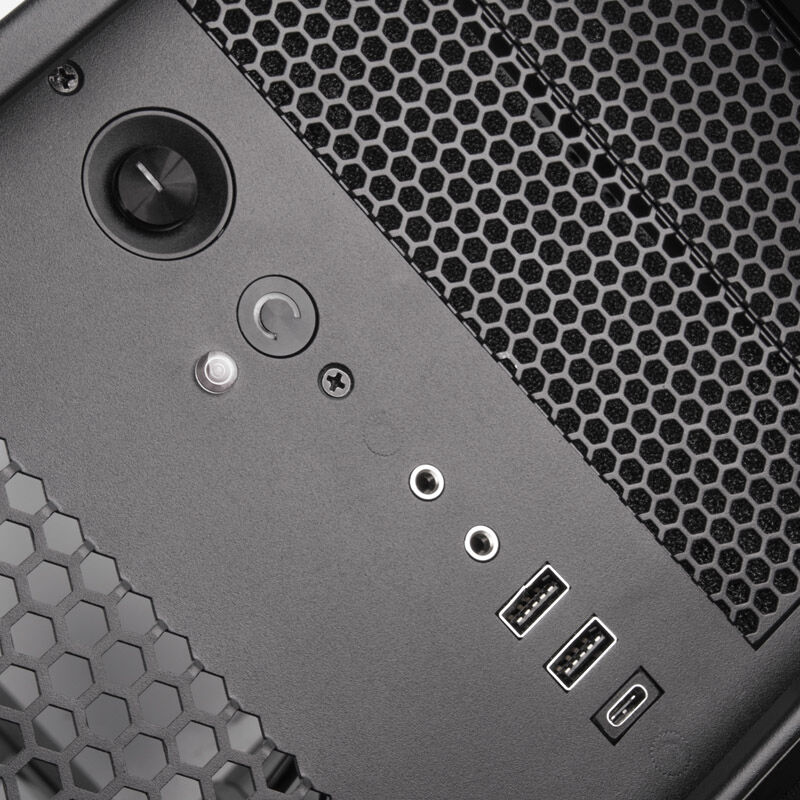

– Front connections:
– 2x USB 3.0
– 1x USB Type C
– 2x audio
– Maximum length graphics card: 426 mm (337 mm with expansion card holder)
– Maximum width graphics cards: 154 mm (116 mm with GPU holder)
– Maximum CPU cooler height: 148 mm (130 mm with GPU holder)
