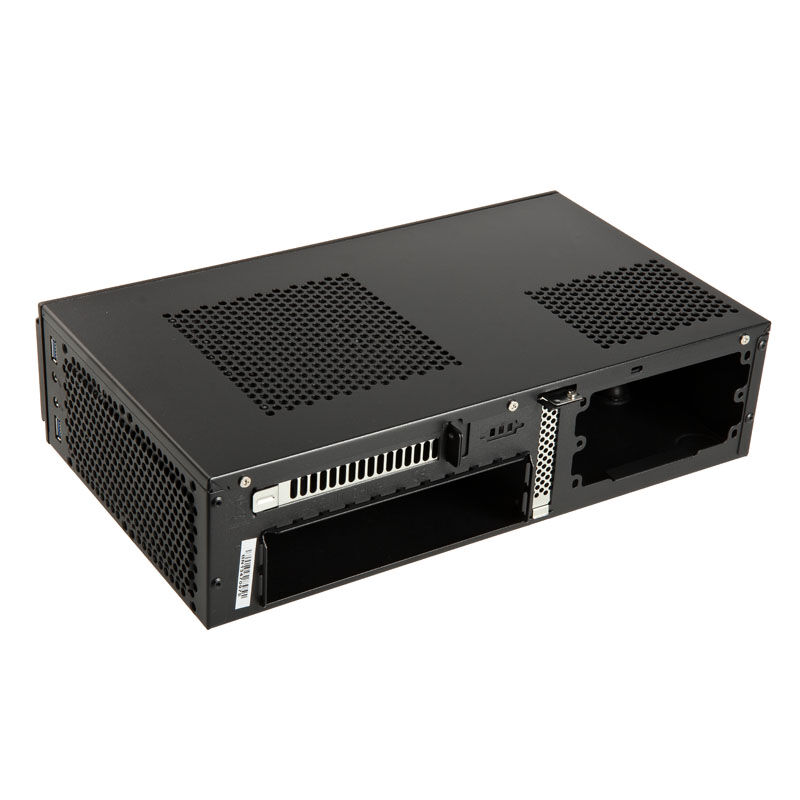

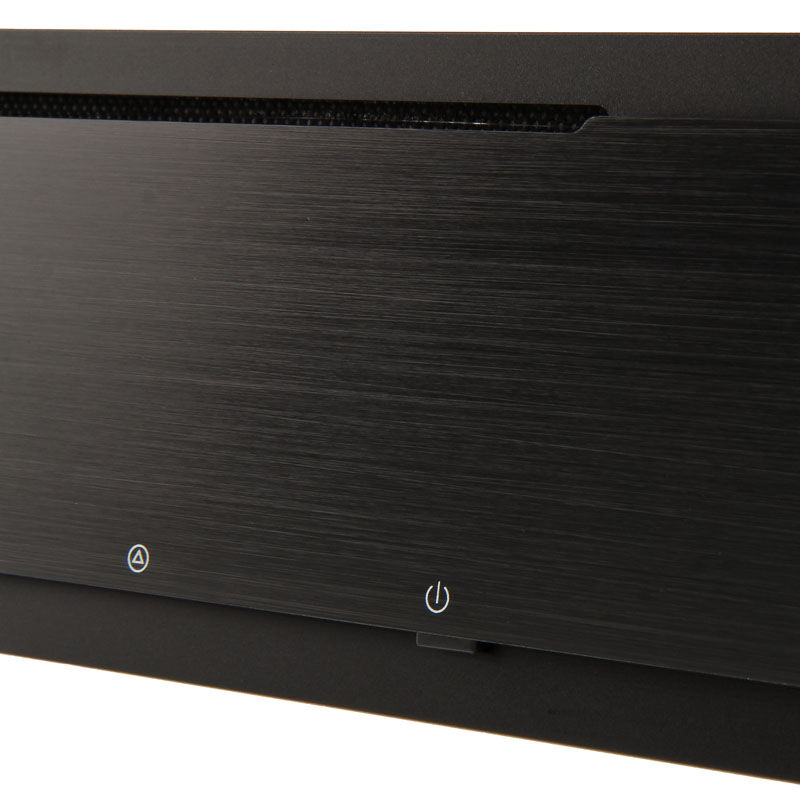

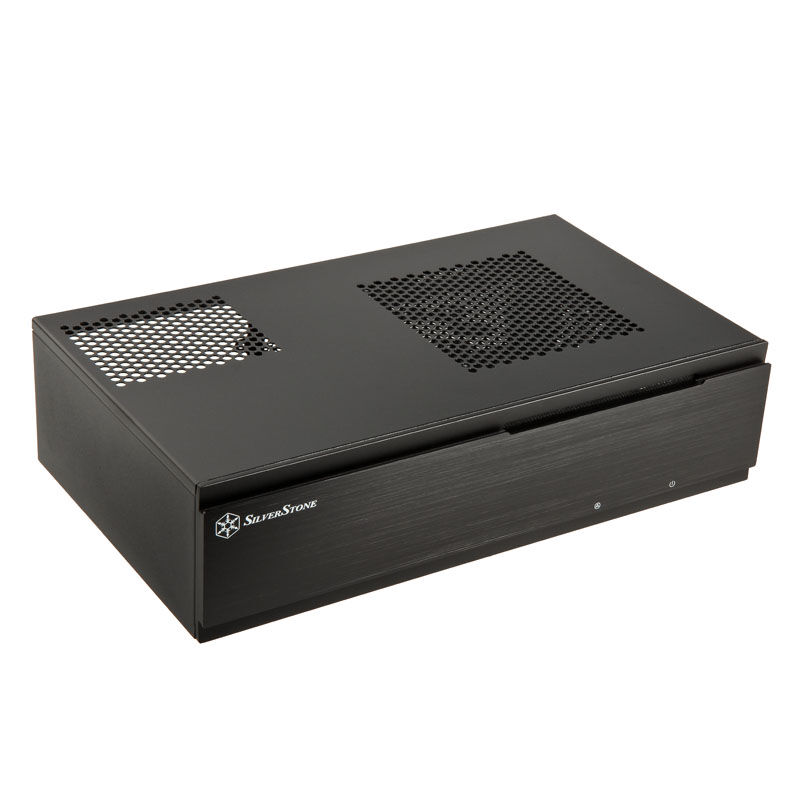

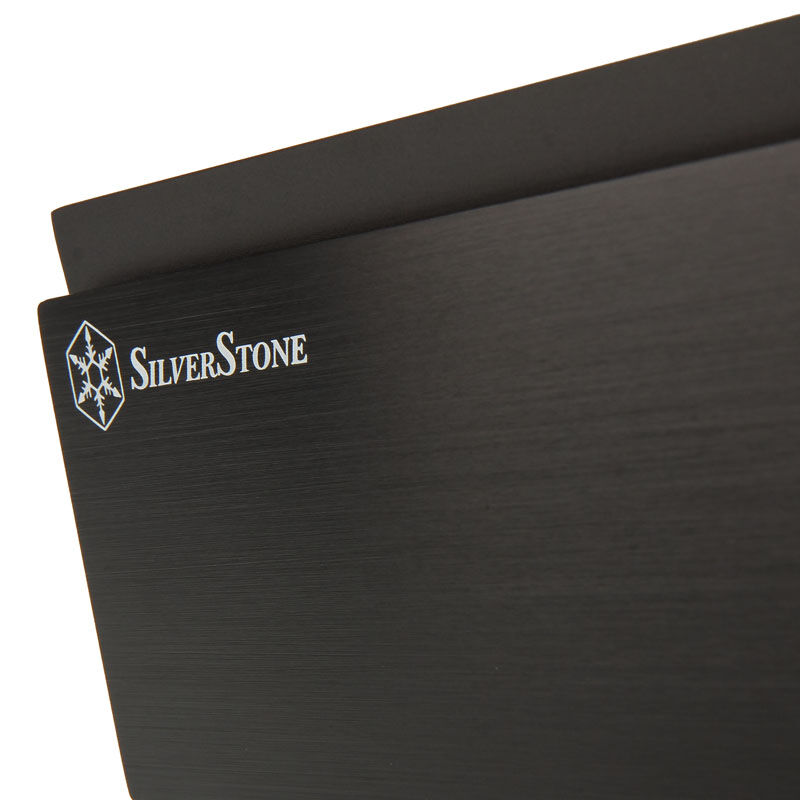

Silverstone SST-ML06B Milo USB3.0 HTPC case - black

The ML06 is so far the smallest branch of the Milo series. This is achieved through consistent small- form-factor design . Mainboardtray The is designed for Mini – ITX boards , as an AC adapter come SFX specimens used and the interior can accommodate a low-profile expansion slot card

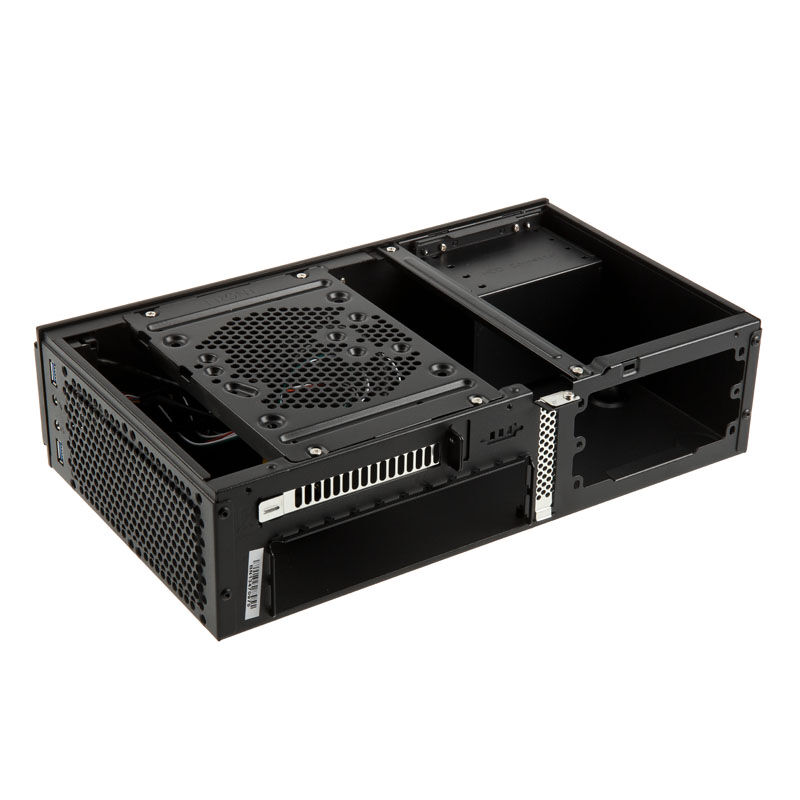

According to the flexible interior is constructed . In addition to the cage for four 2.5 -inch drives and the opportunity to install on the right side two 80 mm fans for ventilation of the motherboard , its like the predecessor model , especially the ingenious multi-purpose mounting on the mainboard that opens the Milo ML06 many possibilities . Here either two 2.5 -inch drives , an optical slot-in drive in slim design , a 3.5 – inch hard drive or a 120 – mm fan can be installed. For the latter, the case features in the lid of corresponding vents. Depending on the placement of the 4 – in-1 mount the CPU cooler may be up to 70 mm high.

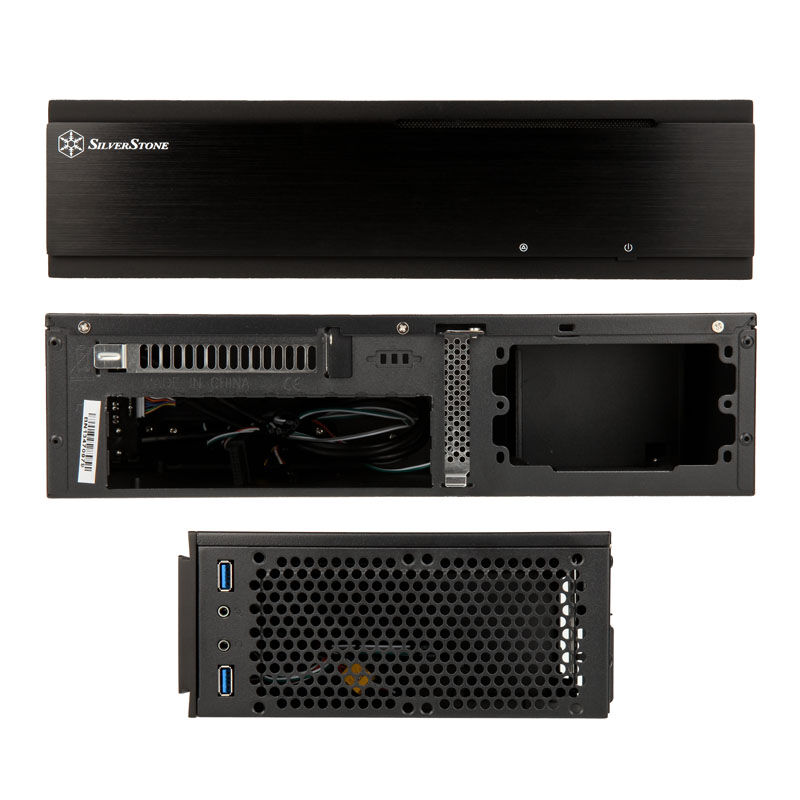

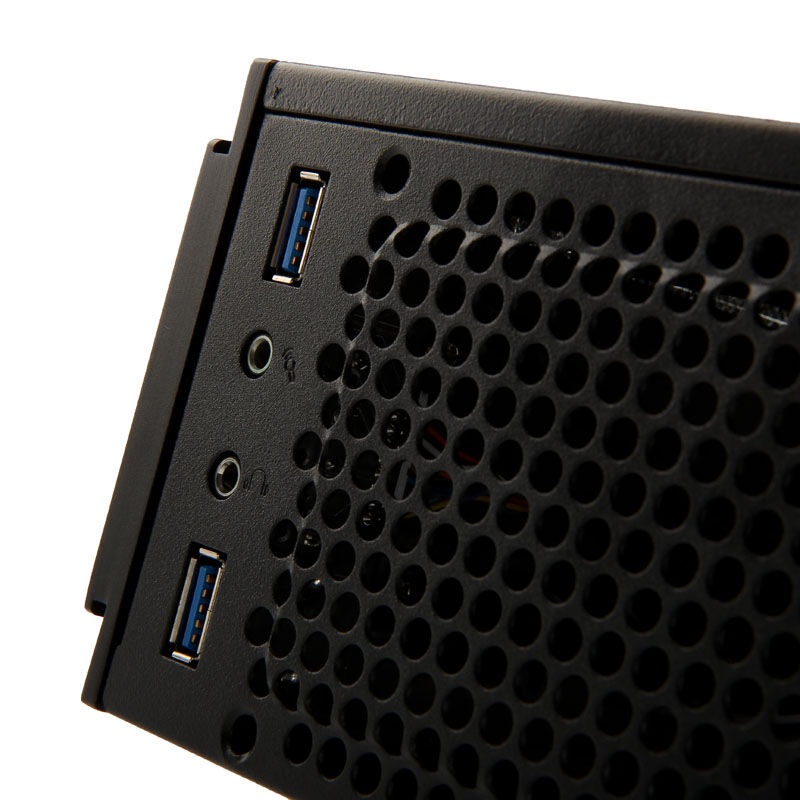

In the right side wall located directly behind the front each two USB 3.0 ports and audio ports . In order to carry out further internal connectors on the motherboard to the outside, has the ML06 at the back above the Mainboard-I/O-Panel a slot cover in standard height.

Technical details :

Dimensions: 350 mm x 99 mm x 205 mm (W x H x D)
Material: Brushed aluminum (front), steel (body )
Weight: 2.4 kg
Color: Black
Motherboard Format: Mini -ITX
fan:
2 x 80 mm (right side , optional)
1x 120 mm ( universal mount , optional)
Drive Bays:
1x slim slot – in (optional via universal mount )
4x 2.5 inch ( internal)
2x 2.5 inches or 1x 3.5 inch ( universal mount )
Power supply: Standard SFX (optional)
Expansion Slots :
1x standard (for connection panels)
1x Low Profile (within 7.49 cm wide)
I / O panel :
2x USB 3.0 ( internal connection)
2x audio
Maximum PSU length : 140 mm
Maximum CPU cooler height: 37-70 mm
